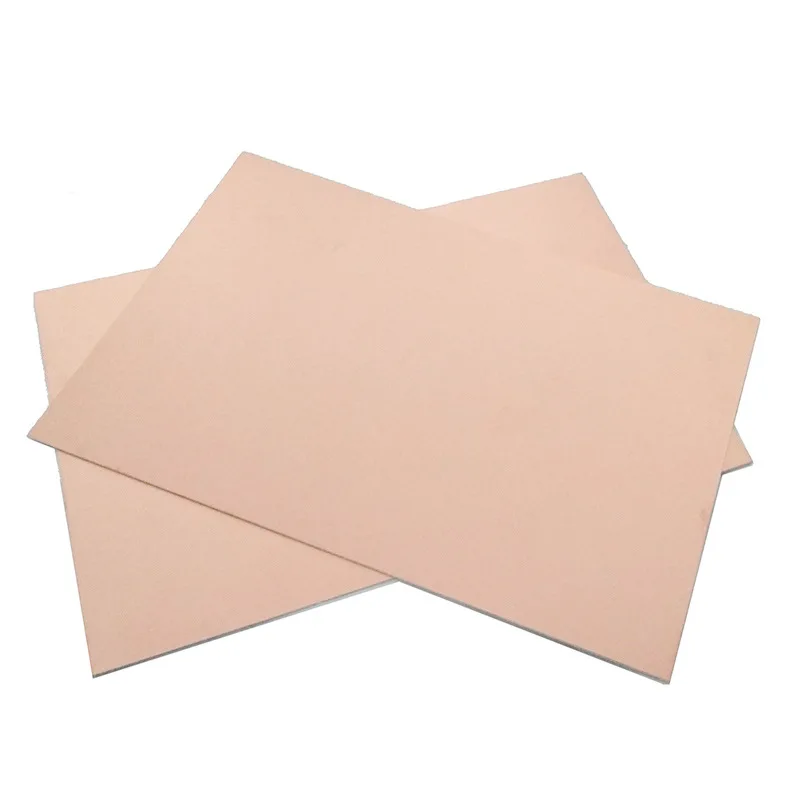

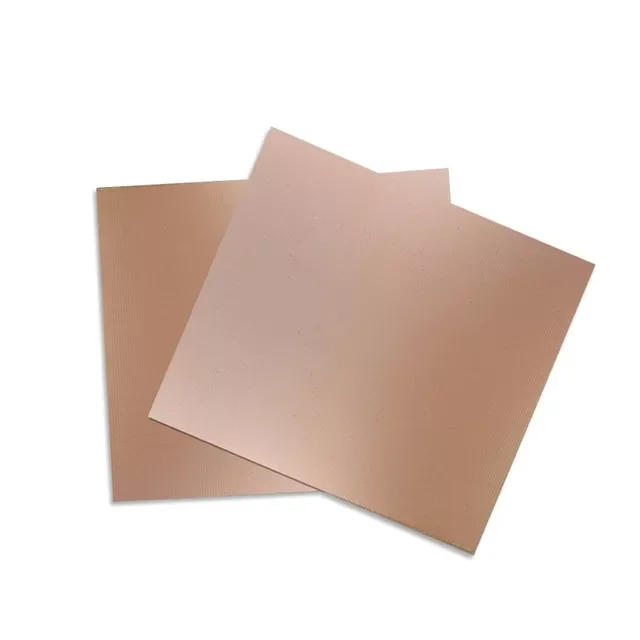

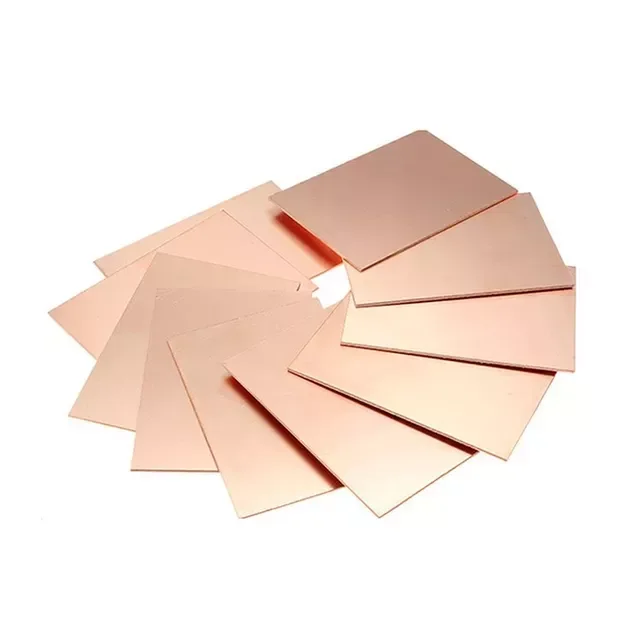

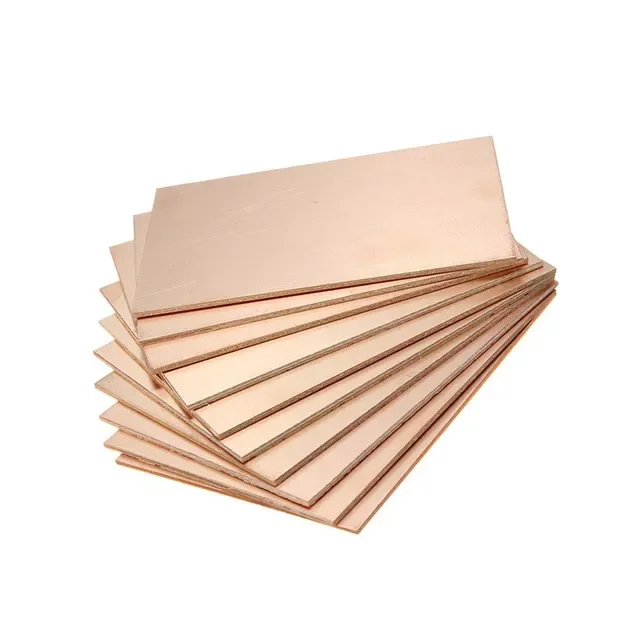

Hot Factory 2 layer PCB Laminates fr4 ccl 94V0 Copper Foil Laminate 1.6mm Double Sided Copper Laminate PCB Boards
- Category: >>>
- Supplier: Guangzhou Guangyou Electronics Co. Ltd.
Share on (1601010523746):
Product Overview
Description
Product Description
Aluminum Base Copper Clad Laminate PCB Raw Material Double Layer Copper Clad Laminate Sheet
Specification
Item | Unit | Test Condition | Specification | Test Result | |
Copper thickness | OZ | 1～2oz | |||
Aluminum thickness | mm | 0.6/ 0.8/ 1.0/1.2/ 1.5/ 1.6/ 2.0/3.0 | |||
Standard size | mm | 37''*49'', 41''*49'', 43 ''*49'' | |||
Appearance of substrate | -- | A4 | Compli with grading standards | PASS | |
Thermal Stress | Sec | 288℃/10s | No delamination | No delamination | |
Glass Transition(Tg) | ℃ | DSC | 110≥5℃ | 135.6℃ | |
Dielectric Breakdown | KV | D-48/50+D-0.5/23 | ≥40 | 45 | |
Arc Resistance | Sec | D-48/50+D-0.5/23 | ≥60 | 65 | |
Dielectric Strength（1MHz） | -- | C-40/23/50 | ≤5.4 | 4.7 | |
Dielectric loss(1MHz） | -- | C-40/23/50 | ≤0.035 | 0.015 | |
Flexural Strength | N/m㎡ | Lengthwise A4 | ≥415 | 525 | |
N/m㎡ | Crosswise A4 | ≥345 | 413 | ||
Peel Strength | N/mm | 35um 288℃,10Sec | ≥1.40 | 1.61 | |
PPM | Lengthwise E-4/105 | ±300 | NA | ||
Crosswise E-4/105 | ±300 | NA | |||
Surface resistivity | MΩ | After moisture resistance | ≥10 4 | 3.27*10 6 | |
Volume resistivity | MΩ--cm | After moisture resistance | ≥10 6 | 4.38*10 7 | |
Breakdown Voltage | kv | IPC TM-650 2.5.6 | ≥3 | ≥5 | |
Water absorption | % | E-1/105+D-24/23 | ≤0.35 | ≤0.12 | |
Relative tracking index of leakage | V | IEC60112 | 175-250 | 200 | |
Flame resistance | -- | E-24/125 | -- | -- | |
More Different Types of Products Can Also be Customized!
Application range:
Lighting: LED exterior wall lighting, street LED lighting, LED stage lighting, household LED lighting.
Lighting: LED exterior wall lighting, street LED lighting, LED stage lighting, household LED lighting.
Recommend Products
Company Profile
Guangzhou Guangyou Electronic Co., Ltd
Guangzhou Guangyou Electronics Co., Ltd. is a high-tech enterprise specializing in the R&D, lamination, production and sales of LED heat-dissipating metal substrates. It has modern professional workshops and introduced a full set of advanced production equipment. It has more than 100 employees and has a line of The professional team of board production and strong production technology, our company has complete inspection equipment and strict quality inspection department to monitor the product quality in the whole process.
Products are widely used in LED lighting, car lights, stage lighting, high-power power supplies, home appliances, indoor and outdoor consumer electronics lighting. High heat dissipation metal substrate, copper substrate, single and double-sided composite board mainly solve the problem of PCB heat dissipation. LED high heat dissipation, high quality, high efficiency and high stability have become the unremitting goal of every Guangyou people. Creating value for customers is our company's service tenet.
Our Factory
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
