GNSS Auto-Steering System for tractor agriculture gps AF305

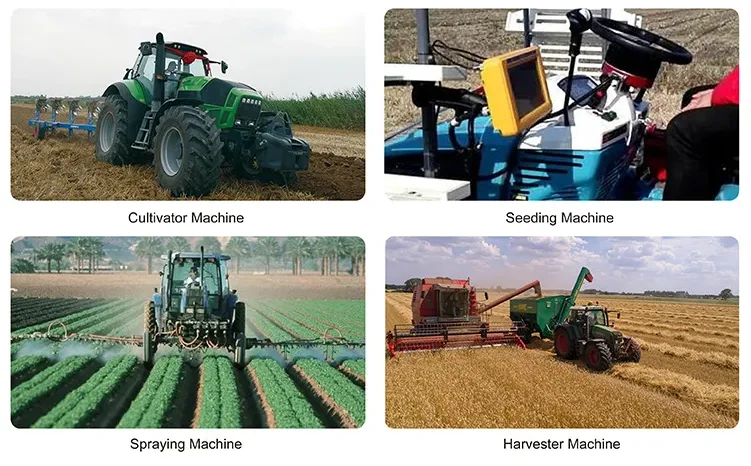

The AF305 Auto-Steering System is an automatic steering system which uses high-torque motor control steering wheel. It integrates the advantages of convenient installation, large torque, high precision, low noise, low heat and quick debugging. It is suitable for various applications of tractors, harvesting machines, plant protection machinery, rice transplanters and other agricultural models.

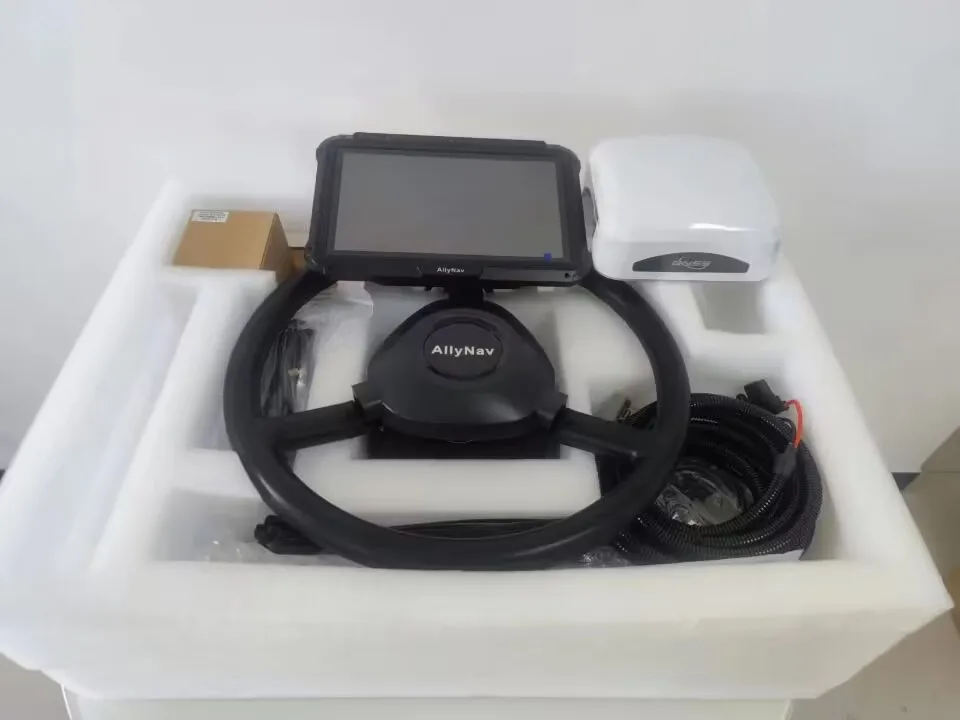

The system includes a control tablet integrated with a 4G modem, a steering wheel motor with a built-in controller, and an angle sensor. It can be widely used for sowing, cultivating, trenching, ridging, spraying pesticide, transplanting, land consolidation, harvesting and other work scenarios.
The system includes a control tablet integrated with a 4G modem, a steering wheel motor with a built-in controller, and an angle sensor. It can be widely used for sowing, cultivating, trenching, ridging, spraying pesticide, transplanting, land consolidation, harvesting and other work scenarios.
FEATURES AT A GLANCE
Key Features
Supports multiple constellations & frequencies: - GPS L1, L2
- GLONASS L1, L2
- BeiDou B1, B2
- GALILEO E1, E5b
- QZSS L1, L2
- SBAS L1
- GLONASS L1, L2
- BeiDou B1, B2
- GALILEO E1, E5b
- QZSS L1, L2
- SBAS L1
Fast installation in 30 minutes Calibration in 15 minutes

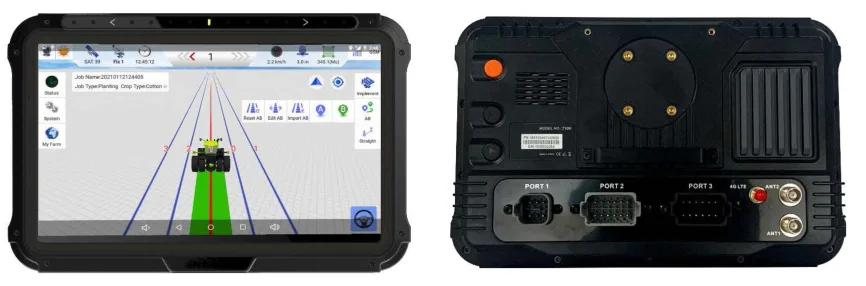

10.1’’ touch screen control tablet
Small high-torque motor
High accuracy to ±2.5cm
PRODUCT SPECIFICATIONS
F305 | Multiple constellations & frequencies | GPS L1/L2 | |
GLONASS L1/L2 | |||
Beidou B1/B2 | |||
Galileo E1/E5b | |||
QZSS L1/L2 | |||
SBAS L1 | |||
Small high-torque motor | |||
Highly integrated system | |||
Non-contact angle sensor | |||
10.1" touch screen control tablet | |||
High accuracy to ±2.5cm | |||
Without modification of the hydraulic system | |||
Dual antennas receive signals | |||
Fast installation in 30 minutes | |||
Calibration in 15 minutes | |||
T100 Control Tablet | System | ||
Operating System | Android 6.0 | ||
CPU | Quad-Core 1.5GHz | ||
Memory | 2GB RAM+16GM ROM | ||
External Flash | T-Flash, up to 64GB | ||
LCD | 10.1" Capactive Touch Screen | ||
Resolution | 1024*600 pixels | ||
Communication | |||
Wi-Fi | 2.4GHz IEEE 802.11 b/g/n | ||
Cellular | FDD-LTE 800/1800/2100/2600MHz TD-LTE 1900/2300/2500/2600MHz WCDMA 850/900/1900/2100MHz GSM 850/900/1800/1900 MHz | ||
Bluetooth | V4.0 | ||
USB | USB 2.0(host& debug) *1 | ||
Audio | 3.5mm Audio Jack for Audio | ||
Serial Port | RS232*2, RS485*1 | ||
CAN Port | CAN*2 (J1939, CANOpen, ISO15765) | ||
Ethernet | RJ45 (100M Ethernet) *1 | ||
GNSS | |||
Signal Tracking | GPS L1,L2; GLONASS L1,L2; BeiDou B1,B2; GALILEO L1, L2; QZSS L1,L2; SBAS L1 | ||
GNSS Channels | 432 | ||
Single Point Positioning Accuracy (RMS) | Horizontal: 10mm+1ppm Vertical: 15mm+1ppm | ||
Heading Accuracy | 1m Baseline(RMS) : 0.1° | ||
Timing Accuracy (RMS) | 20ns | ||
Velocity Accuracy (RMS) | 0.03m/s | ||
Correction | RTCM 2.3/3.0/3.2 | ||
Heading and RTK update rate | 20Hz | ||
Network Protocol | NTRIP, TCP/IP | ||
Electrical | |||
Power Input | 9V~36V DC | ||
Power failure detection | supported | ||
Power output | 12V DC*2 | ||
Physical | |||
Dustproof & Waterproof | IP-65 | ||
Dimension | 281mm*181mm*42mm | ||
Weight | 1.5kg | ||
Operating Temperature | -20℃~+70℃ | ||
Storage Temperature | -40℃~+85℃ | ||
EMS2 Motor Wheel | Rated speed | 100rpm | |
Rated torque | 10 N-m | ||
Guaranteed continuous operation speed | 100rpm | ||
Maximum freewheel error | 0 (without reducer) | ||
Supply voltage | 8V~16V DC | ||
Rated current | 10A | ||
Stall current | 25A | ||
Rated voltage | 12V | ||
Communication | |||
Communication protocol | ModBUS | ||
Encoder resolution | 1000 lines, 4000 pulses/ circle | ||
Encoder interface (protocol) | parallel, no protocol | ||
Encoder maximum output rate | 200KHz | ||
Communication interface | RS232 | ||
Physical | |||
Dimension | 187*100.2mm (motor) 410*32mm (steering wheel) | ||
Weight | 6.35kg (motor only) | ||
Material | Aluminum alloy | ||
Envoronmental | |||
Operating Temperature | -40℃~+105℃ (motor) | ||
Storage Temperature | -45℃~+150℃ (motor) | ||
R70 Smart Antenna | Frequencies | GPS L1,L2;GLONASS L1,L2; BeiDou B1,B2,B3; Galileo E1/E5a/E5b; QZSS L1/L2/L5 | |
Polarization | RHCP | ||
Axial Ratio | ≤3dB | ||
Azimuth Coverage | 360° | ||
Output VSWR | ≤2.0 | ||
Peak Gain | 5.5dBi | ||
Phase Center Offsets | ±2mm | ||
Environmental | |||
Operating Temperature | -30℃~+75℃ | ||
Storage Temperature | -40℃~+85℃ | ||
Humidity | 95% not condensing | ||
LNA | |||
LNA Gain | 40±2dB | ||
Noise Figure | ≤2.0dB | ||
Output VSWR | ≤2.0 | ||
Operation Voltage | 3.3V~12V DC | ||
Operation Current | ≤45mA | ||
Ripple | ±2dB | ||
Mechanical | |||
Physical Dimension | 179*179*69mm | ||
Connector | TNC Female | ||
Screw Hole for assembly | 5/8" *11 UNC Female | ||
Weight | 1.1kg | ||
Channel | 432 channel, based on Nebulasll chip | ||
