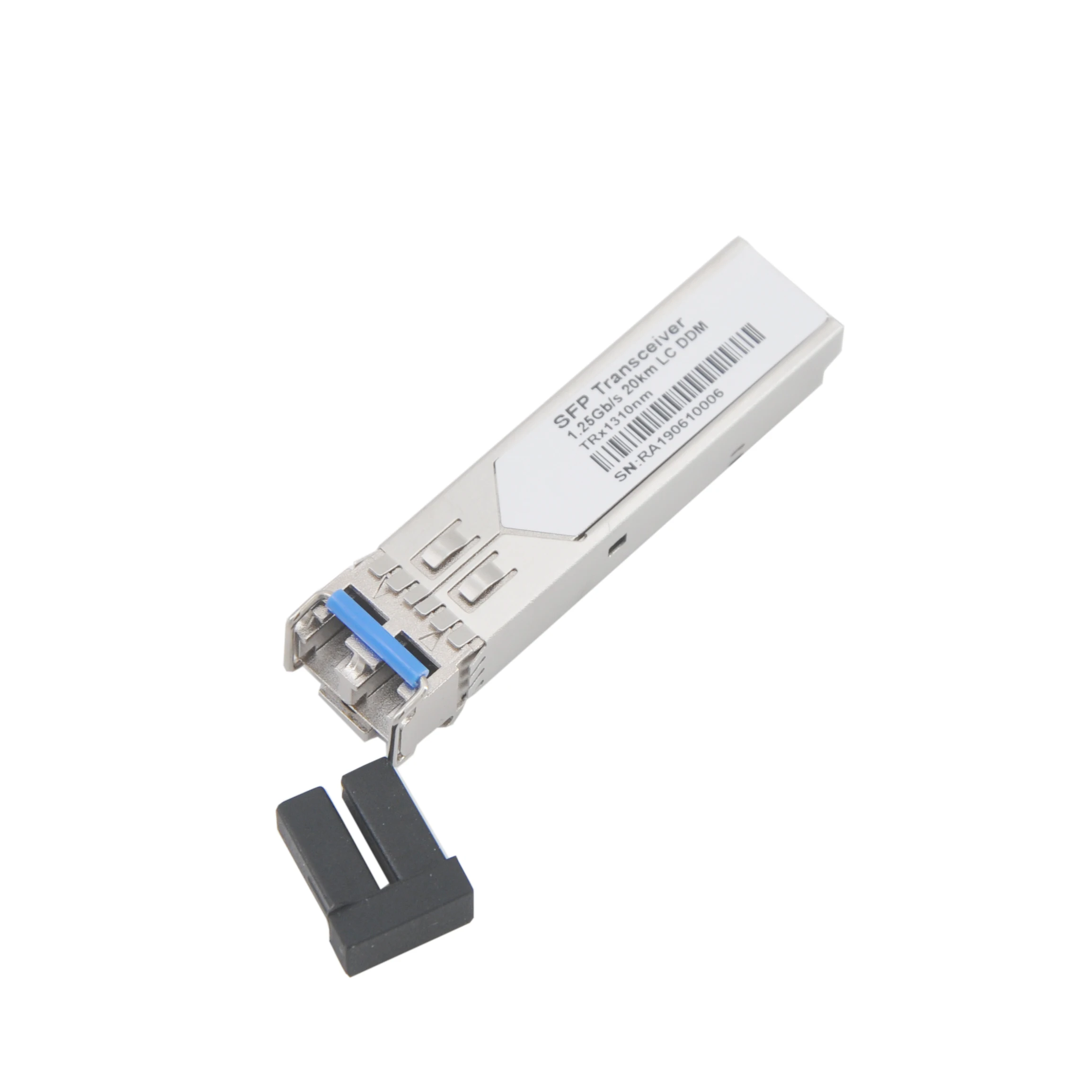

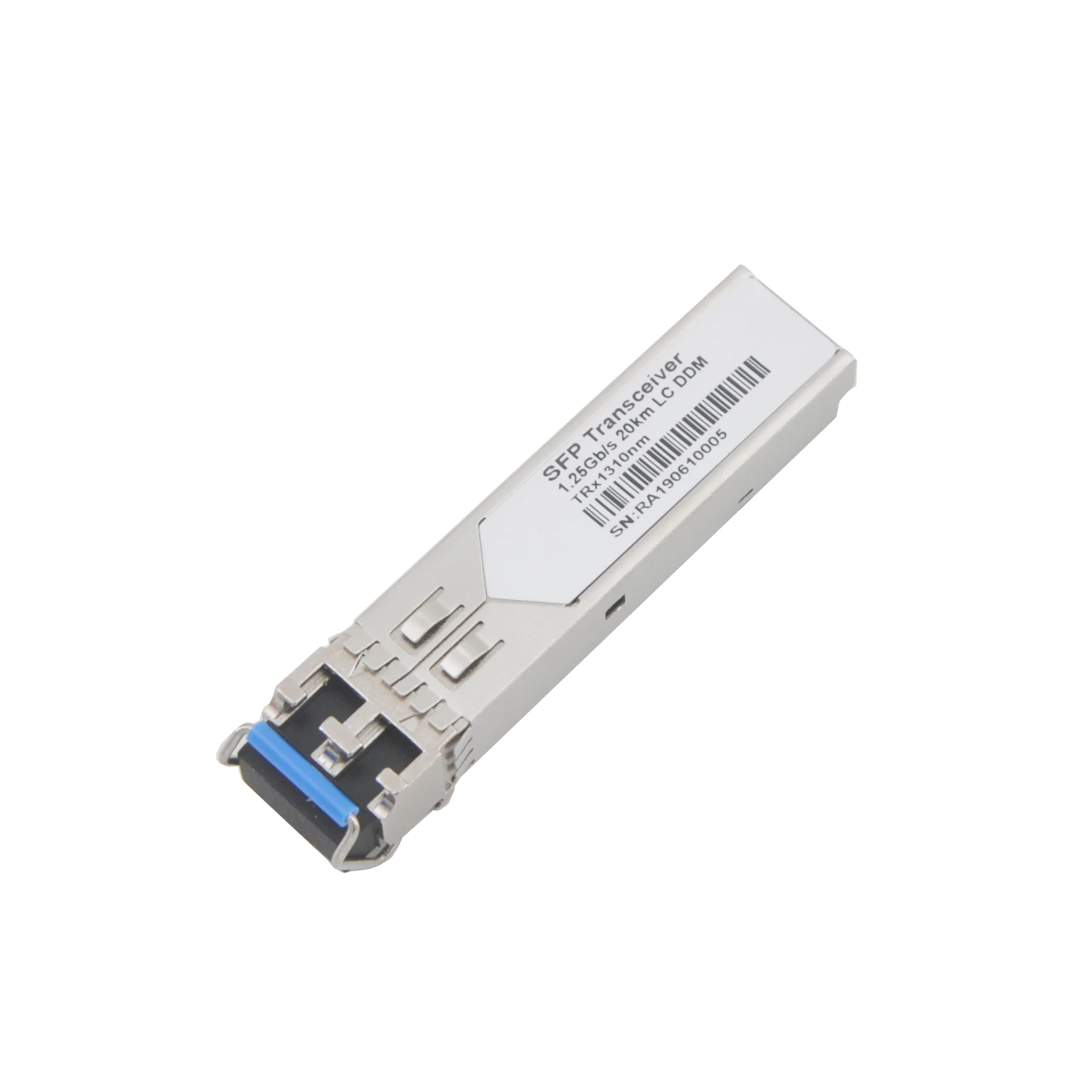

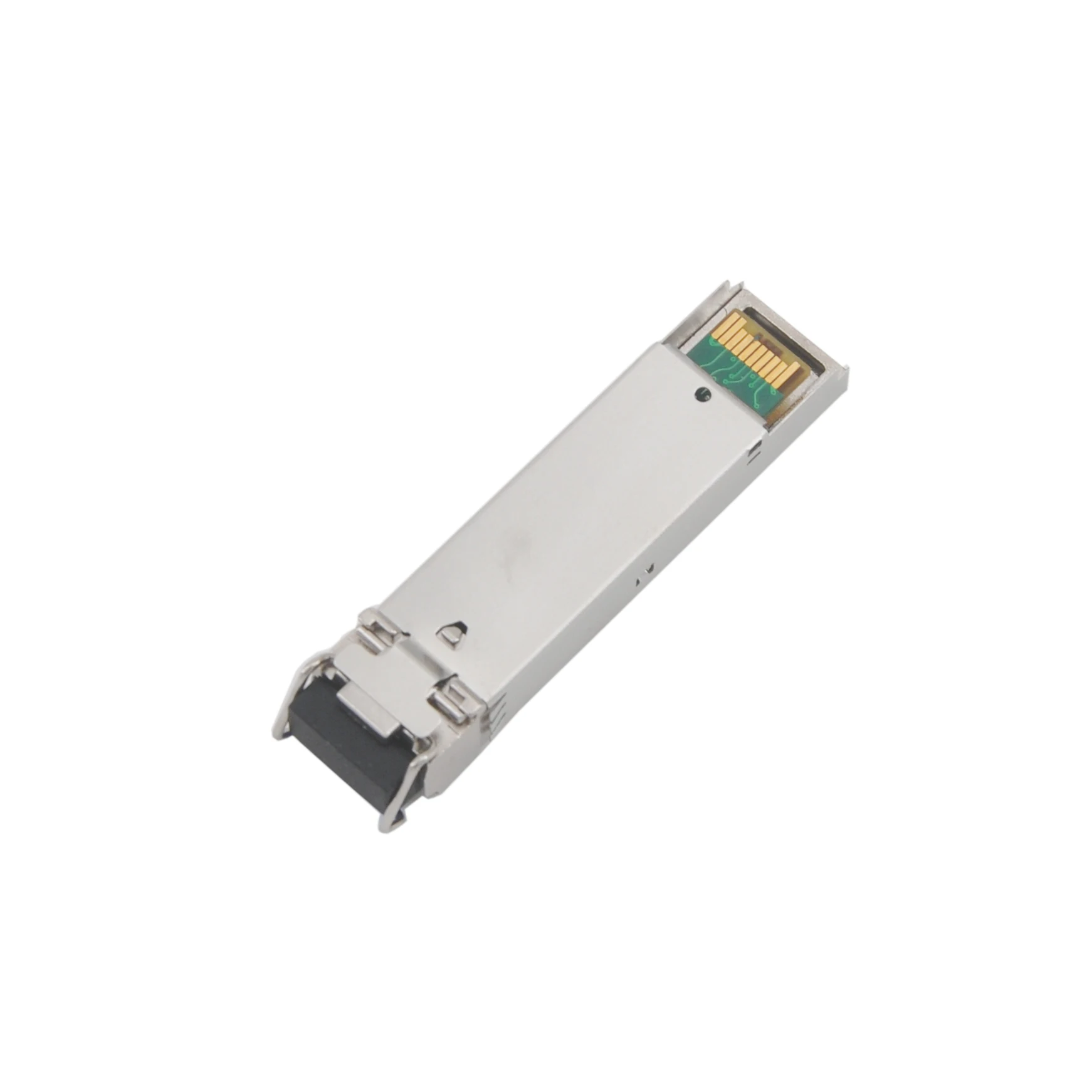

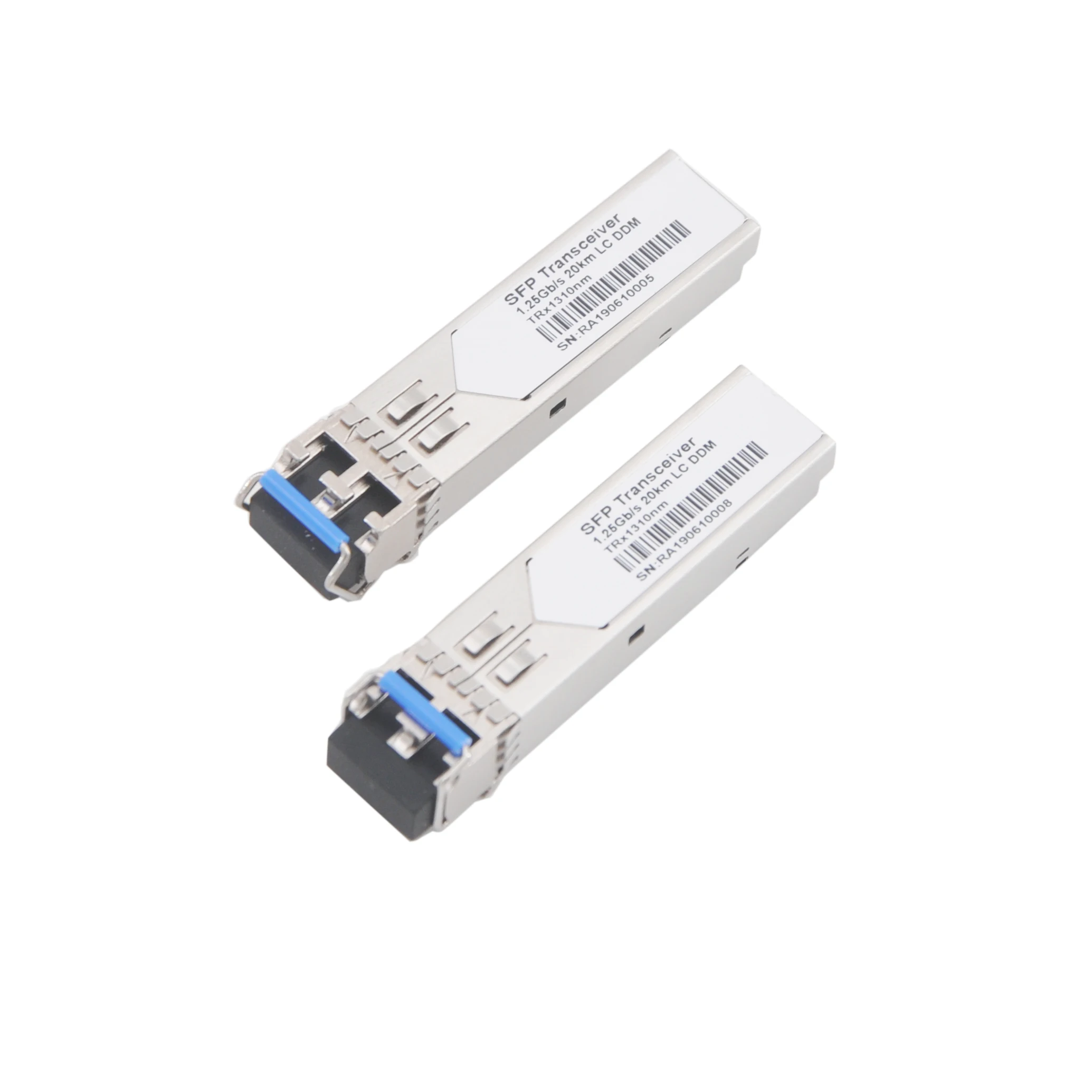

1.25G SFP Fibre Optic Modules 1310nm 1490nm Single Mode Single Fiber LC SC 20KM DDM SM Gigabit SFP Switch
- Category: >>>
- Supplier: Shenzhen Ut-Kingtechnology Co. ltd
Share on (1601010675116):
Product Overview
Description
Keywords
* Plug & Play,Rate and Distance: Up to 1.25Gb/s Data Links,Support Hot-Pluggable；1310nm, Single-mode,Dual Fiber,20KM.
* Power supply: Single +3.3V Power Supply;Maximum Power <1W.
* Electrical & Optical: Electrical Characteristics(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts) ;Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts).
* Extreme Environment: Industrial operating temperature range: -40°C to 85°C;Storage Temperature:-40°C to 85°C;Relative
Humidity:0-85%.
Features
* Up to 1.25Gb/s Data Links.
* Support Hot-Pluggable.
* Duplex LC connector.
* Up to 20km on 9/125μm SMF.
* 1310nm FP laser transmitter.
* Single +3.3V Power Supply.
* Monitoring Interface Compliant with SFF-8472.
* Maximum Power <1W.
* Industrial operating temperature range: -40°C to 85°C.
* RoHS compliant and Lead Free.
* Support Hot-Pluggable.
* Duplex LC connector.
* Up to 20km on 9/125μm SMF.
* 1310nm FP laser transmitter.
* Single +3.3V Power Supply.
* Monitoring Interface Compliant with SFF-8472.
* Maximum Power <1W.
* Industrial operating temperature range: -40°C to 85°C.
* RoHS compliant and Lead Free.
Application
1. Metro/Access Networks
2. 1.25 Gb/s 1000Base-LX Ethernet
3. 1×Fibre Channel Other Optical Links
4. Some open industrial devices
1. Metro/Access Networks
2. 1.25 Gb/s 1000Base-LX Ethernet
3. 1×Fibre Channel Other Optical Links
4. Some open industrial devices
Model Number | 1.25G 20KM LC DDM SFP Transceiver |
Brand Name | OEM |
Network | Wired LAN, 4g, 3G |
Data Rate | 1.25G |
Wavelength | 1310nm |
Application | Telecom Comunication |
DDM/DOM | Support |
Tx Wavelength Bandwidth | 40 nm (1290-1330 nm) |
Rx Wavelength Bandwidth | 40 nm (1530-1570 nm) |
Maximum Distance | 20KM |
Temperature | 0 to 70°C (32 to 158°F) |
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
