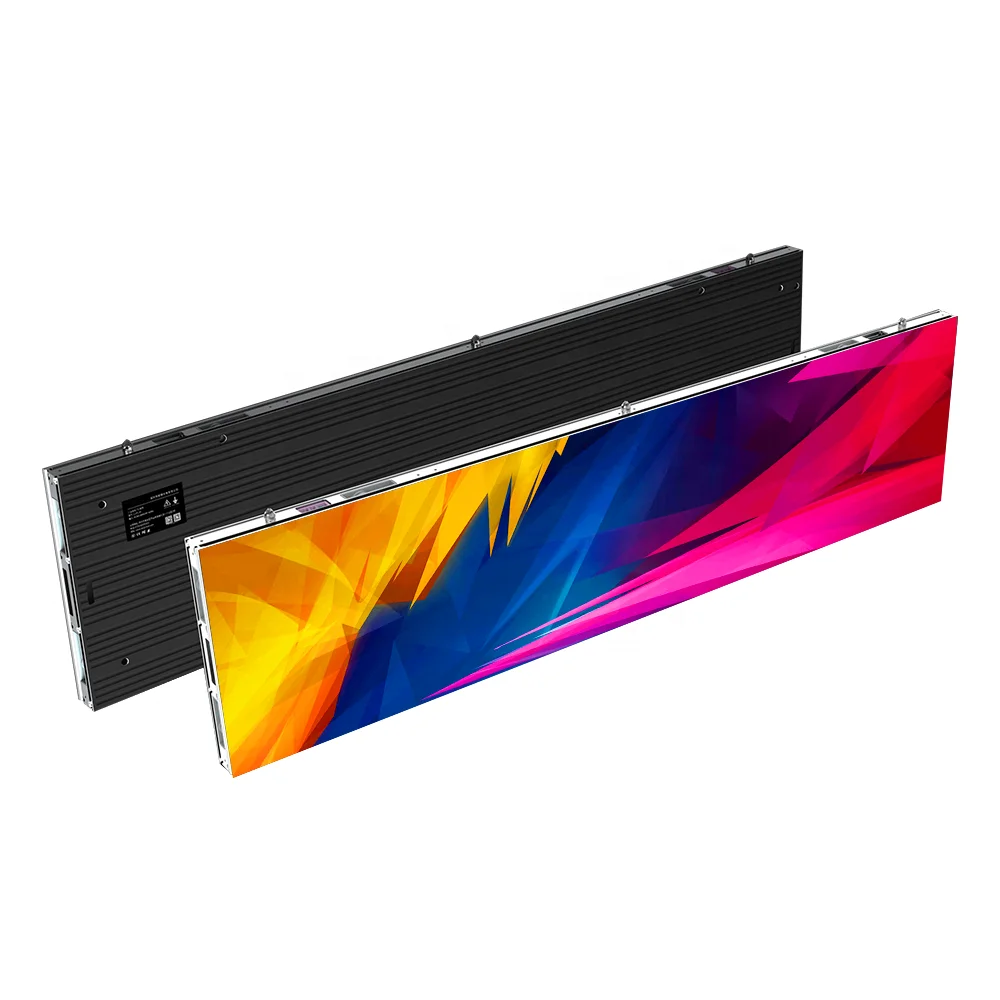

Convenient Maintenance Retail Stores HD Led Video Wall P1.5 P1.9 P2.5 P3 P4 Full Color Indoor Led Screen For Advertising Display
- Category: >>>
- Supplier: Shenzhen DDW Technology Co. Ltd.
Share on (1601010716625):
Product Overview
Description
Discover Your Right Application , Make Your Business Possible !
Common warranty in LED field is 2 years, ours is 3 years Longer warranty
periods, better after-sale services, worry-free user experience
periods, better after-sale services, worry-free user experience
Products Description
Specifications
P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 | ||||||
LED type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | |||||
Physical density（dots/sq.m） | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 | |||||
Module resolution | 160X160 | 128X128 | 100X100 | 96X96 | 84X84 | 64X64 | |||||
Module dimension（mm） | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | |||||
Module quantity（W×H） | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | |||||
Panel resolution | 640X160 | 512X128 | 400X100 | 384X96 | 336X84 | 256X64 | |||||
Maintenance | Front access service | Front access service | Front access service | Front access service | Front access service | Front access service | |||||

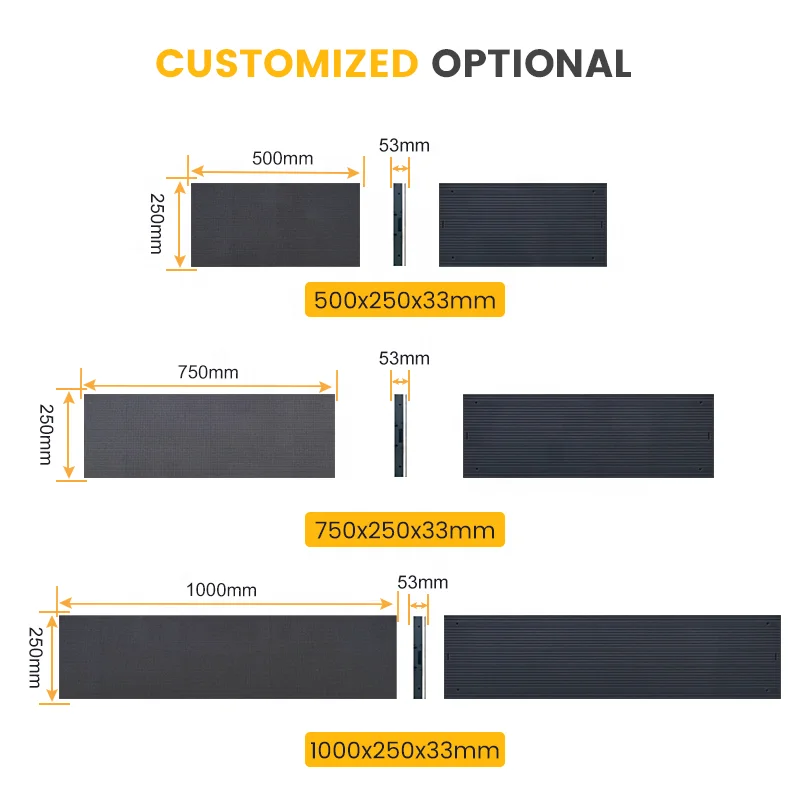

Cabinet size | 1000x250mm/750x250mm/500x250mm | ||||||||||
Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | |||||
Pixel calibration | Yes | Yes | Yes | Yes | Yes | Yes | |||||
Brightness(cd/m²) | 500 | 700 | 800 | 800 | 800-1000 | 1000-1200 | |||||
Color temperature(K) | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | |||||
Grey scale(bit) | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | |||||
Viewing angle(V/H) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | |||||
Brightness/Color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | |||||
contrast | 6000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | |||||
Frequency rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |||||
Drive mode | 1/40Scan | 1/32 Scan | 1/25 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan | |||||
Max power consumption（w/m²） | 480 | 600 | 600 | 600 | 600 | 800 | |||||
Avg. power consumption（w/m²） | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | |||||
Electric power | AC90-264V 47-63Hz | ||||||||||
Company Profile
About Us
Shenzhen DDW Technology Co, Ltd is a professional manufacturer and developer of LED display screens in Shenzhen, China since 2012. DDW Display focus on providing indoor outdoor creative LED screen, LED poster, Rental LED screen,Ultra fine HD LED screen,Flexible LED Display,Transparent LED display and various of LED display screens. We are always committed to providing high-quality hardware and software, our excellent pre-sales and after-sales service, and win-win cooperation for all customers.
