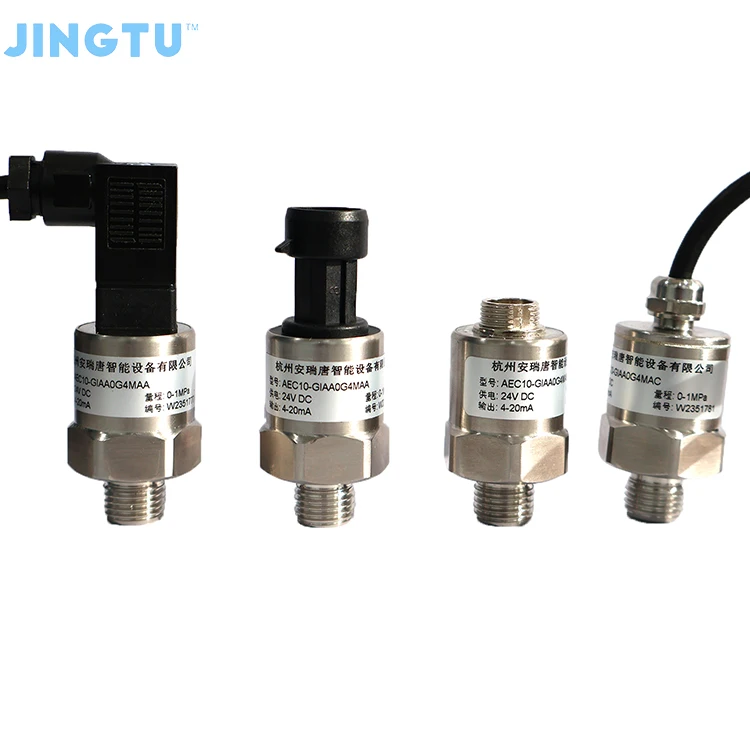

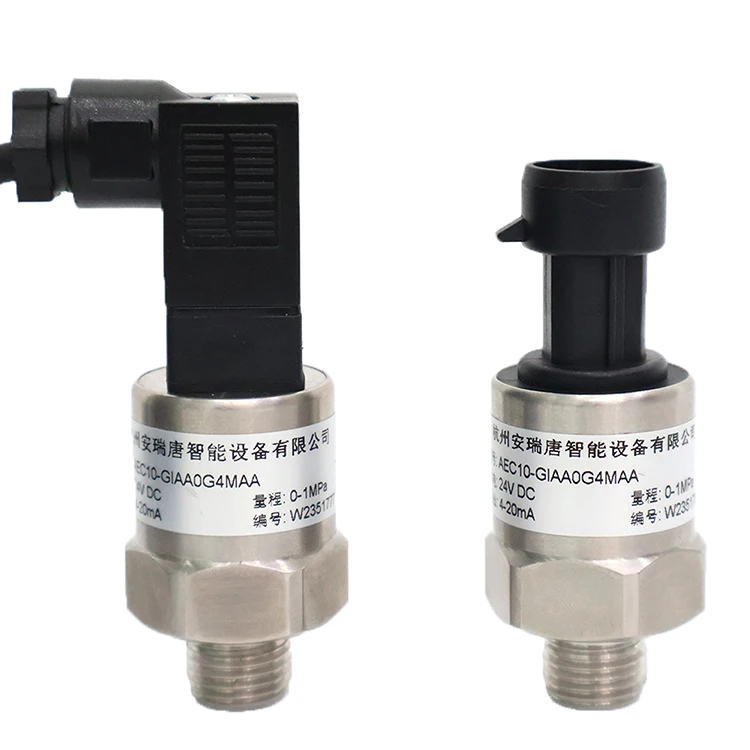

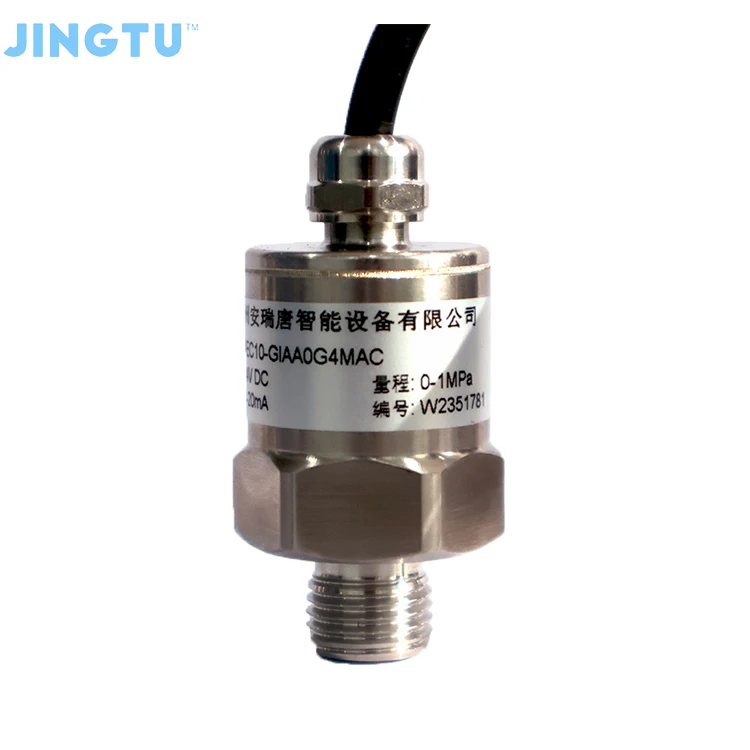

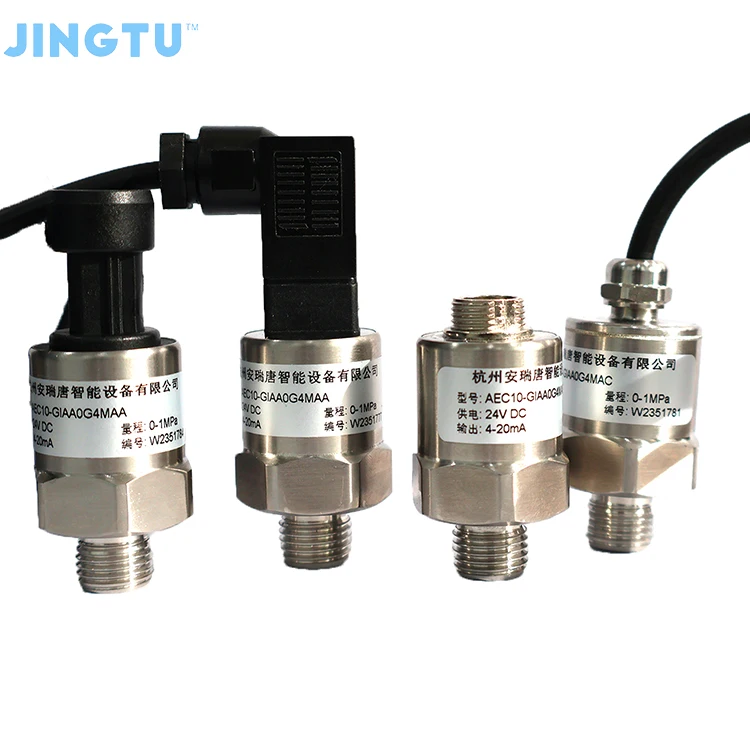

4 20mA 1 5V 0 60bar Vacuum Absolute Pressure Sensor For Water Air Gas
- Category: >>>
- Supplier: Hangzhou Jingtu Technology Co. Ltd.
Share on (1601010722767):
Product Overview
Description
Products Description
Applicable media | Liquid, Gas |
Pressure range | 0-60bar |
Pressure measurment | Gauge Pressure, Absolute pressure, Sealing pressure |
Output | 4-20mA/0.5-4.5V/1 -5V/0-10V/I2C |
Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S.(Typical) |
Power supply | 24VDC/12VDC/5VDC/3.3V |
Compensation temperature | -20~85ºC |
Ambient temperature | -40~125ºC |
Working temperature | -40~125ºC |
Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |

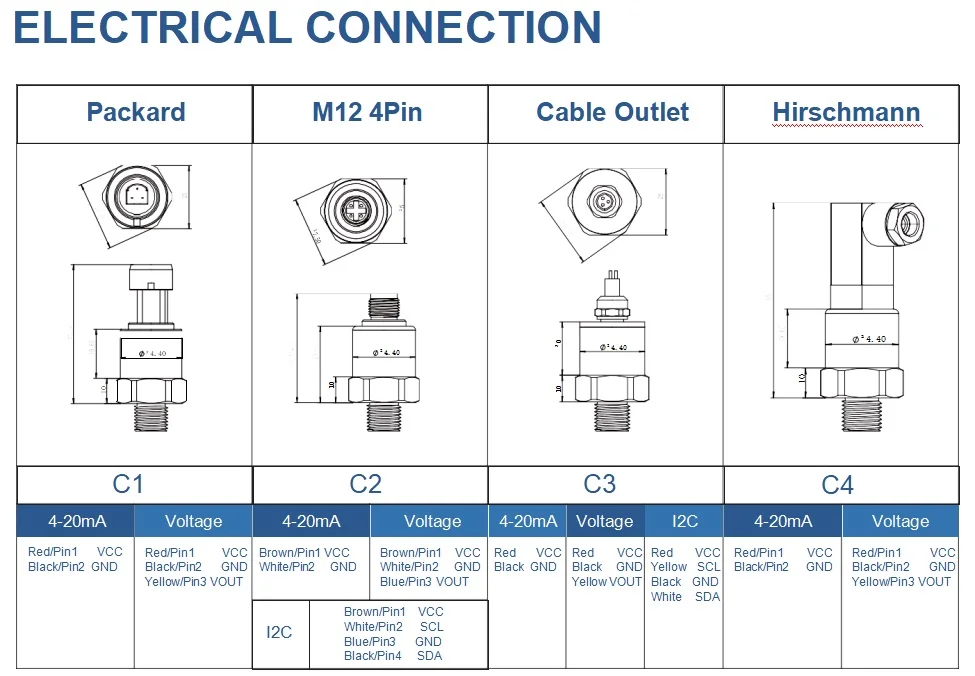

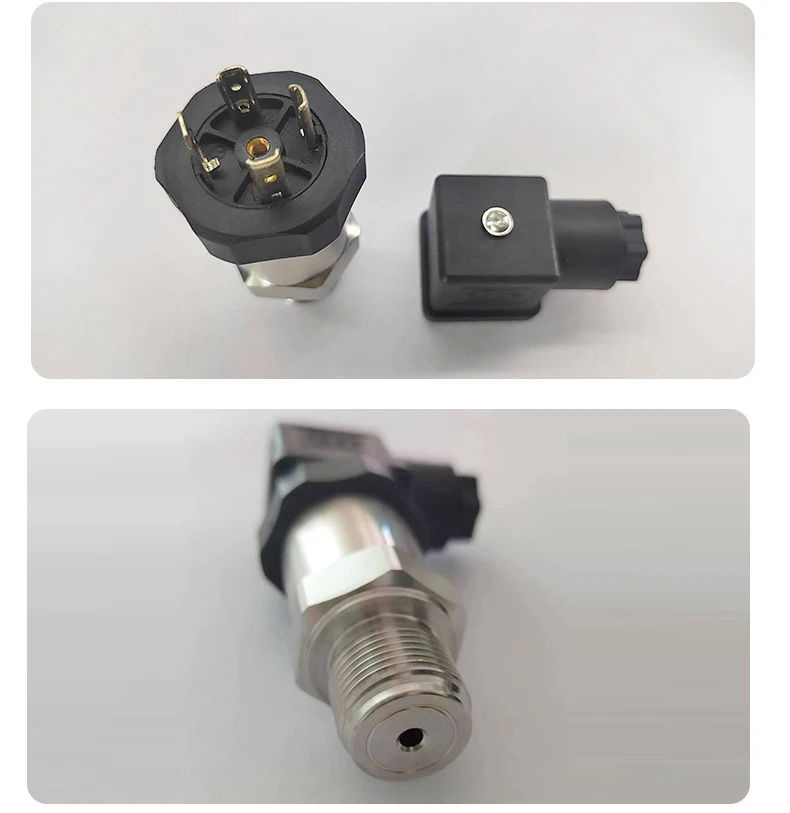

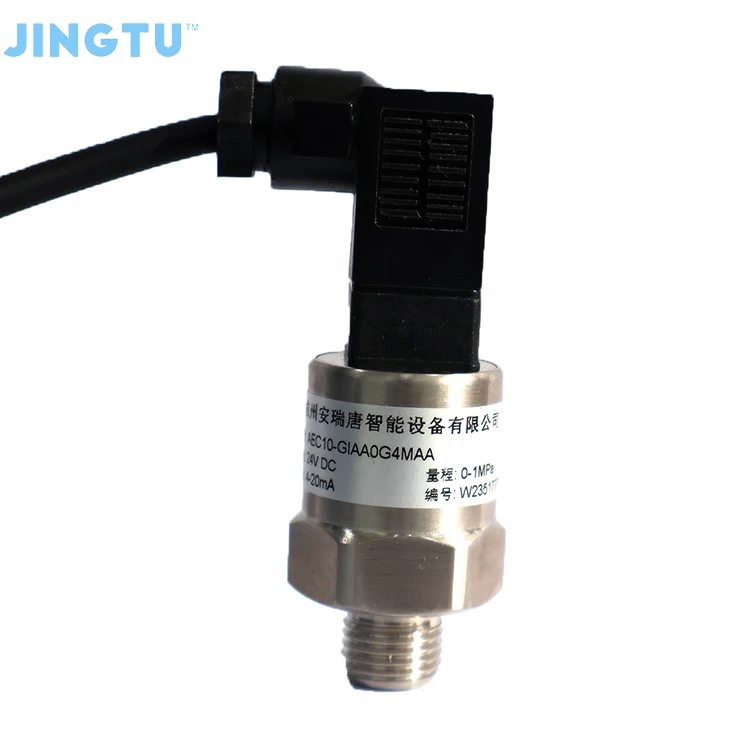

power(electrical) connect | Parkard, M12, DIN43650, Cable outlet |
Mechanical connection | G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize |
Housing material | 304 stainless steel(inner core is 316 stainless steel) |
Protection | IP65 |

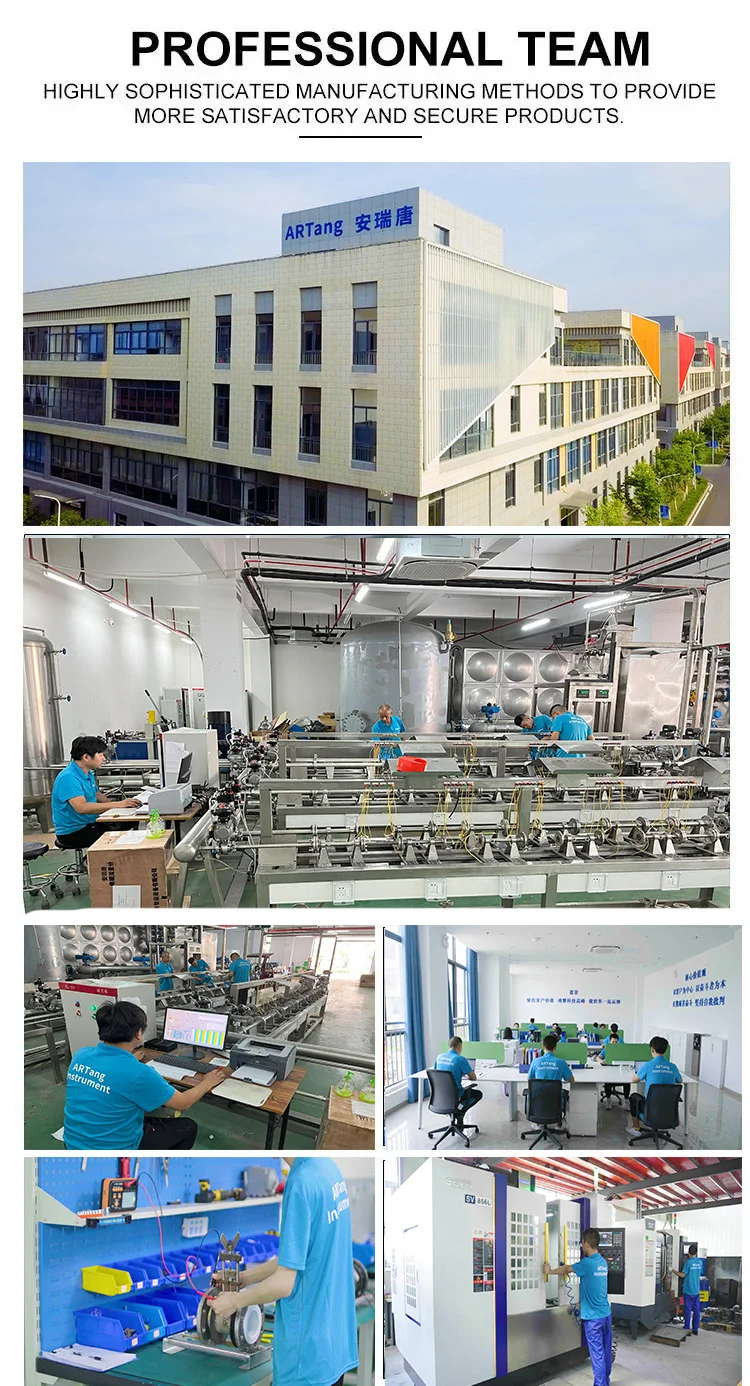

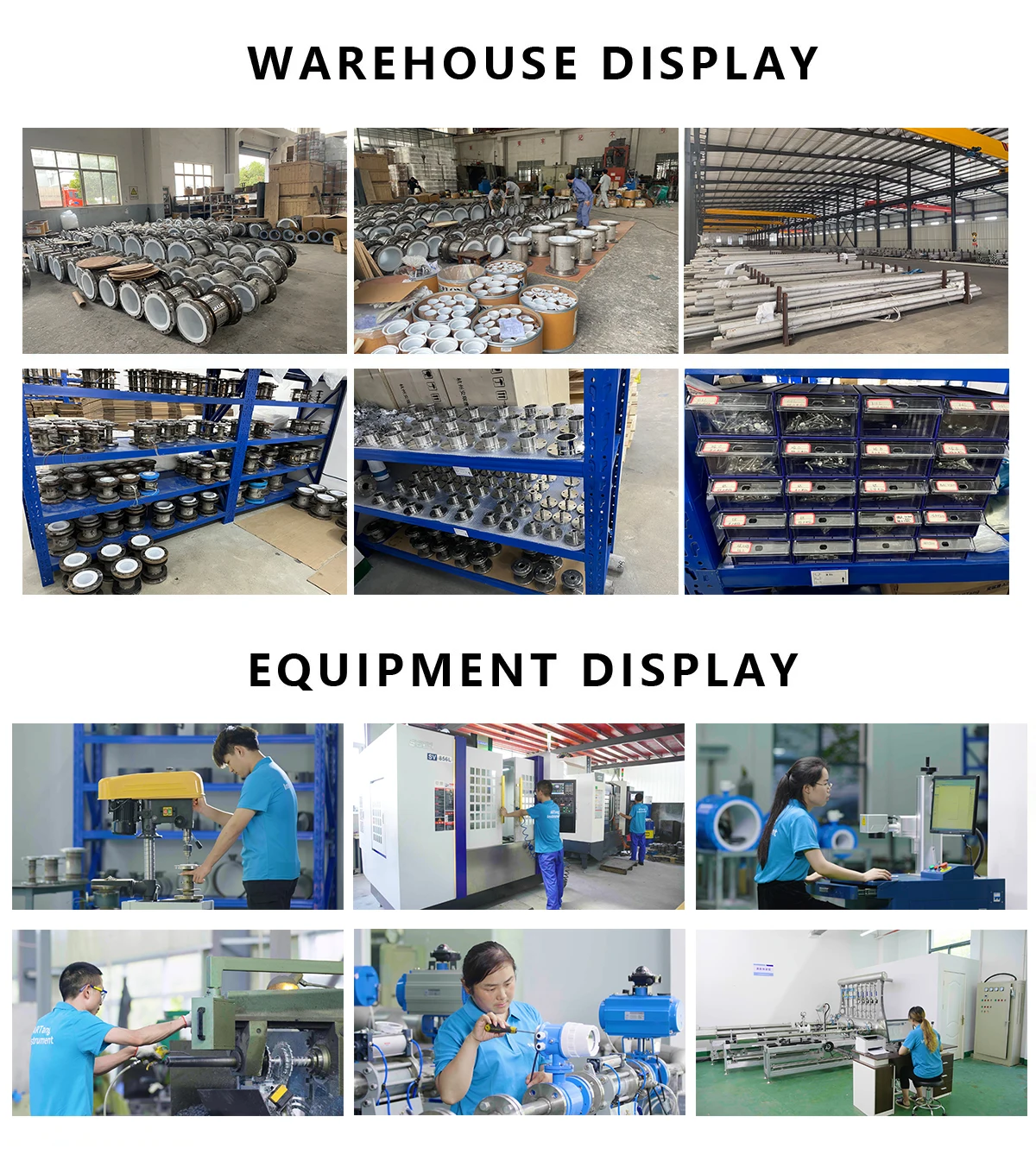

Company Profile
Certifications
Exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2010, committed to producing high accuracy, long-term stability, cost-efficient flow meter/pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
A: We are a manufacturer since the year 2010, committed to producing high accuracy, long-term stability, cost-efficient flow meter/pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
