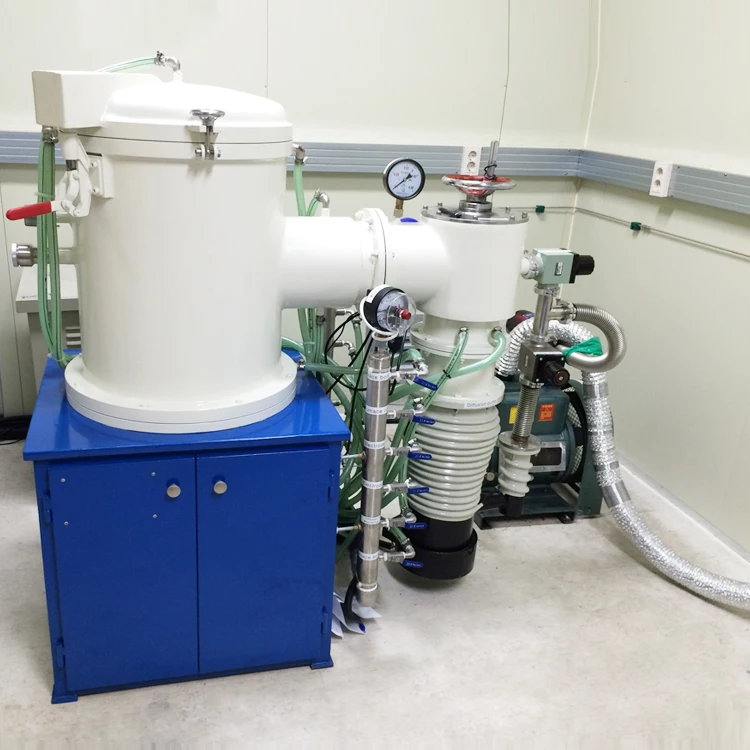

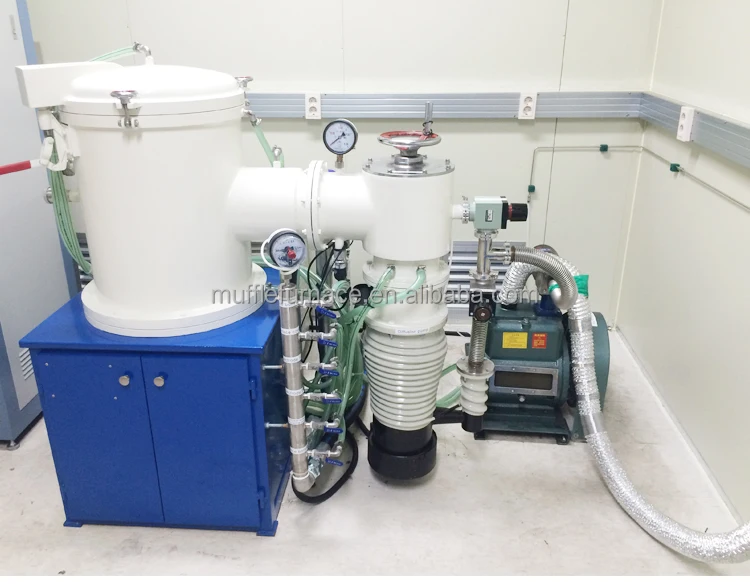

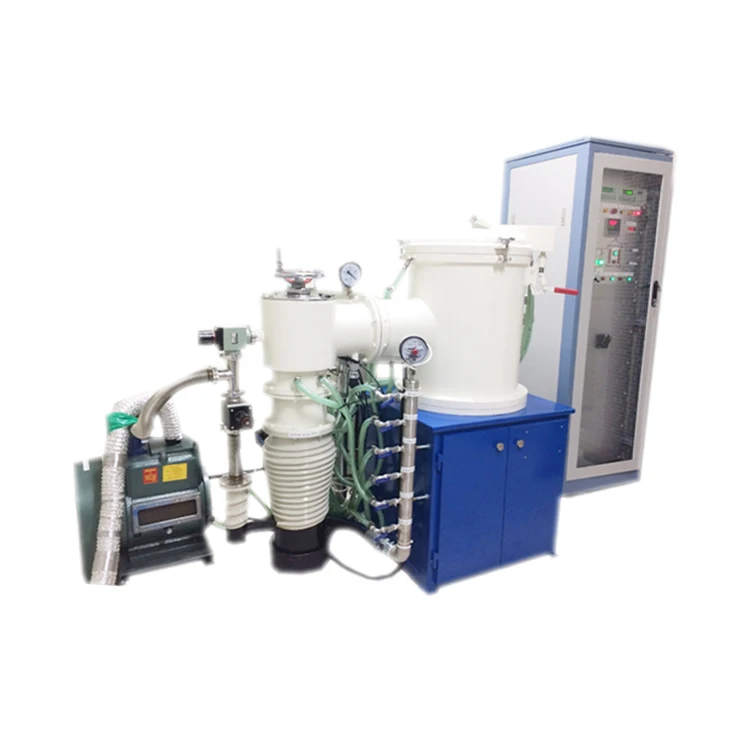

Ultra High Temperature Graphite Heating Vacuum Furnace up to 2200C

Product Overview

Description

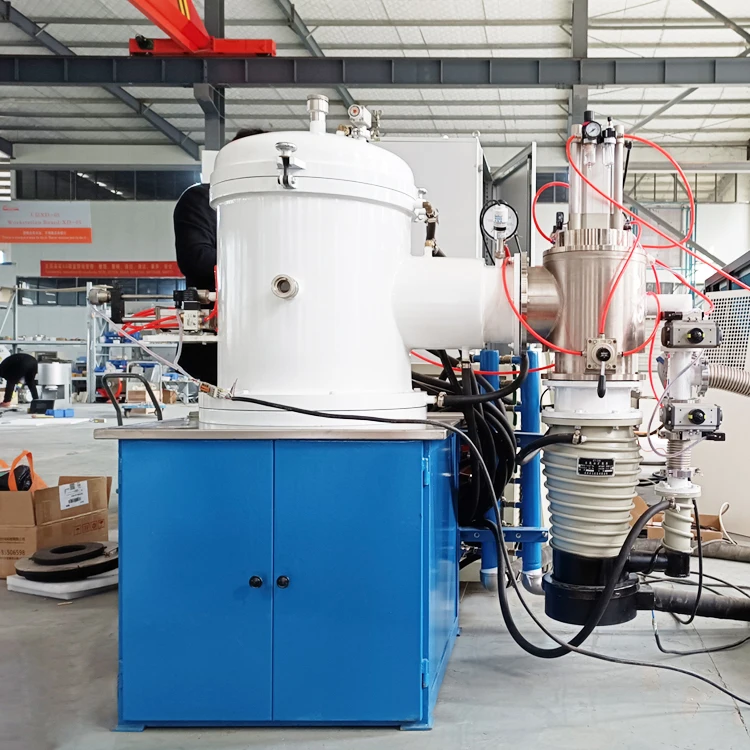

Ultra High Temperature Graphite Heating Vacuum Furnace up to 2200C



This Graphite Vacuum Furnace is periodic working, adopt graphite tube as heating elements. The furnace chamber is made entirely from high purity graphite, it has low density, reduced weight, and modest thermal capacity. It creates the ideal black body conditions inside the heating chamber for obtaining high uniformity. And due to graphite’s excellent thermo-mechanical properties allows rapid heating and cooling to reduce overall process cycles.





Features

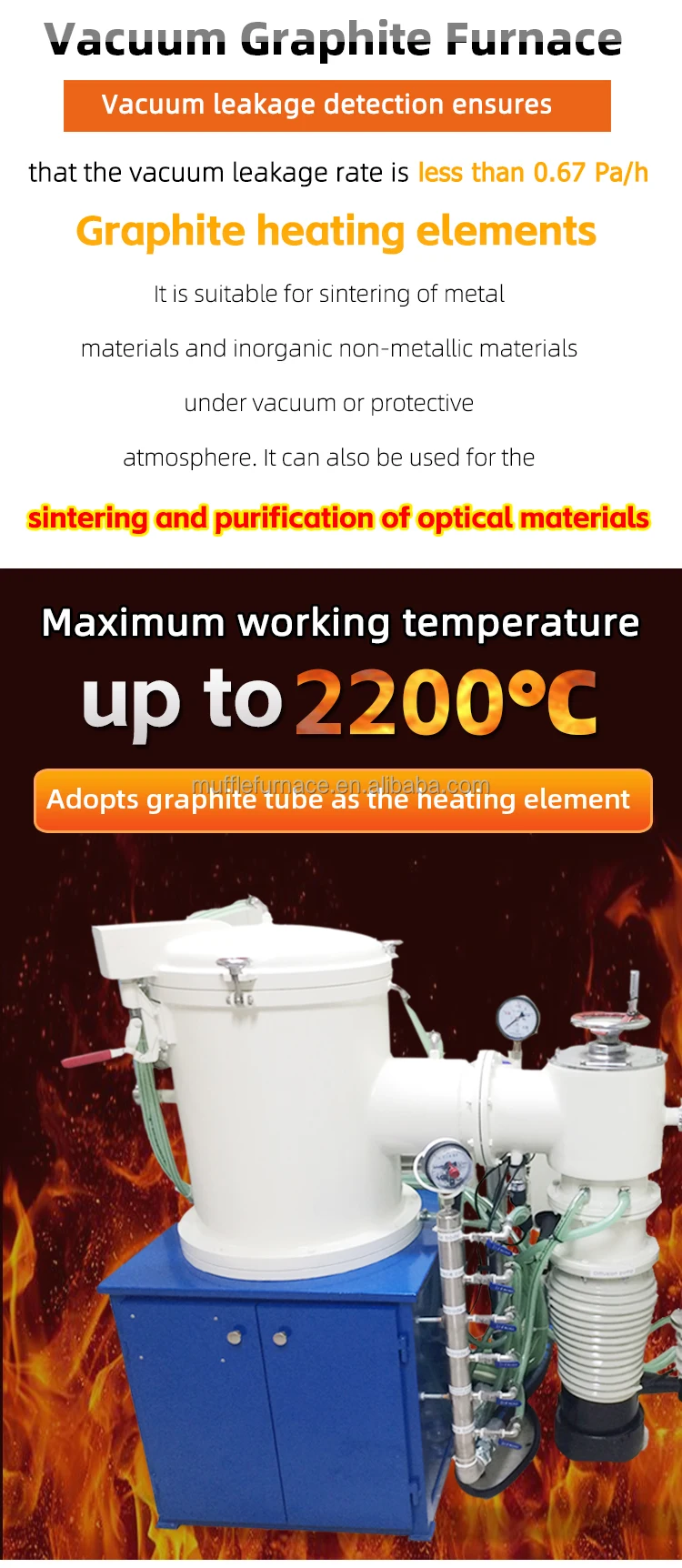

• Graphite heating element, max. temperature can be 2200℃.


• Furnace shell inner layer is stainless steel, the outer layer is carbon steel, double layers water-cooling structure.

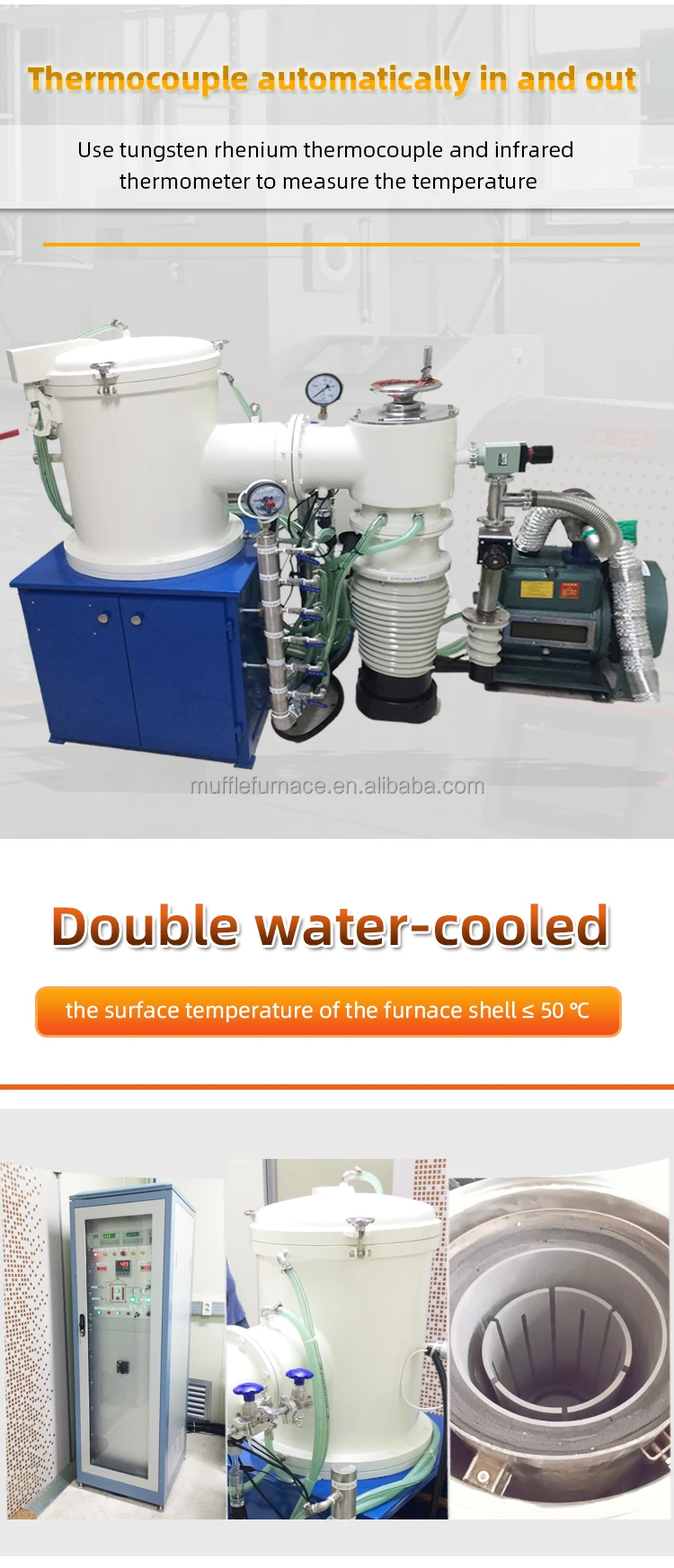

• Furnace shell has an observation hole, can see the heating situation in the chamber. Adopt a W-Re thermocouple and infrared thermometer to measure temperature, thermocouple goes in and out automatically.


• PLC auto control or PID auto control

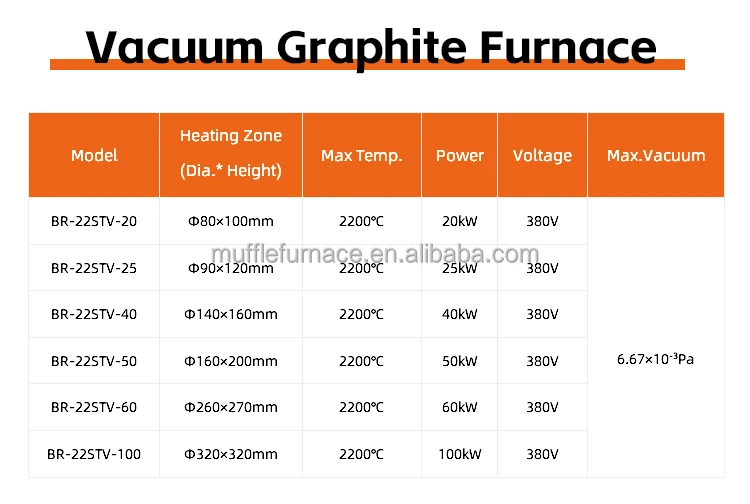

Graphite Heating Vacuum Furnace Technical Parameters

MAX. VACUUM:	0.0667Pa	MAX. TEMPERATURE:	2200℃
CAPACITY:	12 ~ 324L	FURNACE CHAMBER:	Graphite Felt
HEATING ELEMENT:	Graphite	OBSERVATION HOLE:	Yes
CONTROL:	PLC	THERMOCOUPLE:	W-Re Thermocouple
MAX. HEATING RATE:	20°C /min	TEMPERATURE ACCURACY:	±1℃
TEMPERATURE UNIFORMITY:	±5℃
