YD SB series Semi Automatic Glass Sandblaster Frosting Glass Making Machine
- Category: >>>
- Supplier: Liaoda (LAD) Glass Machinery Co. Ltd.
Share on (1601010776926):
Product Overview
Description
Product Description

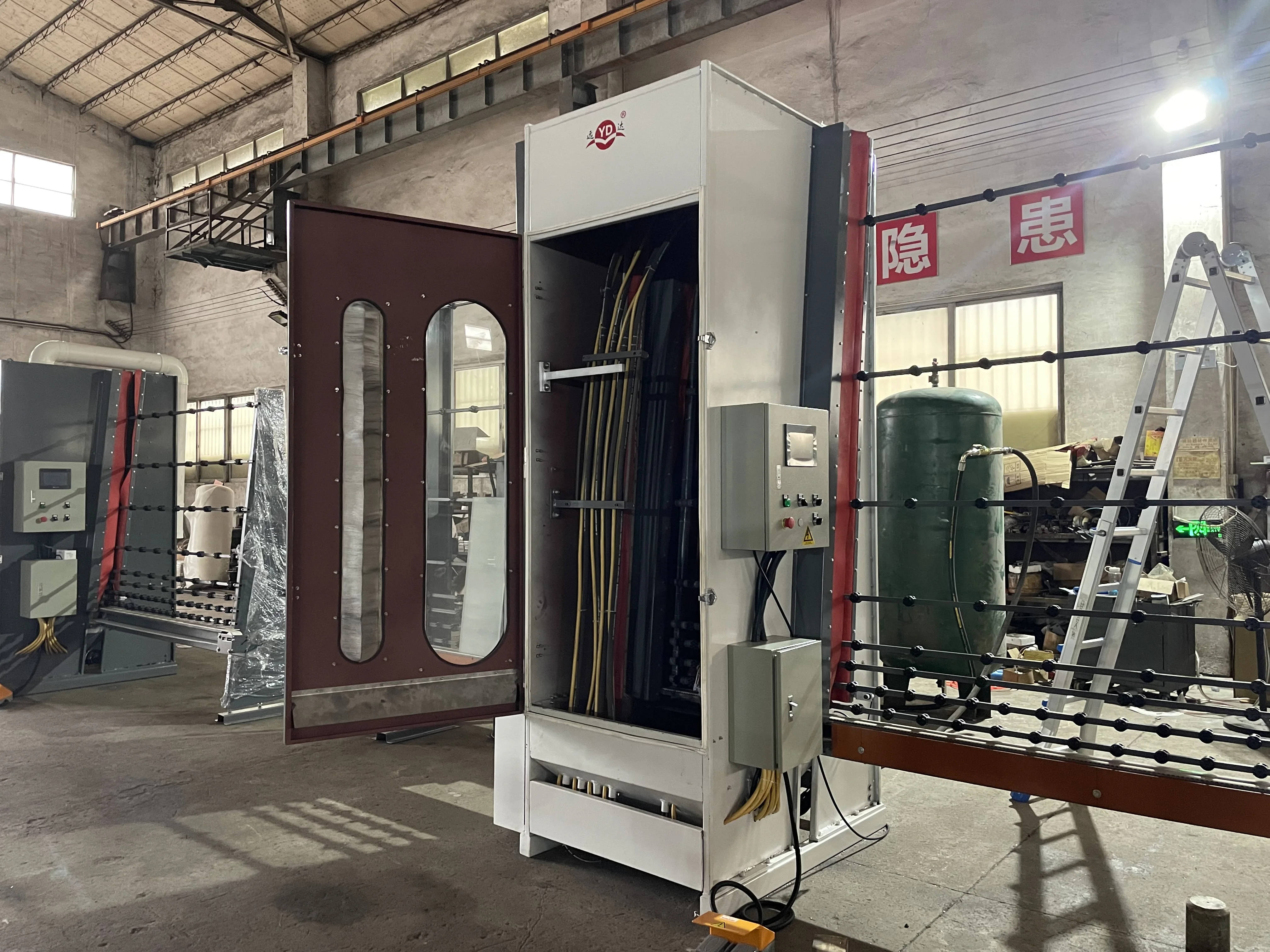

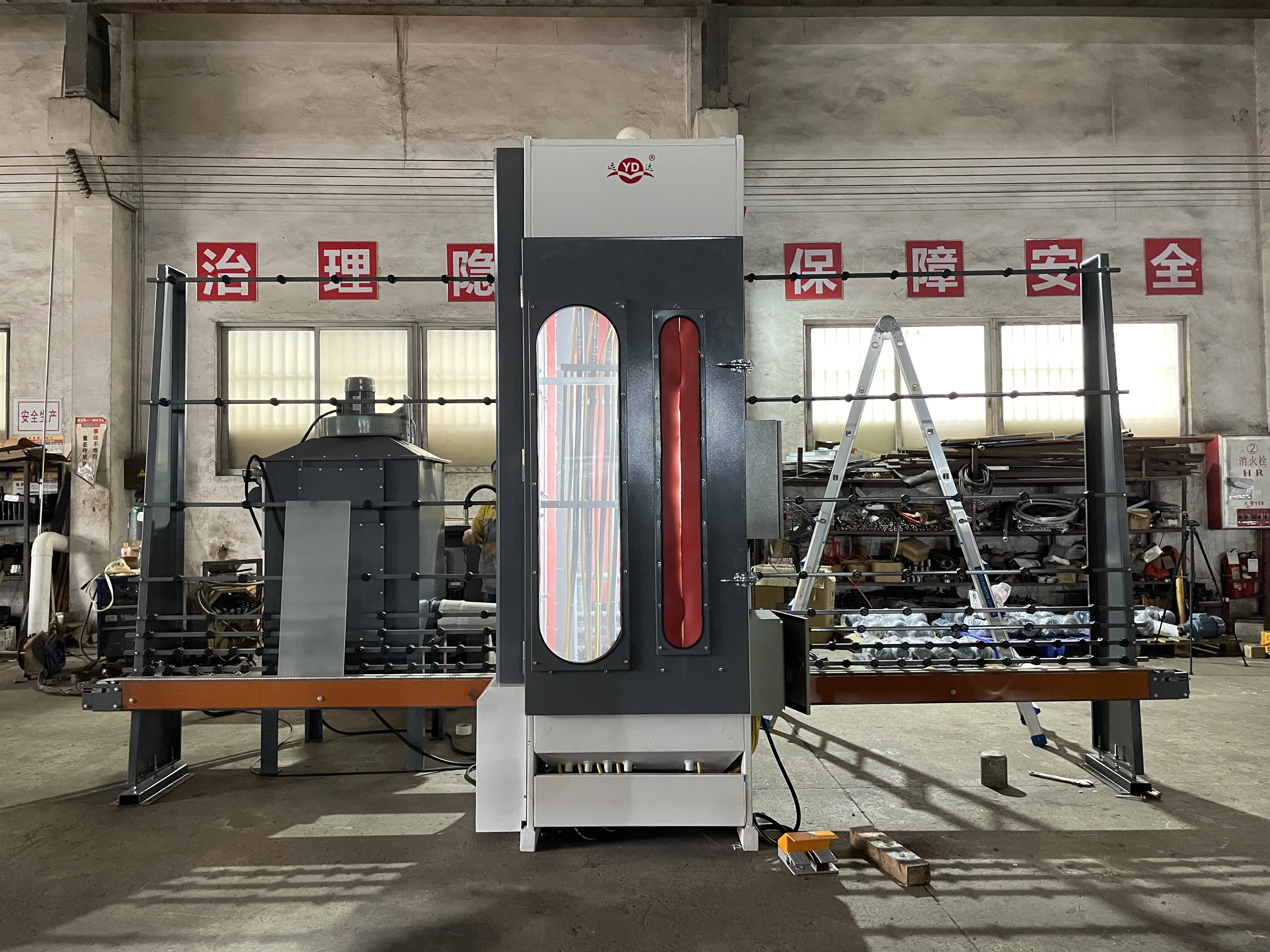

Vertical Glass Sandblasting Machine -- YD-SB-2000

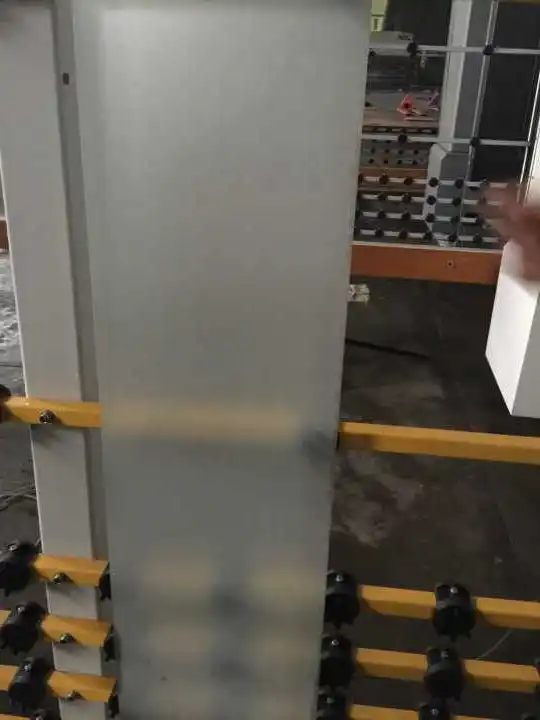

YD-SB series Vertical Glass Sandblasting Machine is used for sandblasting trademark and pattern on glass surface, or for sandblasting the whole surface for making partition and shower room door. It is also applicable for sandblasting flat stone slab.
Specification
Model | YD-SB-2000 |
Max. Glass Height | 2000mm |
Min. Glass Size | 200x500mm |
Nozzle Moving Speed | 5-25m/min |
Compressed Air Consumption | 2.4 cbm/min, 22 kw |
Working Air Pressure | 0.6-0.8 Mpa |
Power | 3.5kw |
Production Capacity | 20-30 sqm/h |
Outer Dimension | 6.8x1.5x2.8m |
Weight | 1000kg |
Glass Transmission System
*Quality and durable conveying belt
*Necessary limit switch sensor to protect the glass from sliding down
Sandblasting Cabinet

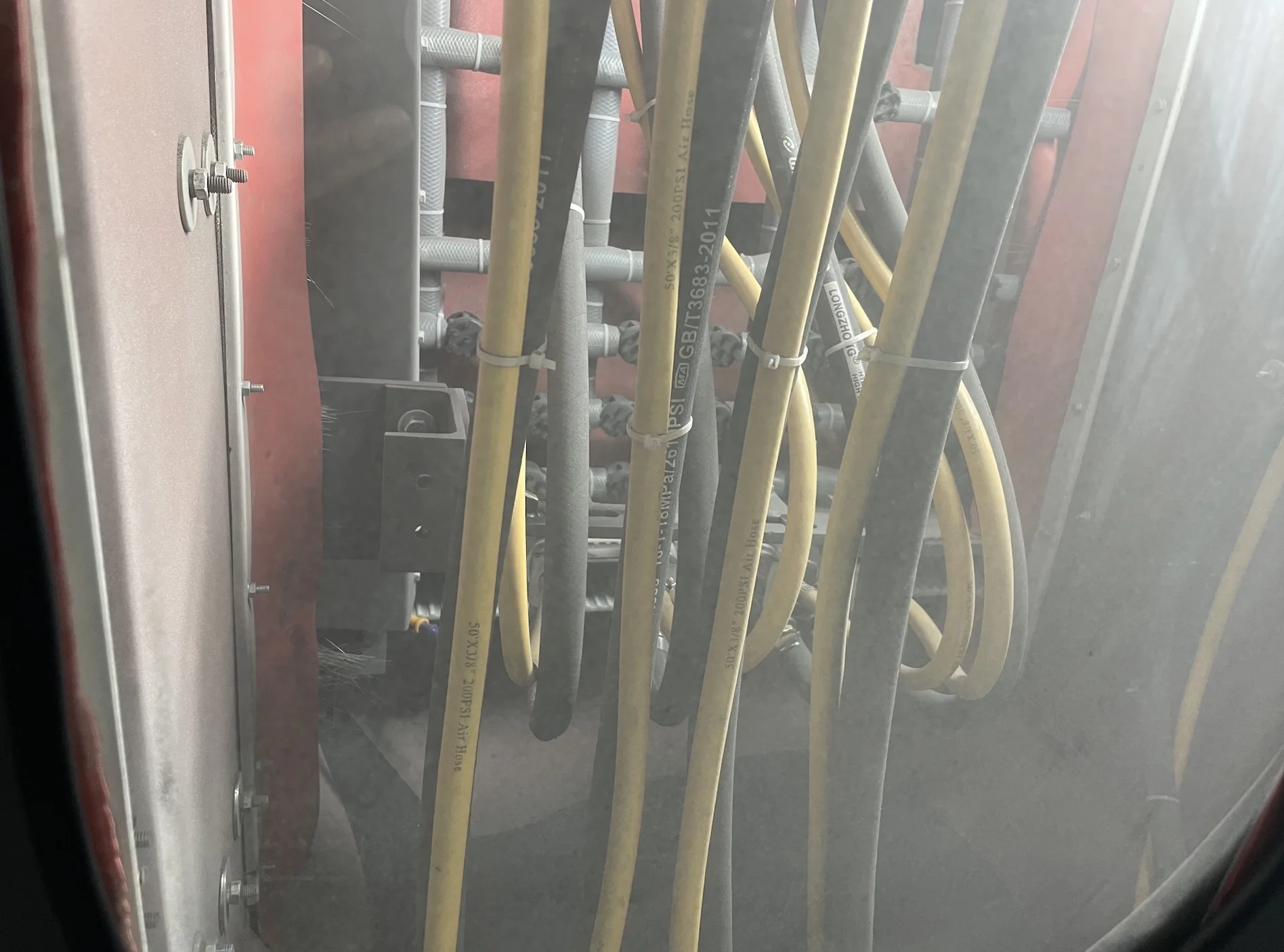

*There are 3-4 automatic sand blaster guns and 1 manual gun. Their moving speed ranges from 5 to 25m/min.
*With PLC and PLC touch screen, user can easily adjust the sandblasting height, weight, stop-over time and remain area.
*Manual control with foot switch for option.
*Productivity ranges from 20-30 sqm each hour.
*With film cover, user can sandblasting customed pattern on the surface.
Dust Collector
*Efficient auto dust collector for removing dust.
*Energy-saving and environmental-friendly.
KINDLY REMINDER
*Customers should prepare air compressor, gas tank and filter in addition, because these equipments are not included in this product package.
*Quality and durable conveying belt
*Necessary limit switch sensor to protect the glass from sliding down
Sandblasting Cabinet
*There are 3-4 automatic sand blaster guns and 1 manual gun. Their moving speed ranges from 5 to 25m/min.
*With PLC and PLC touch screen, user can easily adjust the sandblasting height, weight, stop-over time and remain area.
*Manual control with foot switch for option.
*Productivity ranges from 20-30 sqm each hour.
*With film cover, user can sandblasting customed pattern on the surface.
Dust Collector
*Efficient auto dust collector for removing dust.
*Energy-saving and environmental-friendly.
KINDLY REMINDER
*Customers should prepare air compressor, gas tank and filter in addition, because these equipments are not included in this product package.
*Package Size
YD-SB-2000(mm) Type: 2800×1800×2250mm (with support & dust collector together)
YD-SB-2000(mm) Type: 2800×1800×2250mm (with support & dust collector together)
Packing & Delivery
FAQ
Questions and answers:
1. How long will it take to manufacture the machine?
Re: 20 days.
2. What kinds of sand does it use?
Re: The sand is alum sand, grid 60#. We will provide 100kg free and ship it together with the machine. We can also provide more sand if necessary.
3. How many sand does it need each day?
Re: It will need 25kg-30kg sand per day.
4. How many parts are there in this machine package?
Re: One machine package with tool cabinet,support,dust collector inside.
5. What equipment should be prepared for this sandblasting machine?
Re: 1. Air compressor 2. Gas container 3. Filter
6. How many square meters of glass can be processed by this machine per day?
Re: 160-200 m²/day.
1. How long will it take to manufacture the machine?
Re: 20 days.
2. What kinds of sand does it use?
Re: The sand is alum sand, grid 60#. We will provide 100kg free and ship it together with the machine. We can also provide more sand if necessary.
3. How many sand does it need each day?
Re: It will need 25kg-30kg sand per day.
4. How many parts are there in this machine package?
Re: One machine package with tool cabinet,support,dust collector inside.
5. What equipment should be prepared for this sandblasting machine?
Re: 1. Air compressor 2. Gas container 3. Filter
6. How many square meters of glass can be processed by this machine per day?
Re: 160-200 m²/day.
