Product Overview

Description






undefined

undefined





undefined


undefined

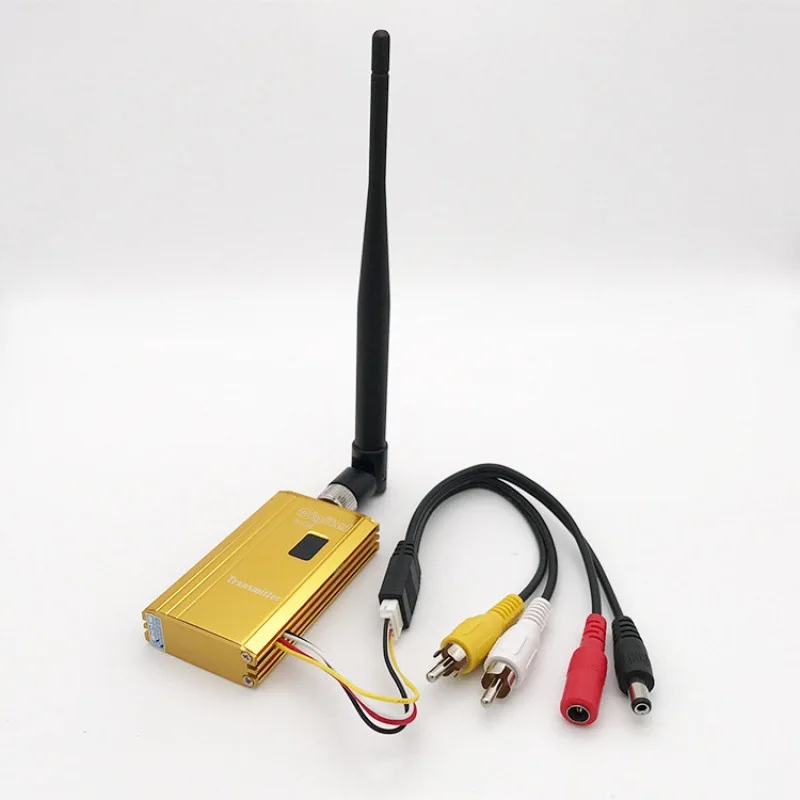

Transmitter parameters:


Mediation type:FM
Receiving frequency:0.9～1.2GHz
Received Signal:Audio and Video,Image synchronous transmission
Receiving sensitivity:-85dBm
Video input level:1Vp-p
Audio input level:1Vp-p
Operating temperature:-20～+50°C/-4～+122°H
Working humidity:85%RH
Storage Temperature:-40～+80°C/-40～+185°H
Specifications:115×60×20(mm)
Weight:81g
Voltage:DC+12V
Current:500mA


Transmit power:1500mW
Work frequency band:1.2G/1.3G
Body    Product:73*41*14mm
Channel selection:8Channel audio and video synchronization
Transmitting distance:(Open barrier-free)1Above kilometers (directly related to the gain of the antenna and the external environment)

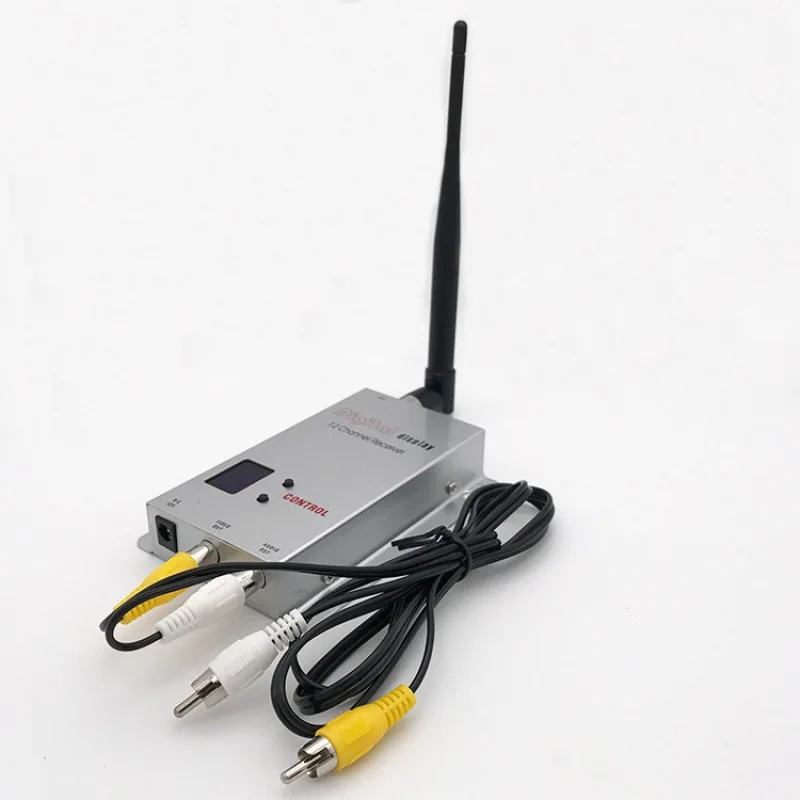

Receiver parameters:


Work frequency band:1.2G/1.3G
Operating voltage:DC12V
Work current:250mA
Body    Product:115*80*21mm
Heavy    Quantity:126g
Channel selection:12Channel Selection,Digital Display





Factory measured Open Distance1200About meters, measured power28DB  Absolute foot1.5W, it is recommended to use it when there are many wall barriers1.2GRatio2.4GOK, open long-distance transmission is optional.2.4G, the microwave transmission frequency is low, the penetration is strong, but the distance is close. High frequency, long distance, weak penetration. So it depends on the actual environment!

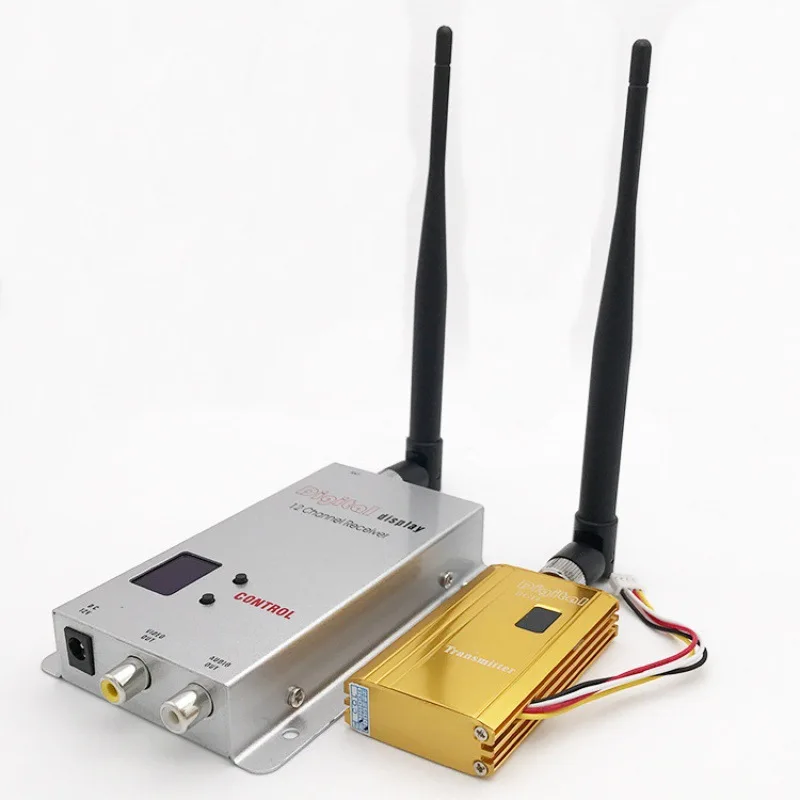

Product accessories:


8One channel wireless transmitter


12One channel wireless audio and video receiver


Audio and video cable receivers


Transmitter audio and video adapter cable pieces


One transmitting antenna


One receiving antenna


Packing Box: one set





















Transmitter parameters:


Mediation type:FM
Receiving frequency:0.9～1.2GHz
Received Signal:Audio and Video,Image synchronous transmission
Receiving sensitivity:-85dBm
Video input level:1Vp-p
Audio input level:1Vp-p
Operating temperature:-20～+50°C/-4～+122°H
Working humidity:85%RH
Storage Temperature:-40～+80°C/-40～+185°H
Specifications:115×60×20(mm)
Weight:81g
Voltage:DC+12V
Current:500mA


Transmit power:1500mW
Work frequency band:1.2G/1.3G
Body    Product:73*41*14mm
Channel selection:8Channel audio and video synchronization
Transmitting distance:(Open barrier-free)1Above kilometers (directly related to the gain of the antenna and the external environment)


Receiver parameters:


Work frequency band:1.2G/1.3G
Operating voltage:DC12V
Work current:250mA
Body    Product:115*80*21mm
Heavy    Quantity:126g
Channel selection:12Channel Selection,Digital Display
