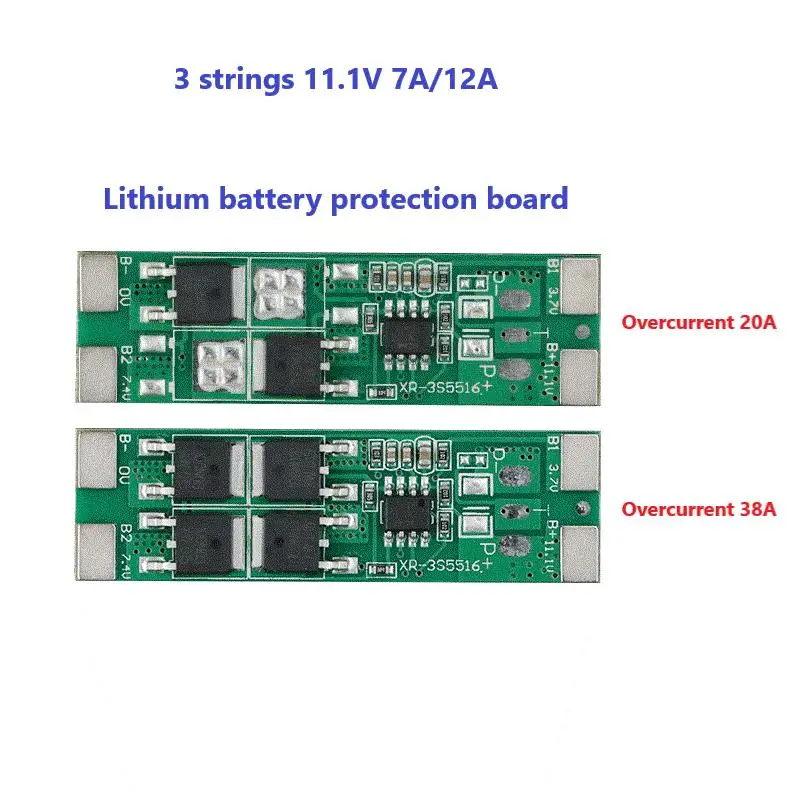

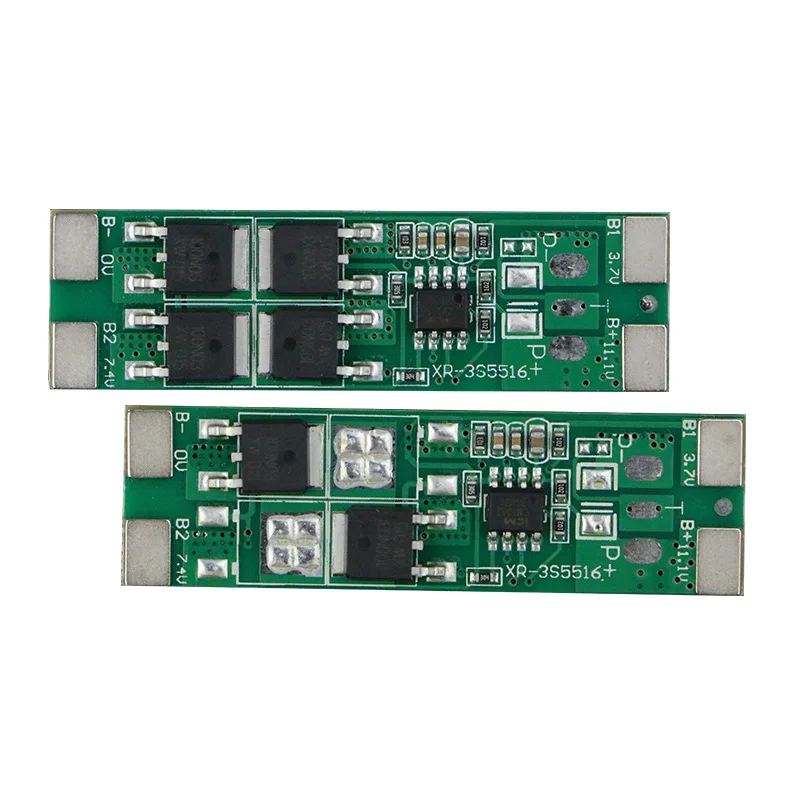

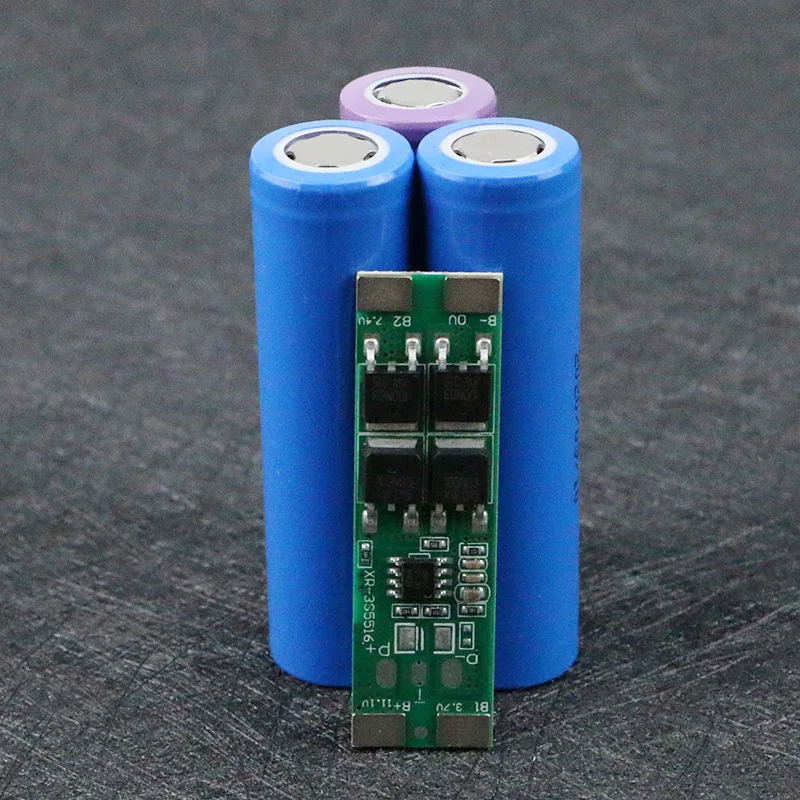

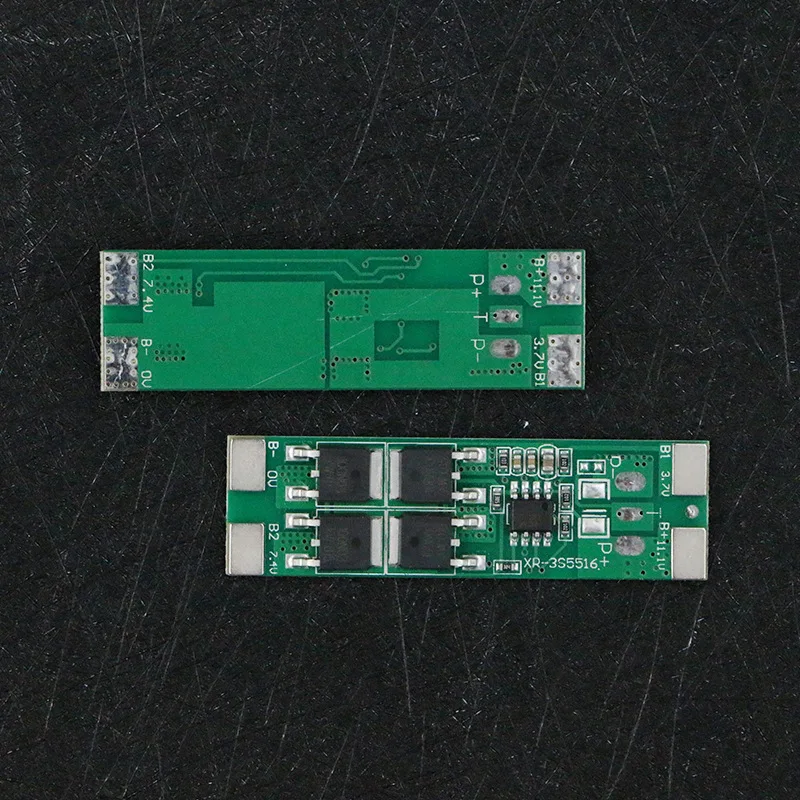

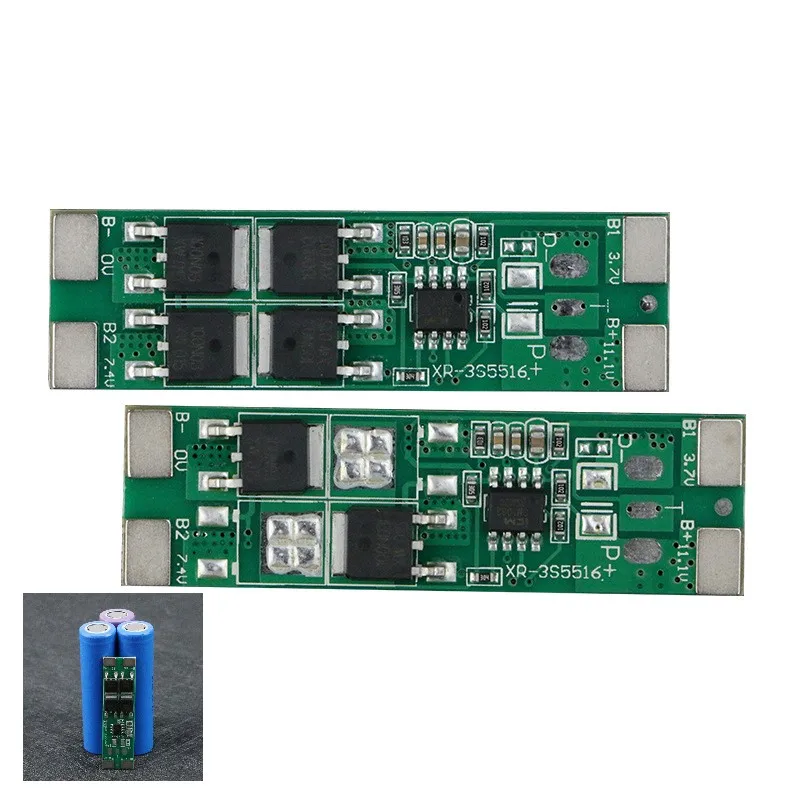

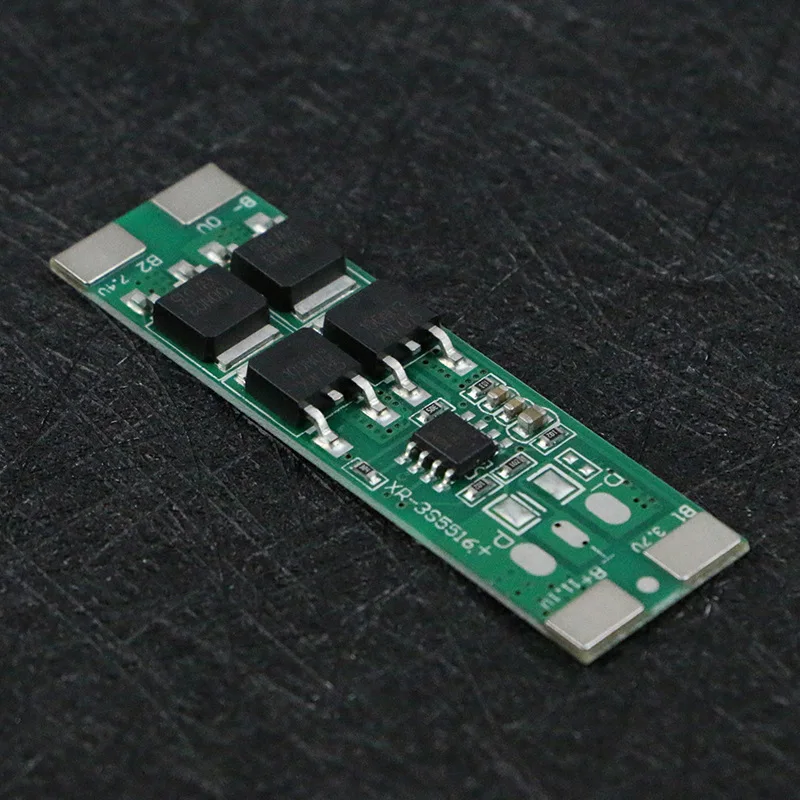

BMS 3S 11.1v 7A 12A lifepo4 bms Printed circuit Board with balance for lithium battery pack
- Category: >>>
- Supplier: Shenzhen Mondo Technology Co. Ltd.
Share on (1601010838199):
Product Overview
Description
Product Description
3BMS 3S 11.1v 7A 12A lifepo4 bms Printed circuit Board with balance for lithium battery pack
BMS Specifications | ||
Battery Type | Ternary Li-ion battery | |
Connection mode | Common Port, Same Port | |
Discharge | Single Battery overdischarge voltage: | 2.7V±0.08V |
Continuous working current: | 5A/10A | |
Instantaneous protective current: | 20A/35A | |
Overcurrent recovery condition: | Charge recovery or disconnect load | |
Short-circuit recovery condition: | Charge recovery or disconnect load | |
Charge | Single Battery overcharge voltage: | 4.25V±0.025V |
Continuous charging current: | 5A/10A | |
Charge equalizing voltage: | / | |
Charge balancing current: | / | |
Charger voltage: | 12.6V(Recommended) | |
Overtemperature protection | Charge overtemperature: | / |
Discharge overtemperature: | / | |
Working power consumption: | ≤10μA | |
The main circuit conducts the internal resistance: | ≤25mΩ | |
Operating temperature range: | -40℃ to +80℃ | |
Wire break protection: | Yes | |
Flat cable Size: | / | |
External dimension: | 55*16*3.5MM | |
