Factory Supply 1/4 1/8 Adjustable Air Water Oil Pressure Switch Well water Pump High Low Pressure Switch
- Category: >>>
- Supplier: FAST ELECTRIC LIMITED
Share on (1601010900515):
Product Overview
Description
Contact: Vicky Liao
TEL：+86-755-33936919
Cell Phone/Wechat: +86 135 3402 7994
WhatsApp/Messenger: +86 135 3402 7994
E-mail: ts@szfast.com
Payment Way(100% before shipped): Trade Assurance; T/T; Paypal or others.
Our Main Category: Reed Switches; Housed Reed Switches; Reed Proximity Switches;
Water Flow Switches; Water Level Switches(Float Ball Level Switches); Water Leak Sensor;
Water Flow Sensor; Water Flow Meter,Pressure Switch.
TEL：+86-755-33936919
Cell Phone/Wechat: +86 135 3402 7994
WhatsApp/Messenger: +86 135 3402 7994
E-mail: ts@szfast.com
Payment Way(100% before shipped): Trade Assurance; T/T; Paypal or others.
Our Main Category: Reed Switches; Housed Reed Switches; Reed Proximity Switches;
Water Flow Switches; Water Level Switches(Float Ball Level Switches); Water Leak Sensor;
Water Flow Sensor; Water Flow Meter,Pressure Switch.
Product Description
Product Name | Adjustable pressure switch |
Application | water,oil,air pressure switch |
Material | Stainless Steel，SUS 304 or SUS 316 |
Repeatability | ± 2% of full set point range at 21°C Ambient Temperature |
Electrical Data | Standard:4A,125V/250VAC 4A,12/42VDC Gold contacts may be required for less than12 VDC and 20 milliamps |
Switching Form | A=Normally Opened N/O B=Normally Closed N/C |
Pressure detection | Increasing Decreasing |
Connection Thread | 1/4 ，1/8 and customized size |
Temperature ℃ | -40~+130 |
Introduction
In the industrial and automotive fields, a certain pressure value is usually set for the equipment when the pressure reaches this value, the system will send an electronic signal to start the mechanical equipment which triggers a warning (such as a leak of equipment, an alarm, etc.). this is the plunger type pressure switch. The max pressure can not be exceeded to 600 bar.
Application
Construction machinery, such as excavators
Forklift truck (oil burning type with hydraulic system)
Hydraulic system, such as hydraulic lubrication pump and hydraulic pump station
Feature
1. 1 million mechanical life and high reliability
2. Short action time and high sensitivity.
In the industrial and automotive fields, a certain pressure value is usually set for the equipment when the pressure reaches this value, the system will send an electronic signal to start the mechanical equipment which triggers a warning (such as a leak of equipment, an alarm, etc.). this is the plunger type pressure switch. The max pressure can not be exceeded to 600 bar.
Application
Forklift truck (oil burning type with hydraulic system)
Hydraulic system, such as hydraulic lubrication pump and hydraulic pump station
Feature
1. 1 million mechanical life and high reliability
2. Short action time and high sensitivity.
3. High pressure resistance and high safety
4. With metal shell design, the switch is more resistant to vibration and external impact
5. Pressure value can be adjusted
6. More shell types/pressure range/thread types/diaphragm types can be selected, which is suitable for more use occasions and has high adaptability
5. Pressure value can be adjusted
6. More shell types/pressure range/thread types/diaphragm types can be selected, which is suitable for more use occasions and has high adaptability
7. Oil,water gas and other mediums can be controlled
Order information

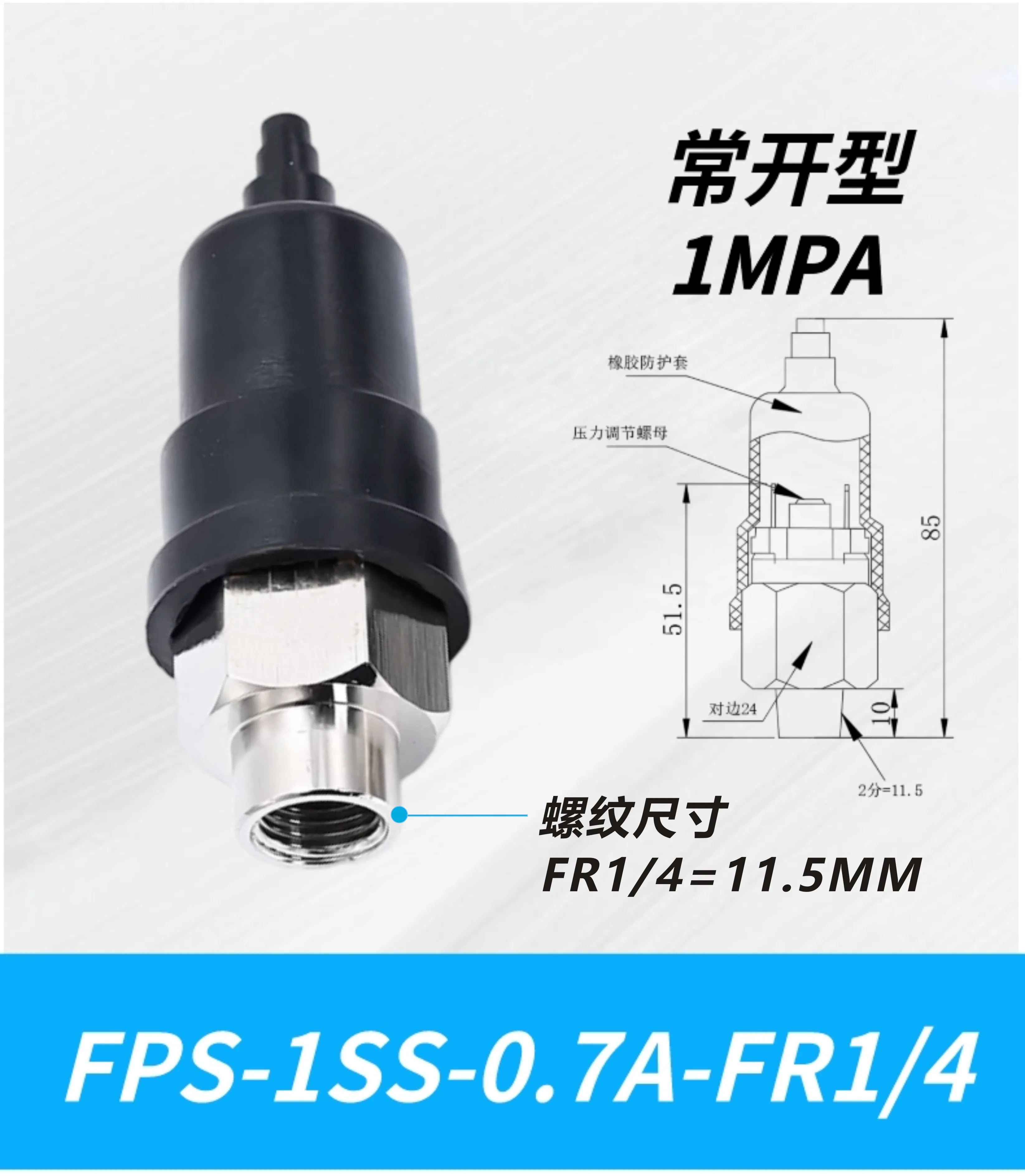

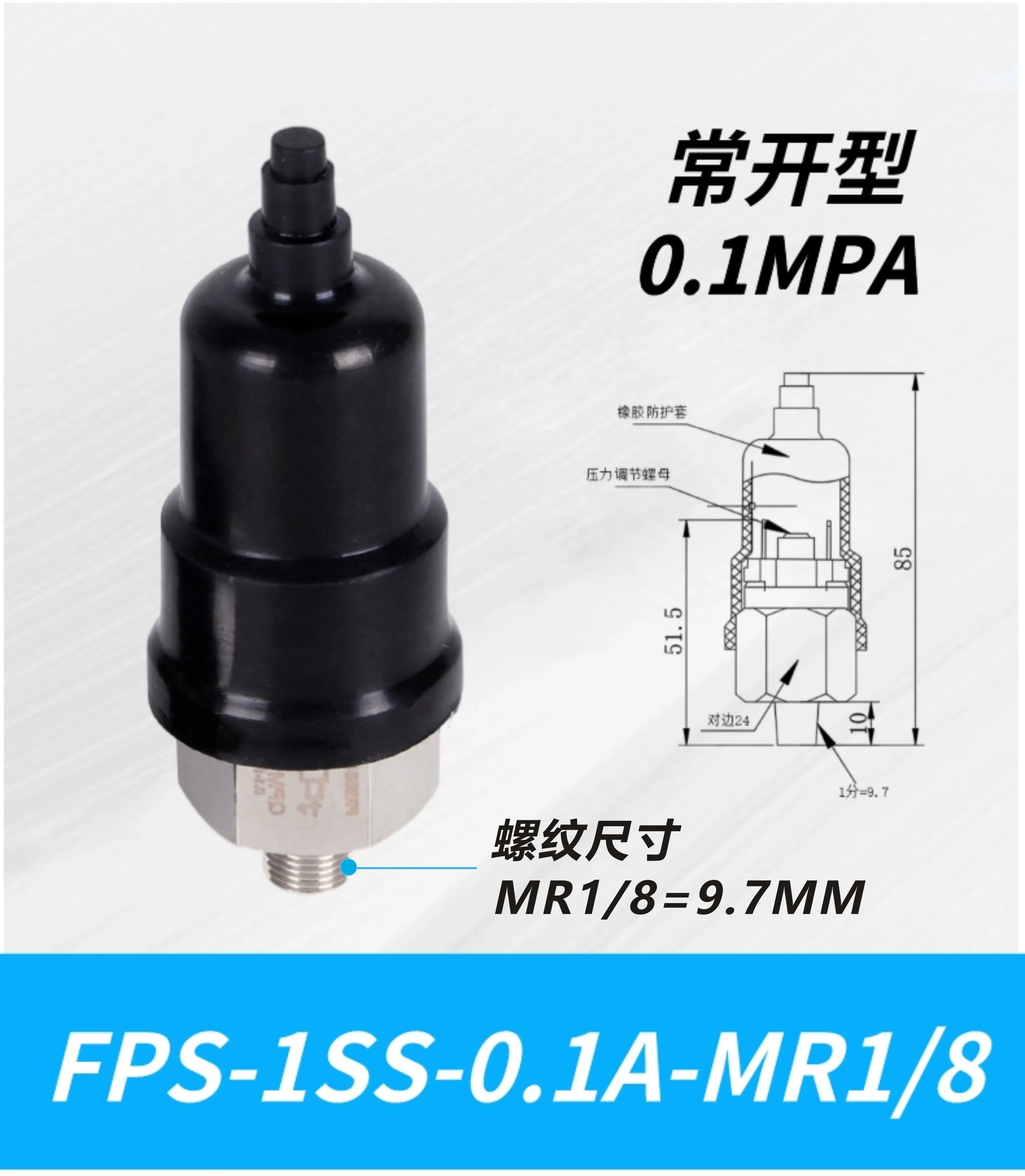

Such as :FPS-1SS-0.1A-MR1/8
FPS-1SS---------product model
0.1-------------------Pressure range 0~0.1 Mpa
A----------------------Normally Opened B------------Normally Closed C----------Changeover type
M----------------------Male mounting thread F------------Female mounting thread
R 1/8: mounting thread
