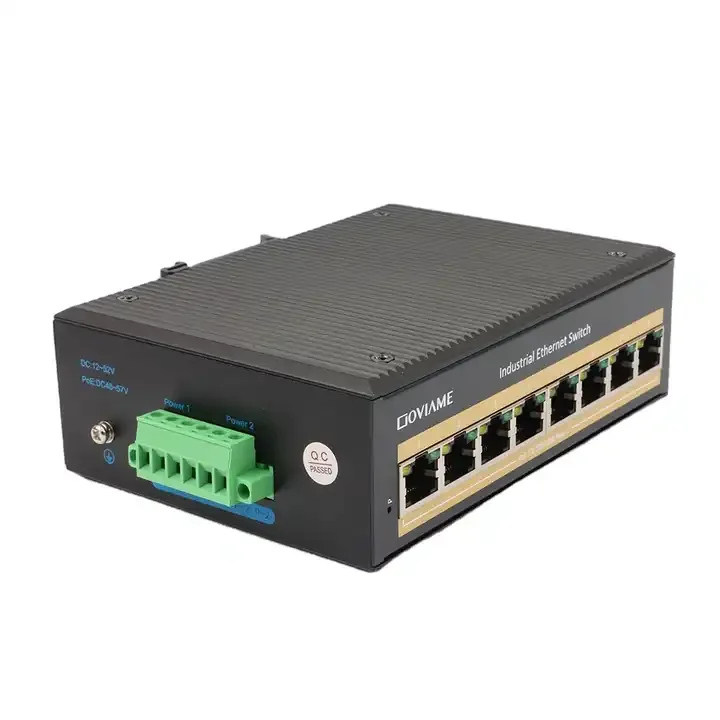

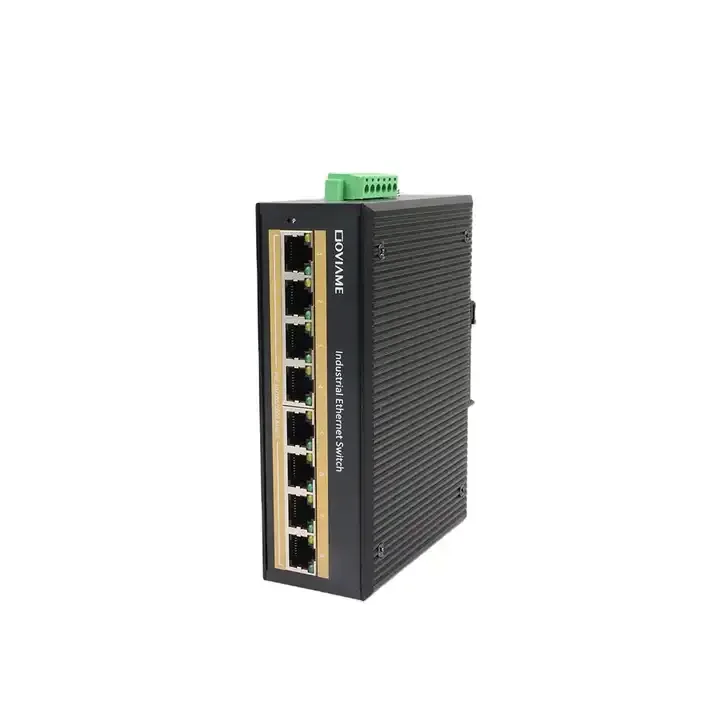

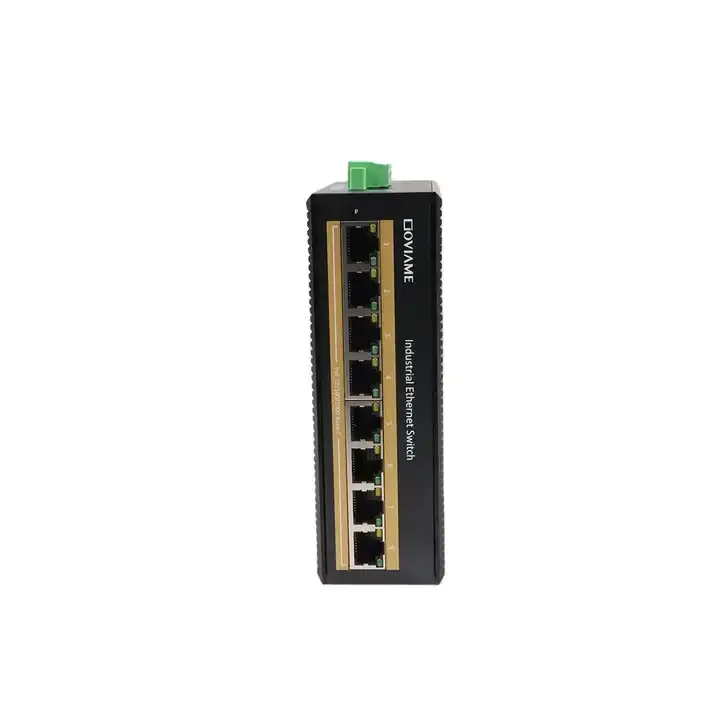

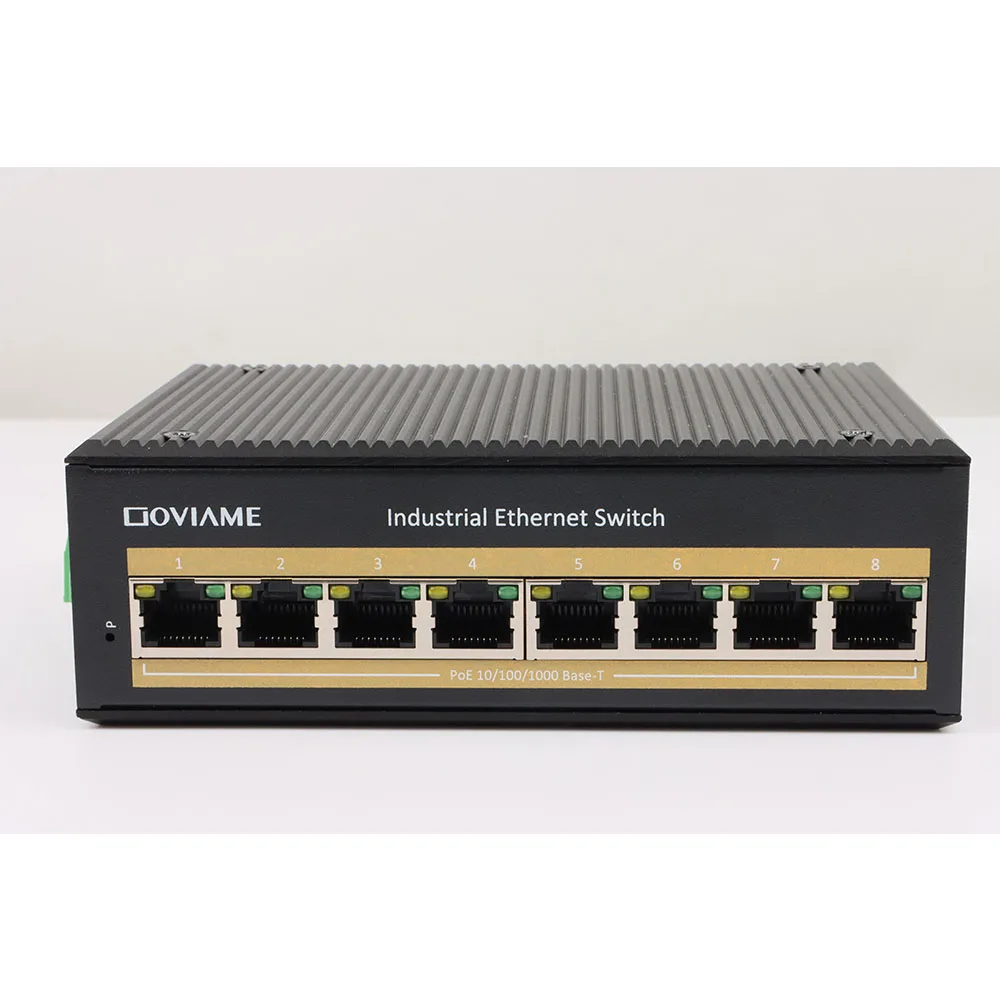

OEM/ODM 8 port 10/100/1000 POE Industrial Ethernet switch with excellent adaptability to industrial field environments
- Category: >>>
- Supplier: Shenzhen Opmedia Technology Co. Ltd.
Share on (1601010901005):
Product Overview
Description
Product Description
• This network switch include 8 port gigabit PoE ethernet ports, all ports support 10/100/1000Mbps rate, switching capacity up to 20Gbps, has higher data transmission performance
• The poe port 1-8 support IEEE802.3af/at standard, can connect multiple poe devices, such as POE camera, poe ap, etc. Please note that passive 24v poe is not supported. His POE input DC voltage is 48-57V, so please use a input voltage above 48V to provide POE, if it is 12V, it cannot provide POE
• The shell is made of industrial-grade aluminum alloy, which is more sturdy, surface groove design, better heat dissipation,
integrated DIN-rail mount kit, installation and disassembly are very simple
• IP40 protection grade, working temperature -40~75°C(-40~185°F), super robustness, anti-lightning, anti-static and anti-overload protection, adapt to various harsh environments
• Dual power supply, automatic fault switching, anti-reverse connection does not damage the equipment, higher reliability
• Support auto-negotiation, plug and play, no configuration needed, low-power consumption CPU, no fan quiet operation, green energy saving, suitable for various networks, such as home office, computer room, warehouse, factory, compact control box and other industrial scenarios with Ethernet access
• The poe port 1-8 support IEEE802.3af/at standard, can connect multiple poe devices, such as POE camera, poe ap, etc. Please note that passive 24v poe is not supported. His POE input DC voltage is 48-57V, so please use a input voltage above 48V to provide POE, if it is 12V, it cannot provide POE
• The shell is made of industrial-grade aluminum alloy, which is more sturdy, surface groove design, better heat dissipation,
integrated DIN-rail mount kit, installation and disassembly are very simple
• IP40 protection grade, working temperature -40~75°C(-40~185°F), super robustness, anti-lightning, anti-static and anti-overload protection, adapt to various harsh environments
• Dual power supply, automatic fault switching, anti-reverse connection does not damage the equipment, higher reliability
• Support auto-negotiation, plug and play, no configuration needed, low-power consumption CPU, no fan quiet operation, green energy saving, suitable for various networks, such as home office, computer room, warehouse, factory, compact control box and other industrial scenarios with Ethernet access
Product Name | DIN-Rail Industrial Ethernet Switch |
Ports | 8 x 10/100/1000Mbps ports |
Switch Capacity | 20Gbps |
MAC Table | 8K |
Packet Buffer | 2M |
Packet Forwarding Rate | 11.904Mpps |
Max. Power per Port | 6W |
Temperature | - 40 ~ 85 °C (- 40 - 185 °F) |
Housing | IP40 |
DIN-Rail mount | DIN-Rail mount |
Dimensions | 143.7 x 103 x 47.7 mm (56.57 x 40.55 x 18.77 in.) |
Weight | 0.6kg |
Company Profile
Shenzhen Opmedia Technology Co.,Ltd is a leading supplier for optical communication products in China,we are integrated with R&D,production,sales and service.Based on strong R&D and professional manufacturing capability,We specialize developing Optical Transceivers and Network Switches. Rich-experience team.We can respond to cutomers quickly,provide cost-effective products and solutions.Meanwhile,we also provide customized product design according to customers’demand.

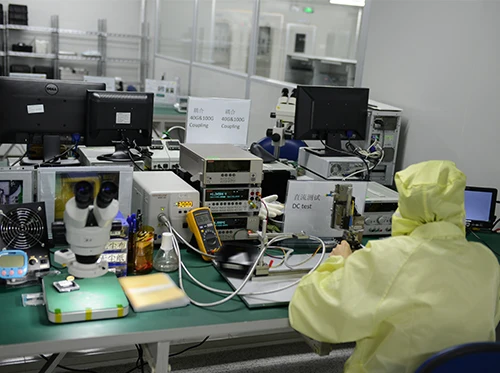

Manufacturing Technique
SMT Production
AOI checking
DIP
PCBA inspection
Assembly
Aging
Certifications
Our Advantages
R & D advantage
With more than 30 experienced optical communication products engineers, we also provide training courses for foreign engineers and communicate with foreign senior engineers to maintain our leading position in R & D. As over 20 years customized optical modules and network switches provider, keeping learn and exploring are our faith.
Product advantages
Strict quality management, non-performing rate control in less than five over ten thousand, the production of each steps have inspection. Full-range product lines reflected in different package types data-rate and compatible brands. And we also provide customized products to meet the needs of different industries personalized demand.
Cost advantage
We strictly control the quality of raw materials, most of the raw materials purchase from Japan and USA. Long-term stable raw material suppliers give us good price support and we also achieve scale economies production. Low mobility of employees by training and humanized management reduce the cost of staff mobility problems.

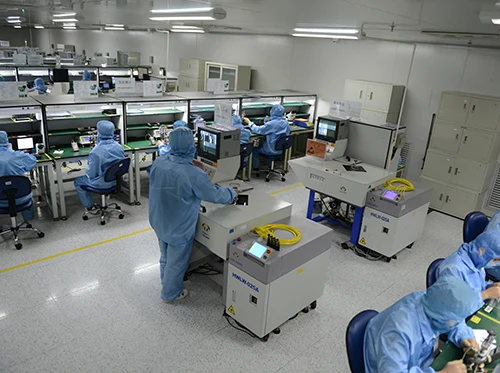

Production Line
Excellent production line team, humanized management institution, latest equipment to keep requirement of high capacity and quality.
FAQ
Q: Can I use supplies of differing voltage as the redundant power ? For example, 12v and 24v without unwanted effects or damage?
A: Yes, you can use supplies of differing voltages. There will be no ill effects, the switch's internal regulators were designed
to handle a wide range of voltage inputs.
to handle a wide range of voltage inputs.
Q: What temperature range can this device handle?
A: The operating temperature is -40～85℃（-40～185°F）
Q: Does it come with a small din rail?
A: The switch support 35mm din rail ,but the din rail is not included.
A: The switch support 35mm din rail ,but the din rail is not included.
Q: Does this have any management capability?
A: No,This is a unmanaged industrial ethernet switch.
Q: Is this unit fanless?
A: Yes, the unit is fanless. No noise.
