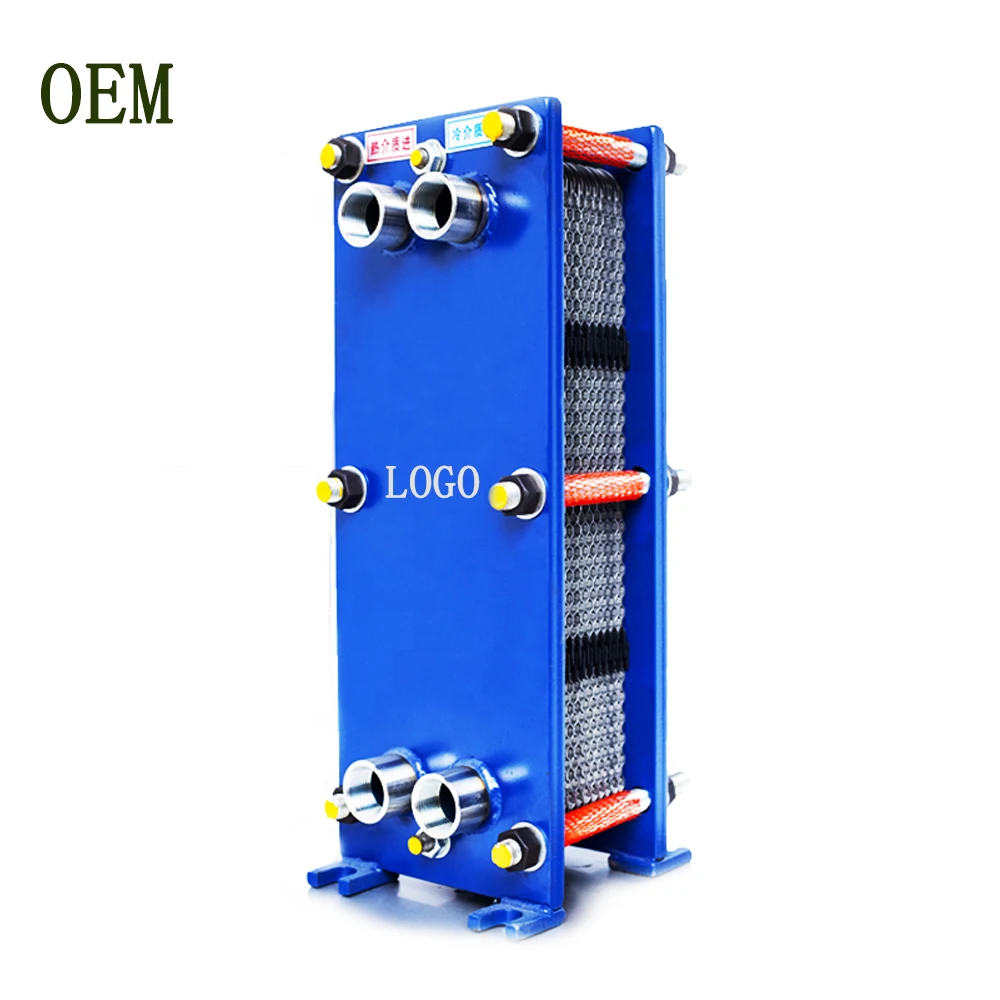

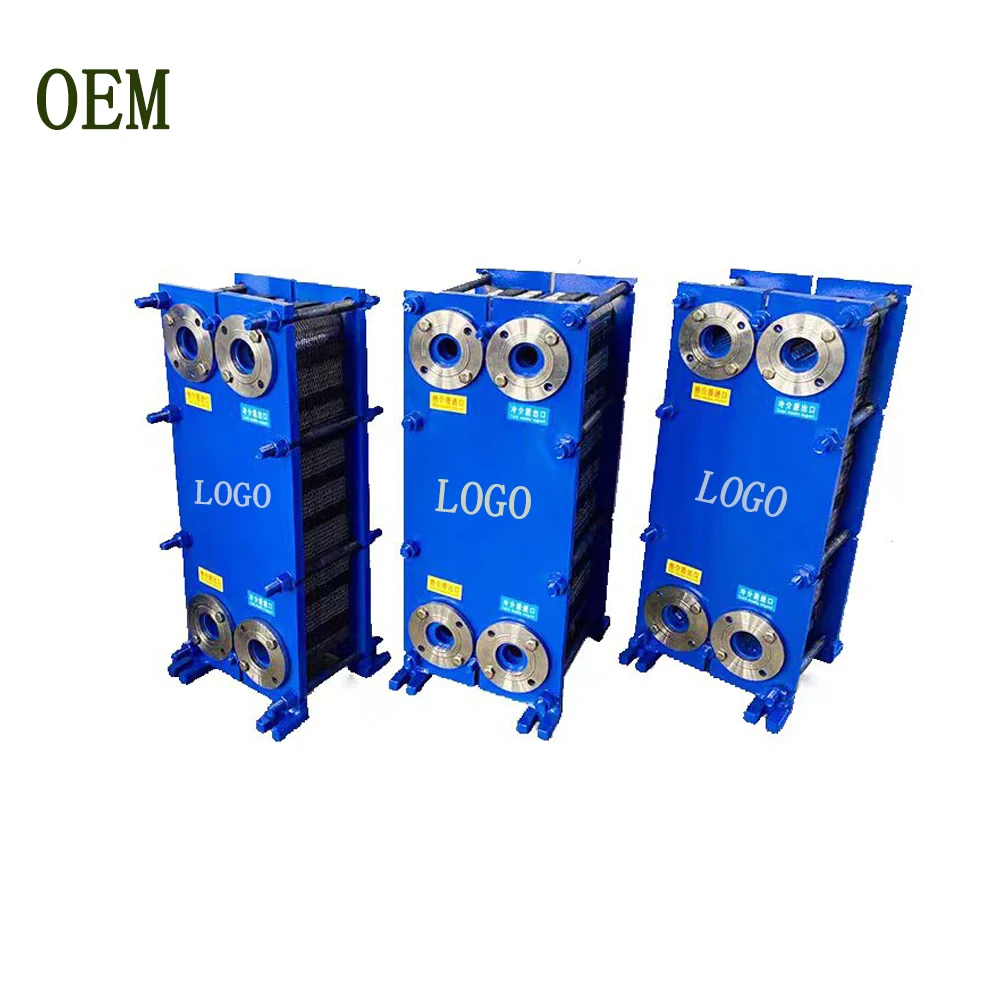

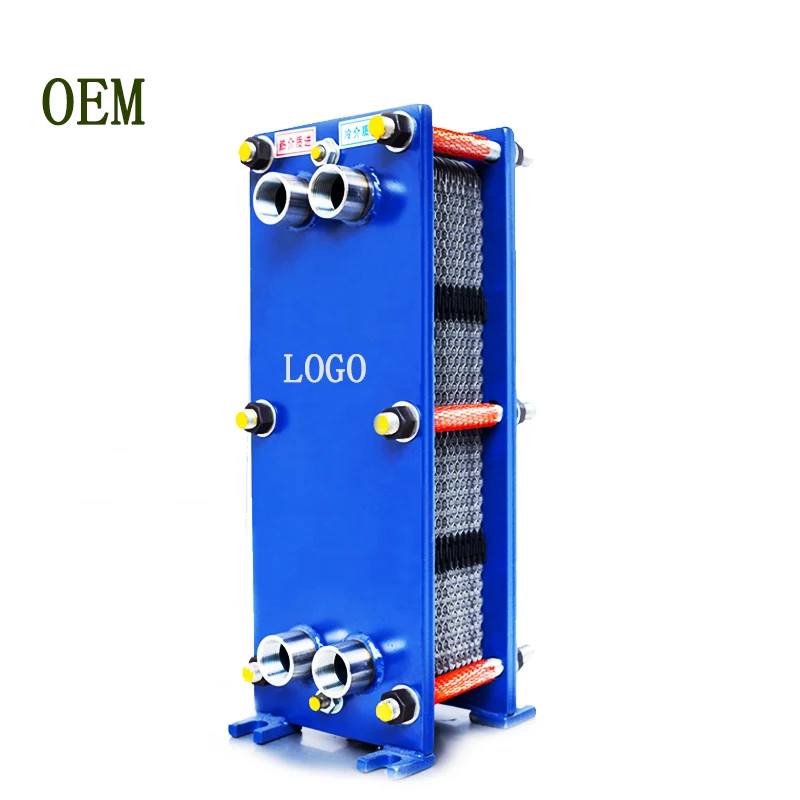

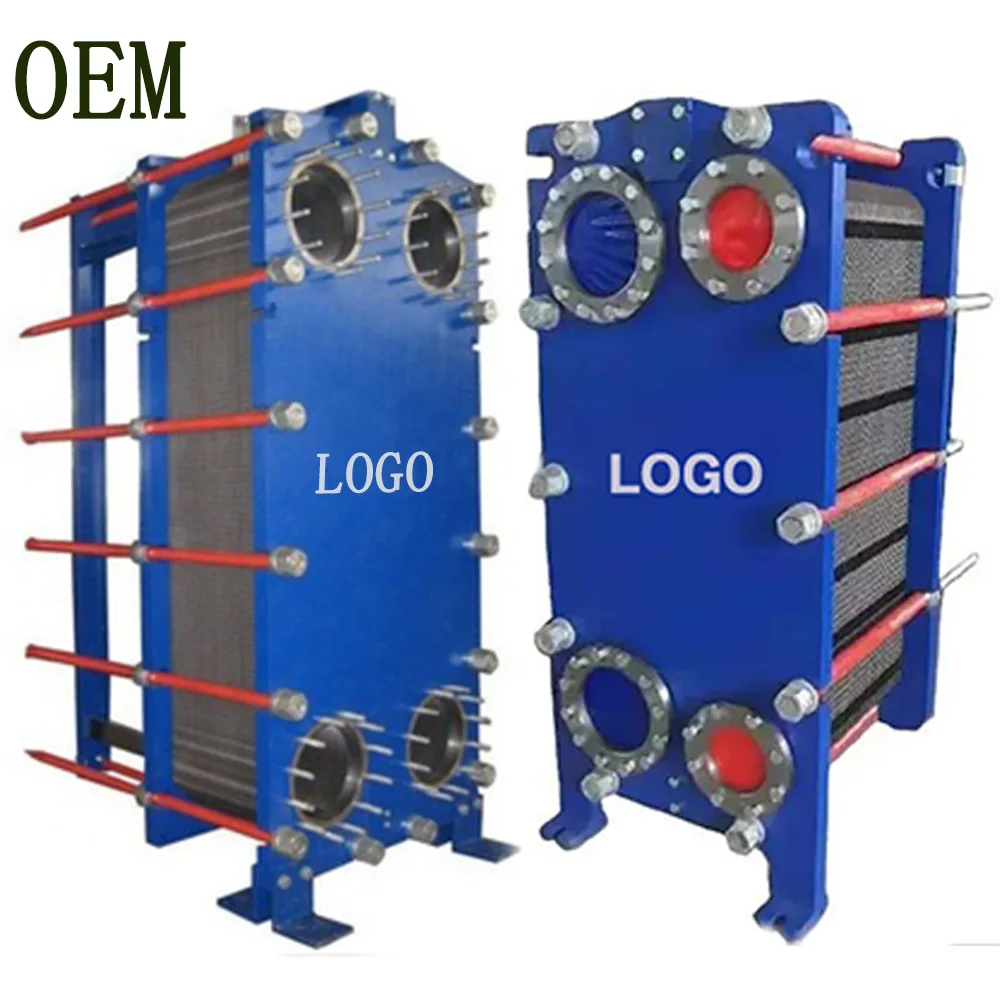

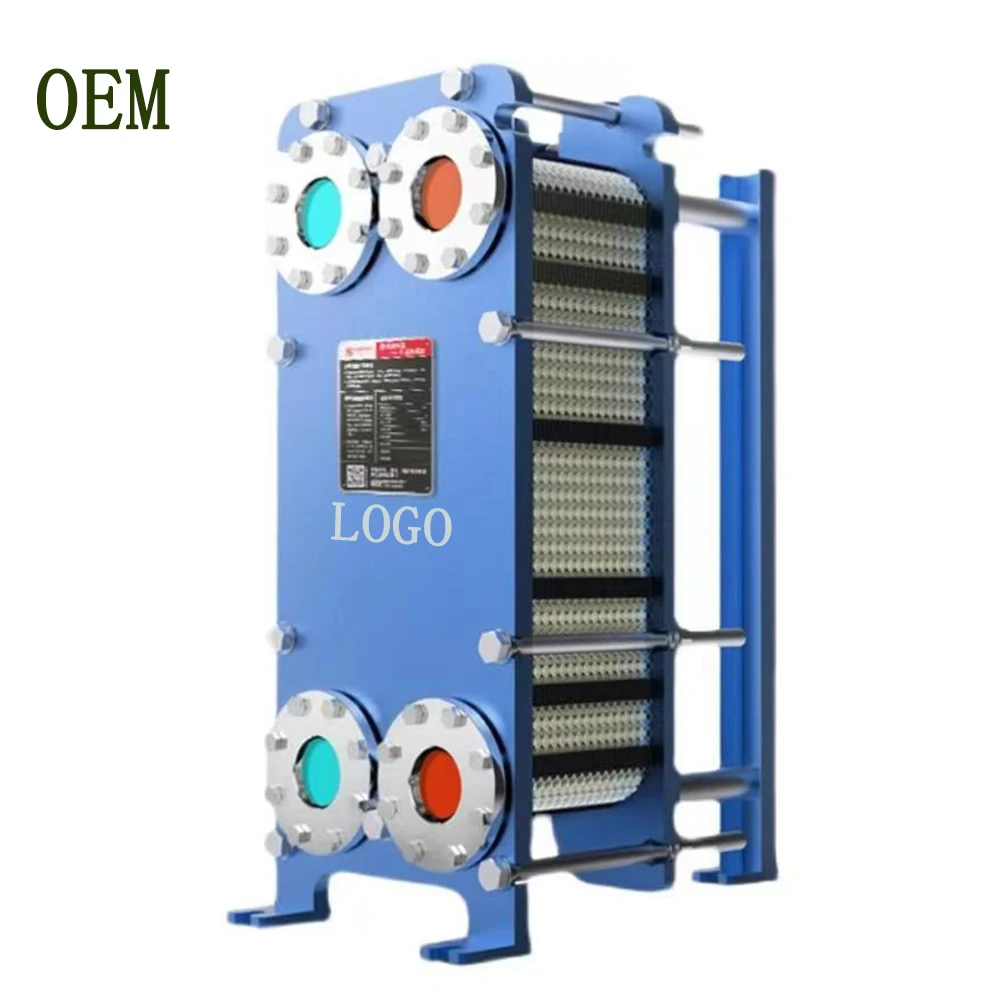

Reasonable price modern novel design gas water heater gasket plate heat exchanger
- Category: >>>
- Supplier: Gansu Nuochen Petrochemical Complete Equipment Co. Ltd.
Share on (1601010907647):
Product Overview
Description
What's plate heat exchanger?

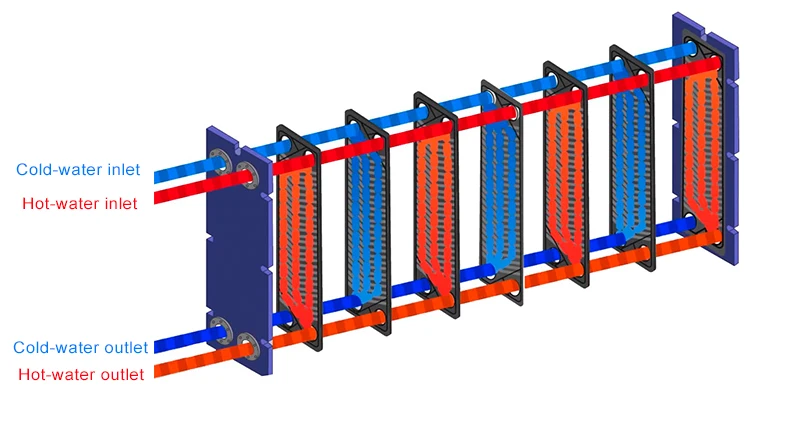

How does a plate heat exchanger work?

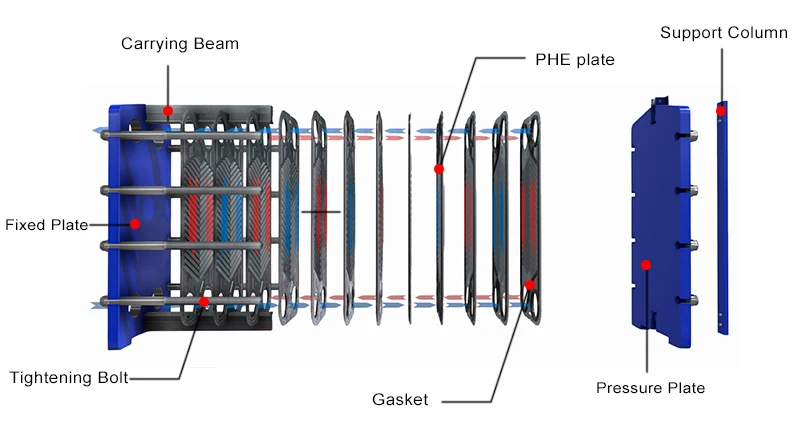

A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. Its consists of a
series of parallel plates that are placed one above the other so as to allow the formation of a series of channels for fluids to
flow between them. The space between two adjacent plates forms the channel in which the fluid flows.
series of parallel plates that are placed one above the other so as to allow the formation of a series of channels for fluids to
flow between them. The space between two adjacent plates forms the channel in which the fluid flows.
The advantage of the plate heat exchanger
* Save energy: Plate heat exchangers are up to five times more efficient than shell-and-tube designs with approach temperatures asclose as 1℃.
* The high heat transfer efficiency: its heat exchanger coefficient is 3-5 times than shell and tube heat exchanger at same pressure drop.
* Compact structure, save floor space
* Compact structure, save floor space
* Easier maintenance
* Easier installation and removal
* Lower capital costs

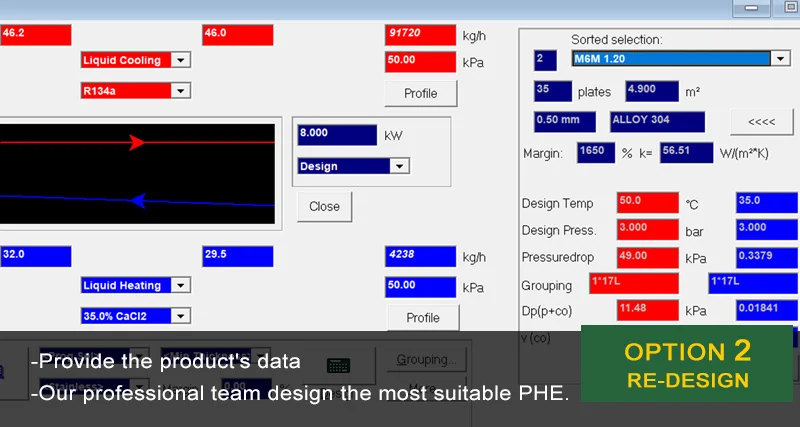

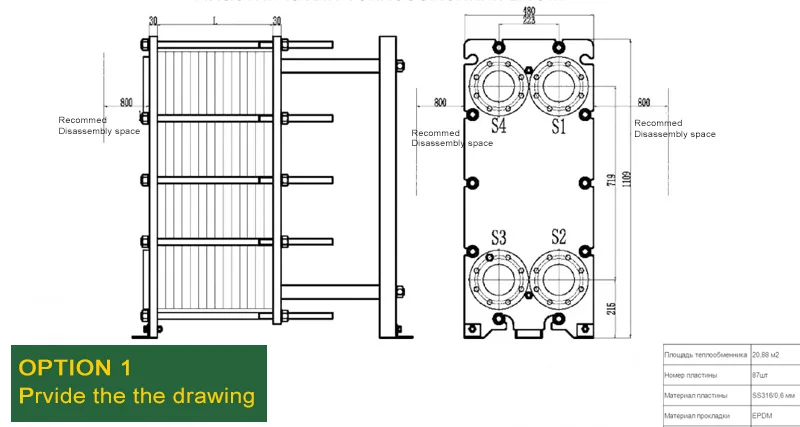

How do we select the PHE for you?
There are hunderds of the models to option, can select the suitable model one according the following method.
Custom process
1.Nozzle Size Customization
DN30-DN500
2.Gasket material Customization
material | Temperature range （℃） | Corrosion resistance |
NBR | -20~110 | It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution. |
HNBR | -20~165 | It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution. |
EPDM | -50~150 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
H-EPDM | -20~165 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
S-EPDM | -20~130 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
Viton | -40~180 | Excellent corrosion resistance. It is suitable for high concentration inorganic acid-base and polar chemical medium, mineral oil, silicone oil and silicone resin, animal and vegetable oil, chain hydrocarbon (propane, butane, mineral oil, etc.), hydrocarbon chloride, fuel, non gas resistant substance, etc. |
Chloroprene rubber(CR) | -50~100 | It is resistant to dilute non oxidizing acid and alkali. |
Silicon | -65~230 | Corrosion resistant to dilute acid, alkali and brine. |
Compressed fiber（AFM34 SIL-4400） | 260 | Oil, water and vapor (up to 160 ℃), gas, salt solution, fuel, ethanol, organic / inorganic acids, refrigerants, hydrocarbons. |
PTFE | -200~260 | It has excellent corrosion resistance. Except molten metal lithium, sodium, potassium, chlorine trifluoride, oxygen trichloride at high temperature and liquid fluorine with high flow rate, it can resist all chemical media (including concentrated nitric acid and aqua regia). |
3.Plate material Customization
Plate material | Suitable for fluid |
stainless steel(SUS304.316) | Purified water,river water,edible oil,mineral oil |
TI，T-Pd | Sea water, salt water and salt chemicals |
20Cr,18Ni6Mo(254SMO) | Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution |
Ni | High temperature, high concentration caustic soda |
HASTELLOY（C276，D205，B2G） | Concentrated sulfuric acid, hydrochloric acid and carbonic acid |
4.Customized heat exchange area

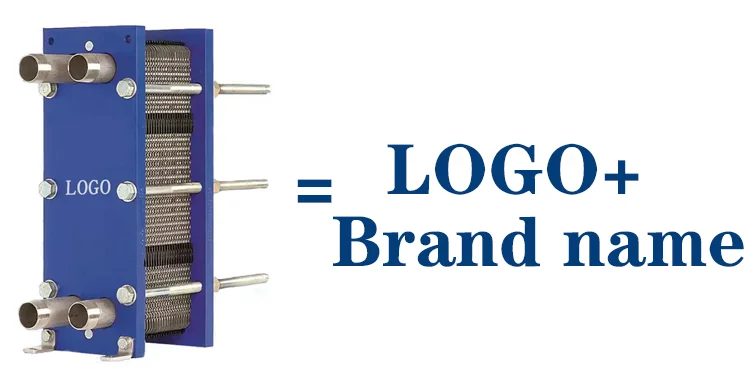

5.LOGO and Brand name

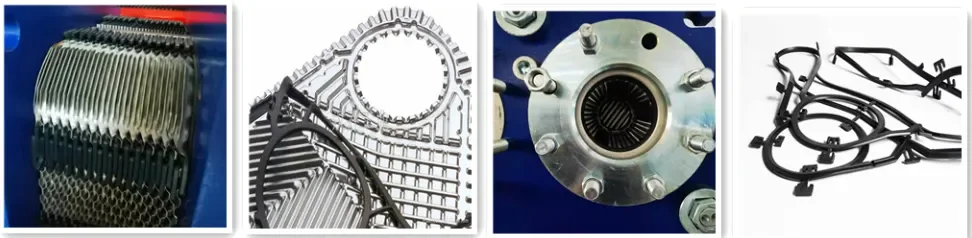

Are you looking for cost-saving PHE replacement spare parts?
Nuochen supplies non-OEM plate heat exchanger
spare parts that are fully compatible with PHEs of all brands.

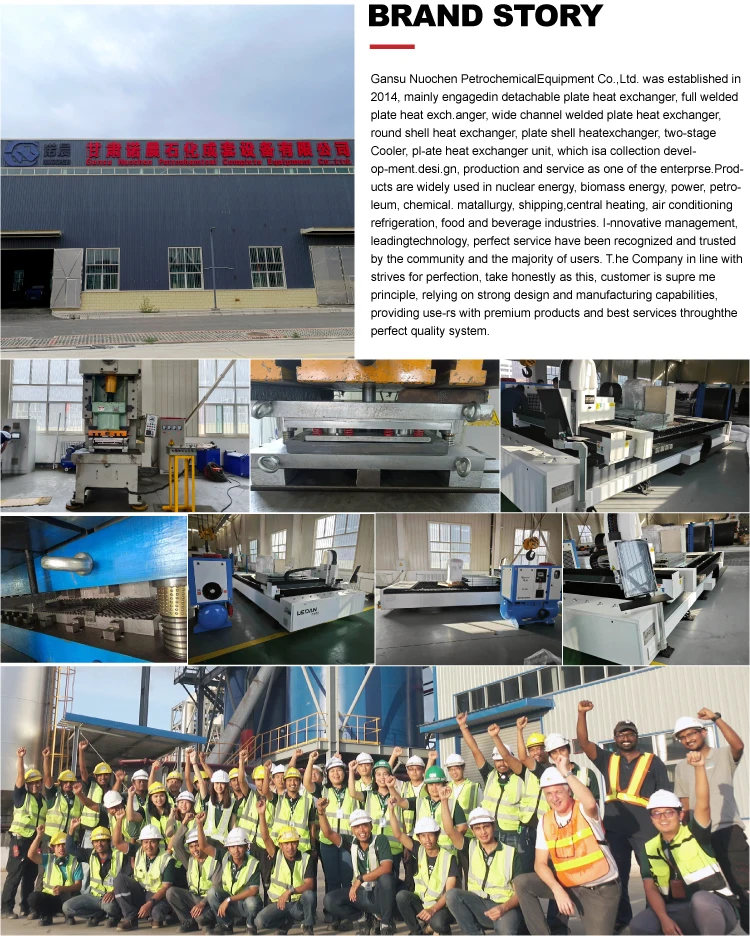

Company introduction
Our Advantages

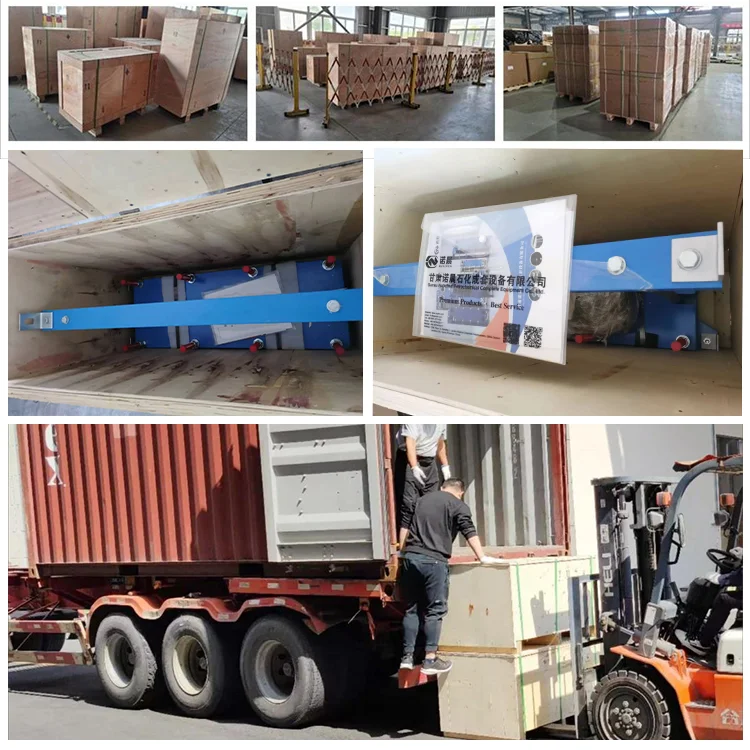

Packaging
FAQ
Q: What are the terms of payment?
A, T/T, Western Union remittance, L / C (60% deposit, 40% balance before delivery). Before you pay the balance, we will show you photos of the products and packaging.), Alibaba Trade guarantee service.
Q: How about the product quality
A: our products have passed ISO9001 certification and CE certification .
Q: If I place an order, what is the delivery time?
A: 15-20 days for general products and 25-30 days for customized products.
Q: If I order a lot, can I get a lower price?
A: Yes, if the order is large, the price can be discounted.
Q: What is the mode of transportation?
A: Shipping, air transportation, international express, DHL / TNT / FedEx / UPS / EMS,
Q: Does your product have after-sales service?
A: Yes. If you have any questions about the product, please feel free to contact us.
A, T/T, Western Union remittance, L / C (60% deposit, 40% balance before delivery). Before you pay the balance, we will show you photos of the products and packaging.), Alibaba Trade guarantee service.
Q: How about the product quality
A: our products have passed ISO9001 certification and CE certification .
Q: If I place an order, what is the delivery time?
A: 15-20 days for general products and 25-30 days for customized products.
Q: If I order a lot, can I get a lower price?
A: Yes, if the order is large, the price can be discounted.
Q: What is the mode of transportation?
A: Shipping, air transportation, international express, DHL / TNT / FedEx / UPS / EMS,
Q: Does your product have after-sales service?
A: Yes. If you have any questions about the product, please feel free to contact us.
