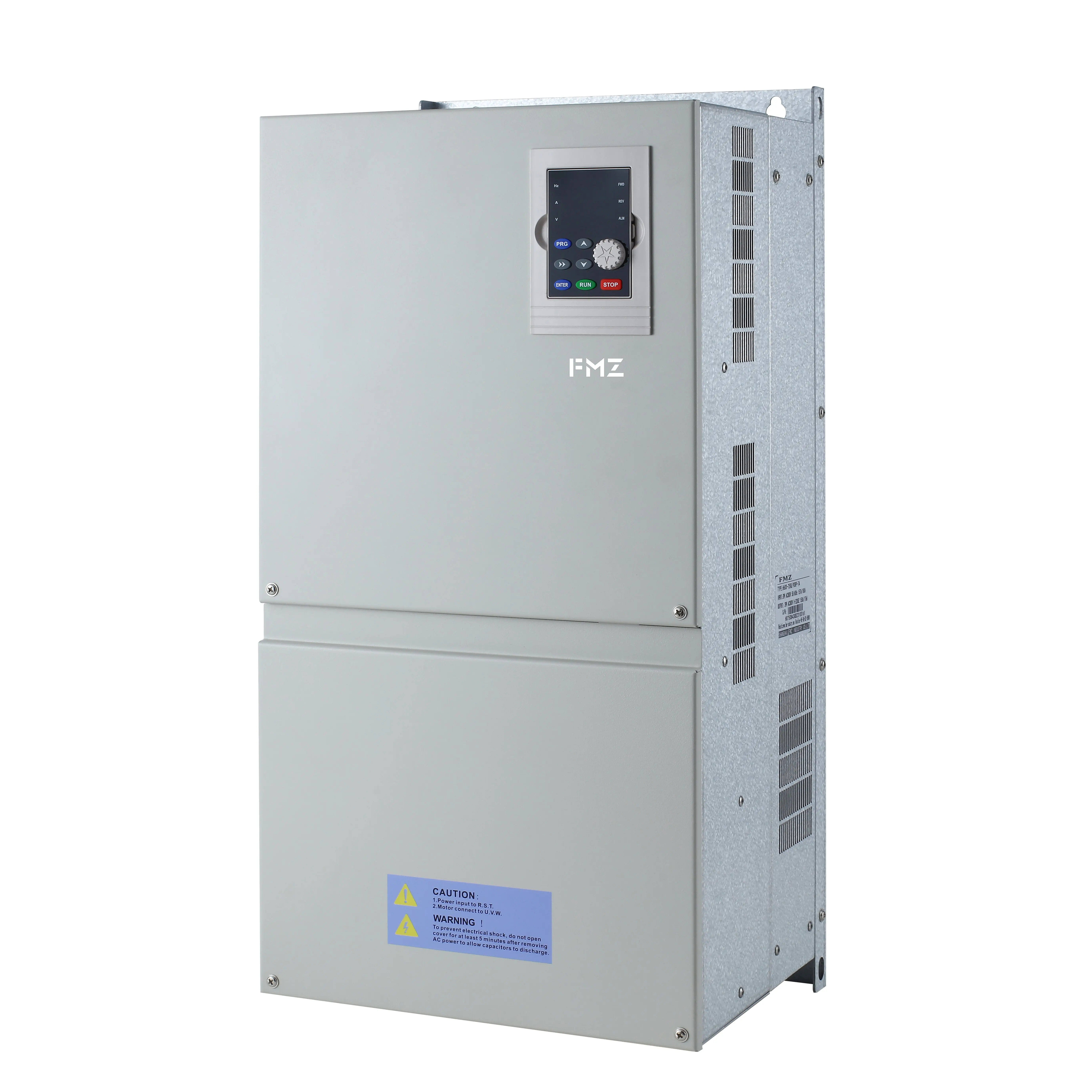

120hp electric motor vsd vfd ac drive high frequency inverter 90kw pm vfd screw air compressor variable frequency drivers
- Category: >>>
- Supplier: Shanghai Fmz Industry Co. Ltd.
Share on (1601010940207):
Product Overview
Description
Product Description

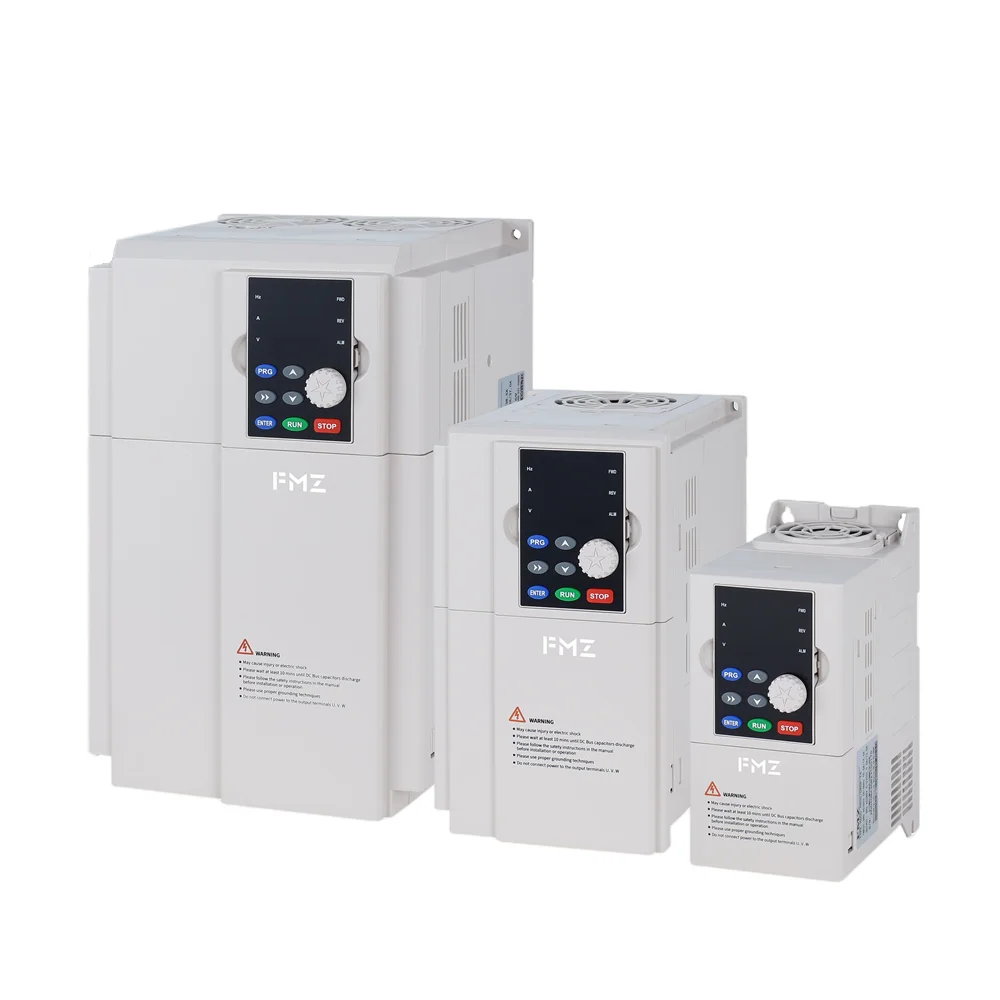

H600 Series
AC Drive/VFD/Frequency Inverter
Solar Pump Inverter
Voltage: Single-phase AC190V~250V
Three-phase AC360V~450V
Power Range: 0.75kW~2.2kW 220V
Power Range: 0.75kW~2.2kW 220V
0.75kW~500kW 380V
Typical Technical Characteristics:
1)Reliable IGBT Module Design
2)Simple PLC operation
3)Carrier frequency: 1.0kHz~16.0kHz
4)Frequency Output: 0~3000Hz
5)Acceleration/Deceleration time: 0~3600s
6)PID function is available

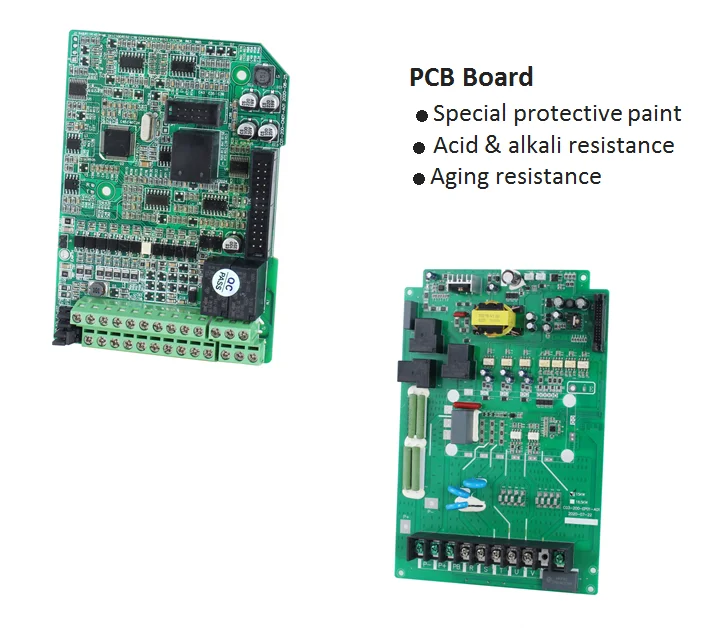

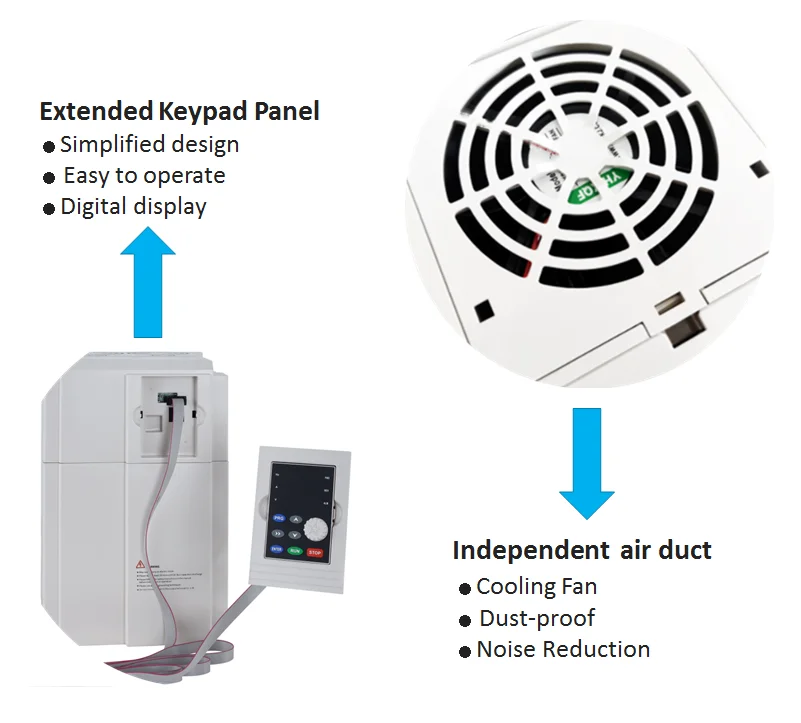

Product Features
Technical Index and Specification

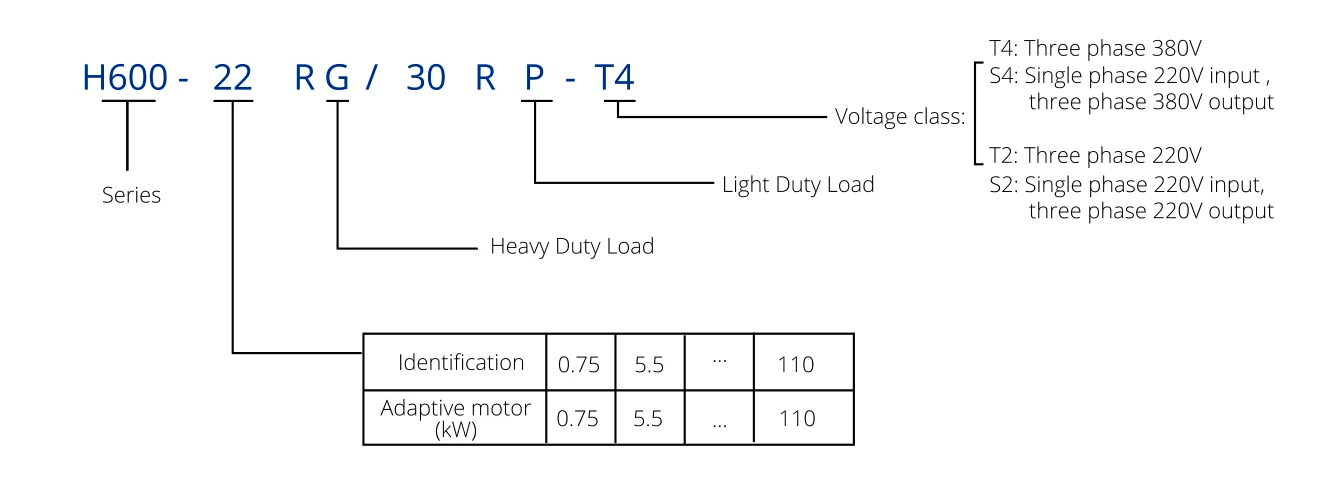

Model | Motor Power(kW) | Rated Current(A) | Outline Dimensions （H*W*D）（mm) | Package Dimensions （H*W*D）（mm) | ||||
220V 1-phase input & 3-phase output （Voltage Range: -15% 220V~220+15%） | ||||||||
H600-0R7G/1R5P-S2 | 0.75 | 4/7 | 170*78*142 | 220*140*190 | ||||
H600-1R5G/2R2P-S2 | 1.5 | 7/9.6 | 170*78*142 | 220*140*190 | ||||
H600-2R2G/4R0P-S2 | 2.2 | 9.6/17 | 170*78*142 | 220*140*190 | ||||
380V 3-phase input & 3-phase output （Voltage Range: -15% 380V~380+15%） | ||||||||
H600-0R7G/1R5P-T4 | 0.75 | 2.1/3.8 | 170*78*142 | 220*140*190 | ||||
H600-1R5G/2R2P-T4 | 1.5 | 3.8/5.1 | 170*78*142 | 220*140*190 | ||||
H600-2R2G/4R0P-T4 | 2.2 | 5.1/9 | 170*78*142 | 220*140*190 | ||||
H600-4R0G/5R5P-T4 | 3.7 | 9/13 | 212*95*159 | 260*150*210 | ||||
H600-5R5G/7R5P-T4 | 5.5 | 13/17 | 212*95*159 | 260*150*210 | ||||
H600-7R5G/11RP-T4 | 7.5 | 17/25 | 240*140*188 | 300*200*240 | ||||
H600-11RG/15RP-T4 | 11 | 25/32 | 240*140*188 | 300*200*240 | ||||
H600-15RG/18RP-T4 | 15 | 32/37 | 322*205*207 | 390*280*280 | ||||
H600-18RG/22RP-T4 | 18 | 37/45 | 322*205*207 | 390*280*280 | ||||
H600-22RG/30RP-T4 | 22 | 45/60 | 322*205*207 | 390*280*280 | ||||
H600-30RG/37RP-T4 | 30 | 60/75 | 500*270*224 | 547*360*323 | ||||
H600-37RG/45RP-T4 | 37 | 75/91 | 500*270*224 | 547*360*323 | ||||
H600-45RG/55RP-T4 | 45 | 91/112 | 522*320*258 | 1280*750*436 | ||||
H600-55RG/75RP-T4 | 55 | 112/152 | 522*320*258 | 600*430*325 | ||||
H600-75RG/90RP-T4 | 75 | 152/176 | 720*380*306 | 787*455*388 | ||||
H600-90RG/110RP-T4 | 90 | 176/210 | 720*380*306 | 787*455*388 | ||||
H600-110RG/132RP-T4 | 110 | 210/253 | 720*380*306 | 787*455*388 | ||||
H600-132RG/160RP-T4 | 132 | 253/304 | 720*380*306 | 787*455*388 | ||||
H600-160RG/185RP-T4 | 160 | 304/344 | 850*520*343 | 898*625*439 | ||||
H600-185RG/200RP-T4 | 185 | 344/377 | 850*520*343 | 898*625*439 | ||||
H600-200RG/220RP-T4 | 200 | 377/426 | 850*520*343 | 898*625*439 | ||||
H600-220RG/250RP-T4 | 220 | 426/465 | 1090*650*456 | 1125*695*504 | ||||
H600-250RG/280RP-T4 | 250 | 465/520 | 1090*650*456 | 1125*695*504 | ||||
H600-280RG/315RP-T4 | 280 | 520/585 | 1090*650*456 | 1125*695*504 | ||||
H600-315RG/355RP-T4 | 315 | 585/650 | 1090*650*456 | 1155*805*543 | ||||
H600-355RG-T4 | 355 | 650 | 1280*750*436 | 1320*795*457 | ||||
H600-400RG-T4 | 400 | 725 | 1280*750*436 | 1320*795*457 | ||||
H600-450RG-T4 | 450 | 820 | 1280*750*436 | 1320*795*457 | ||||
H600-500RG-T4 | 500 | 930 | 1280*750*436 | 1320*795*457 | ||||
Product Name | H600 Series AC Drive/Frequency Converter/VFD |
Model Number | H600-75RG/90RP-T4 |
Control Mode | SVC, V/F Control |
Torque Rise | Auto Torque Rise, Manual Torque Rise 0~30%V/F Mode |
Rated Power | 75kW |
Input Voltage | 3PH 380V 50/60Hz |
Output Voltage | 3PH 380V 0~3000Hz |
Operating Temperature | -10-40℃ |
IP Protection | IP20 |
Application | Fan, Pump, Conveyor, Packing Machinery, Textile machinery... |

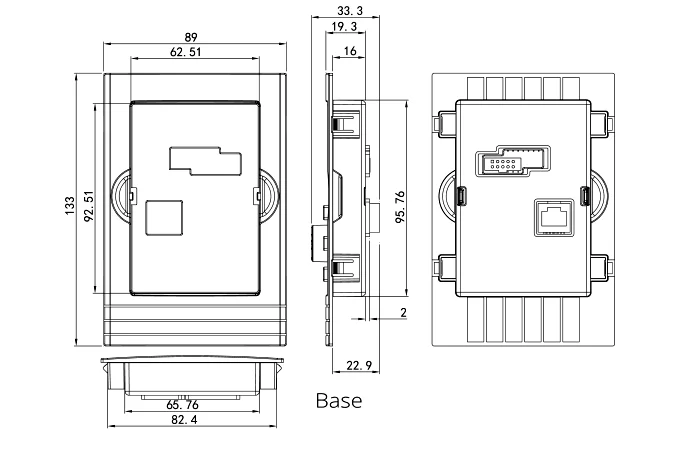

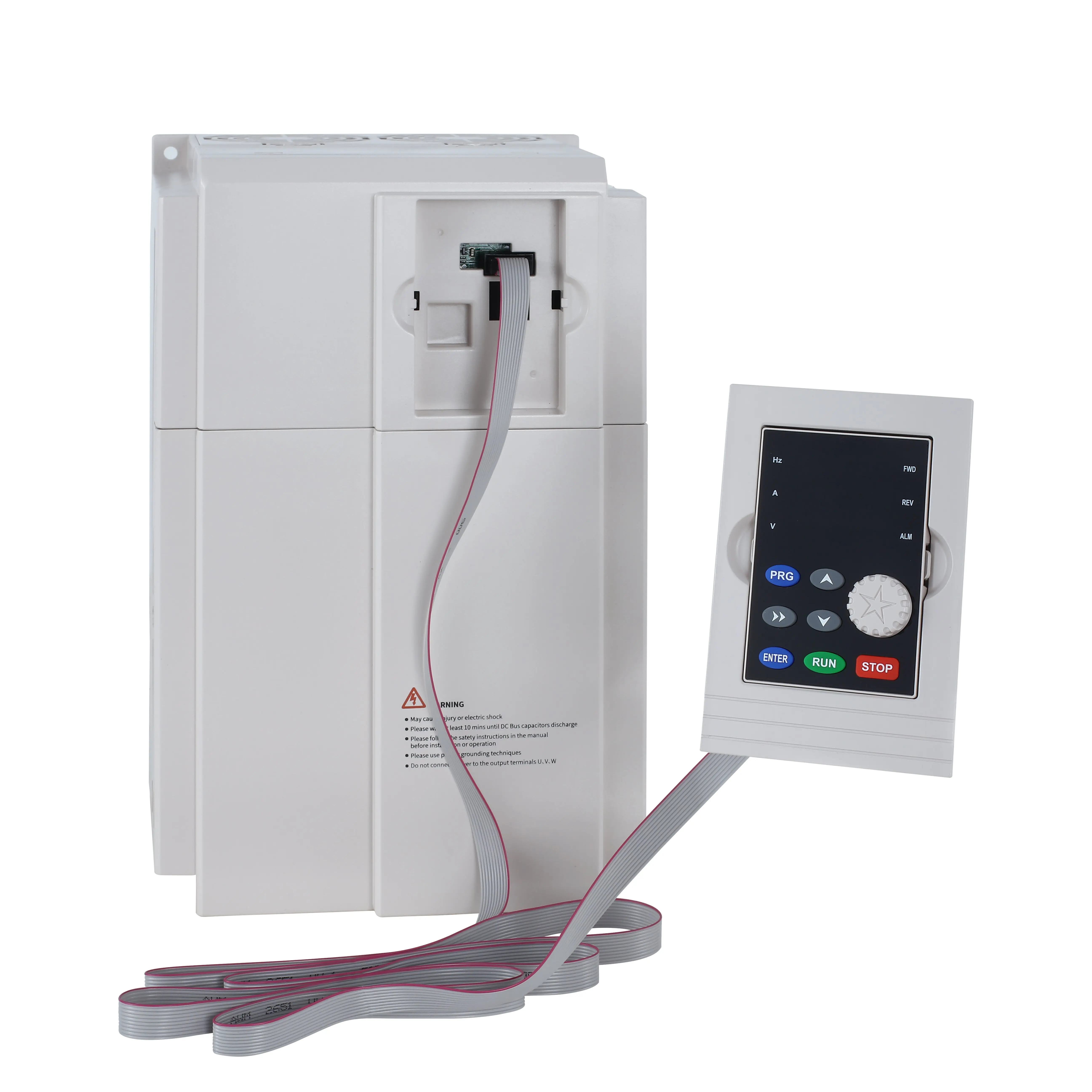

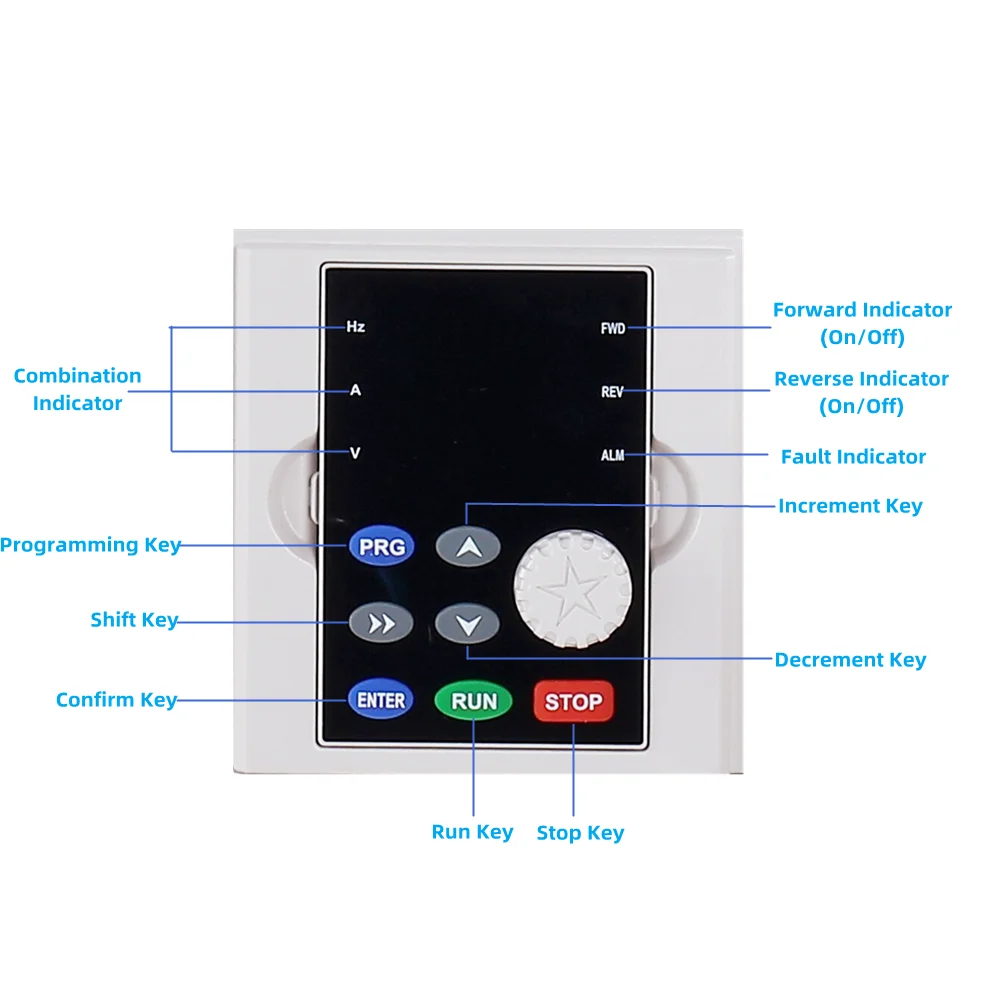

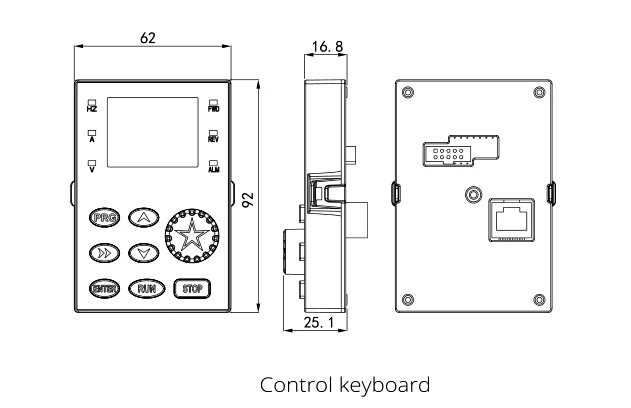

Keypad Panel Display
Combination Indicator Light | LED Display Meaning | Symbol |
Hz+A | Motor Speed | r/min |
A+V | Time(Seconds) | s |
Hz+V | Percent Actual Value | % |
Hz+A+V | Temperature | °C |

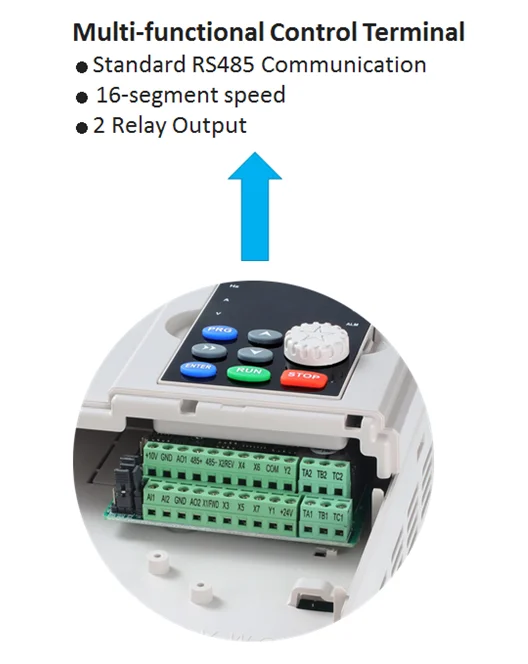

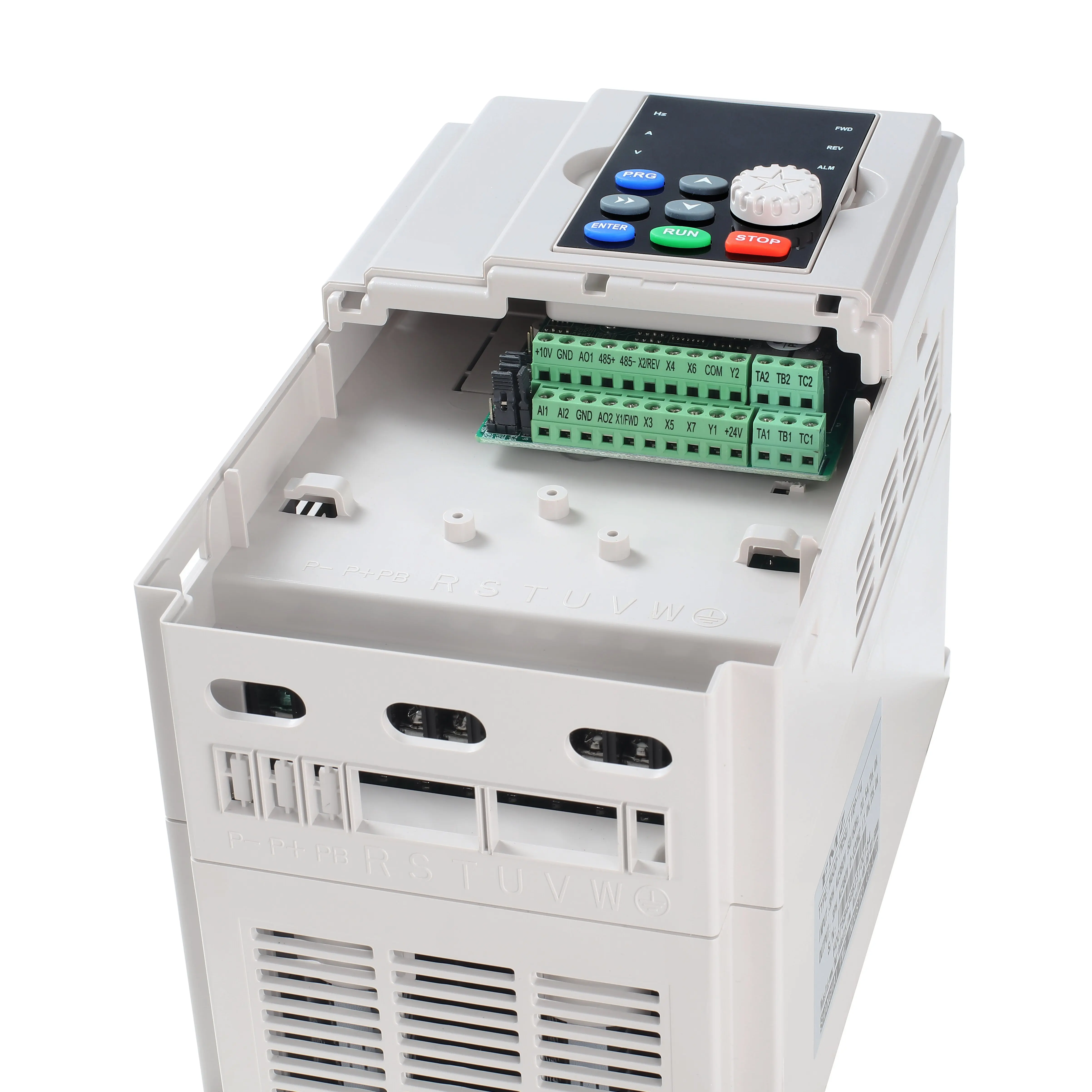

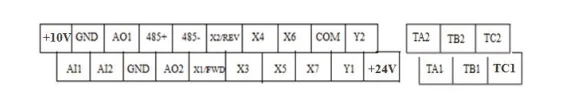

Control Circuit Terminal Description
Catagory | Terminal | Function Description | Specification |
Multifunctional digital input terminal | X1 | It is valid when X (X1, X2, X3, X4, X5, X6, X7)~ COM is short-circuited,and its functions are set by parameters F07.00~F07.06 respectively (common terminal:COM). | INPUT,0~24V level signal, low level active,5mA. |
X2 | |||
X3 | |||
X4 | |||
X5 | |||
X6 | |||
X7 | In addition to being used as an ordinary multi-function terminal, X7 can also be programmed as a high-speed pulse input port, see F07.06 function description for details. | ||
Analog input and output terminals | AI1 | AI1 receives analog voltage/current input,voltage and current are selected by jumper JP3, the factory default input voltage, if you want to input current, just adjust the jumper cap to Cin position: AI2 only accepts voltage input. For the range setting, see the description of function codes F06.01~F06.10(Reference ground: GND). | INPUT,input voltage range:0-10V(input impedance:100KΩ)input current range: 0-20mA (input impedance:500Ω) |
AI2 | |||
AO1 | AO1 provides analog voltage/current output, which can represent 14 kinds of physical quantities. The output voltage and current are selected by jumper JP4. The factory default output voltage.lf you want to output current you only need to jump the jumper cap to the Co1 position: see Description of functioncodes F06.21 and F06.22.(Reference ground: GND). | OUTPUT, 0~10V DC voltage.The output voltage of AO1 and AO2 terminals is the PWM waveform from the central processing unit.The magnitude of the output voltage is proportional to the width of the PWM waveform. | |
AO2 | |||
Relay Output Terminal | TA1 | Programmable and defined as multi-functional relay output terminals, up to 62 types. See F07.20, F07.21 output terminal function introduction for details. | TA1-TB1, TA2-TB2 are normally closed; TA1-TC1 and TA2-TC2 are normally open. Contact capacity: 250VAC/2A (COSφ=1), 250VAC/1A (COSφ=0.4), 30VDC/1A |
TB1 | |||
TC1 | |||
TA2 | |||
TB2 | |||
TC2 | |||
Power interface | +24V | +24V is the circuit common power supply ofthe digital signal input terminal | Maximum output current 200mA |
+10V | +10V is the circuit common power supply ofanalog input and output terminals | Maximum output current 20mA | |
COM | Digital signal and +24V power referenceground | Internally isolated from GND | |
GND | Analog signal and +10V power referenceground | Internally isolated from COM | |
Communication interface | 485+ | RS485 signal + terminal | Standard RS485 communication interface, not isolated from GND, please use twisted pair orshielded wire. |
485- | RS485 signal - terminal |

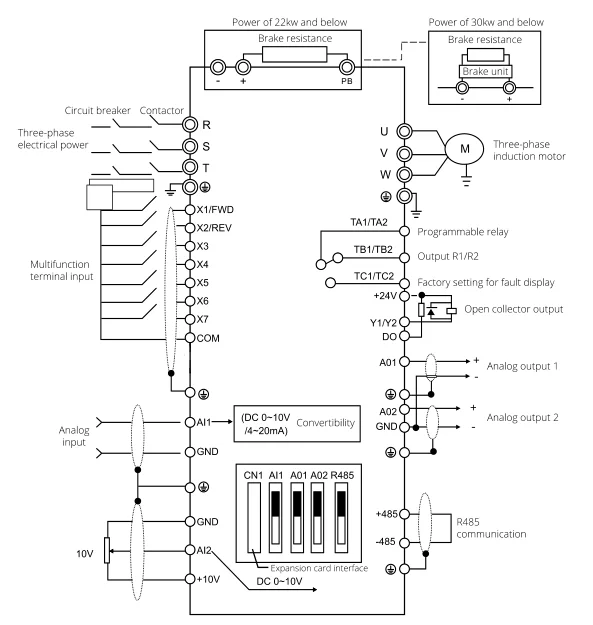

Wiring Diagram and Installation
Terminal | Function Description |
R、S、T | Three-phase AC input terminal |
P+、 P- | Reverved terminal for external braking unit |
P+、 PB | Reserved terminal for external braking resistor(0.4KW~30KW) |
P+、 P1 | Reserved terminal for external DC reactor |
U、V、W | Three-phase AC output terminal |
G | Ground Terminal |

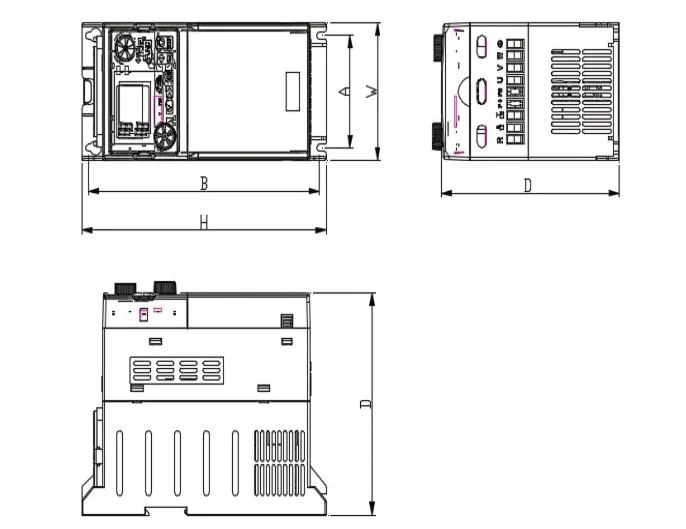

Power | A (mm) | B (mm) | H (mm) | W (mm) | D (mm) | Mounting holes (mm) | |||
Installation size | Peripheral Dimensions | ||||||||
0.75KW-4KW | 78 | 200 | 212 | 95 | 154 | 5 | |||
5.5KW-11KW | 129 | 230 | 240 | 140 | 180.5 | 5 | |||
15KW-22KW | 188 | 305 | 322 | 205 | 199 | 6 | |||
30KW-45KW | 195 | 430 | 450 | 270 | 265 | 6.5 | |||
55KW | 240 | 541 | 560 | 320 | 280 | 9 | |||
75KW-110KW | 240 | 646 | 665 | 380 | 282 | 9 | |||
Application
Fan, water pump
Conveyor
Air Compressor
Engraving Machinery
CNC Machinery
Ball Mill
Pringting Machinery
Plastic Machinery
Crusher Machinery
Grinding Machinery
Blowing Machinery
Wiring-draing Machinery
Paper Making Machinery
Dyeing Machinery
Music Fountain

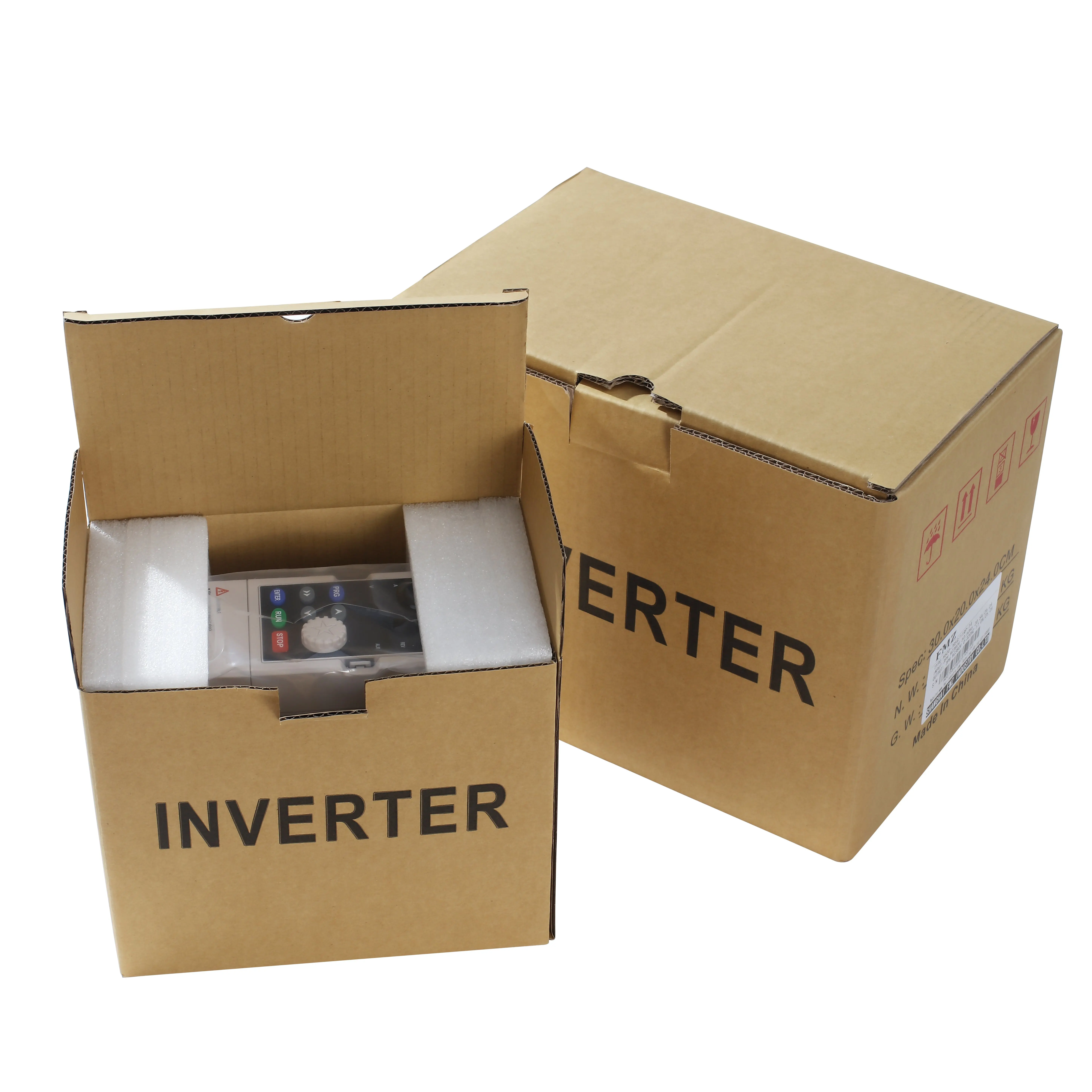

Product packaging
