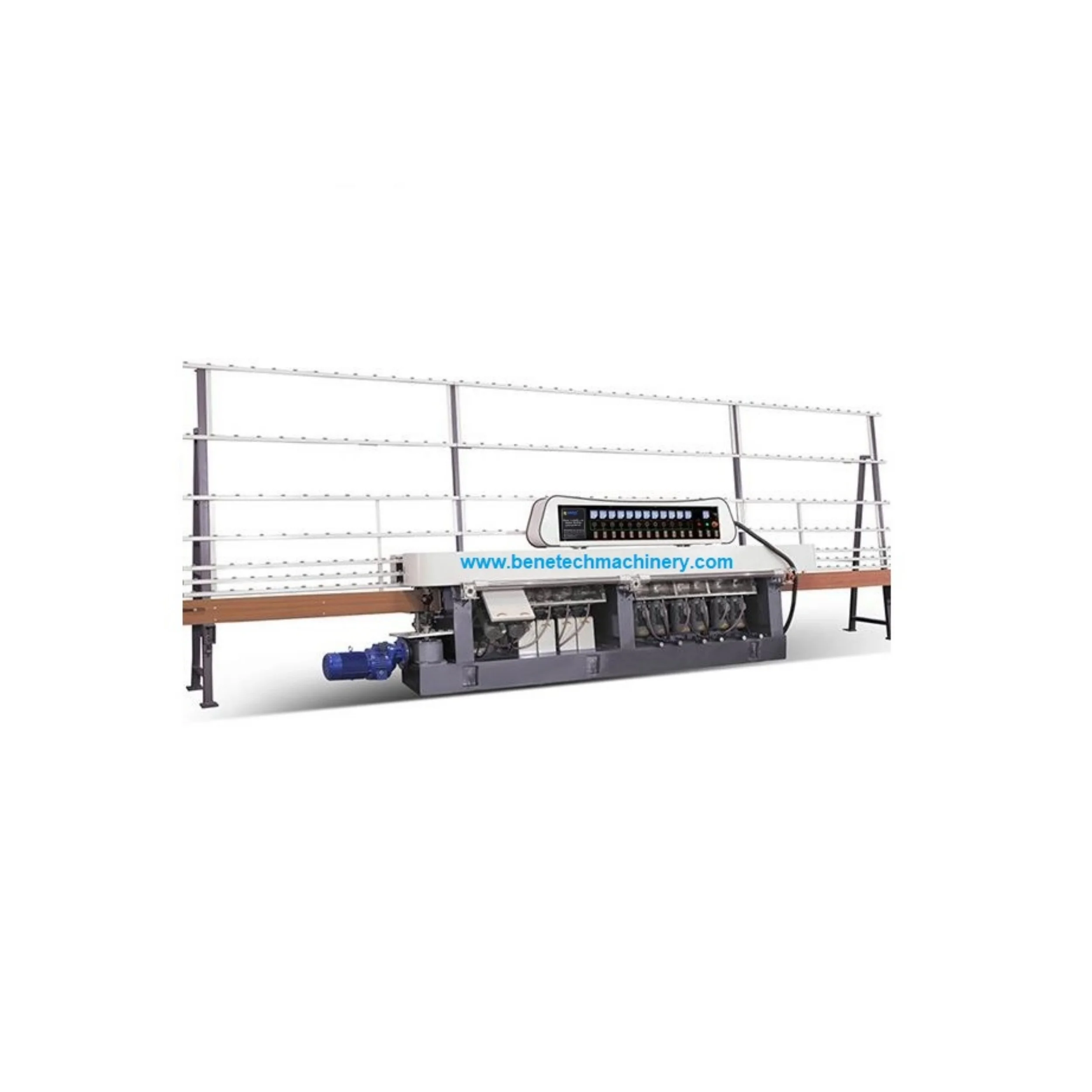

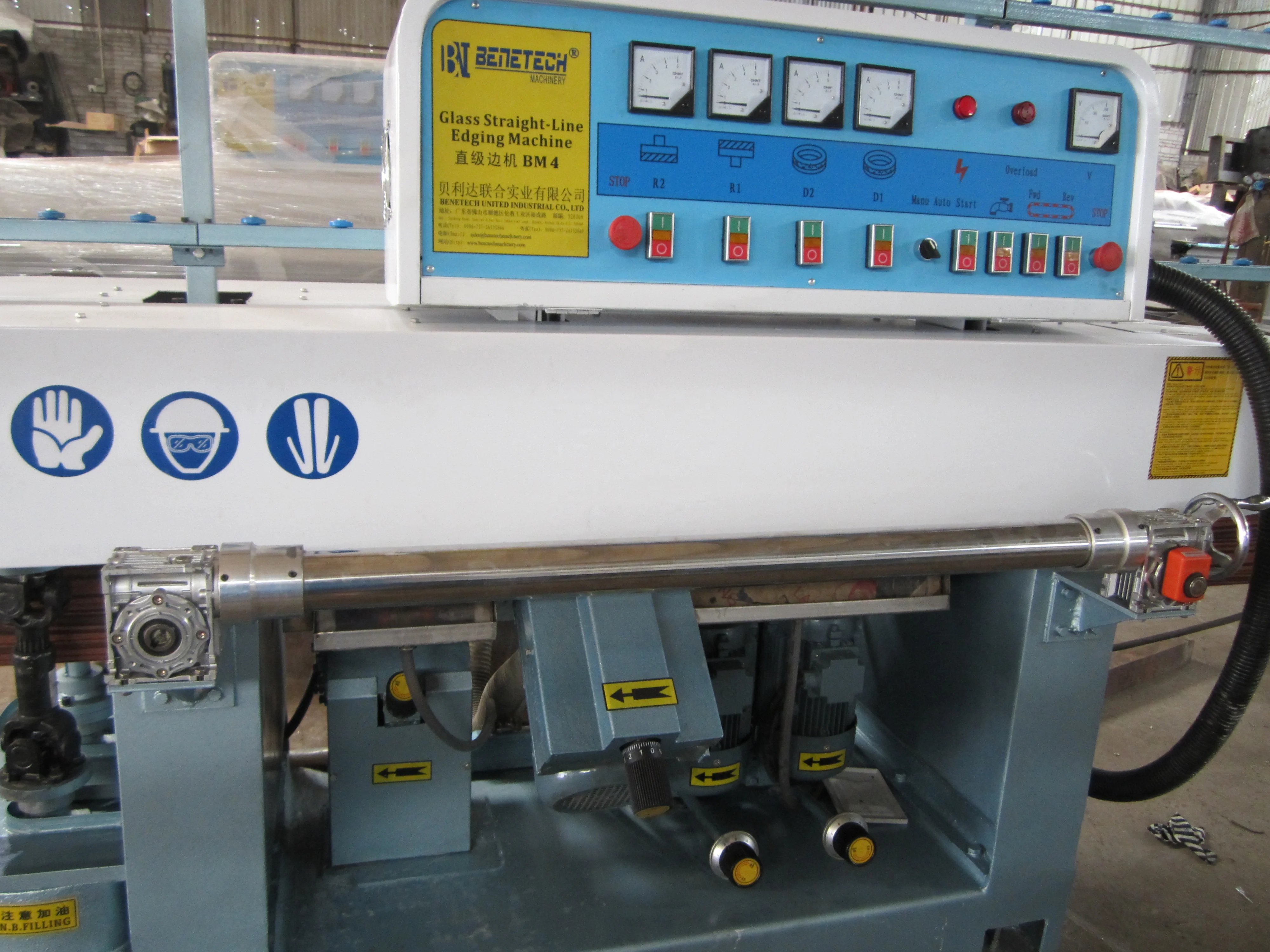

straight edge machine for sale in Canada small glass straight line grinding BM9 45

Product Overview

Description

Product Description

Glass Miter (angle-changing) edging machine BM12-45°

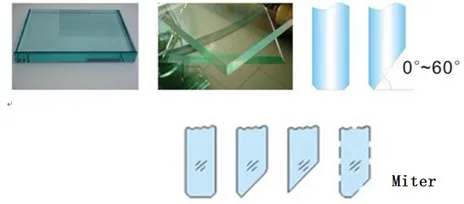

BM12-45°Glass Miter(Angle-changing) Edging Machine is a multi-functional model developed by our factory, according to market needs; gather a variety of advantages from Chinese and foreign set straight-line edge series. Apply for grinding and polishing the flat-bottom of flat glass and multi-stage edge. It is equipped with 12 grinding wheels. 12 wheels are for grinding and polishing the flat edges and chamfers of glass, and motors are of international quality special for grinding wheels, with strong force and superior performance

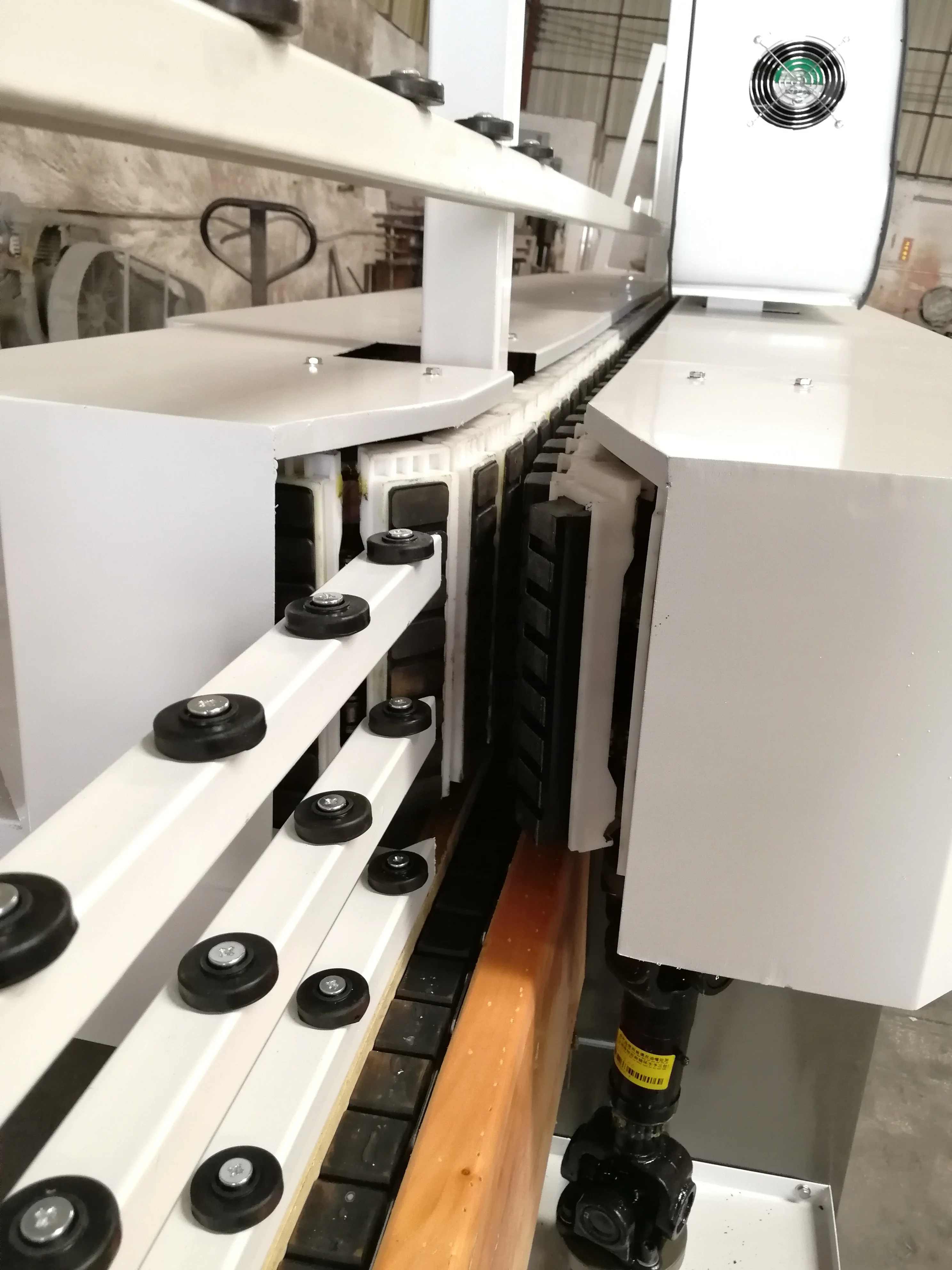

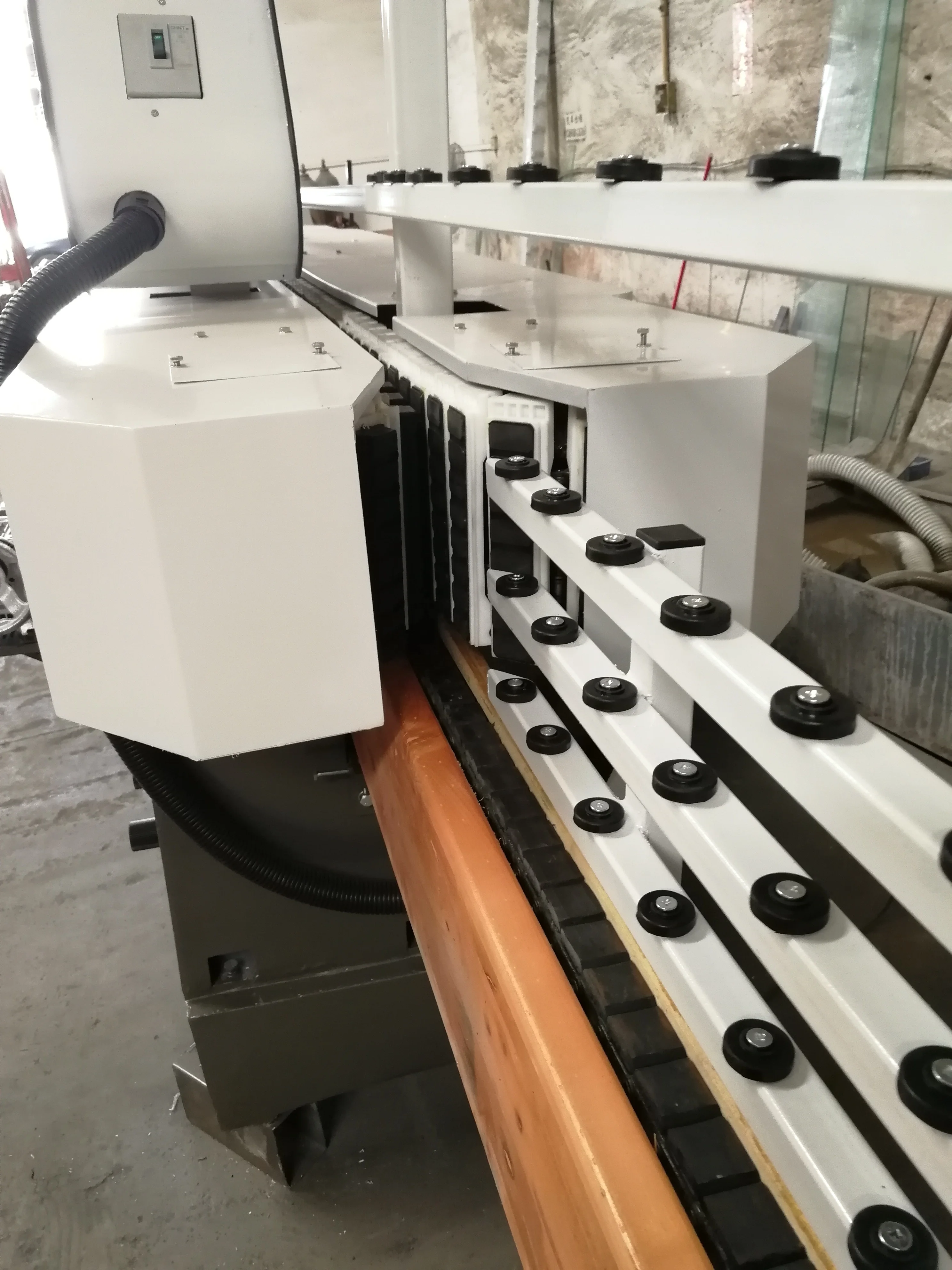

1. Convection adopts the rolling bearings structure. Glass transmission smoothly, processing speed quickly, quality stably.


2. With a Mitsubishi PLC control, manual and automatic control functions. The man-machine interface reveal thickness of processing glass, angle of multi-level edge, grinding speed, and other parameters.


3.  It is equipped with 12 grinding wheels. 12 wheels are for grinding and polishing the flat edges and chamfers of glass, and motors are of international quality special for grinding wheels, with strong force and superior performance

Model	Speed (m/min)	Min. glass size (mm)	Angle	Glass thickness (mm)	Installed Power (KW)	Overall dimension (mm)	Weight (KG)
BM9-45°	0.8-6	80*80	45°-90°	3-25	16.5	6800*1000*2500	3200
BM10-45°	0.8-6	80*80	45°-90°	3-25	19.5	7000*1000*2500	3500
BM12-45°	0.5-6	20*20	45°-90°	3-50	28.5	7600*1500*2600	7000

Technical Specifications

Feeding speed:	0.8-6m/min
Minimum grinding size:	20mm×20mm
Process glass thickness scope:	3mm-25mm
Power:	28kw
Size:	7.9m×1.5m×2.6m
Weight:	about 7000kg
Baseline angle:	45-90º

Digital Control, PLC control are optional

The types are following customer's glass sizes. Please contact us. //www.benetechmachinery.com/
