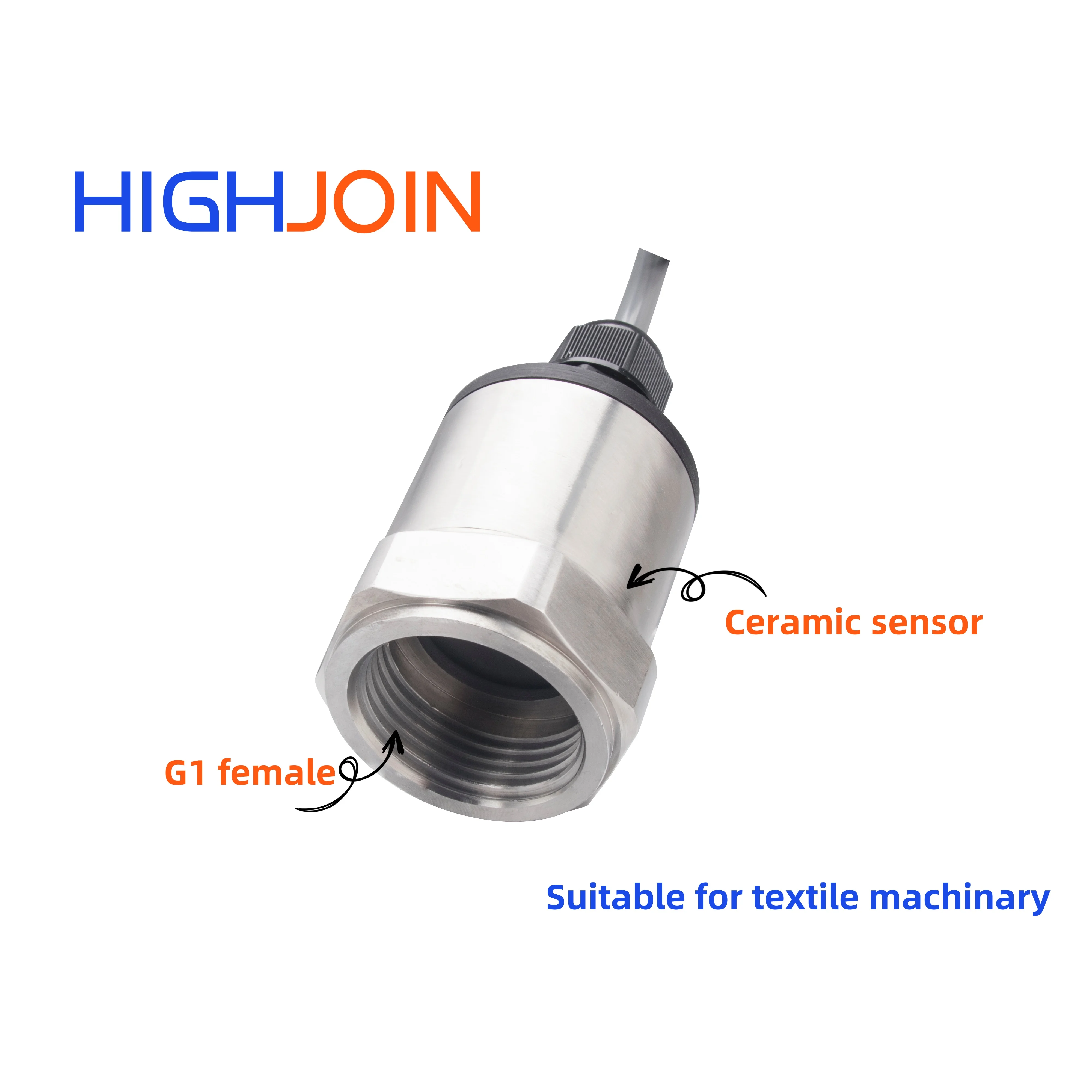

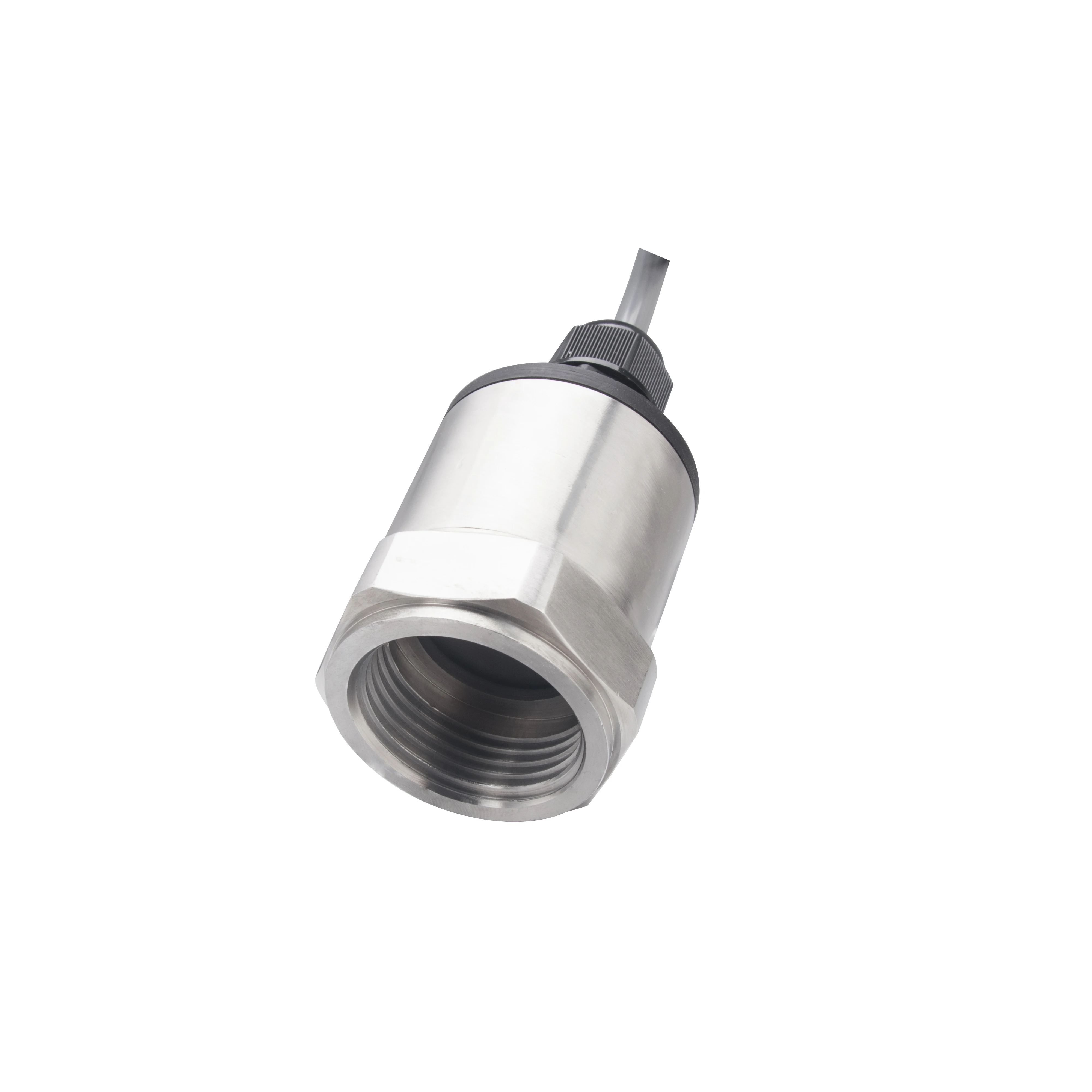

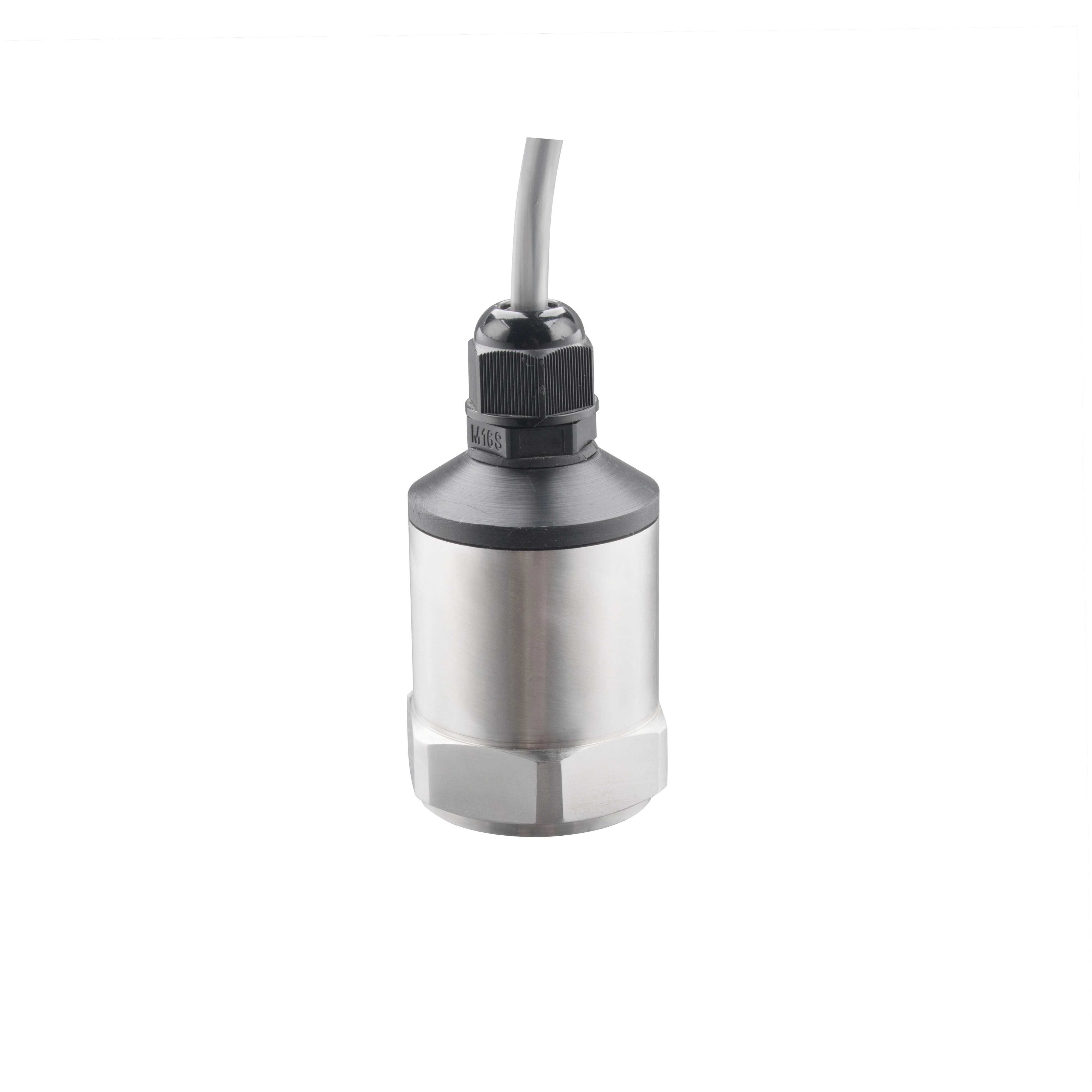

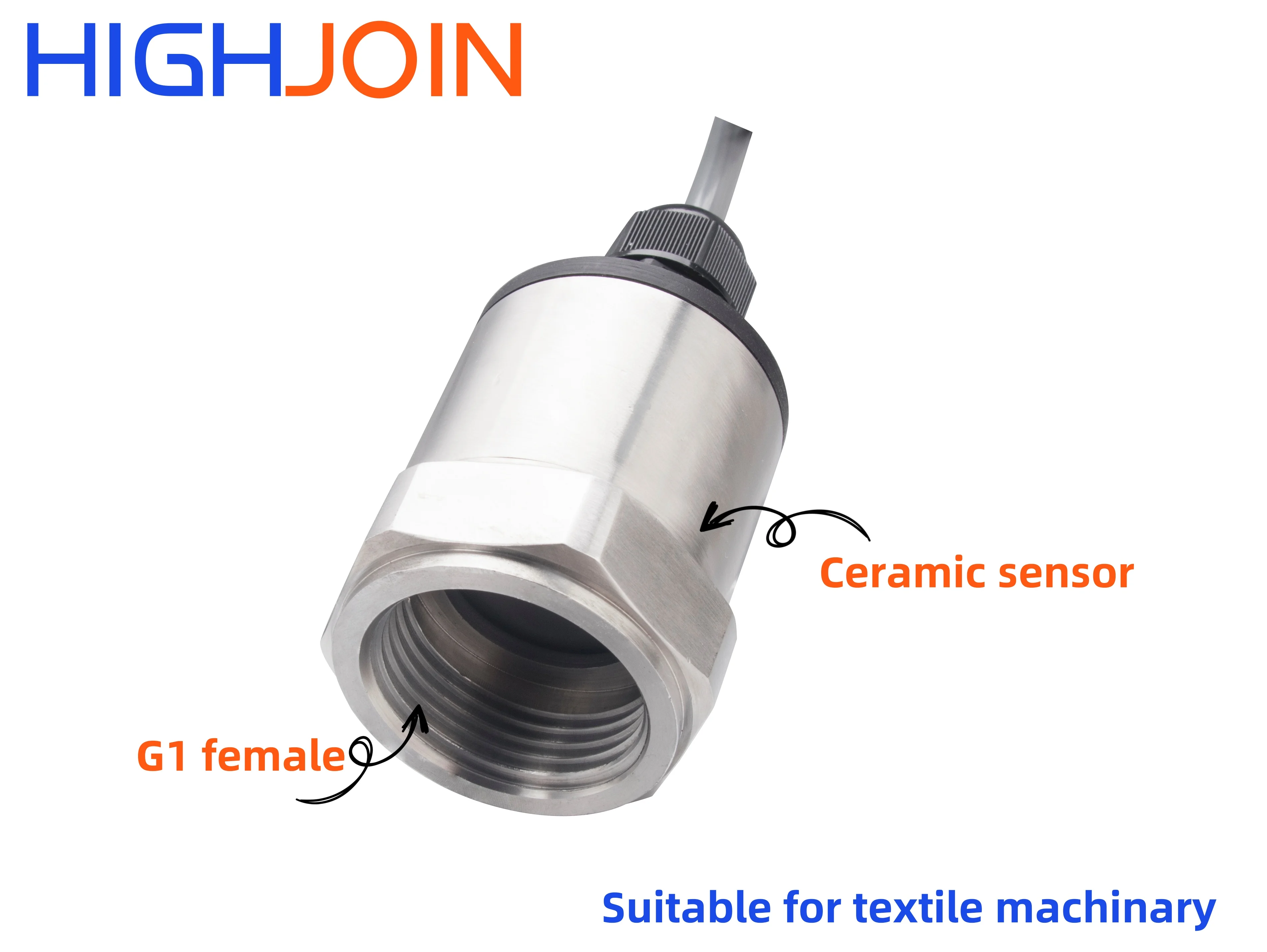

HIGHJOIN pressure sensor 0 50mbar textile machine economic transmitter ceramic sensor
- Category: >>>
- Supplier: Nanjing Hangjia Electronic Technology Co. Ltd.
Share on (1601010977047):
Product Overview
Description
PRODUCT OVERVIEW
HPM186 pressure transmitter uses a silicon piezoresistive sensor with high stability and reliability as the signal measurement element, and performs wide temperature range performance compensation through an automatic calibration process. The signal conditioning circuit is located in the stainless steel housing and converts the sensor signal into a standard current signal output. The entire product has undergone rigorous testing and aging screening of components, semi-finished products and finishedproducts, and its performance is stable and reliable. This product adopts stainless steel structure and has waterproof and breathable design. It is easy to install and suitable for long-term use in harsh environments. It is widely used in equipment supporting, textile, water supply and gas supply, chemical industry, hydrology and other industries.
FEATURES AT A GLANCE
1 | Stainless steel structure, waterproof and breathable, protection grade IP65 |
2 | Can measure micro pressure, minimum 500Pa |
3 | High overload capability, maximum 100 times FS |
4 | Reverse polarity protection and instantaneous overcurrent and overvoltage protection, complying with EMI protection requirements |
5 | Strong anti-interference and good long-term stability |
PRODUCT SPECIFICATIONS
Gauge pressure | -100kPa…0～500Pa…7MPa（Gauge）； 0～10kPa…7MPa（Absolute） |
Overload | maximum 100 times FS |
type | All types of liquids and gases compatible with contact materials |
Accuracy | ±0.25%FS measuring range>2kPa; ±0.5%FS measuring range≤2kPa |
Long term stability | ±0.1%FS/year |
Compensation Temperature | -20～80℃ |
Temperature Coefficient of Zero | ±0.03%FS/℃（Ref 25℃） |
Temperature Coefficient of Full Scale | ±0.03%FS/℃（Ref 25℃） |
Ouput Signal/ Power Supply | 2 wire：4~20mADC / Vs=10~30 VDC or voltage on demand |
Medium Temperature | -40～125℃ |
Storage Temperature | -40～125℃ |
Protection Grade | IP65 |
Vibration | 10g(20~2000Hz) |
Insulation resistance | >20MΩ @500VDC |
Insulation strength | <2mA @ 500VAC 1min |
Short circuit protection | Permanent |
Reverse polarity protection | No damage, circuit inoperative |
Electromagnetic compatibility | Conforms to EN 61326 |

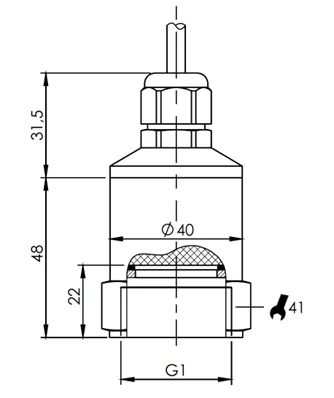

STRUCTURE

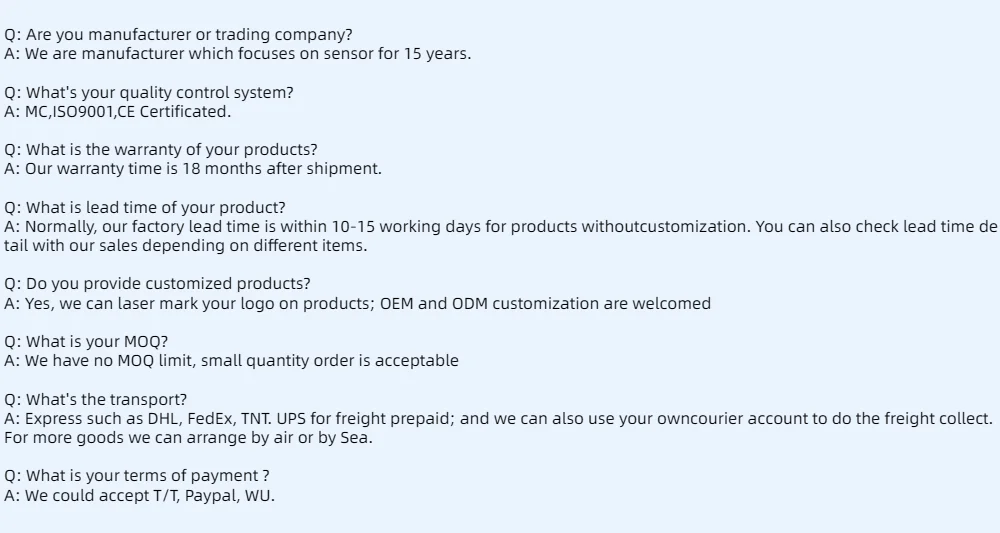

FAQ
