CAD/CAM 5A xis wet and dry dental milling machine 5axis for Premill,PMMA,E max,Peek,Zirconia..
- Category: >>>
- Supplier: Shenzhen Camdent Medical Technology Co. Limited
Share on (1601011222982):
Product Overview
Description
CDM5G

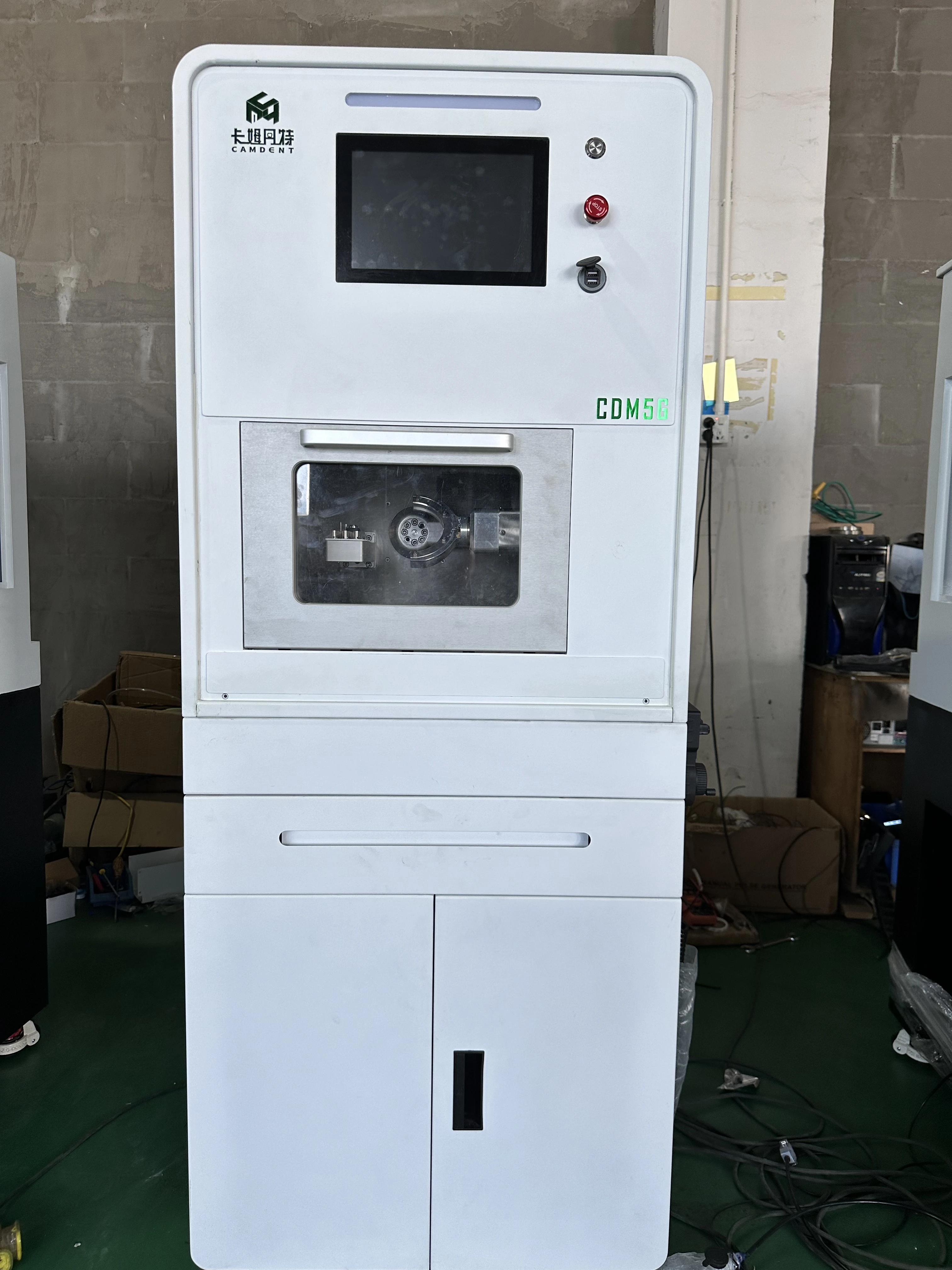

Camdent CDM5G is a 5-axis simultaneous dental milling machine machine mainly used for wet and dry, the overall structure of the equipment is compact, powerful, can mill various types of dental indicate, to meet the individual needs of customers.
· PRODUCTS DESCRIPTION
Key features
Open CAM system
-- The equipment can be compatible with most CAM system on the market, such as: WorkNC, Millbox, Sum3D, Hyperdent, etc
Friendly human-computer interface
-- The equipment comes with a touchable operation panel and built-in WiFi, which can realize remote control and facilitate remote after-sales training, diagnosis and maintenance. Each equipment has an independent ID, when there is a problem with the equipment, the manufacturer can carry out remote diagnosis and maintenance according to the ID, saving after-service time.
-- The equipment comes with a touchable operation panel and built-in WiFi, which can realize remote control and facilitate remote after-sales training, diagnosis and maintenance. Each equipment has an independent ID, when there is a problem with the equipment, the manufacturer can carry out remote diagnosis and maintenance according to the ID, saving after-service time.
Perfect alarm system
-- This equipment has a complete alarm system, which can early warning users during use, reminding various damaged disc, tools, machine
-- This equipment has a complete alarm system, which can early warning users during use, reminding various damaged disc, tools, machine
Large angles,5 axis simulaneous milling
-- This machine is completely developed and designed by us, so we can provide customers with OEM service
-- This machine is completely developed and designed by us, so we can provide customers with OEM service
Automatic calibration Automatic processing
-- The equipment has an automatic calibration function, which ensures the accuracy of the equipment and avoid errors caused by formal processing, thereby saving time and materials.
-- The equipment has an automatic calibration function, which ensures the accuracy of the equipment and avoid errors caused by formal processing, thereby saving time and materials.
Multiple fixture modes can be adjusted
-- The equipment fixture can be adjusted to the zirconia material mode of Aman during dry milling
-- The equipment fixture can be adjusted to the zirconia material mode of Aman during dry milling
One-piece cast body
-- This equipment is a box-type structure, one-piece cast aviation aluminum fuselage, each axis has 4 sliders, with conventional screw assembly fuselage structure better rigidity and stability, can ensure that the fuselage is not deformed during use or transportation, long-term maintenance of equipment accuracy, with full-coverage silicone dust-proof net, providing the best dustproof and waterproof effect, so that the machine has a longer service life.
-- This equipment is a box-type structure, one-piece cast aviation aluminum fuselage, each axis has 4 sliders, with conventional screw assembly fuselage structure better rigidity and stability, can ensure that the fuselage is not deformed during use or transportation, long-term maintenance of equipment accuracy, with full-coverage silicone dust-proof net, providing the best dustproof and waterproof effect, so that the machine has a longer service life.
Excellent ergonomic design
-- The body and work compartment and the desktop are placed at a 15-degree inclination, which is more convenient for operation and maintenance, integrated pull-out water tank and toolbox, the water pump is not placed in the water tank, the water tank to clean and replace the cutting fluid only needs to be directly pumped out, which is more convenient to use.
-- The body and work compartment and the desktop are placed at a 15-degree inclination, which is more convenient for operation and maintenance, integrated pull-out water tank and toolbox, the water pump is not placed in the water tank, the water tank to clean and replace the cutting fluid only needs to be directly pumped out, which is more convenient to use.
· PRODUCTS SPECIFICATIONS
Name | 5 Axis dental CAD/CAM milling machine | ||
Model | CDM5G | ||
CNC controller | 5 axis dental system with touch screen | ||
Milling mode | Dry / Wet | ||
Millable material | Zirconia,Glass Ceramic, Premill Titanium | ||
Spindle power | 1KW | ||
Speed of spindle | 0-36000 | ||
X/Y/Z axis motor | Micro Servo Motor | ||
Spindle cooling | Air-cooled | ||
Number of burs(Tools)housed | 5/10pcs | ||
Rotation range | A axis | 0~360° | |
B axis | -15°~ +125° | ||
Attachable bur(tool) | shank diameter | 6mm | |
Length | 45mm | ||
Tool change and check | Fully automatic | ||
Packing dimension | 850*850*1900mm | ||
Weight | 400kg | ||
Exteral dimensions | Length | 850mm | |
Weight(Depth) | 850mm | ||
Height | 1900mm | ||
Average milling time(denta crown) | Zirconia | 8-15min | |
Titanium | 10-15min | ||
Glass Ceramic | 10-15min | ||
Machinable Material Size | 92*75mm | ||
Control command set | NC code | ||
Positioning accuracy | ±0.002mm | ||
Repeat Positioning Accuracy | ±0.008mm | ||
