bomco api f800 f1600 drill mud pump spares spring safety valve
bomco api f800 f1600 drill mud pump spares spring safety valve
bomco api f800 f1600 drill mud pump spares spring safety valve
bomco api f800 f1600 drill mud pump spares spring safety valve

bomco api f800 f1600 drill mud pump spares spring safety valve

Share on (1601011246282):


Price:$1,999.00

Quantity:


Product Overview

Description





Products Description


Brand
Beijing Zhuoyue Union Machinery
Material
Metal
Size
Standard
Warranty
1 year
Certification
PCOC, Reach, IECEE, scoc, EPA, GS
Customized Support
Customized support

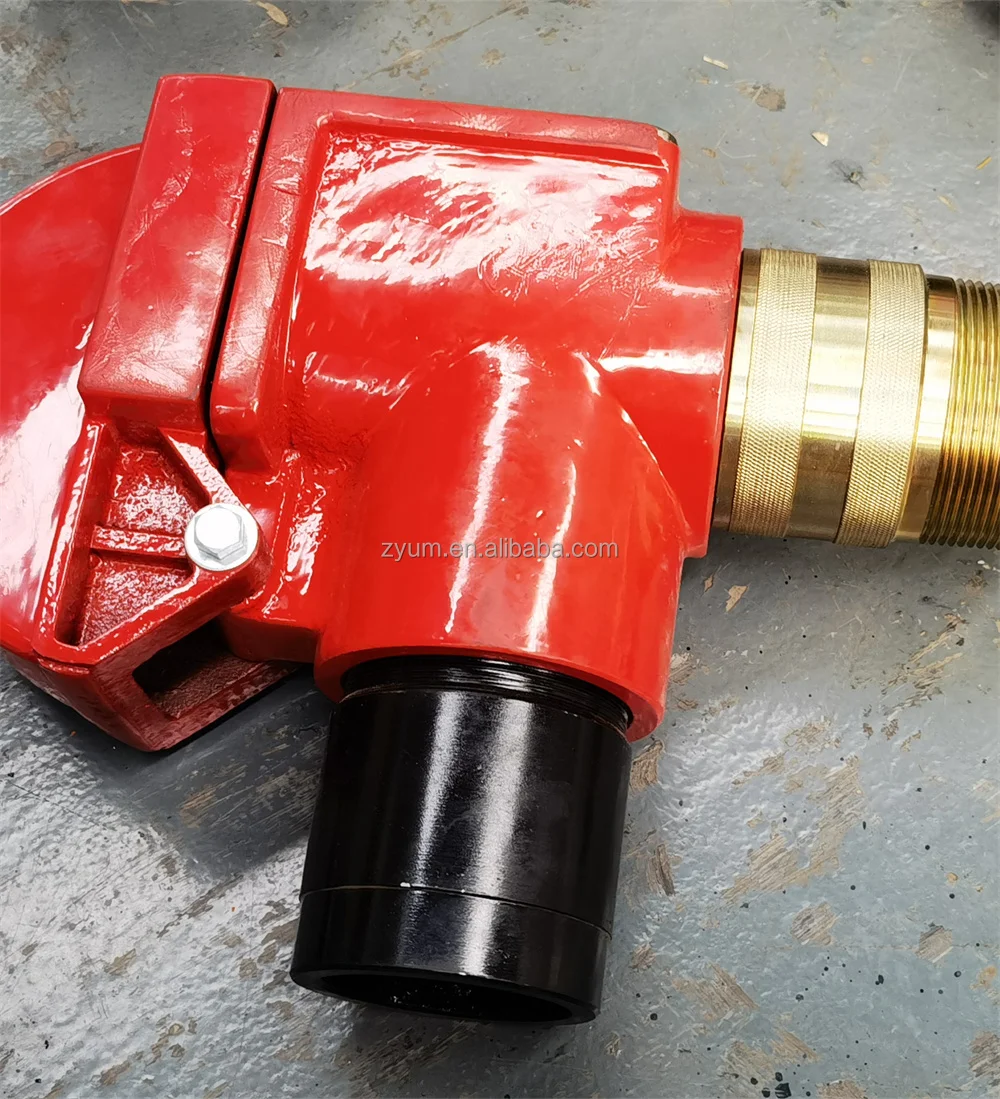

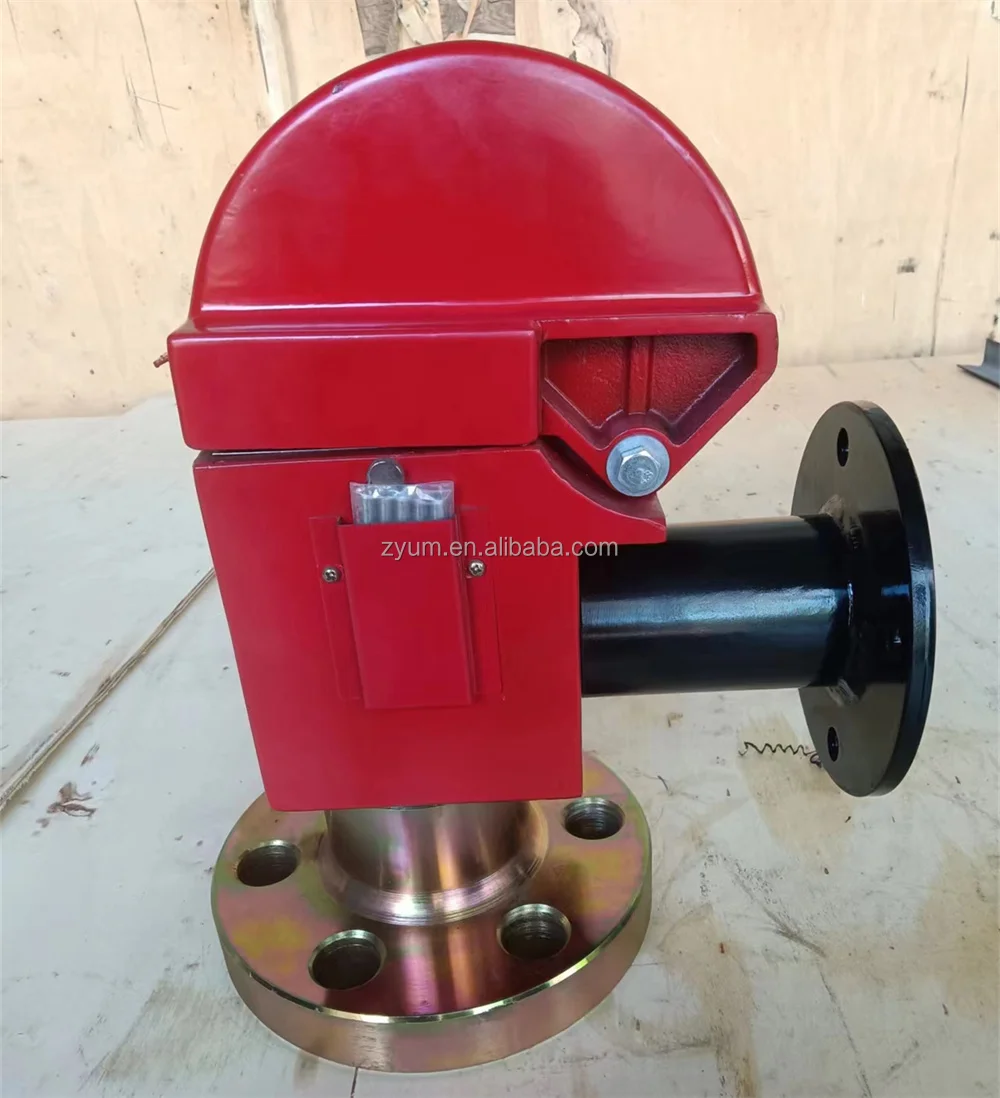

MUD PUMP SPARES SAFETY VALVE

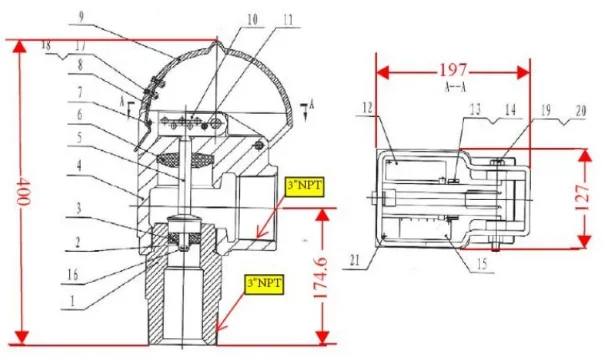

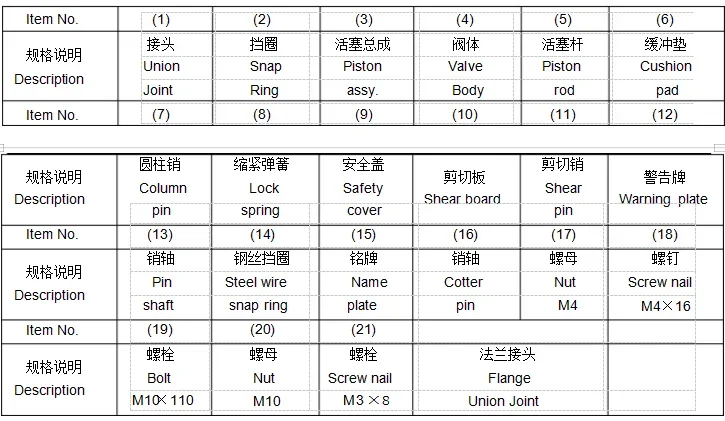

JA-3 type shear safety valve is used in the discharge part of the mud pump. It changes the relief pressure by changing the position of the shear pin, with simple operation and reliable work. The wearing parts in the shear pin safety valve are: shear pin, piston, piston rod and cushion.

JA-3 type shear safety valve has two connection methods, one is threaded connection and the other is flange connection. JA-3 type shear pin safety valve is the insurance of the mud pump. Before the mud pump works,after the rated pressure is determined according to the specifications of the cylinder liner and piston, lift the upper cover of the safety valve and insert the shear pin into the shear plate. Inside the pin hole. When working, when the pressure of the pumphead exceeds the rated pressure, the shear pin is cut, and the mud is discharged from the side hole of the safety valve, which plays a corresponding protective role.






Features:
1) Flexible opening and closing;
2) Small area of pressure bearing piston;
3) Simple reset;
4) Good versatility




For more information, please contact us. We will provide you with more services
