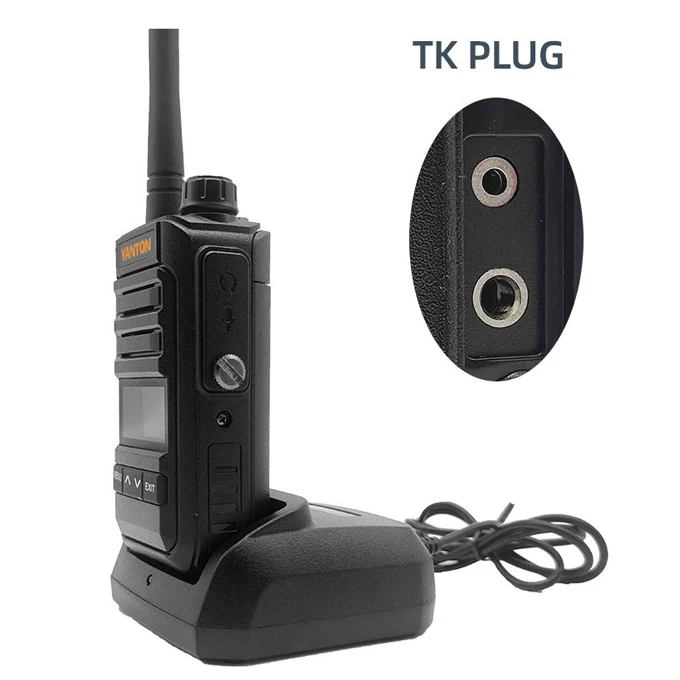

amateur radio transceivers Walkie Talkie Two Way FM radio vhf uhf ham radio yanton T 360
- Category: >>>
- Supplier: Quanzhou Yanton Electronics Co. Ltd.
Share on (1601011265800):
Product Overview
Description
Product Description

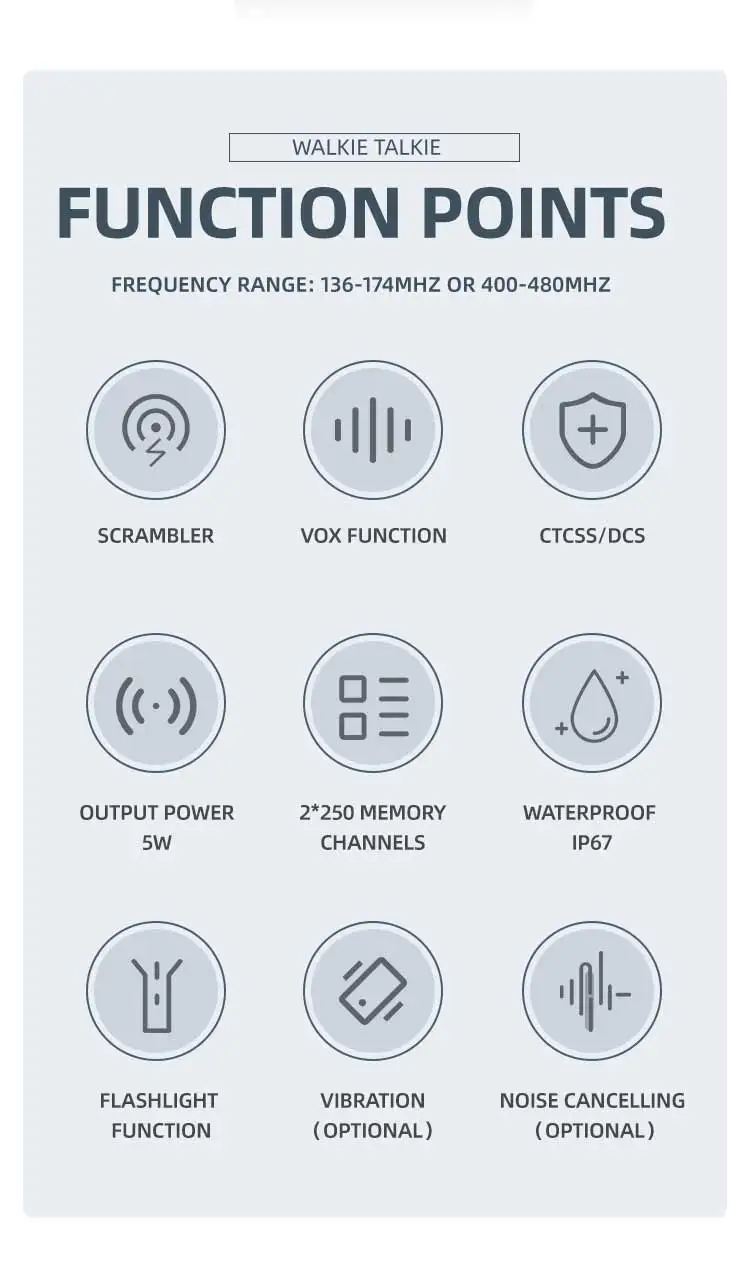

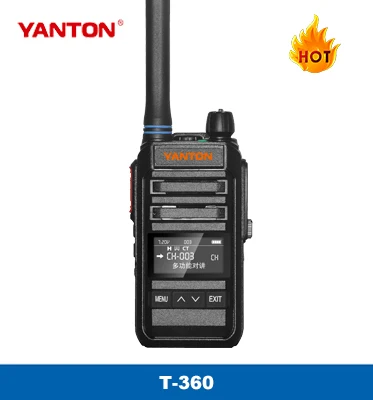

YANTON New Arrival portable walkie talkie communication 5W amateur two way radio with vibration T-360
1.Frequency Range: 136-174MHz or 400-480MHz
2.2*250 Memory Channels
3.Single band standby or dual band standby selection
4.One key create group;
5.Beep Setting
6.Scrambler
7.Compander

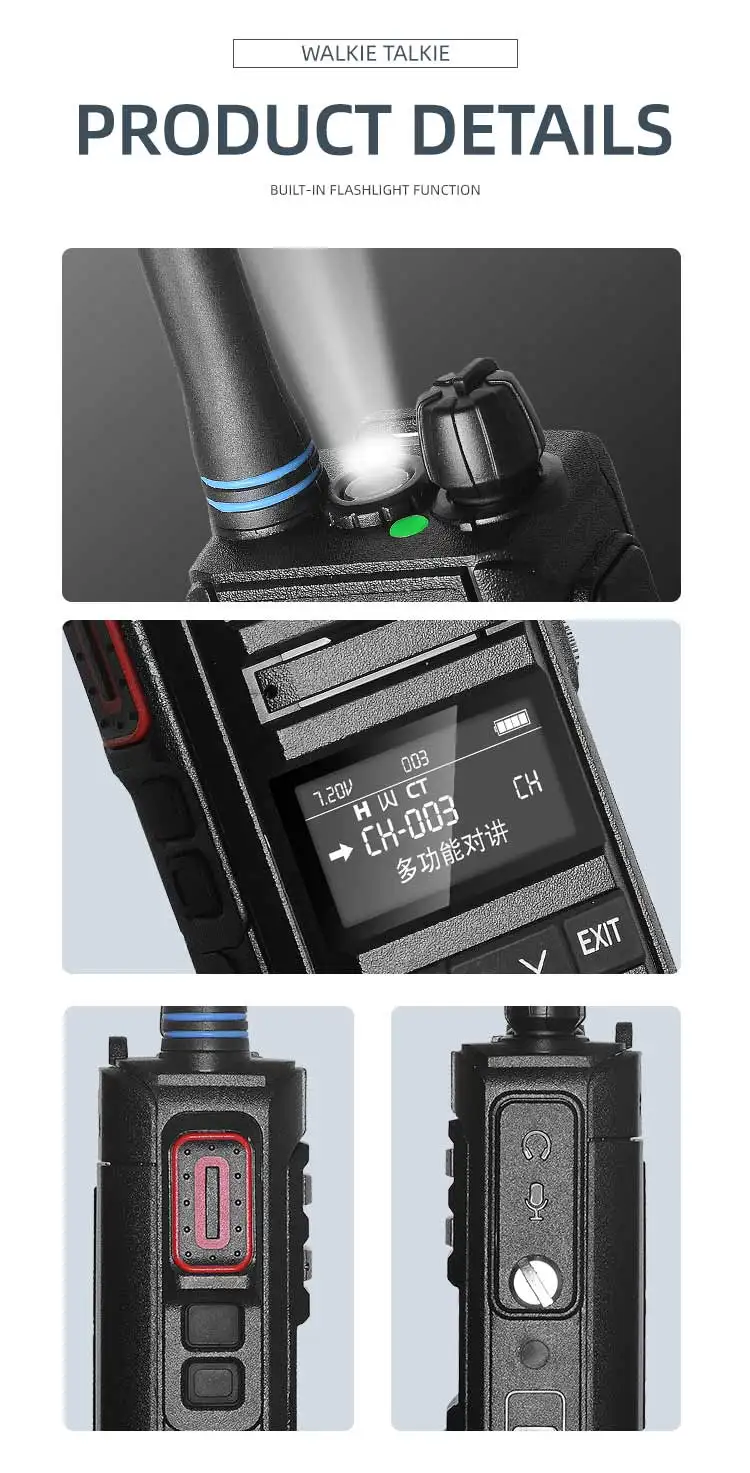

8.Flashlight function
9.Reverse Frequency
10.Scan
11.Output Power: 5W
12.VOX Function
13.CTCSS/DCS
14.Chinese and English Voice Prompt
2.2*250 Memory Channels
3.Single band standby or dual band standby selection
4.One key create group;
5.Beep Setting
6.Scrambler
7.Compander
8.Flashlight function
9.Reverse Frequency
10.Scan
11.Output Power: 5W
12.VOX Function
13.CTCSS/DCS
14.Chinese and English Voice Prompt
15.Power Saving Function, Low Power Warning
16.High/Low Power Selective 5W/1W
17.Wide/Narrow Bandwidth 12.5KHZ/25KHZ
18.Emergency Alarm
19.Busy Channel Lock
20.Transmitter Time-out Timer(TOT)

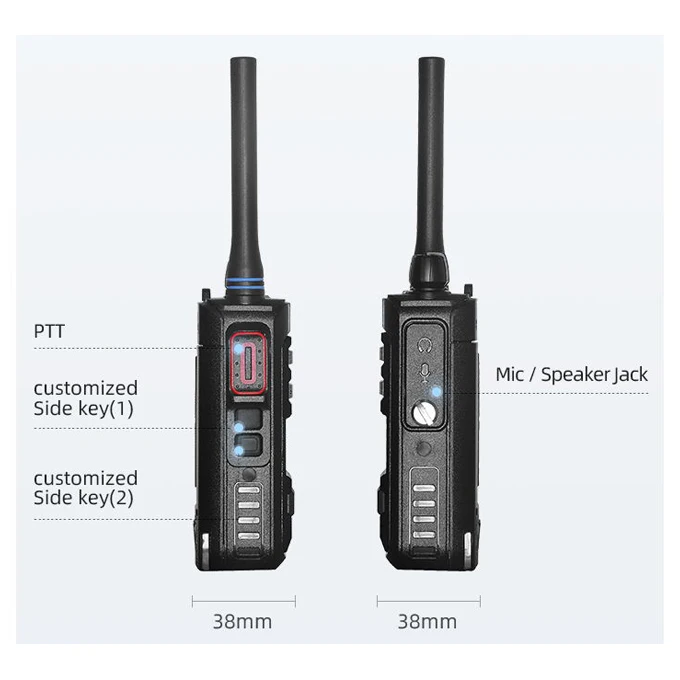

21.Side Key Assignment
22.0-9 Grades Squelch Level Setting
23.ANI and DTMF Function
24.Remote Kill , Stun, Activate & Revive
25.High Li-ion Battery Capacity:2000Mah

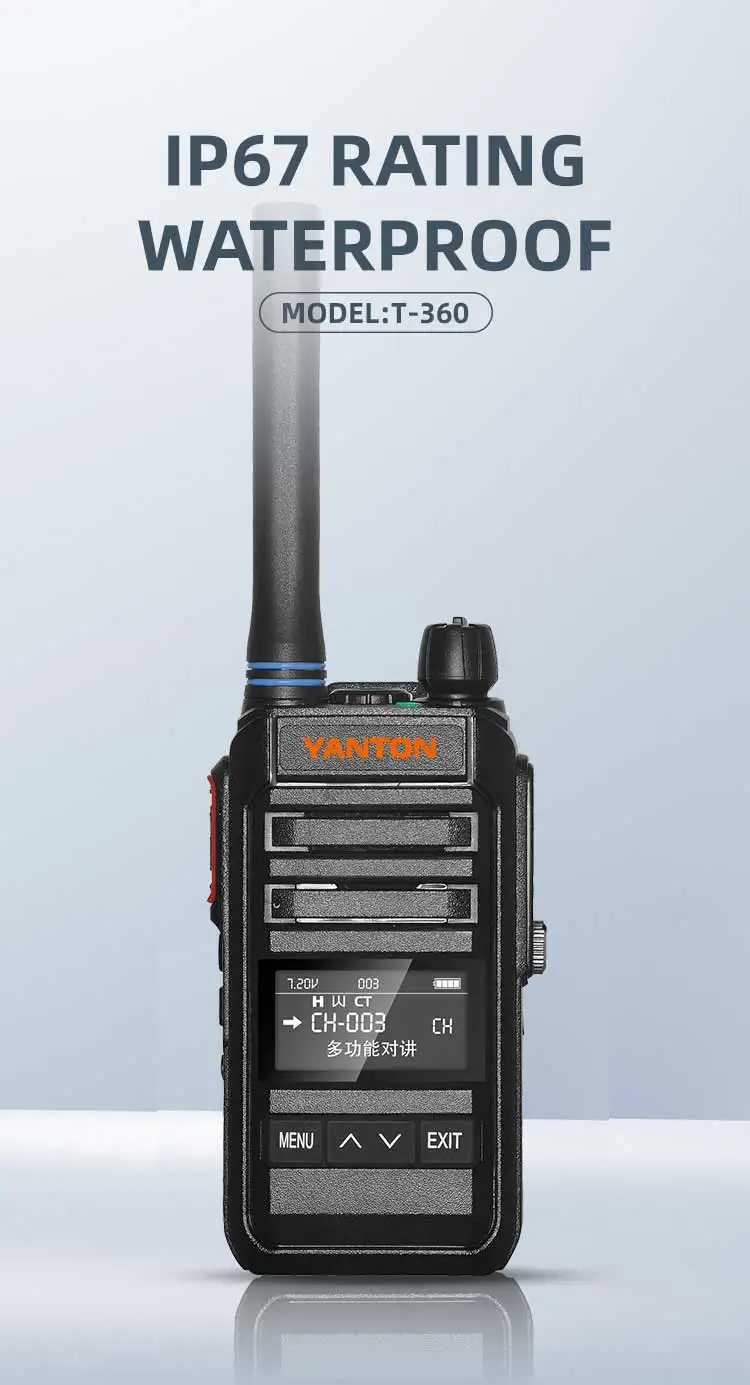

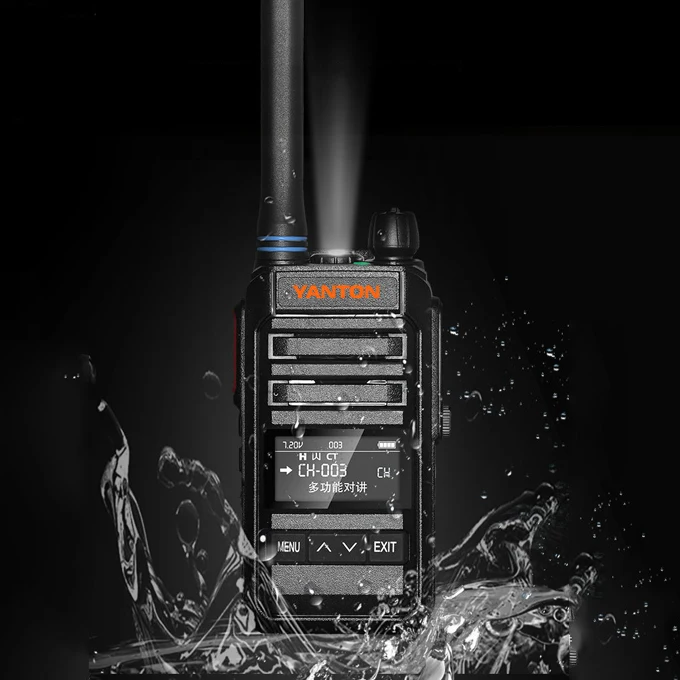

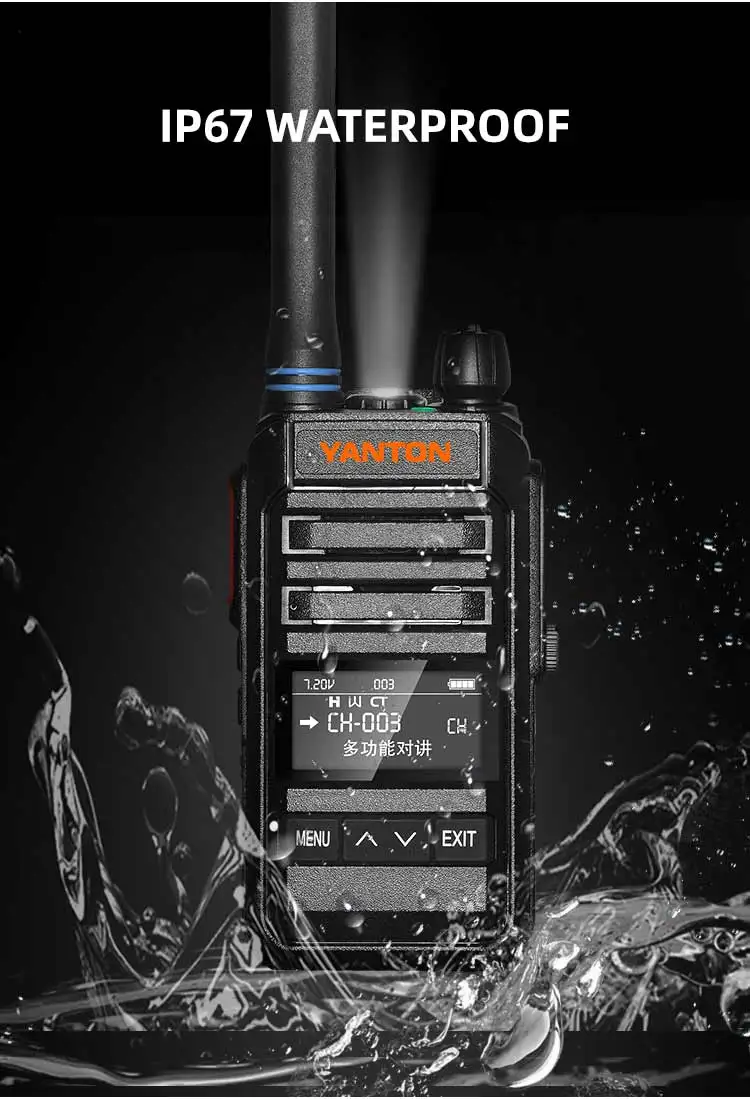

26.Waterproof IP67
27.Vibration (optional）
28.Noise cancelling (optional）
16.High/Low Power Selective 5W/1W
17.Wide/Narrow Bandwidth 12.5KHZ/25KHZ
18.Emergency Alarm
19.Busy Channel Lock
20.Transmitter Time-out Timer(TOT)
21.Side Key Assignment
22.0-9 Grades Squelch Level Setting
23.ANI and DTMF Function
24.Remote Kill , Stun, Activate & Revive
25.High Li-ion Battery Capacity:2000Mah
26.Waterproof IP67
27.Vibration (optional）
28.Noise cancelling (optional）
GENERAL | ||||||
Frequency Range | 136-174MHz/400-480MHz | |||||
Antenna | High Gain Antenna | |||||
Frequency Stability | ±2.5ppm | |||||
Memory Channel | 2*250 Channels | |||||
Working voltage | DC7.4v | |||||
Antenna Impedance | 50Ω | |||||
Operating Mode | simplex of co-frequency or alien | |||||

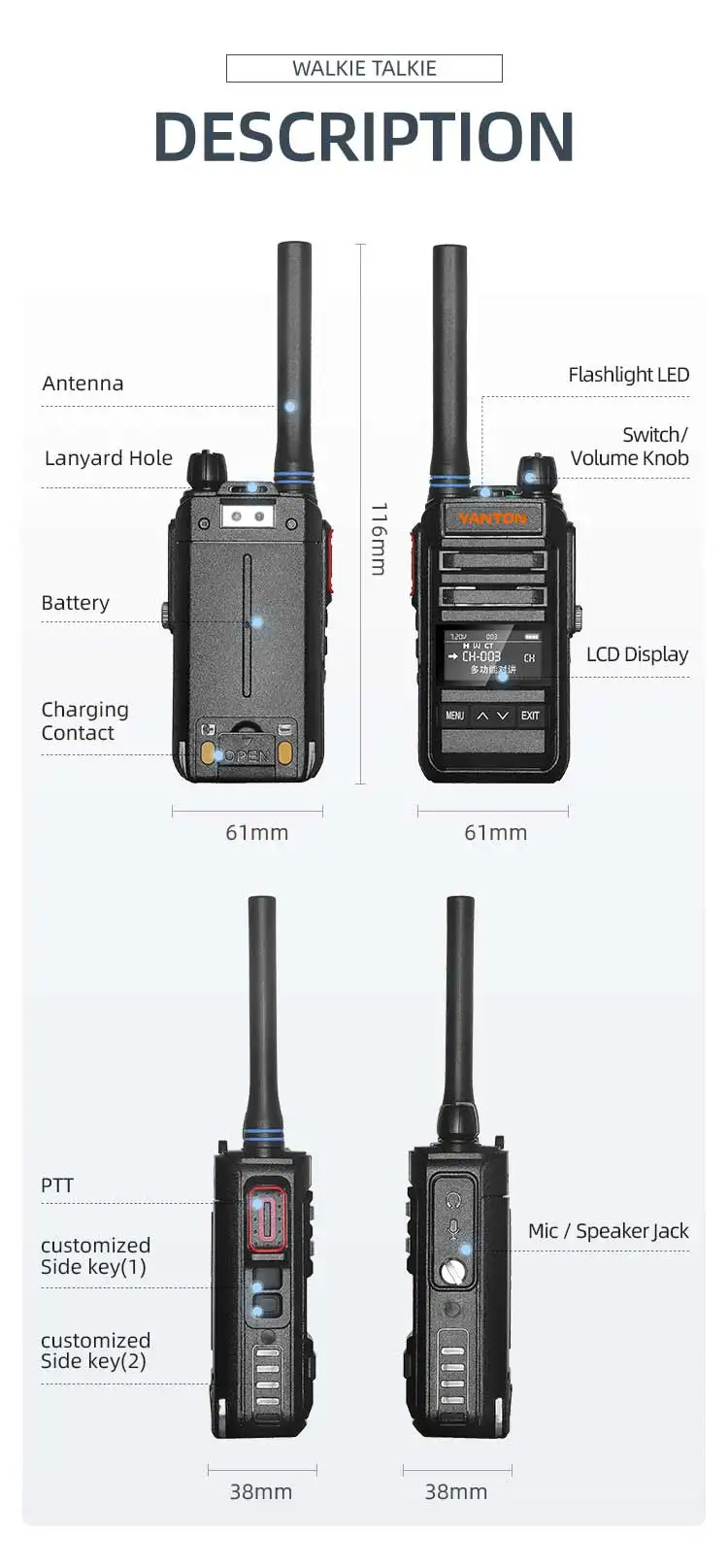

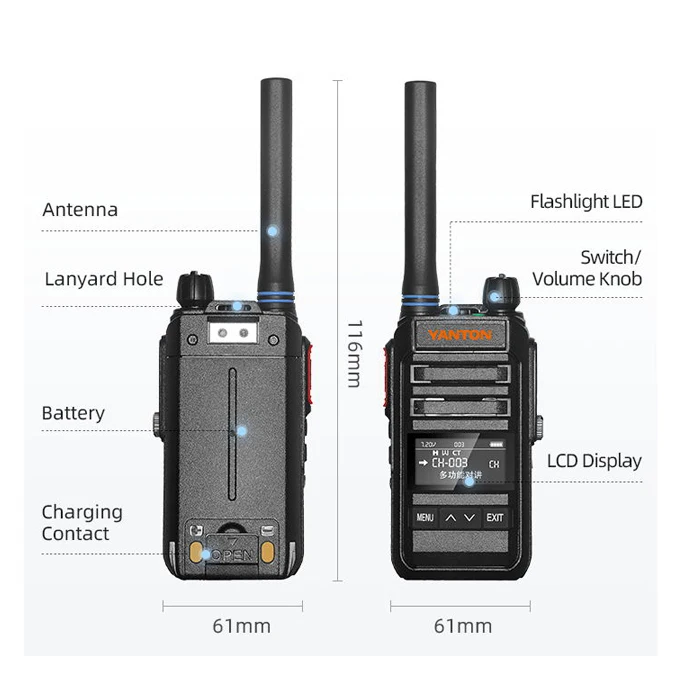

Dimensions | 115*55*30mm | |||||
Battery capacity | 2000MAH Li-ion battery | |||||
TRANSMIT PART | ||||||
RF power | 5w | |||||
Modulate Mode | F3E | |||||
Max.Freq.Deviation | ≤5KHz | |||||
Remain Wave Radiation | <-60dB | |||||
Transmitting Current | ≤1000mA | |||||
RECEIVER PART | ||||||
Sensitivity | <0.20uV (12dB SINAD) | |||||
Squeich Sensitivity | <0.20uV | |||||
Intermodulation Antijamming | 50dB | |||||
Audio Power output | 500mW | |||||
Receiving Current | ≤100mA | |||||
Squelch Stangby | 20mA | |||||
Our Company
Quanzhou YANTON Electronics Co., Ltd. is founded in the year of 2009, which is a professional wireless communication equipment manufacturer integrates with R&D, production, sales, service and technological innovation strength. Our products cover POC radio, DMR radio, analog radio and so on. With more than 7,000 square meters, YANTON has brought in advanced production equipment, testing instruments, standardized production workshops, well-equipped product laboratories and R&D offices. Our company has introduced the ERP management system and passed the ISO9001:2015 Quality Management System Certification. Also we use the components from TOSHIBA, ST, NEC etc. to guarantee the quality of the products. Our products have been passed the model approval by Ministry of Information Industry,also European CE RoHS and USA FCC. At present, our products have been sold to more than 58 countries such as Europe, the United States, Canada, Russia etc., and appraised highly by the customers.
