System overview.
* Switching power technology digital power amplifier
* Class-D PA power amplifier of minimum power consumption
* Less rack space and less heat generation
* Four channel power amplifier into 19” rack mount unit
* Rated power output at 240W by four channels

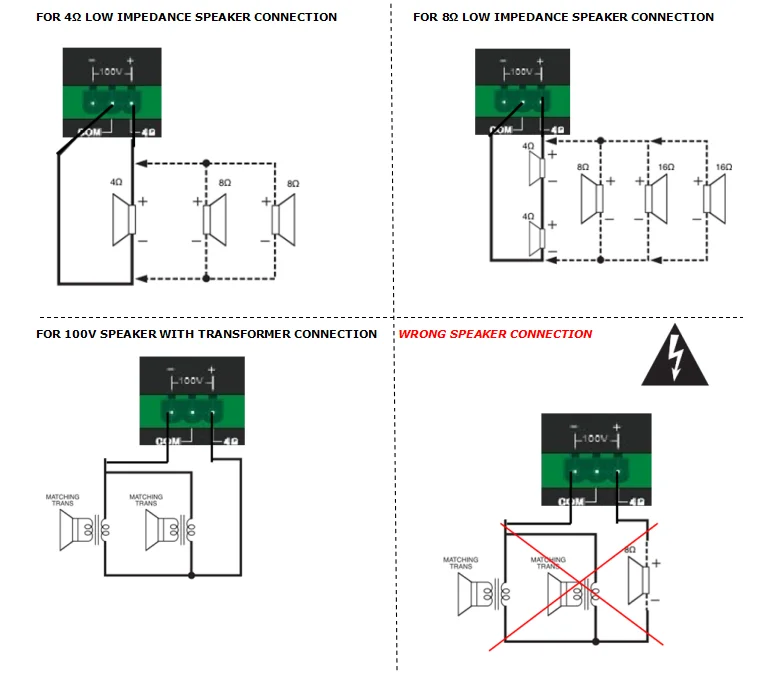

* Four channel separate speaker outputs 4-16Ω/100V
* Balanced XLR input by phoenix connector for four channels
* Each input with separate gain control.
* Each four channel with high-cut filter.
* Built-in auto standby feature to save power consumption
* Separate four channel indicators for protection, clip, input and output
* Complete short circuit, overload, high temp, clip and DC protection
* Wide AC input from110V to 230V
