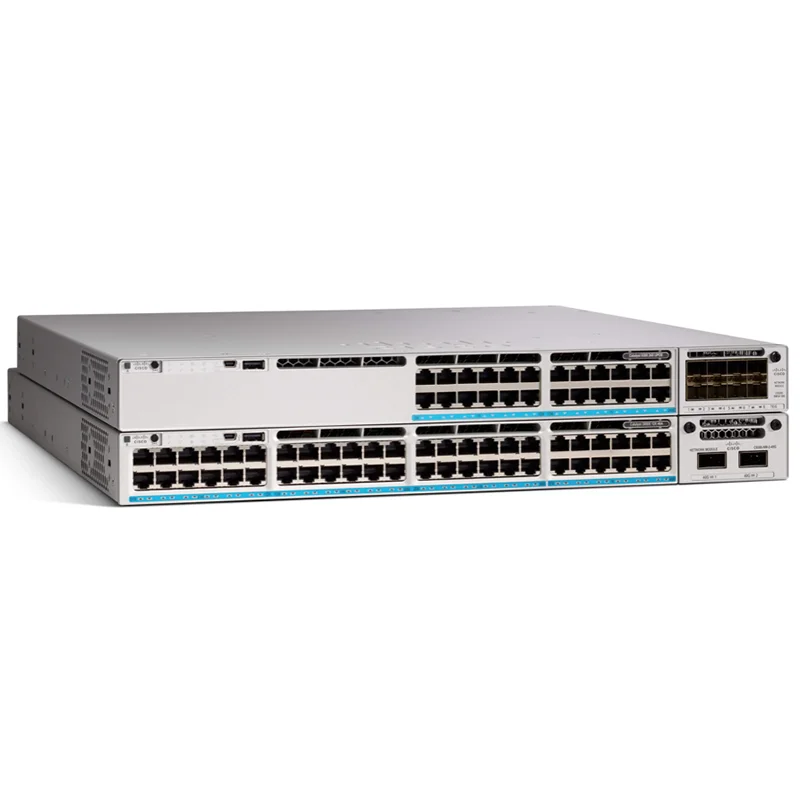

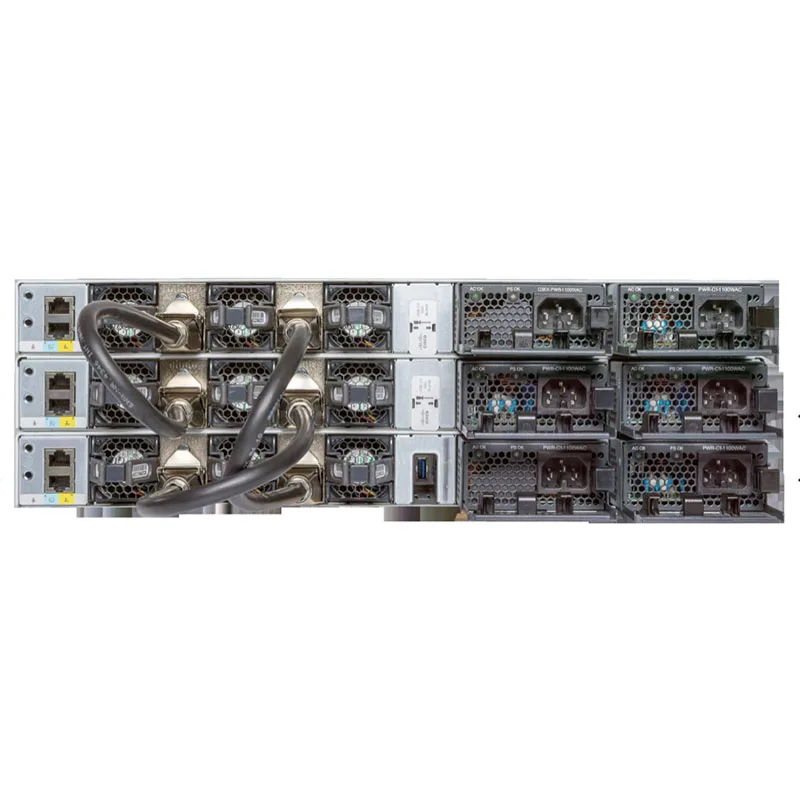

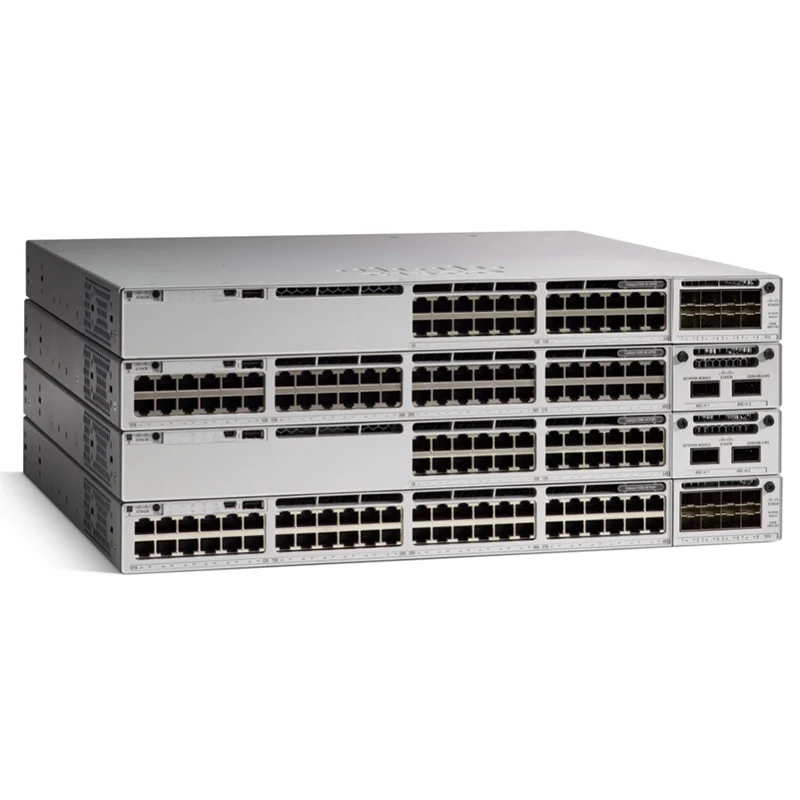

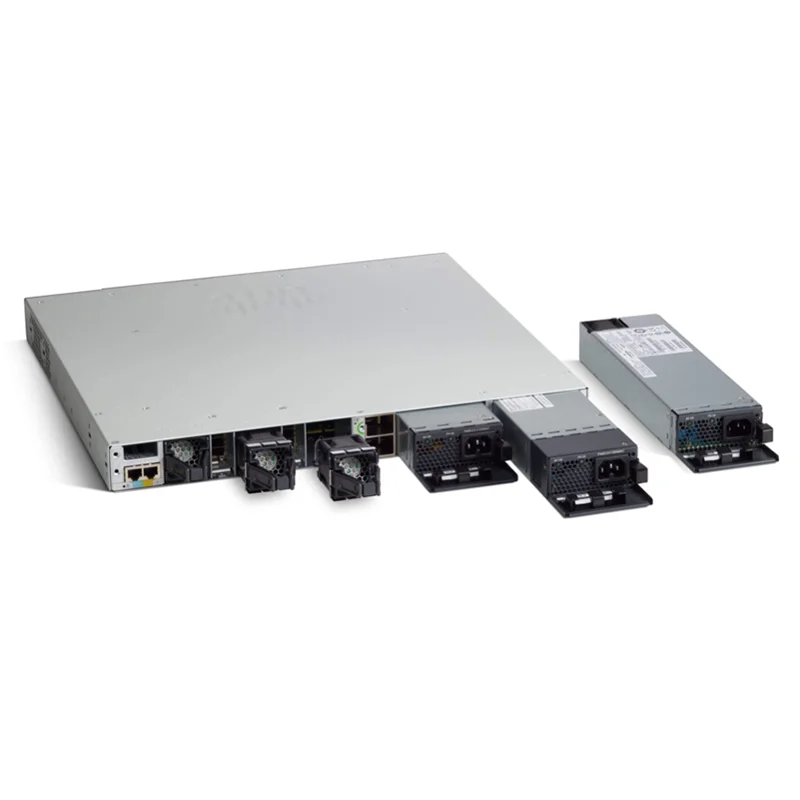

Stackable Layer 3 Network Switch Ciscos C9300 Series Core Switch 48 Ports Modular Uplinks Ethernet Data Switch C9300 48T E

Share on (1601011290624):


Price:

Quantity:


Product Overview

Description



Product Description

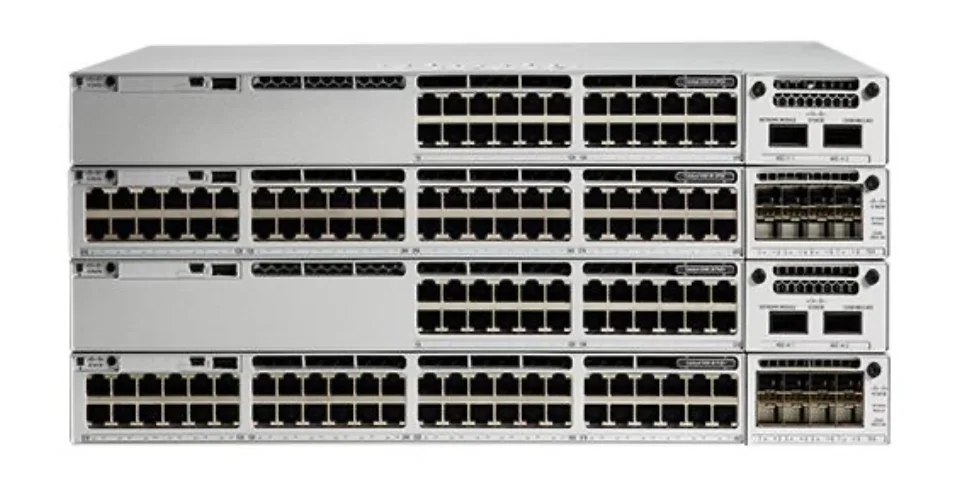

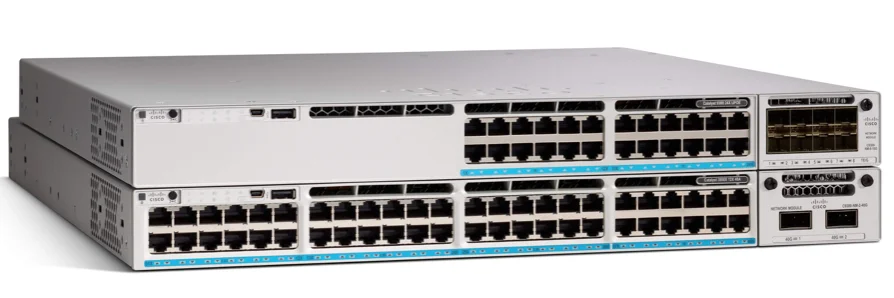

Cisco Catalyst 9300 Series Switches






Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.




The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small. With Catalyst 9300 switches, you choose how you want to manage your network  on-premise, virtual or from the cloud.
























































































































































































Model Total 10/100/1000, Multigigabit copper or SFP Fiber Uplink Configuration Default AC power supply
C9300X-48HXN 48 port Cisco UPOE+, 8x 10G Multigigabit Modular Uplinks 1100W AC
(10G/5G/2.5G/1G/100M) + 40x 5G Multigigabit
(5G/2.5G/1G/100M)
C9300X-24HX 24 port Cisco UPOE+, 24x 10G Multigigabit Modular Uplinks 1100W AC
(10G/5G/2.5G/1G/100M)
C9300X-12Y 12 port 25G/10G/1G SFP28 Modular Uplinks 715W AC
C9300X-24Y 24 port 25G/10G/1G SFP28 Modular Uplinks 715W AC
C9300-24T 24 port Data Modular Uplinks 350W AC
C9300-48T 48 port Data Modular Uplinks 350W AC
C9300-24P 24 port PoE+ Modular Uplinks 715W AC
C9300-48P 48 port PoE+ Modular Uplinks 715W AC
C9300-24U 24 port Cisco UPOE Modular Uplinks 1100W AC
C9300-48U 48 port Cisco UPOE Modular Uplinks 1100W AC
C9300-24UX 24 port Multigigabit Cisco UPOE Modular Uplinks 1100W AC
(10G/5G/2.5G/1G/100M)
C9300-48UXM 48 port Cisco UPOE, 36 ports 100M/1G/2.5G + Modular Uplinks 1100W AC
12 ports Multigigabit (10G/5G/2.5G/1G/100M)
C9300-48UN 48 port 5Gbps Multigigabit UPOE ports Modular Uplinks 1100W AC
(5G/2.5G/1G/100M)
C9300-24UB 24 port Cisco UPOE Modular Uplinks 1100W AC
C9300-24UXB 24 port Multigigabit Cisco UPOE Modular Uplinks 1100W AC
(10G/5G/2.5G/1G/100M)
C9300-48UB 48 port Cisco UPOE Modular Uplinks 1100W AC
C9300-24H 24 port Cisco UPOE+ Modular Uplinks 1100W AC
C9300-48H 48 Cisco UPOE+ Modular Uplinks 1100W AC
C9300-24S 24 1G SFP Modular Uplinks 715W AC
C9300-48S 48 port 1G SFP Modular Uplinks 715W AC
Fixed uplink models
C9300L-24T-4G 24 port Data 4x 1G fixed uplinks 350W AC
C9300L-24T-4X 24 port Data 4x 10G/1G fixed uplinks 350W AC
C9300L-48T-4G 48 port Data 4x 1G fixed uplinks 350W AC
































































































































































































SKU Switching capacity Switching capacity with stacking Forwarding rate Forwarding rate with stacking
C9300X-48TX 2,000 Gbps 3,000 Gbps 1488 Mpps 2232 Mpps
C9300X-48HX 2,000 Gbps 3,000 Gbps 1488 Mpps 2232 Mpps
C9300X-48HXN 2,000 Gbps 3,000 Gbps 1488 Mpps 2232 Mpps
C9300X-24HX 880 Gbps 1,880 Gbps 327.38 Mpps 1398.80 Mpps
C9300X-12Y 1,000 Gbps 2,000 Gbps 744.04 Mpps 1488 Mpps
C9300X-24Y 2,000 Gbps 3,000 Gbps 1488 Mpps 2232 Mpps
C9300-24T 208 Gbps 688 Gbps 154.76 Mpps 511.90 Mpps
C9300-48T 256 Gbps 736 Gbps 190.47 Mpps 547.62 Mpps
C9300-24P 208 Gbps 688 Gbps 154.76 Mpps 511.90 Mpps
C9300-48P 256 Gbps 736 Gbps 190.47 Mpps 547.62 Mpps
C9300-24U 208 Gbps 688 Gbps 154.76 Mpps 511.90 Mpps
C9300-48U 256 Gbps 736 Gbps 190.48 Mpps 547.62 Mpps
C9300-24UX 640 Gbps 1120 Gbps 476.19 Mpps 833.33 Mpps
C9300-48UXM 580 Gbps 1060 Gbps 431.54 Mpps 788.69 Mpps
C9300-48UN 640 Gbps 1120 Gbps 476.19 Mpps 833.33 Mpps
C9300-24UB 208 Gbps 688 Gbps 154.76 Mpps 511.90 Mpps
C9300-48UB 256 Gbps 736 Gbps 190.48 Mpps 547.62 Mpps
C9300-24UXB 640 Gbps 1120 Gbps 476.19 Mpps 833.33 Mpps
C9300-24H 208 Gbps 688 Gbps 154.76 Mpps 511.90 Mpps
C9300-48H 256 Gbps 736 Gbps 190.48 Mpps 547.62 Mpps
C9300-24S 208 Gbps 688 Gbps 154.76 Mpps 511.90 Mpps
C9300-48S 256 Gbps 736 Gbps 190.47 Mpps 547.62 Mpps
C9300X-12Y 1,000 Gbps 2,000 Gbps 744.04 Mpps 1488 Mpps
C9300X-24Y 2,000 Gbps 3,000 Gbps 1488 Mpps 2232 Mpps
C9300LM-48UX-4Y 440 Gbps 760 Gbps 327.36 Mpps 565.44 Mpps

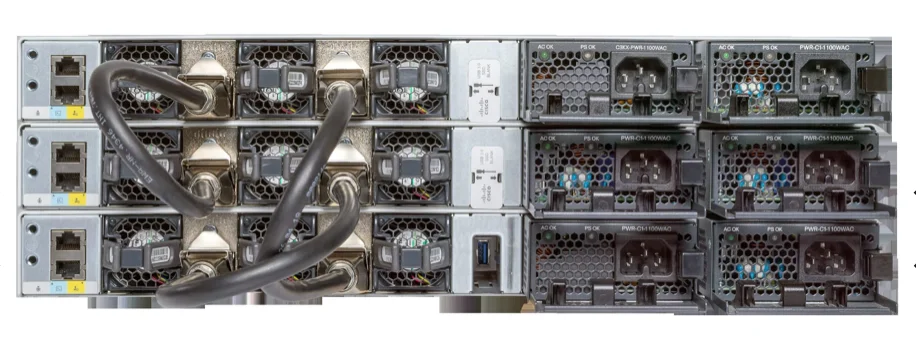

 9300-29300-3C9300-24T-E-4
