Manufacturer HuaEn pleating machine scarf shawl ruffles plisse TR fabric plisse machine fusing machine fabric garment

Manufacturer HuaEn pleating machine scarf shawl ruffles plisse TR fabric plisse machine fusing machine fabric garment

Category: >>>
Supplier: Changzhou Huaen Garment Machinery Factory

Price:$7,777.00 - $9,999.00

Quantity:

Product Overview

Description

Company Profile

Changzhou HuaEn Garment Machinery Factory

Changzhou HuaEn Garment Machinery Factory is located in Xuejia Town, Xinbei District, Changzhou City. It covers an area of more than 17 acres and has a building area of over 10,000 square meters. It is acomprehensive enterprise integrating design, development, manufacturing and trade. It specializes in producing and manufacturing all kinds of multifunctional folding machines. We have a high-quality, young and innovative research team, based on high starting point, high standards, abide by customer satisfaction, and create excellent business philosophy, providing services from sample to mass production. A rapid response mechanism has been established to continuously meet customer needs.

We totally have model ZJ-217, ZJ-416, ZJ-516, HE-202, HE-217-T, ZJ-316D, ZJ-816 fabric pleating machine (smocking pleater machine).
►ZJ-217 is the most functional machine and possible to equipped with computer and pneumatic system, and it is fixed with the most knife types.
To produce bamboo leaf pattern, box pleat pattern, side pleat pattern, wave pleat pattern individually, users just need change knife to achieve it.
►ZJ-316D knife moves leftwards and rightwards. And, knife is custom made
►ZJ-416pleats single vertical pattern, which is called by toothpick pleat. It is fixed with only steel belt and steel comb.
►ZJ-516pleats accordion but is merely applicable for sun-ray fabric piece / panel.
►HE-202 pinch pleating machine
►HE-217-T jacquard machine for hundreds of designs and operated by Windows 7 system
►ZJ-816 isn't so prevalent like the above models, it is kind of shrinking pleating. Its feature is Roller type decides pleat pattern. Please vide our product ZJ-816 machine separately.

►HE-217-B for big box pleats and big knife pleats for school uniform

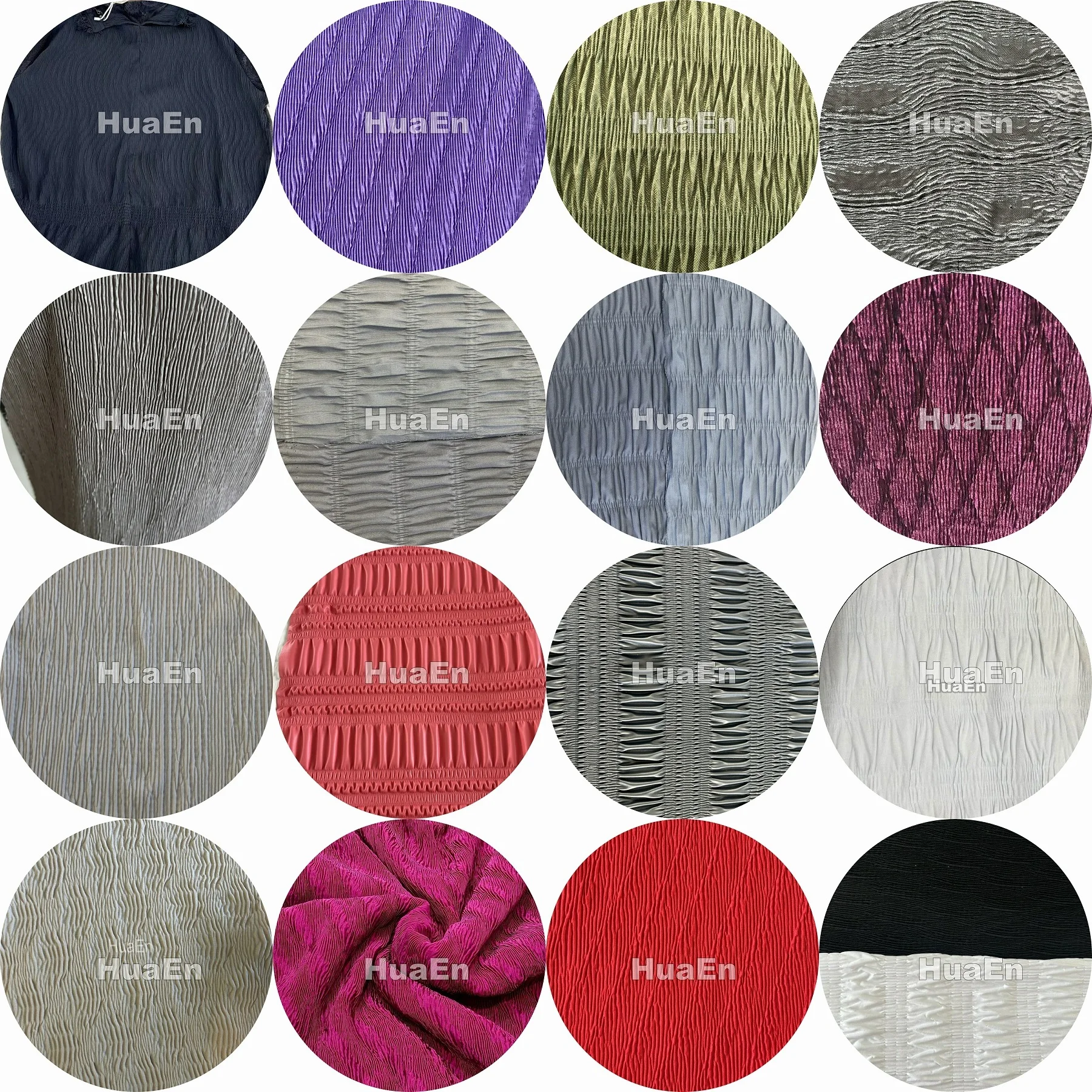

Pleat Patterns

Product Paramenters

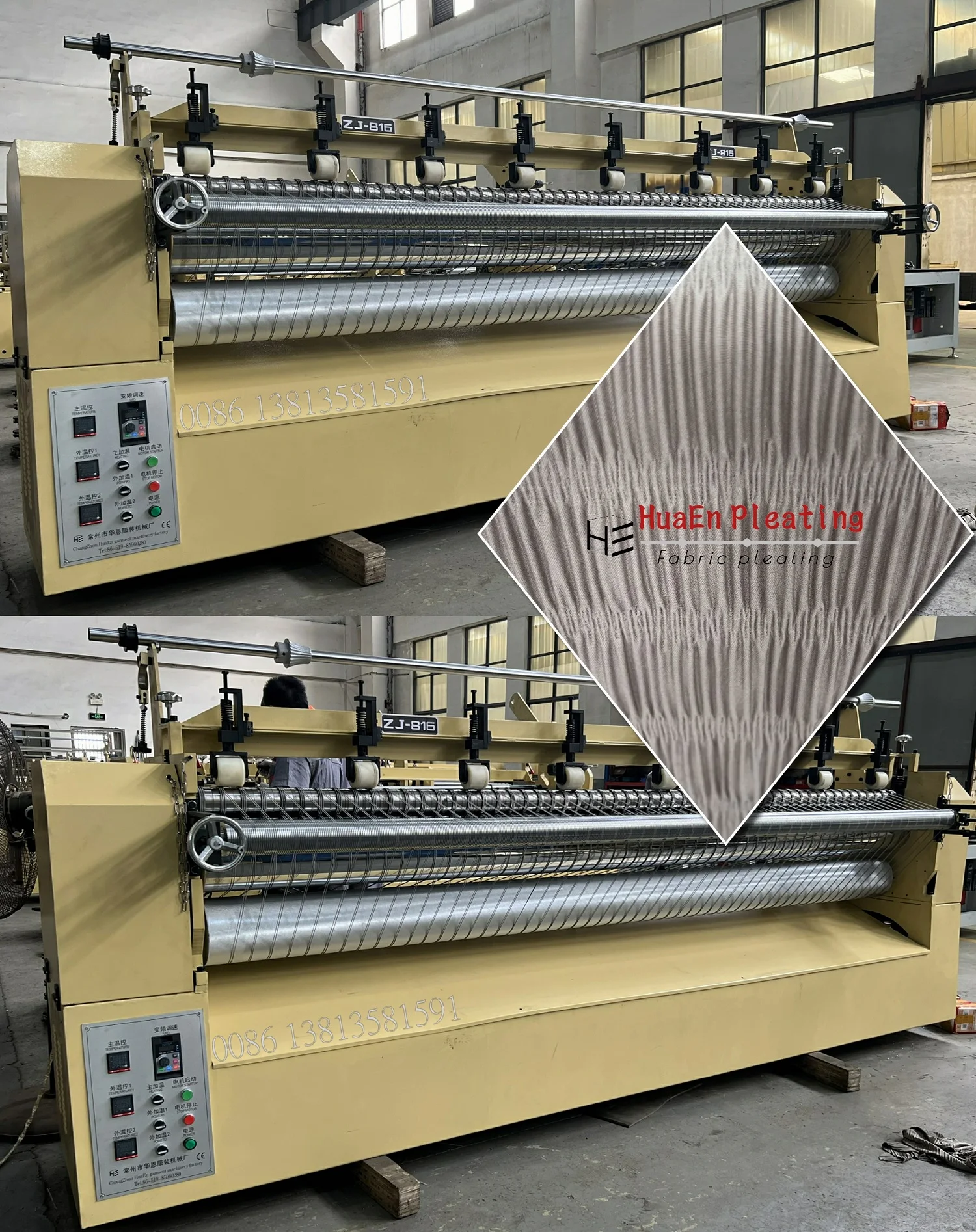

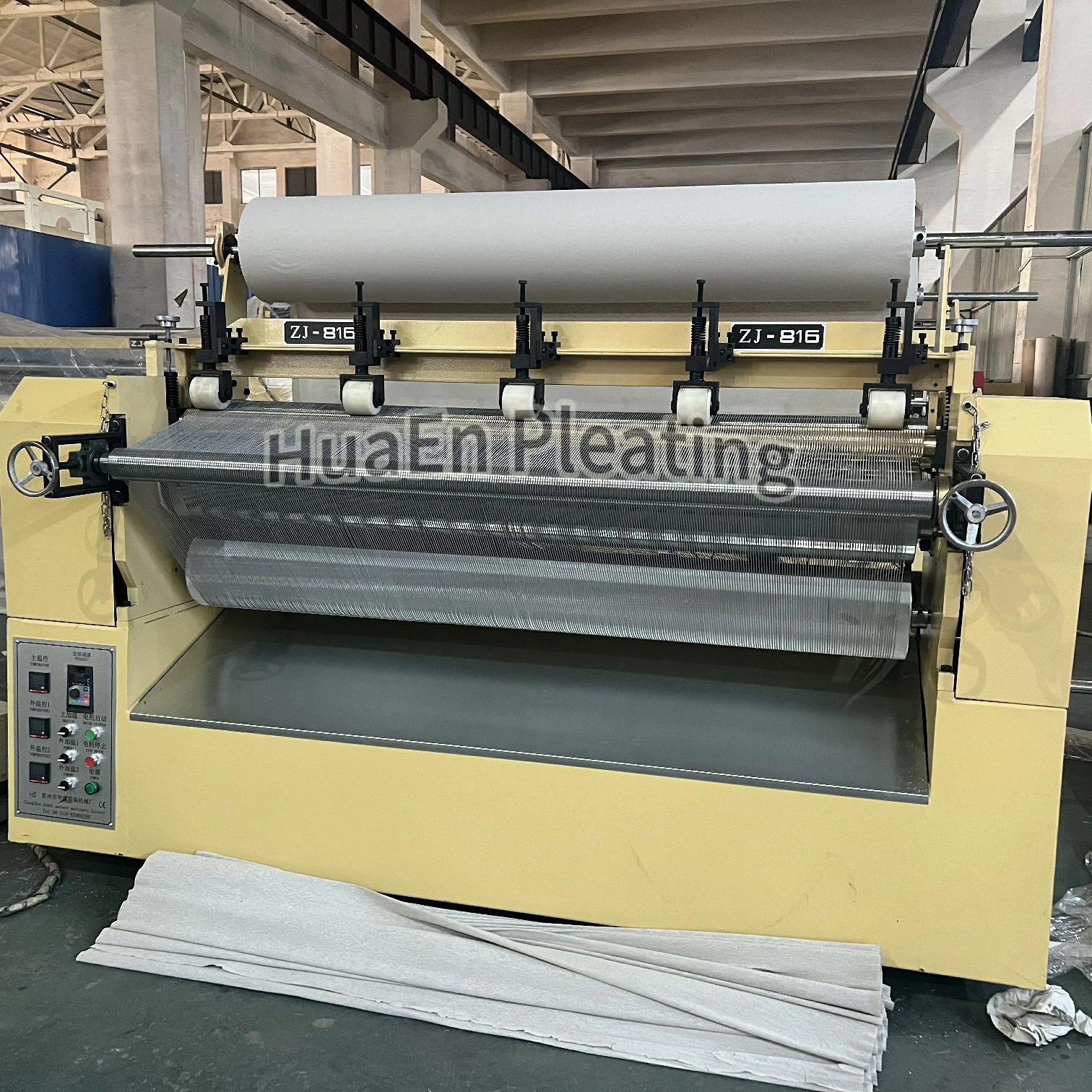

Model-1	ZJ-816 Ruffles
Specification	Max. pleating width: 1600mm Max. pleating speed: 200m/h Consumption: paper Motor power: 1.1kW Heating power: 10kW Size: 260014501650mm Packing size: 260011401800mm Net weight: 1000kgs Gross weight: 1250kgs
Quantity of pleat patterns	Single 1 roller included

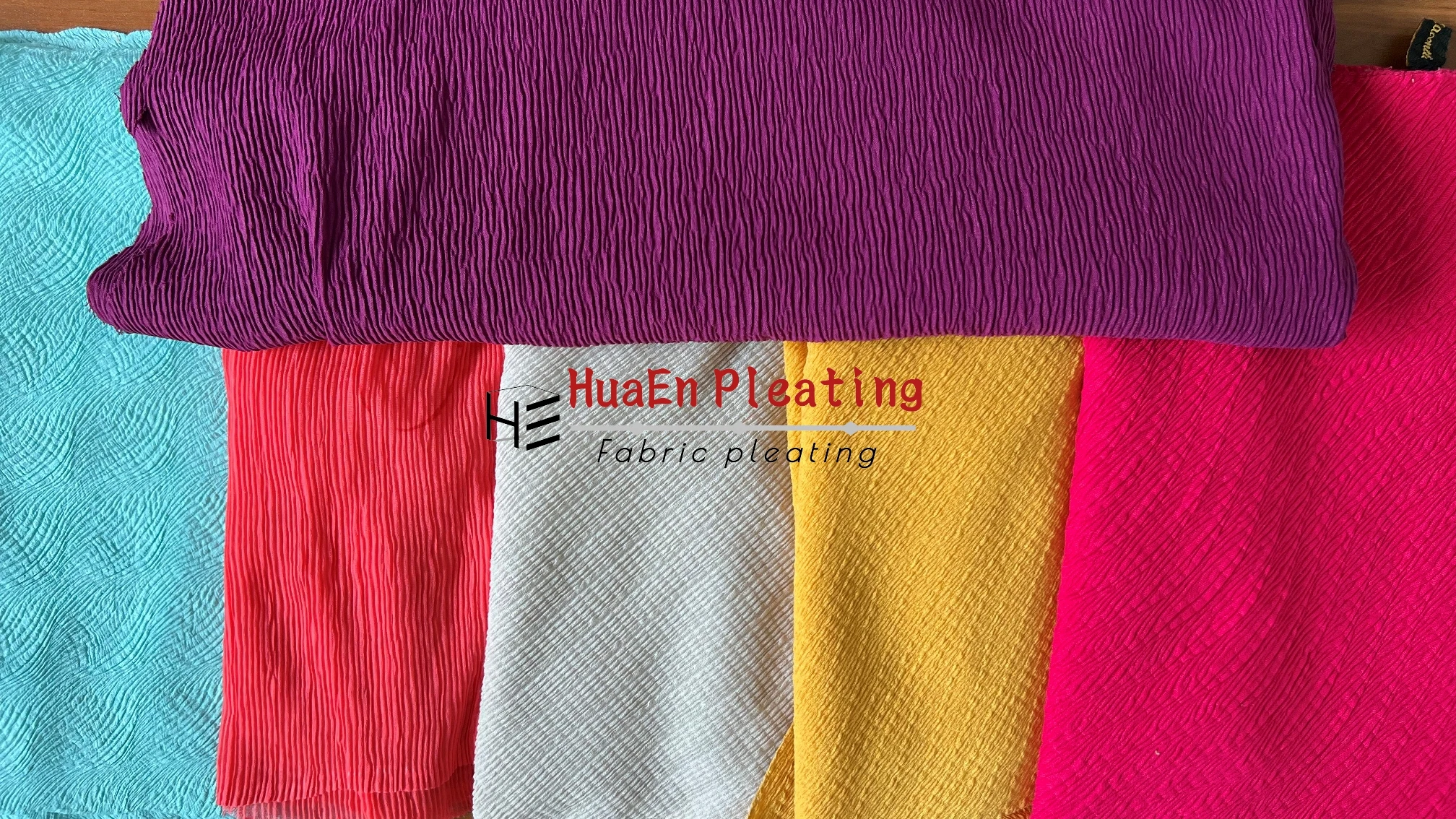

Pleat pattern	Wavy or Ruffle are basic
Paper needed	Upper and lower 48g/m2 friction paper Fabric is sandwiched
Key part	Roller/cylinder
Possible to customize?	Yes One roller, one type
Pleating in roll or piece	Both piece and roll
