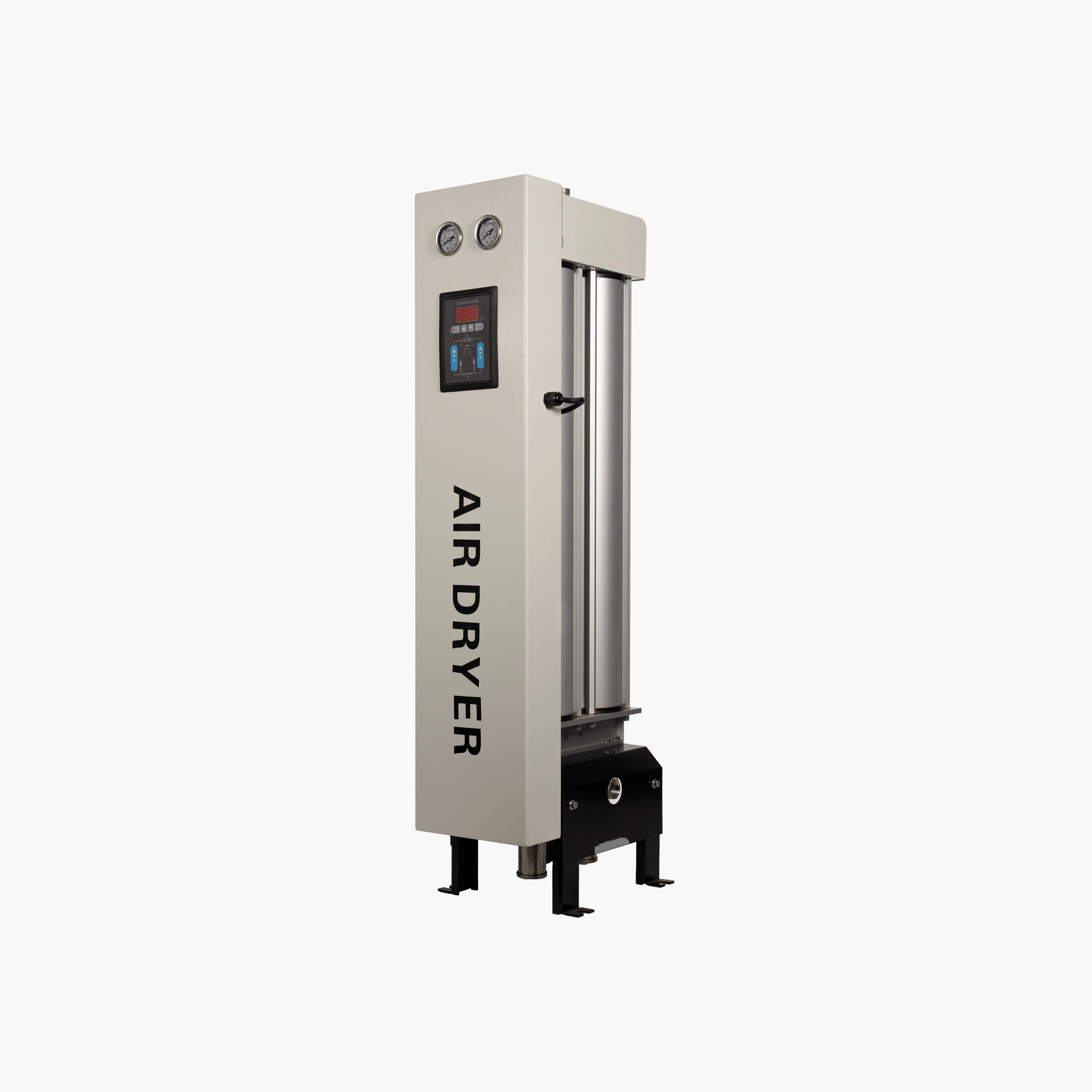

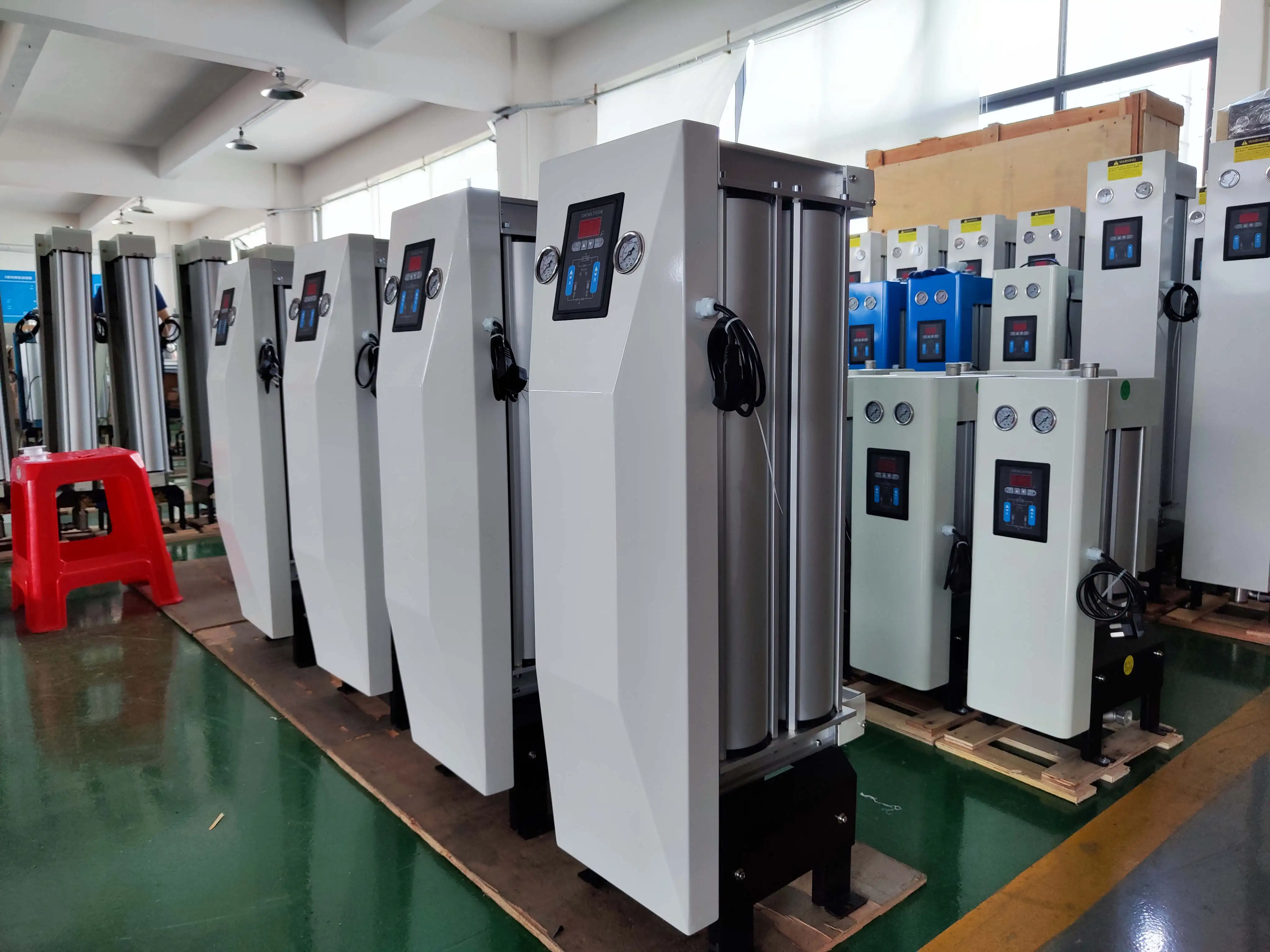

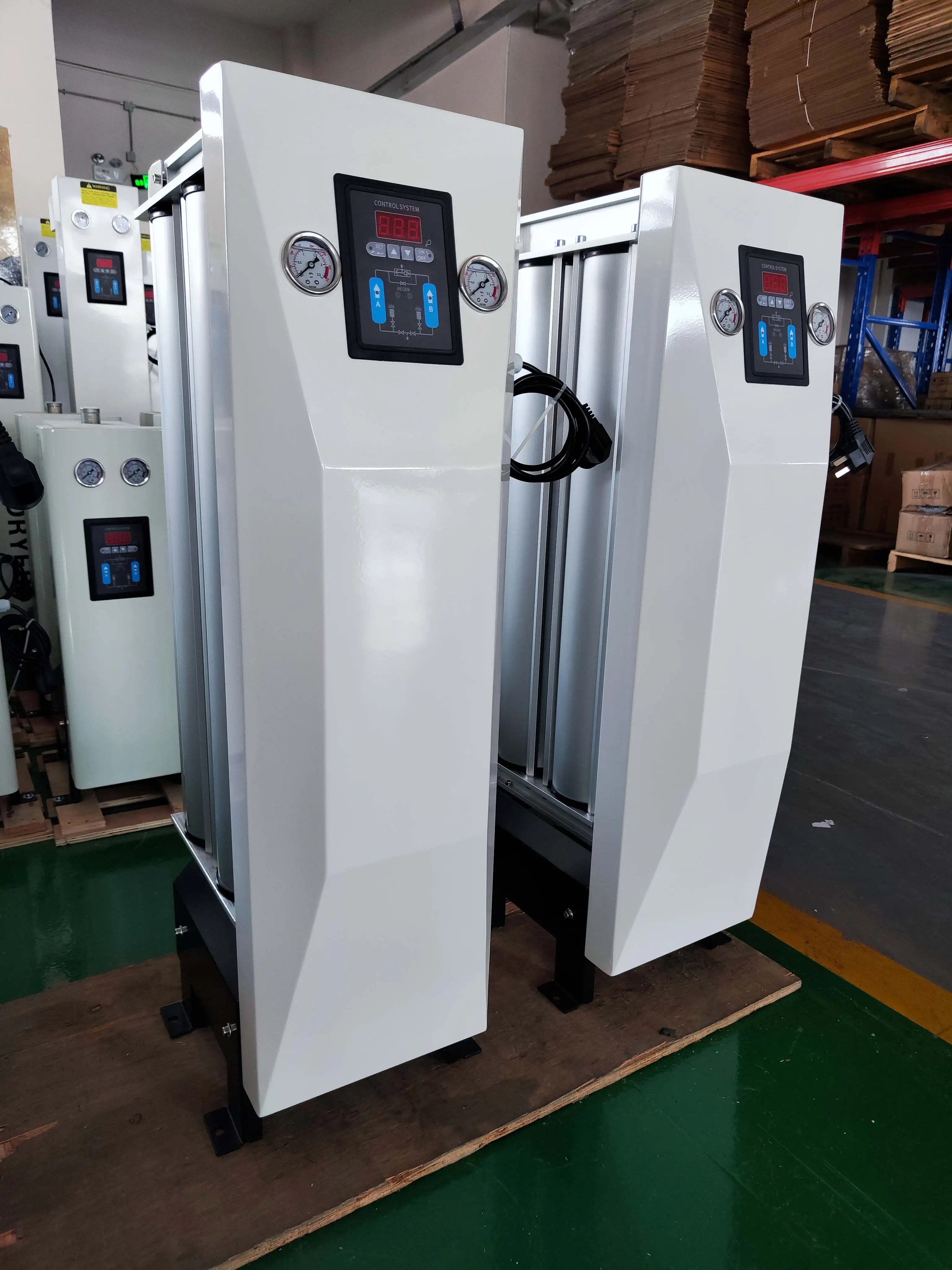

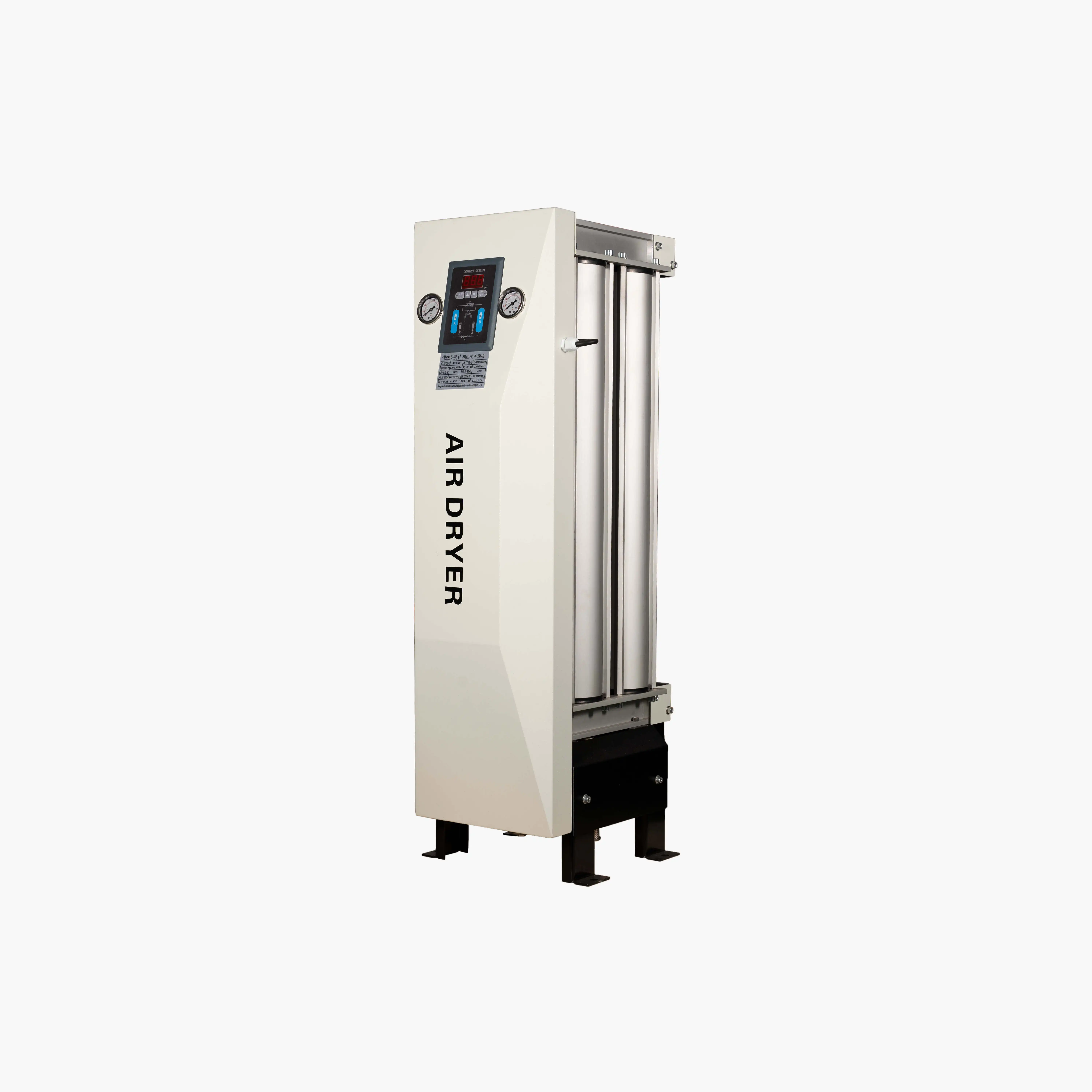

OEM Energy Saving Modular Desiccant Air Dryer For Industrial Compressor
- Category: >>>
- Supplier: Shandong Oppair Machinery Manufacturing Co. Ltd.
Share on (1601011357320):
Product Overview
Description
Product Details
Product Parameters
Modular adsorption air dryer | ||||||||||||||||
Model | MAD-0.2 | MAD-0.3 | MAD-0.65 | MAD-1.25 | MAD-1.75 | MAD-2.5 | MAD-3.75 | |||||||||
Processing capacity (m³/min) | 0.2 | 0.3 | 0.65 | 1.25 | 1.75 | 2.5 | 3.75 | |||||||||
Working pressure (bar) | 7-10 bar | |||||||||||||||
Dew point temperature(°C) | -40℃ | |||||||||||||||
Operating temperature | ≤ 50℃ | |||||||||||||||
Voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | |||||||||||||||
Matching air compressor power(HP) | 2HP | 3HP | 5HP | 10HP | 15HP | 20HP | 30HP | |||||||||
Air outlet diameter (mm) | 1/2'' | 1/2'' | 3/4''~1'' | 3/4''~1'' | 3/4''~1'' | 1'' | 1'' | |||||||||
Dimensions | Length (mm) | 200 | 200 | 260 | 260 | 260 | 320 | 320 | ||||||||
Width (mm) | 370 | 370 | 350 | 350 | 350 | 405 | 450 | |||||||||
Height (mm) | 514 | 514 | 680 | 1010 | 1260 | 950 | 1220 | |||||||||
Machine net weight (kg) | 15 | 15 | 22 | 30 | 37 | 58 | 80 | |||||||||
Model | MAD-5 | MAD-6.5 | MAD-7.5 | MAD-10 | MAD-15 | MAD-17.5 | MAD-20 | ||||||||
Processing capacity (m³/min) | 5 | 6.5 | 7.5 | 10 | 15 | 17.5 | 20 | ||||||||
Working pressure (bar) | 7-10 bar | ||||||||||||||
Dew point temperature(°C) | -40℃ | ||||||||||||||
Operating temperature | ≤ 50℃ | ||||||||||||||
Voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | ||||||||||||||
Matching air compressor power(HP) | 40HP | 40HP | 50HP | 75HP | 100HP | 125HP | 150HP | ||||||||
Air outlet diameter (mm) | 1'' | 1.5'' | 2'' | 2'' | 2'' | 2'' | 3'' | ||||||||
Dimensions | Length (mm) | 320 | 660 | 660 | 890 | 1050 | 1190 | 1310 | |||||||
Width (mm) | 580 | 330 | 330 | 330 | 330 | 330 | 330 | ||||||||
Height (mm) | 1220 | 1320 | 1720 | 1720 | 1720 | 1720 | 1720 | ||||||||
Machine net weight (kg) | 102 | 115 | 145 | 175 | 250 | 287 | 325 | ||||||||
Model | MAD-25 | MAD-30 | MAD-35 | MAD-40 | MAD-50 | ||||||
Processing capacity (m³/min) | 25 | 30 | 35 | 40 | 50 | ||||||
Working pressure (bar) | 7-10 bar | ||||||||||
Dew point temperature(°C) | -40℃ | ||||||||||
Operating temperature | ≤ 50℃ | ||||||||||
Voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | ||||||||||
Matching air compressor power(HP) | 175HP | 175HP | 200HP | 250HP | 300-350HP | ||||||
Air outlet diameter (mm) | 3'' | 3'' | 3'' | 4'' | 4'' | ||||||
Dimensions | Length (mm) | 1570 | 1050 | 1190 | 1310 | 1570 | |||||
Width (mm) | 330 | 660 | 660 | 660 | 660 | ||||||
Height (mm) | 1720 | 1720 | 1720 | 1720 | 1720 | ||||||
Machine net weight (kg) | 405 | 510 | 585 | 675 | 825 | ||||||
High-pressure modular adsorption air dryer | ||||||||||
Model | MAD-1.5/16 | MAD-2.5/16 | MAD-3.8/16 | MAD-5/16 | ||||||
Processing capacity (m³/min) | 1.5 | 2.5 | 3.8 | 5 | ||||||
Work pressure (bar) | 12-16bar | |||||||||
Dew point temperature(°C) | -40℃ | |||||||||
Operating temperature | ≤ 50℃ | |||||||||
Voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | |||||||||
Matching air compressor power(HP) | 20HP | 30HP | 40HP | 50HP | ||||||
Air outlet diameter (mm) | 3/4'' | 3/4'' | 3/4'' | 1'' | ||||||
Dimensions | Length (mm) | 260 | 260 | 260 | 320 | |||||
Width (mm) | 350 | 350 | 350 | 580 | ||||||
Height (mm) | 680 | 1010 | 1260 | 1220 | ||||||
Machine net weight (kg) | 22 | 30 | 37 | 58 | ||||||
*Features
1. Energy saving: Unique silencer emission design saves more than 50% than traditional dryers.
2. Low leakage point: scientific fluid distribution design to overcome the tunnel effect. The adsorption module is designed according to the "golden ratio" for more thorough adsorption.

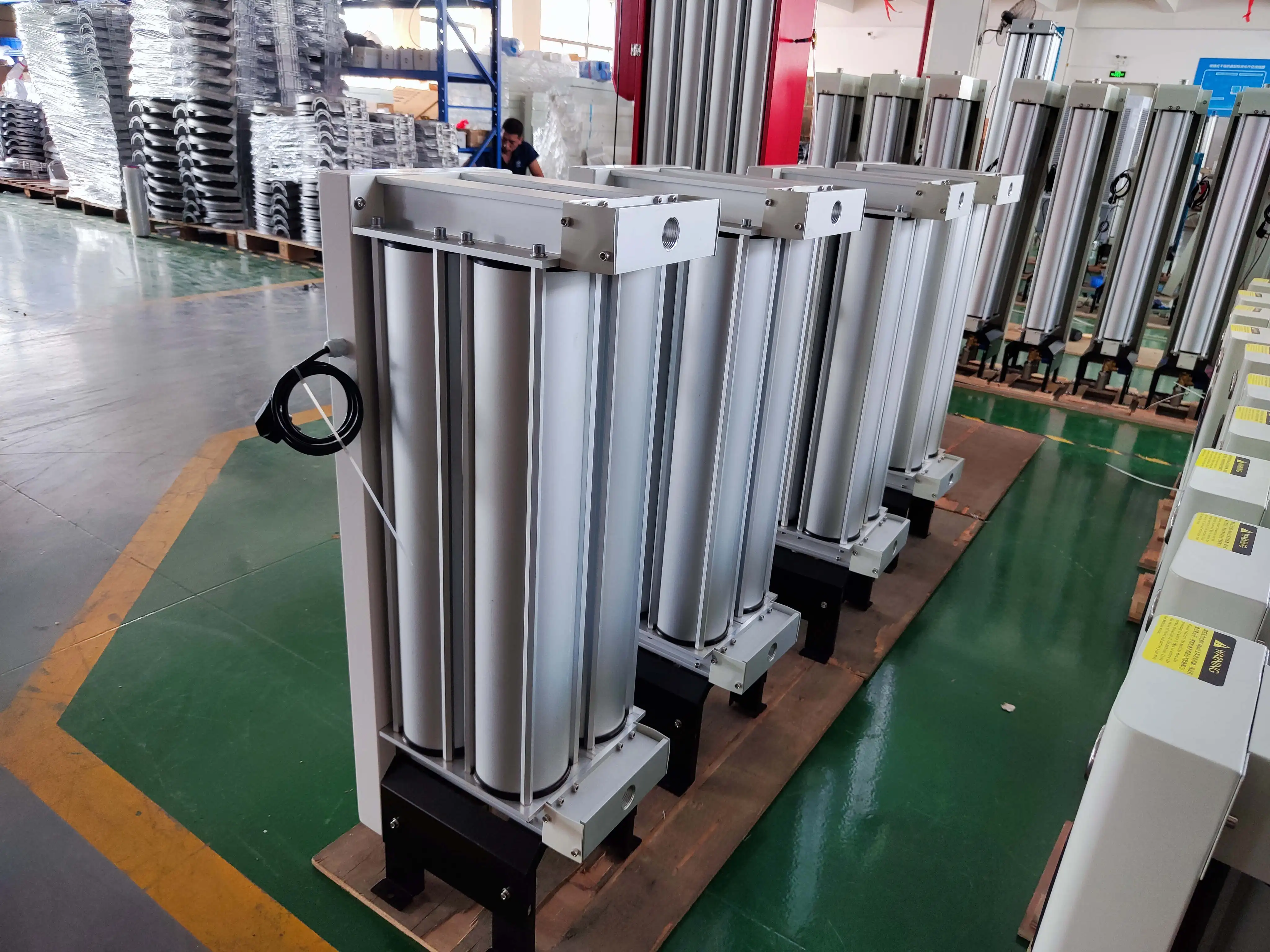

3. Modular design (Patent No. Z1201130481507.0): compact, small, beautiful, takes up little space, and easy to install. The entire adsorption process is made more thorough and the molecular sieve utilization rate is increased.
4. If the volume of a single adsorption cylinder is less than 25 liters, it does not fall into the special inspection scope of
pressure vessels.
Scope of application: ambient temperature is -25℃~50℃, inlet air temperature is 2℃~45℃, inlet pressure
0.4MPa~1.3MPa
Standard working conditions: working pressure is 0.7MPa, inlet air temperature is 35°C.
Technical indicators: pressure dew point ≤ -40℃, regeneration energy consumption ≤ 5%, pressure loss ≤ 0.015MPa, noise < 65dB.
4. If the volume of a single adsorption cylinder is less than 25 liters, it does not fall into the special inspection scope of
pressure vessels.
Scope of application: ambient temperature is -25℃~50℃, inlet air temperature is 2℃~45℃, inlet pressure
0.4MPa~1.3MPa
Standard working conditions: working pressure is 0.7MPa, inlet air temperature is 35°C.
Technical indicators: pressure dew point ≤ -40℃, regeneration energy consumption ≤ 5%, pressure loss ≤ 0.015MPa, noise < 65dB.
Company Profile
Packaging&Transportation
FAQ
Q1: Are you factory or Trade Company?
A1: We are a professional air compressor manufacturer located in Linyi, Shandong. We have our own trade company for export.
Q2: How long is your product warranty?
A2: Usually the whole machine is guaranteed for one year
Q3: What voltage can you provide?
A3: We can support 220V/380V/400V/415V/440V, 50HZ/60HZ
Q4: How long is your delivery time?
A4: 1-10 sets, 380V/3P 50hz, we can delivery it between 7 days. Other voltage need be 7-15 days. More than 10 sets, need be 15-25 days.
Q5: How to pay?
A5: We support T/T wire transfer. Or directly pay by Alibaba.
Q6: What should I do after maintenance?
A6: Our machines are easy to maintain and operate in the later stages. We support the sale of later maintenance parts, and later customers only need to operate according to our prompts. For inexperienced customers, we can provide video guidance.
Q7: Do you have website?
Q2: How long is your product warranty?
A2: Usually the whole machine is guaranteed for one year
Q3: What voltage can you provide?
A3: We can support 220V/380V/400V/415V/440V, 50HZ/60HZ
Q4: How long is your delivery time?
A4: 1-10 sets, 380V/3P 50hz, we can delivery it between 7 days. Other voltage need be 7-15 days. More than 10 sets, need be 15-25 days.
Q5: How to pay?
A5: We support T/T wire transfer. Or directly pay by Alibaba.
Q6: What should I do after maintenance?
A6: Our machines are easy to maintain and operate in the later stages. We support the sale of later maintenance parts, and later customers only need to operate according to our prompts. For inexperienced customers, we can provide video guidance.
Q7: Do you have website?
A7: Yes. www.oppaircompressor.com
