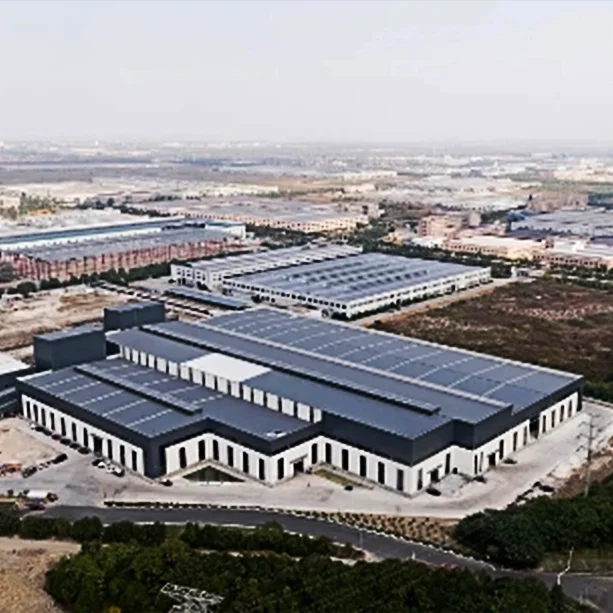

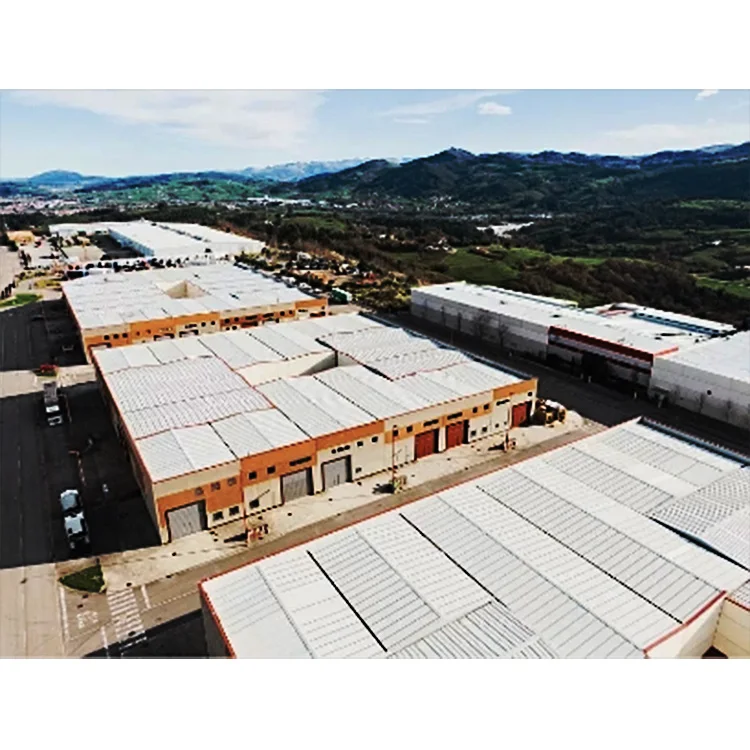

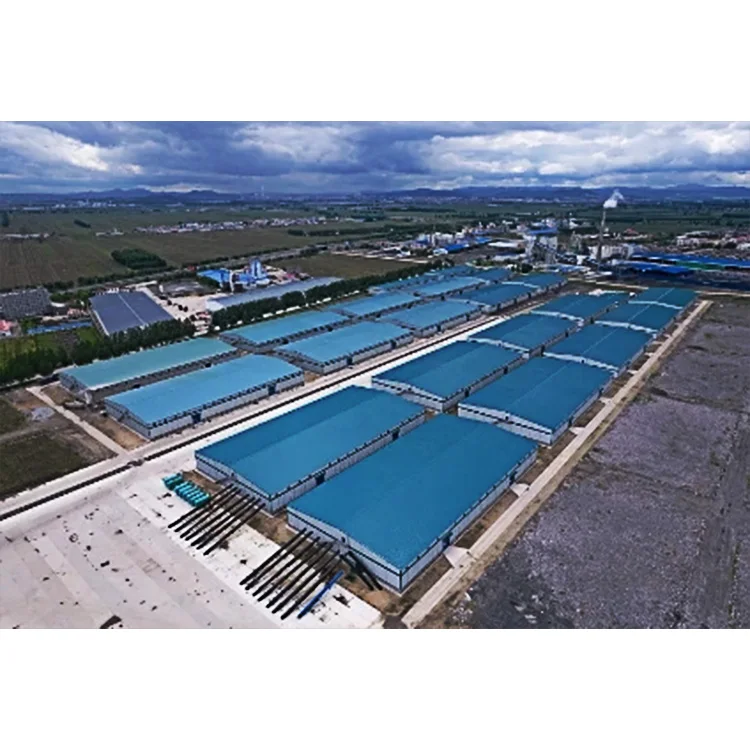

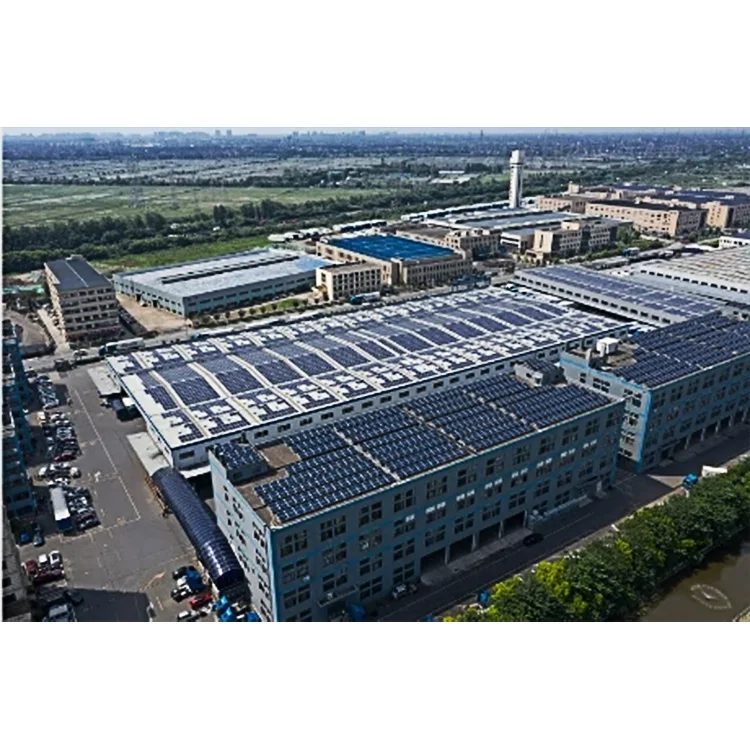

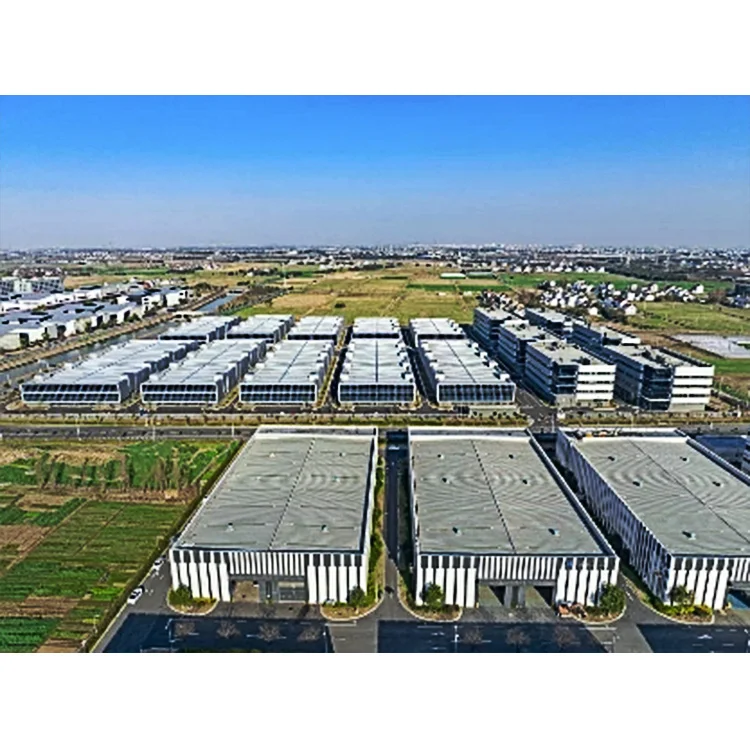

multi application steel structure farm shed workshop warehouse with dwg drawing

Product Overview

Description

THE DETAIL

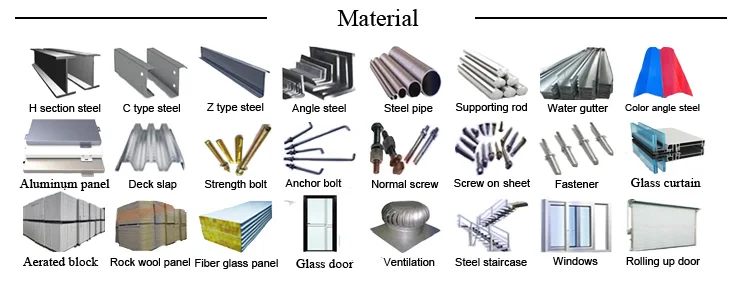

Main frame	Column	Q235,Q345 welded H section steel
	Beam	Q235.Q345 welded H setion steel
Secondary frame	Purlin	Q235 Z/C steel purlin
	Knee brace	Q235 Angle steel
	Tie rod	Q235 circular steel pipe
	Brace	Q235 round bar
	Virtical and horizontal support	Q234 angle steel/round bar/circular steel pipe
Wall and roof	Wall panel	eps sancwich panel/glass fiber sandwich panel/rock wool sandwich panel/PU sandwich panel.
	Roof panel	sandwich panel and corrugated steel sheet.
Accessories	Door	Sliding door/rolling door/
	window	PVC/aluminum alloy/sandwich panel
	rain support	PVC

THE PARAMETER

Live load on roof	In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade	12 Grades
Earthquake-resistance	8 Grades
Structure Usage	Up to 50 years
Temperature	Suitable temperature.-50°C~+50°C
Certification	CE, SGS,ISO9001:2008,ISO14001:2004
Finishing Options	Vast array of colors and textures available
Paint Options	Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

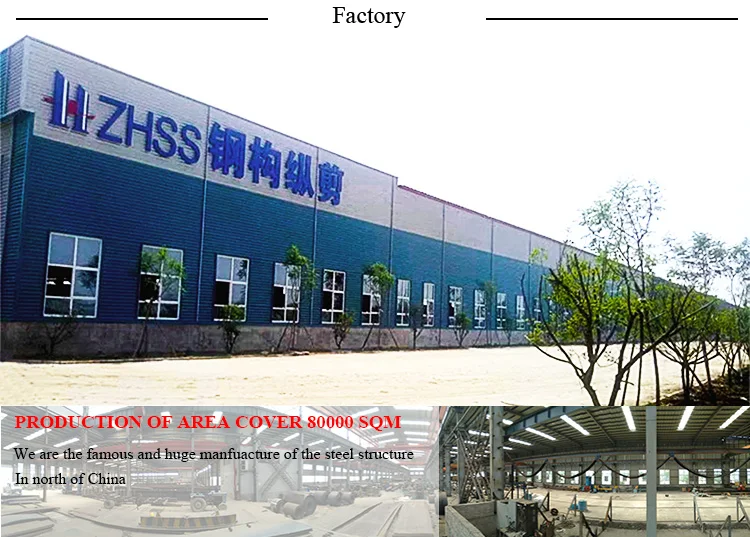

Hebei Zhao Hong Steel Structure Co., Ltd. (other used name Hebei Baosheng light steel color plate factory) is an enterprise specialized in steel structure, and is well-known both at home and abroad. It was established in 1998 and located in Hancun Town Zhaoxian Country Hebei Province China, not far from the famous precious cultural heritage “The Anji Bridge”. The registration capital is RMB 36 millions.

Our company is mainly engaged in technology of steel structure projects: project design, processing and manufacturing, field installation, construction management and material trade and so on. So far we have three producing areas for corrugated color steel plates and sandwich panels,light steel and sheet steel slitting, covers more than 53000 square meters.
