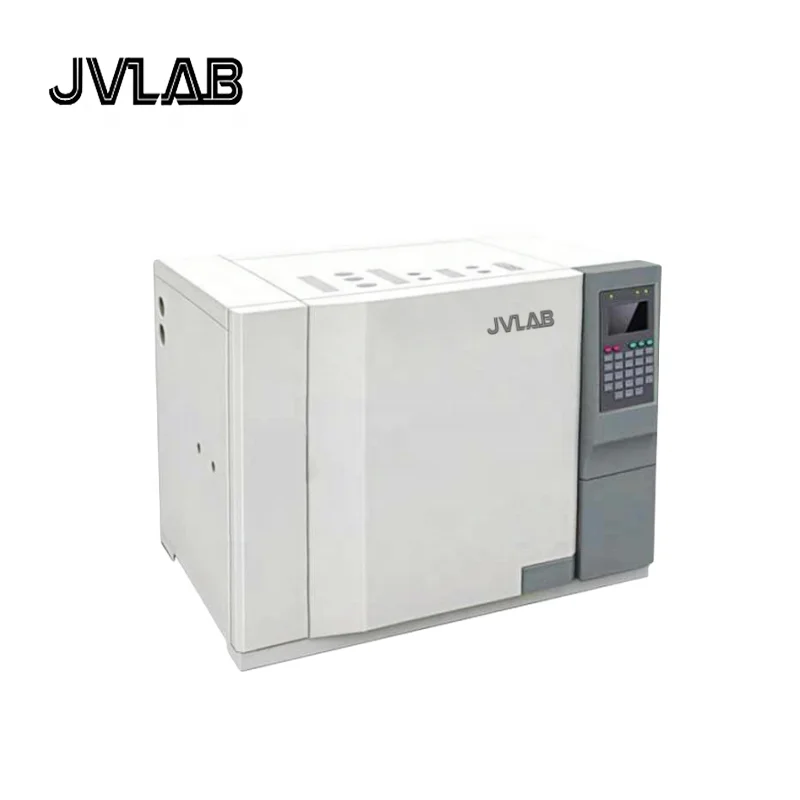

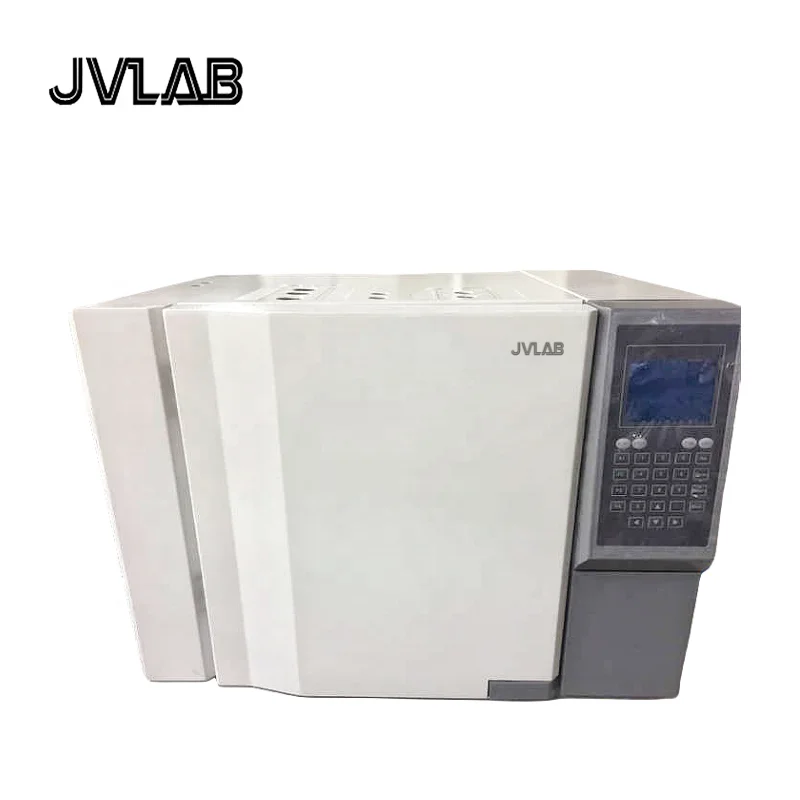

Gas Chromatography Electrical Laboratory Gas Chromatograph Gas Analyzers GC1120
- Category: >>>
- Supplier: Foshan Kabadi Trade Co. Ltd.
Share on (1601011389099):
Product Overview
Description

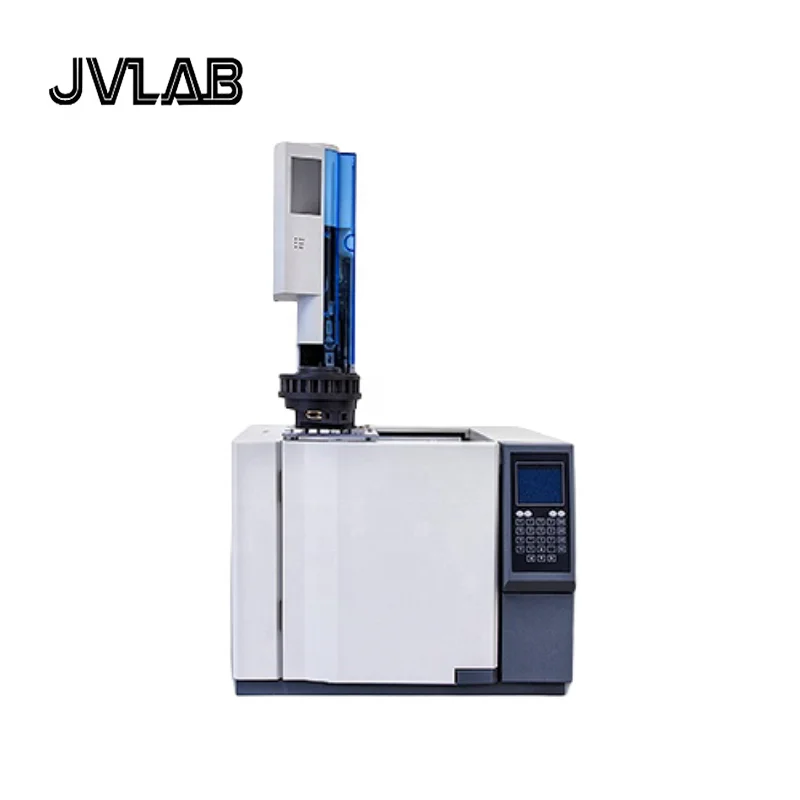

GC1120 Gas Chromatography
Product Description
Features
1. Display screen at a glance
● Large-screen display to achieve Chinese menu-style dialogue. The temperature set value and actual value of the column box, injector, detector, etc. can be displayed simultaneously on a single screen.
2. Microcomputer system
● Microcomputer temperature control system, temperature control accuracy ±0.05°C; Six independent temperature zones up to 400 °C; It has the function of limit temperature setting and over-temperature protection.
● Full Chinese keyboard setting control and use parameters (including detector operation parameters); The instrument has functions such as self-diagnosis, power-off protection, detector setting, range, polarity and current setting and display.
● Large-screen display to achieve Chinese menu-style dialogue. The temperature set value and actual value of the column box, injector, detector, etc. can be displayed simultaneously on a single screen.
2. Microcomputer system
● Microcomputer temperature control system, temperature control accuracy ±0.05°C; Six independent temperature zones up to 400 °C; It has the function of limit temperature setting and over-temperature protection.
● Full Chinese keyboard setting control and use parameters (including detector operation parameters); The instrument has functions such as self-diagnosis, power-off protection, detector setting, range, polarity and current setting and display.
3.Column heater
● Within 10min, the large-capacity column box can accommodate both capillary column and double-packed column; The column box has a heating and cooling automatic rear door opening mechanism (● 300 °C down to 50 °C, the door opening angle can be automatically adjusted according to temperature changes), and the column box has a 10-stage 11-platform program heating up.
4. Double stable air path
● The carrier gas flow path adopts the dual stability design of pressure stabilizer valve and stabilizer valve; The air and hydrogen flow path adopts the stable adjustment mode of the pressure regulator valve and the needle valve, and the steady flow valve and the needle valve both use digital scale knobs.
5. Flexible sampling system
● The instrument can be installed with up to three injectors at the same time, according to the analysis requirements, the best injector combination can be selected, and each unit can be independently controlled, and the injector is easy to disassemble and assemble.
● Single/Double-packed Injector (PIP).
● It can realize the filling column head injection method, which is suitable for a variety of chromatographic columns; Six-way valve is added for gas injection analysis; The use of connectors in the packed column injector makes it easy to perform 0.53 wide bore capillary column analysis.
● Single-capillary column / dual capillary column injector (SPL).
● Capillary column injector, with diaphragm purge and back-pressure valve shunt adjustment, suitable for different specifications of capillary columns.
● The instrument can be installed with up to three injectors at the same time, according to the analysis requirements, the best injector combination can be selected, and each unit can be independently controlled, and the injector is easy to disassemble and assemble.
● Single/Double-packed Injector (PIP).
● It can realize the filling column head injection method, which is suitable for a variety of chromatographic columns; Six-way valve is added for gas injection analysis; The use of connectors in the packed column injector makes it easy to perform 0.53 wide bore capillary column analysis.
● Single-capillary column / dual capillary column injector (SPL).
● Capillary column injector, with diaphragm purge and back-pressure valve shunt adjustment, suitable for different specifications of capillary columns.
6. Detector
● Up to three detectors can be installed at the same time, such as FID, TCD, ECD detector, etc.
● Different combinations are adopted according to different analysis applications, which can easily realize the series and parallel work of the detector.
● The FID detector can be easily disassembled and cleaned for the nozzle and ion collection parts.
● HTCD uses rhenium tungsten wire with high resistance value, and the sensitivity is up to 10000mV. mL/mg.
● Modulated pulsed ECD constant current source, sensitivity and current selection microcomputerized.
● Up to three detectors can be installed at the same time, such as FID, TCD, ECD detector, etc.
● Different combinations are adopted according to different analysis applications, which can easily realize the series and parallel work of the detector.
● The FID detector can be easily disassembled and cleaned for the nozzle and ion collection parts.
● HTCD uses rhenium tungsten wire with high resistance value, and the sensitivity is up to 10000mV. mL/mg.
● Modulated pulsed ECD constant current source, sensitivity and current selection microcomputerized.
7.Built-in acquisition system
● Built-in acquisition device, which can collect instrument control status and chromatographic output signal, and realize real-time control and data processing of the instrument by connecting to an external computer with a communication cable.
● Real-time control includes functions such as temperature control, detector selection and setting, temperature control and temperature curve tracking.
● Data processing includes dual-channel (expandable to multi-channel) chromatographic data acquisition, automatic or manual setting of integration parameters, up to 5 quantification methods, baseline subtraction, report preparation, and more.
● Built-in acquisition device, which can collect instrument control status and chromatographic output signal, and realize real-time control and data processing of the instrument by connecting to an external computer with a communication cable.
● Real-time control includes functions such as temperature control, detector selection and setting, temperature control and temperature curve tracking.
● Data processing includes dual-channel (expandable to multi-channel) chromatographic data acquisition, automatic or manual setting of integration parameters, up to 5 quantification methods, baseline subtraction, report preparation, and more.
Specification
Temperature control | ||
Temperature range | Ambient temperature +7℃~400℃ (in 1s℃ increment) | |
Temperature-controlled objects | Column box, front and rear detector, front and rear sampler, auxiliary, a total of 6 channels | |
Temperature accuracy | ± 0.05 ℃ | |
Programmed temperature setting | 0.1℃~40℃/min (in 1℃ increment) | |
The number of progressions | Ten Order | |
Total time of total program | Up to 655 minutes, (increment 0.1℃) | |
Hydrogen Flame Ionization Detector (FID) | ||
Sensitivity | M ≤ 8 *10-12g /s(C16) | |
Best test result | ≤3*10-12g/s (C16) | |
Drift | ≤6*10-13A/30min | |
Thermal Cell Detector (TCD) | ||
Sensitivity | ≥ 5000mV ﹒mL/mg(C16) | |
Noise | ≤ 20 μ V | |
High Sensitivity Thermal Conductivity Cell Detector (HTCD) | ||
Sensitivity | ≥ 10000mV .mL/mg(C16) | |
Electron Capture Detector (ECD) | ||
Limit of detection | ≤ 2 *10 -13g /s(γ -666) | |
Noise | ≤20µV(≥ 1000) | |
Drift | ≤ 80 µ V/30min（350 ℃） | |
Flame Photometric Detector (FPD) | ||
Limit of detection | ≤8×10 -13 g/s （P）(Methyl parathion)/ ≤8×10 -11 g/s （S）(Methyl parathion) | |
Noise | ≤5×10-12 A | |
Drift | ≤2×10-11 A /30min | |
Nitrogen & Phosphorus Detector (NPD) | ||
Limit of detection | ≤5×10 -12 g /s （N)(azobenzene)/ ≤5×10 -13 g /s （P）（malathion） | |
Photoionization Detector (PID) | ||
Limit of detection | ≤1ppb（benzene） | |
Packing & Delivery
