Quality guarantee 6.56ft diameter New Type Portable High Strength Aluminum Blades Large Floor Fans
- Category: >>>
- Supplier: Fujian Diamond Electrical And Mechanical Equipment Co. Ltd.
Share on (1601011454640):
Product Overview
Description
Products Description
1.5 / 2m HVLS Big Sized Portable Outdoor industrial (gym) stand fan
Super large air volume, ultra-long air blowing,feel the free wind everywhere
Super large air volume, ultra-long air blowing,feel the free wind everywhere

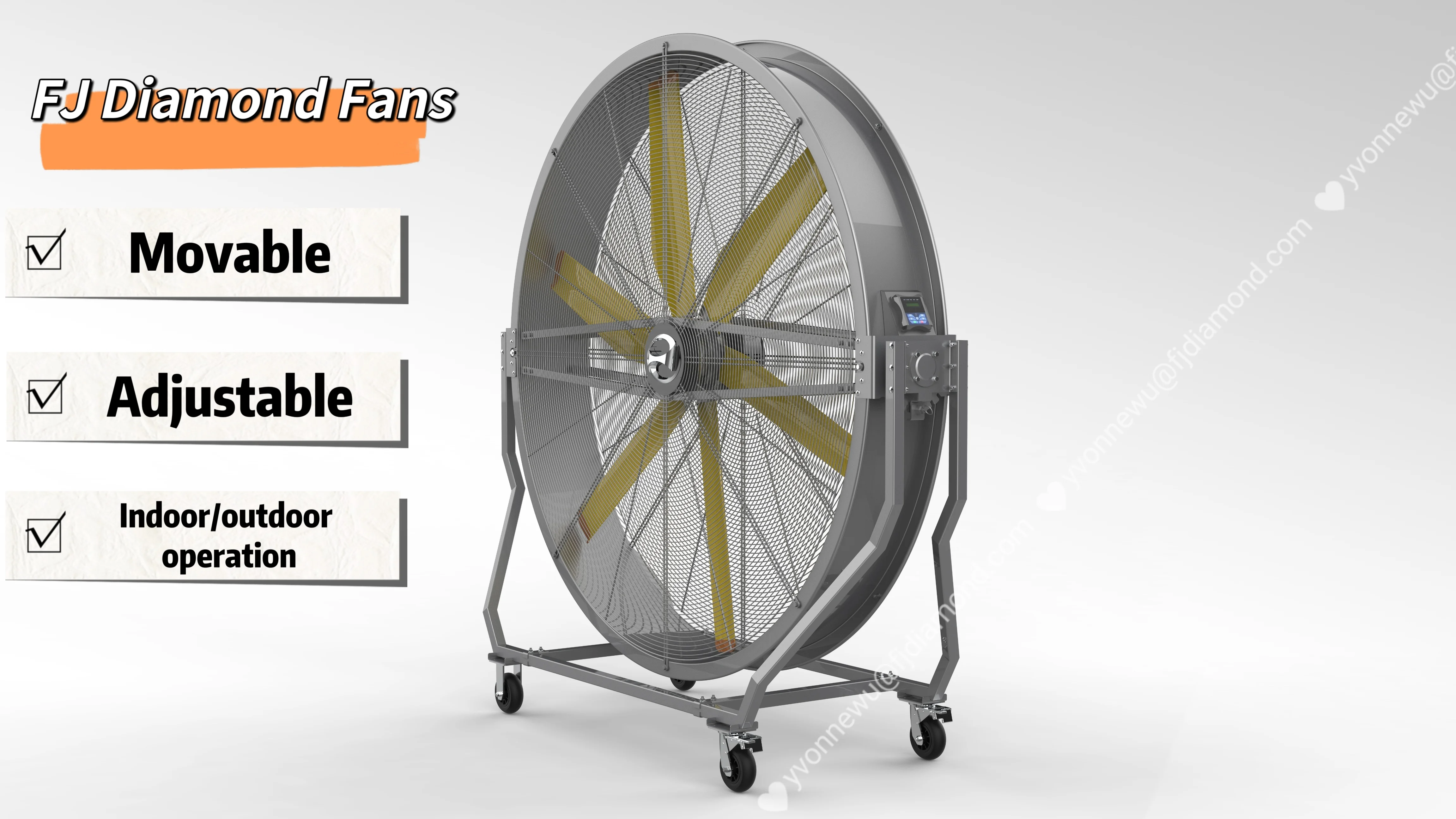

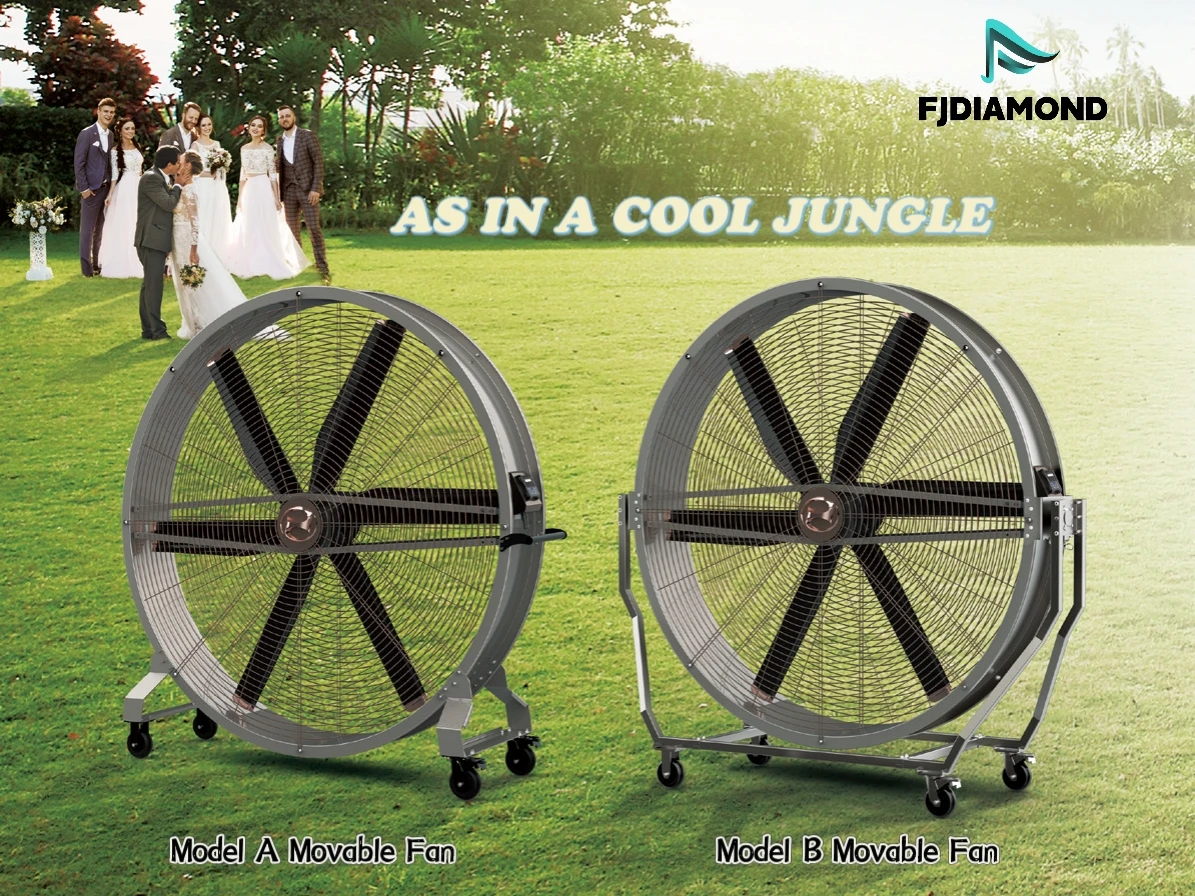

BIG ADJUSTABLE MOVABLE FAN (Model B)
In different places of use, the fan's air delivery angle needs to be more lexible and versatile, this time the adjustable angle of the Model B movable fan can make a big diference. Pitch angle adjustable range of -45 ° ~ +45 ° (horizontal blowing for 0° ), 15° a gear, a total of 7 gears.
Model | Big adjustable movable fan | ||
Diameter | 1.5m ( 4.9ft) | 2 m ( 6.56ft) | |
Voltage &Power | 110V/220V/380V | ||
Max rotating speed | 420rpm | 300rpm | |
Air volume | 55000 m³/h; | 80000m³/h | |
Number of blades | 6pcs Aluminum-alloy fan blade | ||
Noise | 39dB | ||
Long distance | 20-30m | 30m-40m | |
Effective area | 150 m² | 260 m² | |
Net Weight | 93kgs | 122kgs | |

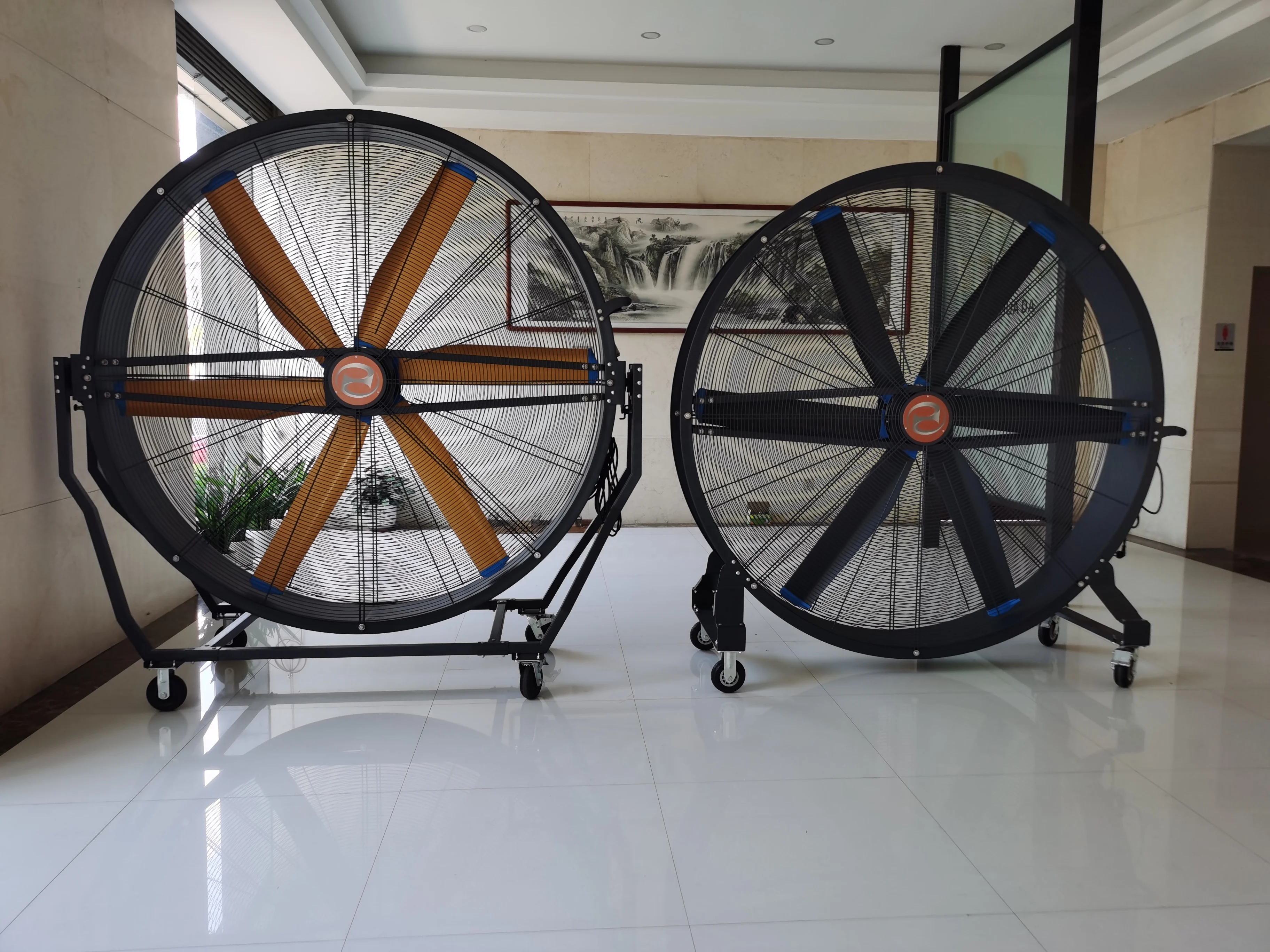

Diameter 1.5m (4.9ft ) & 2m ( 6.5ft ) in available
Dark grey & yellow blades in available
OEM are welcome
Details Images
Permanent magnet synchronous motor
FEATURES:
.Without rotor losses
.High efficiency and precision
.Large power factor
.Improve grid operating environment.
.Frequency modulation width (0~200HZ)
.Small size and light weight
.Saving energy and high efficient
.High efficiency and precision
.Large power factor
.Improve grid operating environment.
.Frequency modulation width (0~200HZ)
.Small size and light weight
.Saving energy and high efficient

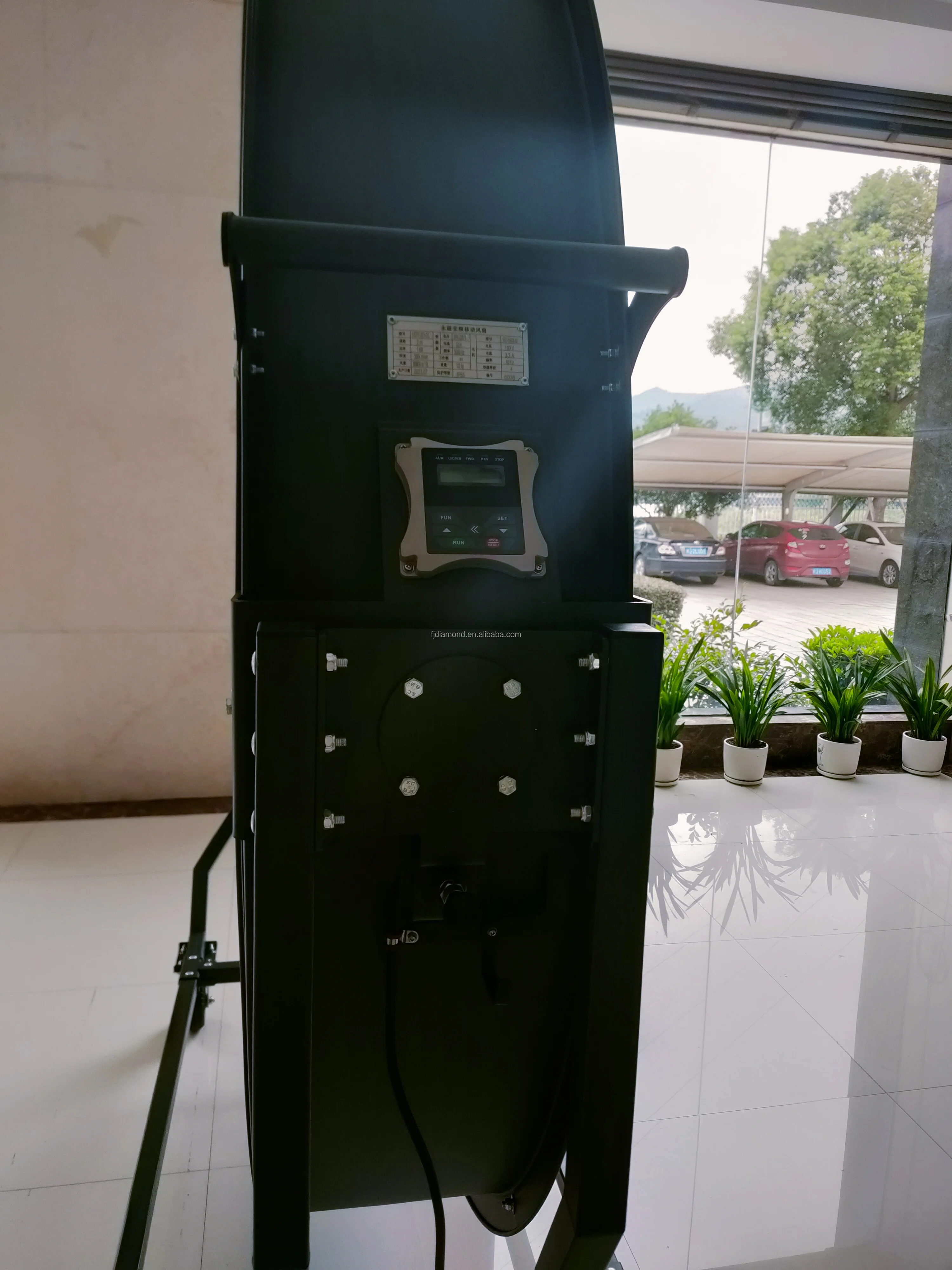

Smart Control System
. The system is no position vector control,anti-electromagnetic interference,anti-radiation,small size,light weight,beautiful
appearance.
. System function is simple,4 buttons easy to operation(start,stop,speed up,slow down).
. System with overvoltage ,undervoltage, voltage loss regulation ,current,lack of phase ,overload , collision, overheating,
lightning,abnormal protection.
. System with overvoltage ,undervoltage, voltage loss regulation ,current,lack of phase ,overload , collision, overheating,
lightning,abnormal protection.
Fan blades
Blade material : aluminum and magnesium . The fan blade surface is treated with T5+ bright surface oxidation treatment,which
enhances the corrosion and oxidation resistance of the fan blade and can cope with special enviromental operations
enhances the corrosion and oxidation resistance of the fan blade and can cope with special enviromental operations
Safety guard
*Secure grid spacing to protect children's fingers
*One-piece frame

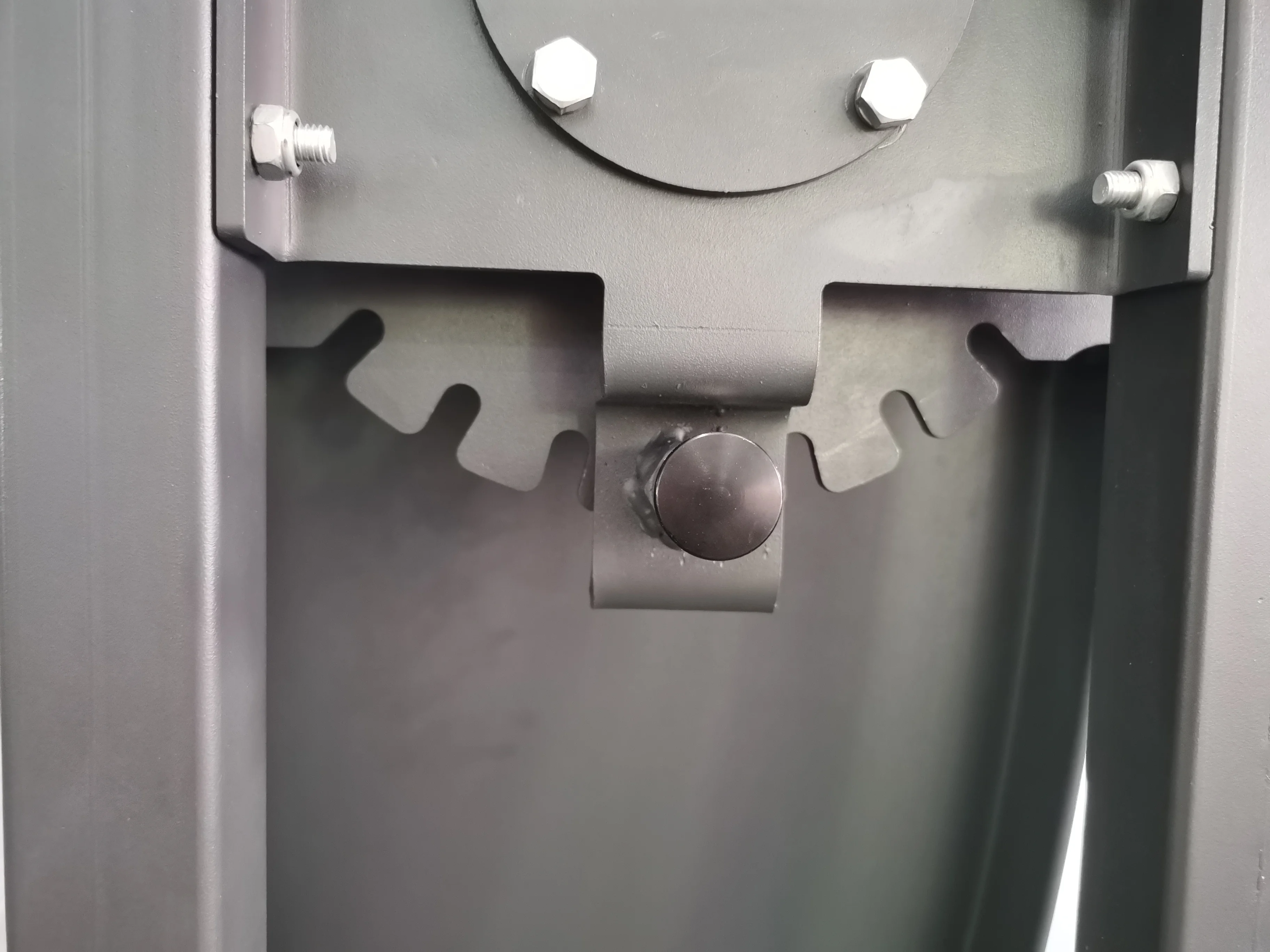

ADJUSTABLE AIR SUPPLY ANGLE
Pitch angle adjustable range of -45 ° ~ +45 ° (horizontal blowing for 0° ), 15° a gear, a total of 7 gears.
Mute wheels
* Wheels : High quality rubber material
* 2 Universal Wheels, 2 Directional Wheels
* Thickness of wheel: 55mm
Quality detail
* Compact structure
* Strong driving force
Big Sized Warehouse Portable Large Stand DC Fans Airmove series Main Features
1. Super large air volume: Ultra-long air blowing, the effective distance is more than 40m;
2. Move easily: Designed with 4 wheels, the fan is able to move everywhere easily;
3. Energy saving: With only 0.75KW power, very low energy comsuption;
1. Super large air volume: Ultra-long air blowing, the effective distance is more than 40m;
2. Move easily: Designed with 4 wheels, the fan is able to move everywhere easily;
3. Energy saving: With only 0.75KW power, very low energy comsuption;
4. Quiet & Low noise: Low noise with only 39DB level.
5. Stepless Speed Control: PMSM motor driving fan blade, VFD stepless peed control, easy to operate;
6. Waterproof/Dustproof: Protection level is IP55, waterproof in overall.
7. Durable: All materials of appearance are treated with spray-painted , the barrel is 2mm thick, the ovrall hollowing out to
reduce weight. 8. Plug and play: No on-site installation, all factory pre-installed and commissioned avoiding cumbersome
installation and maintenance-free use.
5. Stepless Speed Control: PMSM motor driving fan blade, VFD stepless peed control, easy to operate;
6. Waterproof/Dustproof: Protection level is IP55, waterproof in overall.
7. Durable: All materials of appearance are treated with spray-painted , the barrel is 2mm thick, the ovrall hollowing out to
reduce weight. 8. Plug and play: No on-site installation, all factory pre-installed and commissioned avoiding cumbersome
installation and maintenance-free use.
Payment&Delivery
Size | 1760*1660*380mm ( 1.5m) 2260*380*2140mm (2.0m) |
Packing | plywood case/ or by your requirements |
Gross weight | 145 kgs / 200kgs |
Samples are welcome
Sample time : within 15-20 days after getting your deposit.

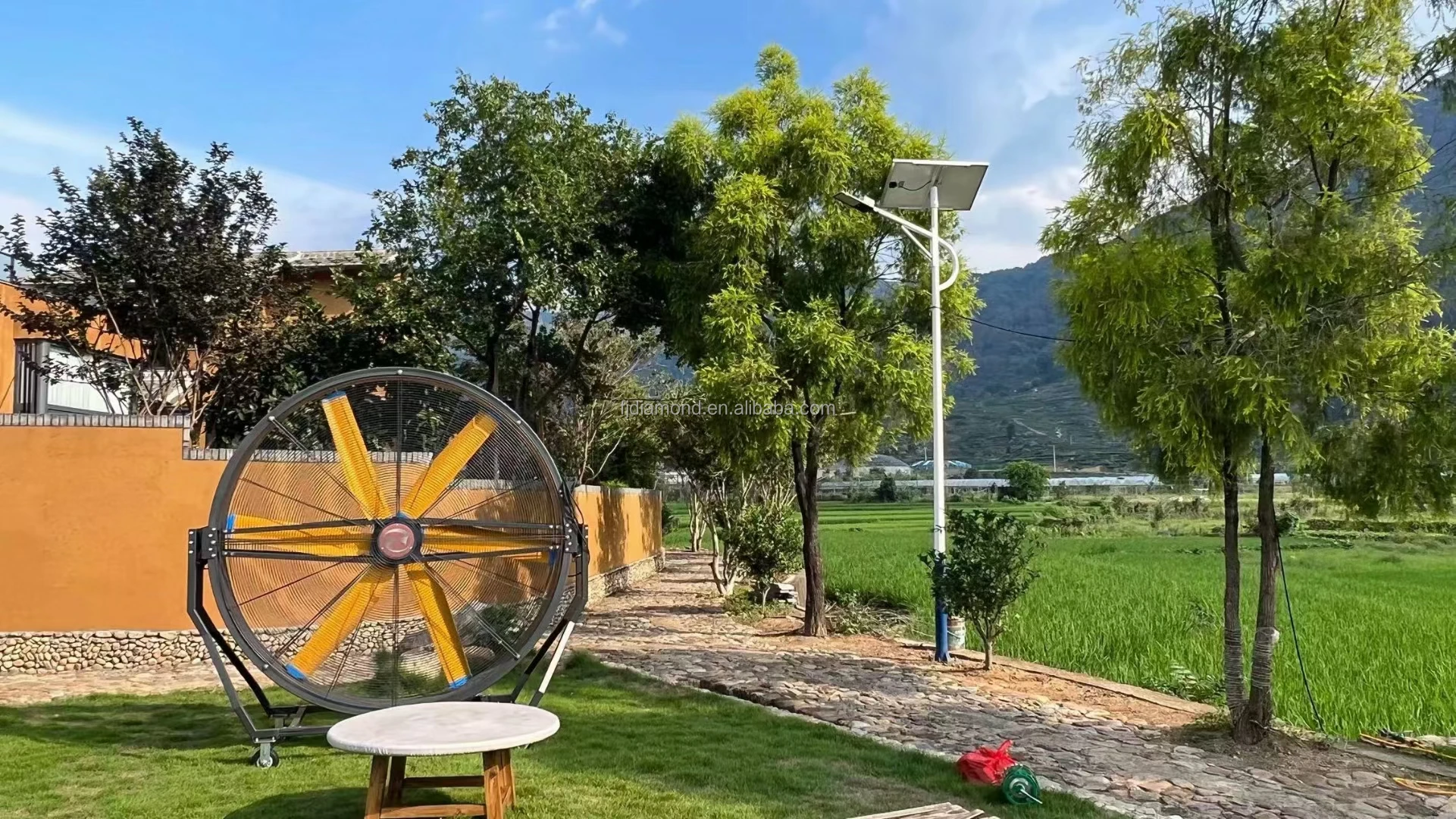

Application Case
The PM VFD movable fan is widely used in fitness center ,outdoor wedding venues , industrial factory ,logistics warehousing, waiting room ,exhibition hall, physical education hall and other large space places,as a new type of ceiling fan space ventilation, personnel cooling .It can push a large amount of airflow to the ground ,forming a certain height of the moving airflow layer, thus contributing to the overall air circulation; Like the natural breeze system,enjoy the intimate experience of natural wind.
Company Introduction
Fujian Diamond Electrical and Mechanical Equipment Co.,Ltd, we professionally focus on the manufacturing and sale of HVLS FAN and axial fans, such as: Industrial ceiling fan , Commercial ceiling fan , big movable fan,exhaust fan .
Our products and systems enable your building to perform better; save on heating, cooling, mechanical operating costs and provide a healthier environment for the occupants of the structure.
Main markets are USA , Canada, The Philippines, Malaysia, India,Thailand,etc.
Pre-sales service
* Inquiry and consulting support.
* Sample testing suppoting
* View our factory
* Sample testing suppoting
* View our factory
After-sales service
* Training how to install and use the fans
* Technical supporting video
Why Choose Us
Professional supplier, have factory.Provide Ventilation Solution.
Provide Great fans at Great prices.
100% test before delivery to ensure product quality.
100% Payment Protection.
Shipping Assistance.
After-sale Service.
In addition, we supply certificates for customers, to help you save cost and tariff, such as :
Form E, Form F, Form P…… etc
Customer Photos
Are you seeking for ventilation solutions to save cost or keen to distribute our products?
Welcome feel free contact us .
