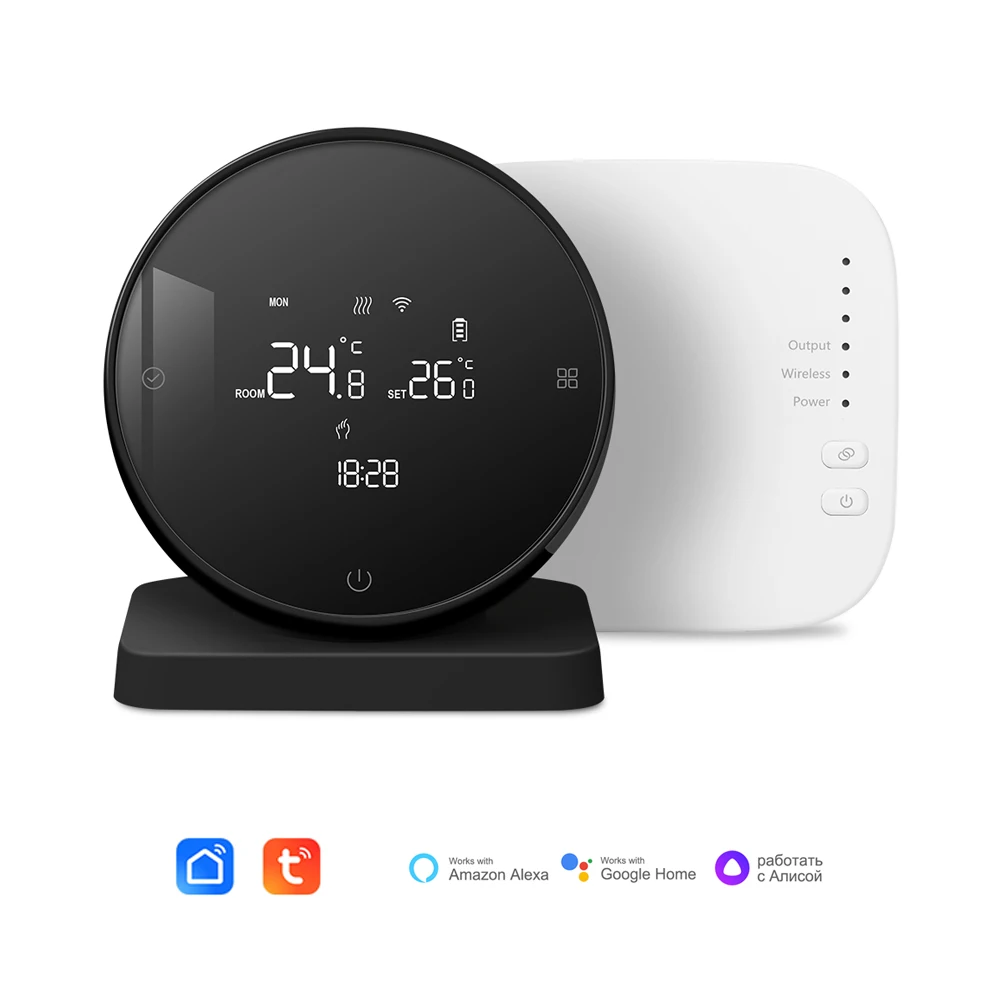

RF wireless Tuya WiFi thermostat free potential dry contact gas boiler heating thermostat
- Category: >>>
- Supplier: Shanghai Beok Industry Co. Ltd.
Share on (1601011542628):
Product Overview
Description
Product Introduction

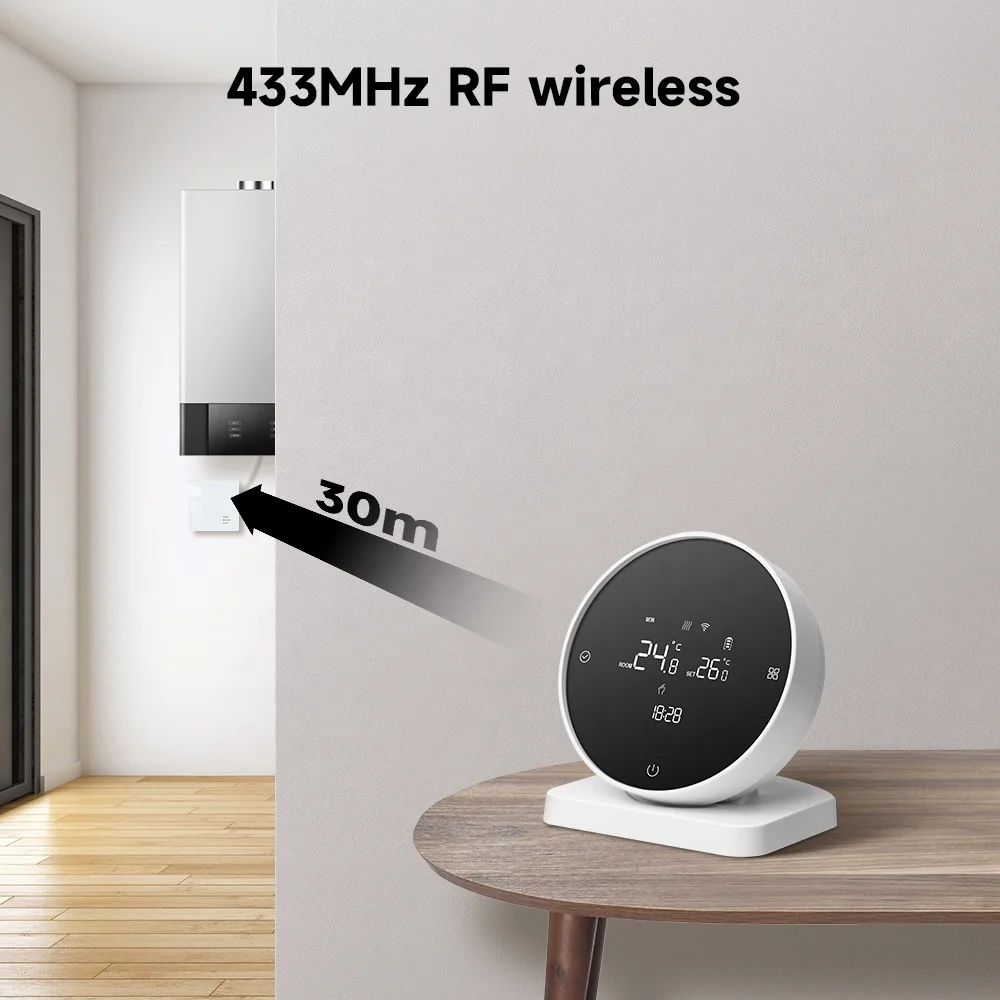

BOT-R7W-X-WIFI is wireless WiFi remote control gas boiler heating thermostat, the frequency is 433Mhz. The products has 2 parts: thermostat and receiver. The power supply ways are battery power supply and usb line power supply. It can control by Tuya and Smart Life APP by smart phone, and support Google Home and Amazon Alexa voice assistant.
Features | Specifications |
WiFi App | Tuya/Smart Life |
Voice assistant | Google Home/ Amazon Alexa |
Power Supply | 3 AA batteries and usb line |
Max Current Load | 3Amp for Gas Boiler Heating |
Back Light Adjustable | Yes |
Application | Underfloor Heating System |
Temperature Range | 5~99℃ |
Temperature Accuracy | +/-0.5℃ |
Material | Anti-flammable PC |
Programmable function | 5+2/6+1/7 Weekly Program optional |
Gross Weight | 350g |
Package Include | Thermostat; Screws; 3m Floor Sensor; Manual |
Warranty | 24 months |
Wire Connection

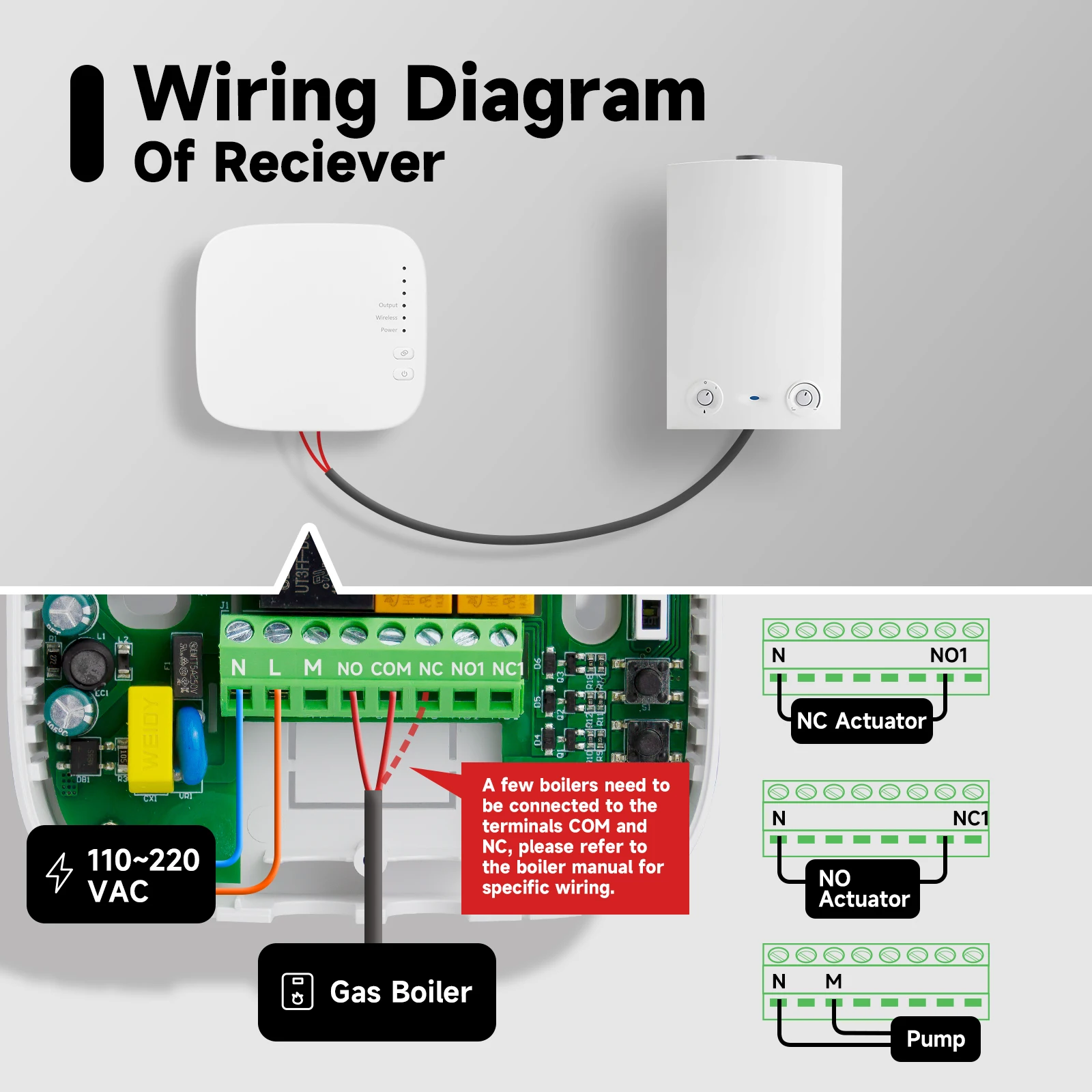

The wire connection of Receiver is on above, K1 and K2 need to connect with gas boiler, except for gas boiler, the receiver also can connect with thermal actuators and valves for water floor heating system.
Main Functions

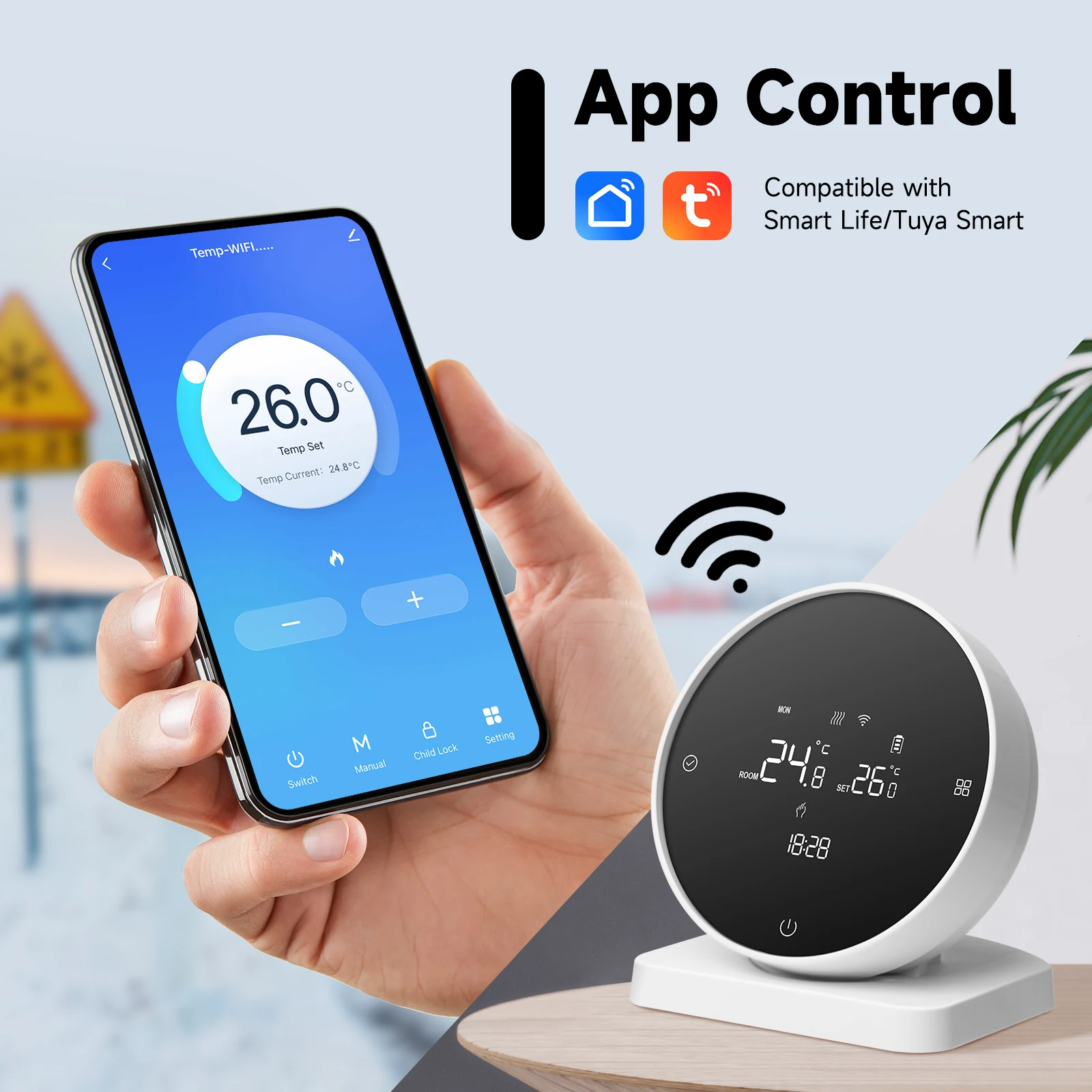

1. APP Control and Voice Control
2. Weekly Programmable Function
3. Child Lock Function
4. Anti-freezing Function

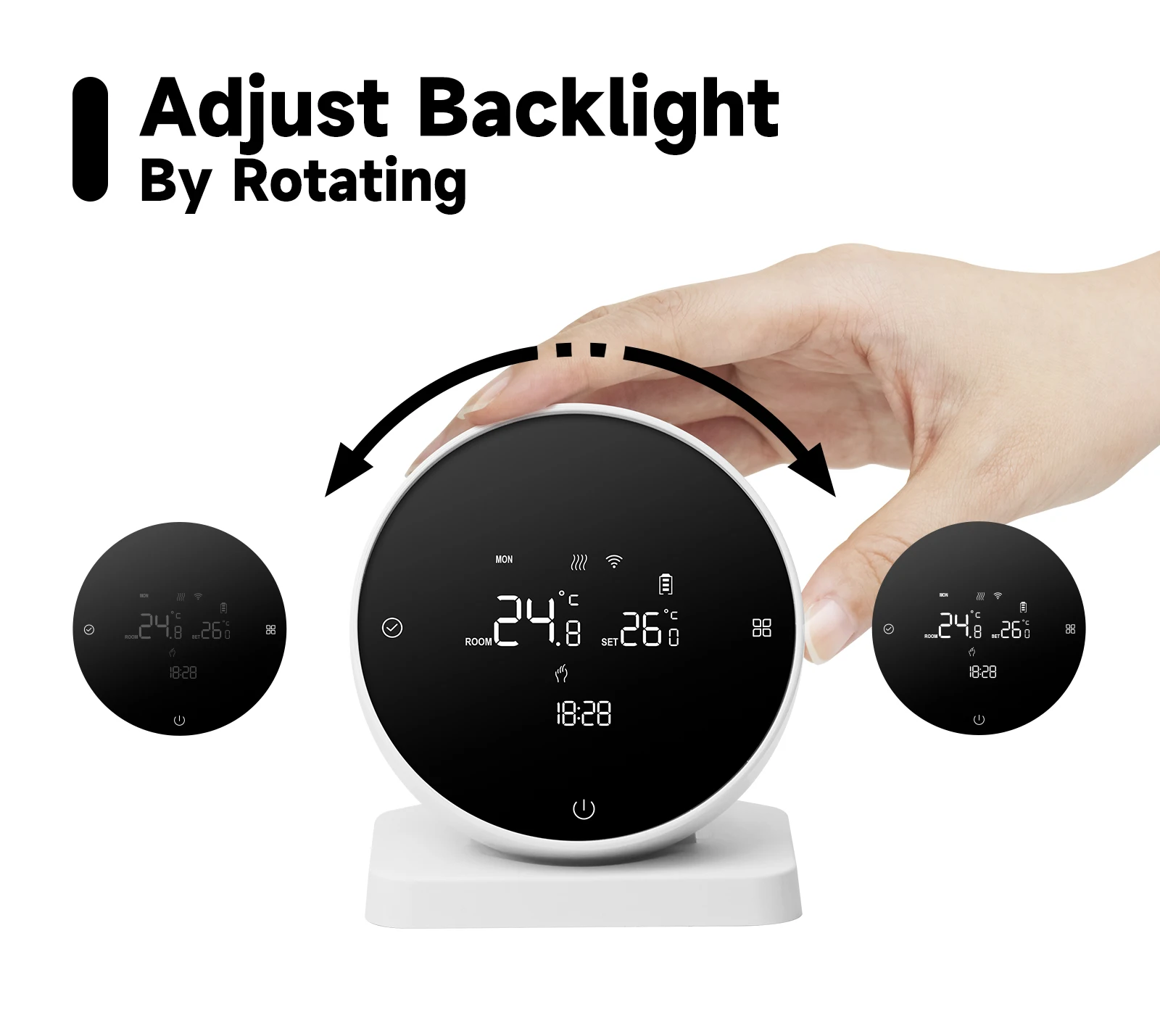

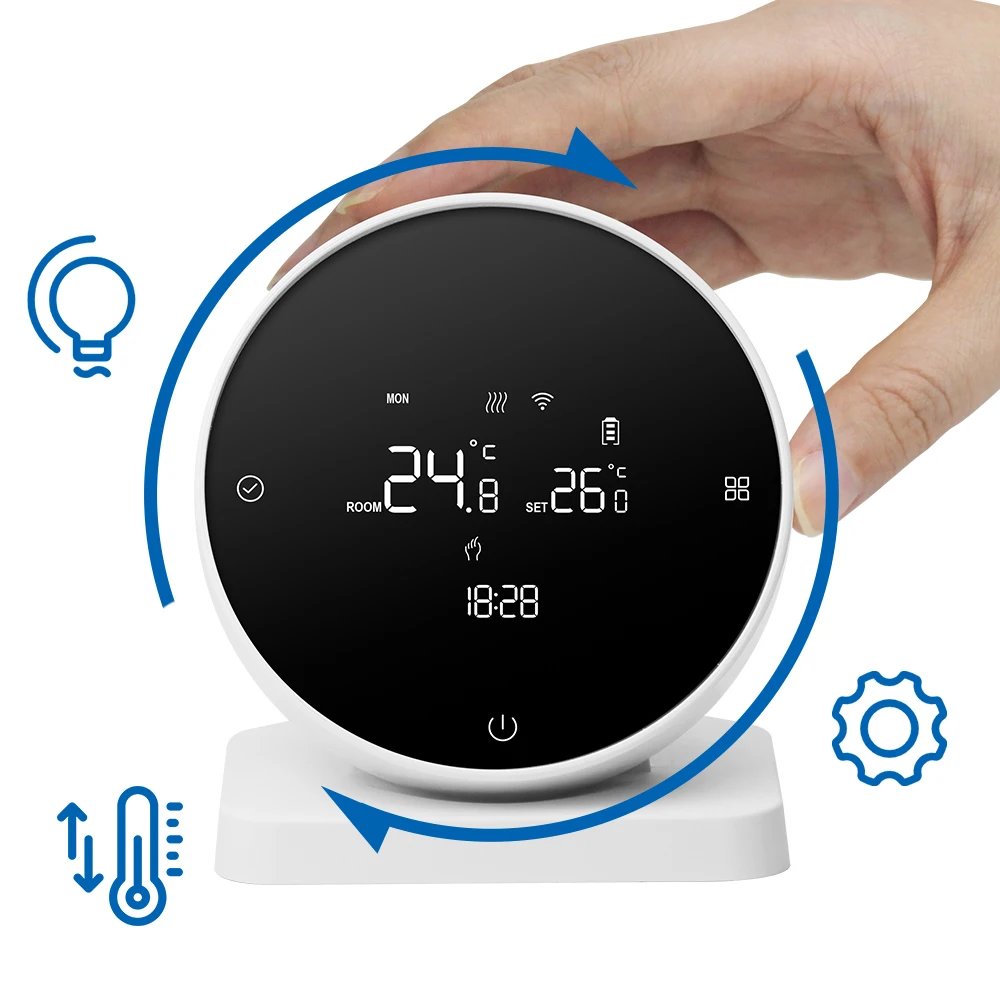

Except for the functions on above, this new design BOT-R7-X-WIFI has a special feature:Client can rotate the frame to adjust the
temperature and screen light.
temperature and screen light.
Thermostat Power Supply

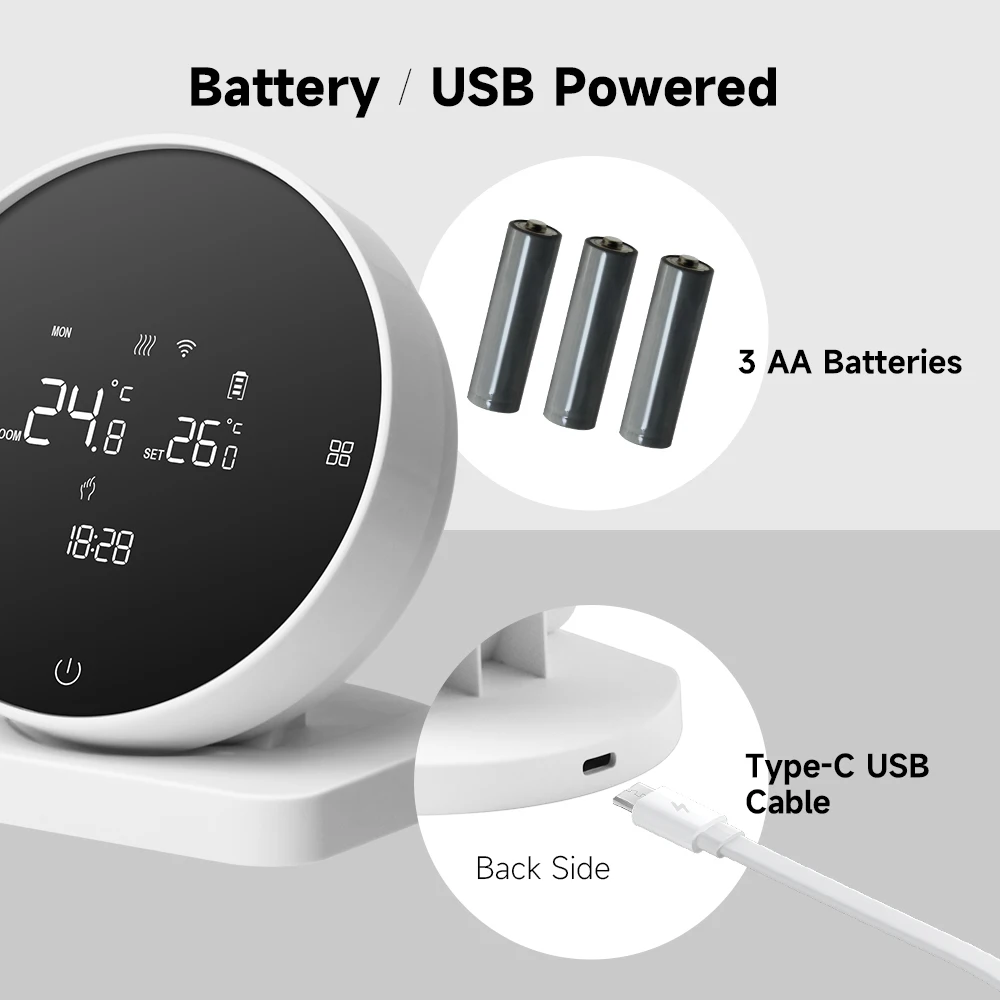

BOT-R7W-X-WIFI is powered by battery or USB line, the battery volum is display on thermostat screen, very convenient to check the power situation.
Installation

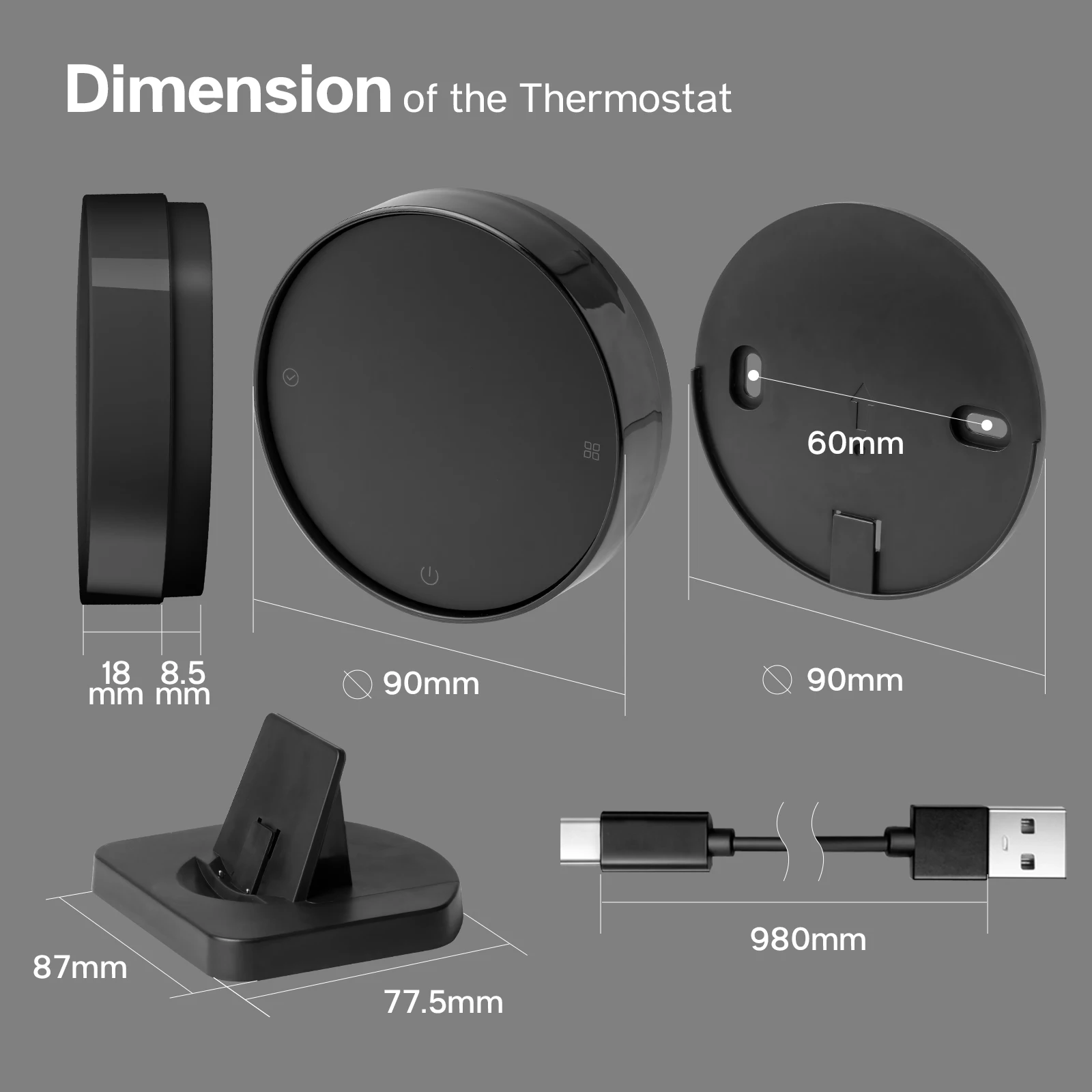

Dimension
Packing List

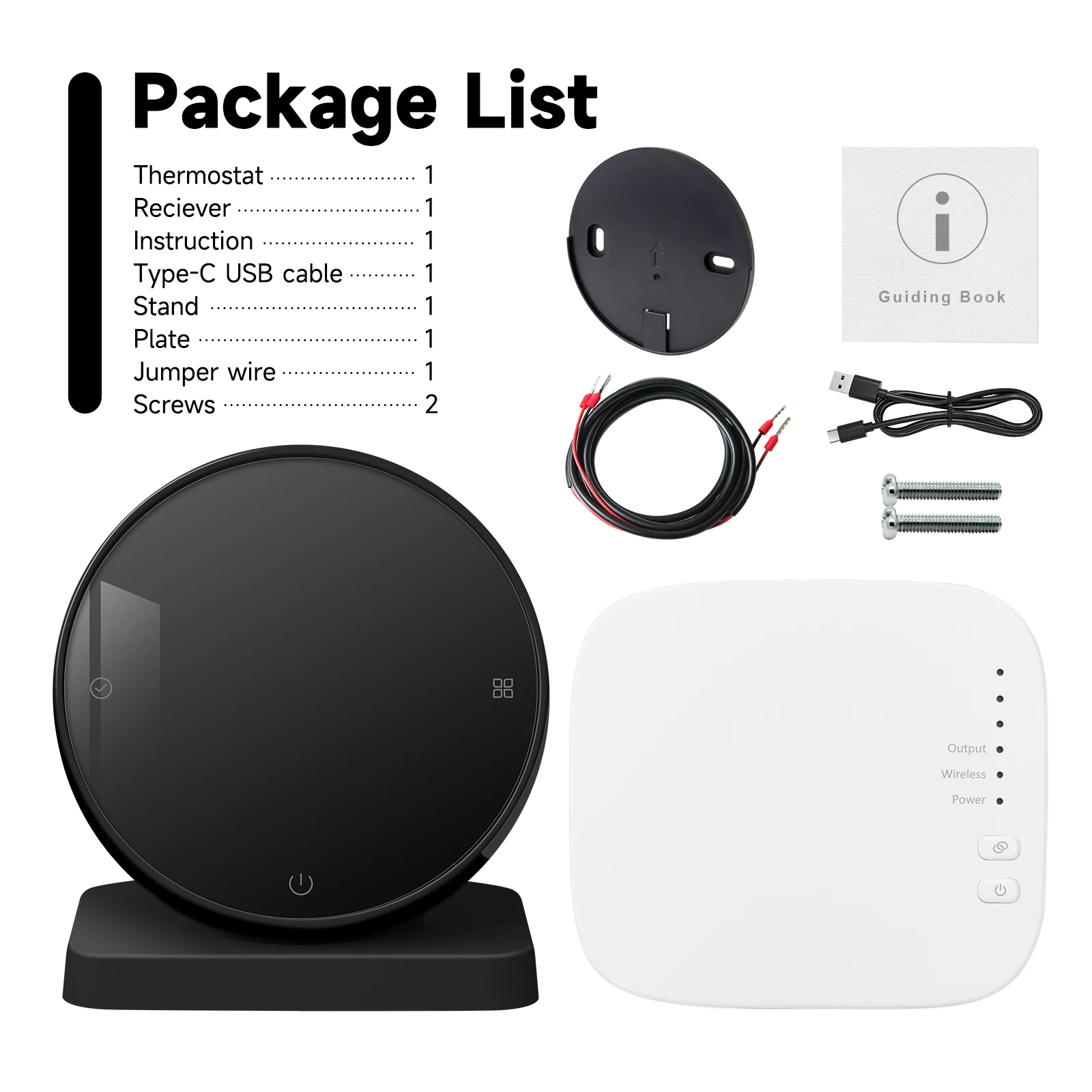

In the box, you will find 1 thermostat, 1 receiver, 1 manual, 1 usb line, 1 free cabel, and 2 screws.
OEM & ODM Service
We are professional manufacture for HVAC products especially for room thermostats. We can offer OEM services like logo print, manual instruction print, App customization, package customization and so on. We also provide ODM services. If you have OEM and ODM requirements, please kindly contact with us directly.
About BEOK
Certification
Exhibition
Package and Transportation
FAQ
About OEM
Except our own brand "Beok", we can also supply the OEM service to our customers.To meet your need,we can print your Logo or Design on thermostat.
For big quantity order, OEM service ,User Manual, Inner Packing Box are all Free
About Samples
1. For our own brand "Beok"
We'll deliver the goods in 2 days after we confirm the payment, and normally 4 to 7 days will arrive at your place.
2. For the samples of your own Logo or design/ OEM
For big quantity OEM order, we will provide you samples according to your requirements. After you confirm samples, we will start mass production. The samples and shipping cost are paid by us!!!
About MOQ
1. For Thermostats, our MOQ is 50pcs. Because 50pcs thermostats are packed into one cartion.
2. For Actuators, our MOQ is 100pcs. Because 100pcs actuators are packed into one carton.
Retail is also available, because we have a retail online store. Ali-express, Amazon..
If you would like a trail order, and quantity is less than MOQ, you can contact with us, we will arrange service.
About Payment
T/T is the common payment way. If you like, Paypal, Western Union, and MoneyGram is also available.
About Lead Time
For normal order:
If quantity is less than 1000pcs, the lead time is about 10-12 working days after your payment;
If quantity is more than 1000pcs, the lead time is about 15-25 working days after your payment.
For OEM order:
The lead time is about 15-25 working days after your payment.
About Shipment
For samples/ Trail order less than 100pcs, we suggest you choose EXPRESS delivery. DHL, FEDEX, TNT, UPS, EMS, ePacket are available.
For large order, we suggest you choose shippment by sea, or by air.
If you have special shippment requirements, just tell us.
About Grantee
1. We offer the warranty of 24 months since the sales day.
2. Durrant the warraty, if belong to the quality issue, we will fix or replace them for you by free after test them. If it is not
the problem of quality or beyond the warranty time, we will charge for the after-sale service.
