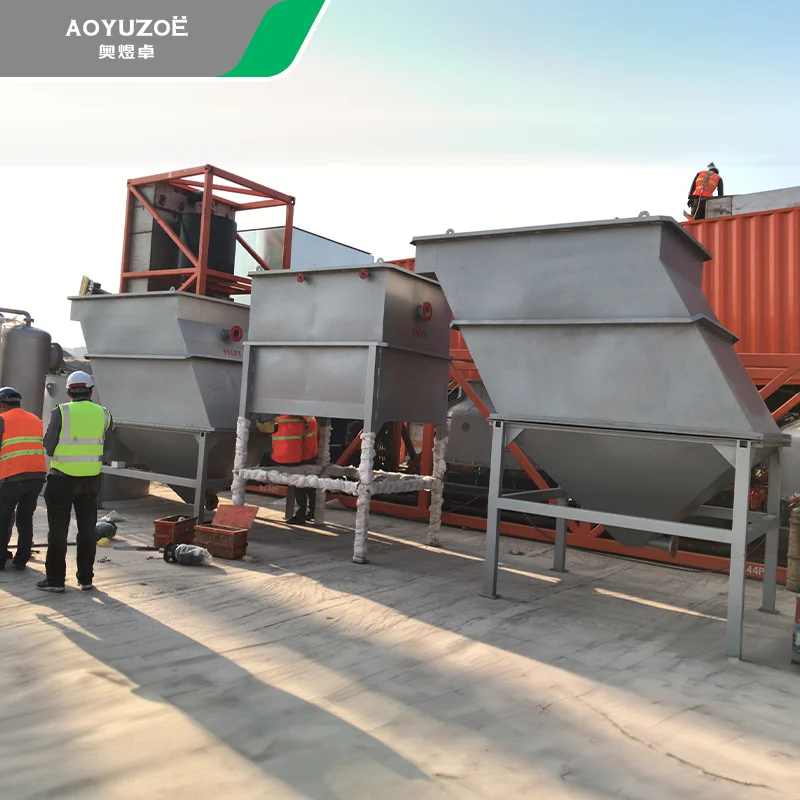

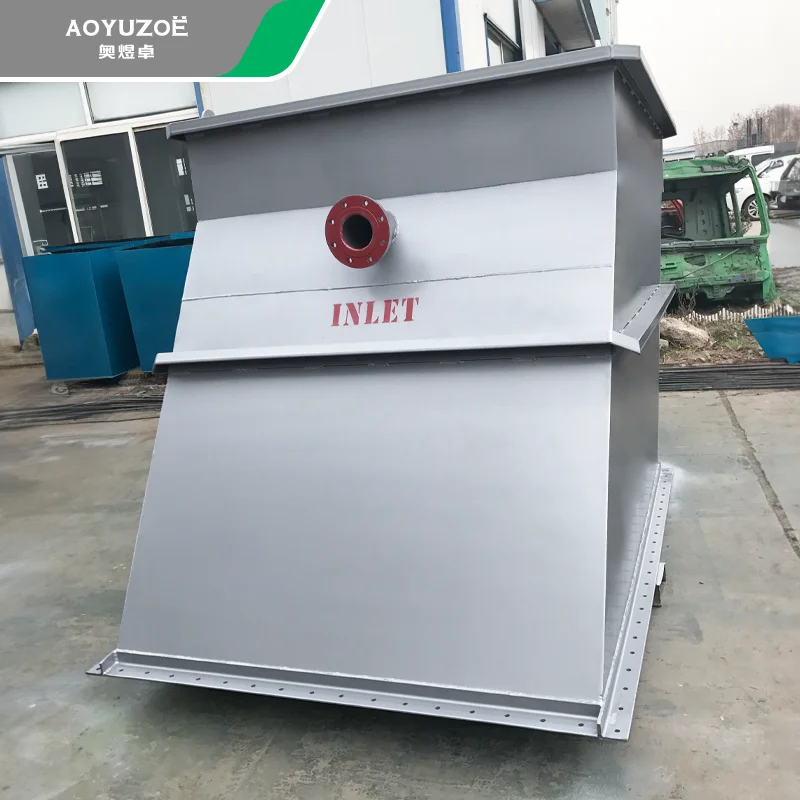

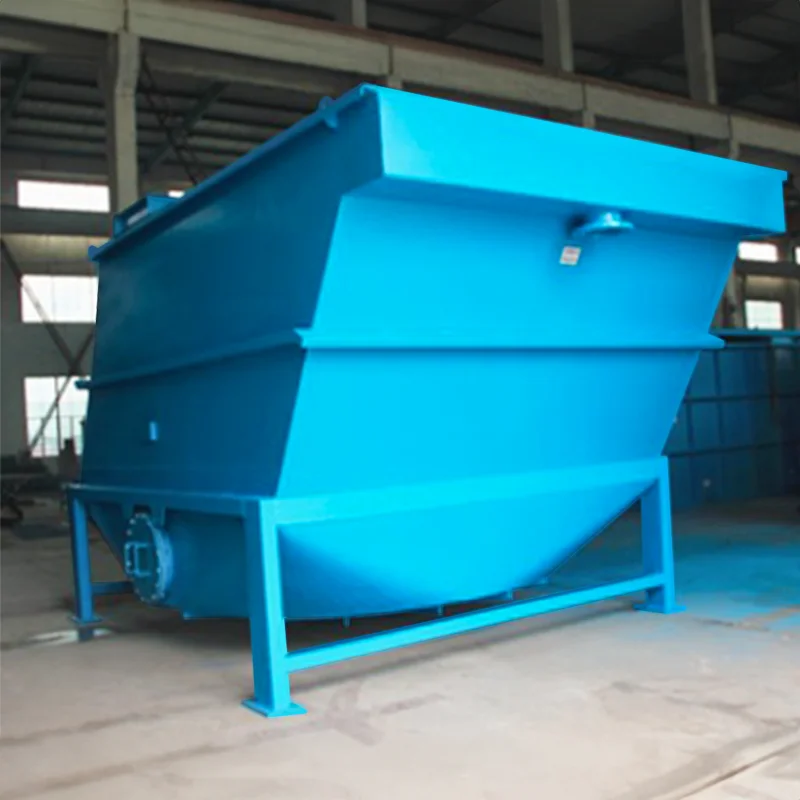

Separator sedimentation tank Lamella water Clarifier With Conical Bottom Settling Tank and Chemical Reaction System

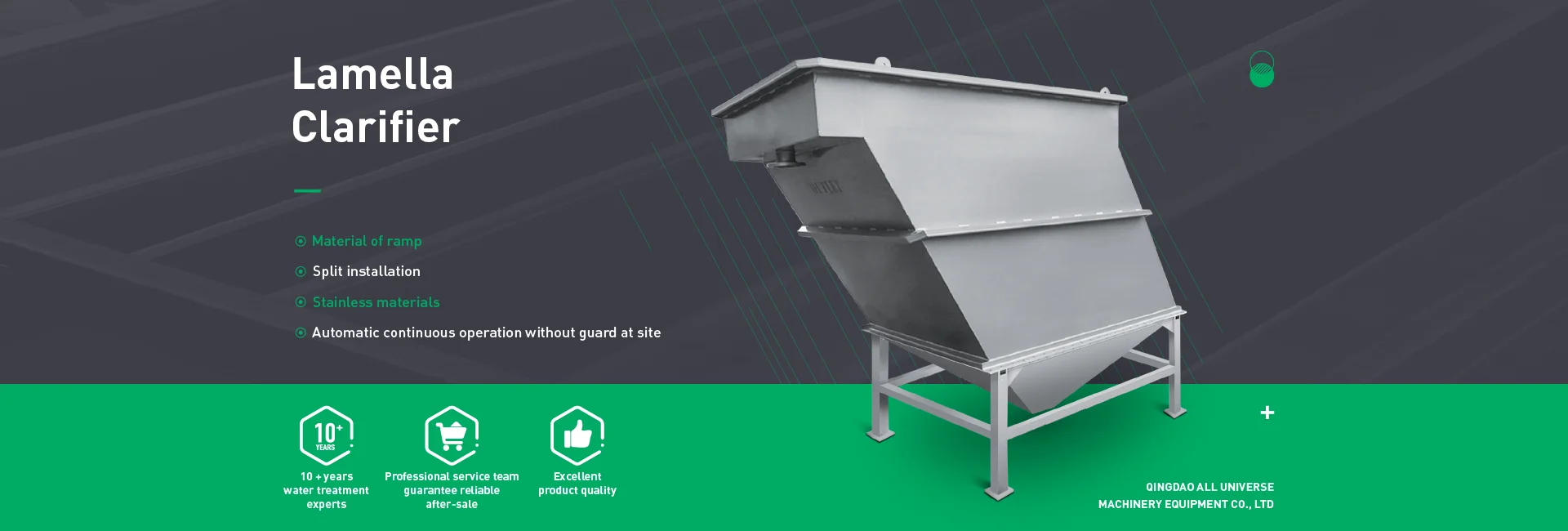

The lamella settler is a device mainly used in water separation to remove solid from water by means of gravity.

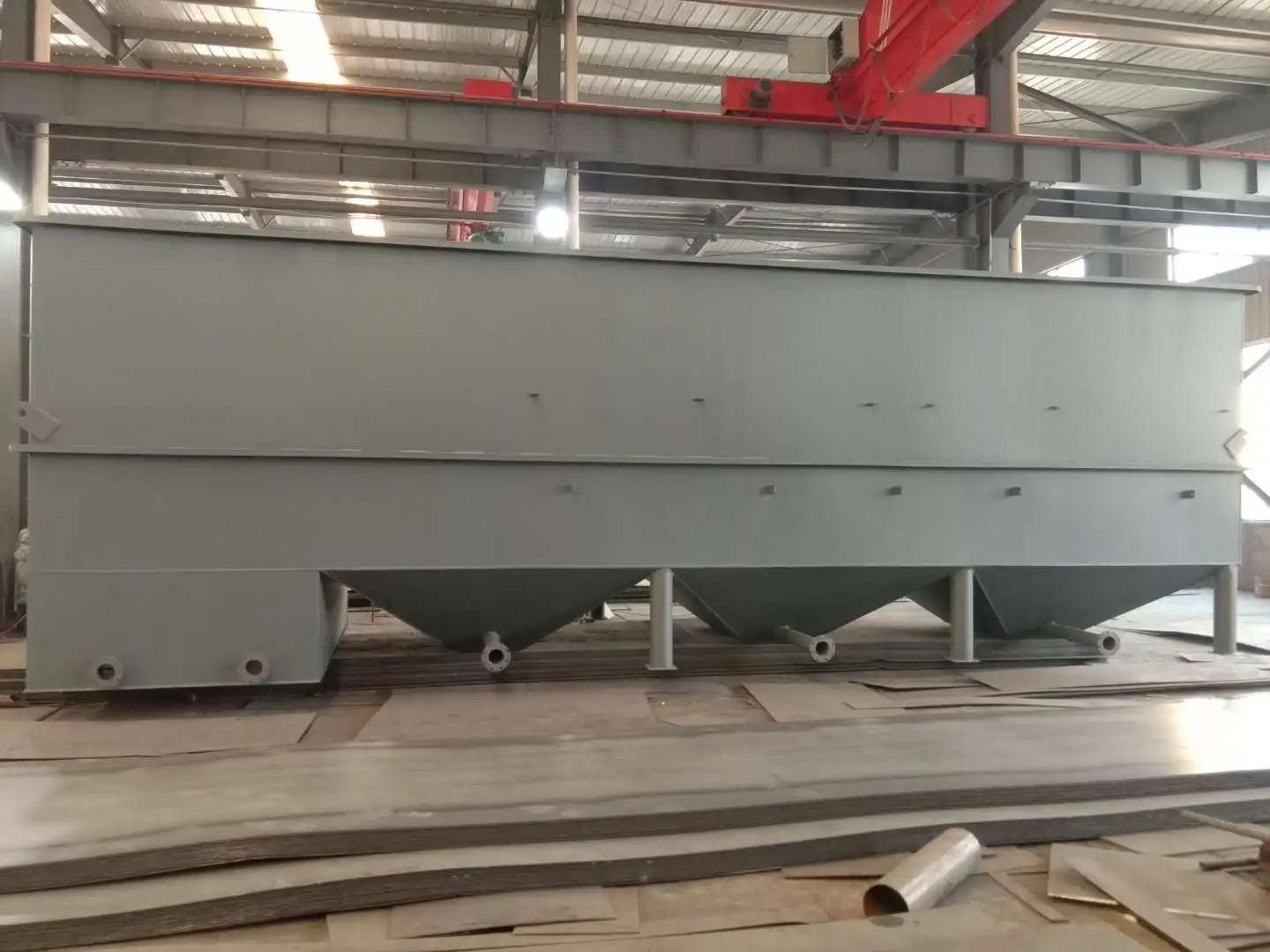

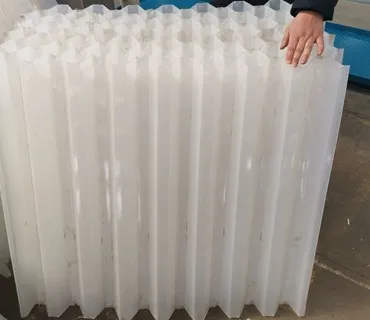

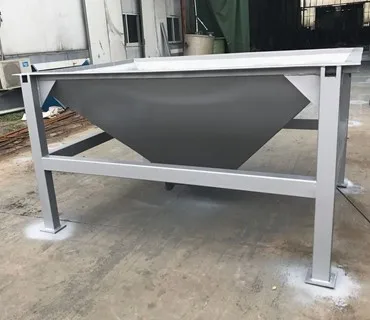

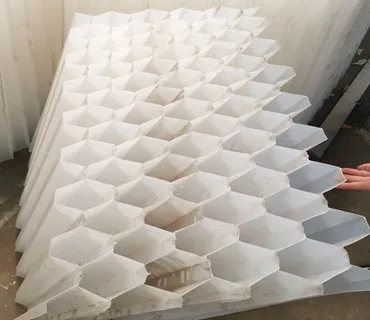

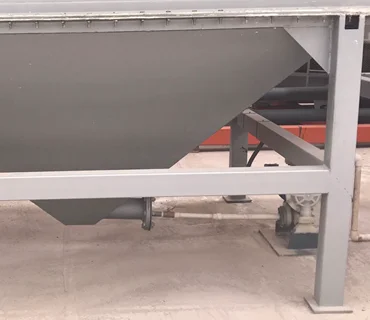

Because of the Lamella technology, a Lamella Settler with minimum 20% footprint of a conventional one is still capable of processing the same water amount. This technology based on Shallow Tank Theory uses inclined plates to separate solid from water flow, reaching a high separation rate. The sludge cohered to plates will slope down to the conical bottom for further dewatering and concentrating, while the upper flow clean water is collected by the container above.

1. Capacity 5-120m3/ h.
2. Efficient treatment of high concentrations of solid waste water (grit, clay, lime, metal particles).
3. The smallest floor area , maximum capacity
4. Install both in indoors and outdoors (but the ambient temperature needs above 0 °C).
5. Slope sedimentation tank can create a good laminar flow environment, to achieve better precipitation effect
6. Intensive design, minimize the hydraulic interference caused by wind or temperature changes
7. Suitable for on-site unattended automatic continuous operation.
8. Life time of carbon steel material> 10 years; Life time of stainless steel material> 20 years.

Lamella clarifier can be used in the treatment of industrial wastewater, surface water, reused water.
It could remove SS, oil/grease and parts of COD/BOD
*Pulp & paper
*Electroplating
*Metal processing
*Muddy water
*Coal slurry
*Crystal grinding wastewater
*River water
