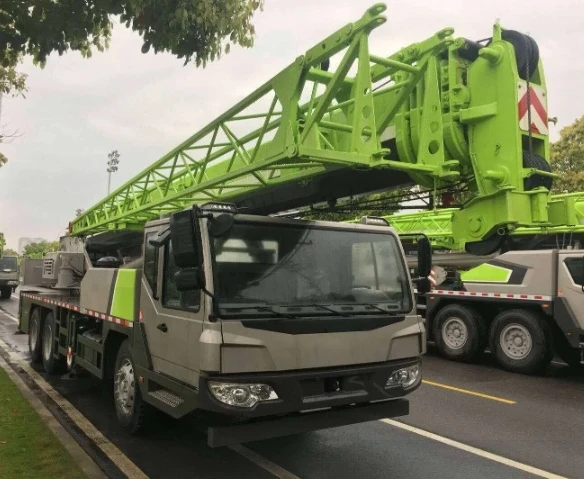

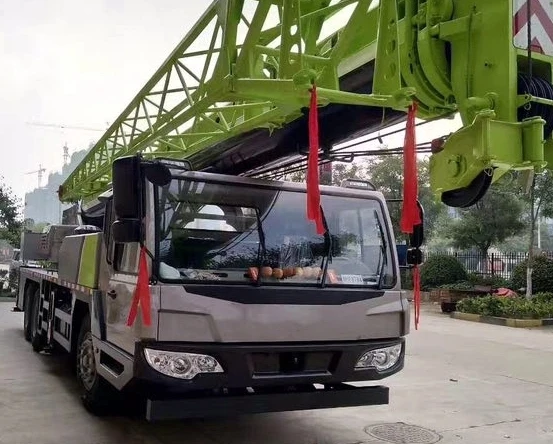

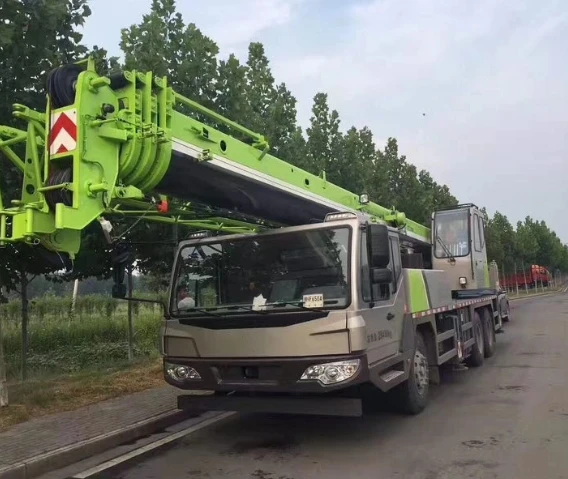

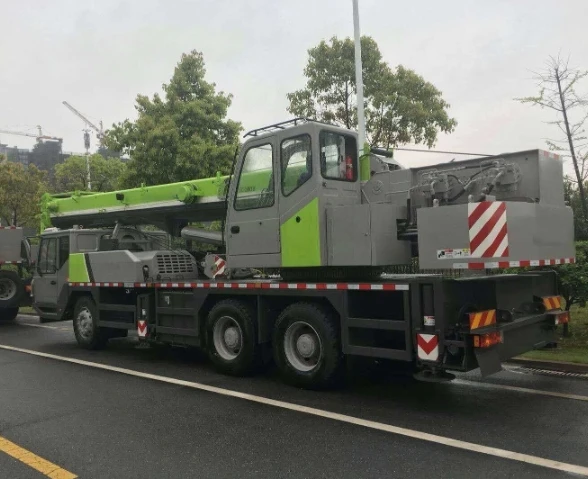

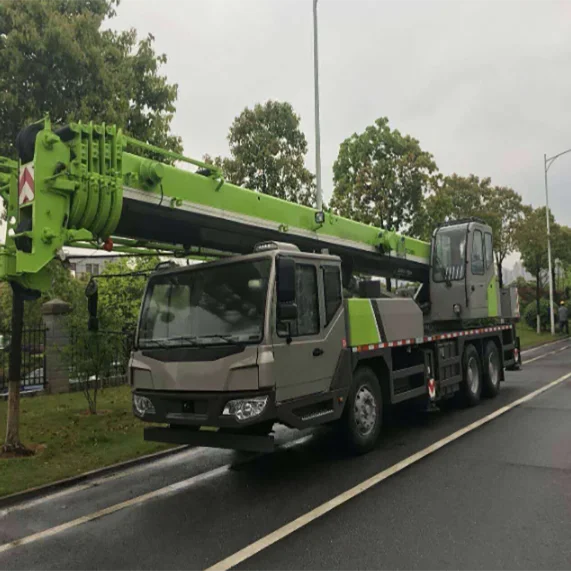

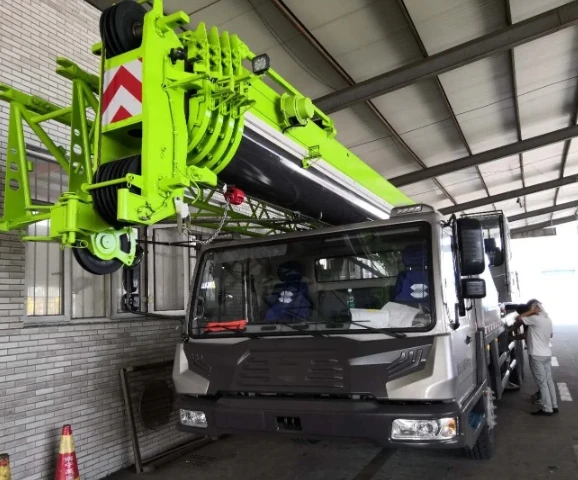

new and used Cruking 20 Ton Mobile Hydraulic Pickup Truck Crane Truck Ztc200V
new and used Cruking 20 Ton Mobile Hydraulic Pickup Truck Crane Truck Ztc200V
new and used Cruking 20 Ton Mobile Hydraulic Pickup Truck Crane Truck Ztc200V
new and used Cruking 20 Ton Mobile Hydraulic Pickup Truck Crane Truck Ztc200V
new and used Cruking 20 Ton Mobile Hydraulic Pickup Truck Crane Truck Ztc200V
new and used Cruking 20 Ton Mobile Hydraulic Pickup Truck Crane Truck Ztc200V
new and used Cruking 20 Ton Mobile Hydraulic Pickup Truck Crane Truck Ztc200V

new and used Cruking 20 Ton Mobile Hydraulic Pickup Truck Crane Truck Ztc200V

Share on (1601011580801):


Price:

Quantity:


Product Overview

Description

















Item
Value
Remarks
Working performance
rated lifting capacitykg
20000
load moment of basic boom
980
kN.m
load moment of boom lengthkN.m
573
lifting height of basic boom m
11.5
lifting height of boom m
33.8
Deformation of the boom is not taken into consideration.
lifting height of jib m
41.6
Working speed
hoist rope speed (main winch) m/min
120
At 4th layer
hoist rope speed(auxiliary winch) m/min
100
At 2nd layer
Boom derricking times
40
Boom extending times
60
Slewing speed r/min
0~2.2
Traveling specifications
traveling speed km/h
78
gradeability %
37
Min. turning diameter m
≤22
Min. ground clearance mm
220
Limits for exhaust pollutants and smoke
Meet with related standards
GB3847-2005
GB17691-2005
(National stage III)
Oil consumption per hundred kilometers L
45
Weights
Deadweight in traveling condition
30000
kg
Complete vehicle kerb mass kg
29870
Front axle load kg
6800
Rear axle loadkg
23200
Dimensions
Overall dimensions (L×W×H) mm
12800×2500×3430
Longitudinal distance between outriggersm
5.36
Transversal distance between outriggers m
6.1
Boom length m
10.5~33.3
Boom angle°
-2~80
Jib length m
8
Offset °
0, 30
Chassis
Model
ZLJ5325
Class
II
Engine
Model
WP10.270


















FAQ


1. who are we?
We are based in USA, MONTANA state, start from 2017,sell to Africa(70.00%),South America(15.00%),Oceania(5.00%),Mid
East(5.00%),Southeast Asia(5.00%). and Aiming to get more marking share, we setting a Over sea office at china, and we have a refurbished factory at china, we aiming to supply the best quality machines and vehicles for all customers.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always update the producting process for our clients,let clients know the producing progress.

3.what can you buy from us?
Concrete used and new machines, including concrete mixer truck and concrete mixing station; concrete pump truck and concrete drag pump; and engineering machines and also the mining equipment.

4. why should you buy from us not from other suppliers?
a. Long time experienced technology staffs bring high quality warranty;
b. We aiming to support one-stop purchasing solution for our cliets, we are a professional team and know how to link resource and save clients energy and cost to match different machines.
C.we comes from US, more experience in selecting and refurbished experienced that others suppliers can not offer.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
