Raspberry Pi 5G Communication Module 5G/4G/3G GNSS For Raspberry Pi 4B 5G Wireless Router 5G Live Streaming
- Category: >>>
- Supplier: Aielite Holdings Corporation
Share on (1601011585540):
Product Overview
Description
PRODUCT INFORMATION
- Raspberry Pi is your tiny, powerful computer. If you need a smart home hub or a home computer, if you want to watch a movie or chart the stars, you can do it all with Raspberry Pi.
Raspberry Pi has all the features you expect from a computer: wireless internet connectivity, HDMI ports for your monitors, and USB ports for your accessories, along with ample processing power and RAM for all your day-to-day use.
Product Name | SIM82XX-M2 5G HAT For Raspberry Pi, Quad Antennas 5G NSA, Multi-Band, 5G/4G/3G Compatible, With Case(Optional) |
Interface | 40 pins GPIO, USB 3.1 port (USB 2.0 compatible) Onboard UART, PWR, and RST control pin, |
Applications | For Raspberry Pi, Quad Antennas 5G NSA, Multi-Band, 5G/4G/3G Compatible, With Case(Optional) |
Package | Original Standard Factory Package |

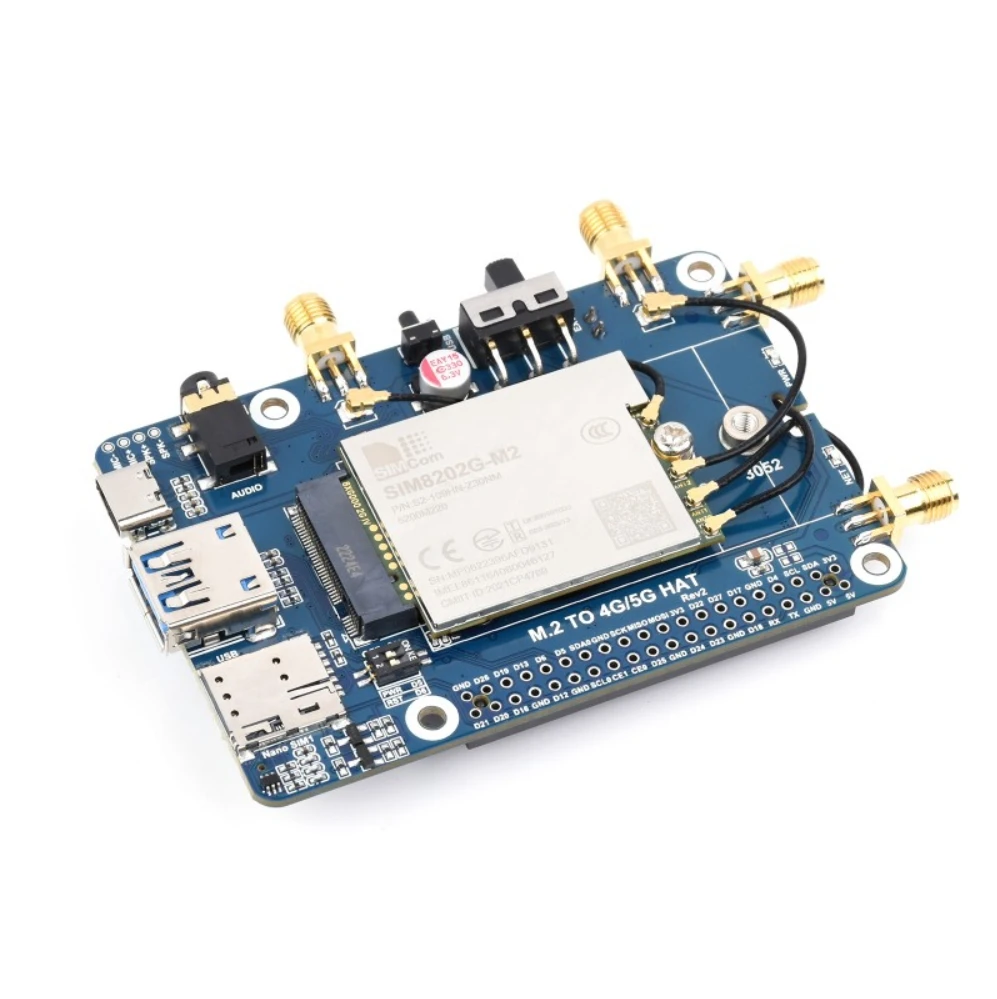

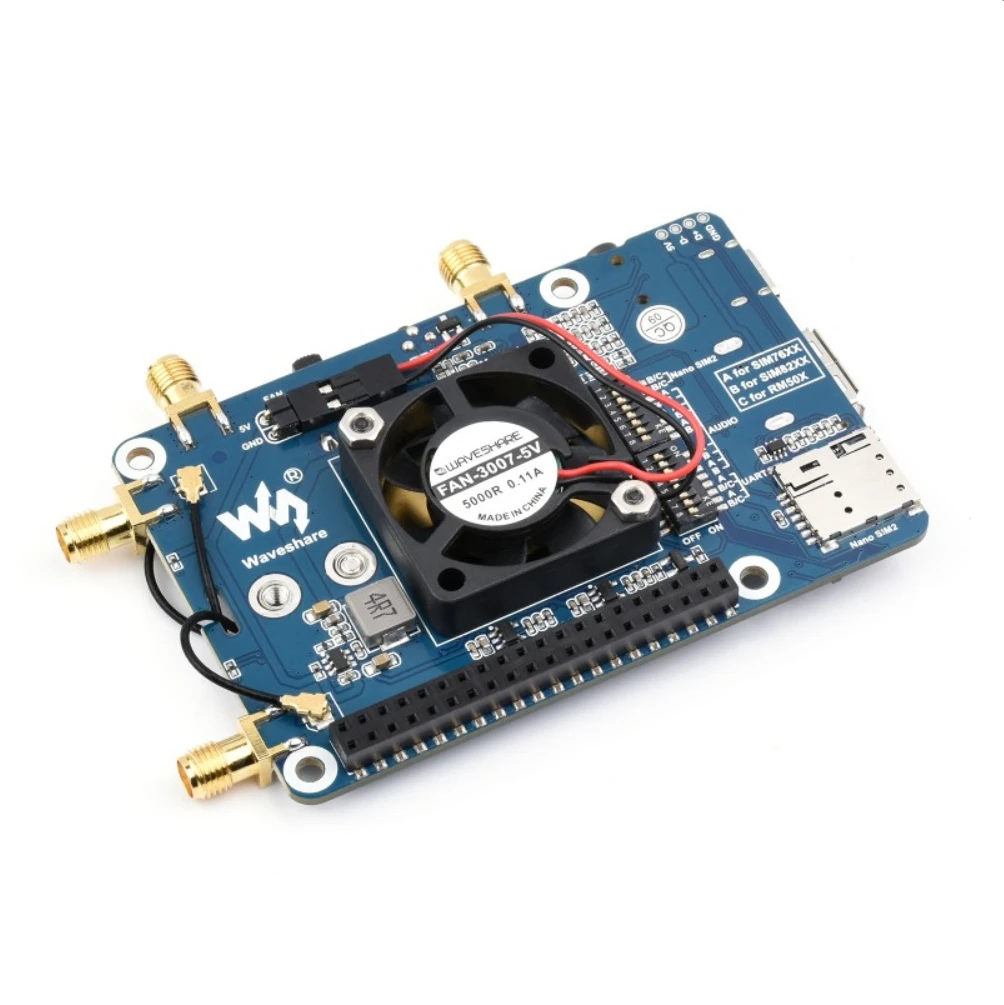

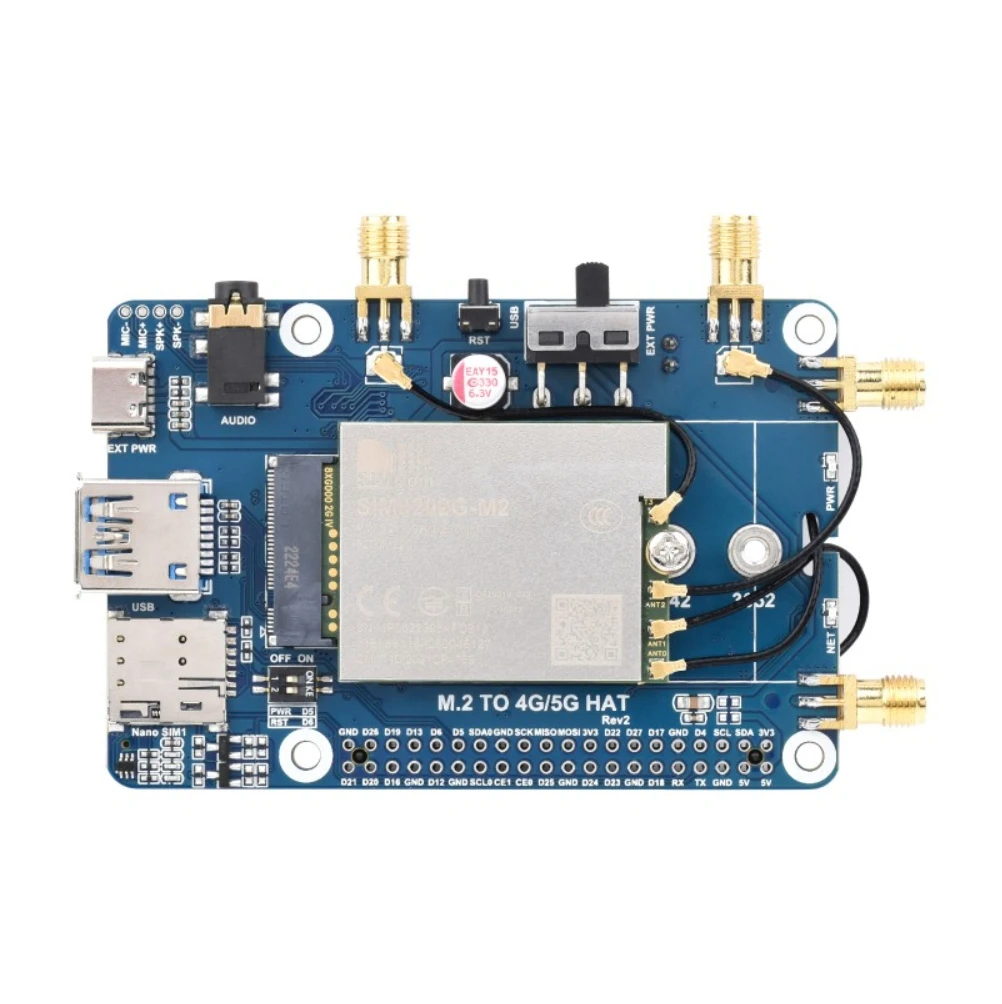

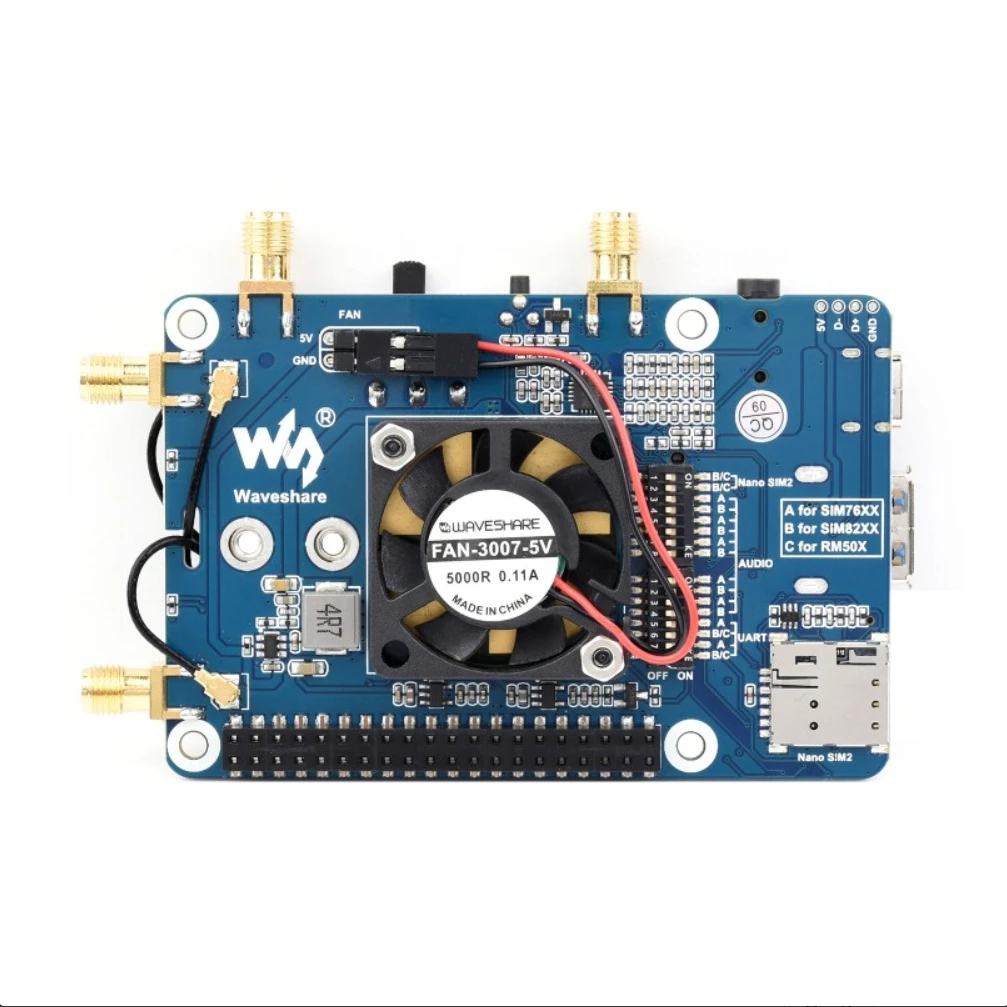

Raspberry Pi SIM82XX-M2 5G HAT Supports 5G NSA And SA Networking, GNSS Positioning
Features At A Glance
* Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
* Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS

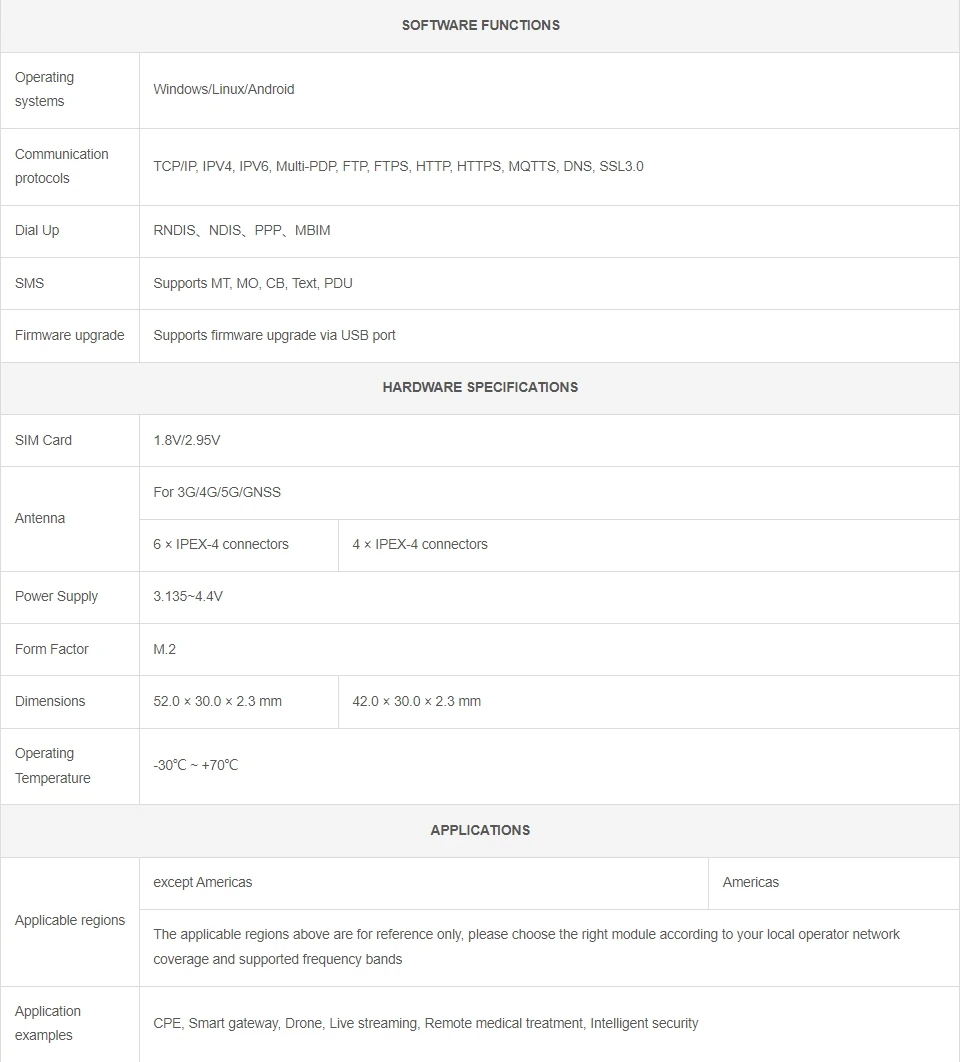

* Operating system support: Windows/Linux/Android

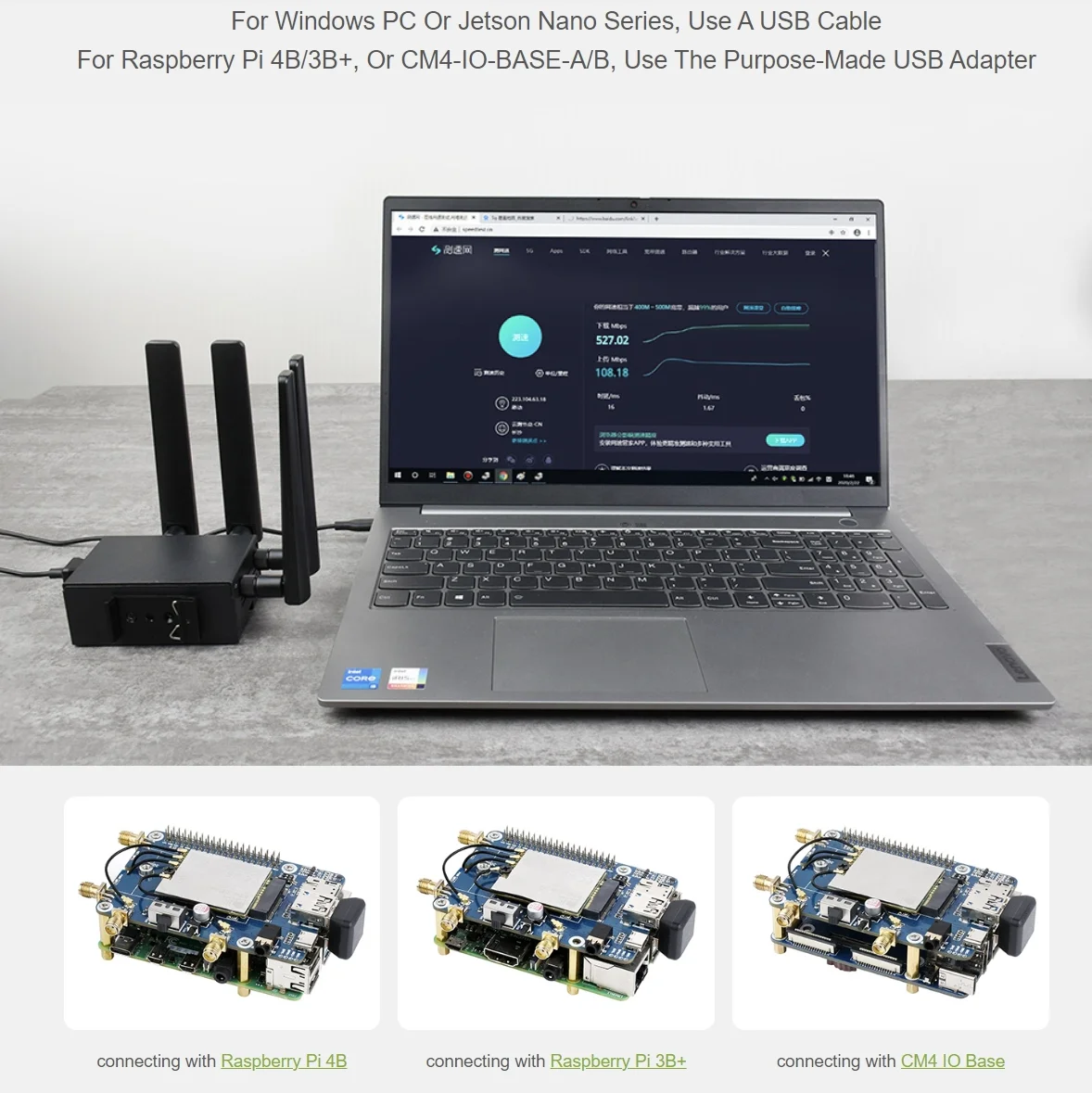

* USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication

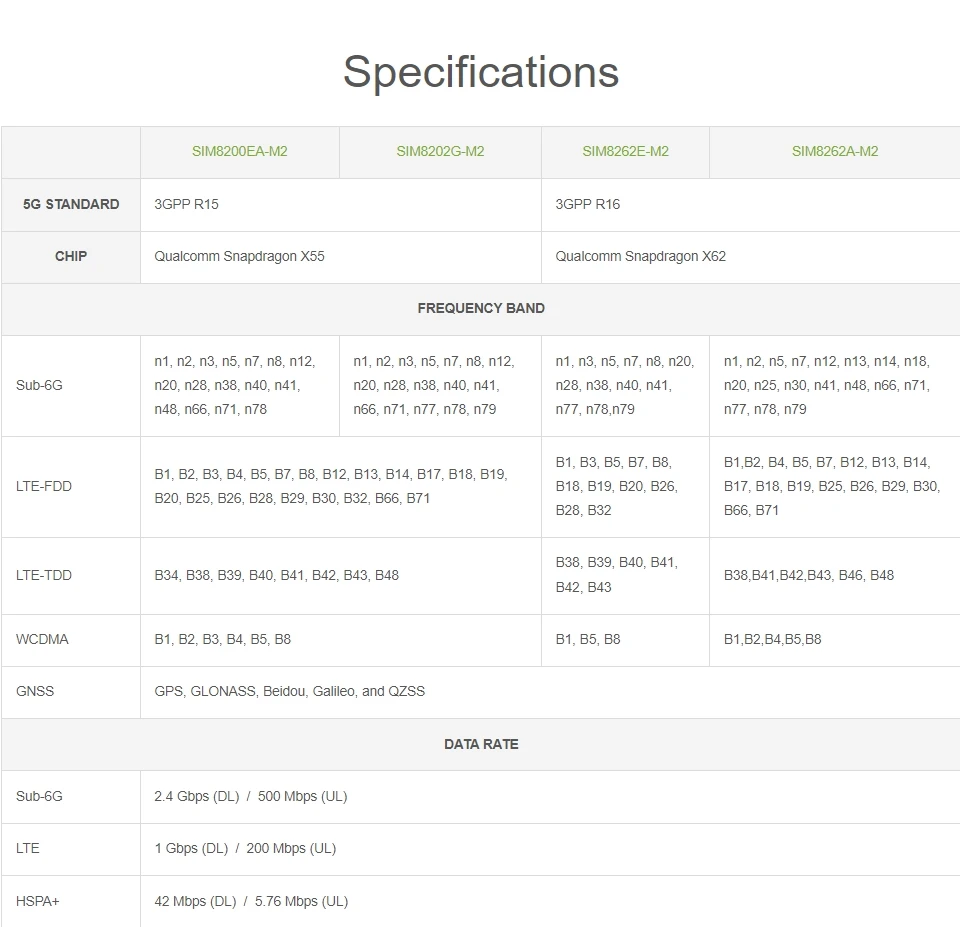

* Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, setting via DIP switches
* Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like
Raspberry Pi or Arduino
* Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
* Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
* 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
* 2x SIM card slot, dual card single standby, switchable via AT command
* Onboard audio jack and audio decoder, allows audio operation like making phone call
* High efficiency power supply circuit, up to 3A output current
* Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
* Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
* Operating system support: Windows/Linux/Android
* USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
* Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, setting via DIP switches
* Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like
Raspberry Pi or Arduino
* Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
* Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
* 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
* 2x SIM card slot, dual card single standby, switchable via AT command
* Onboard audio jack and audio decoder, allows audio operation like making phone call
* High efficiency power supply circuit, up to 3A output current
PRODUCT SHOW
PRODUCT USAGE
Raspberry Pi for home
The big computer that fits in your hand
The big computer that fits in your hand
Raspberry Pi is your tiny, powerful computer. If you need a smart home hub or a home computer, if you want to watch a movie or chart the stars, you can do it all with Raspberry Pi.
Raspberry Pi has all the features you expect from a computer: wireless internet connectivity, HDMI ports for your monitors, and USB ports for your accessories, along with ample processing power and RAM for all your day-to-day use.
At 15 watts, Raspberry Pi uses just a fraction of the power draw of traditional PCs. Not only is this gentler on your wallet when it comes to your energy bills, it’s also kinder to the planet.
Raspberry Pi for industry
Certified. Low cost. Powerful. Production-ready.
Certified. Low cost. Powerful. Production-ready.
Robust and affordable, Raspberry Pi technology has been deployed in tens of thousands of applications in a variety of industries across the world.
With a wide range of computing products and a network of trusted design partners, Raspberry Pi not only has the technology to help your business, but can also provide the vital help you need to find your perfect setup.
With a wide range of computing products and a network of trusted design partners, Raspberry Pi not only has the technology to help your business, but can also provide the vital help you need to find your perfect setup.
From design to production, Raspberry Pi’s network of Design Partners can help you integrate Raspberry Pi computing into your product.
Powered by Raspberry Pi is the mark of quality used by companies that build Raspberry Pi technology into their products. Find out how you can apply, and discover products that take advantage of Raspberry Pi technology.
Raspberry Pi computers offer an affordable, scalable solution for your thin client products. Whether you're working at the office or from home, find out how Raspberry Pi is transforming the working landscape.
All Raspberry Pi products are extensively documented, giving you a transparent view of how our computers work. Our dedicated documentation includes datasheets, guides, and schematics, as well as information on developer tools.
