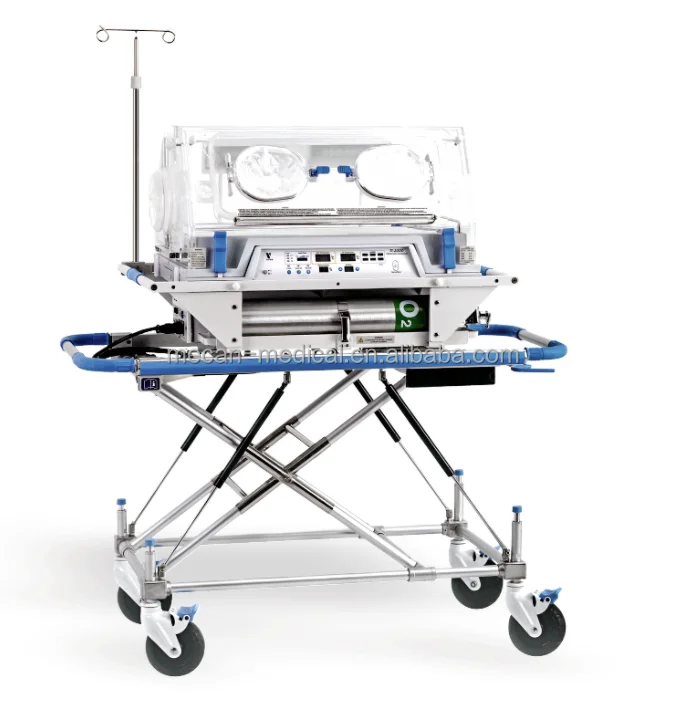

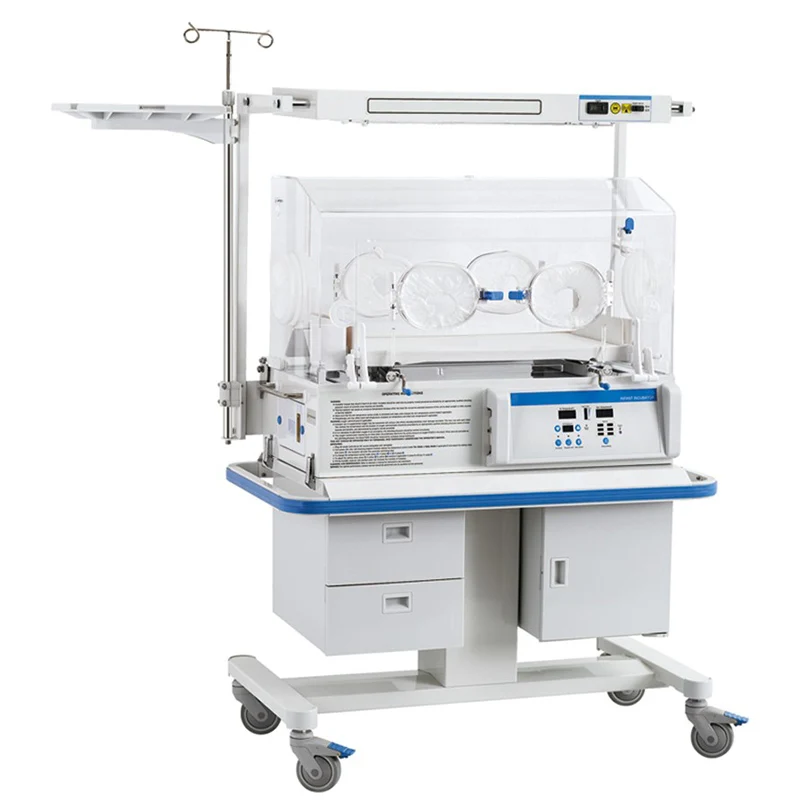

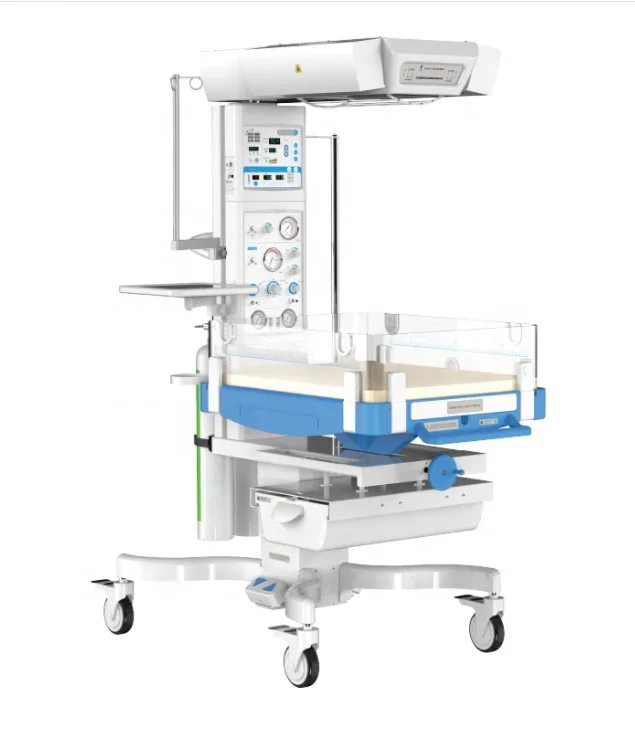

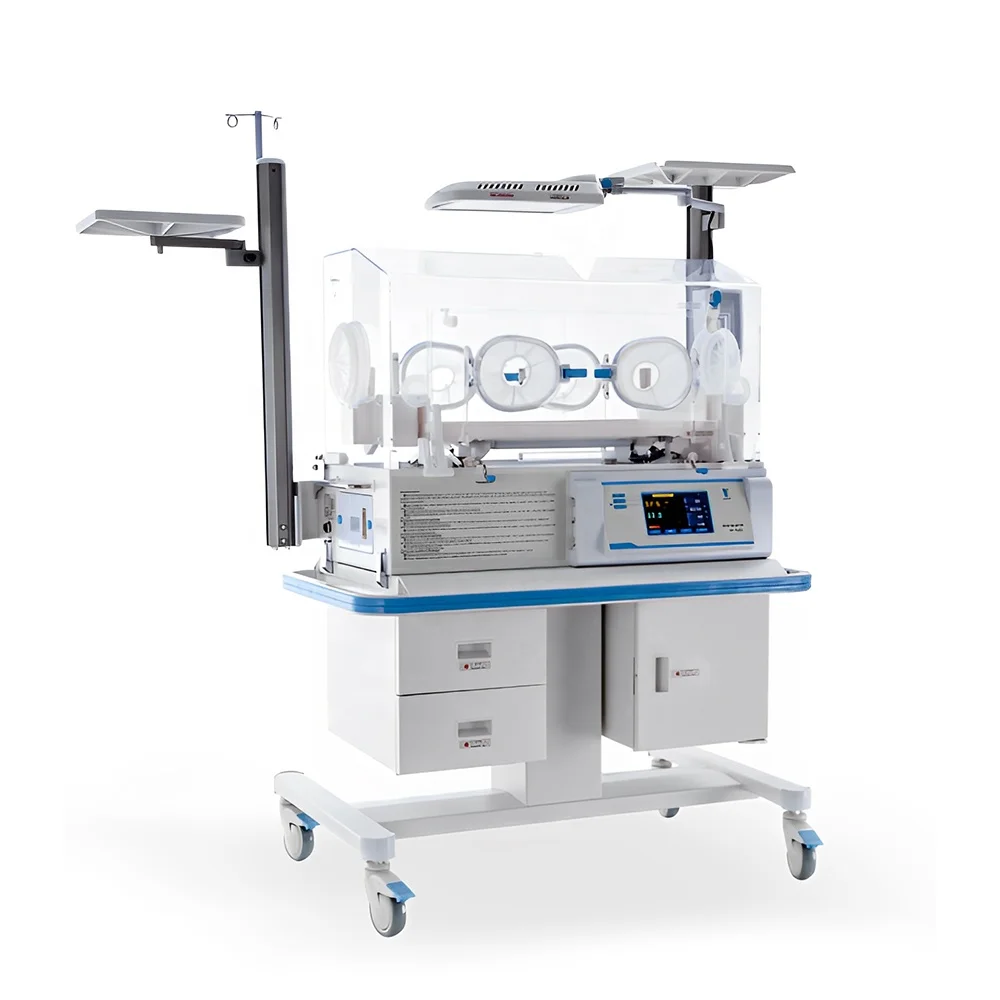

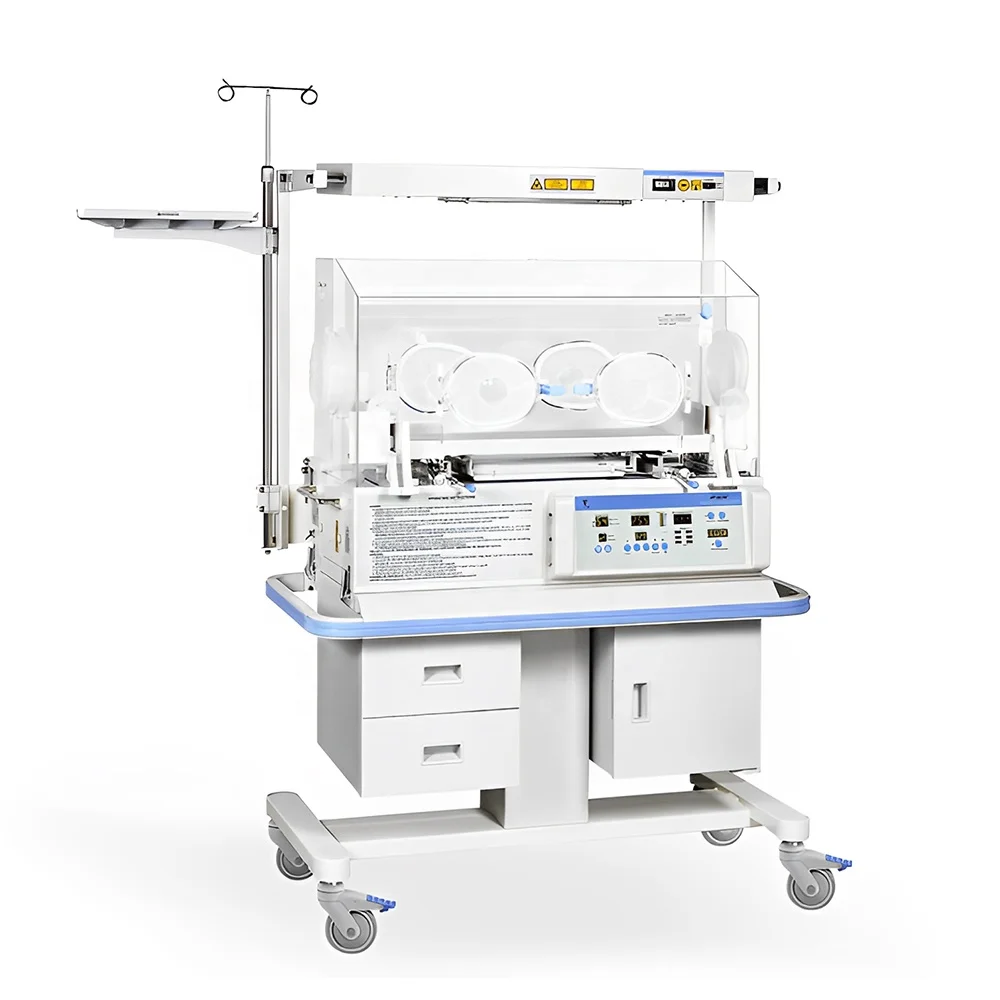

High Quality Led Light Medical Portable Baby Warmer Infant Radiant Phototherapy Transport Infant Incubator
- Category: >>>
- Supplier: Guangzhou Mecan Medical Limited
Share on (1601011595027):
Product Overview
Description
Products Description
High Quality Led Light Medical Portable Baby Warmer Infant Radiant Phototherapy Transport Infant Incubator
Features
Brief Introduction
●Two temperature control modes: Air mode and Baby mode controlled by micro- computer;
●Use AC Power and DC Power alternatively, DC 12Vor DC 24V Power on the ambulance;
●Set temperature, Air temperature, Baby temperature and Internal battery capacity can be displayed separately;
●Multiple failure alarm indications;
●">37 C" temperature set function as optional configuration;
●Double wall acrylic glass hood with side door so that the bassinet can be pulled out from it;
●Passive humidification;
●The height of whole unit can be adjusted;
●Oxygen supply system;
●Observation lamp.
Standard Configuration
Main body, mobile cabinet, temperature controller, hood, I.V. Pole with shelf, skin temperature sensor, mattress, fixed Neonate
Bilirubin Phototherapy Equipment model with blue fluorescent lamp as the upper light source, fixed Neonate Bilirubin
Optional Configuration
">37ºC" temperature override mode function, vertical height adjustment stand(VHA stand), weighing system, Neonate Bilirubin Phototherapy Equipment model with blue LED as upper light source and disposable skin temperature sensor, SpO2.
●Two temperature control modes: Air mode and Baby mode controlled by micro- computer;
●Use AC Power and DC Power alternatively, DC 12Vor DC 24V Power on the ambulance;
●Set temperature, Air temperature, Baby temperature and Internal battery capacity can be displayed separately;
●Multiple failure alarm indications;
●">37 C" temperature set function as optional configuration;
●Double wall acrylic glass hood with side door so that the bassinet can be pulled out from it;
●Passive humidification;
●The height of whole unit can be adjusted;
●Oxygen supply system;
●Observation lamp.
Standard Configuration
Main body, mobile cabinet, temperature controller, hood, I.V. Pole with shelf, skin temperature sensor, mattress, fixed Neonate
Bilirubin Phototherapy Equipment model with blue fluorescent lamp as the upper light source, fixed Neonate Bilirubin
Optional Configuration
">37ºC" temperature override mode function, vertical height adjustment stand(VHA stand), weighing system, Neonate Bilirubin Phototherapy Equipment model with blue LED as upper light source and disposable skin temperature sensor, SpO2.
Product Packaging
Package: Main body and Cabinet are packed into
separate cartons.
Size (Main body): 1085mm x 640mm x 910mm
(Cabinet): 1125mm x 665mm x 725mm
Gross Weight (Main body): 75Kg
(Cabinet): 68Kg
separate cartons.
Size (Main body): 1085mm x 640mm x 910mm
(Cabinet): 1125mm x 665mm x 725mm
Gross Weight (Main body): 75Kg
(Cabinet): 68Kg
Specifications
Power requirement | AC220V-230V/50Hz or AC110-120V, 50/60Hz, 1000VA |
Control Mode | Air mode and Baby mode controlled by micro-computer |
Control range of air temperature | 25ºC-37ºC (override mode: 37ºC-39ºC is optional) |
Control range of baby temperature | 34ºC-37ºC (override mode: 37ºC-38ºC is optional) |
Accuracy of skin temperature sensor | ±0.2ºC |
Variability of temperature | ≤0.5ºC |
Uniformity of temperature | ≤0.8ºC(mattress is on the horizontal position) |
Humidity display range | 0%RH~99%RH |
Humidity control range | 20%~90%RH |
Inclination of the bassinet | ±12° |
Noise inside hood | ≤45dB(A) (Environment noise ≤35dB(A)) |
Failure alarm | Over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on. |
The average value of total irradiance for bilirubin Ebi max of phototherapy equipment | ≥10uW/cm2/nm (blue fluorescent lamp) ≥21uW/cm2/nm (blue LED) |
The average value of total irradiance for bilirubin Ebi max of phototherapy equipment under bassinet | ≥13uW/cm2/nm (with SMD LED) |
Built-in timer range | 0~99999.9 hrs |
Accuracy of weight display | ±1% (equipped with weighing system) |
