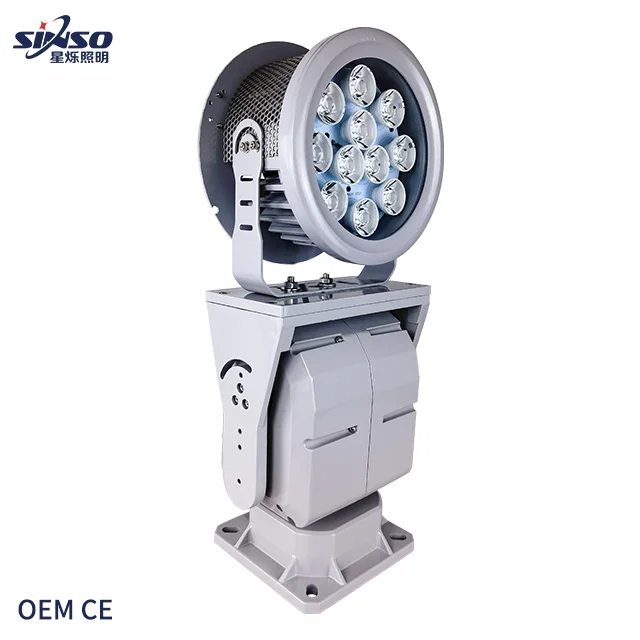

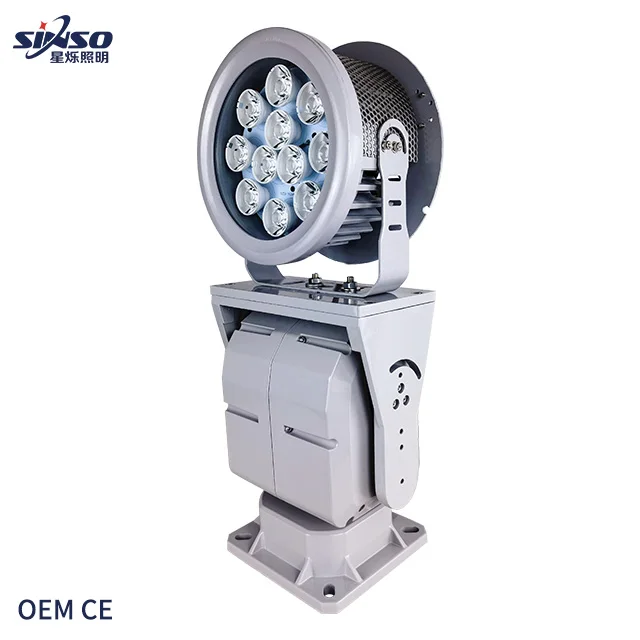

wireless 3D keyboard/joystick control brightness rotation ship searchlight
- Category: >>>
- Supplier: Guangxi Sinso Lighting Co. Ltd.
Share on (1601011651607):
Product Overview
Description
wireless 3D keyboard/joystick control brightness rotation ship searchlight
Product Description
Project case
LED searchlight most used for surveillance and security.especially used for ships,ports,docks ,bridges,border,jail, warehouse, farm,guardtower,coast guard,harbor/orchard and so on.
Product Presentation
1）High-pressure die-casting aluminum shell,,integrated molding, high structural strength, suitable for vehicles, ships and other environmental impact applications.
2）Secondary optical design, optical utilization ≥ 93%, highly concentrated light, to ensure an effective range of up to 1000 meters.
3）High color rendering index Ra≥ 80, not easy to visual fatigue, good effect on high-power camera fill light.
4）Power factors ≥95, constant voltage constant current, no impact on the grid.
5）High-quanlity LED chip,high efficiency constant current drive, with short circuit, overload protection,MTBF> 20,000 hours
6) Excellent weather resistance, with active heat dissipation system,working temperature:-40℃~+55℃.
2）Secondary optical design, optical utilization ≥ 93%, highly concentrated light, to ensure an effective range of up to 1000 meters.
3）High color rendering index Ra≥ 80, not easy to visual fatigue, good effect on high-power camera fill light.
4）Power factors ≥95, constant voltage constant current, no impact on the grid.
5）High-quanlity LED chip,high efficiency constant current drive, with short circuit, overload protection,MTBF> 20,000 hours
6) Excellent weather resistance, with active heat dissipation system,working temperature:-40℃~+55℃.
Product specific parameters
Model | SN-2306LED-E-H |
Control mode | radio remote+wireless keyboard |
Control distance | 0~100Meters/0~300M |
Irradiation range | 1000 Meters |
Material | casting aluminium+ABS |
Light Source | LED |
LED chip | SMD5050 |
Beam angle | 6° |
CRI(Ra>) | Ra>80 |
Temperature(CCT) | 3000K,6000K |
IP rate | IP66 |
Lifespan | 50000h |
Working Temperature | -40~+50℃ |
Dimension and weight
Power | Input voltage | Dimension | Weight |
100W | 220VAC,24VDC,12VDC | 232*190*543mm(L*W*H) | 12Kg |
150W | 220VAC,24VDC,12VDC | 232*190*543mm(L*W*H) | 12Kg |
200W | 220VAC,24VDC | 232*190*543mm(L*W*H) | 12Kg |
300W | 220VAC | 245*190*573mm(L*W*H) | 13Kg |
400W | 220VAC | 245*190*573mm(L*W*H) | 13Kg |
500W | 220VAC | 245*190*573mm(L*W*H) | 13Kg |
Detailed Images
Product detail
Die -cast aluminum material,integrated molding, high structural strength, suitable for outdoor.
Excellent weather resistance, with active heat dissipation system,working temperature:-40℃~+55℃.
Excellent weather resistance, with active heat dissipation system,working temperature:-40℃~+55℃.
Adopt high luminous effciency LED,the light power is low but the illumination distance and effect are better than 1000W Tungeten halogen lights
High -efficiency constant current driver, Metal clad construction，level of Protection：IP67,with short -circuit and overload protection, MTBF> 20,000 hours.
Ta:60℃;Tc:90℃
Ta:60℃;Tc:90℃
Product advantages

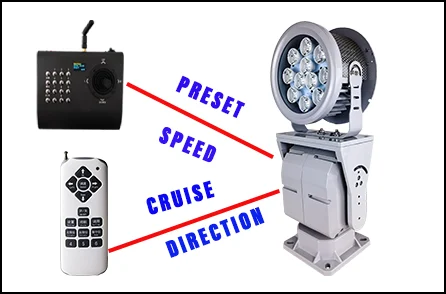

Intelligence control mode
1)For radio remote control,315Hz frequency,control distance:0~100M without other signal interference.achive speed
adjustment,direction adjustment,auto cruise and preset function,one remote for one searchlight.
adjustment,direction adjustment,auto cruise and preset function,one remote for one searchlight.
2)Wireless keyboard with battery inside,no worry of power off;2.4G frequency, control distance up to 300M.8 directions
adjustment,stepless speed regulation,Auto cruise and 9 preset functions
adjustment,stepless speed regulation,Auto cruise and 9 preset functions
Efficient heat dissipation scales/waterproof
IP66 water proof rating strict protective treatment,anti-corrosion and durable, no fear of storms.
Multi-sides surrounding sie-casting aluminum heat dissipation design and fan fast heat dissipation,durable and better heat dissipation effect.
Anti-aging silicone rubber raw materials,waterprooand dustproof performance tough
Multi-sides surrounding sie-casting aluminum heat dissipation design and fan fast heat dissipation,durable and better heat dissipation effect.
Anti-aging silicone rubber raw materials,waterprooand dustproof performance tough
Good LED chip,long irradiation range
High quality LED light source,5050 LED chip
high brightness lamp beads/energy
saving/high-efficience lumens,long life,low power consumption,color index greater than 80
Multifunctions/High Brightness/Long-Range,
Irradiation range up to 1000M
high brightness lamp beads/energy
saving/high-efficience lumens,long life,low power consumption,color index greater than 80
Multifunctions/High Brightness/Long-Range,
Irradiation range up to 1000M
Features
Multiple control modes:radio remote,wired keyboard and software Auto cruise: horizontal mode,vertical mode, horizontal +vertical
mode arbitrary Switching Rotation speed arbitrary Switching:High speed, Medium speed,low speed Preset function:One-click Move to main area, quick response,there are mutiple preset positions and one home position
mode arbitrary Switching Rotation speed arbitrary Switching:High speed, Medium speed,low speed Preset function:One-click Move to main area, quick response,there are mutiple preset positions and one home position
Installation
Certificate
Related Products
Company Introduction
Guangxi Sinso Lighting Co., Ltd. A Partner You Can Trust For outdoor security lighting and CCTV pan tilt Fixtures!
Sinso Lighting ltd is a High-tech Enterprise, and has been a R&D and manufacturing leader in outdoor HID xenon lighting and CCTV pan tilt head since 2014. We pride ourselves on manufacturing high-end HID xenon lighting, including jail/border/guard tower lighting, high mast lighting, etc. Through the years, Sinso has won a good reputation with high-quality products and great customer service.
We have professional engineer team which are with long years of R&D experience in surveillance industry. They are always staying at the forefront of surveillance technology, and working closely with the customers throughout the design process to meet varying demands, with innovation and fast response speed. We will continue to excel in the development of innovative and energy saving solutions for our customers.
Sinso Lighting ltd is a High-tech Enterprise, and has been a R&D and manufacturing leader in outdoor HID xenon lighting and CCTV pan tilt head since 2014. We pride ourselves on manufacturing high-end HID xenon lighting, including jail/border/guard tower lighting, high mast lighting, etc. Through the years, Sinso has won a good reputation with high-quality products and great customer service.
We have professional engineer team which are with long years of R&D experience in surveillance industry. They are always staying at the forefront of surveillance technology, and working closely with the customers throughout the design process to meet varying demands, with innovation and fast response speed. We will continue to excel in the development of innovative and energy saving solutions for our customers.
FAQ
Q1. How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
Q2. What about the lead time?
A:Sample needs 3~5 days, bulk production time needs 20~30 days.
Q3. Do you have any MOQ limit for search light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on search light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 year warranty to our products.
Q7: How about custom made?
A:Yes,LED chip,driver,shell's colour can be custom made.
A: After price confirmation, you can require for samples to check our quality.
Q2. What about the lead time?
A:Sample needs 3~5 days, bulk production time needs 20~30 days.
Q3. Do you have any MOQ limit for search light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on search light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 year warranty to our products.
Q7: How about custom made?
A:Yes,LED chip,driver,shell's colour can be custom made.
