  • High Energy Density Scooter Wheelchair Ebike Pallet Jack 26700 26650 LiFePO4 3.2V 5Ah Battery Cells
High Energy Density Scooter Wheelchair Ebike Pallet Jack 26700 26650 LiFePO4 3.2V 5Ah Battery Cells
High Energy Density Scooter Wheelchair Ebike Pallet Jack 26700 26650 LiFePO4 3.2V 5Ah Battery Cells
High Energy Density Scooter Wheelchair Ebike Pallet Jack 26700 26650 LiFePO4 3.2V 5Ah Battery Cells
High Energy Density Scooter Wheelchair Ebike Pallet Jack 26700 26650 LiFePO4 3.2V 5Ah Battery Cells
High Energy Density Scooter Wheelchair Ebike Pallet Jack 26700 26650 LiFePO4 3.2V 5Ah Battery Cells
High Energy Density Scooter Wheelchair Ebike Pallet Jack 26700 26650 LiFePO4 3.2V 5Ah Battery Cells
High Energy Density Scooter Wheelchair Ebike Pallet Jack 26700 26650 LiFePO4 3.2V 5Ah Battery Cells

High Energy Density Scooter Wheelchair Ebike Pallet Jack 26700 26650 LiFePO4 3.2V 5Ah Battery Cells

Share on (1601011669587):


Price:$1.90 - $2.00

Quantity:


Product Overview

Description






Product Description


High Energy Density Scooter Wheelchair Ebike Pallet Jack 26700 26650 LiFePO4 3.2V 5Ah Battery Cells








Specification























































































No.



Items



Specifications



1



Nominal Voltage



3.1V



2



Nominal Capacity



5000mAh



3



Standard Charge Current



0.2C-0.5C rate



4



Max. Charge Current



1C rate



5



Continuous Discharge current



2C



6



Peak Discharge Current



3C



7



Charge Cut-off Voltage



3.65V



8



Discharge Cut-off Voltage



2.0V



9



Inner Resistance


(Impedance)



≤ 20mΩ  (At 0.2C rate, 2.0V cut-off)



10



Weight


≤ 100g

11



Dimensions






26*70mm



12



Operating Temperature



Charging: 0°C ~ 55°C


Discharging: -20°C ~ 60°C


(The cell surface temperature cannot exceed 70°C)



13



Storage Temperature/Humidity



Temperature: -20°C ~ +45°C


Humidity:65%±20%RH


(optimal store temperature of 23 ± 5°C for long term storage)



14



Cycle Life



≥2000 times (100% DOD till 70% of initial capacity at 0.5C rate, IEC Standard)

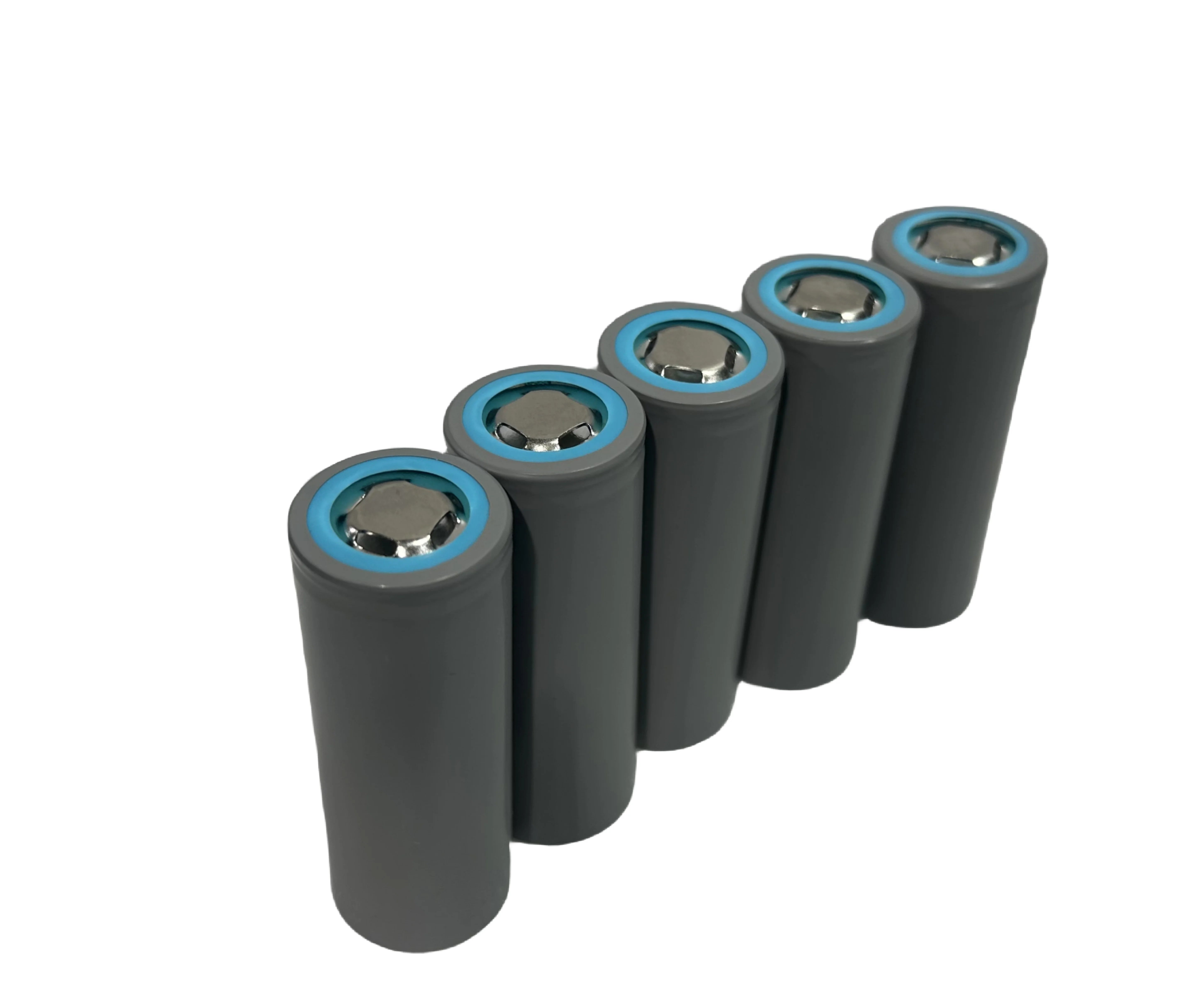

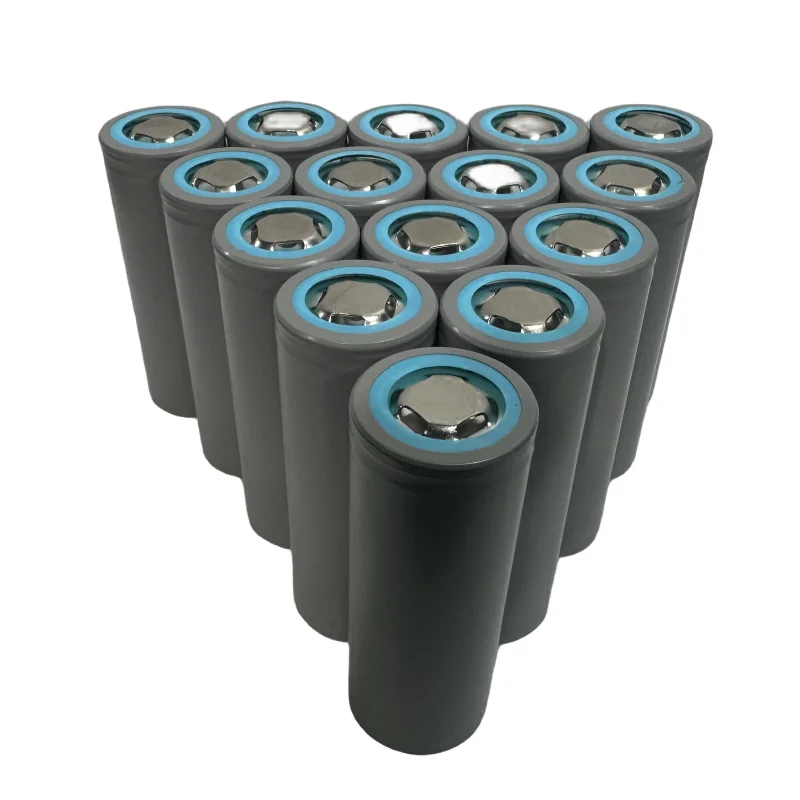

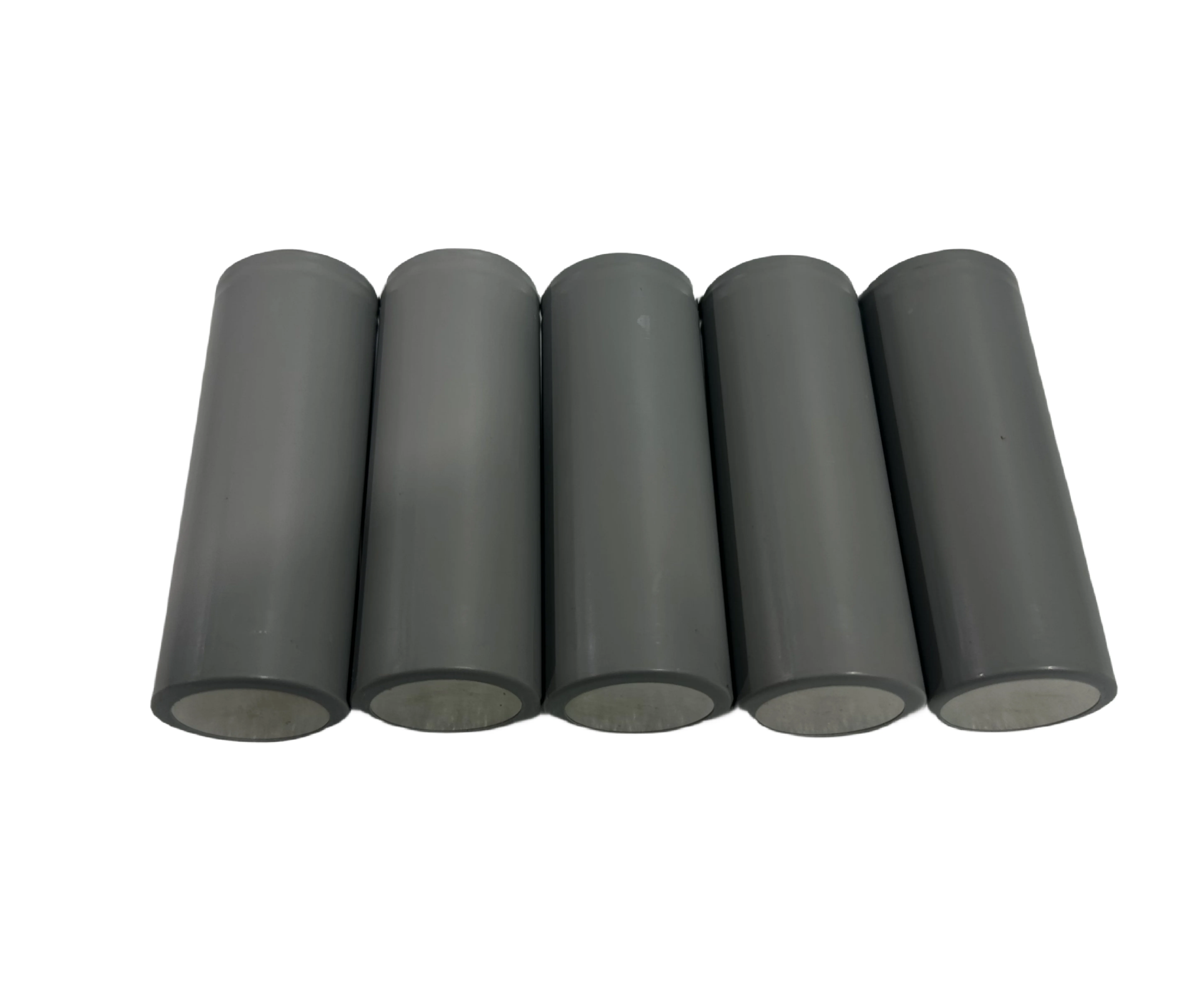

2 (2).png2 (4).png2 (5).png








Applications:
* Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
* Passenger and commercial battery electric vehicles (BEVs)
* Mild and micro hybrid vehicles
* Long-Duration (LD) grid energy storage systems
* Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage       power, traffic signals
* Solar hybrid street lighting, UPS power supply, home storage
* Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
* Hospitals, finance, telecommunications , system critical backup power systems








 Package:


Sib package.jpg





Cells Overviews


We choose brand Chinese to make lithium battery packs like LTO battery cells, cylindrical cells and prismatic battery cells as follows









Application






Certifications



Firstly, we have passed UN38.3, our battery including lithium start battery, ebike battery, scooter battery and BMS and cells, each type has its product process, we have build a set of Quality Control System to manage the batteries production.




Secondly, we provide professional and special products catalog for you to browse quickly, each lithium-ion battery has analysed in detail.Contact us to get the product catalog


Last but not least, the user manual is important for you to read, it is a detailed description of the batteries’ features, performance and user interface, allowing users to understand how to use it. All in all, we are a manufacturer who wants to provide you with the best batteries and service.


More information, contact us or look on www.osnpower.com
