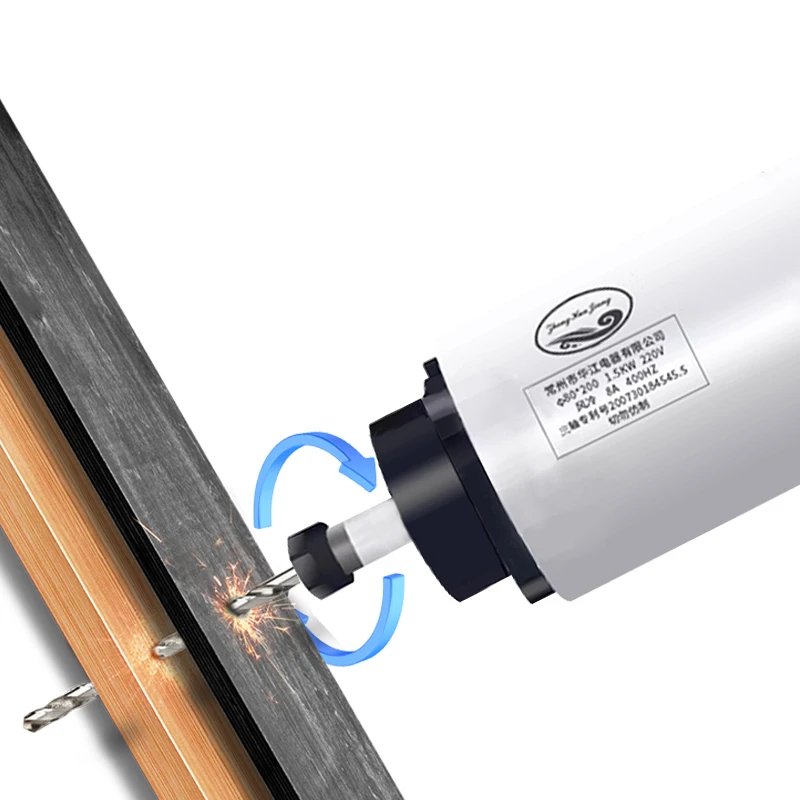

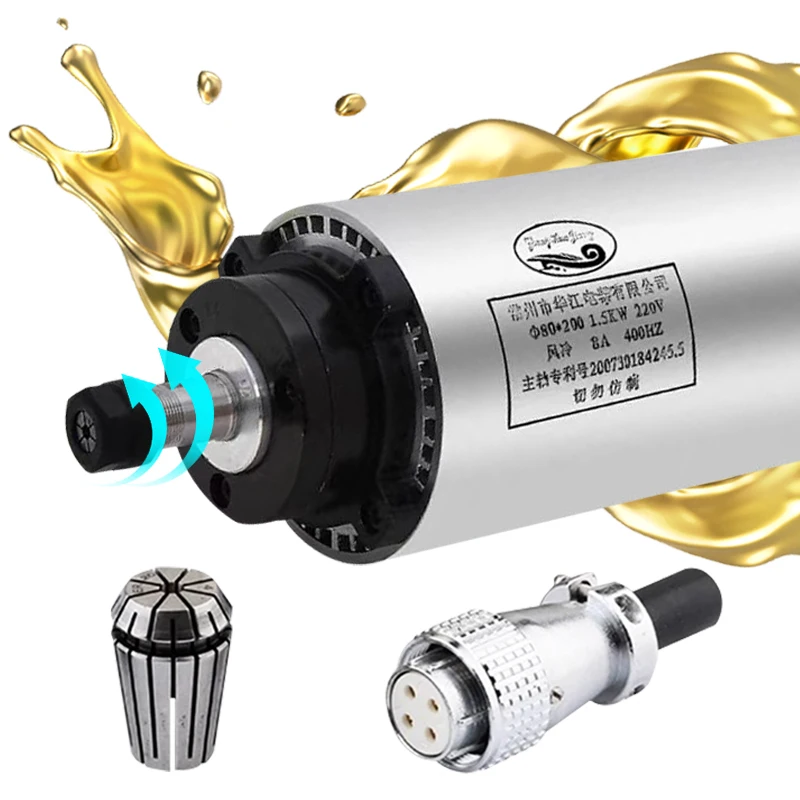

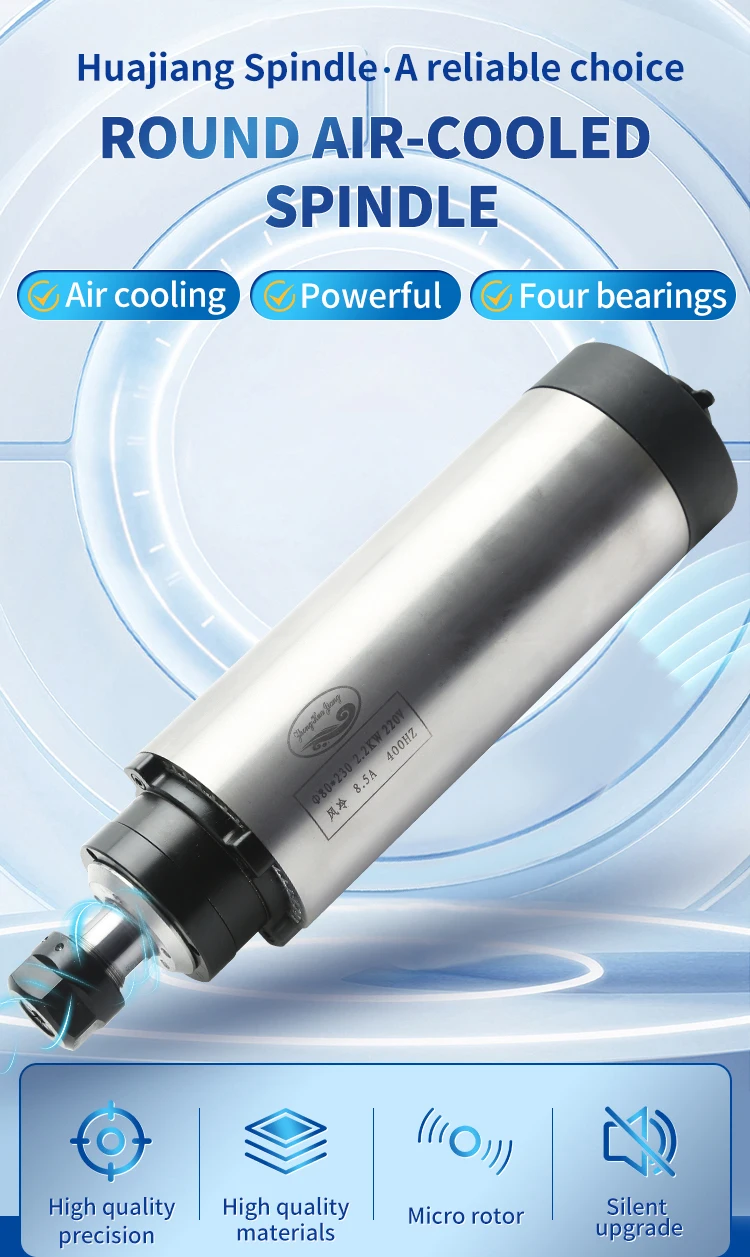

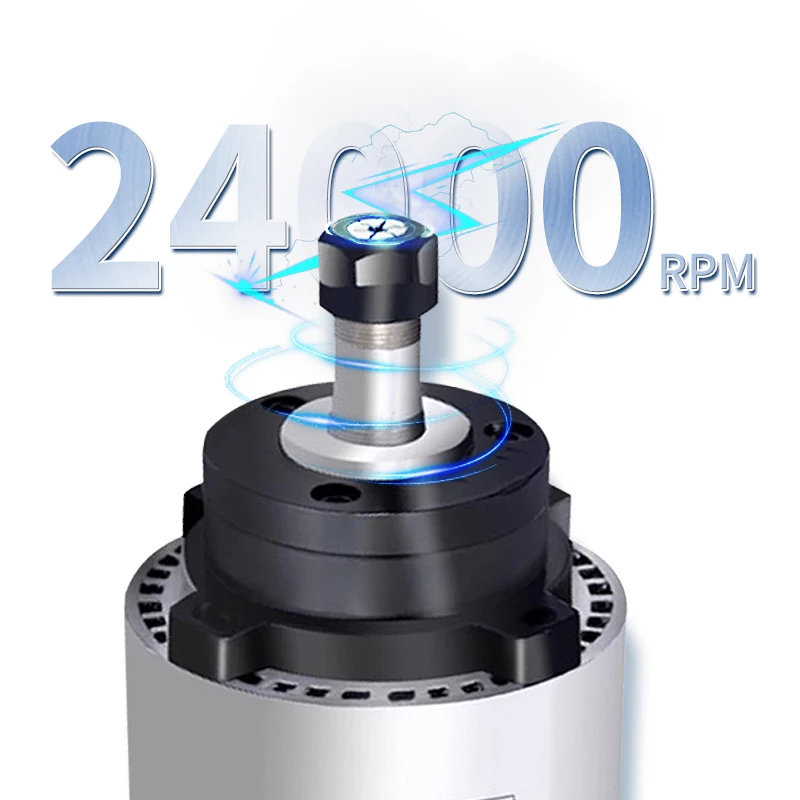

4 Bearings 0.8kw 1.5kw 2.2kw 3.0kw CNC Round Air Cooled Cooling Spindle with 400HZ 24000RPM ER11/16/20
- Category: >>>
- Supplier: Jinan Hongyang Cnc Machinery Co. Ltd.
Share on (1601011672465):
Product Overview
Description
Product Description
Company Profile
Jinan Hongyang CNC Mahcinery CO., Ltd.
We are a high-tech enterprise specializingin R&D and sales, has more than 10 years of experience in cnc parts industry.We provide one-stop service.Our category has more than 7,000 items, mainly cover cnc router parts, co2 laser parts and fiber laser parts etc.
Our warehouse covers an area of 6,600 square meters and contains nearly 40 employees, which can able to complete product quality inspection quickly and shorten the delivery of goods.
We have passed the international certifications such as CE, ISO9001 quality management system certification, Alibaba, SGS enterprise certification.
Our products are exported to more than 80 countries and regions around Asia, Europe, Africa and Oceania. In addition, we have more than 10 professional after-sales personnel, providing 24-hour online and offline technical services in different kinds of languages.
Our warehouse covers an area of 6,600 square meters and contains nearly 40 employees, which can able to complete product quality inspection quickly and shorten the delivery of goods.
We have passed the international certifications such as CE, ISO9001 quality management system certification, Alibaba, SGS enterprise certification.
Our products are exported to more than 80 countries and regions around Asia, Europe, Africa and Oceania. In addition, we have more than 10 professional after-sales personnel, providing 24-hour online and offline technical services in different kinds of languages.
In a word, we are committed to helping customers improve their economic efficiency andproviding comprehensive cnc parts application solutions for users from all over the world.
Details Images

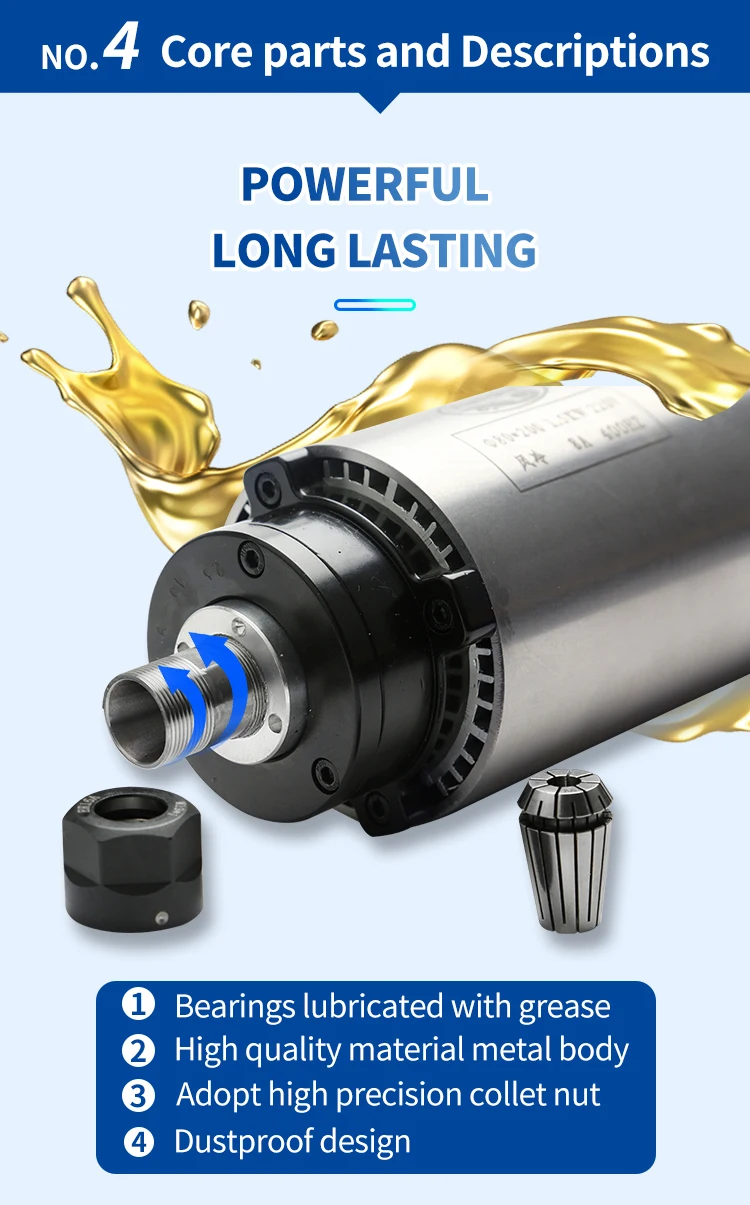

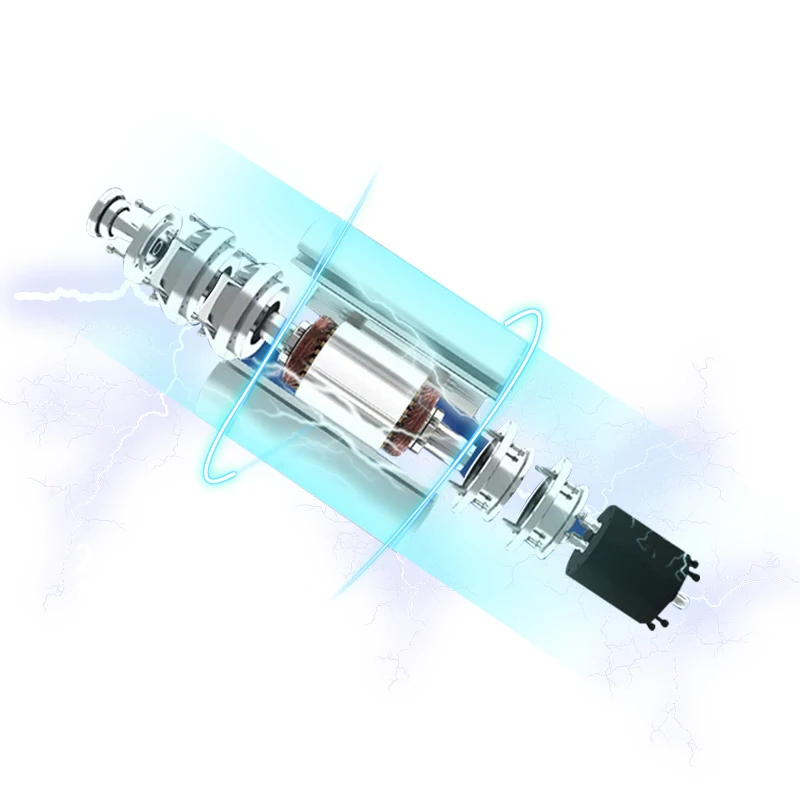

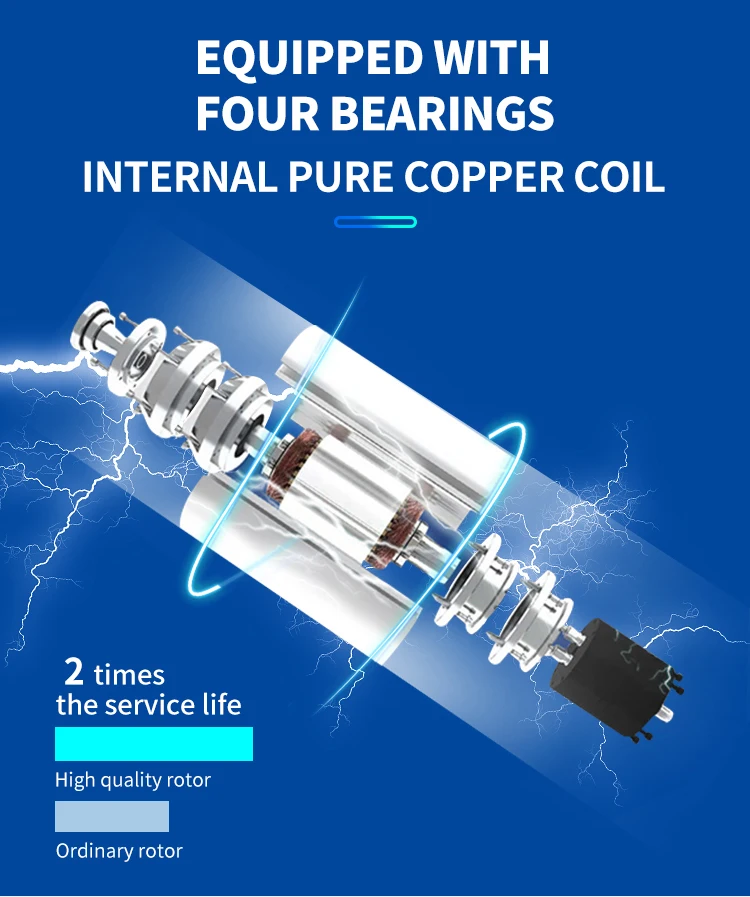

The interior of the spindle uses high-quality P4 bearings
and pure copper coils, which are upgraded and lengthened
to make the spindle motor durable and powerful.

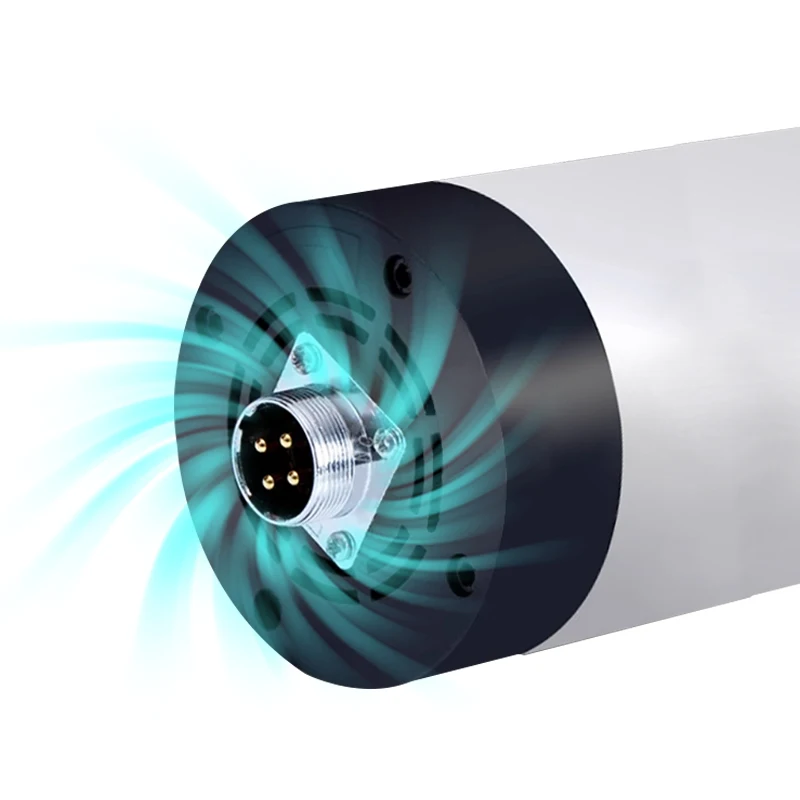

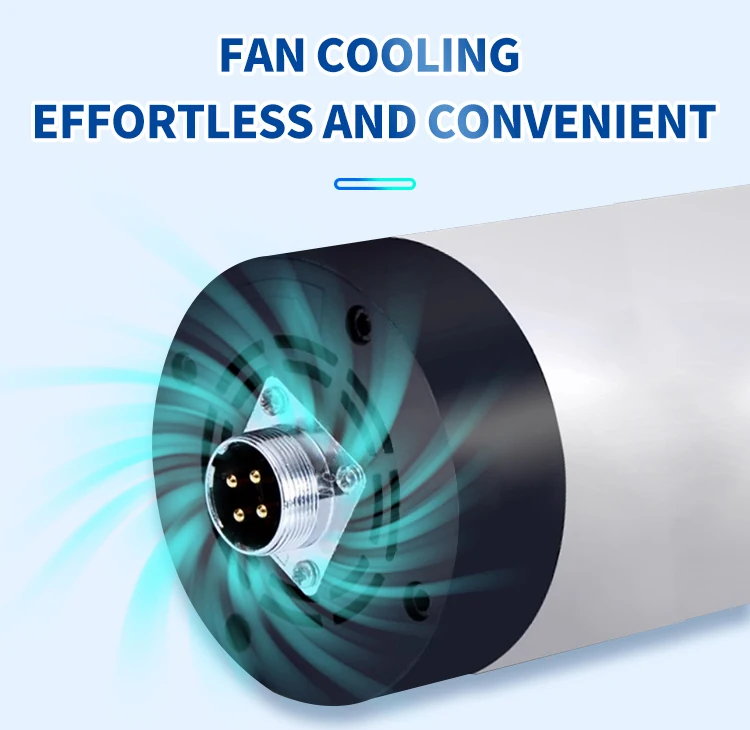

Automatically reduce heating caused by high-speed
rotation. Convenient and trouble-free, no water pipes,
sinks and water pumps required.

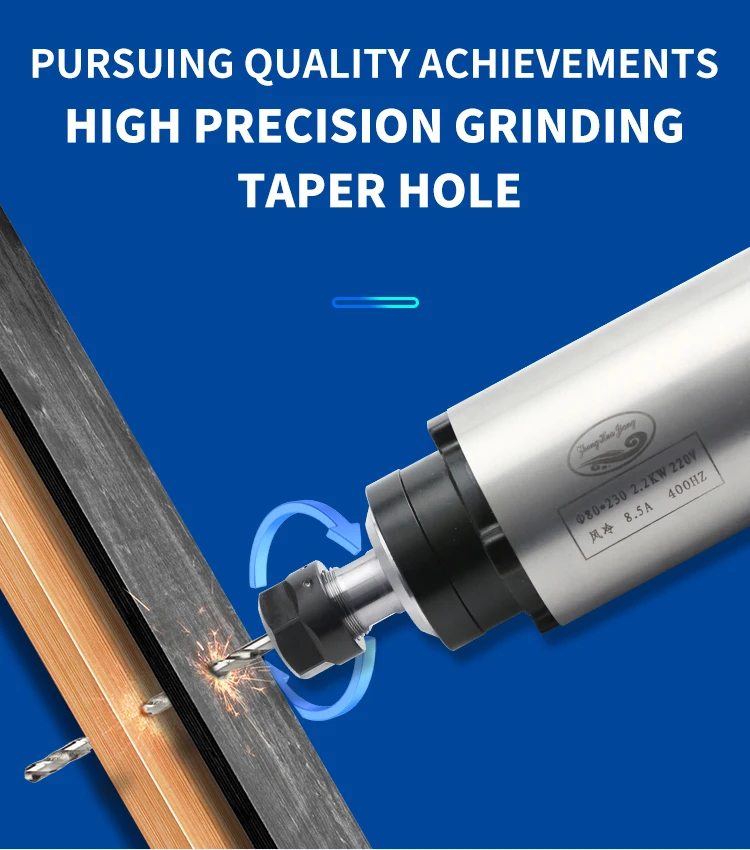

The spindle is made of high-quality materials and is
ground with high precision to improve concentricity,
engraving accuracy and not easy to break.

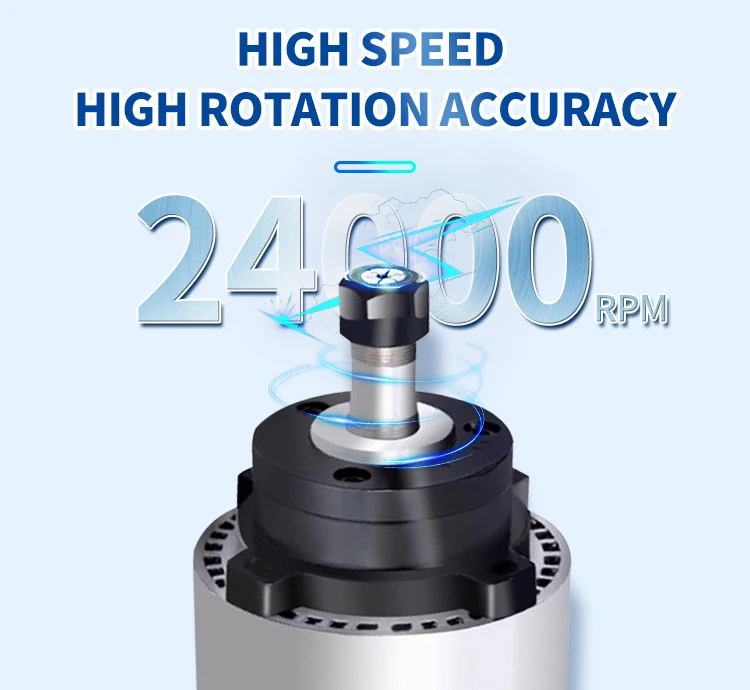

Precision steel ball retainer is used to maintain high
rotation accuracy during high-speed grinding of the spindle.

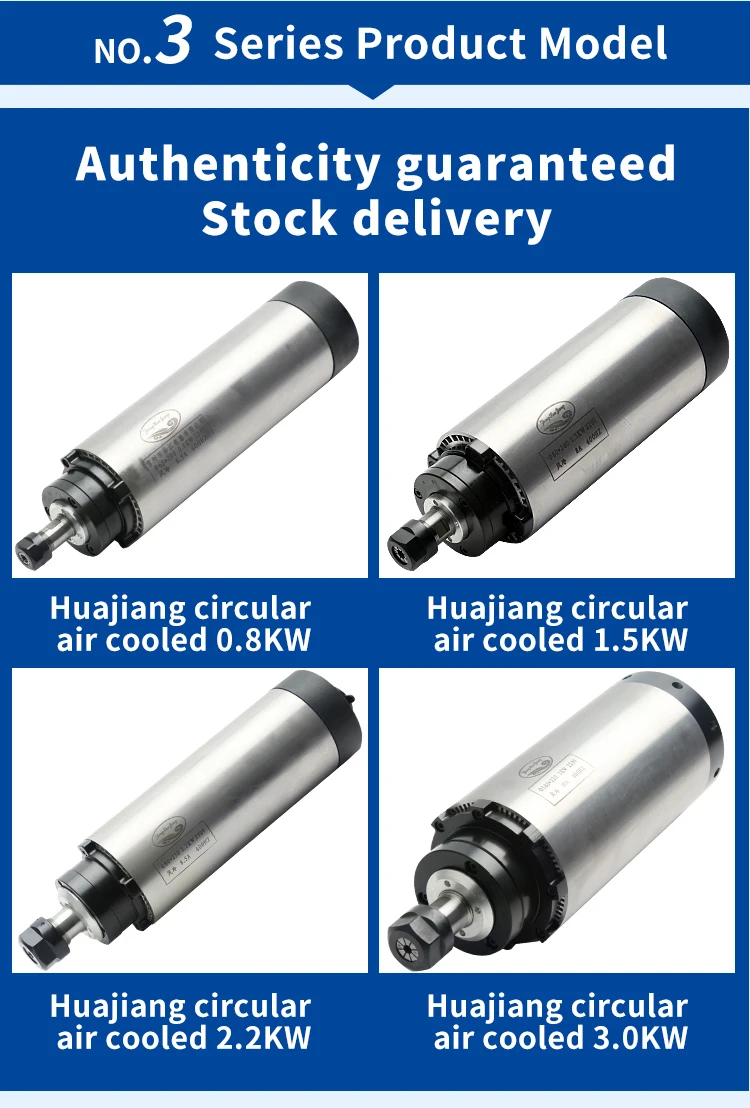

Product Parameters

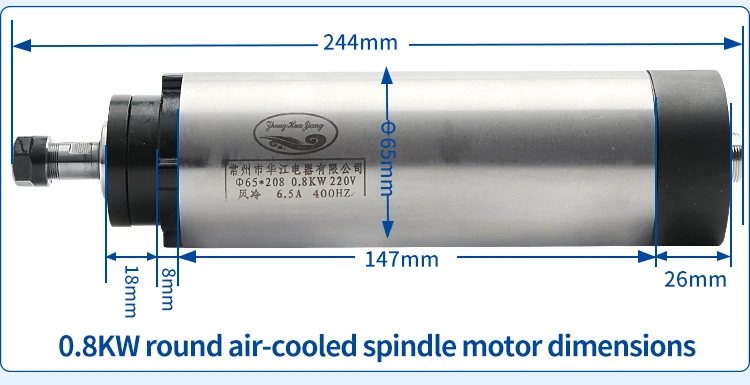

Model | 65*208 (Round air-cooled) | Brand | Huajiang |
Cooling method | Fan cooling | Current | 0.8KW |
Rotating speed | 24000rpm | Frequency | 400HZ |
Rated power | 6A | Voltage | 110V/220V |
Spindle diameter | Φ65 | Collet nut | ER11 |
Lubrication method | Grease lubrication | Weight | 2.6KG |

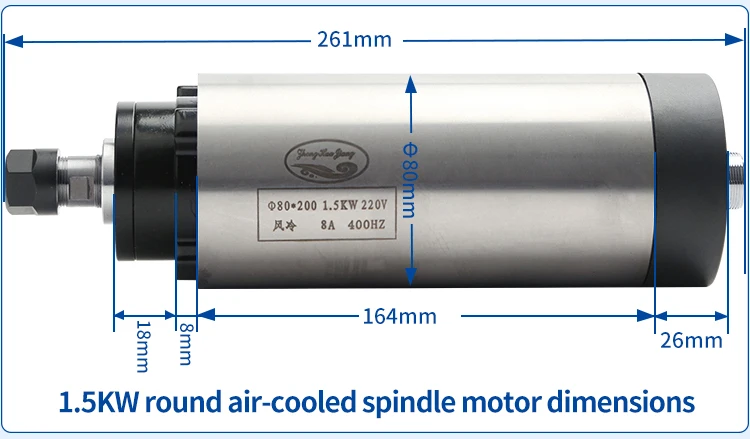

Model | 80*200 (Round air-cooled) | Brand | Huajiang |
Cooling method | Fan cooling | Current | 1.5KW |
Rotating speed | 24000rpm | Frequency | 400HZ |
Voltage | 110V/220V/380V | Rated power | 8A |
Spindle diameter | Φ80 | Collet nut | ER11 |
Lubrication method | Grease lubrication | Weight | 4.3KG |

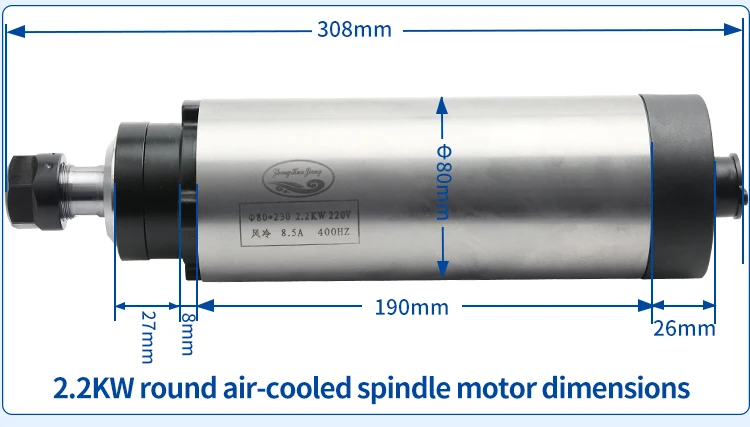

Model | 80*230 (Round air-cooled) | Brand | Huajiang |
Cooling method | Fan cooling | Current | 2.2KW |
Rotating speed | 24000rpm | Frequency | 400HZ |
Voltage | 110V/220V/380V | Rated power | 8.5A |
Spindle diameter | Φ80 | Collet nut | ER20 |
Lubrication method | Grease lubrication | Weight | 5.6KG |

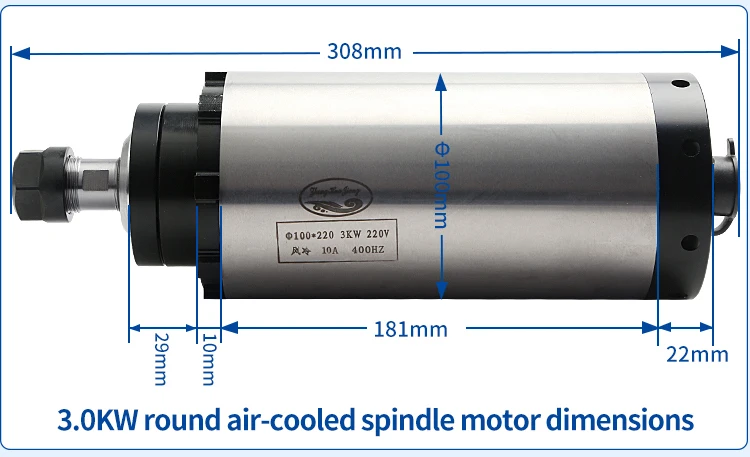

Model | 100*200 (Round air-cooled) | Brand | Huajiang |
Cooling method | Fan cooling | Current | 3.0KW |
Rotating speed | 24000rpm | Frequency | 400HZ |
Voltage | 220V/380V | Rated power | 10A |
Spindle diameter | Φ100 | Collet nut | ER20 |
Lubrication method | Grease lubrication | Weight | 9KG |

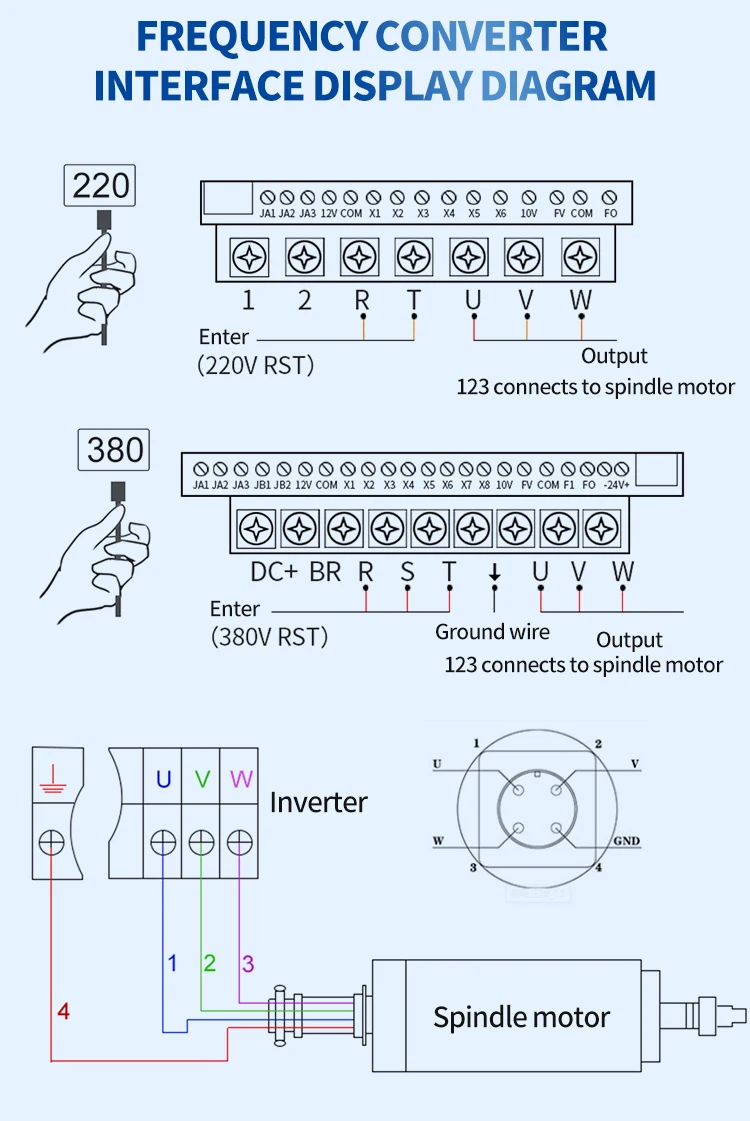

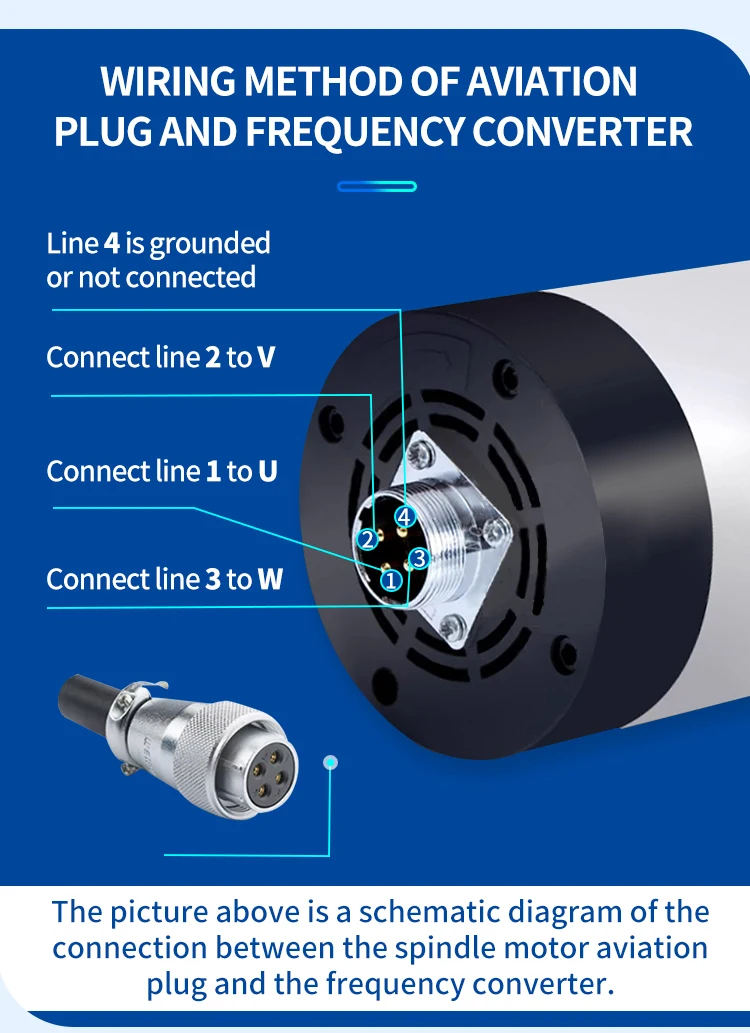

Installation Instructions
Certifications
Product packaging
FAQ
1. About Hongyang CNC
We are a professional supplier focusing on R&D and sales of CNC router parts in Jinan city,Shandong province,China.We provide one-stop service and have more than 10 years of experience in this industry. Our company has a complete R&D, sales and after-sales system.
2. What are your main products?
We mainly sell cnc router parts, including spindle motor, inverter, stepper motor, hybrid servo motor, servo motor, driver, reducer, gear box, guide rail, slider, ball screw, cylinder, electromagnetic valve, cnnector, water pump, dust collector, tool magazine and tool holder etc.
3. Why do you choose us?
We have a complete product supply chain and a strong technical and after-sales team. Whatever you want for cnc router parts and we can supply you with the good qualities, the best prices and comprehensive after-sales service.
4. How should we guarantee the products’ quality?
Each category of products will undergo strict quality control before leaving the factory
We are a professional supplier focusing on R&D and sales of CNC router parts in Jinan city,Shandong province,China.We provide one-stop service and have more than 10 years of experience in this industry. Our company has a complete R&D, sales and after-sales system.
2. What are your main products?
We mainly sell cnc router parts, including spindle motor, inverter, stepper motor, hybrid servo motor, servo motor, driver, reducer, gear box, guide rail, slider, ball screw, cylinder, electromagnetic valve, cnnector, water pump, dust collector, tool magazine and tool holder etc.
3. Why do you choose us?
We have a complete product supply chain and a strong technical and after-sales team. Whatever you want for cnc router parts and we can supply you with the good qualities, the best prices and comprehensive after-sales service.
4. How should we guarantee the products’ quality?
Each category of products will undergo strict quality control before leaving the factory
and a product inspection certificate will be issued. We will also check them one by one
when shipping.
5. What’s the payment term?
We can accept T/T, Paypal, Western union and L/C.
6. When can you delivery the goods and how to ship it/them?
All of our products are in stock. Once you have finished the order, we can arrange to ship it within 1 or 2 days. The goods will be shipped by Fedex/ DHL\\TNT\\UPS\\EMS and so on.
5. What’s the payment term?
We can accept T/T, Paypal, Western union and L/C.
6. When can you delivery the goods and how to ship it/them?
All of our products are in stock. Once you have finished the order, we can arrange to ship it within 1 or 2 days. The goods will be shipped by Fedex/ DHL\\TNT\\UPS\\EMS and so on.
