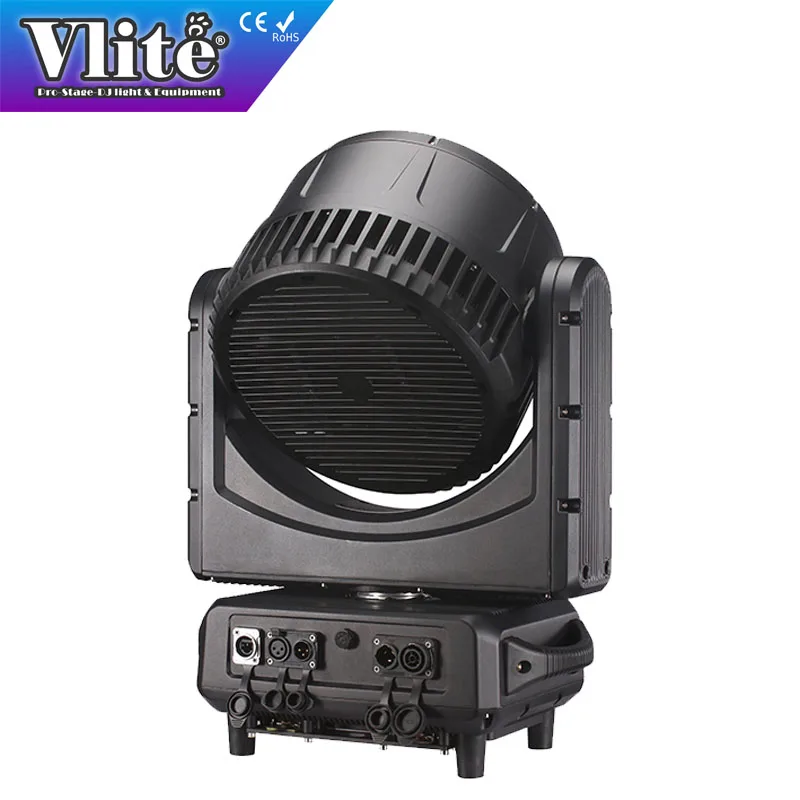

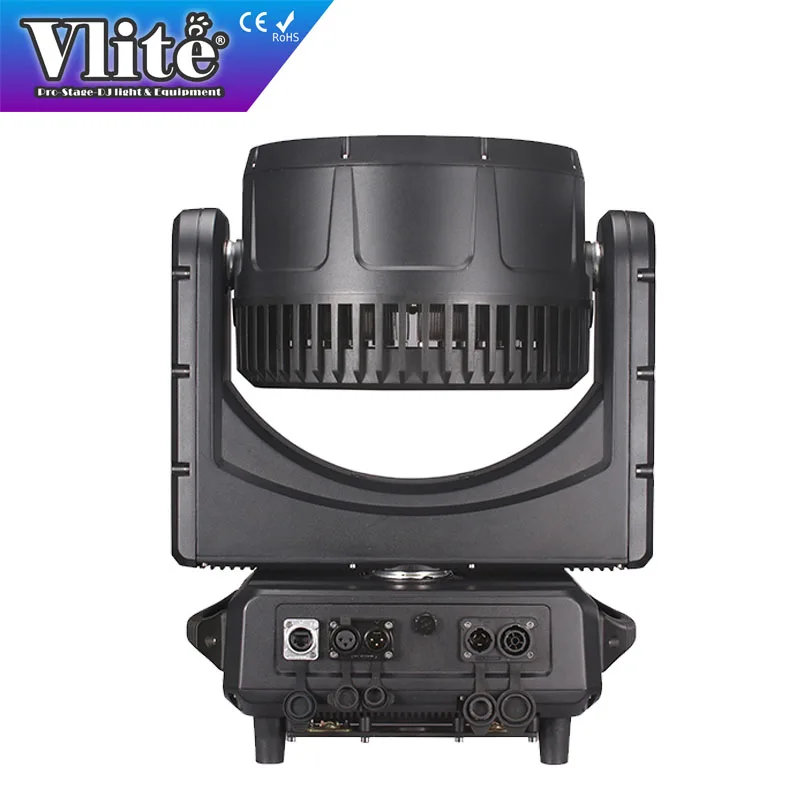

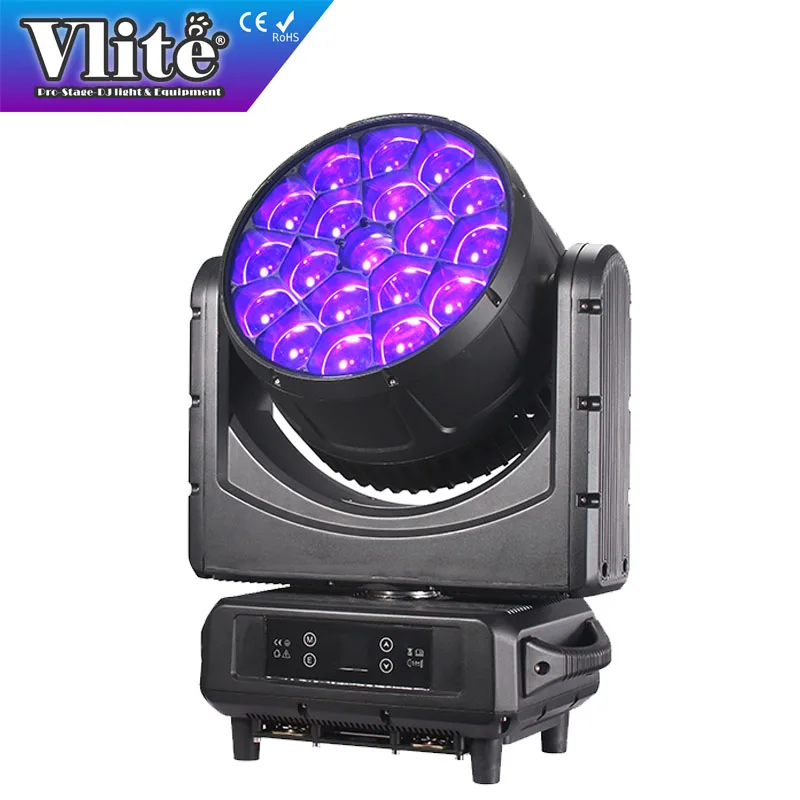

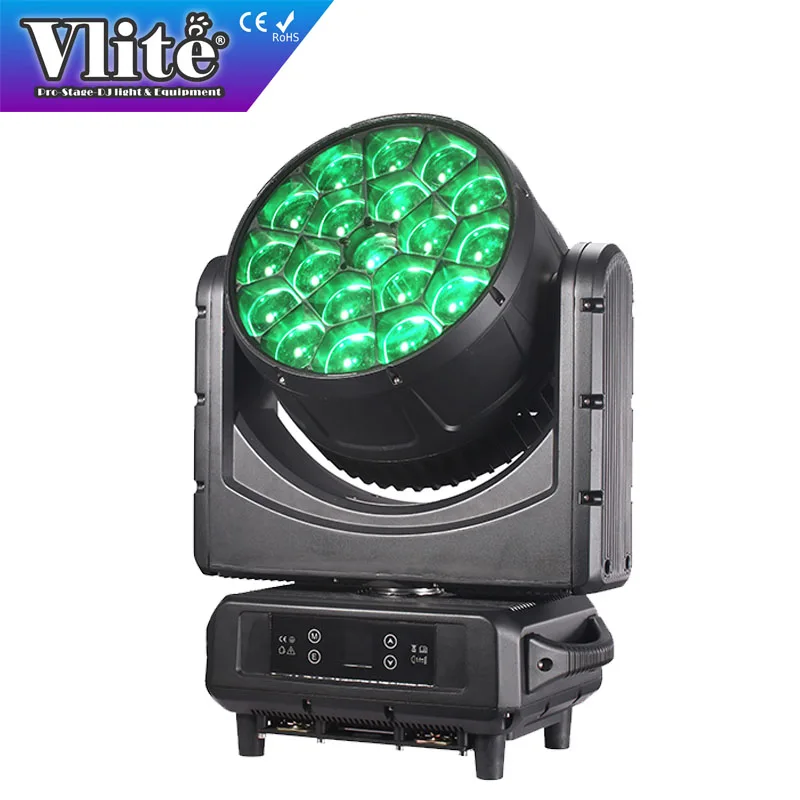

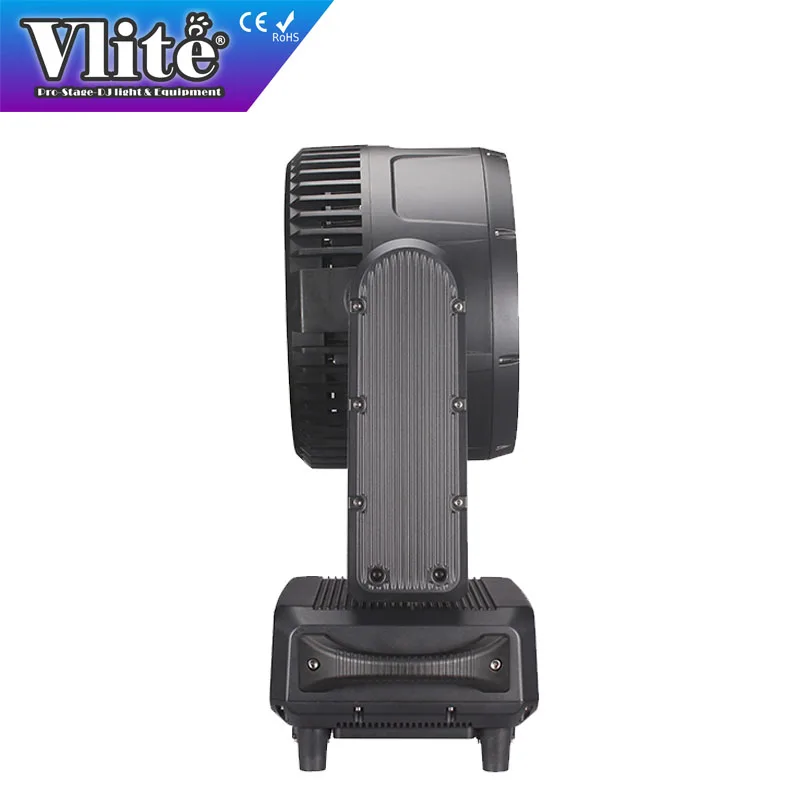

Vlite Outdoor Waterproof DMX Lyre Beam Wash Zoom Big Eye IP65 19x40 RGBW LED Moving Head

Voltage and Power Consumption：Input Voltage：AC 100-240 V，50 / 60HZ
                                                               Power consumption：820W
                                                               Light Source：19PCS X 40W LED RGBW 4-in-1 LED
                                                               LED Life-spam：50,000hours

Optical：Optical system: high-precision combined structure, high-transmittance glass light rod + PMMA lens
                                              High efficiency optical system
                                              Zoom Range:7゜-45゜

Pan / Tilt：Pan 540゜and Tilt 213゜，Extremely precise positioning 16-bit resolution

Features：3Effect modes: digital Wash, Beam and FX (kaleidoscope effect)
Overheating protection function, when the temperature is too high, the LED will automatically go out and enter the protection
state
Electronic Zoom Rang: 7゜-45゜
Bi-directional rotating front lens
Digital wash-beam effect
Beam edge softening control (in wash mode)
Pixel patterning macros with enhanced control
Beam: Outstanding small-angle beam effect
Wash: medium and large angles with evenly light out put
Color Wheel: RBGW color mixing, uniform color mixing flicker-free, fast color rainbow effect
Macro effect: Static effect and dynamic effect macro function
Dedicated channel for color temperature setting
White CT emulation 2500K-10000K
Strobe: 1K-25 Hz electronic strobe and random strobe
Adjustable speed stop/strobe effect, with instantaneous blackout
Dimming: electronic 0-100% dimming, 4 dimming curves, 2 dimming modes
Zoom system: Linear electric zoom
Lens rotation: 360° infinite rotation of the optical lens, automatic rotation error correction function, variable kaleidoscope,
slim beam and other effects
Pixel control: The light source supports individual independent control and color change
X/Y axis: 540 degrees/213 degrees automatic precise position

DMX：DMX-512 Channels: 18CH/21CH/35CH/78CH/94CH/111CH (expandable)
Stand-alone operation mode, master-slave mode, touch-screen menu manual mode

Interface/control/programming：LCD graphic display (control/management/monitoring of main parameters)
4 buttons
Controlled through DMX512, RDM, master-slave mode, USB, ARTNET protocol (on demand)
Menu manual dynamic macro function
Intelligent management and control: Information such as device usage and lighting time, device temperature, device humidity
channel data, and software version faults can be queried through the device menu
Temperature control: Smart temperature control, can automatically adjust cooling fan speed and overheat protection, three fan
modes
Software upgrade: Upload the upgrade file through DMX interface

Structure：Display screen: 1.77-inch LCD screen, bilingual menu in Chinese and English, Fahrenheit and Celsius options, waterproof smart
touch keys
Motor: linear zoom motors x 3pcs, 3-phase motors x 2pcs, two-phase rotating motor x 1pc
Magnetic encoding positioning: non-contact magnetic rotary encoder positioning, signal feedback, absolute position memory
Shell material: The latest second generation structural waterproof design, metal die-cast aluminum shell and fireproof engineering
plastic
Protection level: IP65

Weight & Dimension：Dimension:96*47*77CM (1 pack 2)， 408 x 301 x 562mm(1 pack 1)
Net weight: 29KG
Gross weight: 78KG
