cheap 4 axis zirconia dental lab cnc cad cam dry wet metal dental milling machine for 4 axis china dental zirconia block
- Category: >>>
- Supplier: Jinan Singularity International Trading Co.
Share on (1601011837874):
Product Overview
Description
Products Description
6 Models CAD/CAM Milling Machine for All Dental Application Requirements:
Material Model | Zirconia | Wax | PEEK | Glass- ceramic | Premilled abutment | Titanium | Co-cr | Axis | Dry/ wet Mil |
N4 | ✔ | ✔ | ✔ | ✔ | 4 | dry | |||
T4 | ✔ | ✔ | ✔ | ✔ | 4 | dry | |||
GT4 | ✔ | ✔ | ✔ | ✔ | ✔ | 4 | Dry&Wet | ||
T5 | ✔ | ✔ | ✔ | ✔ | 5 | dry | |||
TX5 | ✔ | ✔ | ✔ | ✔ | ✔ | 5 | Dry&Wet | ||
2040S | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | 4 | Dry&Wet |
MT5 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | 5 | Dry&Wet |
14+YEARS Industry experience |
One-stop supplier of dental equipment |
Dental solution provider |
Model | JD-T5 |
Axis | 5 |
Milling mode | Dry |
Millable material | Zirconia,Wax,PMMA |
Product type | Crown/coping, Bridge, Inlay/onlay |
Max spindle speed | 60000 RPM |
Rotation range | A: 土360 |
Number of tool housed | 4 |
Machine Total Power | 2.6KW |
Average milling time | Zirconia:8-15 minWax:4-12 min |
External dimensions | 540*650*650mm |
Weight | 111KG |
Positioning accuracy |
Model | JD-MT5 |
Axis | 5 |
Milling mode | Dry/Wet |
Millable material | Titanium, Co-Cr, Zirconia, WAX, PMMA, PEEK, Resin, Premilledabutment,Glass ceramic |
Product type | Crown/coping, Bridge, Implant bar Implant,Inlay/onlay VeneerFramework, Surgical guide, Digital model, Full denture, Customerabutment, Premilled abutment |
Max spindle speed | 40000 RPM |
Rotation range | A:土360°B:土30° |
Number of tool housed | 12 |
Machine Total Power | 4.7KW |
Average milling time | Zirconia: 8-15 min, Wax: 5-12 min, Resin: 5-12 min, Titanium: 15-20min, Premilled abutment: 15-20 min, Glass ceramic: 15-20 min |
External dimensions | 850*1250*1810mm |
Weight | 650 KG |
Positioning accuracy | 0.003mm |
Model | JD-T4 |
Axis | 4 |
Milling mode | Dry |
Millable material | Zirconia,Wax,PMMA |
Product type | Crown/coping,Bridge, Inlay/onlay |
Max spindle speed | 60000 RPM |
Rotation range | A: 土360° |
Number of tool housed | 3 |
Machine Total Power | 2.5KW |
Average milling time | Zirconia: 8-15 min, Wax: 4-12 min |
External dimensions | 485*650*610 mm |
Weight | 105 KG |
Model | JD-TX5 |
Axis | 5 |
Milling mode | Dry/Wet |
Millable material | Zirconia, Wax, PMMA, PEEK, Resin, Glass ceramic,Premilled abutment |
Product type | Crown/coping, Bridge, Inlay/onlay, Veneer, Surgical guideModel, Glass ceramic, Premilled abutment |
Max spindle speed | 60000 RPM |
Rotation range | A:士360° B:士30° |
Number of toolhoused | 3 |
Machine Total Power | 2.6KW |
Average milling time | Zirconia: 9-18 min,Wax: 4-12 min,Resin: 8-15 min,Premilled abutment: 12-22 min, Glass ceramic: 15-28 min |
External dimensions | 557*730*670 mm |
Weight | 121 KG |
Positioning accuracy | 0.003 mm |
Model | JD-2040S |
Milling mode | Dry/Wet |
Product type | rown, Bridge, Inlay/Onlay, Veneer, Framework, Glass ceramic, Premilled abutment |
Max spindle speed | 40000 RPM/min |
Spindle cooling | Water cooling |
Rotation range | A: 180° |
Number of tool housed | 4 |
Tool shank diameter | Φ4 mm |
Tool change and check | Fully Automatic |
Compatible compressed air | 0.7 MPa |
Loadable workpiece shape | Disk diameter: 98mm Premilled abutment: Single Glass ceramic: PIN type |
Input Voltage | Single-phase 220V 50Hz/60Hz |
Machine Total Power | 3.6 KW |
Average milling time(dental crown) | Zirconia: 9-15 min Wax: 5-12 min Resin: 8-12 min Titanium: 12-18 min Premilled abutment: 17 min Glass ceramic: 15-38 min |
External dimensions | 850*850*1850 mm + 600*650*1355 mm |
Weight | 680 KG |
Model | JD-GT4 |
Axis | 4 |
Milling mode | Dry/Wet |
Millable material | Zirconia, Wax, PMMA, PEEK, Resin, Premilled abutment,Glass ceramicCrown/coping,Bridge, Inlay/onlay, Veneer, Glass ceramic |
Product type | Crown/coping,Bridge, Inlay/onlay, Veneer, Glass ceramicPremilled abutment |
Max spindle speed | 60000 RPM |
Rotation range | A: 土360° |
Number of tool housed | 3 |
Machine Total Power | 2.5KW |
Average milling time | Zirconia: 9-18 min, Wax: 3-6 min, Resin: 12 min, Premilledabutment: 22-28 min, Glass ceramic: 25-38 min |
External dimensions | 524*800*610mm |
Weight | 115 KG |
Positioning accuracy | 0.003 mm |

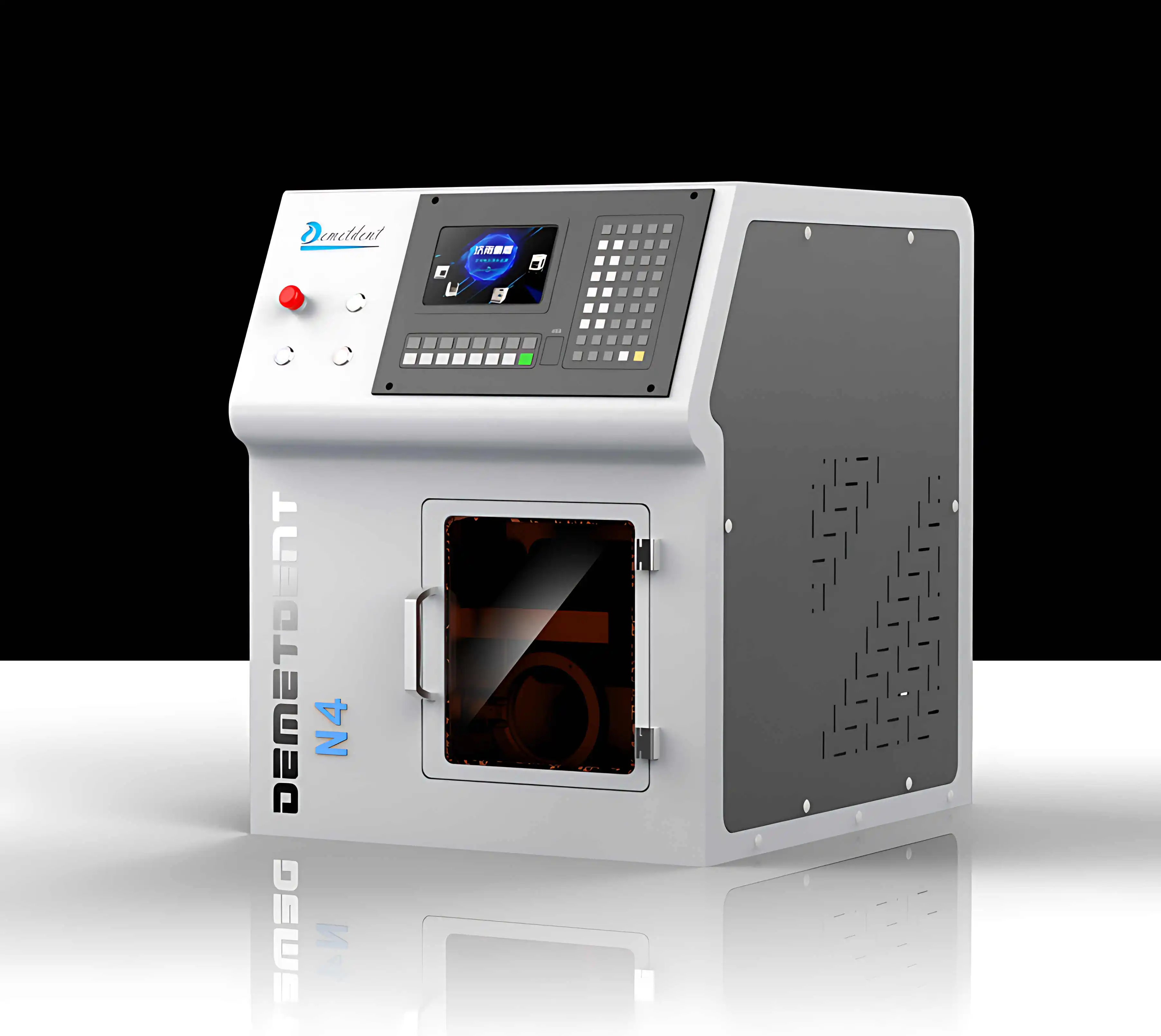

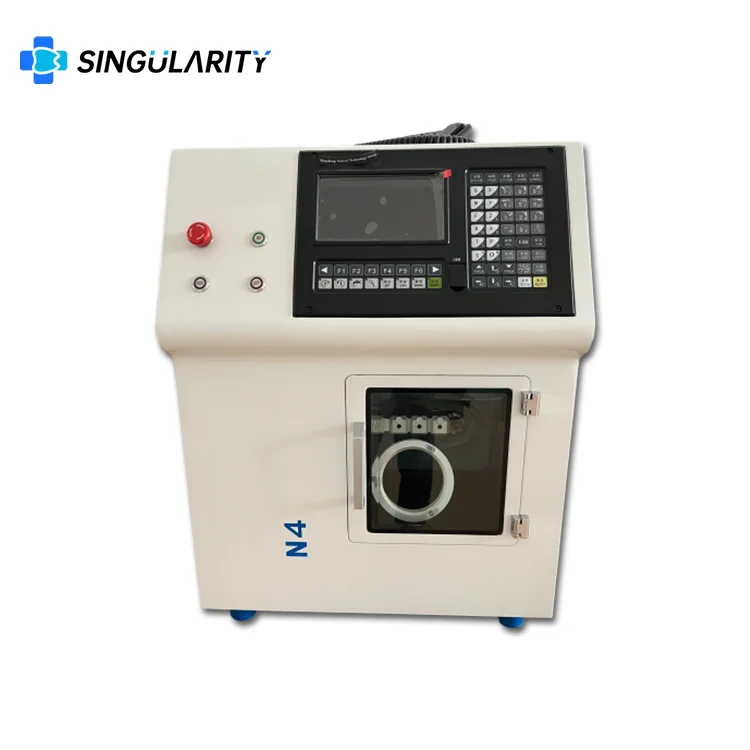

Model | JD-N4 |
Axis | 4 |
Milling mode Dry | Dry |
Millable material | Zirconia, Wax |
Product type | Crown, bridge, Inlay/onlay |
Max spindle speed | 60000 RPM/min |
Spindle power | 1.5 KW |
Spindle cooling | Water cooling |
Rotation range | A: ±360° |
Number of tool housed | 3 |
Tool shank diameter | Φ4 mm |
Tool change and check | Fully Automatiic |
Compatible compressed air | 0.7 MPa |
Loadable workpiece shape | Disk Disk diameter: 98 mm Thickness: ≤30 mm(max） |
Input Voltage | Single phase 220V 50Hz/60Hz |
Machine Total Power | 2.5KW |
Average milling time(dental crown) | Zirconia: 8-15 min Wax: 5-9 min Wax;5-9min |
External dimensions | 530*670*710 mm |
