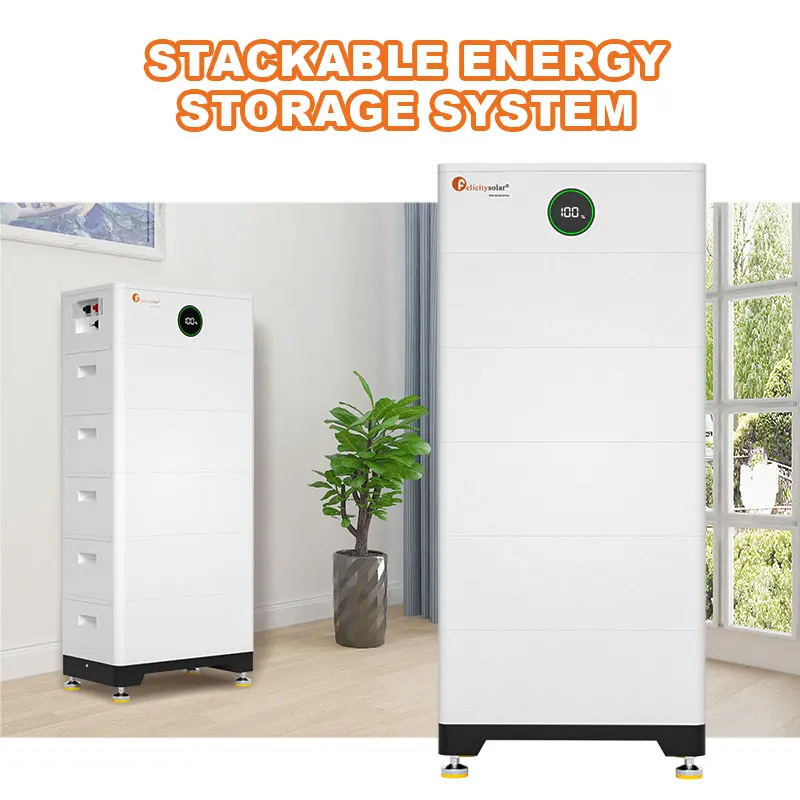

battery for solar cabinet type storage battery lithium lifepo4 cylindrical battery cell
- Category: >>>
- Supplier: Guangzhou Felicity Solar Technology Co. Ltd.
Share on (1601011995338):
Product Overview
Description
Product Parameters

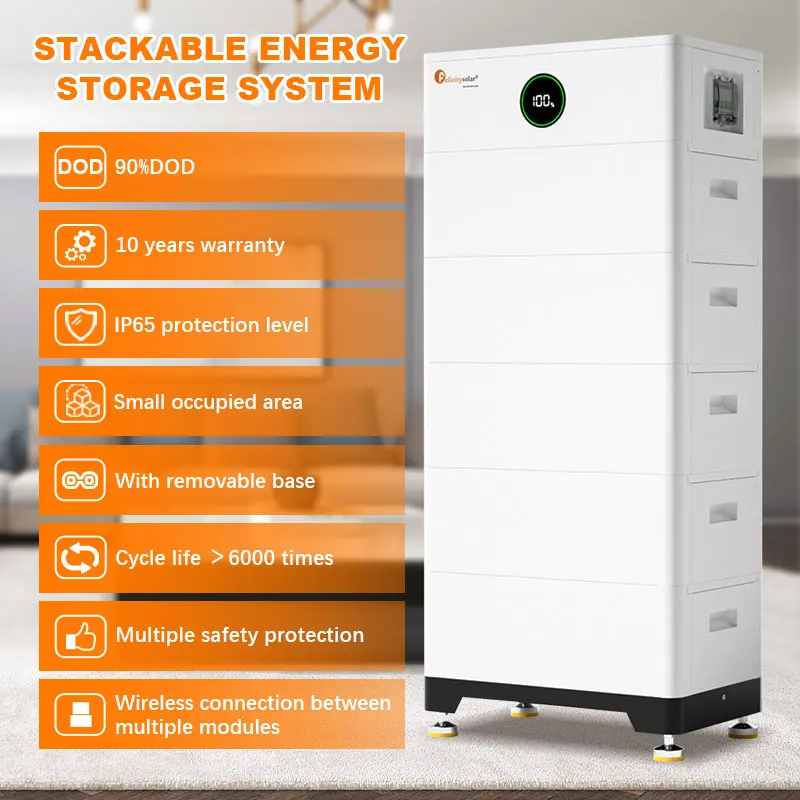

Features
·10 years warranty
·90%DOD
·99%Faradic charge efficiency
·Support connected in parallel mode for expansion
·Cycle life> 6000 times
·1P65 protection level
·Small occupied area
·Iron phosphate-lithium power battery
·90%DOD
·99%Faradic charge efficiency
·Support connected in parallel mode for expansion
·Cycle life> 6000 times
·1P65 protection level
·Small occupied area
·Iron phosphate-lithium power battery

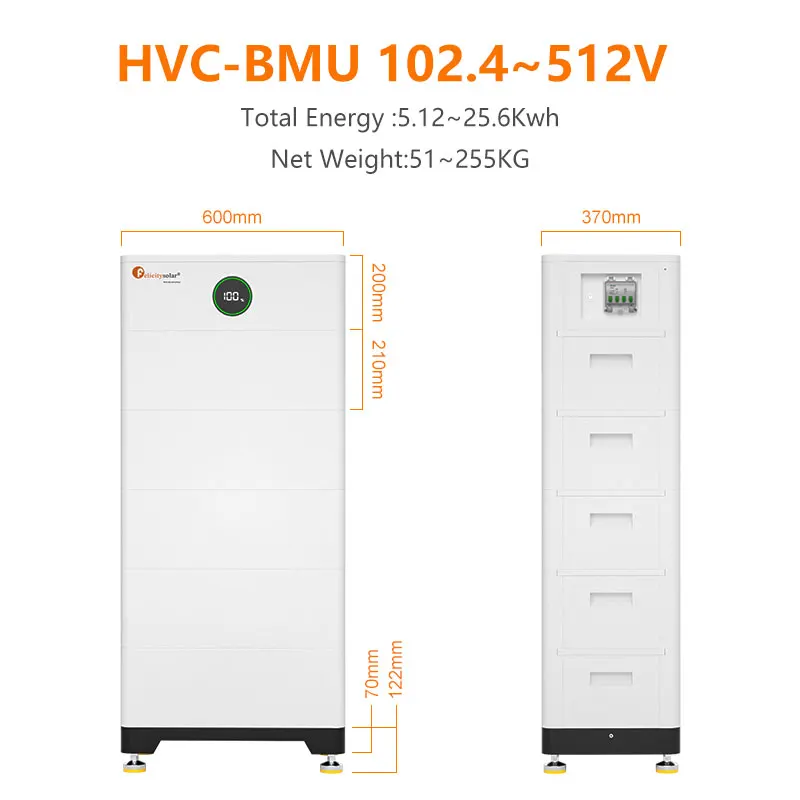

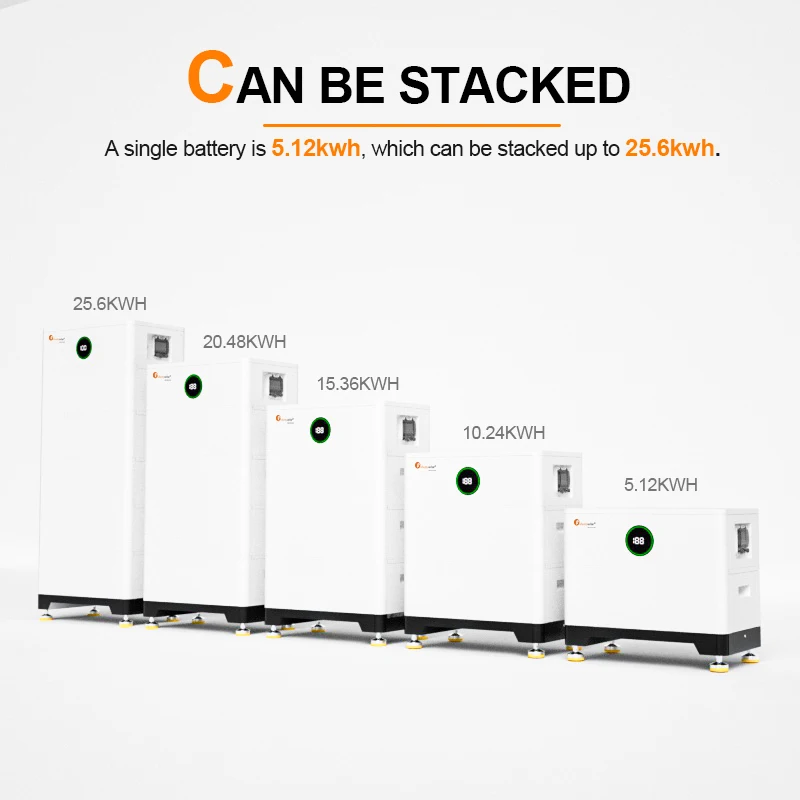

Datasheet | HVC 5.1 | HVC 10.2 | HVC 15.4 | HVC 20.5 | HVC 25.6 | ||||
Battery Module | HVC-BMU (5.12kwh,102.4V,49kg) | ||||||||
Number of Modules | 1 | 2 | 3 | 4 | 5 | ||||
Total Energy | 5.12KWh | 10.24KWh | 15.36KWh | 20.48KWh | 25.6KWh | ||||
Usable Energy(90%DOD) | 4.6KWh | 9.2KWh | 13.8KWh | 18.4KWh | 23KWh | ||||
Nominal Voltage | 102.4V | 204.8V | 307.2V | 409.6V | 512V | ||||
MAX.Charge Voltage | 115.2V | 230.4V | 345.6V | 460.8V | 576V | ||||
MIN.Discharge Voltage | 96V | 192V | 288V | 384V | 480V | ||||
Max.Chargeing Current | 25A | ||||||||
Max.Discharge Current | 25A | ||||||||

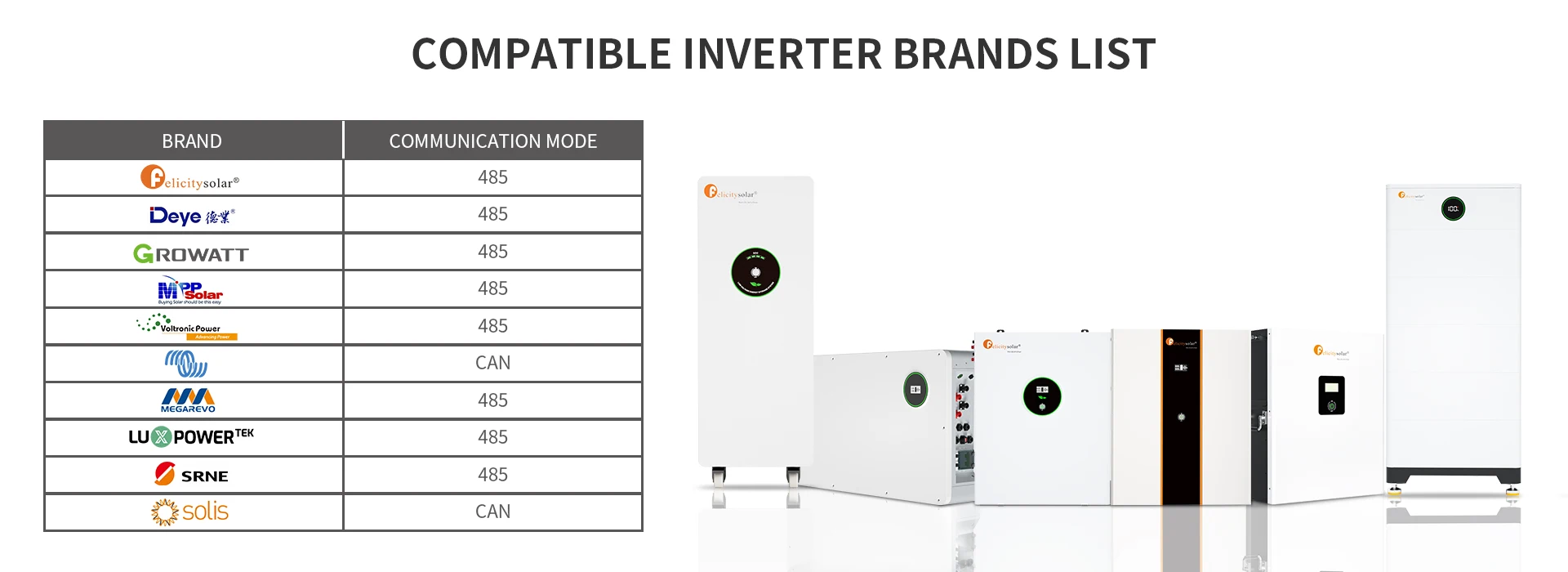

Communication | CAN,RS485 | ||||||||
Enclosure Protection Rating | IP65 | ||||||||
Working Temperature Range | -10~50℃ | ||||||||
Cycle Life | >6,000 Cycle@80% DOD/25℃/0.5C,60%EOL | ||||||||
Warranty | 10 years | ||||||||
Certification | IEC62619,UL1973,UN38.3,CE | ||||||||
Dimension[WxDxH] | 600*370*410mm | 600*370*620mm | 600*370*830mm | 600*370*1040mm | 600*370*1250mm | ||||
Weight | 60KG | 109KG | 158KG | 207KG | 256KG | ||||
Products Line

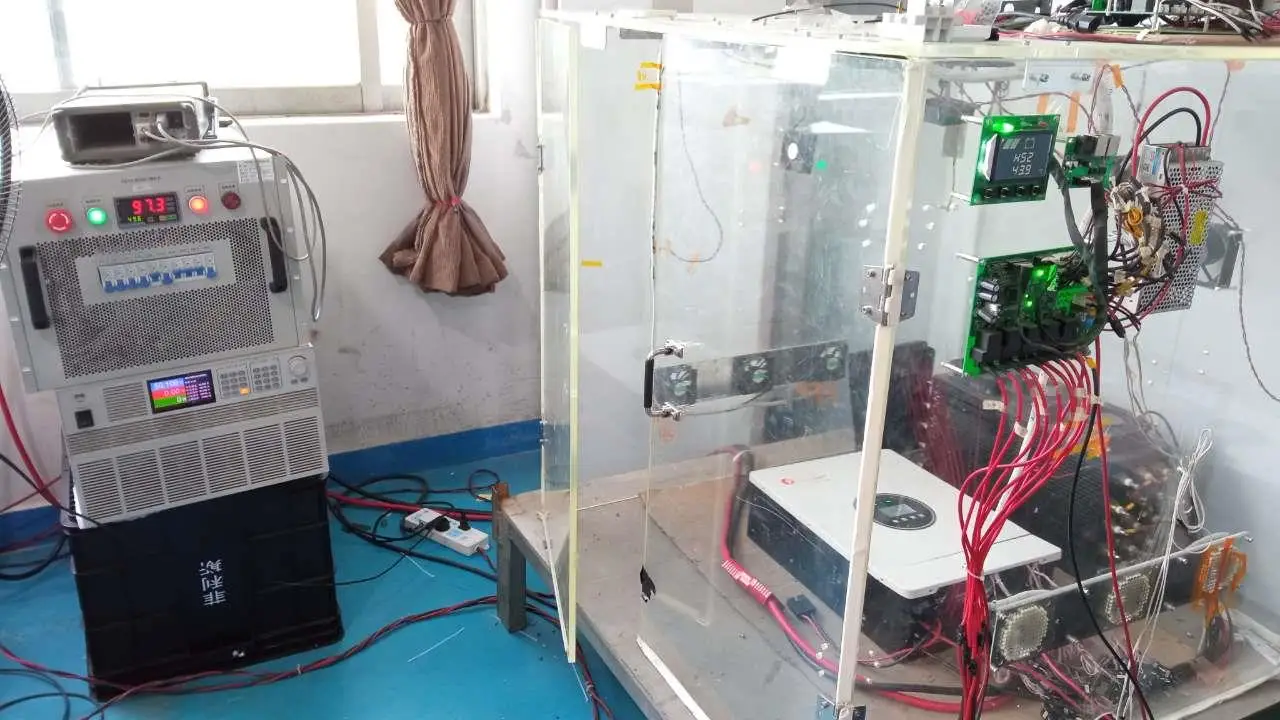

R & D technology

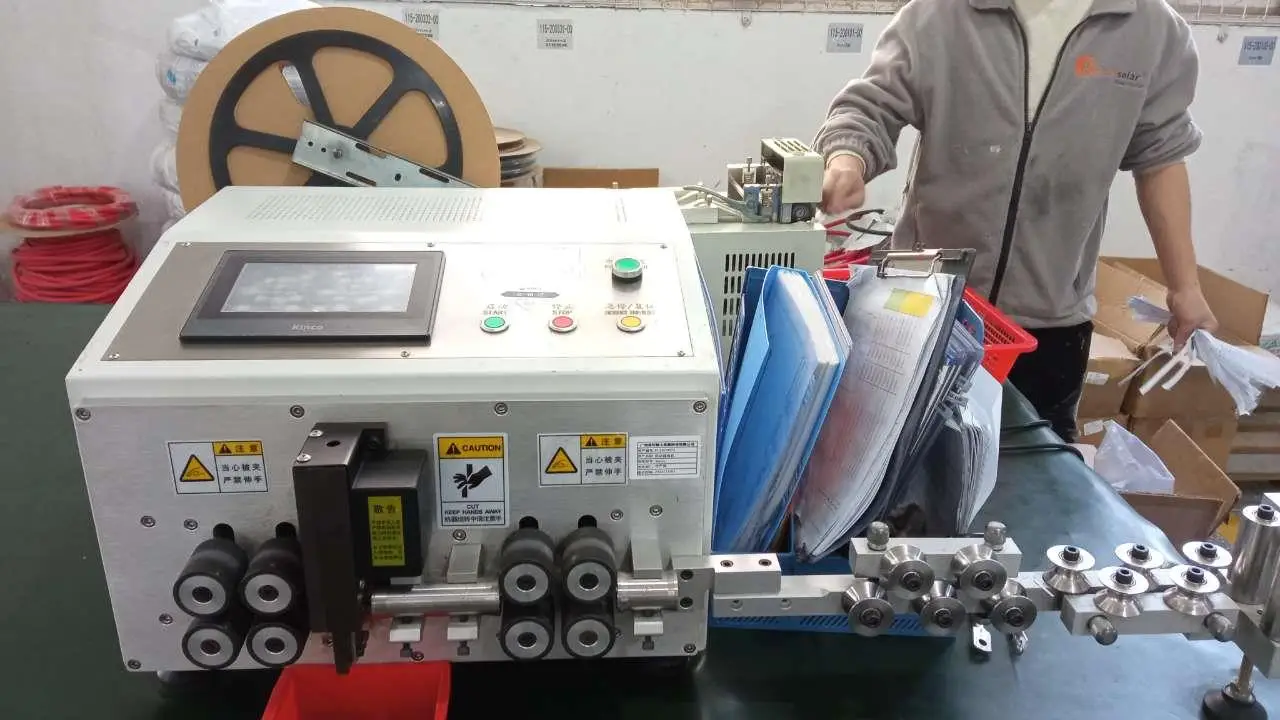

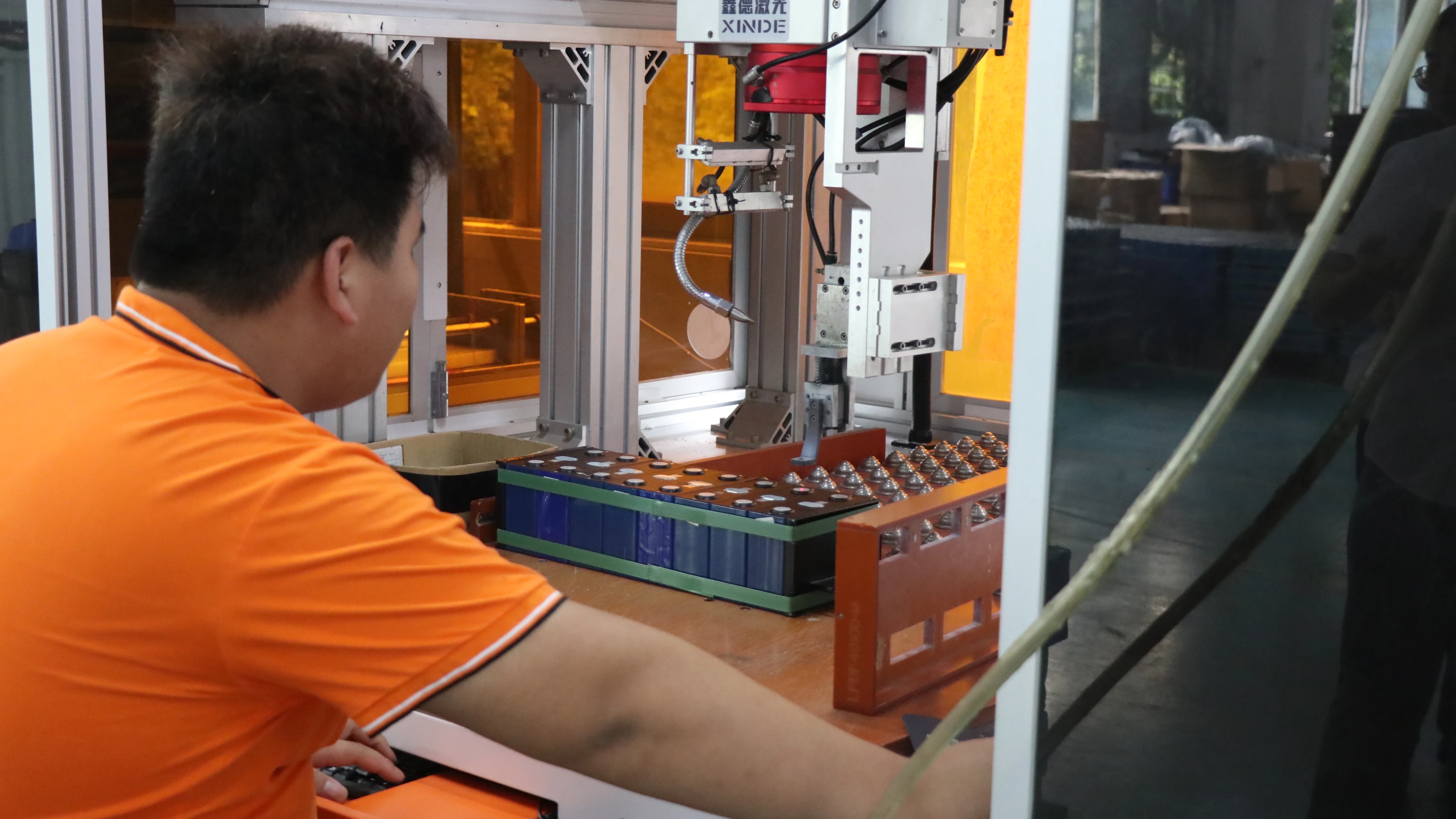

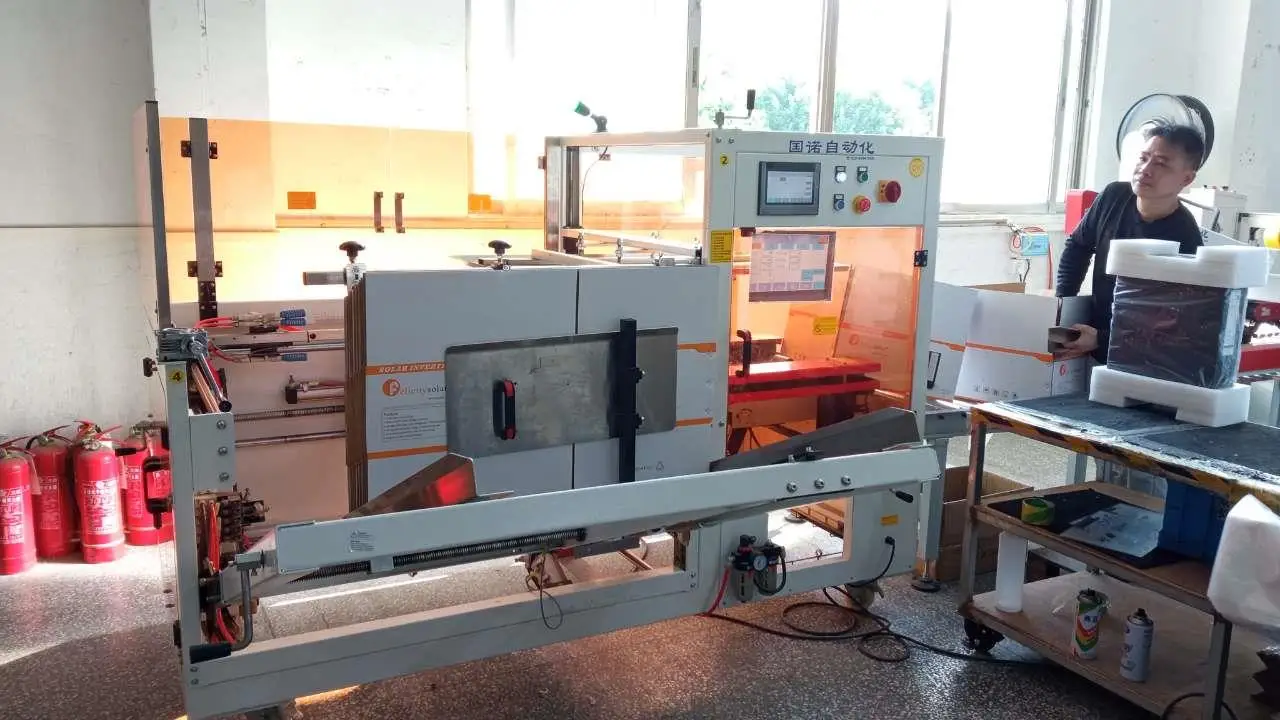

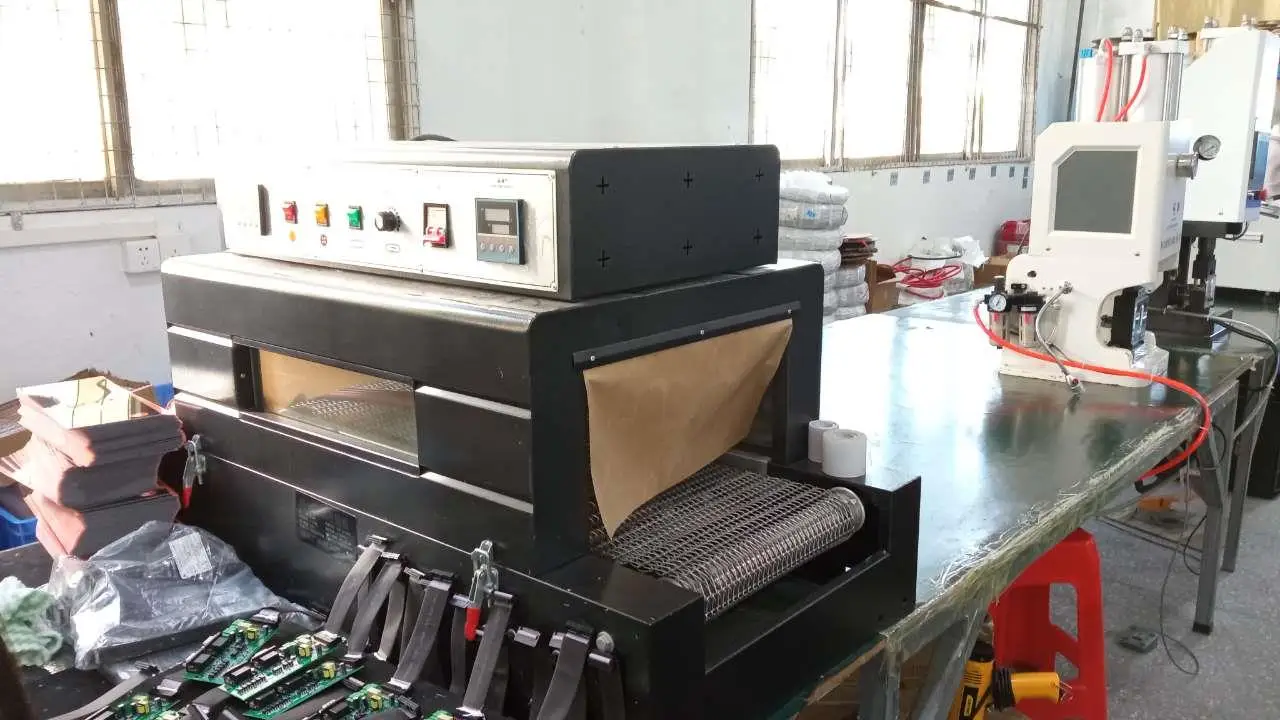

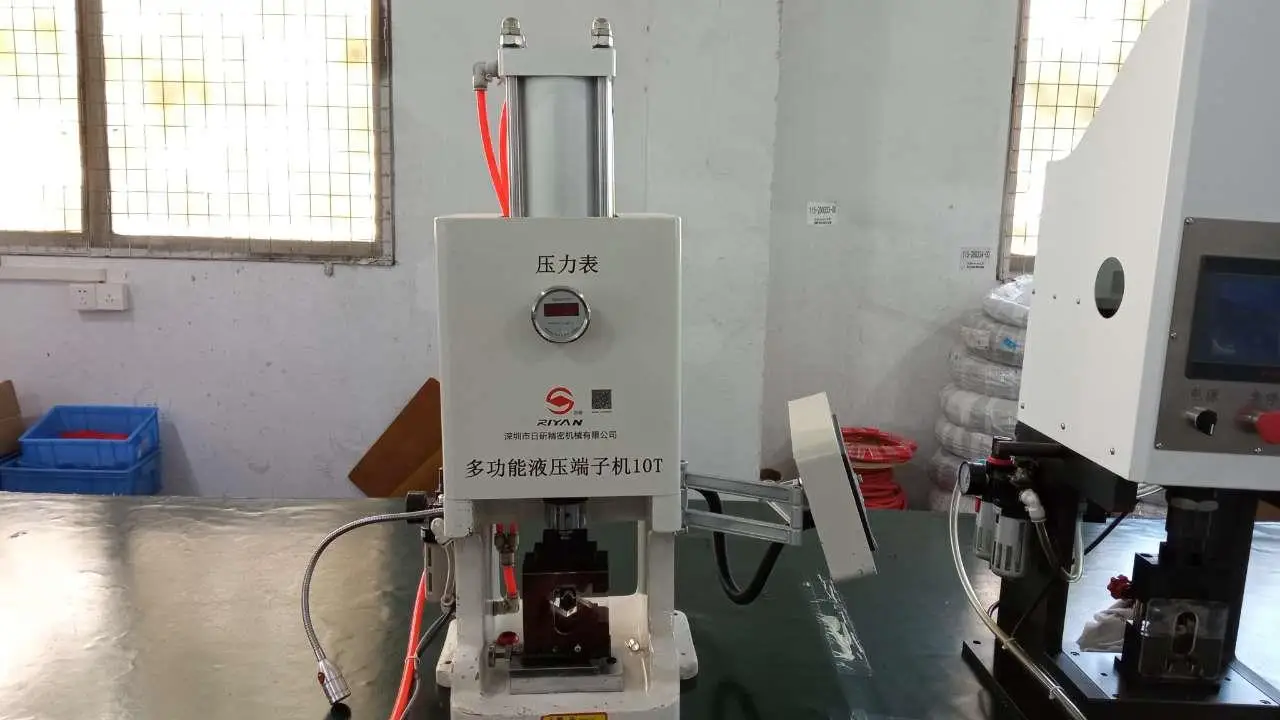

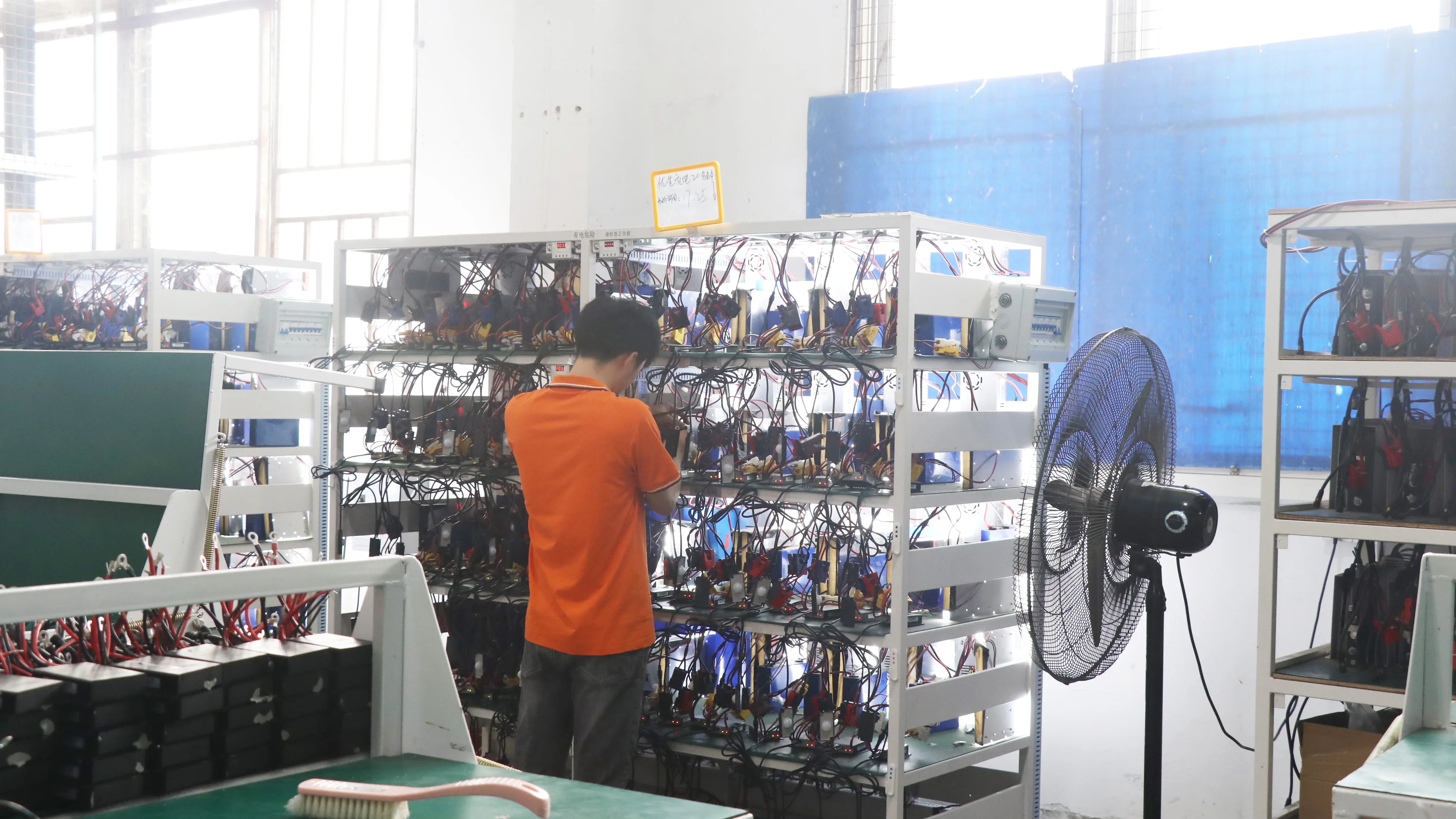

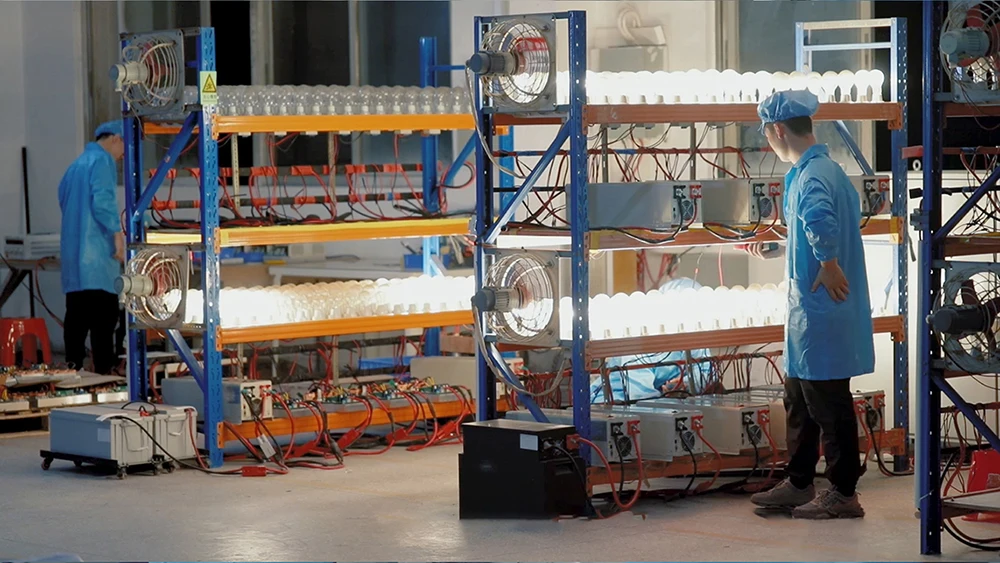

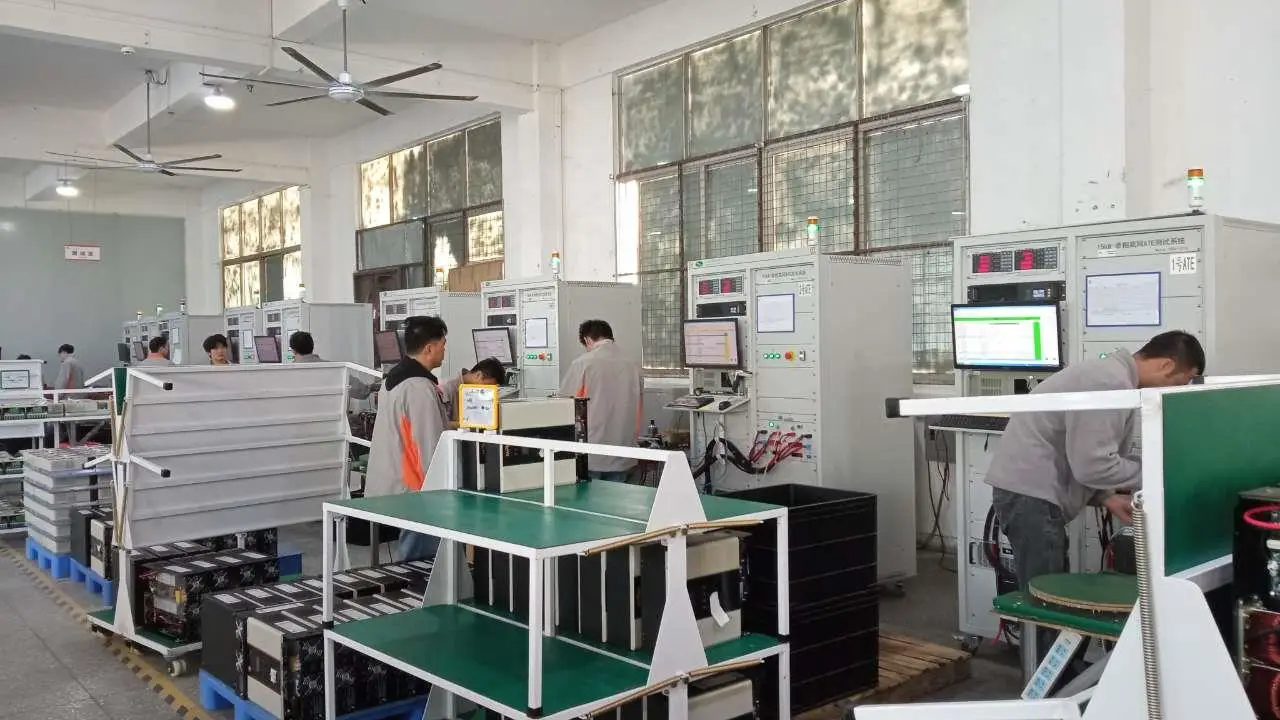

Advanced Equipment

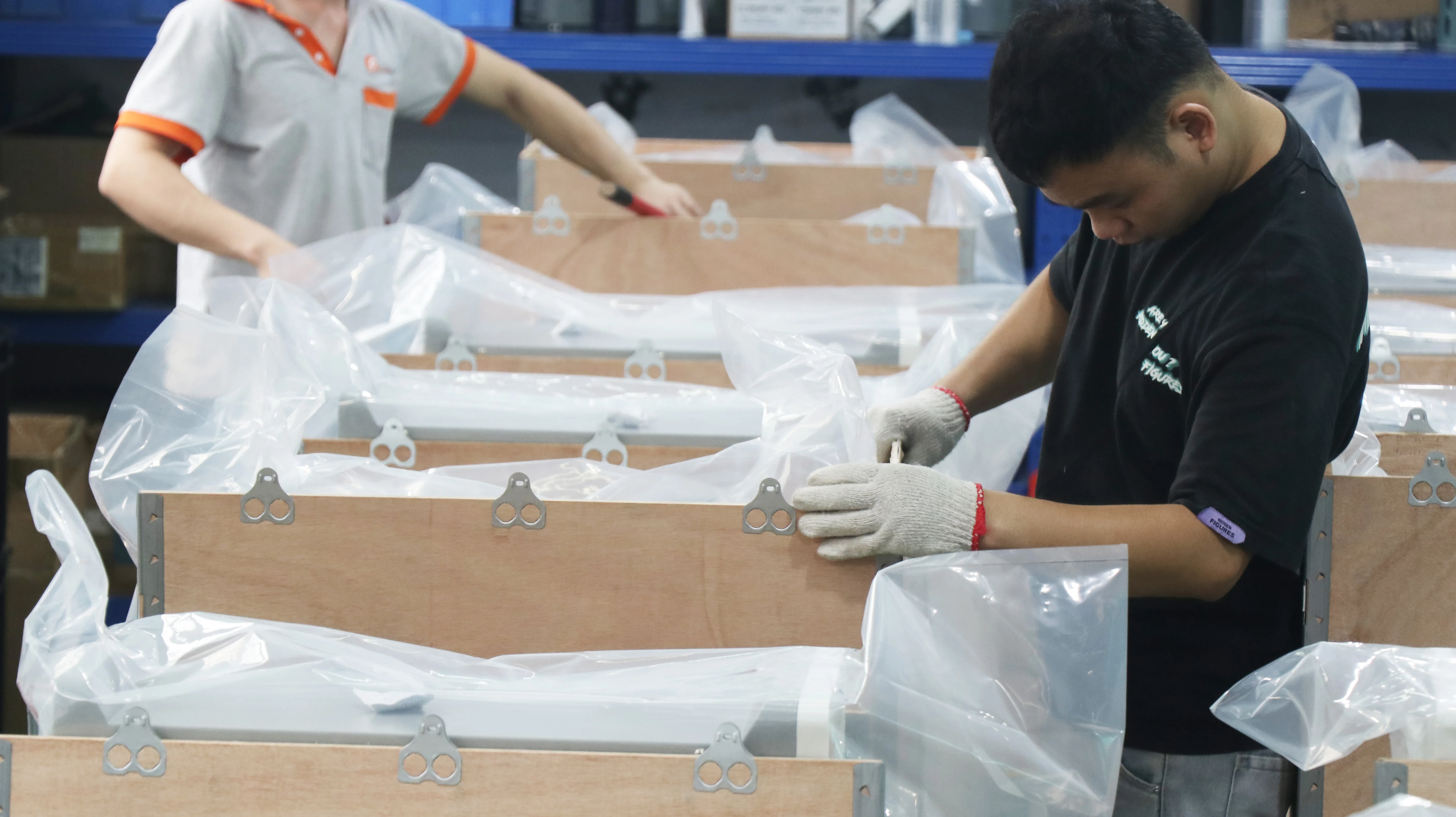

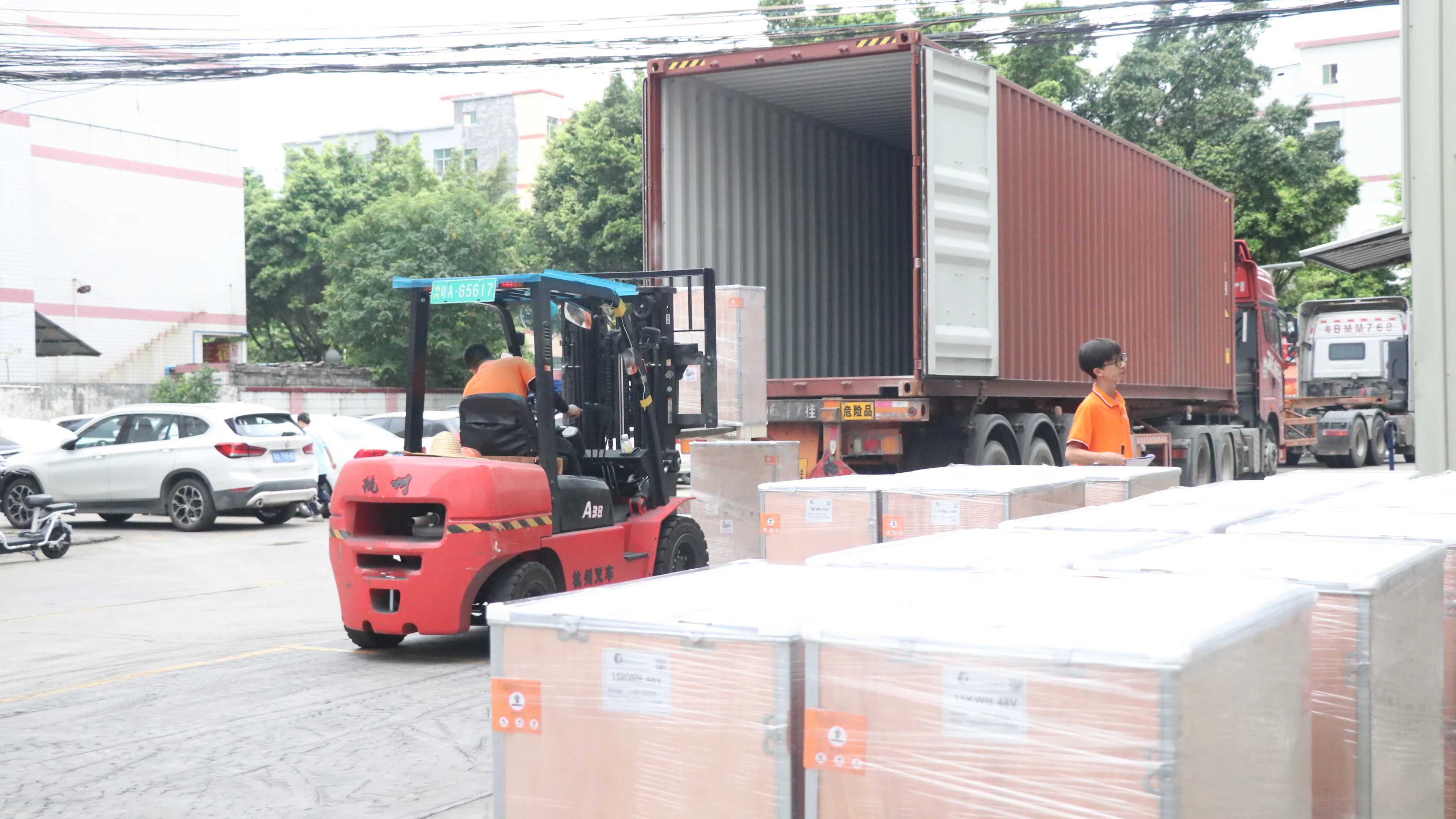

Packaging & Transportation
Exhibition
Certifications & Payment
Company Profile
Guangzhou Felicity Solar Technology Co., Ltd. (hereinafter referred to as "Felicity") is a photovoltaic high-tech enterprise integrating R&D, production, sales, engineering design, installation guidance and after-sales service. Founded in 2010, the company covers an area of 35 acres, and has an annual output value of nearly 1 billion yuan. At present, the company has more than 600 employees, including more than 100 senior experts in new energy and professional technical personnel in various disciplines. There are 6 production plants, 3 research and development institutions, and 25 product technology patents, including 20 practical invention patents and 5 invention patents.
The company focusing on the design, development and production of solar inverters, solar charge controllers, battery packs, solar panels, solar street lights and other series of products to meet the needs of domestic and foreign markets for solar system products. The products have passed CE, ROHS, SONCAP and other international certifications, and have business cooperation with the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria and other countries, covering more than 40 countries and regional markets, and have established 25 overseas branches .
