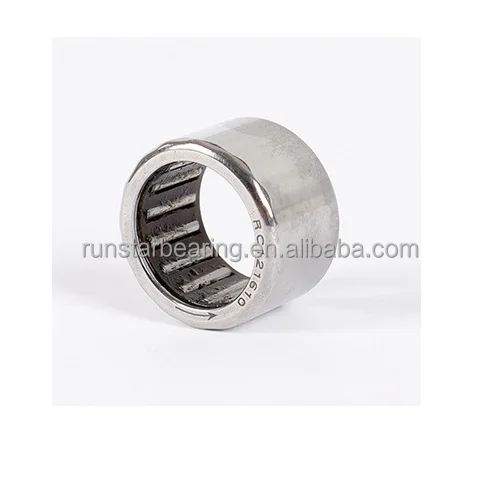

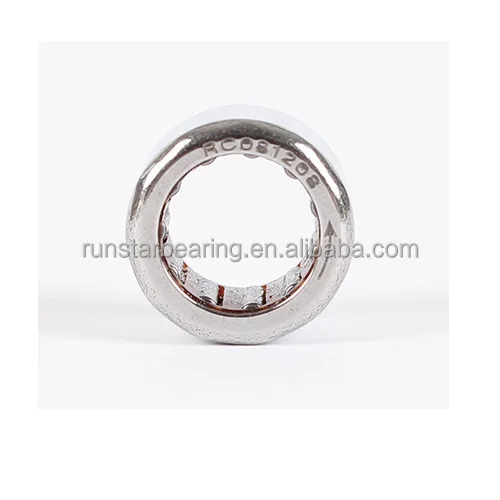

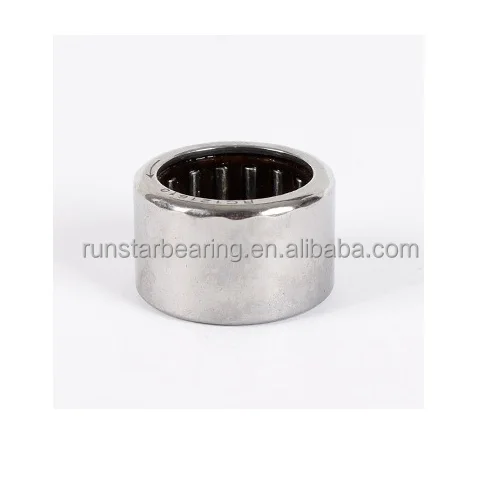

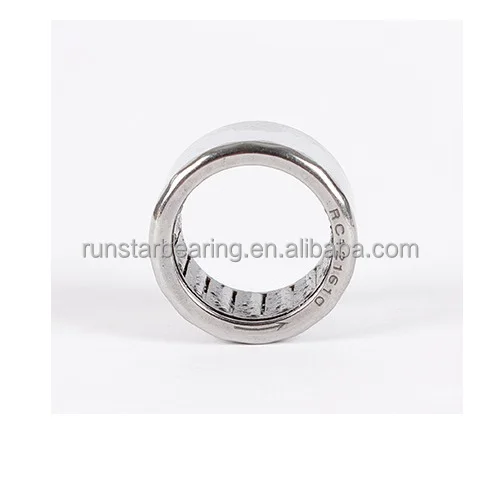

RC Rcb Series Needle Bearing Supplier RC121610 19.05*25.4*15.88 Drawn Cup Needle Roller Clutch Bearing

Product Overview

Description

   Needle roller bearings are roller bearings with cylindrical rollers that are thin and long relative to their diameter. Such rollers are called needle rollers. Although the cross-sectional area is small, roller bearings still have a high load-bearing capacity due to the fact that the entire surface of the roller carries the load, they are widely used in application with a limited radial installation dimensions.
HF and HF series are belong to one way clutch needle roller bearings,  they are widely for transmission components that require backstop action,such as fitness equipment, currency counting machines, washing machines, fishing gear, dishwashers, SMT machines, textile machines, floor cleaners, and toy cars, automobiles, motorcycles, mopeds, power tools,  agricultural machinery, industrial sewing machines, construction machinery, etc.

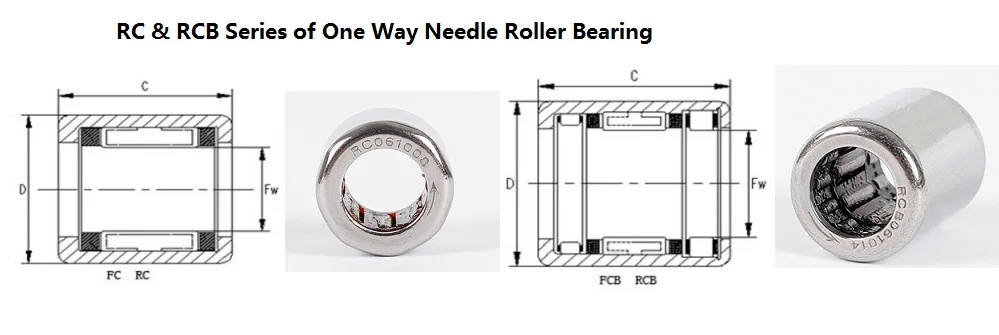

Part No:	weight	Dimension			Torgue
		Fw	D	C
	g	mm			Nm
RC040708	3.5	6.35	11.112	12.7	1.9
RC040708-FS	3.5	6.35	11.112	12.7	1.9
RC061008	4.7	9.525	15.875	12.7	4.83
RC061008-FC	4.7	9.525	15.875	12.7	4.83

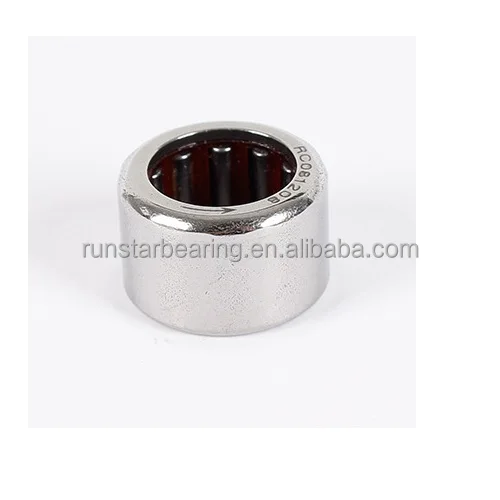

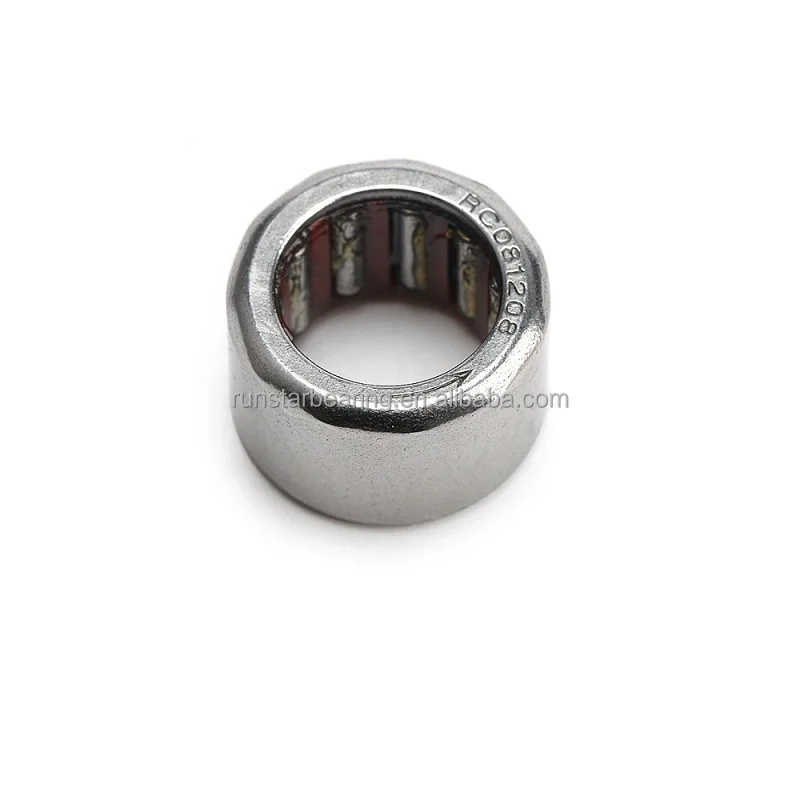

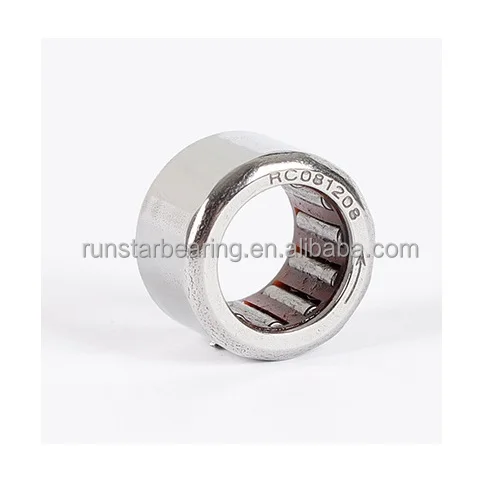

RC081208	9.2	12.7	19.05	12.7	7.9
RC081208-FS	9.2	12.7	19.05	12.7	7.9
RC101410	14.5	15.875	22.225	15.88	15.4
RC101410-FC	14.5	15.875	22.225	15.88	15.4
RC121610	17	19.05	25.4	15.88	20.9
RC121610-FS	17	19.05	25.4	15.88	20.9
RC162110	16.2	25.4	33.338	15.88	45
RC162110-FC	16.2	25.4	33.338	15.88	45
RCB061014	12	9.525	15.875	22.22	4.83
RCB061014-FS	12	9.525	15.875	22.22	4.83
RCB081214	16	12.7	19.05	22.22	7.9
RCB081214-FC	16	12.7	19.05	22.22	7.9
RCB101416	21.3	15.875	22.225	25.4	15.4
RCB101416-FS	21.3	15.875	22.225	25.4	15.4
RCB121616	26.5	19.05	25.4	25.4	20.9
RCB121616-FC	26.5	19.05	25.4	25.4	20.9
RCB162117	44.8	25.4	33.338	26.99	45
RCB162117-FS	44.8	25.4	33.338	26.99	45





One Way Clutch Needle Roller Bearing  HF Series			weight	Dimensions  (mm)			Rotation torque     (Nm)	Limiting Speed      rpm		Suitable Drawn Cup Bearings
Shaft Diameter (mm)	Plastic Springs	Steel Springs	g	Fw	D	C		Shaft Rotation	Outer Ring Rotation
3	HF0306KF		0.9	3	6.5	6	0.2	36000	7000	HK0306TN
4	HF0406KF	--	1	4	8	6	0.34	34000	8000	HK0408TN
	HF0406KFR	--	1	4	8	6	0.1	34000	8000	HK0408TN
6	HF0608KF		2.8	6	10	8	1.5	20000	11000	HK0608
	HF0612KF	HF0612	3	6	10	12	1.76	23000	13000	HK0608
	HF0612KFR	HF0612R	3	6	10	12	1.76	23000	13000	HK0608
		HF061210	3.5	6	12	10	3	20000	13000	HK061208
8	HF0812KF	HF0812	3.5	8	12	12	3.15	17000	12000	HK0808
	HF0812KFR	HF0812R	3.5	8	12	12	4	17000	12000	HK0808
	--	HF061210	3.2	8	12	10	3	16000	12000	HK0808
	--	HF081410	3.6	8	14	10	4.6	15000	11000	HK081410
	--	HF081610	4.1	8	16	10	5.5	15000	11000	HK081610
	--	HF081412	4	8	14	12	5	16000	12000	HK081410
10	HF1012KF	HF1012	4	10	14	12	5.3	14000	11000	HK1010
	HF1012KFR	HF1012R	4	10	14	12	1.5	14000	11000	HK1010
12	--	HF1216	11	12	18	16	12.2	11000	8000	HK1212
14	--	HF1416	13	14	20	16	17.3	9500	8000	HK1412
16	--	HF1616	14	16	22	16	20.5	8500	7500	HK1612
18	--	HF1816	16	18	24	16	24.1	7500	7500	HK1812
20	--	HF2016	17	20	26	16	28.5	7000	6500	HK2010
		HF2216	25	22	28	16	32	6500	6000
25	--	HF2520	30	25	32	20	66	5500	5500	HK2512
		HF273420	30	27	34	20	110
		HF404725	45	40	47	25	185
		HF485620	43	48	56	20	230
		HF586820	86	58	68	20	320
30	--	HF3020	36	30	37	20	90	4500	4500	HK3012
35	--	HF3520	40	35	42	20	121	3900	3900	HK3512
