Peavey professional mixer console 12 channels audio mixer
- Category: >>>
- Supplier: Sichuan Chenyu Technology Co. Ltd.
Share on (1601012055772):
Product Overview
Description
Product Description

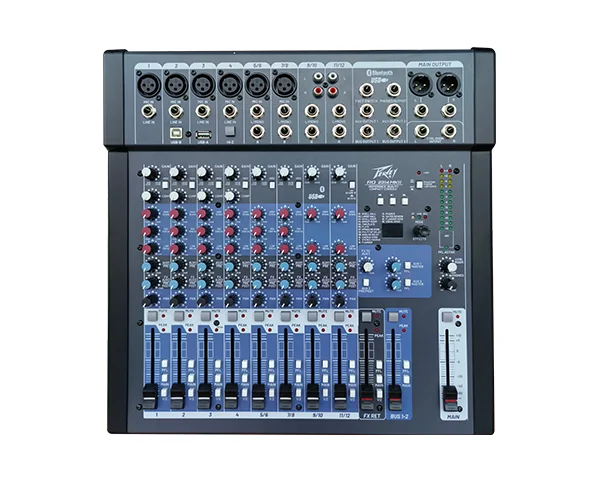

Durable metal shell design, professional DSP effector with 16 effects; 6 MIC/LINE mono inputs, 4 stereo inputs, each microphone input has a 48V phantom power supply; 5/6 and 7/8 stereo inputs (dual 1/4 "TRS interfaces) with 3-stage equalization; 9/10 stereo input (dual 1/4 "TRS interface and dual RCA interface), with 2-stage equalization, Bluetooth playback and USB-A MP3 playback; 11/12 stereo input (dual 1/4 "TRS interface and dual RCA interface), with 2-stage equalization and USB-B input; 6-bus output design, with 2 main outputs, 2 grouping outputs, 2 auxiliary outputs, 1 control room output, and recording room quality headphone output; 1 foot control foot switch for controlling the switch of the effector; The first four channels are equipped with built-in compressors, Bluetooth wireless connection, onboard USB-A MP3 playback function, and stereo USB-B streaming audio input and output; Mono channel 3-segment equalizer with separate channel muting; LED clipping indication and signal indication; 60mm pusher; High quality LED level display, effect and playback LCD display, 20/27 bit digital signal DSP processing, 24 bit D/A and A/D conversion;
Frequency response: 20 Hz to 20 kHz (+/-1dB)
Total harmonic distortion (T.H.D.): 0.003%, at+0dB (20 Hz to 20 kHz)
Sensitivity range: MIC input 0dB to -50dB
Line input 20dB to -30dB
Input impedance: Mono MIC input 14 k Ω unbalanced
Mono line input 21k Ω unbalanced
Stereo line input 15k Ω unbalanced
Mono channel equalizer: High frequency+/-15 dB @ 10 kHz
Intermediate frequency+/-15 dB @ 1250 kHz
Low frequency+/-15 dB @ 100 Hz
Stereo equalizer: High frequency+/-15 dB @ 10 kHz
Low frequency+/-15 dB @ 100 Hz
Frequency response: 20 Hz to 20 kHz (+/-1dB)
Total harmonic distortion (T.H.D.): 0.003%, at+0dB (20 Hz to 20 kHz)
Sensitivity range: MIC input 0dB to -50dB
Line input 20dB to -30dB
Input impedance: Mono MIC input 14 k Ω unbalanced
Mono line input 21k Ω unbalanced
Stereo line input 15k Ω unbalanced
Mono channel equalizer: High frequency+/-15 dB @ 10 kHz
Intermediate frequency+/-15 dB @ 1250 kHz
Low frequency+/-15 dB @ 100 Hz
Stereo equalizer: High frequency+/-15 dB @ 10 kHz
Low frequency+/-15 dB @ 100 Hz
