RTL8723BU 802.11b/g/n WiFi Ble 1T1R usb wireless realtek wifi module
RTL8723BU 802.11b/g/n WiFi+Ble 1T1R usb wireless realtek wifi module
RTL8723BU 802.11b/g/n WiFi+Ble 1T1R usb wireless realtek wifi module
RTL8723BU 802.11b/g/n WiFi+Ble 1T1R usb wireless realtek wifi module
RTL8723BU 802.11b/g/n WiFi+Ble 1T1R usb wireless realtek wifi module
RTL8723BU 802.11b/g/n WiFi+Ble 1T1R usb wireless realtek wifi module
RTL8723BU 802.11b/g/n WiFi+Ble 1T1R usb wireless realtek wifi module

RTL8723BU 802.11b/g/n WiFi Ble 1T1R usb wireless realtek wifi module

Share on (1601012069738):


Price:$2.30 - $4.00

Quantity:


Product Overview

Description
















Product Description









Introduction

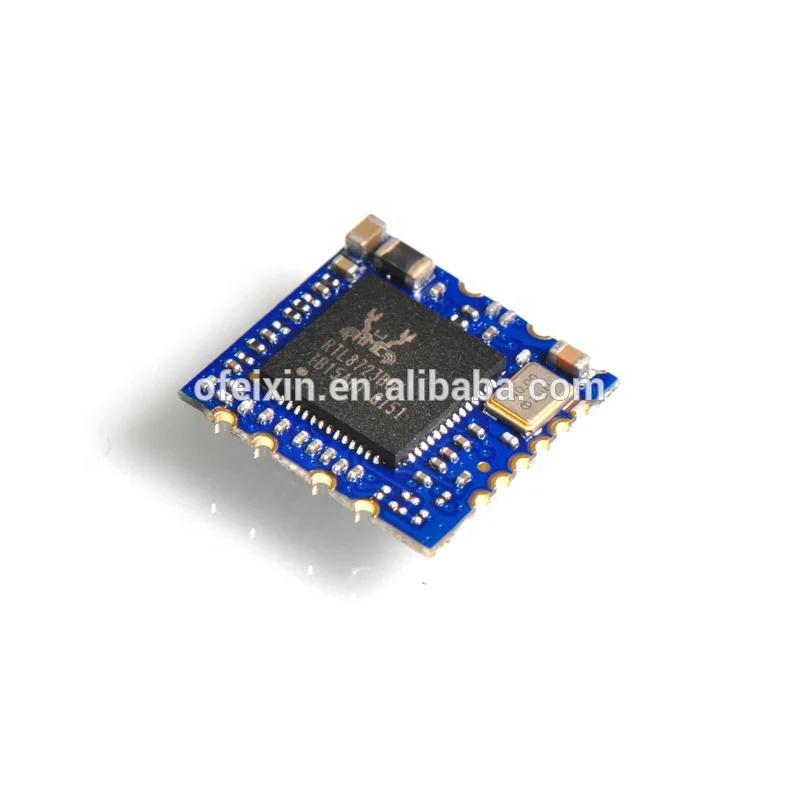

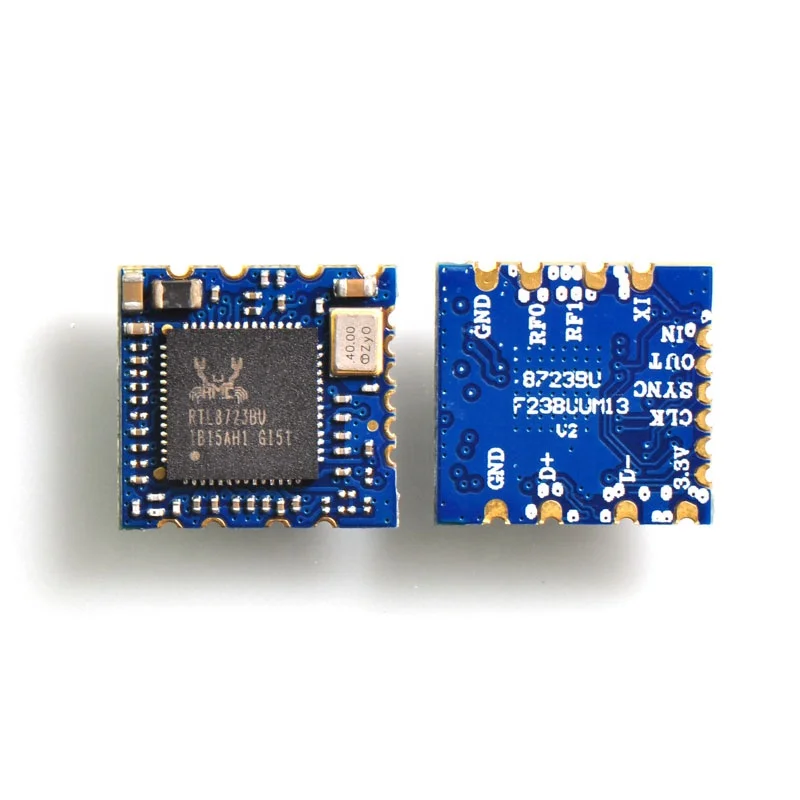

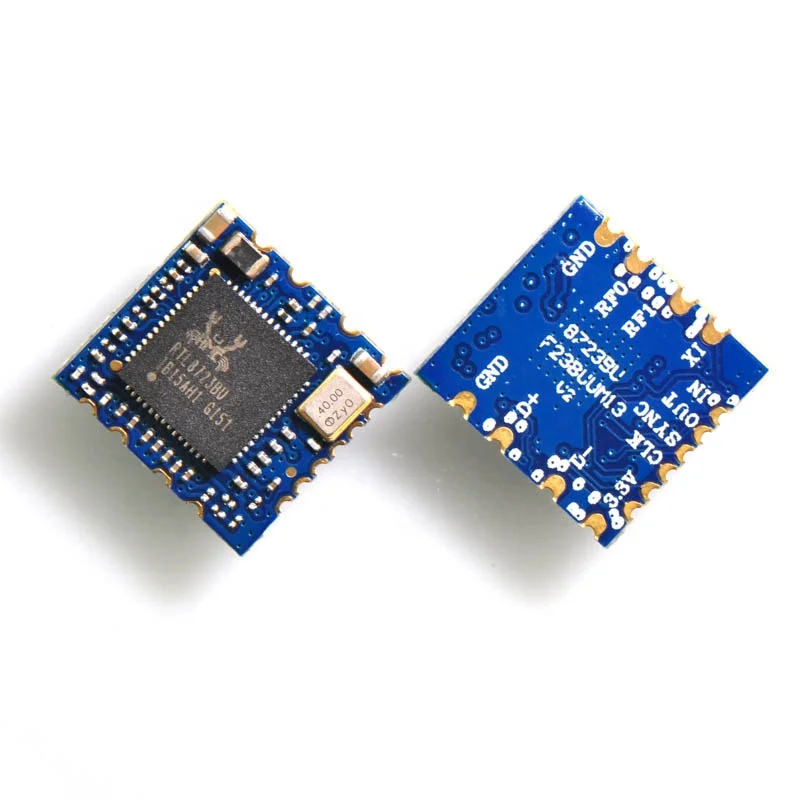

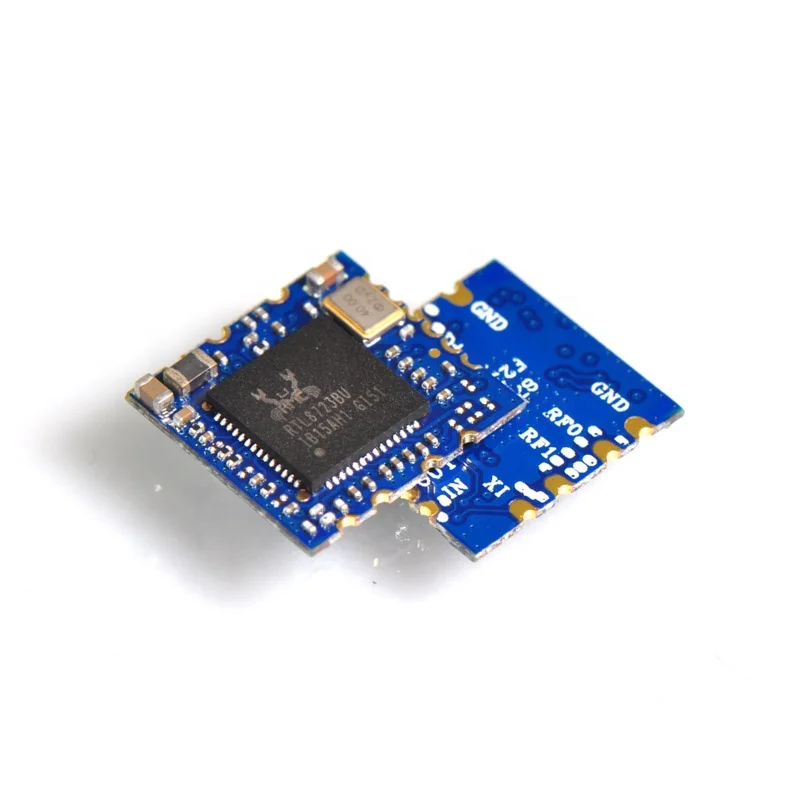

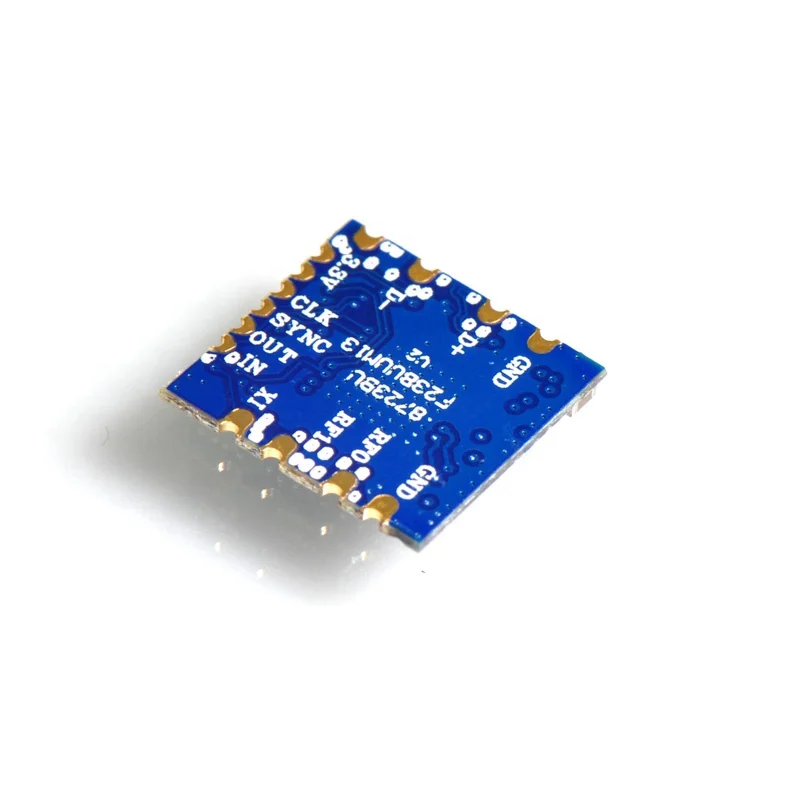

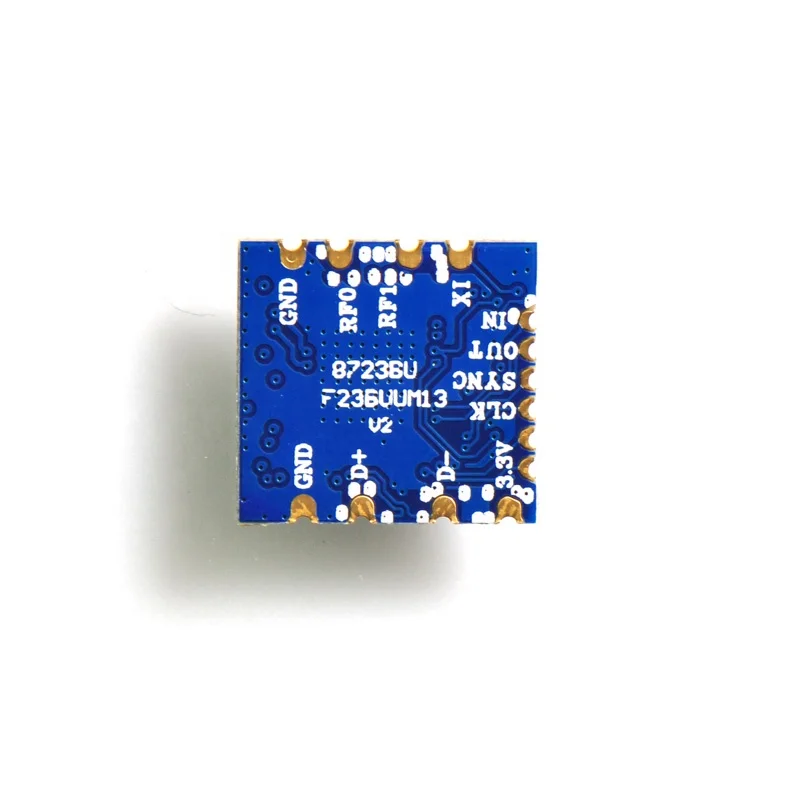

F23BUUM13-W2 is a small size and low profile of WiFi + BT Combo module with LGA (Land-Grid Array) footprint, board size is
12.9mm*12.19mm with module thickness of 1.6mm. It can be easily manufactured on SMT process and highly suitable for tablet PC,
ultra book, mobile device and consumer products. It provides USB interface for WiFi to connect with host processor and high speed
USB interface for BT. It also has a PCM interface for audio data transmission with direct link to external audio codec via BT
controller. The WiFi throughput can go up to 150Mbps in theory by using 1x1 802.11n b/g/n technology and can support

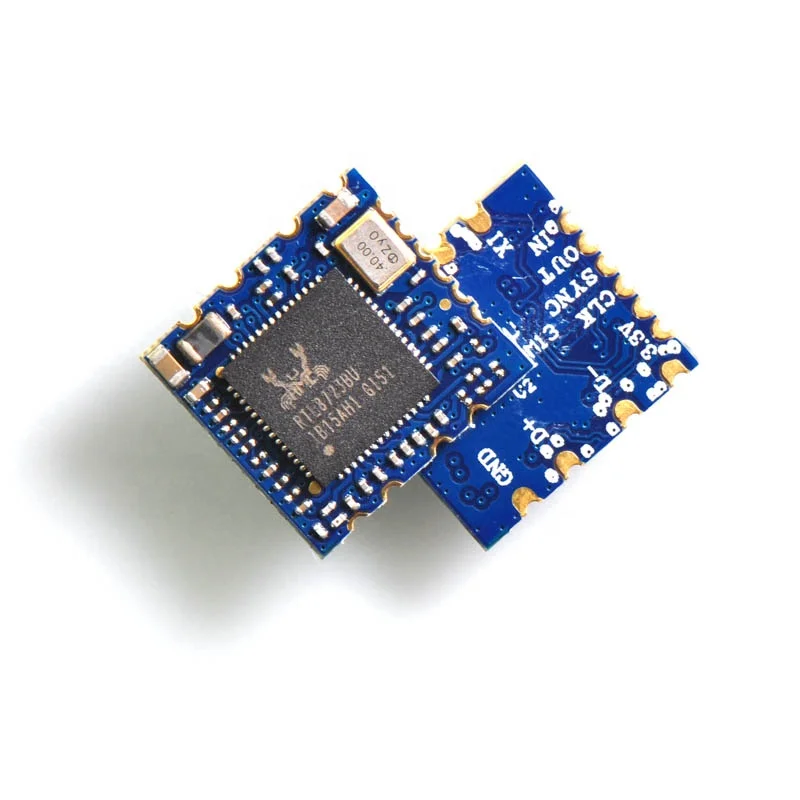

BT2.1+EDR/BT3.0 and BT4.0. F23BUUM13-W2 uses Realtek RTL8723BU, a highly integrated WiFi/BT single chip based on advanced COMS process. RTL8723BU integrates whole WiFi/BT function blocks into a chip, such as USB, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.




















Features





 Operate at ISM frequency bands (2.4GHz)



 USB for WiFi and



 IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e,

IEEE 802.11h, IEEE 802.11i



 Fully Qualified for 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode



 Fully qualified for 3.0



 Fully qualified for 4.0 Dual mode



 Full–speed operation with Piconet and Scatternet support



 Enterprise level security which can apply WPA/WPA2 certification for WiFi.



 WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps

upstream PHY rates















































Application Range:





& Consumer Application


Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys


& Commercial And OA Application


Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment


& Industrial And Vehical Application


Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile


& Medical Application


Medical equipments/Medical instruments










Detailed Parameters



















































Model No

F23BUUM13-W2

Main Chipset

RTL8723BU


WIFI/BT Interface

USB

WIFI Standards

IEEE802.11 b/g/n


Date Rates

150Mbps

Certification

RoHS,REACH


RF Antenna

External Antenna

OS Supported

Linux/windows/Android


Operating Frequency

2.4GHz

Operating Voltage

3.3V


Dimensions

12.9mm*12.19mm

RF Chains

1T1R


Operating Temperature

0°C to 70°C

Storage Temperature

-40°C to 80°C





Note








 Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please d
