Wholesale Price 2.4GHZ Wifi Module With Realtek 8189FTV For IP Camera

Introduction

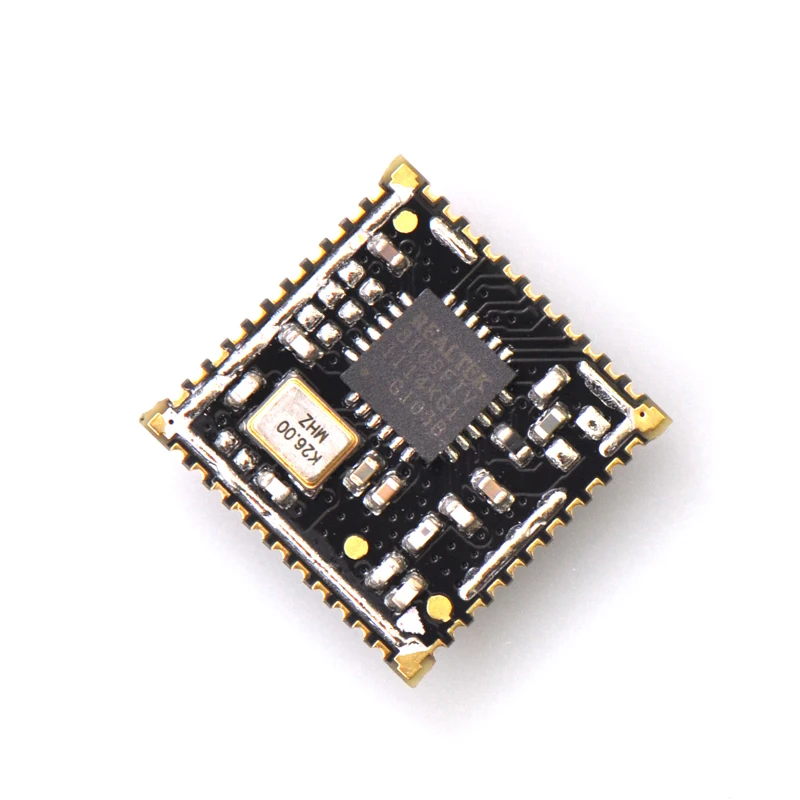

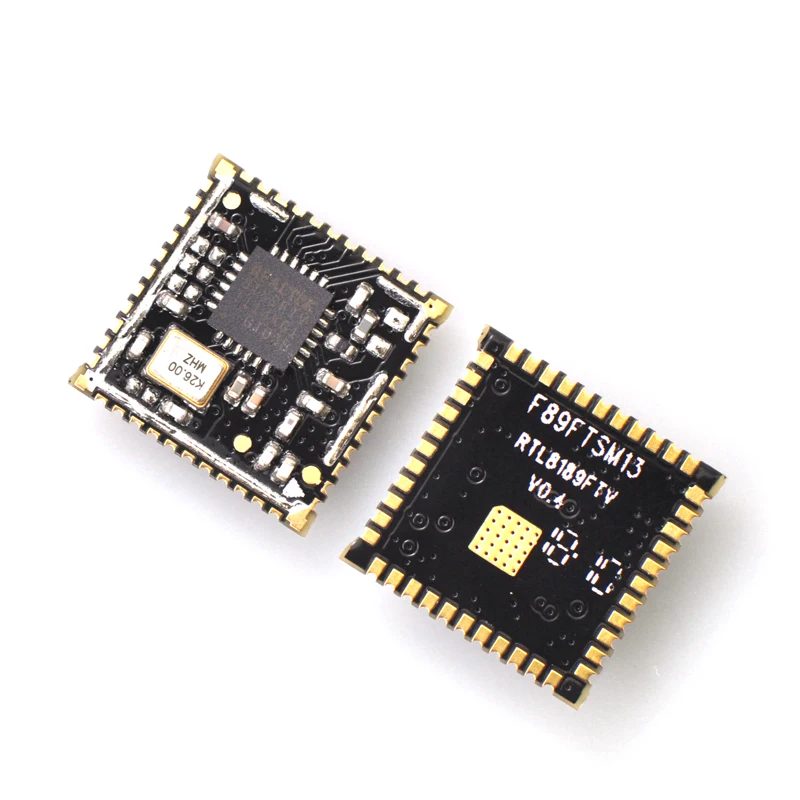

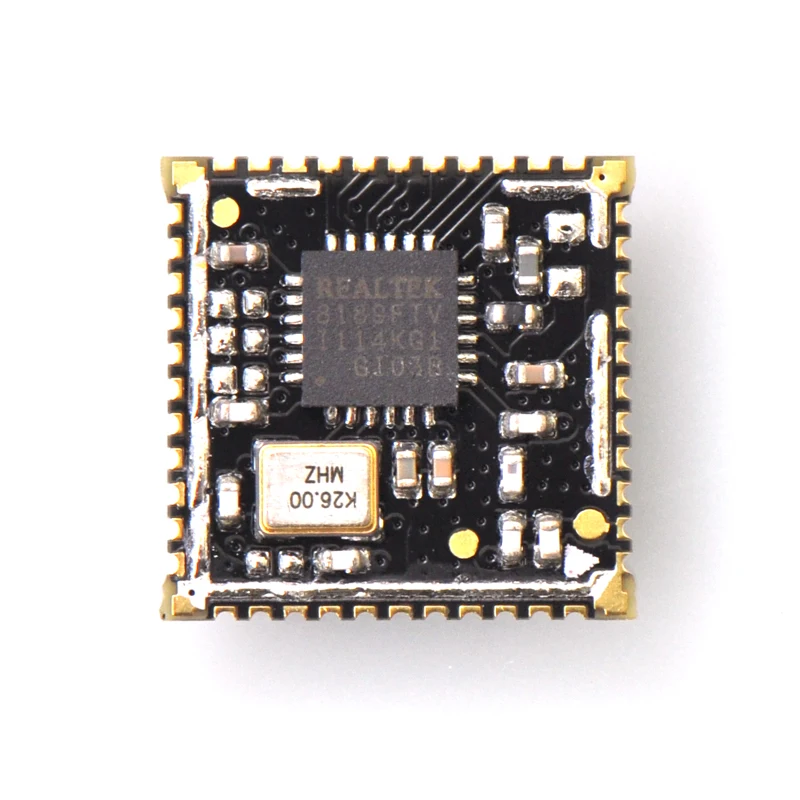

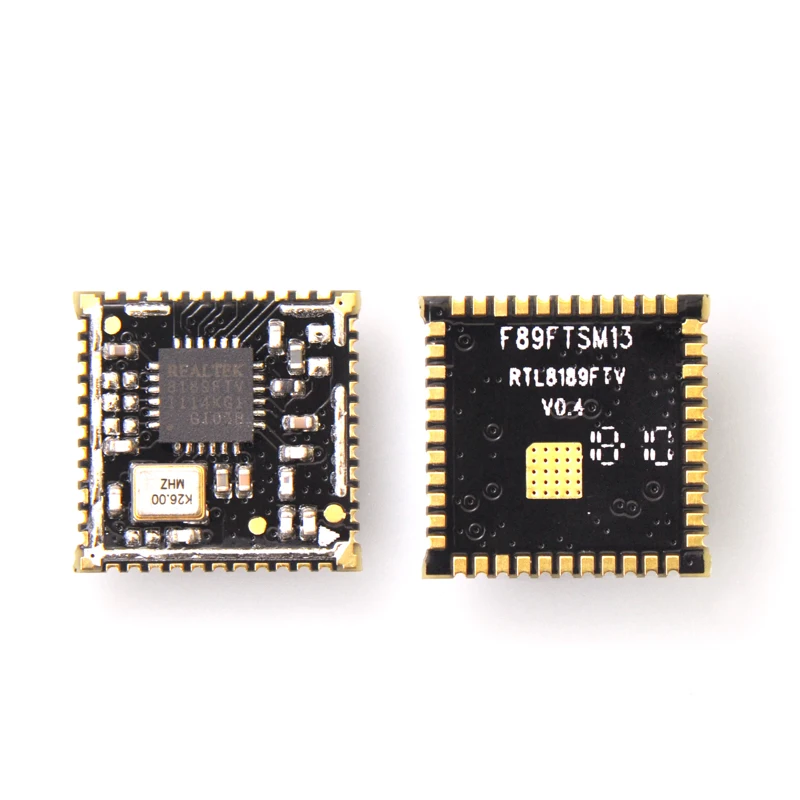

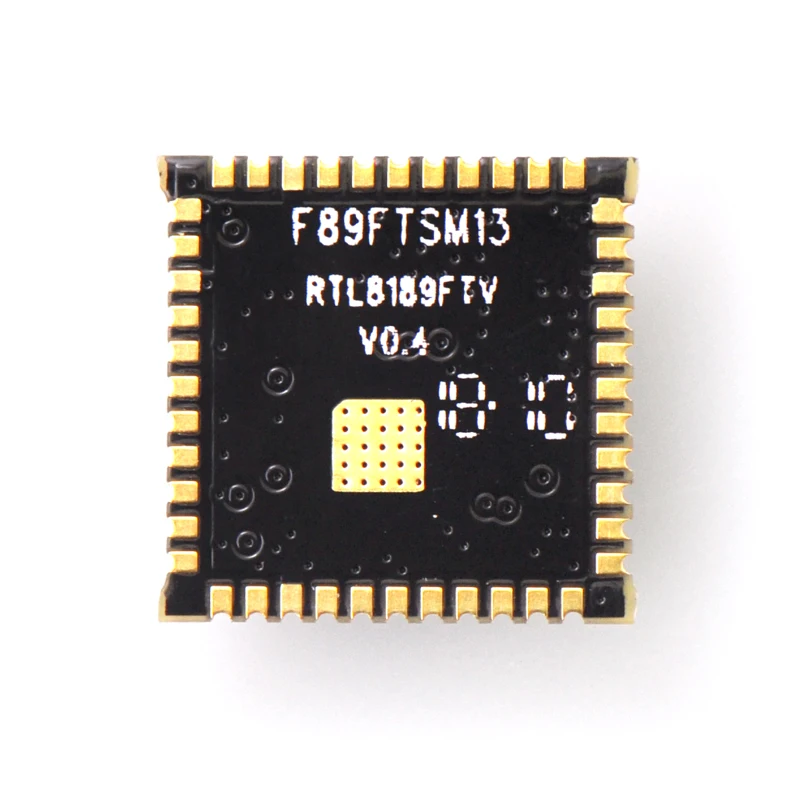

This WLAN Module design is based on Realtek
RTL8189FTV. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN)
SDIO network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R
capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power
Consumption and enhance the advantages of robust system and cost-effective.

Features

 Operate at ISM frequency bands (2.4GHz)
 SDIO Interface for WiFi
 IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
 Enterprise level security which can apply WPA/WPA2 certification for WiFi.
 WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps
upstream PHY rates

Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products
