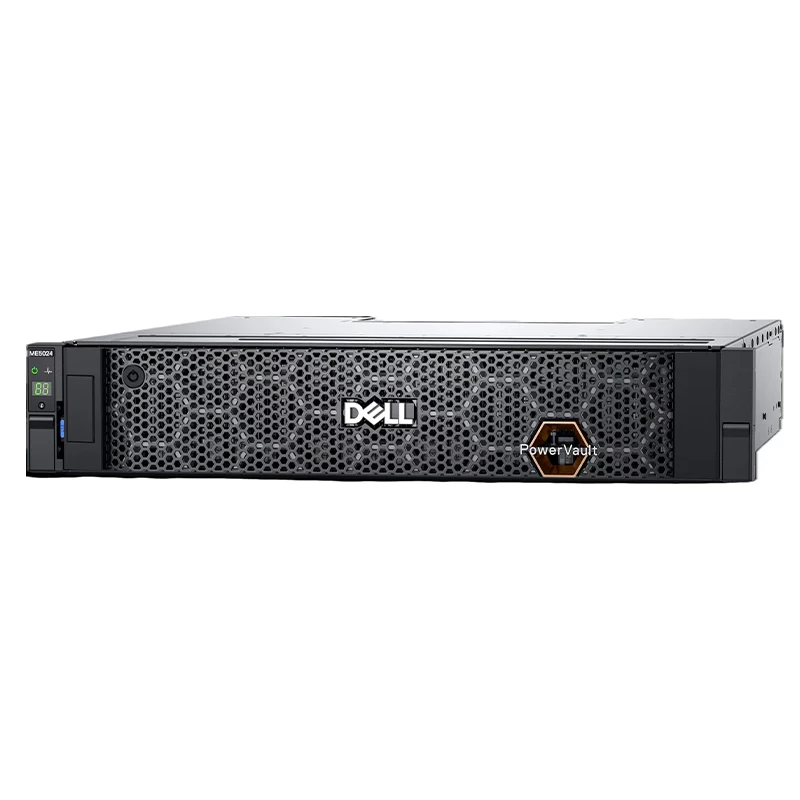

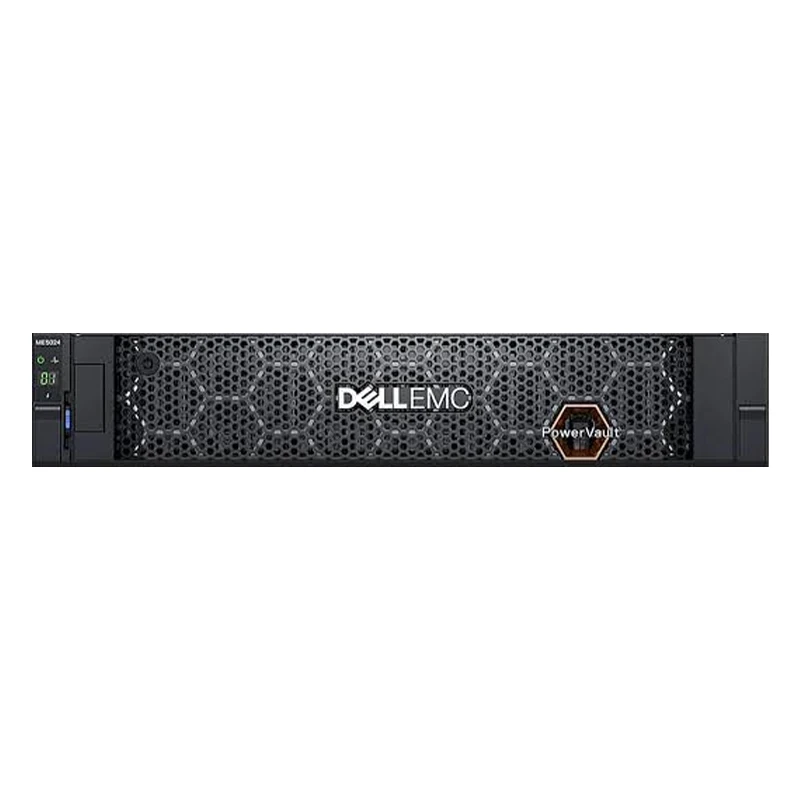

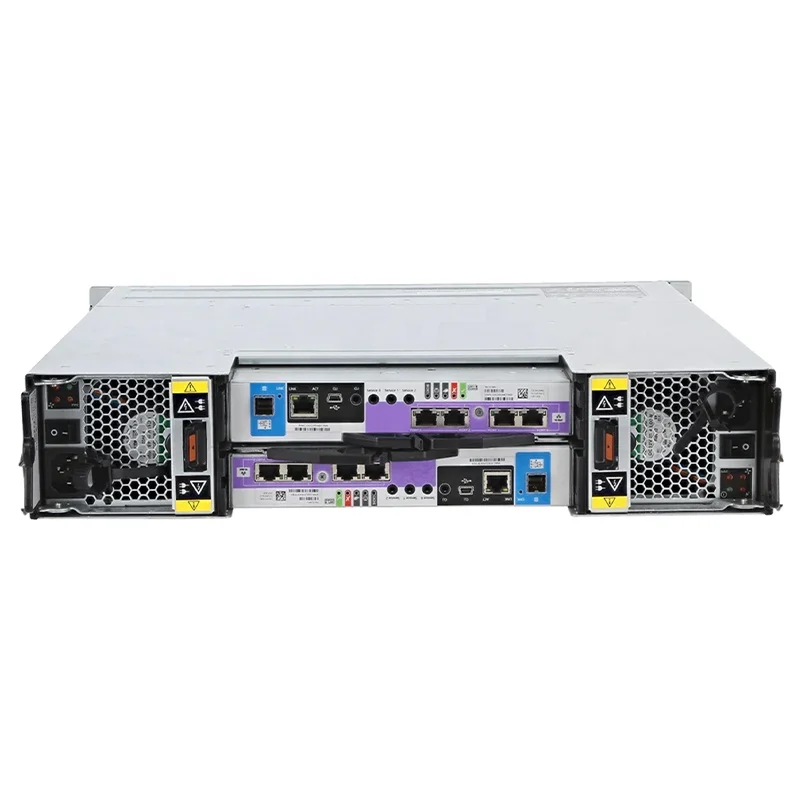

dell powerVault me5 storage me5012 me5024 me5084 san/nas storage server me5012
- Category: >>>
- Supplier: Beijing Haoyuan Shichuang Technology Co. Ltd.
Share on (1601012268587):
Product Overview
Description
contact us

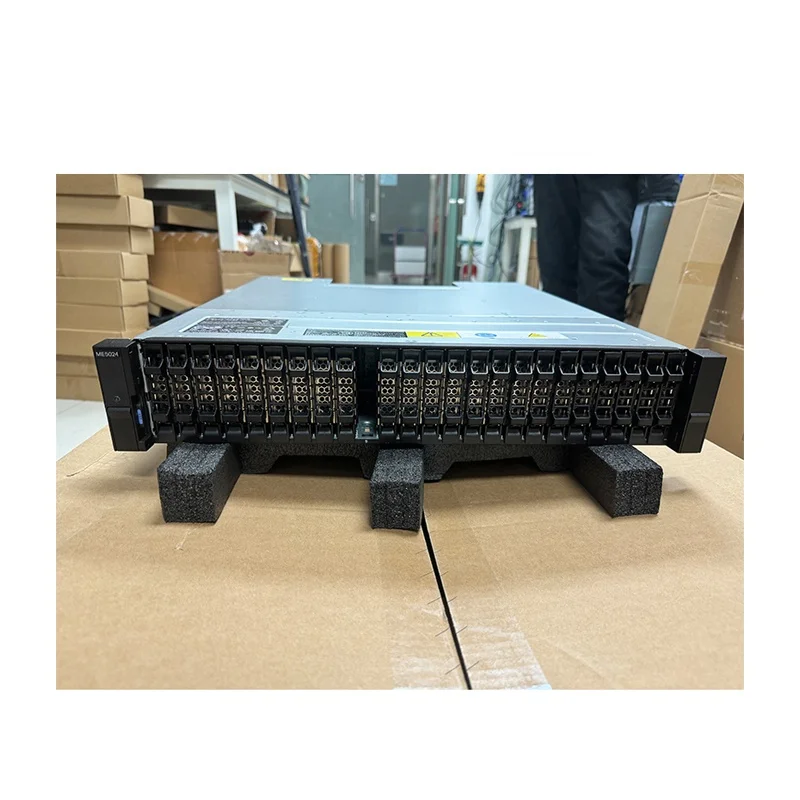

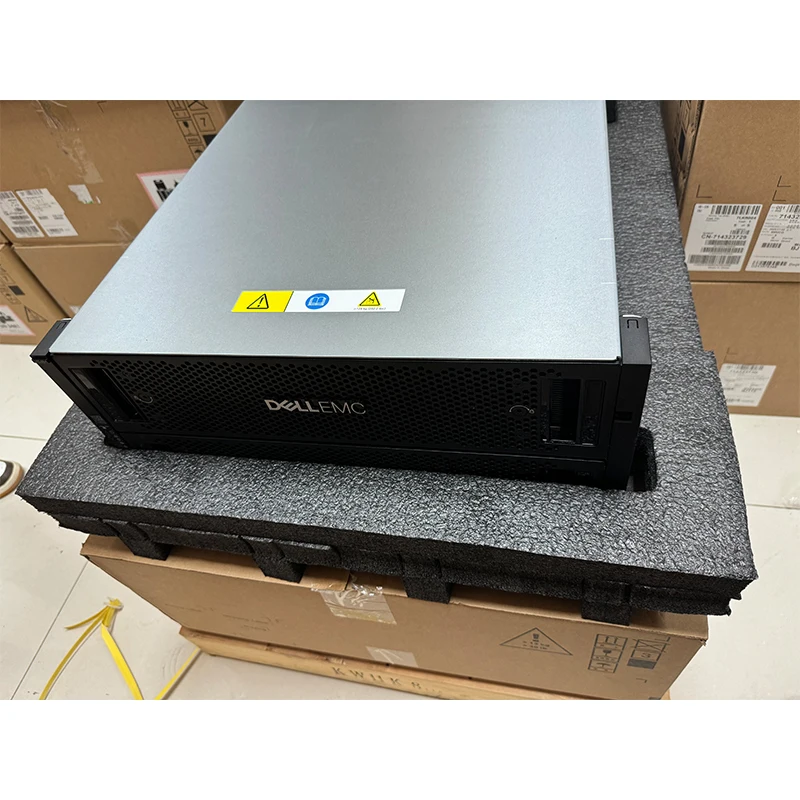

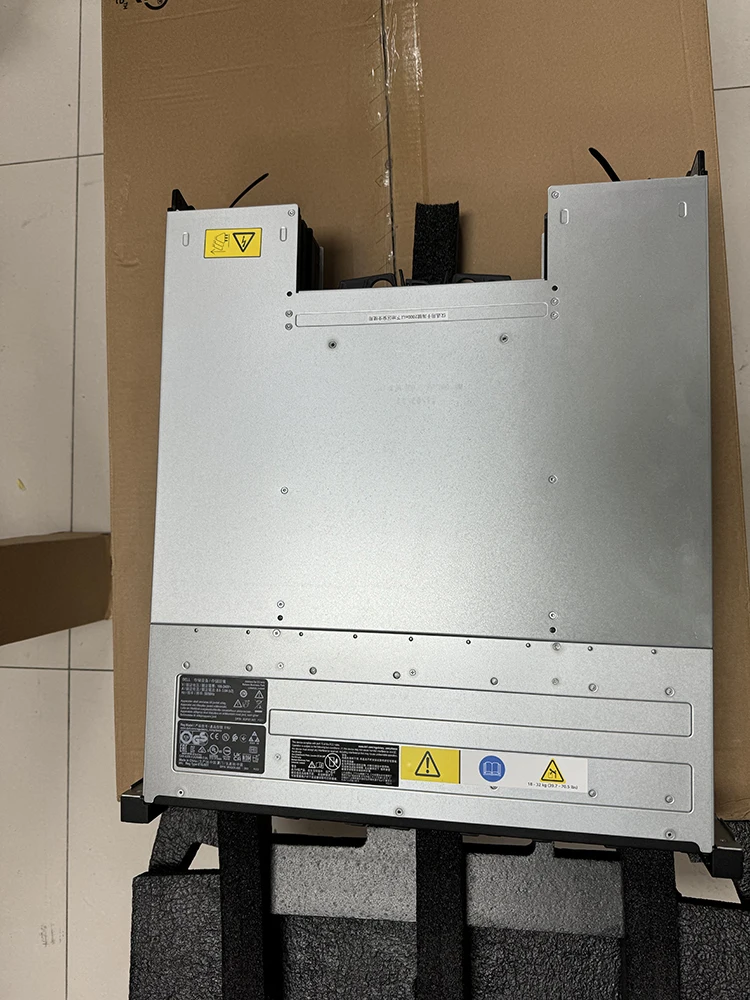

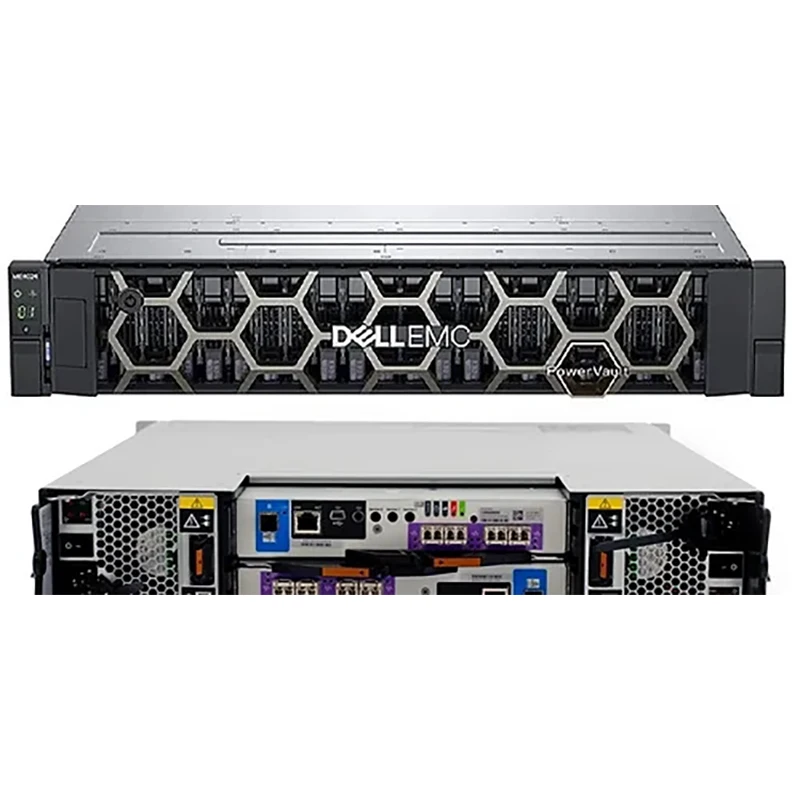

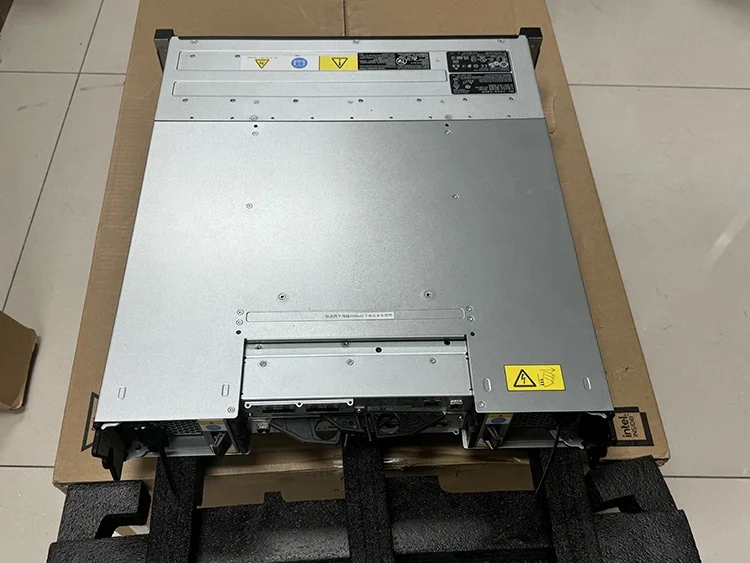

Product display
PowerVault ME5/ ME4 Specifications
Up to 2.34 PB capacity with 9 2U expansion enclosures; 2.40 PB capacity with 9 2U expansion enclosures; SAN/DAS multiple protocols: SAS, FC, iSCSI; dual-active controller architecture; includes all advanced software features
Product Paramenters
PowerVault ME5 Specifications | ||
Chassis format | All-in-one: dual controllers, internal drive bays, networking and with expansion options | |
Rack size | 2U or 5U | |
Controllers | 2 hot-swappable per chassis (dual-active) Single/dual controller support for 2U models Dual controller support only for 5U model | |
Processor | Intel® Xeon Processor | |
Internal storage | ME5012: 12 x 3.5” drive bays (2.5” drive carriers supported) ME5024: 24 x 2.5” drive bays ME5084: 84x 3.5” drive bays (2.5” drive carriers supported) | |
System memory | 8GB for controller and 16GB for cache (24GB total) | |
Expansion Capacity | ||
Expansion enclosures | ME412: 12 x 3.5” drive bays (12Gb SAS) ME424: 24 x 2.5” drive bays (12Gb SAS) ME484: 84 x 3.5” drive bays (12Gb SAS) Also available as JBOD | |
Min/Max drive count | ME5012: 2/264 ME5024: 2/276 ME5084: 28/336 | |
Max raw capacity1 | ME5012: Up to 2.64PB (total with 9 ME412) ME5012: Up to 1.92PB (total with 9 ME424) ME5012: Up to 5.80PB (total with 3 ME484) ME5024: Up to 2.56PB (total with 9 ME412) ME5024: Up to 1.83PB (total with 9 ME424) ME5024: Up to 5.72PB (total with 3 ME484) ME5084: Up to 7.39PB (total with 3 ME484) ME5084: Up to 5.54PB (total with 2 ME484) | |
NAS Support | Supported with NX Series Windows NAS appliance | |
Storage media | SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system: • NLSAS (7.2K 3.5”): 4TB, 8TB, 10TB, 12TB, 12TB SED • NLSAS (7.2K 2.5”): 2TB, 2TB SED • SAS (10K 2.5”): 1.2TB, 1.8TB, 2.4TB, 2.4TB SED • SAS (15K 2.5”): 900GB, 900GB SED • SSD: 480GB, 960GB, 1.92TB, 1.92TB SED • SDD and HDD: FIPS-certified SEDs | |
Network and Expansion I/O | ||
Host interface | FC, iSCSI (optical or BaseT), SAS | |
Max 32Gb FC ports | 8 per array (support auto-negotiate to 16Gb) | |
Max 25Gb iSCSI ports | 8 SFP+ or SFP28 ports per array | |
Max 10Gb iSCSI ports | 8 BaseT ports per array (only support auto negotiate to 1Gb) | |
Max 12Gb SAS ports | 8 12Gb SAS ports | |
Max multi-protocol ports | 4 ports 16Gb FC SFP+ 4 ports 10Gb iSCSI SFP+ | |
Max management ports | 2 per array (1Gb BASE-T) | |
Disk expansion protocol | 12Gb SAS | |
Disk interface expansion ports | 2 x 12Gb SAS (wide-Port) per array (1 port per controller) Up to 9 2U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 5U base array | |
Functional | ||
Array configurations | All-flash, hybrid or all HDD arrays | |
Storage format | Native SAN or DAS | |
Data Optimization | ||
Auto-tiering | Up to 3 primary (media-based) tiers | |
RAID support | RAID 1, 5, 6, 10, or ADAPT RAID; any combination of RAID levels can exist in single array | |
Adapt | Distributed erasure coding that reduces rebuild times when drive failures occur | |
Thin provisioning | Active by default on all volumes, operates at full performance across all features | |
Snapshots | 1024 maximum snapshots per array | |
Data Mobility and Migration | ||
Replication | Asynchronous replication via FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5 Target/source relationships may be one-to-many or many-to-one | |
Volume copy | Copy complete standalone volumes | |
Data Protection, Disaster Recovery, Security | ||
Business continuity | VMware Site Recovery Manager | |
Data-at-rest encryption | Self-encrypting drives (SEDs) in SSD or HDD formats Full Disk Encryption (FDE) based on AES-256 Drives certified to FIPS 140-2 Level 2 | |
Key manager | Internal controller key management | |
Management | ||
Management | PowerVault Manager HTML5 GUI element manager, CLI, OpenManage Enterprise 3.9 | |
VMware vCenter | VMware vCenter plugin to manage ME5 arrays through vCenter. | |
Scripting | CLI Microsoft PowerShell API | |
Supported host OS | Windows 2022, 2019 and 2016 RHEL 8.2 and 7.8 SLES 15.2 and 12.5 VMware 7.0 and 6.7 Citrix XenServer 8.x and 7.x | |
Virtualization integration | VMware vSphere (ESXi) vCenter; SRM Microsoft Hyper-V | |
Physical Base System | ||
Rack size | ME5012 (2U), ME5024 (2U), ME5084 (5U) | |
Base system height | ME5012: 8.79 cm (3.46 inches) ME5024: 8.79 cm (3.46 inches) ME5084: 22.23 cm (8.75 inches) | |
Base system width | ME5012: 48.30 cm (19.01 inches) ME5024: 48.30 cm (19.01 inches) ME5084: 48.30 cm (19.01 inches) | |
Base system depth | ME5012: 61.87mm (24.36 inches) ME5024: 54.78mm (21.56 inches) ME5084: 981mm (38.62 inches) | |
Weight (max configuration) | ME5012: 32.00 kg (71.00 lbs) ME5024: 30.00 kg (66.00 lbs) ME5084: 135.00 kg (298.00 lbs) | |
Weight (empty) | ME5012: 4.80 kg (10.56 lbs) without drives ME5024: 4.80 kg (10.56 lbs) without drives ME5084: 64.00 kg (141.00 lbs) without drives | |
Physical Expansion Enclosure | ||
Rack size | ME412 (2U), ME424 (2U), ME484 (5U) | |
Expansion height | ME412: 8.79 cm (3.46 inches) ME424: 8.79 cm (3.46 inches) ME484: 22.23 cm (8.75 inches) | |
Expansion width | ME412: 48.30 cm (19.01 inches) ME424: 48.30 cm (19.01 inches) ME484: 48.30 cm (19.01 inches) | |
Expansion depth | ME412: 60.29 cm (23.74 inches) ME424: 60.29 cm (23.74 inches) ME484: 97.47 cm (38.31 inches) | |
Weight (max configuration) | ME412: 28.00 kg (62.00 lbs) ME424: 25.00 kg (55.00 lbs) ME484: 130.00 kg (287.00 lbs) | |
Weight (empty) | ME412: 4.80 kg (10.56 lbs) without drives ME424: 4.80 kg (10.56 lbs) without drives ME484: 64.00 kg (141.00 lbs) without drives | |
Base System Power | ||
Power/wattage | ME4012: 580W ME4024: 580W ME4084: 2200W | |
Heat dissipation | ME4012: 1980 BTU ME4024: 1980 BTU ME4084: 7507 BTU | |
Voltage | ME4012: 100-240 VAC ME4024: 100-240 VAC ME4084: 200-240 VAC | |
Frequency | 50/60 Hz | |
Amperage | ME4012: 7.6-3.0A (x2) ME4024: 7.6-3.0A (x2) ME4084: 11.07-9.23A (x2) | |
Base System Power | ||
Power/wattage | ME5012: 580W ME5024: 580W ME5084: 2200W | |
Heat dissipation | ME5012: 1980 BTU ME5024: 1980 BTU ME5084: 7507 BTU | |
Voltage | ME5012: 100-240 VAC ME5024: 100-240 VAC ME5084: 200-240 VAC | |
Frequency | 50/60 Hz | |
Amperage | ME5012: 7.6-3.0A (x2) ME5024: 7.6-3.0A (x2) ME5084: 11.07-9.23A (x2) | |
Expansion Power | ||
Power/wattage | ME412: 580W ME424: 580W ME484: 2200W | |
Heat dissipation | ME412: 1980 BTU ME424: 1980 BTU ME484: 7507 BTU | |
Voltage | ME412: 100-240 VAC ME424: 100-240 VAC ME484: 200-240 VAC | |
Frequency | 50/60 Hz | |
Amperage | ME412: 7.6-3.0A (x2) ME424: 7.6-3.0A (x2) ME484: 11.07-9.23A(x2) | |
Environmental Operating Conditions | ||
Operating temperature | 5°C - 35°C (41°F - 95°F, derated by 1°C per 300mm above 900m) | |
Non-operating temperature | -40°C to 70°C (-40 to 158°F) Maximum temperature changes in an hour: 20°C | |
Operating humidity ranges (non-condensing) | -12C dew point minimum, 8% to 85% maximum, non-condensing | |
Non-operating humidity (noncondensing) | 21°C dew point maximum, 5% to 100% maximum, non-condensing | |
Service & Warranty | ||
Services | Dell ProSupport with deployment and consulting services. Optional ProSupport Plus is available offering proactive and preventative services to improve performance and stability. Dell Optimize is available for additional ongoing strategic counsel and guidance from a highly-trained system analyst. | |
System sizing | Dell Power Sizer (https://powersizer.dell.com) | |
OEM-Ready | From bezel to BIOS to packaging, your storage arrays can look and feel as if they were designed and built by you. For more information, visit Dell.com/OEM | |
Products Description
packaging and shipping
Company Profile
Certifications
FAQ
Q1. What are your company’s main products?
A：Our company mainly sells Dell Huawei Lenovo servers and storage and server accessories, such as server hard drives, memory cards, etc.
Q2. Are your products regular?
A：We are a regular agent authorized by dll Huawei and Lenovo manufacturers. We have agency qualifications issued by these manufacturers. Our products are original and regular products.
Q3. Where is your company located?
A：We have been operating in the IT industry in Beijing for more than 10 years, and everyone has very professional experience
Q4. How is your product after-sales service?
A：We have professional engineers with more than 10 years of experience, who can provide free remote service support, then determine the problem and replace the corresponding parts
Q5. How do you pay?
A：Our company supports payment methods such as Western Union TT and Alibaba
Q6. How do you transport these products?
A：We have our own forwarder that can deliver products to anywhere you re
A：Our company mainly sells Dell Huawei Lenovo servers and storage and server accessories, such as server hard drives, memory cards, etc.
Q2. Are your products regular?
A：We are a regular agent authorized by dll Huawei and Lenovo manufacturers. We have agency qualifications issued by these manufacturers. Our products are original and regular products.
Q3. Where is your company located?
A：We have been operating in the IT industry in Beijing for more than 10 years, and everyone has very professional experience
Q4. How is your product after-sales service?
A：We have professional engineers with more than 10 years of experience, who can provide free remote service support, then determine the problem and replace the corresponding parts
Q5. How do you pay?
A：Our company supports payment methods such as Western Union TT and Alibaba
Q6. How do you transport these products?
A：We have our own forwarder that can deliver products to anywhere you re
