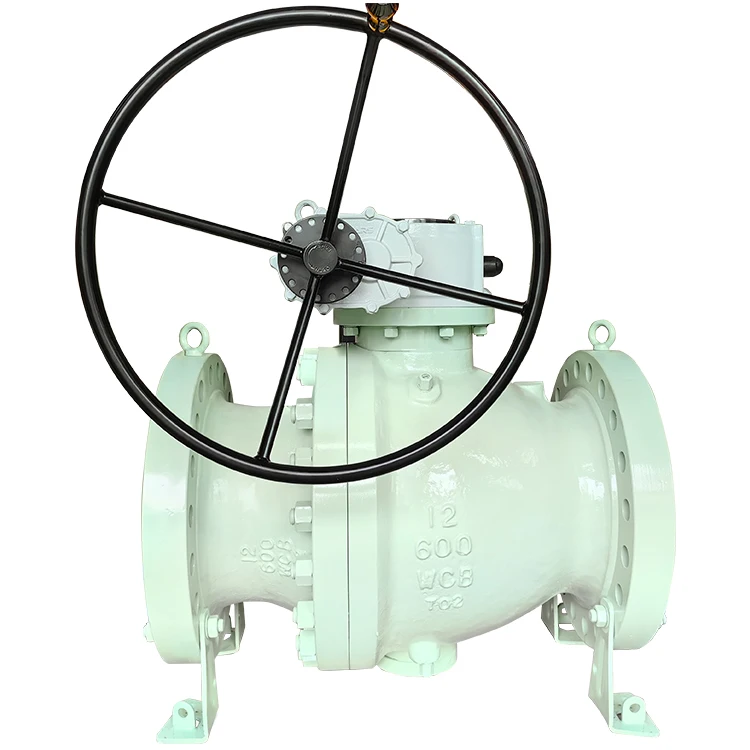

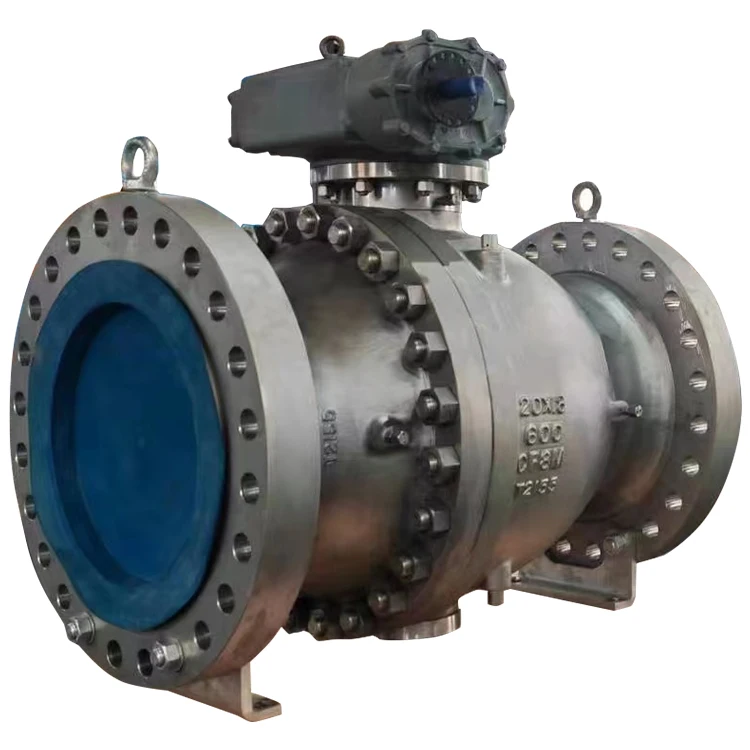

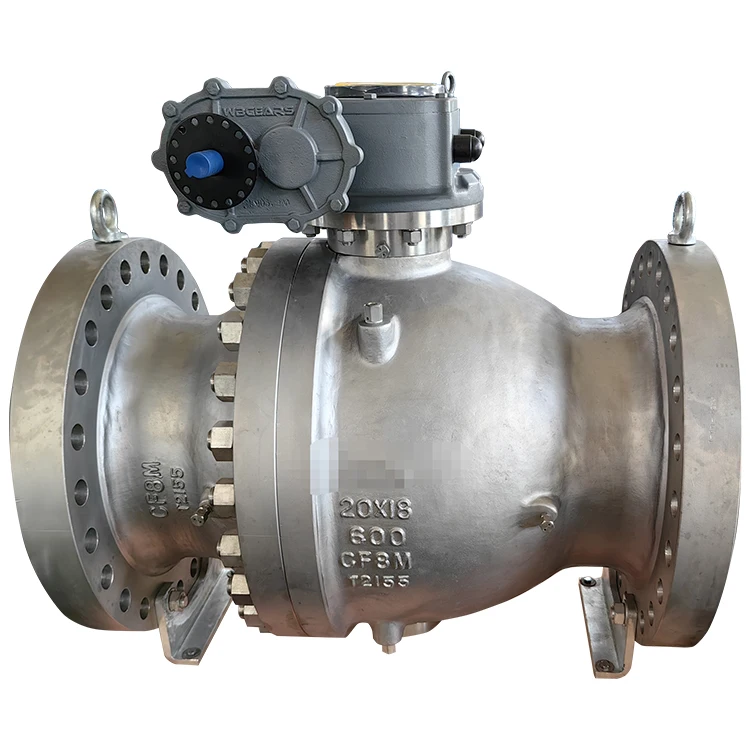

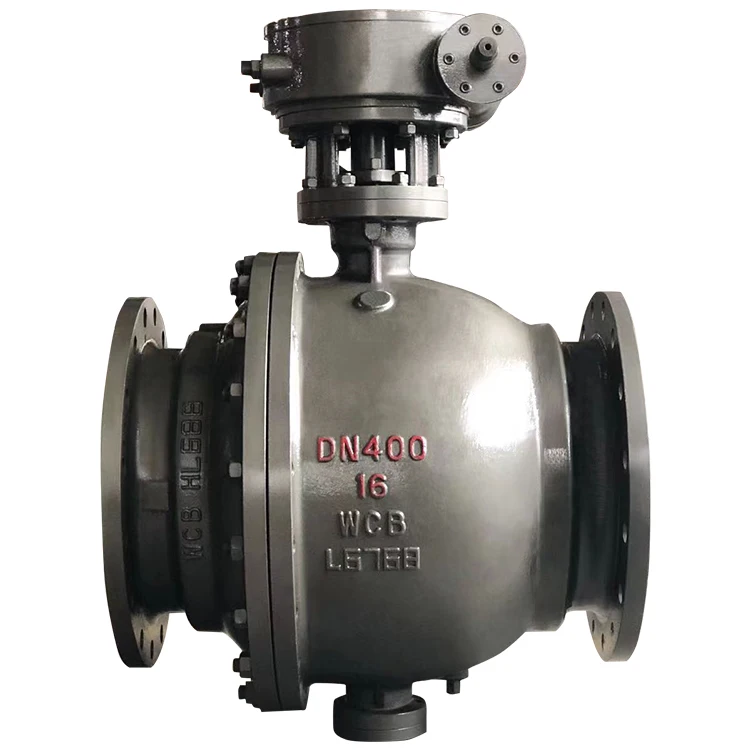

Fixed Ball Valve WCB DN400 PN64 1345KG Ball Valve For Oil And Gas Made In China
- Category: >>>
- Supplier: Shanghai Zhouqin Trading Co. Ltd.
Share on (1601012293596):
Product Overview
Description
ITME | NAME | MATERIAL | ITME | NAME | MATERIAL |
1 | Screws | A193 B7 | 21 | Exhaust valve | A105+Zn |
2 | Gasket | S.S+Graphite | 22 | Antistatic device | SS304 |
3 | Lower cap | ASTM A105 | 23 | Upper valve stem | 2Cr13 |
4 | Lower stem | A105+ENP | 24 | O-ring | FKM |
5 | O-ring | FKM | 25 | Bearing | SF-1 |
6 | Body | A216 WCB | 26 | O-ring | FKM |
7 | Stud | A193 B7 | 27 | Gasket | S.S+Graphite |
8 | Hexagon nut | A194 2H | 28 | Screws | A193 B7 |
9 | Bonnet | A216 WCB | 29 | Stud | A193 B7 |
10 | Gasket | S.S+Graphite | 30 | Hexagon nut | A194 2H |
11 | O-ring | FKM | 31 | Packing gland | C.S |
12 | Seat support ring | A105+ENP | 32 | Support | C.S |
13 | Helical spring | 17-7PH | 33 | Stud | A193 B7 |
14 | Valve seat | RPTFE | 34 | Hexagon nut | A194 2H |
15 | Sphere | A105+ENP | 35 | Worm gear head | Assembly |
16 | Bearing | SF-1 | 36 | Stud | A193 B7 |
17 | Blow-down valve | A105+Zn | 37 | Hexagon nut | A194 2H |
18 | O-ring | FKM | 38 | Filler | Flexible graphite |
19 | O-ring | FKM | 39 | Stuffing box | A105 |
20 | Grease injection valve | A105+Zn | 40 | O-ring | FKM |
