Product Overview
Description
Our Advantages

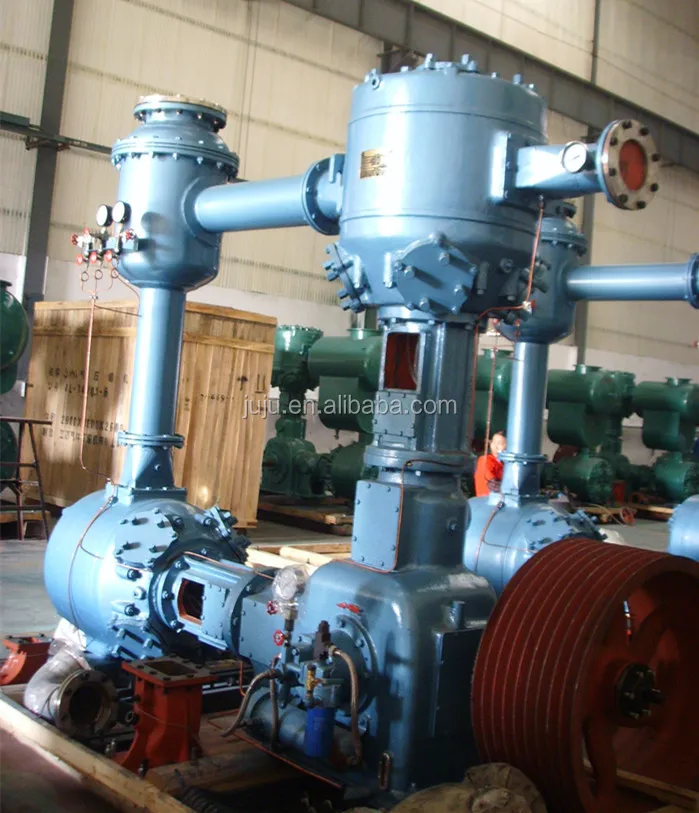

Yuanju oxygen Compressor
Thanks to decades years of the rapid industry development in china ,the reciprocating technology is
propelled and our clients can benefit from the competitive price, and diverse range of standardized
compressor, highly quality compressed process gas is achieved including ,but not limited to :air,
oxygen ,nitrogen ,natural gas ,mixed gas.
High pressure oxygen compressor must be designed in 100% oil free for fueling 15Mpa ,20Mpa
oxygen cylinder or medical use, max capacity will be up to 300nm3/h.
Low pressure oxygen compressor can be oil less lubricated and with a wide range of capacity ,
max power can be up to 2000kw.
oxygen cylinder or medical use, max capacity will be up to 300nm3/h.
Low pressure oxygen compressor can be oil less lubricated and with a wide range of capacity ,
max power can be up to 2000kw.
Special design for o2 compressor
Being an active gas,Oxygen is very easy to oxidize with other substances; Being a kind of
combustion-supporting gas, and it is easy to explode when mixed with combustible gas.
Spontaneous combustion will occur when all kinds of grease meet with oxygen and the
temperature exceeds the ignition point.Special design for co2 compressor is a must to
ensure the reliable operation, low maintenance cost,highly economic efficiency and low
downtime.
---Low piston linear velocity <3m/s
---Inlet and outlet buffer vessels for each stage
---Integral cylinder in Corrosion resistant cast iron or ductile iron , forged steel;
the design bearing pressure should be >1.25 times the max working pressure.
-- -Aluminum alloy ZL108 piston is suitable for oxygen compressor <3.0mpa,
piston surface is nickel-phosphorus plating, and can be anodized if required.
---piston rod is made of 3Cr13 or 38CrMoAlA or 42CrMo stainless steel.
---Filled PTFE piston ring and rider ring with high temperature and wear resistance.
---Temperature transmitter or platinum thermal resistor on the outlet of each stage
to offer the over-temperature protection
---The number of packing sealing ring groups should be increased by 1~2 groups
and the leak gas recovery chamber is for the packing.
-- Distant piece is designed with double oil scraping structure for vertical compressor,
and double chamber for balance compressor.
-- -Inlet gas filter in stainless steel or high-nicked and cooper alloy.
---Oxygen flow rate ≤20m/s for stainless steel valve .
----Special process for casting ,manufacturing,degreaseing,assembly,rust prevention,package
---Low piston linear velocity <3m/s
---Inlet and outlet buffer vessels for each stage
---Integral cylinder in Corrosion resistant cast iron or ductile iron , forged steel;
the design bearing pressure should be >1.25 times the max working pressure.
-- -Aluminum alloy ZL108 piston is suitable for oxygen compressor <3.0mpa,
piston surface is nickel-phosphorus plating, and can be anodized if required.
---piston rod is made of 3Cr13 or 38CrMoAlA or 42CrMo stainless steel.
---Filled PTFE piston ring and rider ring with high temperature and wear resistance.
---Temperature transmitter or platinum thermal resistor on the outlet of each stage
to offer the over-temperature protection
---The number of packing sealing ring groups should be increased by 1~2 groups
and the leak gas recovery chamber is for the packing.
-- Distant piece is designed with double oil scraping structure for vertical compressor,
and double chamber for balance compressor.
-- -Inlet gas filter in stainless steel or high-nicked and cooper alloy.
---Oxygen flow rate ≤20m/s for stainless steel valve .
----Special process for casting ,manufacturing,degreaseing,assembly,rust prevention,package

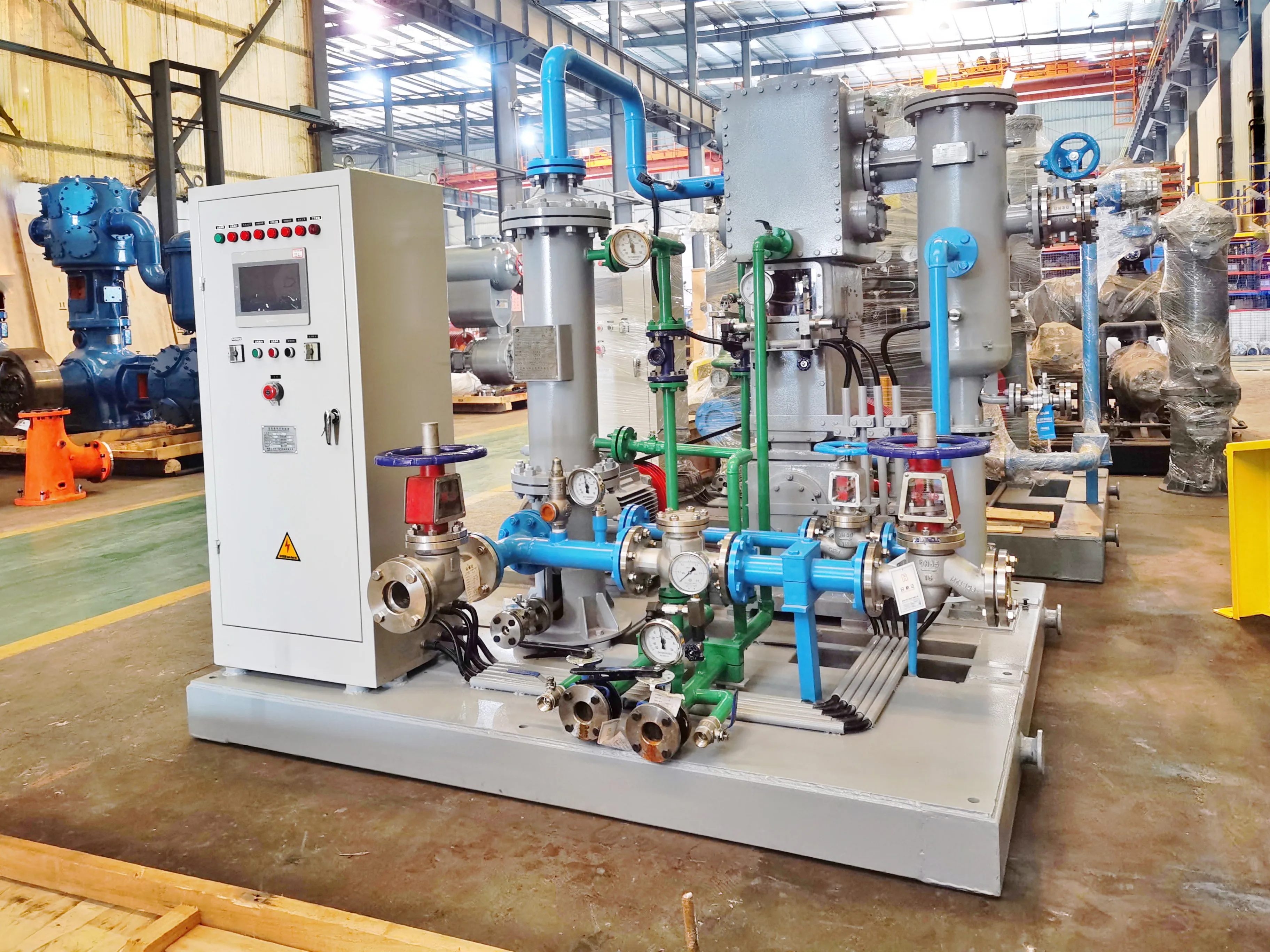

Standardized compressor structure portfolio
Benefits
---pre-assembled package only to be connected with water pipe,gas pipe and wire on the site
---More than 14 models with standard sizes are available for countless variation
----Easy installation and maintenance
----Maximize the reliability ,efficiency and quality
----Connect modular structure portfolio with the suitable component
---pre-assembled package only to be connected with water pipe,gas pipe and wire on the site
---More than 14 models with standard sizes are available for countless variation
----Easy installation and maintenance
----Maximize the reliability ,efficiency and quality
----Connect modular structure portfolio with the suitable component

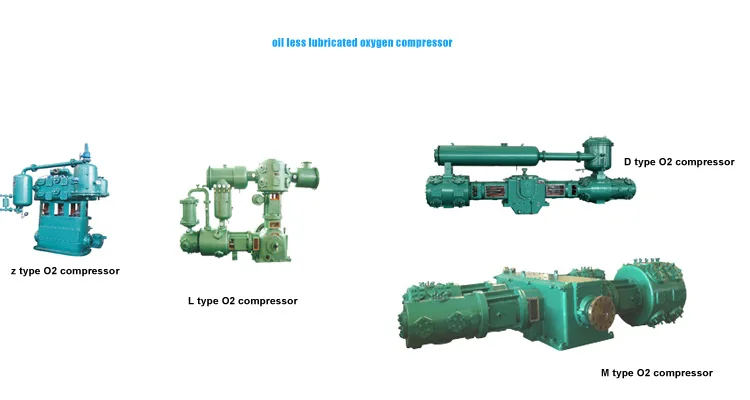

Compressor structure and configuration
Fully compliance with various standards
All yuanju compressor are ce marked to
meet clients request ,be designed according
to Machine Directive, PED and ATEX
requirements and in compliance with
the API 618 or API 617 standard.
Vessels can be made
base on ASME standards.
Flexible compressor solution
put together an optimal compressor ,
put together an optimal compressor ,
from our wide range of modular portfolio.
combine the basic structure of running
gear with suitable size or cylinder and
piston stroke .

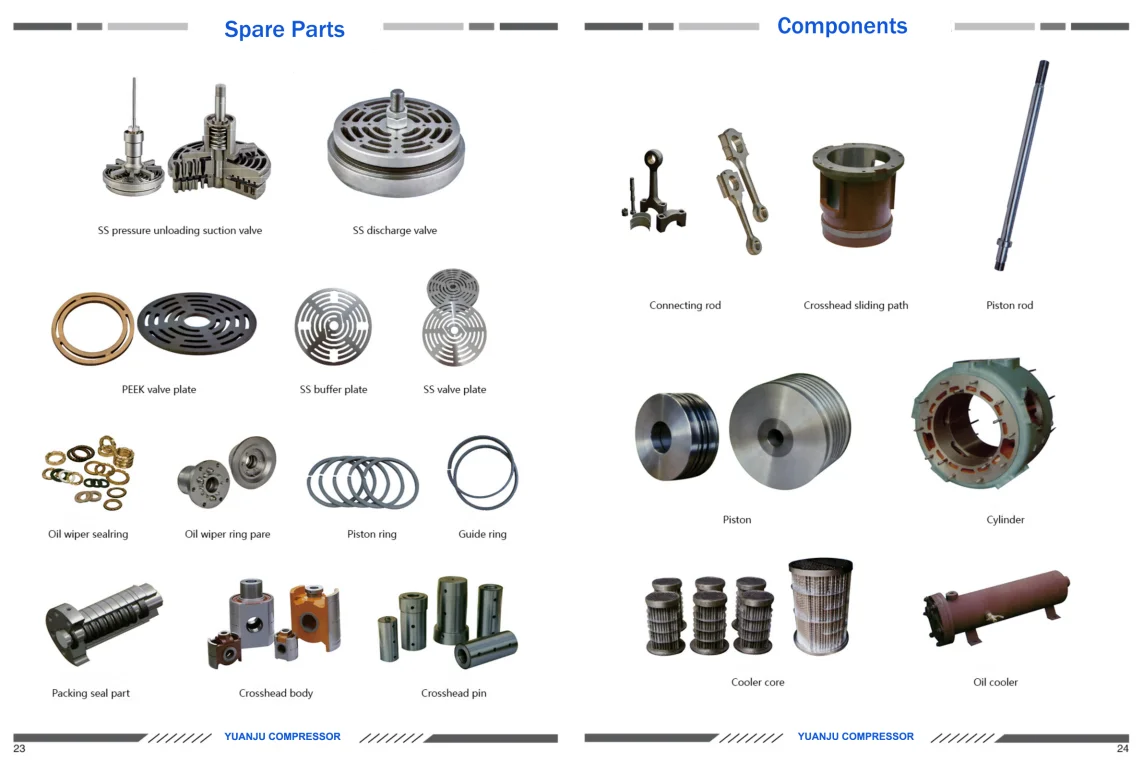

High durable proven design
Rigid piston rod and piston
--Piston ring and guide ring are
--Piston ring and guide ring are
made of composite PTFE or
peek for long life.
--Piston are made of composite
aluminum,stainless steel or
other materials according to
the process.
--Piston rod in stainless steel
or nitriding steel
(38CrMoAIA, 3Cr13,40Cr)
according to the gas
the discharge pressure.
Durable cylinder
--Cooled by forced water circulation to minimize
temperature,increasing efficiency and reliability
-- Generally discharge valves on the bottom
in accordance with API 618
--Material of cylinder is wear -resistant cast iron
or stainless steel ,base on the media gas
and discharge pressure
Efficient valve
-Stainless steel plate type
-Stainless steel plate type
valve or other types.
-Customized discs (peek or
-Customized discs (peek or
stainless steel ) for different
applications
-Design of wide channel and
-Design of wide channel and
low speed ensure minimum
pressure loss and extend
service life.
Rugged crankcase
---Crankcase in high strength cast iron
---Crankcase in high strength cast iron
or forged steel ensure the highly
rigidity, wear resistance and
fatigue strength
--Design for long service life.
-- Forced lubrication is carried
-- Forced lubrication is carried
out by a crank mounted oil
pump or motor
Compressor Technical Parameters
Minimum Inlet pressure: | micro-postive |
Max outlet pressure: | 15 MPa |
capacity: | 0.1 ~ 200m3 / min ; |
power: | 5.5kw-2000kw |
piston force: | 1.5 ~ 50T |
compression stage: | 2-6 |

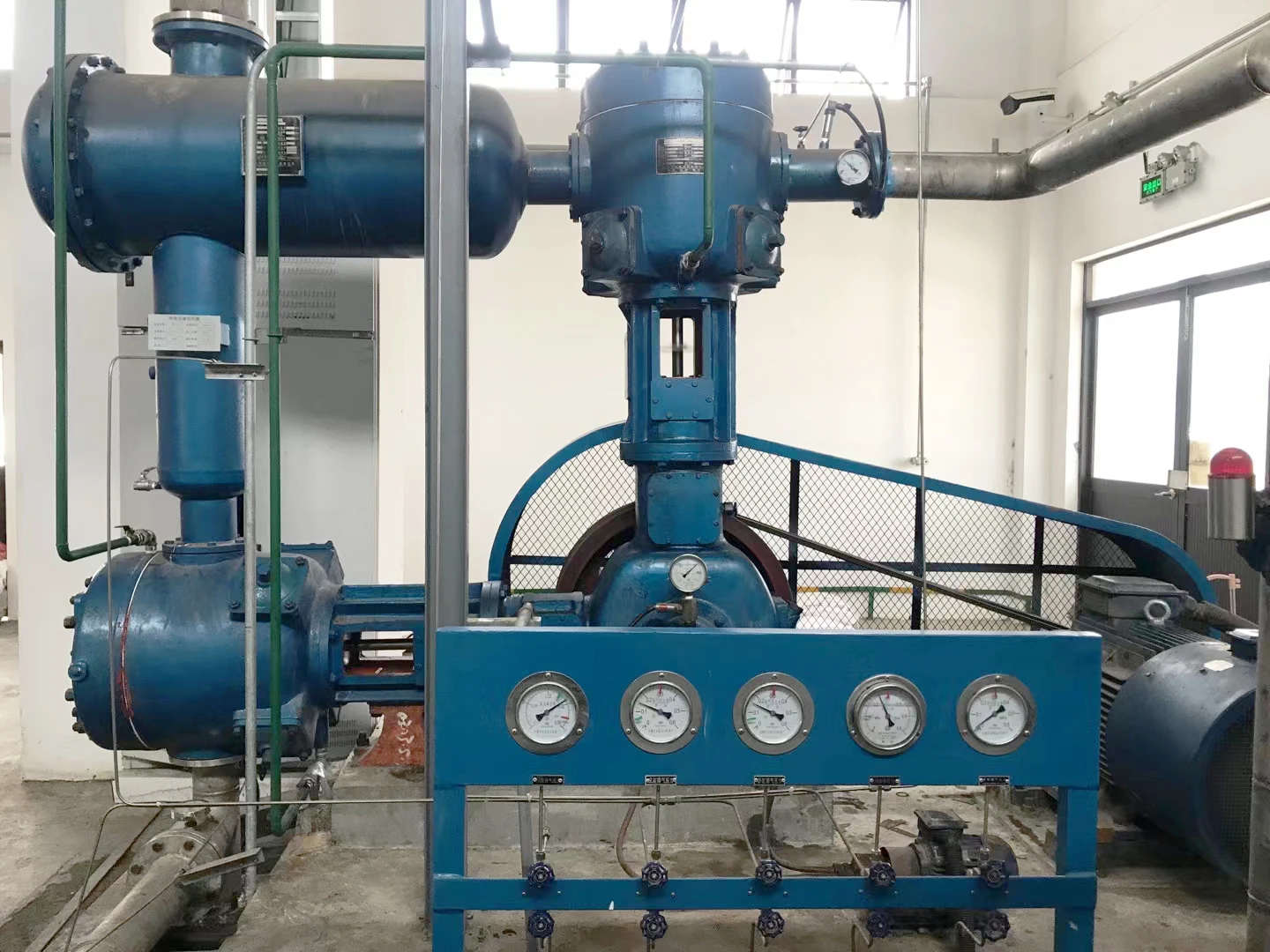

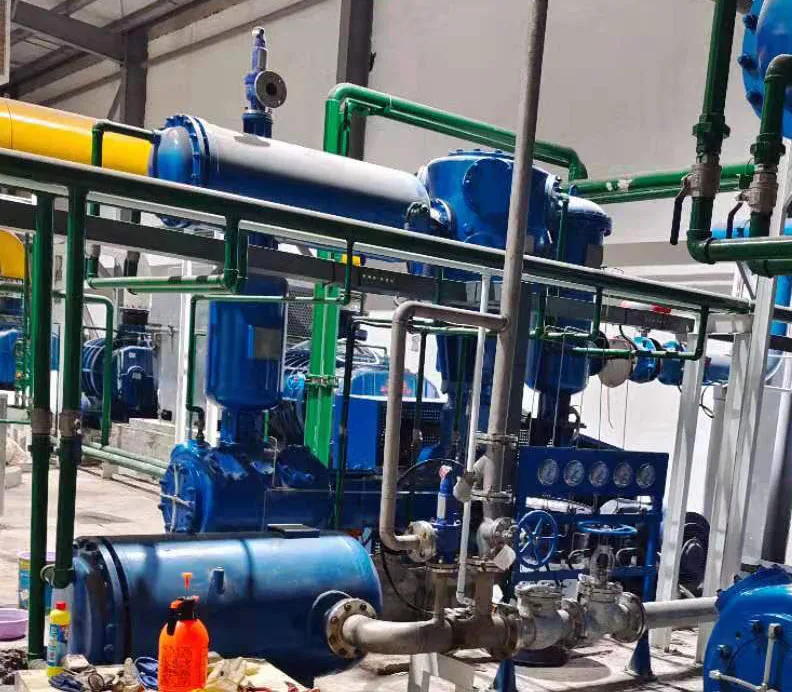

Application
outlet pressure： 2mpa
capacity: 36 m3/min
oxygen compressor
oxygen compressor
outlet pressure： 7.8 mpa
capacity: 4m3/min
oxygen compressor
oxygen compressor
outlet pressure： 1.5 mpa
capacity: 12m3/min
oxygen compressor
oxygen compressor
outlet pressure： o.4mpa
capacity: 15 m3/min
oxygen compressor
oxygen compressor
outlet pressure： o.2mpa
capacity: 2.5m3/min
oxygen compressor
outlet pressure： 2.5 mpa
capacity: 55 m3/min
oxygen compressor
oxygen compressor
After-sales services
After sales service
Low maintenance cost and safety
--Low piston speed and low revolution speed ensure long component life
excellent after sales support.
-- Engineer service
--Training
--Field service and parts on stock.
--Low piston speed and low revolution speed ensure long component life
--Excellent cooling of cylinder and inter-stage coolers
for low gas temperature.
--High efficiency motor used to increase reliability
and reduce maintenance cost and less down time
--Vertical or horizontal design for reducing forces and torques.
for low gas temperature.
--High efficiency motor used to increase reliability
and reduce maintenance cost and less down time
--Vertical or horizontal design for reducing forces and torques.
Excellent after sales service
-- We provide a complete service from the first
customer contact,designing,manufacturing to
installation and commissioning,as well as the
-- We provide a complete service from the first
customer contact,designing,manufacturing to
installation and commissioning,as well as the
excellent after sales support.
-- Engineer service
--Training
--Field service and parts on stock.
