BMS 3S 10A 11.1V common port 18650 lithium battery bms protection board continuous 10A protection current 35A
- Category: >>>
- Supplier: Shenzhen Mondo Technology Co. Ltd.
Share on (1601012418399):
Product Overview
Description
Product Description

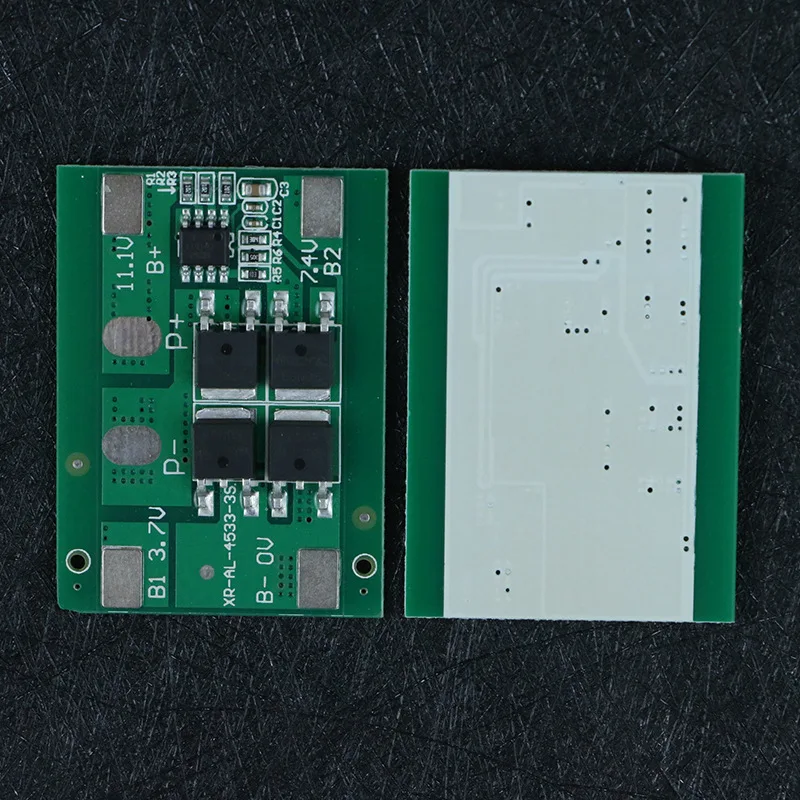

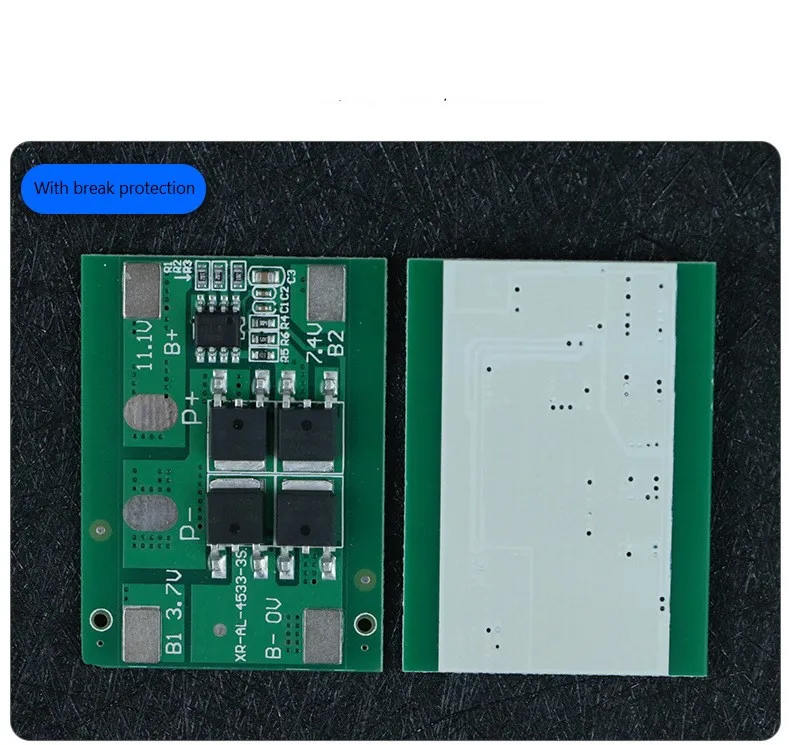

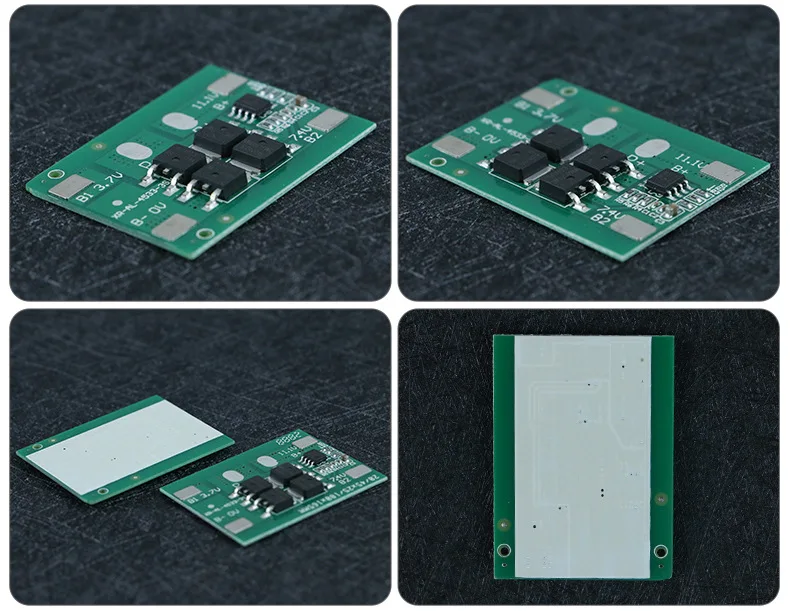

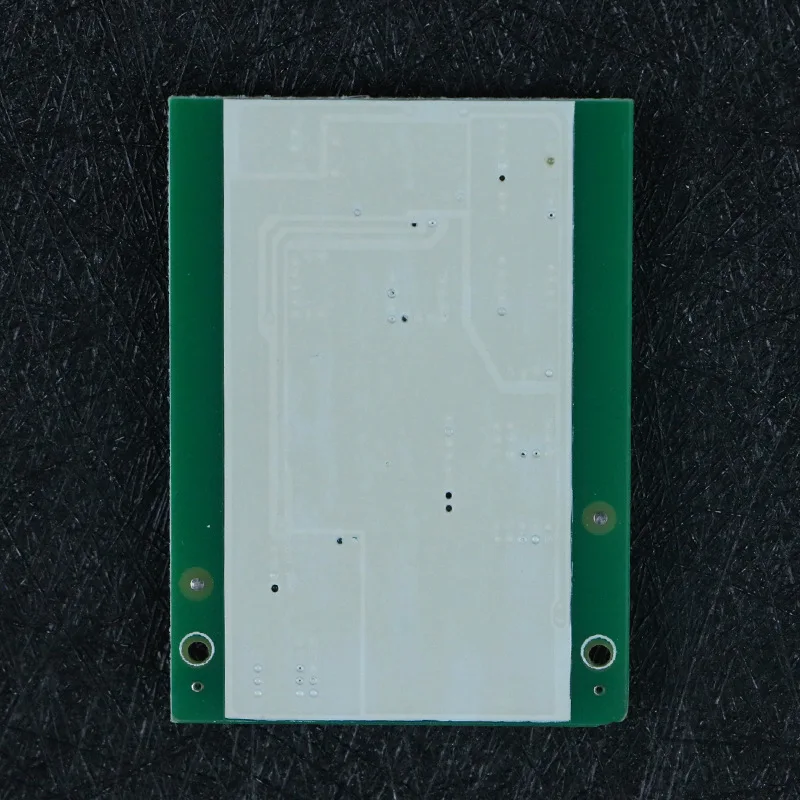

BMS 3S 10A 11.1V common port 18650 lithium battery bms protection board continuous 10A protection current 35A
| Product Specificatons | |
| Product Name | BMS 3S 10A |
| Model | XR-AL-4533-3S-4MOS |

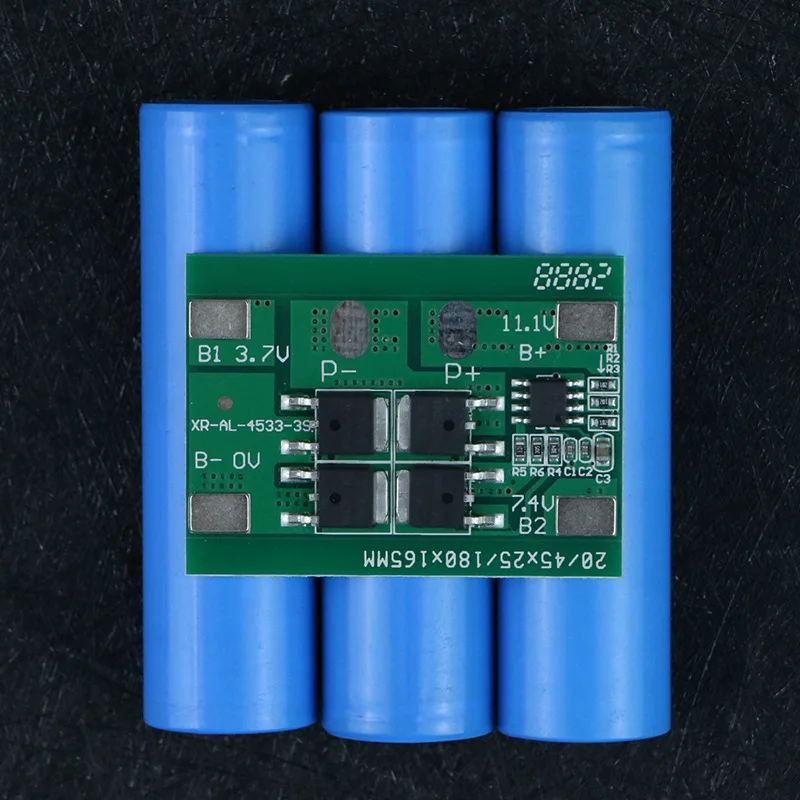

| Battery Type | Ternary lithium battery 11.1V 18650 |
| Working Current | 10A |
| Instant Protection Current | 35A |

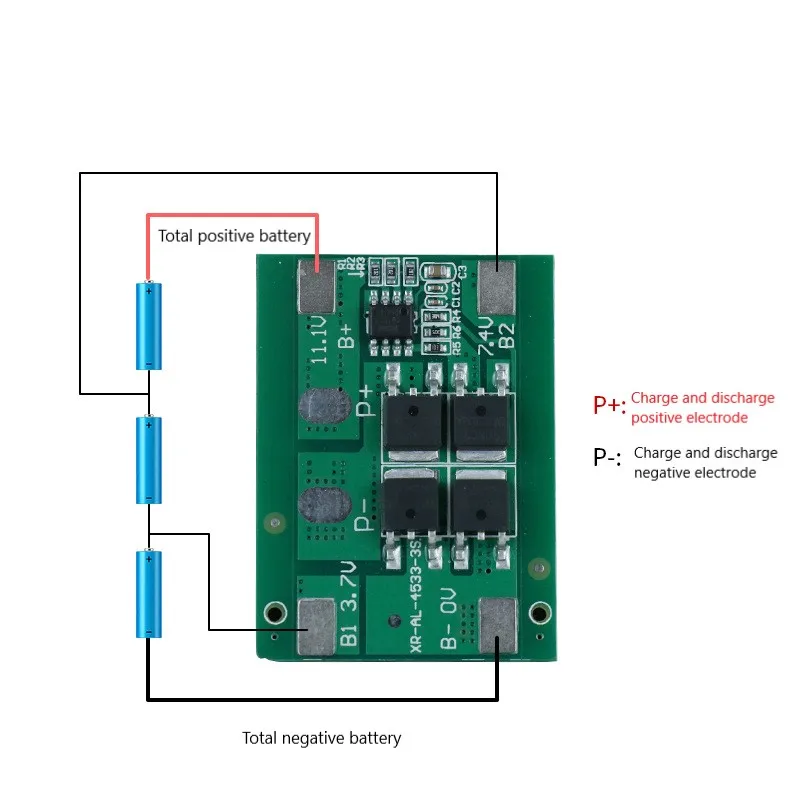

| Connection wire | Common port |
| Single Cell Over Discharge Voltage | 2.7V+/-0.08V |
| Single Cell Over Discharge Restore | |
| Single Cell Over Charge Voltage | 4.25V+/-0.025V |
| Continuous Charging Current | 10A |
| Charger Voltage | 12.6V (Recommended) |
| Working Power Consumption | ≤10uA |
| Main Circuit Conduction internal resistance | ≤10mΩ |
| Temperature Range | -40°C to +80°C |
| PCB size | 45*33*3.5mm |
| Application | Vacumn cleaner batteries, power tools, Massage gun, etc |
| Stocks/Customizable | Yes/Yes |
| Shipping leadtime | 3-7 working days |
| Contact | Tel: +86 18720880219 Evelyn Ye (WeChat/WhatsApp) |

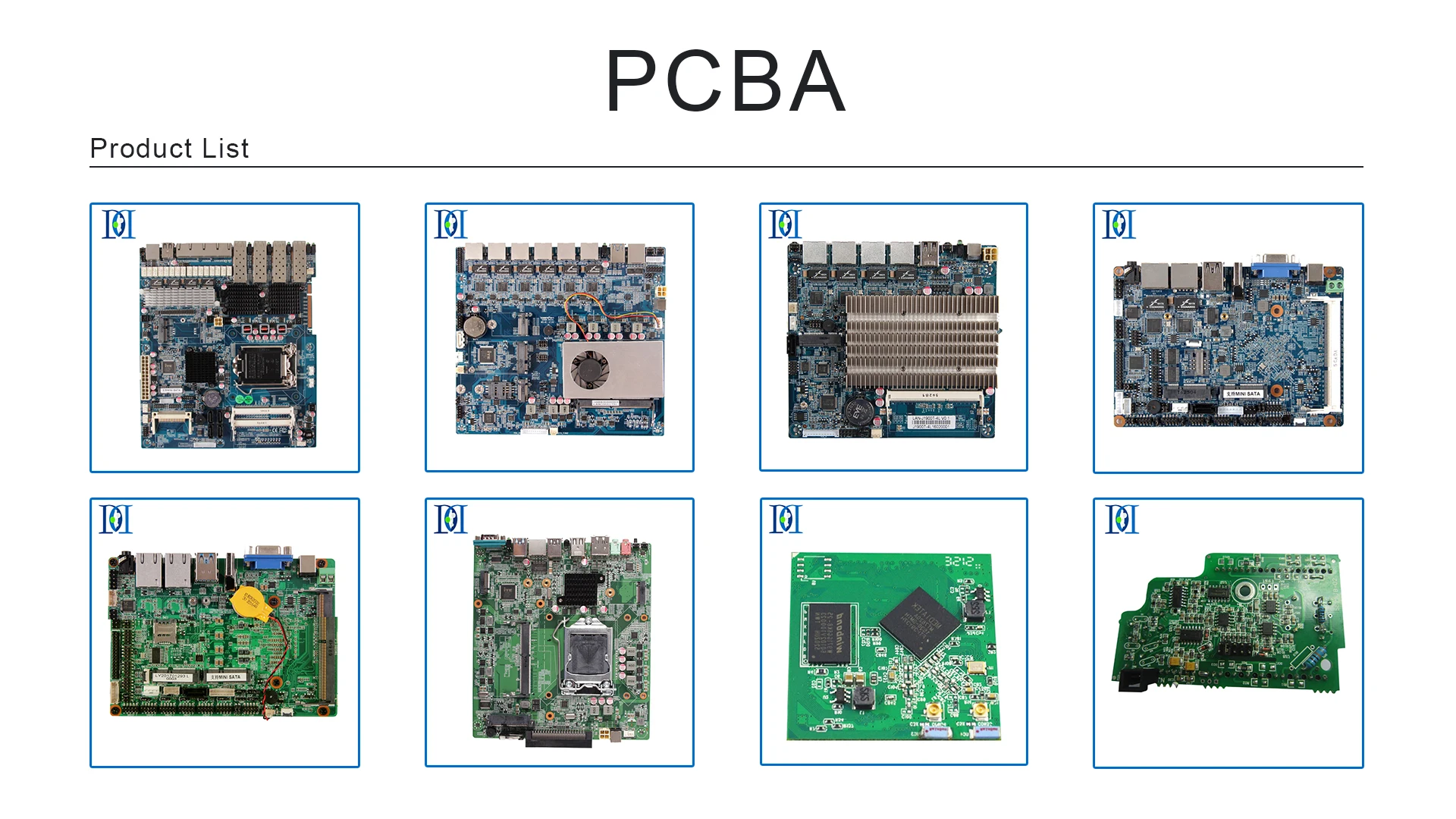

Not all products are shown. Please contact me directly for what you are looking for.
Advantages
Company Information
Mondo Technology Co., Ltd, located in Shenzhen China, is one of the leading manufacturers of customized FPC (Flexible PCB), PCBA and SMT service provider since its establishment in 2009.
After 14-years development, Mondo has become an professional manufacturer covering an area of 10,000 square meters and has 12 SMT assembly lines. Our factory has attracted more than 20 senior engineers who have 10-years experience in this industry and 300 experienced workers working for us.
Our products are widely applied to a variety of fields, including telecommunication, computers, medical equipment, consumer electronics and automobile industry. Our products past CE, ROSH, SAA,FCC,3C certifications. Furthermore, our factory has passed and strictly implemented the ISO9001 and ISO14001 international standard quality management system.
With an experienced and professional team, our product enjoy a good reputation among our customers for its highly stable quality, competitive price, fast delivery and excellent service. Currently, our products have been reaching out to all over the world, especially European and USA market.
Our company's goal is to be one of the leading PCB and SMT service suppliers with prominent performance and technology in China.
Equipment & Process
Our Services
As an one-stop service provider, what we can offer?

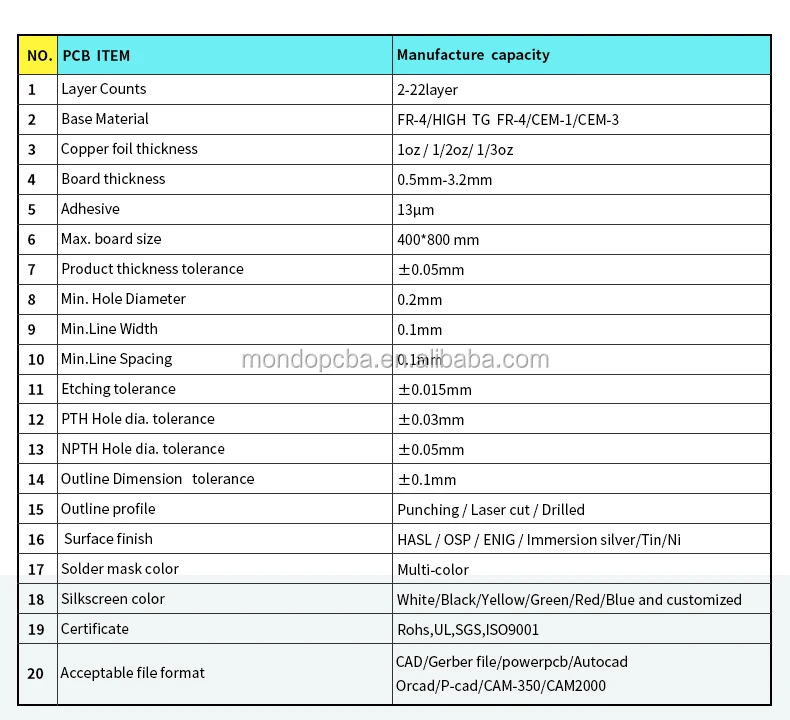

- FPC/PCB/LED design
- Reverse Engineering-PCB copy, PCB clone, IC decode
- Quick prototyping

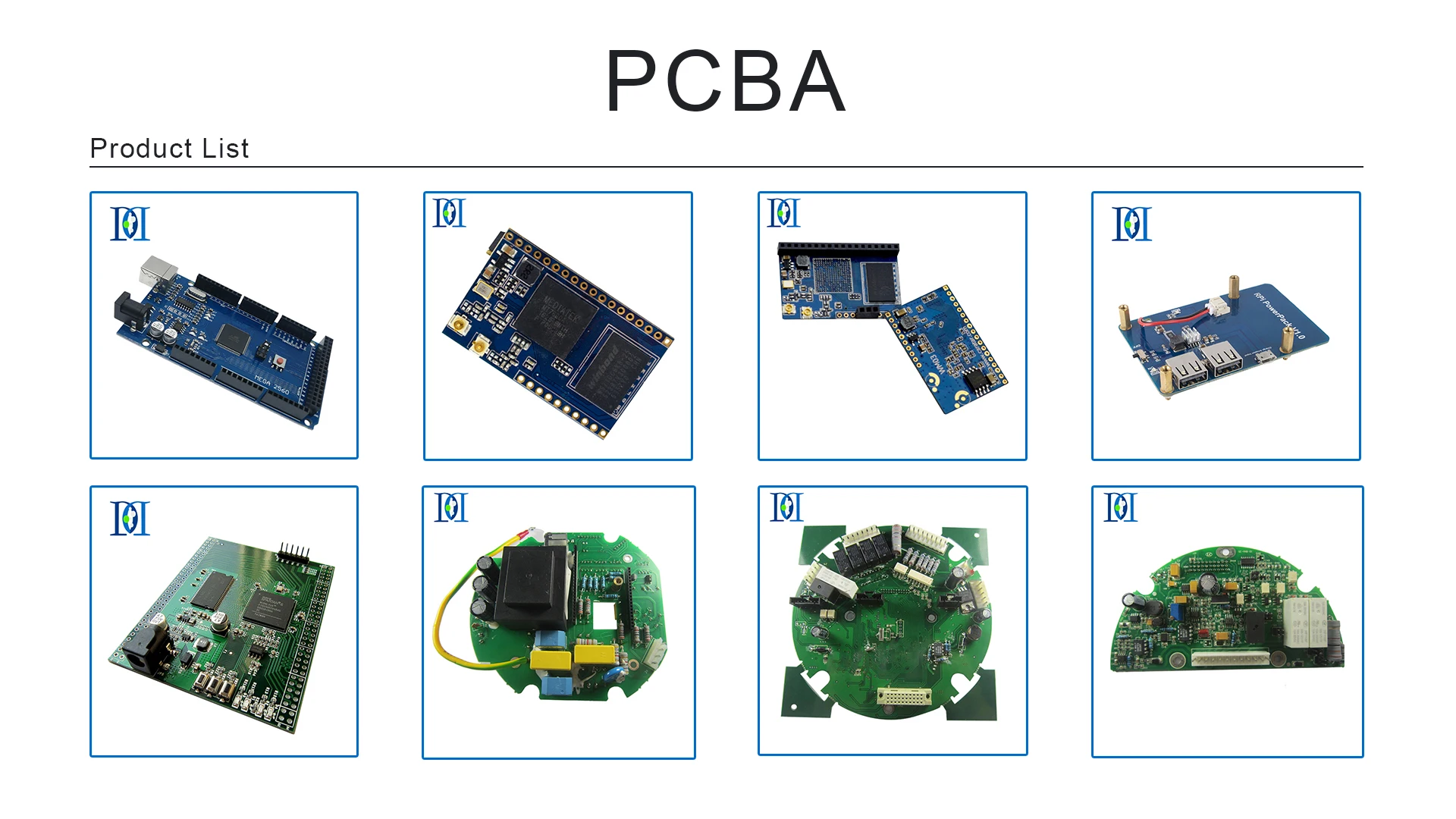

- PCB, PCBA, LED, SMD, SMT assembly
- Components sourcing
- FPC Mold making
- Plastic injection
- Supply chain service
Testing
AOI Testing
- Check for line width and spacing
- Check for solder paste
- Check for components down to 0201"
- Check for missing components, off set, incorrect parts, polarity
X-RAY Testing
- Check for the BGAS
- Check for the Micro BGAS
- Check for the chip scale packages
- Check for the Bare board
IN-Circuit Testing
- Power-up Test
- Function Test
- Flash device programming
Packaging & Shipping
Packing (Customized packing acceptable)
1. Seal products in anti-static bags
2.Use bubble or foam sheet to separate them
3.Packed in standard export carton
Shipping
1.It takes 5 days for sample and 7-10 days for mass production after confirming deposit.
2.Usually shipped by Express (DHL,FEDEX,UPS...), airfreight and sea freight also available for batch goods.
