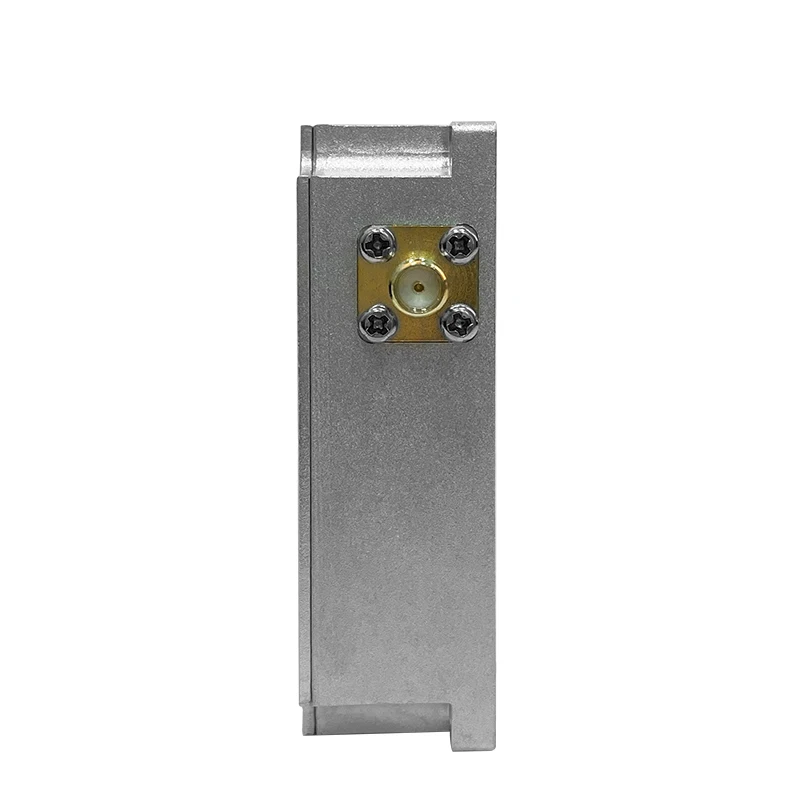

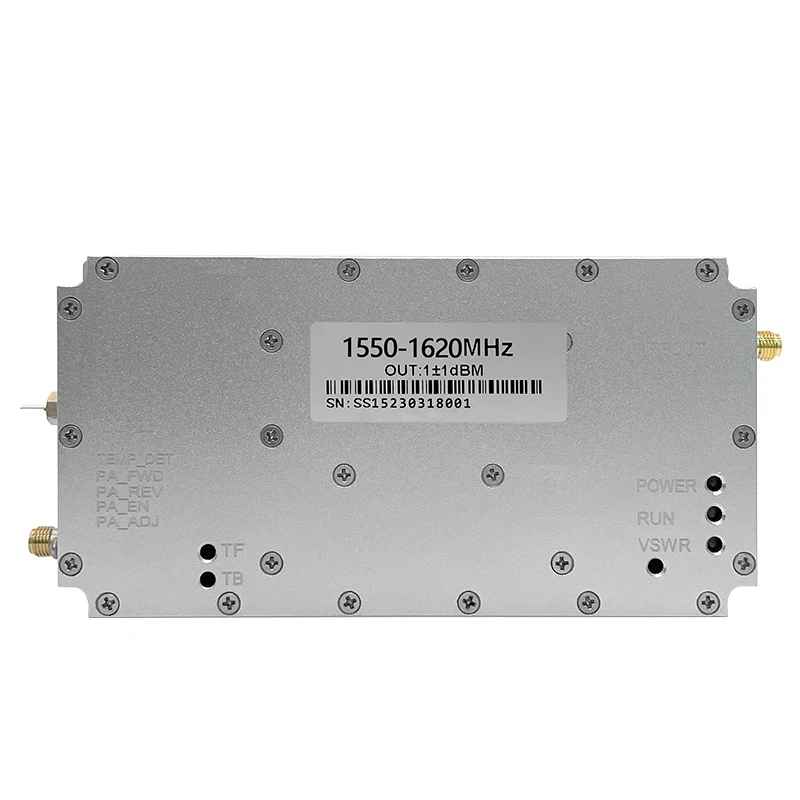

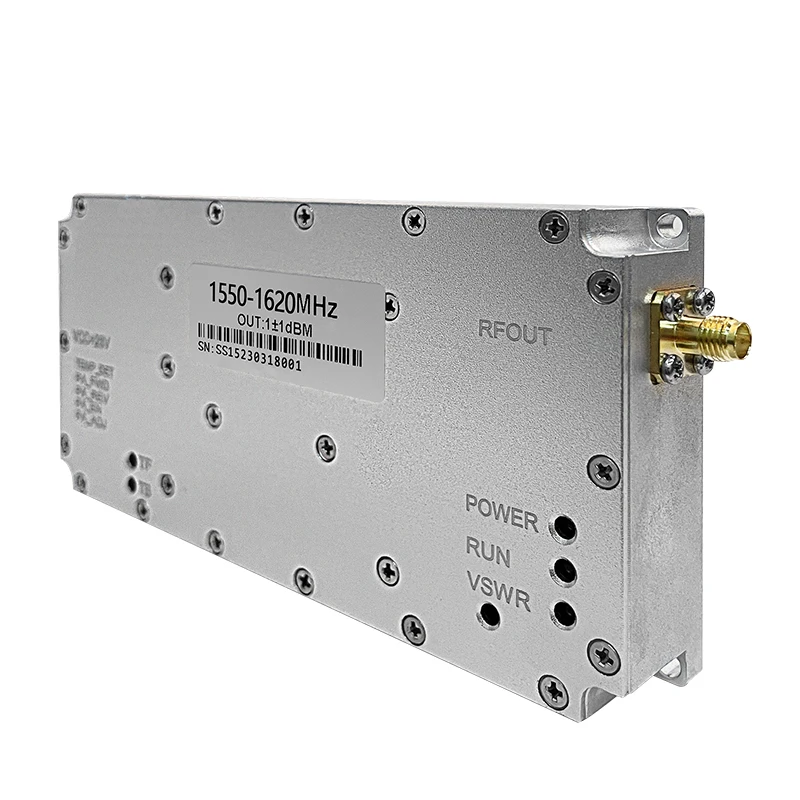

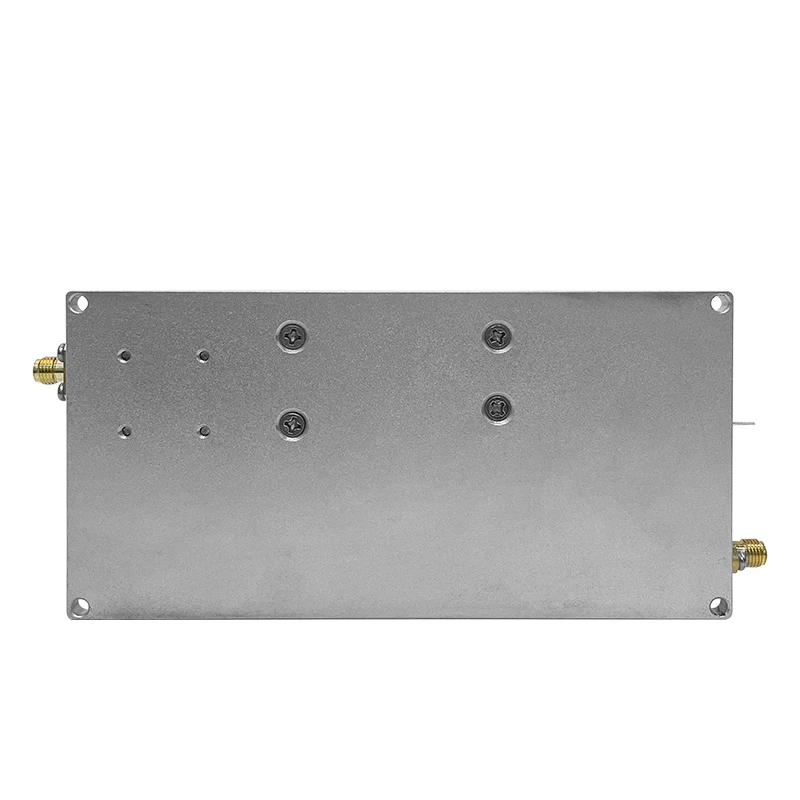

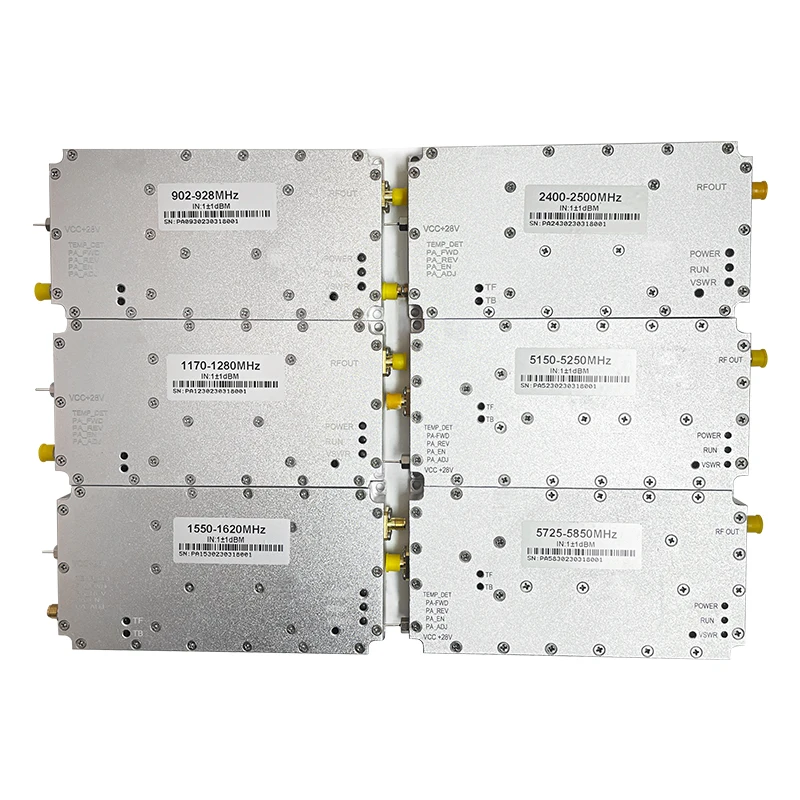

ZD Manufacturer RF Module FPV UAV High Power Power Amplifier 1550 1620mhz Noise Signal Generator

Item name

Technical parameters

Working frequency

1550-1620Mhz

Max output power

≥ 10dBm

Gain

45±2dB

In-band fluctuation

1.0 dB

Out-of-band spurious

9kHz～1GHz：≤-36dBm/30kHz
1GHz～12.75GHz：≤-30dBm/30KHz

Input VSWR

≤1.5

Gain temperature stability

≤±1.5dB

Maximum lossless input power

+10dBm

Working voltage

DC+28V

Working current

8A

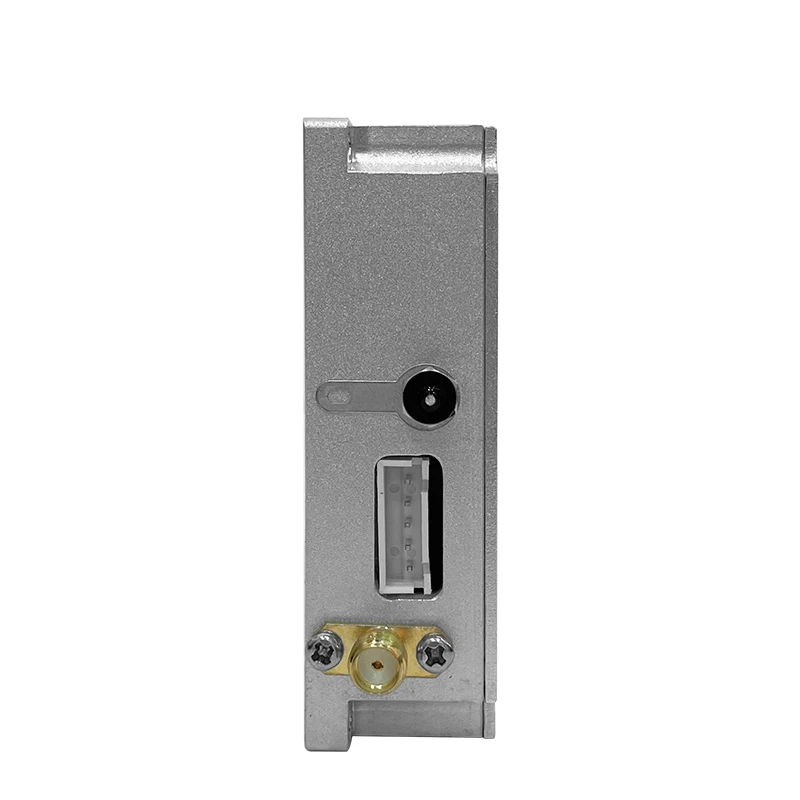

Power supply monitoring interface

adopts 7W2 male socket: A1 connects to GND; A2 connects to +28V；
Pin 1 power amplifier is enabled, high level turns on the power amplifier, low level turns off the power amplifier, the factory
default low level;
2,5 feet are grounded;
3-pin temperature alarm, the power amplifier temperature is higher than +85℃, output high-level alarm;
4-pin standing wave ratio alarm, when the output terminal of the power amplifier is disconnected, a high level alarm will be
output;

Input RF port

SMA-KFD

Output RF port

N-F

Dimensions

180*70*25mm

Working temperature

-10～+55℃
