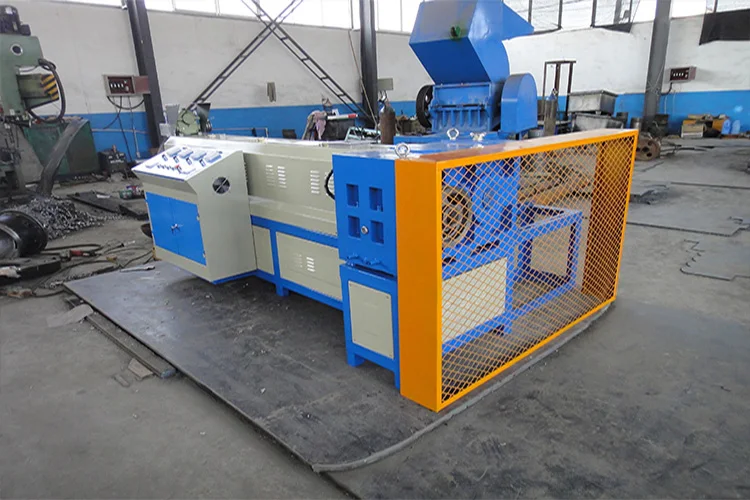

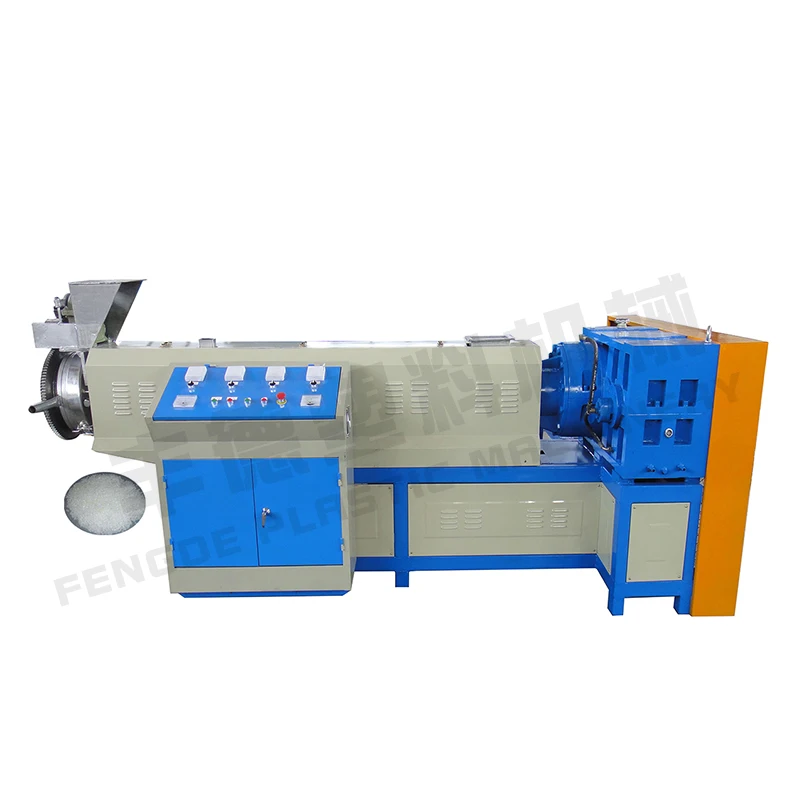

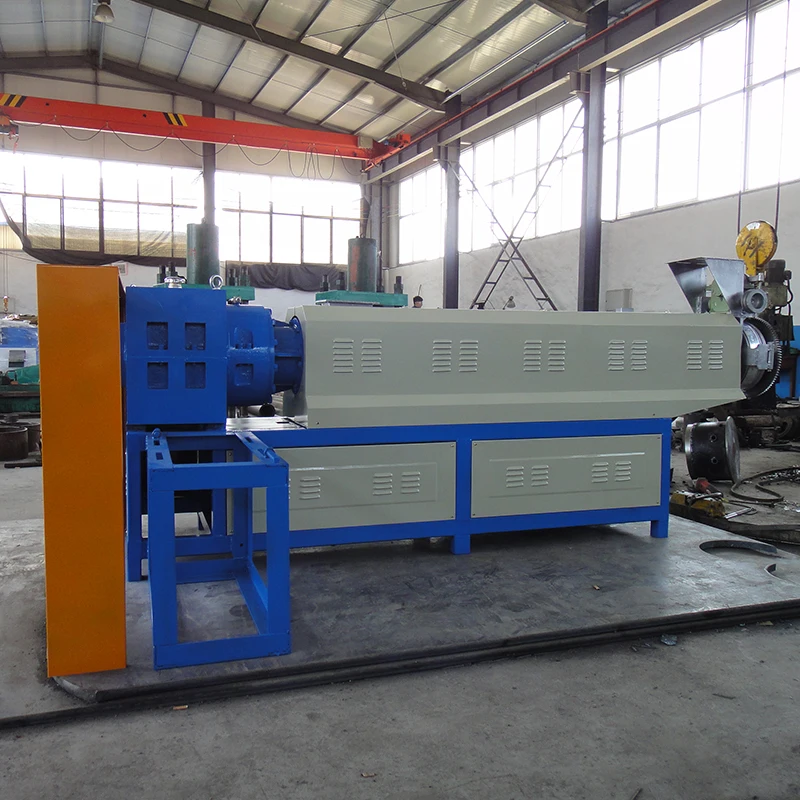

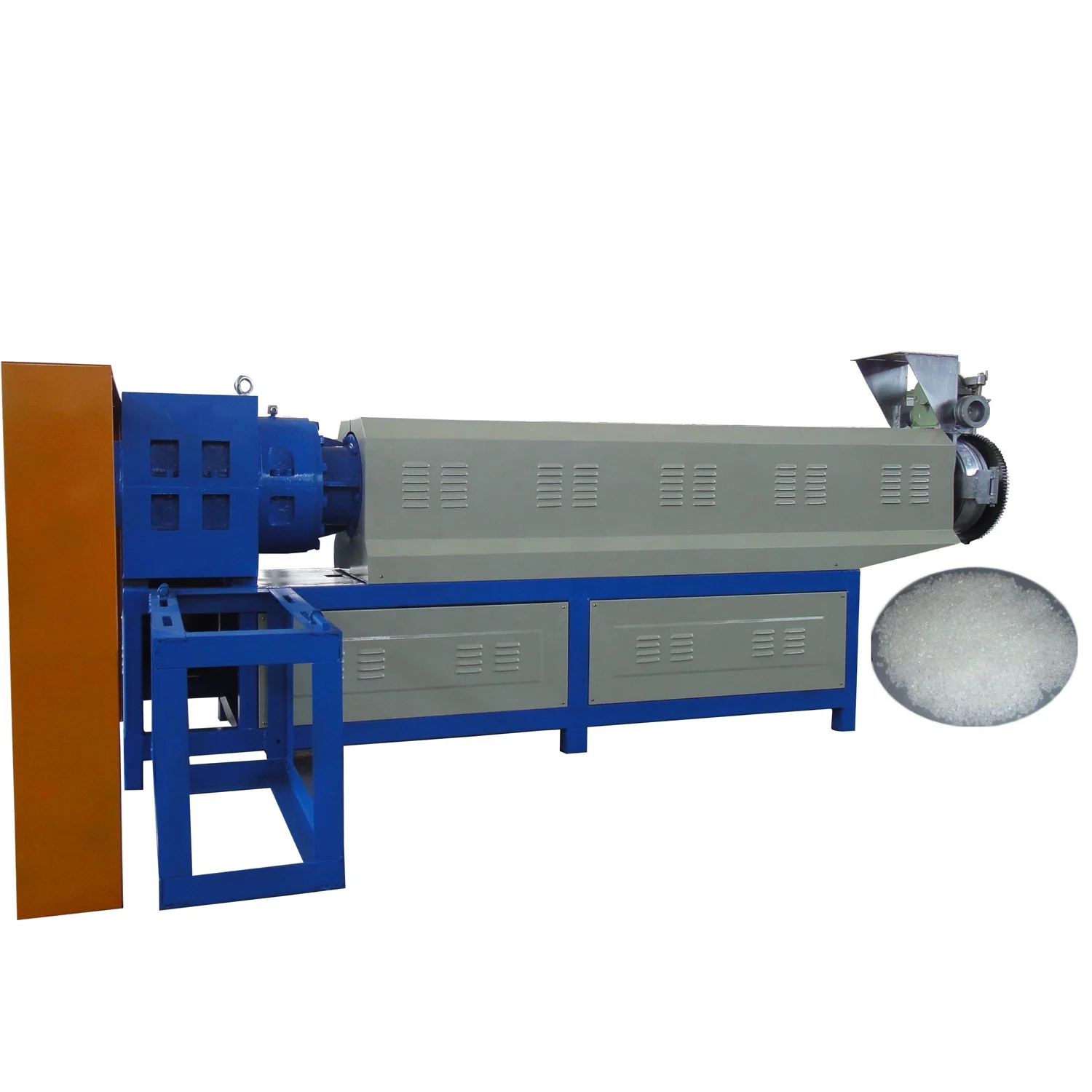

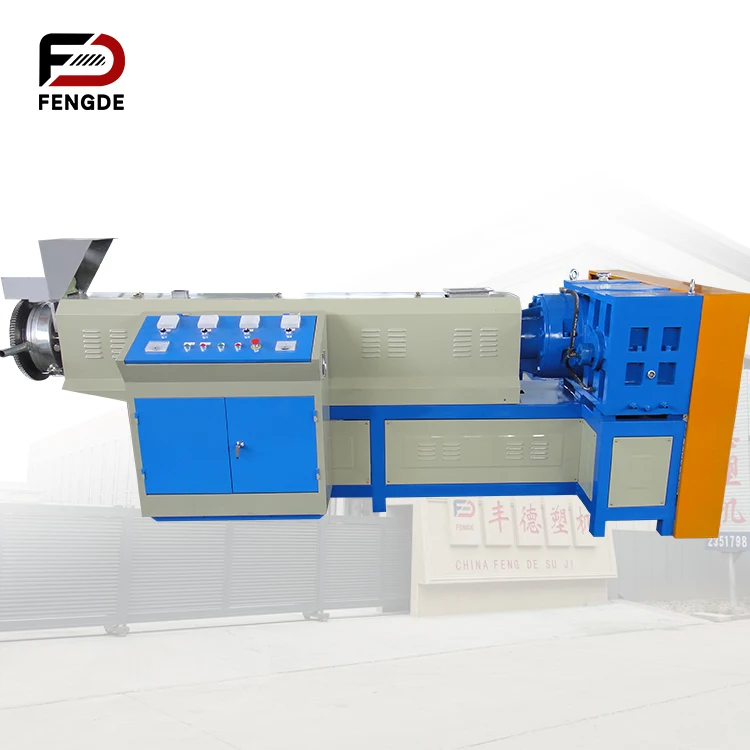

Plastic Granulator Equipment / granulating machine / Plastic Pelletizing Line
- Category: >>>
- Supplier: Laizhou Fengde Plastic Machinery Co. Ltd.
Share on (1601012482769):
Product Overview
Description
Product Description
Main technical features:
1):Applicable raw materials:PE/PP whole or broken cleaning film, HDPE/PP/ABS/PS crushing materials
2):Production capacity:220-1000kg/h
3):Model range:the diameter of the screw from 100-250mm, according to the material characteristics, the different degree of cleanliness can be designed for single order,double Order and third order;
4) According to the raw materials, you can choose the water cooled strip cutting method or mold mask water ring cutting;
5):Peripheral equipment:cooling system, hydraulic system, vacuum system, circulating water system, flue gas recovery system, etc., are modularDesign;
Science and technology:
1):Mechanical structure:screw structure design for thin film and thin sheet materials, with exhaust, plasticizing ability;
2):Power system:scientific permanent magnet synchronous servo motor drive, crusher optional motorized spindle drive directly;
3):Temperature control system:heating ring and battery induction heating system can be selected. Electromagnetic induction heating system heating response speed is fast, can Low consumption, good insulation.
Man-machine operation environment is good:
1):Operation:The operating system of the electromechanical cabinet is adopted, which supports functions such as one-button start, one-button stop and fault warning.
2):Noise:The transmission system uses quality quiet reducer and low noise motor drive, low noise;
3):Labor intensity:automatic scraper filter or large area hydraulic mesh changer can be optional for mesh changing parts to realize continuous mesh changing without stopping the machine. Labor intensity has been significantly reduced.
1):Applicable raw materials:PE/PP whole or broken cleaning film, HDPE/PP/ABS/PS crushing materials
2):Production capacity:220-1000kg/h
3):Model range:the diameter of the screw from 100-250mm, according to the material characteristics, the different degree of cleanliness can be designed for single order,double Order and third order;
4) According to the raw materials, you can choose the water cooled strip cutting method or mold mask water ring cutting;
5):Peripheral equipment:cooling system, hydraulic system, vacuum system, circulating water system, flue gas recovery system, etc., are modularDesign;
Science and technology:
1):Mechanical structure:screw structure design for thin film and thin sheet materials, with exhaust, plasticizing ability;
2):Power system:scientific permanent magnet synchronous servo motor drive, crusher optional motorized spindle drive directly;
3):Temperature control system:heating ring and battery induction heating system can be selected. Electromagnetic induction heating system heating response speed is fast, can Low consumption, good insulation.
Man-machine operation environment is good:
1):Operation:The operating system of the electromechanical cabinet is adopted, which supports functions such as one-button start, one-button stop and fault warning.
2):Noise:The transmission system uses quality quiet reducer and low noise motor drive, low noise;
3):Labor intensity:automatic scraper filter or large area hydraulic mesh changer can be optional for mesh changing parts to realize continuous mesh changing without stopping the machine. Labor intensity has been significantly reduced.
Single granulator | ||||||||
Parameter | Parameter | Parameter | Parameter | |||||
Model | 105 | 125 | 135 | 150 | ||||
Diameter of screw | φ105x2000 | φ125x2200 | φ135×2300 | φ150X2500 | ||||
Screw material | 40Cr | 40Cr | 40Cr | 40Cr | ||||
Length to diameter ratio | 1:18 | 1:18 | 1:17 | 1:17 | ||||
Speed reduction machine | ZLYJ-173 | ZLYJ-200 | ZLYJ-225 | ZLYJ-250 | ||||
Frame frameworkly | 60x60 Square tube | 60x60 Square tube | 80X60 Square tube | 80X60 Square tube | ||||
Power of motor | 15kw | 22kw | 30kw | 45kw | ||||
Boot Mode 1 | Straight up | Straight up | Reduced voltage start | Reduced voltage start | ||||
Boot Mode 2 | Inverter start | Inverter start | Inverter start | Inverter start | ||||
Power of heating | 40kw (Ring of heating) | 50kw (Ring of heating) | 60kw (Electromagnetic heating) | 80kw (Electromagnetic heating) | ||||
Die head: hydraulic(optional) | 240 | 240 | 240 | 240 | ||||
Die head: gear(optional) | 300/250 | 300/250 | 360/300 | 360/300 | ||||
Cooling water tank | 3m | 3m | 3m | 4m | ||||
General chip cutter | 150 | 150 | 150 | 180 | ||||
Hobber frequency chip cutter | 160 | 160 | 160 | 180 | ||||
Wind fed silos | 1T | 1T | 1T | 1T | ||||
Capacity | 100kg/h | 140kg/h | 180kg/h | 220kg/h | ||||
Laizhou Fengde Plastic Machinery Co., LTD., whose office is located in Nanwangjia Village, Shahe Town, Laizhou City, Shandong Province, an important port city in Bohai Rim, mainly engaged in processing and production: mechanical parts, plastic machinery,chemical machinery. The products cover single double three screw extruder, feeding, cutting, water cutting and auxiliary equipment.
The company has many engineers engaged in research and production in the field of plastic machinery for many years, and has many years of experience in field commissioning engineers. Good technology, stable equipment, strict management is the company to continue to develop and grow, products can get users rely on the fundamental. According to the specific process requirements of customers, we can provide equipment technical design, complete machine production and assembly, customer field commissioning, after-sales technical services and other services. With the enterprise management mode, strong technical force, as well as the stable performance and quality of equipment, we have won widespread trust and praise from customers.
The company adheres to the business principle of "high quality and low price", so that our customers can purchase at ease. The company will, as always, wholeheartedly provide good service for the majority of users. The company with integrity, strength and product quality to obtain the industry's recognition. Welcome friends from all walks of life to visit, guidance and business negotiations.
Certifications
Rotary double station non-stop net die head
It can effectively solve the problems of material leakage, material waste, cleaning trouble, and serious wear of the screen plate in the previous screen changer. It can realize rotating non-stop double position screen changing, easy and safe operation, good sealing performance, no material leakage, shape invariance, improve the production efficiency and reduce the production cost.
