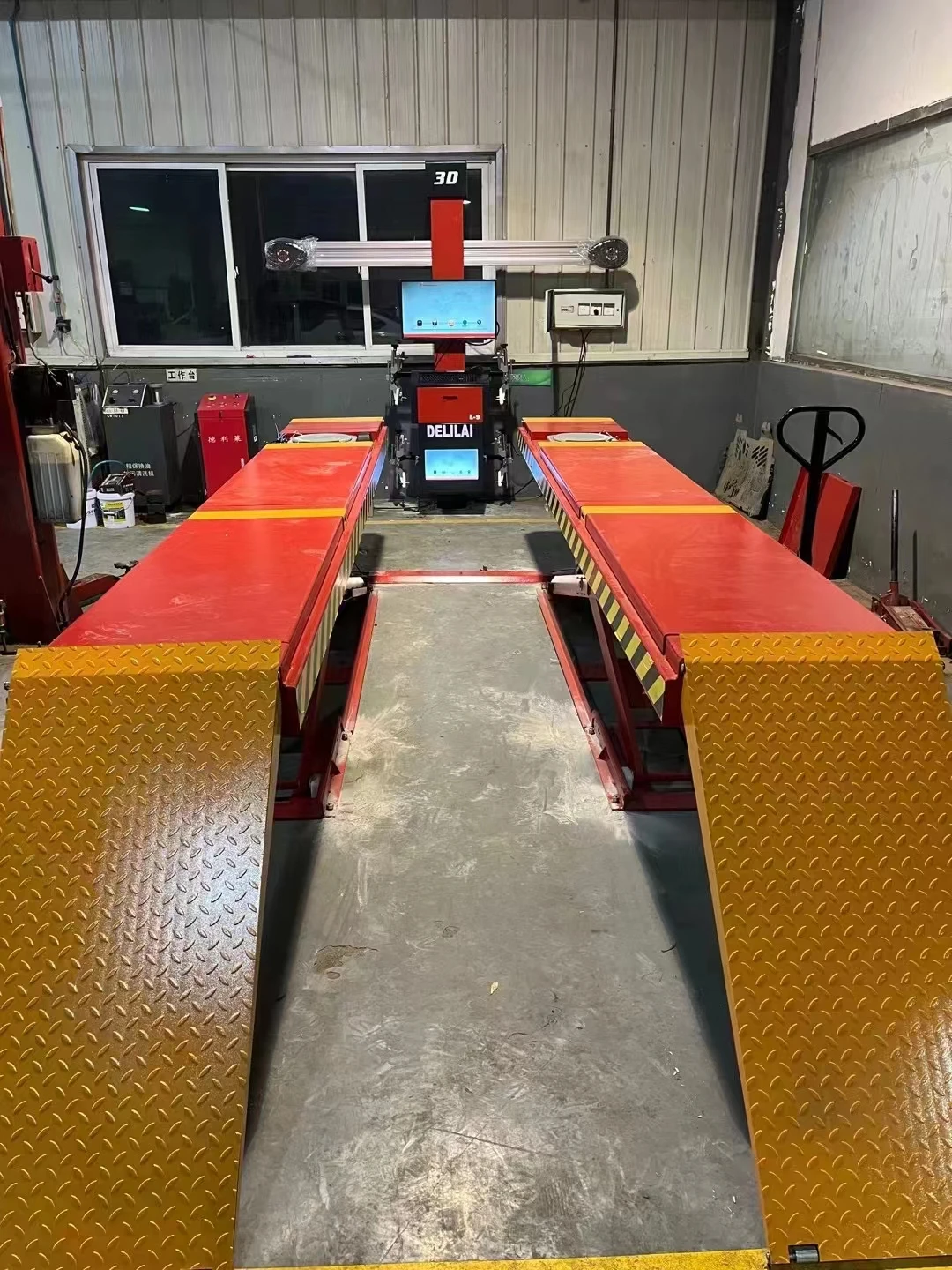

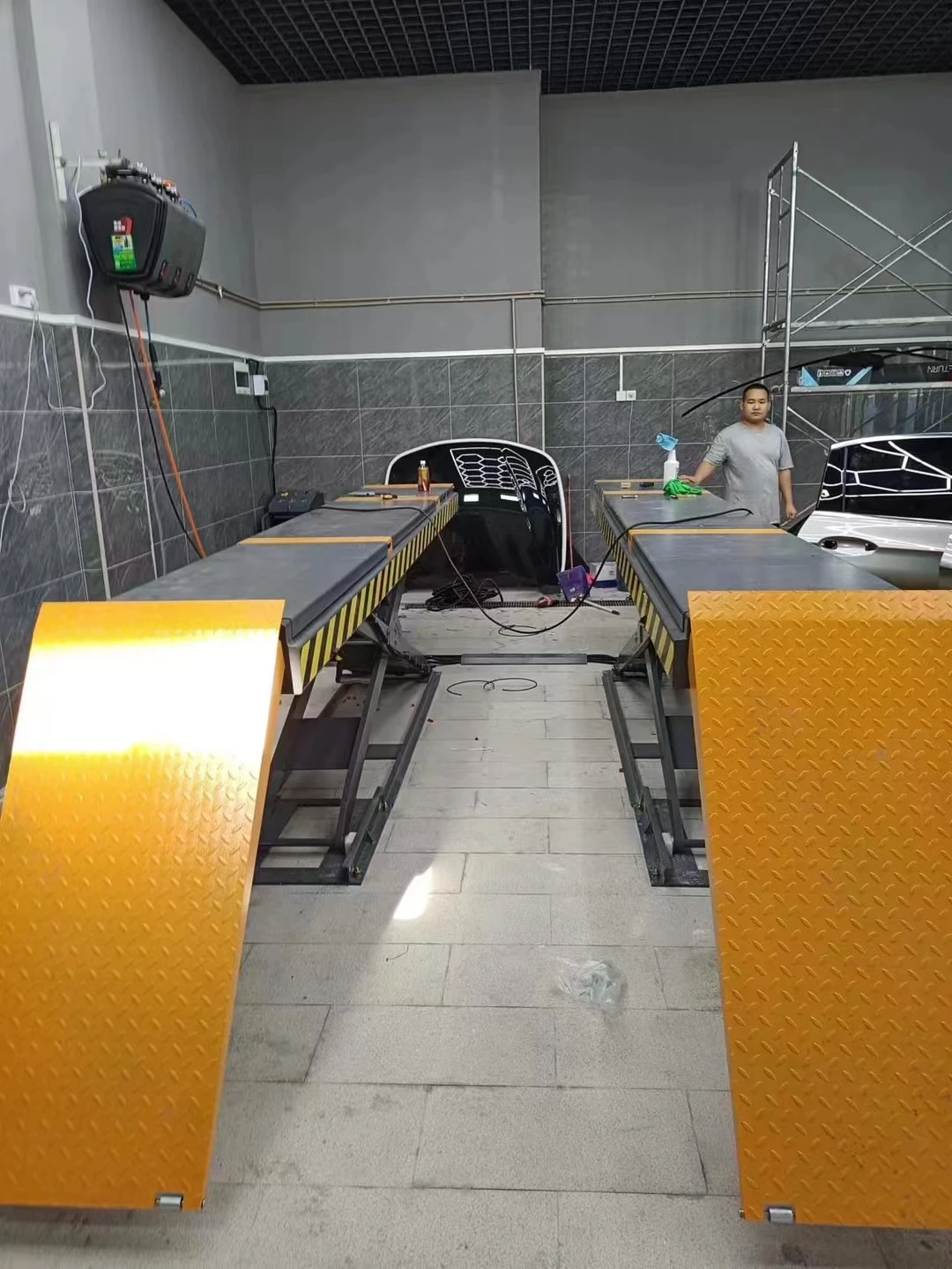

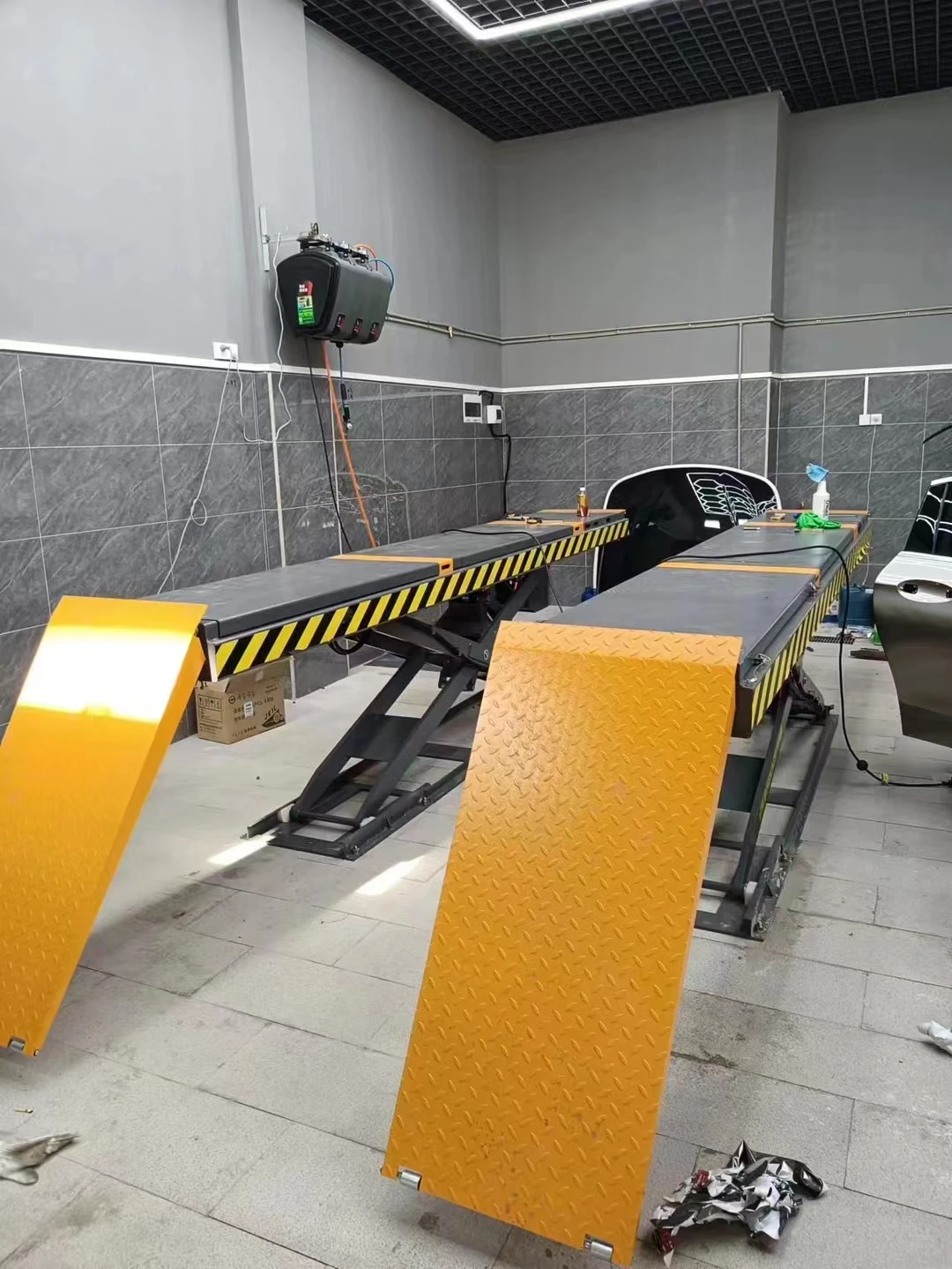

Hot Selling Heavy Duty Car Jack Lift Hydraulic Foor 5 Ton Scissor Lift Car Jack
- Category: >>>
- Supplier: Yantai Delilai Autocare Equipment Manufacturing Co. Ltd.
Share on (1601012493829):
Product Overview
Description
Product Description
Features
New high-strength alloy booster arm. computer 3D dynamic simulation desian. steady descent under fullload,standard movable boarding. solid steel X-frame pneumatic mechanical safety lock.
6-cyinder design of the whole machine,hydraulic synchronization, dual hydraulic system hydrauliclockandmechanical triple safety device, and automatic unlocking when descending.
High speed fully automatic CNC lathe is used for processing oil cylinder components to ensure excellentconcentricitvandsmoothness. and the cvlinder barrel is rolled with mirror surface.
Fully imported seals and ball valves.
Precise laser cutting technology, accurate size. smooth cut and high finish.
X frame is made of high-quality solid steel by laser cutting, with high strength, corrosion resistance and deformation resistance
Shot blasting surface treatment and high temperature spraying treatment ensure durability Single side tensile shear.
All shats are equipped with wear-resistant bearings and macromolecule wear-resistant sliding blocks.
24V safety control circuit.
6-cyinder design of the whole machine,hydraulic synchronization, dual hydraulic system hydrauliclockandmechanical triple safety device, and automatic unlocking when descending.
High speed fully automatic CNC lathe is used for processing oil cylinder components to ensure excellentconcentricitvandsmoothness. and the cvlinder barrel is rolled with mirror surface.
Fully imported seals and ball valves.
Precise laser cutting technology, accurate size. smooth cut and high finish.
X frame is made of high-quality solid steel by laser cutting, with high strength, corrosion resistance and deformation resistance
Shot blasting surface treatment and high temperature spraying treatment ensure durability Single side tensile shear.
All shats are equipped with wear-resistant bearings and macromolecule wear-resistant sliding blocks.
24V safety control circuit.
Specification
Brand name | DELILAI | |
Product name | ultra thin main-sub large scissor car lift | |
Model number | DL-4.0CBD | |
main scissor Lifting capacity | 4T | |
sub scissor lifting capacity | 3T | |
main scissor Lifting height | 200-1700mm | |
sub scissor lifting height | 450mm | |
main scissor Table length | 4500mm | |
sub scissor table length | 1515-1680mm | |
main scissor Table width | 660mm | |
sub scissor table width | 600mm | |
Moto power | 2.2kw | |
Voltage | 380v/220v/customized | |
Air pressure | 0.4-0.6mpa |
Details Images
01
The platform length of the sub scissor canbe extended from 1515mm to 1680mm
02
scissor arm is made of 25mm solid manganese steel plate,equipped with reinforced ribs，more sturdy and durable
03
Mechanical hydraulic double locking devic
4

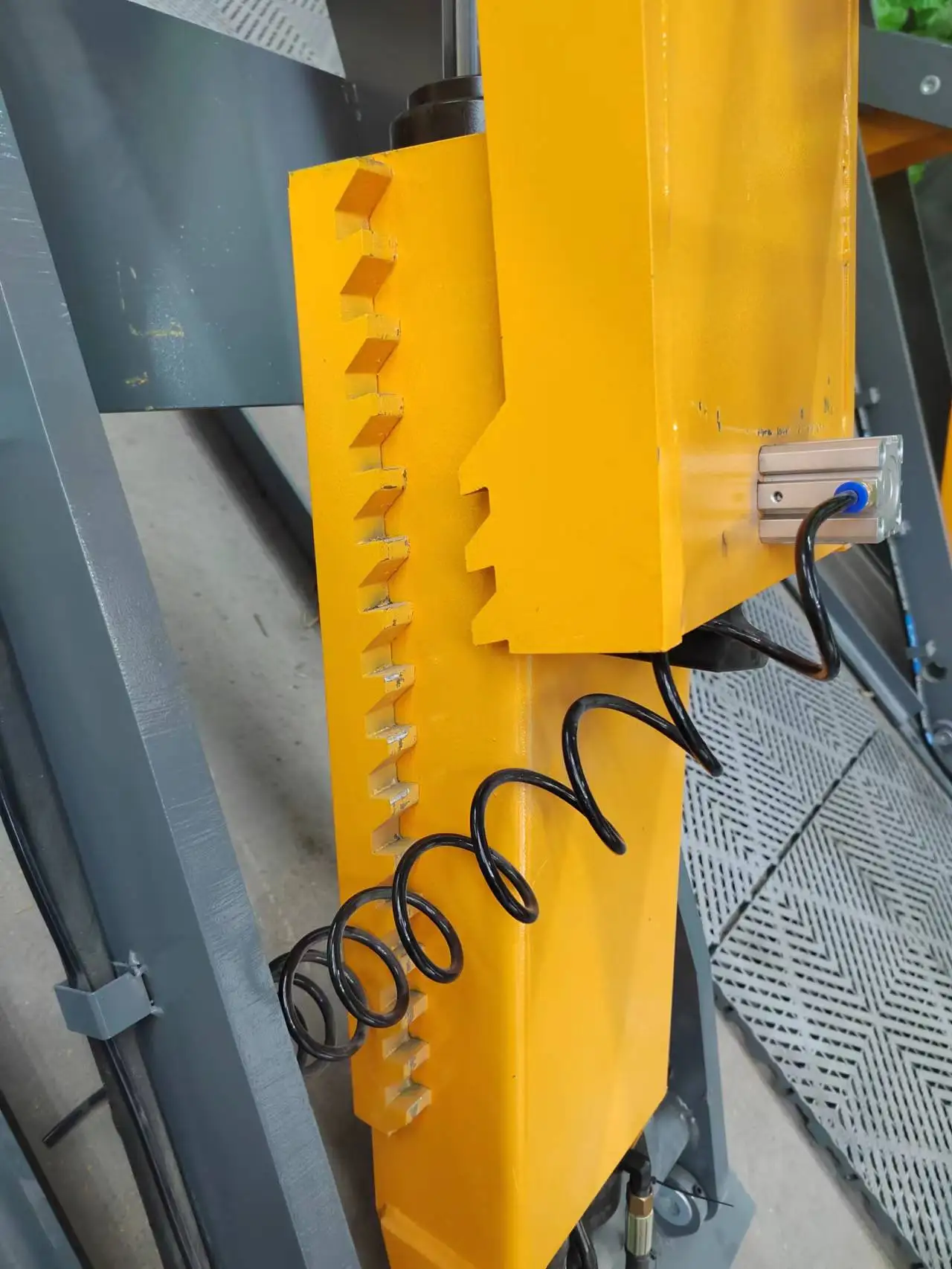

Laser cutting integrated molding Safety lock teeth-durable and safe
05
Polymer wear-resistant slider
06
Each shaft has oil filling hole，convenient for maintenance and have long service time
07
Booster arm lifts more
08
Main scissor side adopts 60mmX120MM square tube ,more solid
09

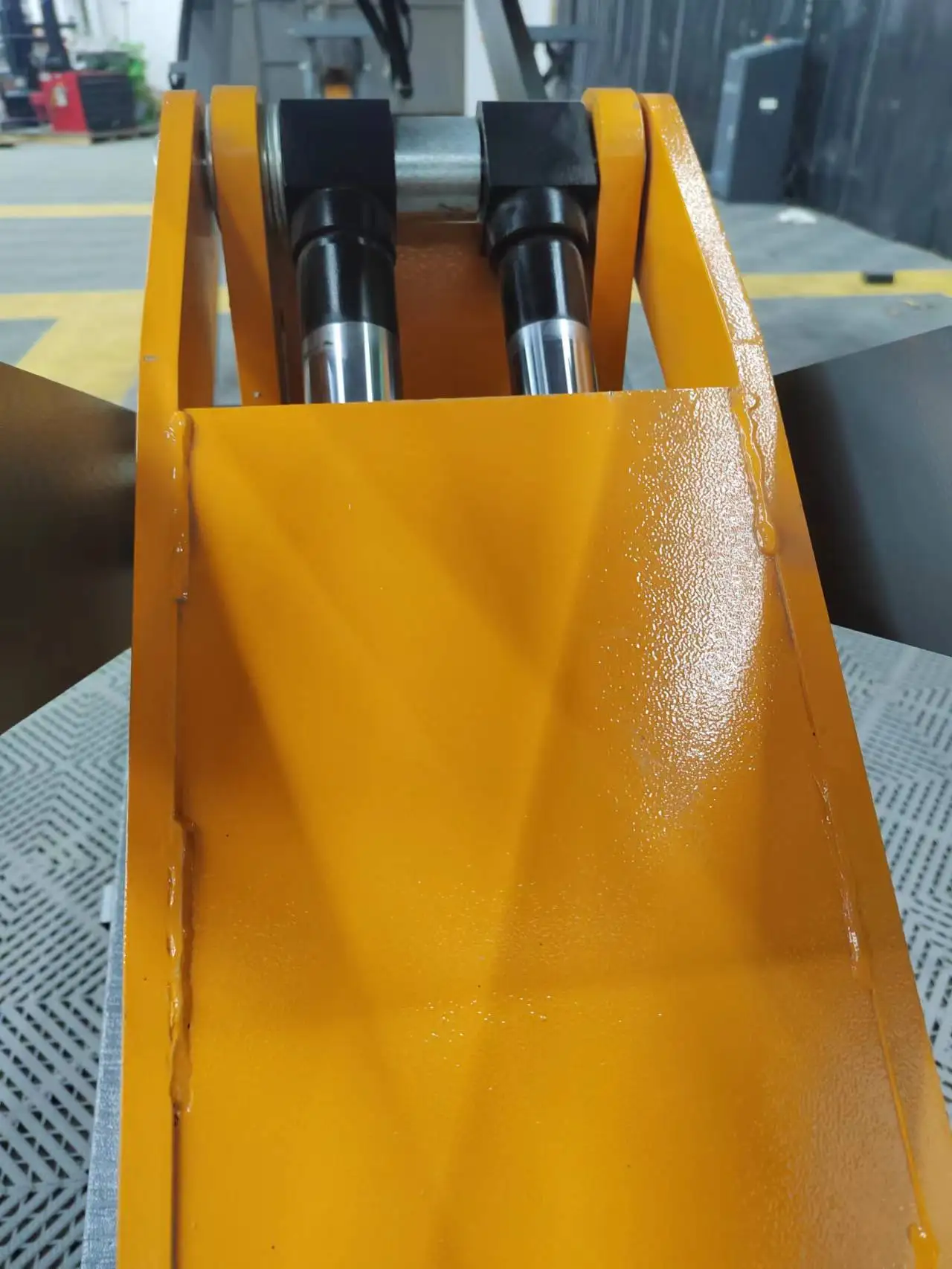

Four oil Cylinders for main scissor and 2 for sub scissor,total 6 cylinders

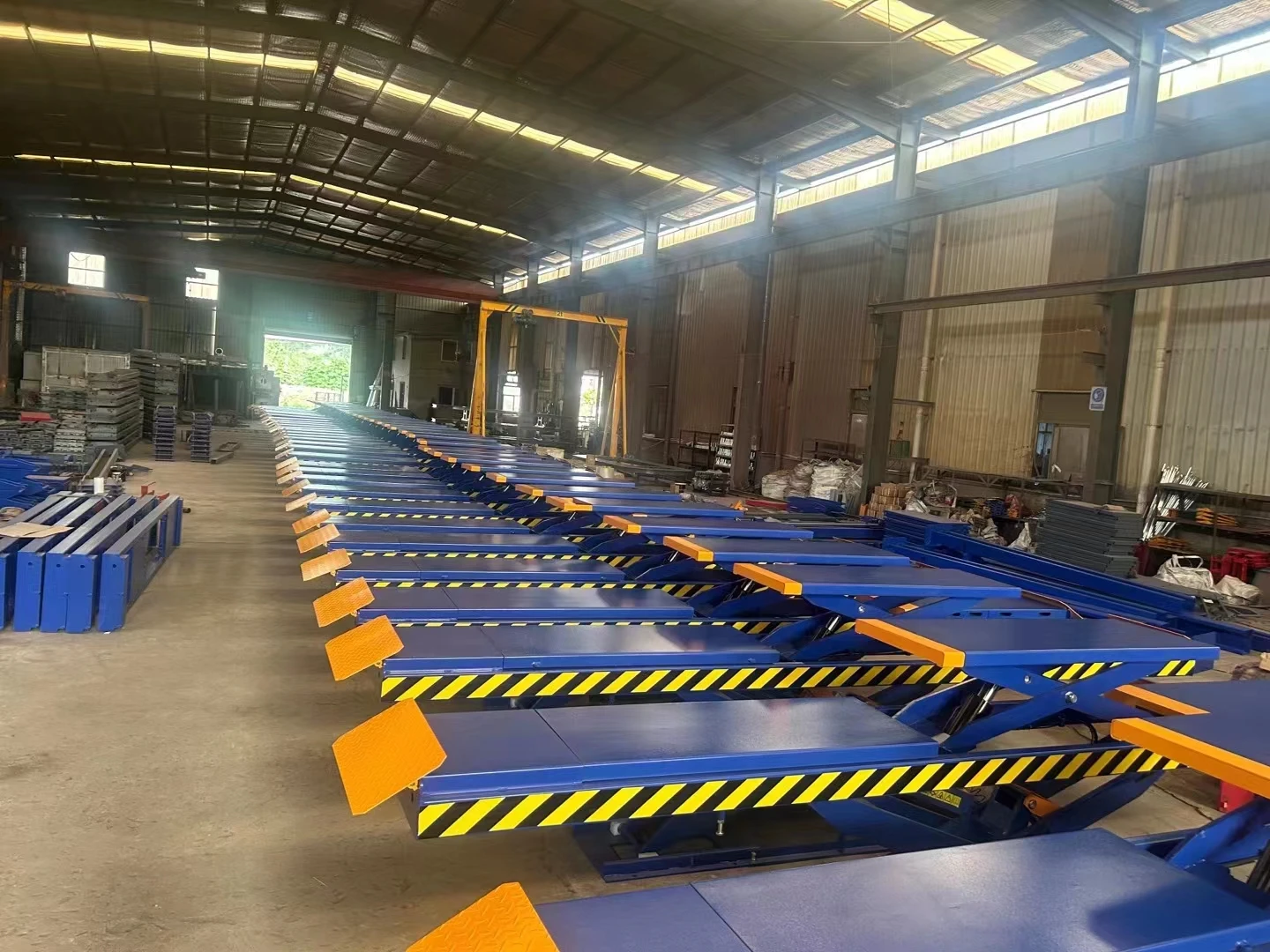

Factory Images
Customers Feedback
Packing & Delivery
Exhibition
Company Profile
Yantai Delilai Automobile Calibration Equipment Co.Ltd is a professional car testing manafacture and exptorter.Located in Yantaicity,Shandong province with convennient transportation access .We specialize in the desgin ,developement and production of autorepair and maintenance euipment,such as auto body frame machine,spray booth,auto lift,,wheel balancer,kings of tools ,wheel alignment and related products .
All of our products comply with international quanlity standards and are greatly appreciated in a variety of different marktets
throughout the world .We have ISO certificate ,CE certificate,SGS certificate etc. So our well-euipped facilities and excellent
quanlity control throughout all stages of production enables us to guarantee toal customer satisfaction .
Now our products are widely used in various domestic and foreign repair shops and 4S vehicle maintenance stations. Besides we also have outstanding customer service. Hope you are the next cooperative partner with us.
throughout the world .We have ISO certificate ,CE certificate,SGS certificate etc. So our well-euipped facilities and excellent
quanlity control throughout all stages of production enables us to guarantee toal customer satisfaction .
Now our products are widely used in various domestic and foreign repair shops and 4S vehicle maintenance stations. Besides we also have outstanding customer service. Hope you are the next cooperative partner with us.
FAQ
Q. What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q. How about your delivery time?
A:Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: What is the regular color? May I order a special color I like?
A:The regular color is Blue, Orange, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A:Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q. How about your delivery time?
A:Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: What is the regular color? May I order a special color I like?
A:The regular color is Blue, Orange, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A:Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
