DB-2061

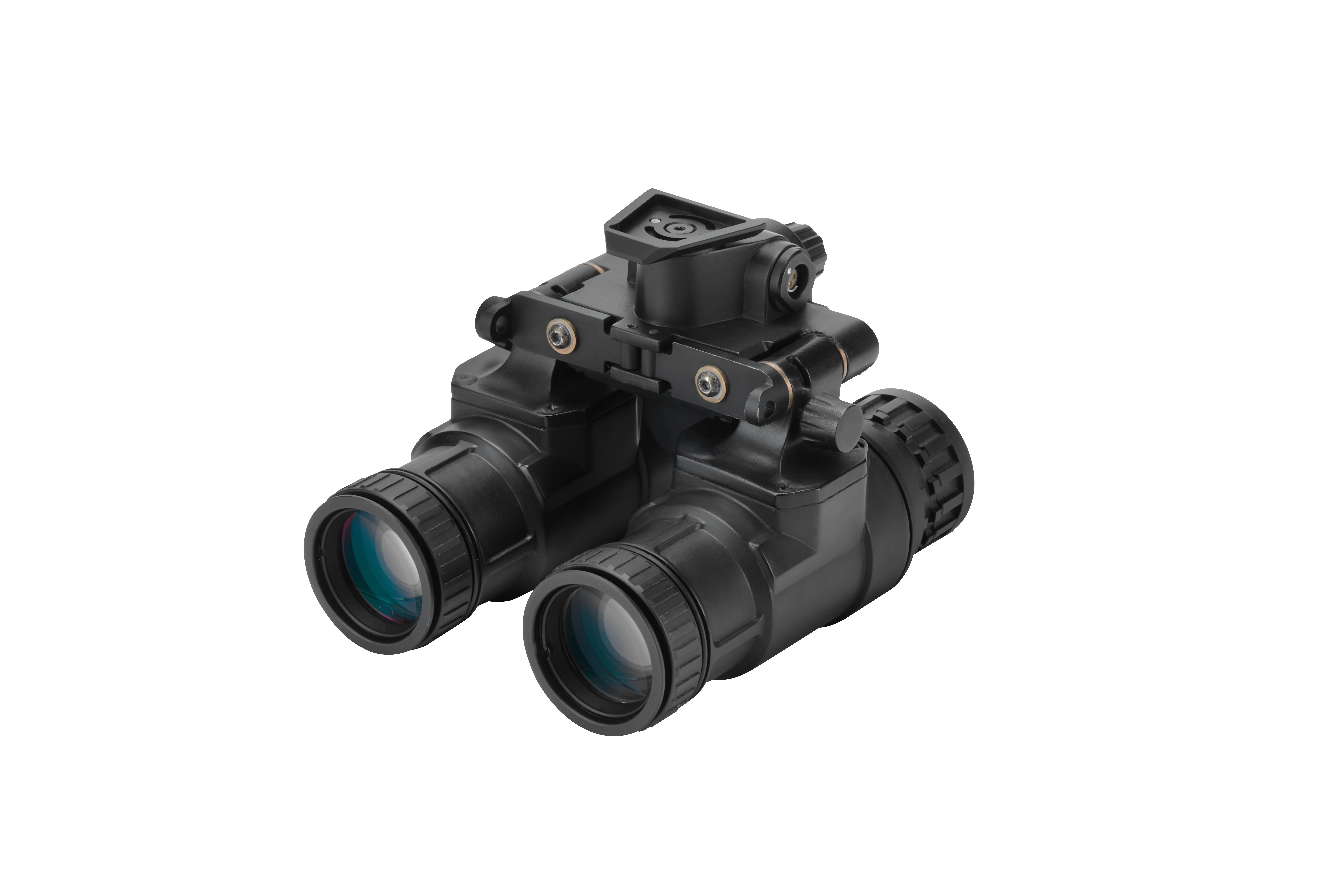

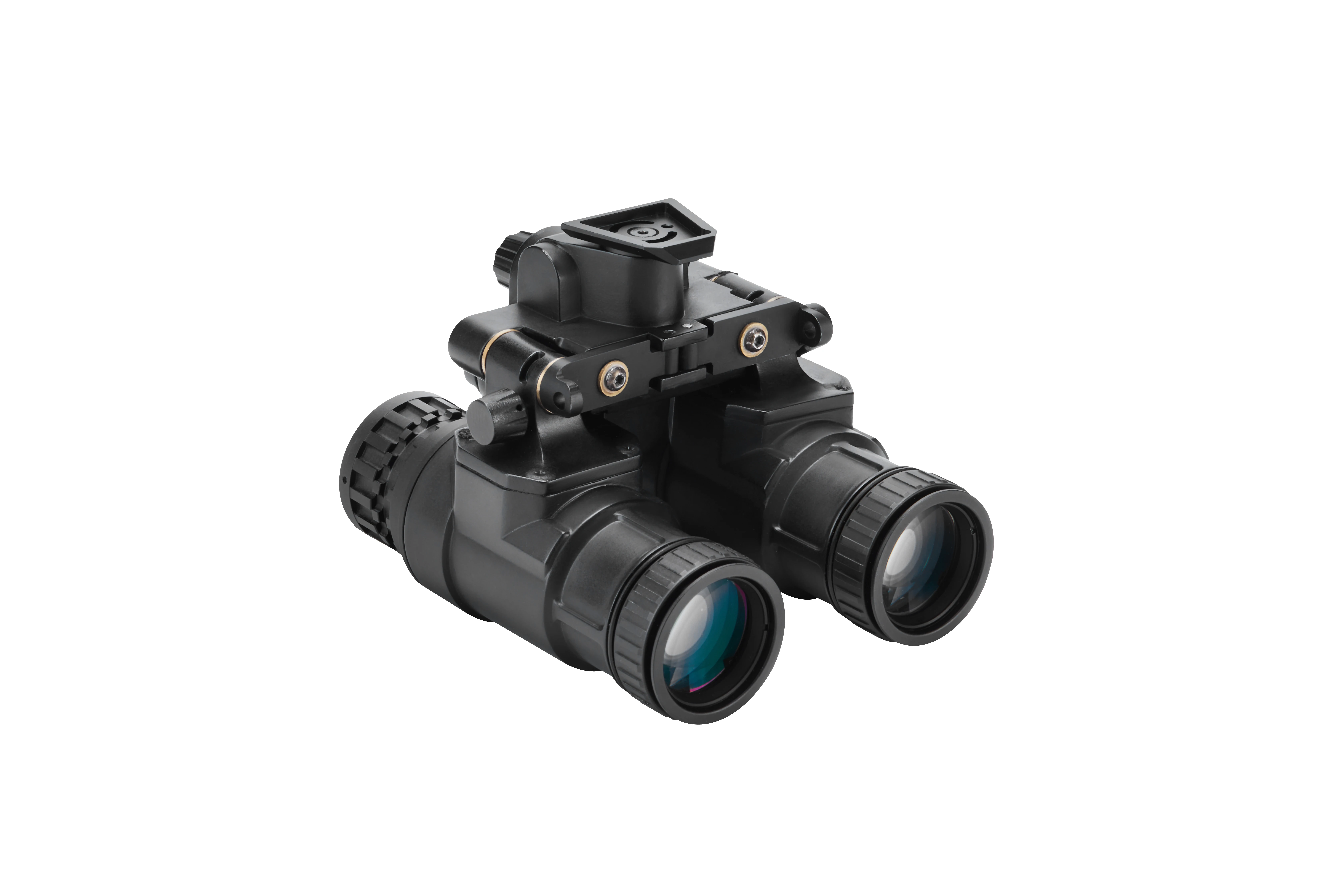

DB-2061 generation 2 + binocular binocular head mounted low light level night vision
The night vision instrument uses high-performance generation 2 + image intensifier, and can also be equipped with higher-level quasi generation 3 image intensifier, which is suitable for the requirements of different budgets and tasks.
This is a small and lightweight binocular binocular military product, wearing a low light level night vision instrument. The instrument adopts high-performance generation 2 + image intensifier, which has the powerful advantages of small volume, compact structure, light weight, large field of vision, high definition, no distortion and distortion of image. The unique fuse lage structure design can be adjusted freely according to the current needs of users. When the user does not use the night vision instrument and turns the night vision instrument up to the helmet, the instrument will automatically shut down toav oid exposing itself by the light emitted by the eyepiece. When users need monocular observation, they can turn up theunil ateral lens barrel to realize the rapid switching of monocular viewing mode. The instrument has a wide range of applicatio ns. It can be used for night fishing, forest fire prevention, family safety, driving and walking at night. It is an ideal equipmen t for outdoor night observation.

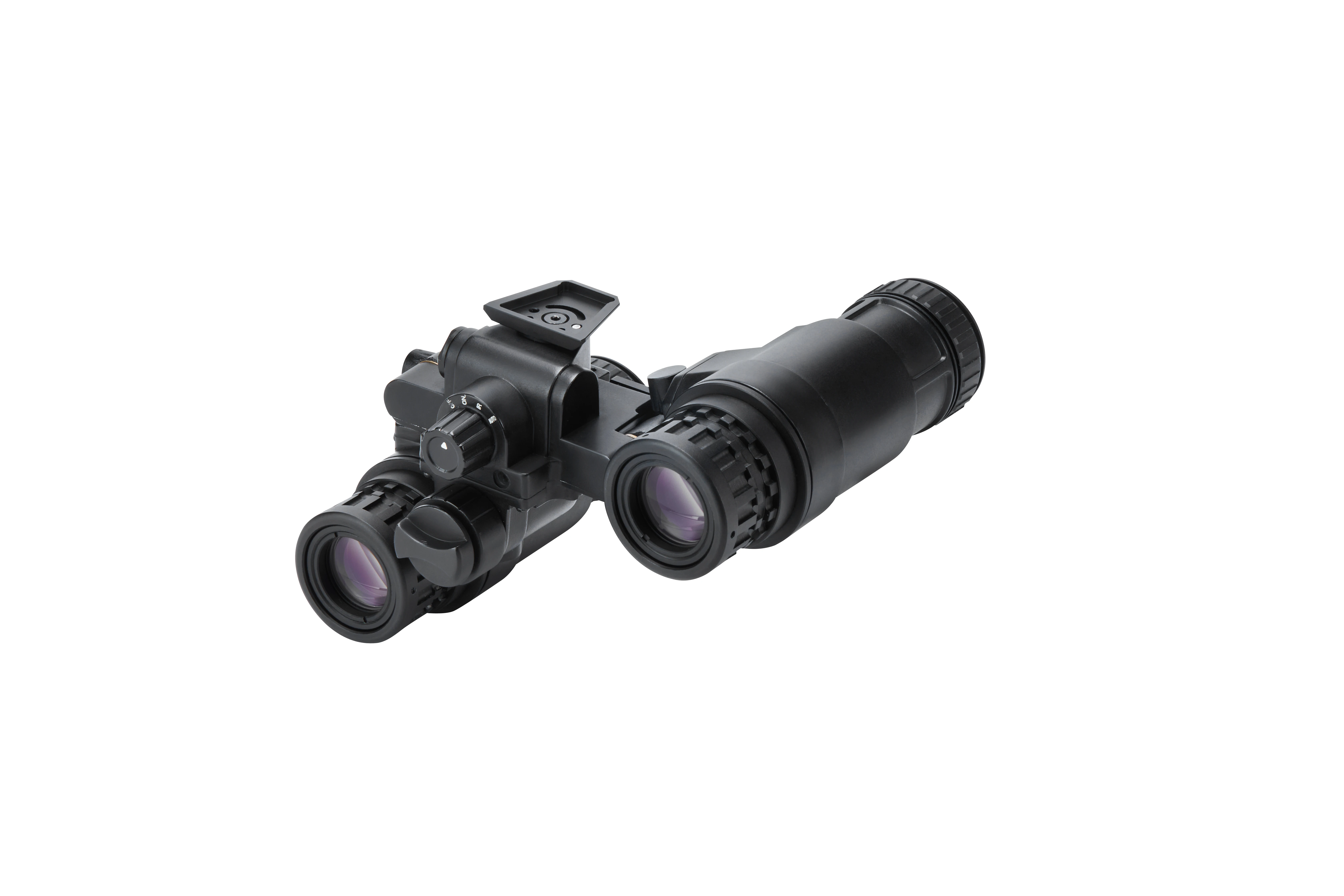

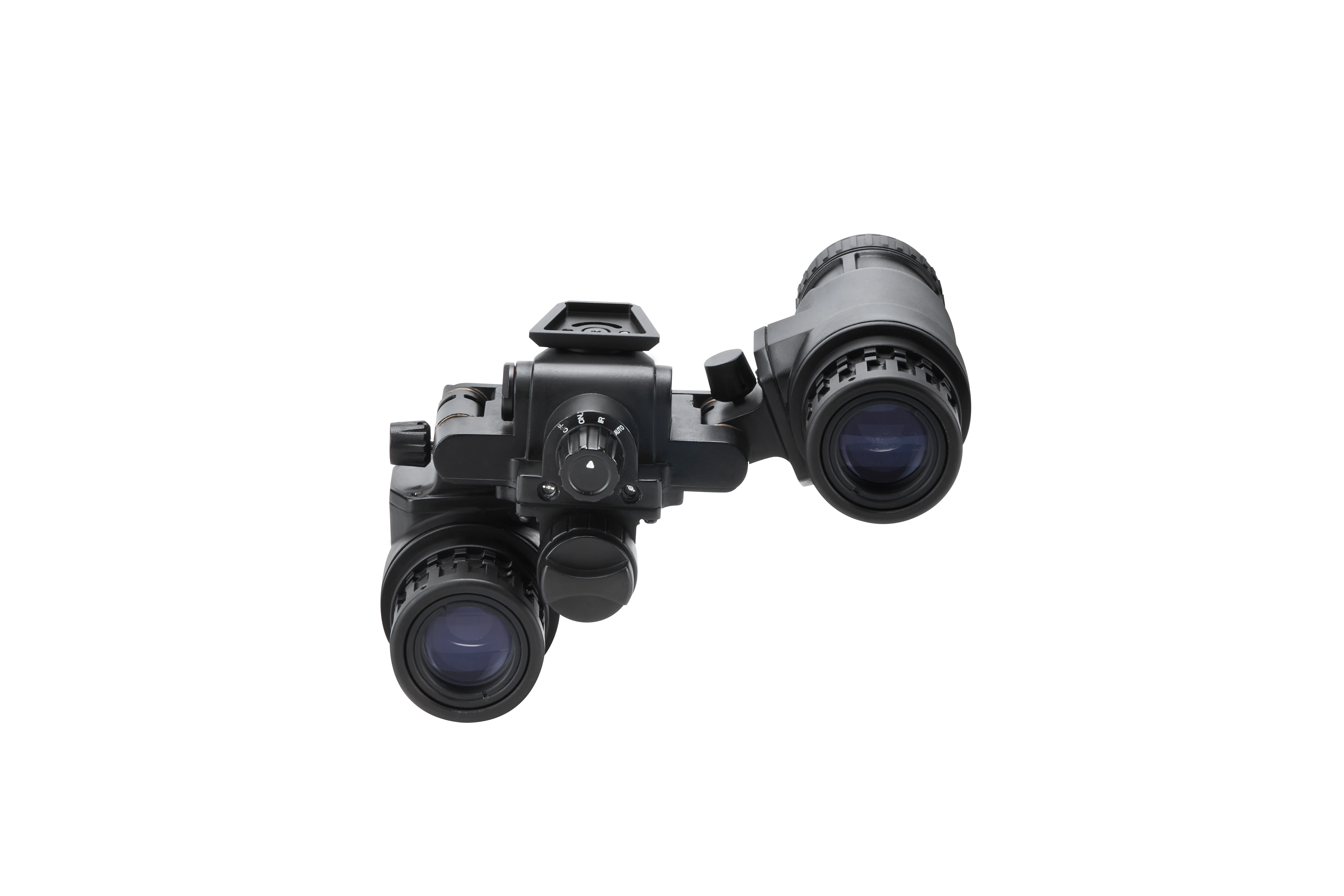

Multilayer broadband coating Fast switching of single binocular viewing mode
★Strong light automatic power-off protection function
:when the ambient light detected by the environment detector exceeds 40 lux during observation, the equipment power supply will be automatically turned off within 10s, so as to prevent the image intensifier from being damaged and protect the instrument.
★Direction sensing automatic switch
when the whole instrument is turned up 90-120 degrees, it will shut down automatically; Automatically turn on when turning down to watch.
★Optional front infrared thermal image enhancement pendant
The use of night vision instrument in low light and low illumination environment will be limited. At this time, install infrared
thermal image enhancement pendant to realize rapid upgrading of equipment, improve users' night perception ability and ensure priority identification of potential targets.
thermal image enhancement pendant to realize rapid upgrading of equipment, improve users' night perception ability and ensure priority identification of potential targets.
★Connect the external battery box through the power cord to meet the needs of long-time viewing.
★Eye distance locking function
the eye distance can be adjusted continuously within the range of 50-80mm, and the eye distance can be locked manually.
★It can be upgraded to IP68 waterproof and dustproof level to ensure normal use in extremely harsh environments.

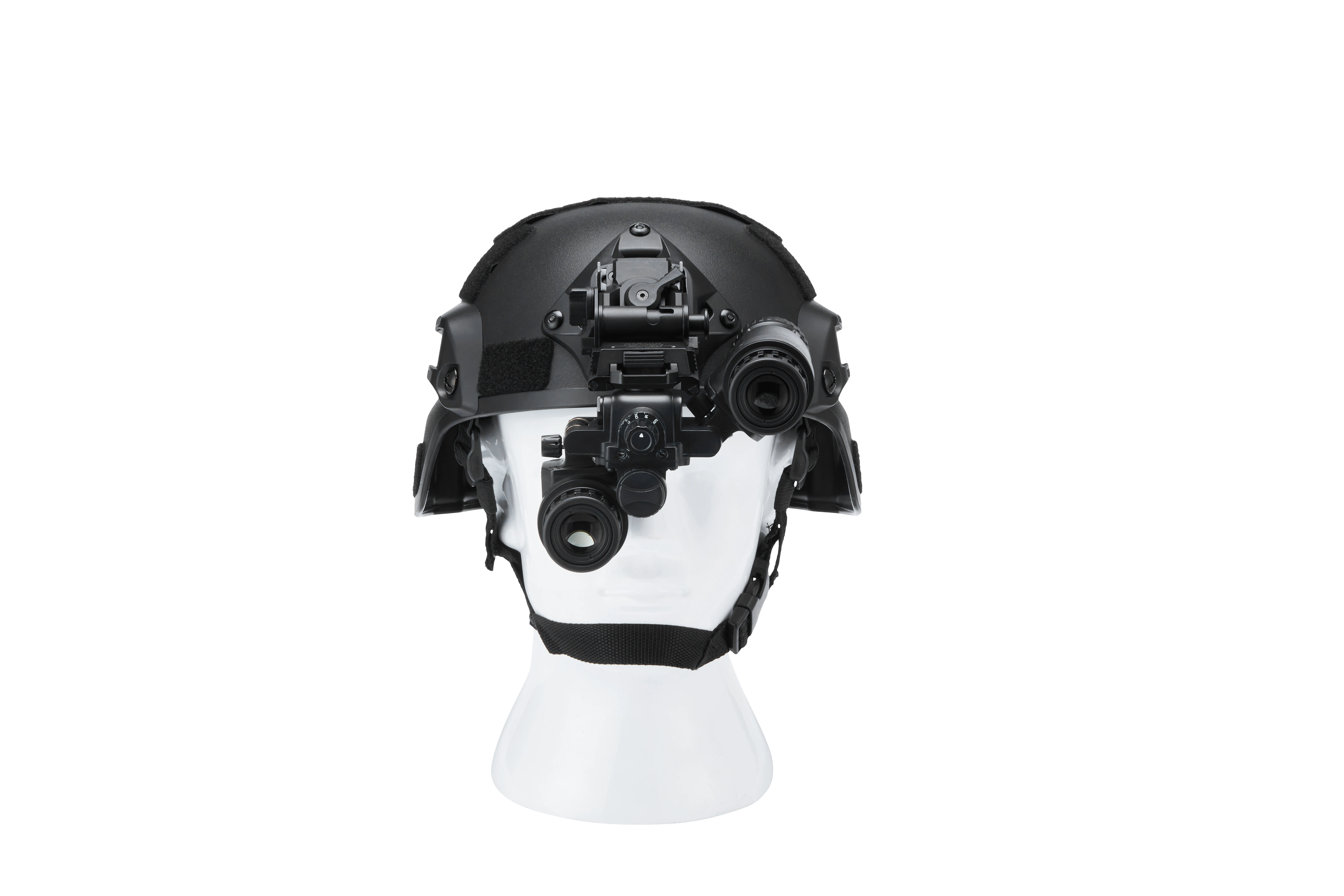

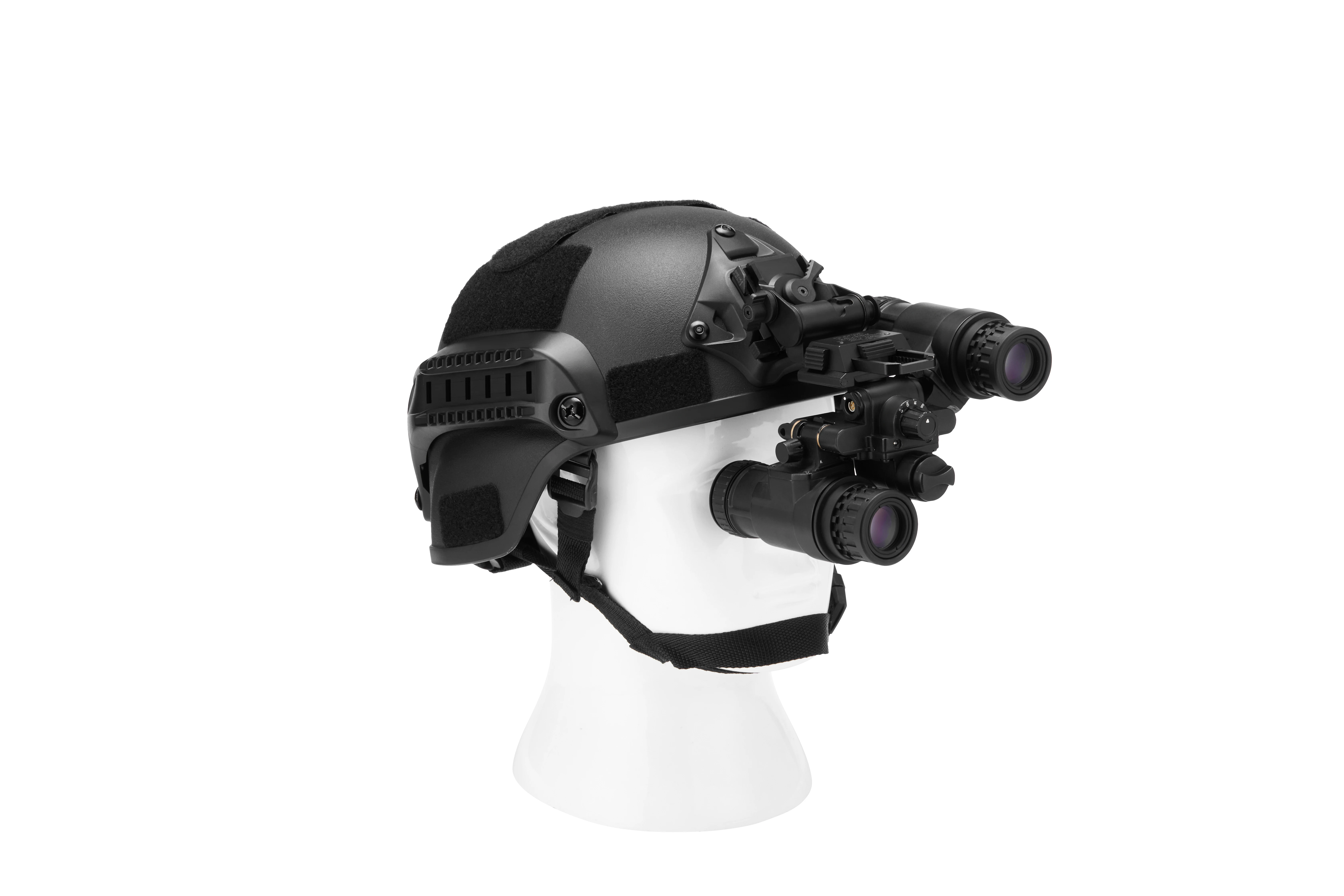

★The flexible use mode can not only link the helmet to use, but also hand-held observation.
★Eye distance locking function
the eye distance can be adjusted continuously within the range of 50-80mm, and the eye distance can be locked manually.
★It can be upgraded to IP68 waterproof and dustproof level to ensure normal use in extremely harsh environments.
★The flexible use mode can not only link the helmet to use, but also hand-held observation.

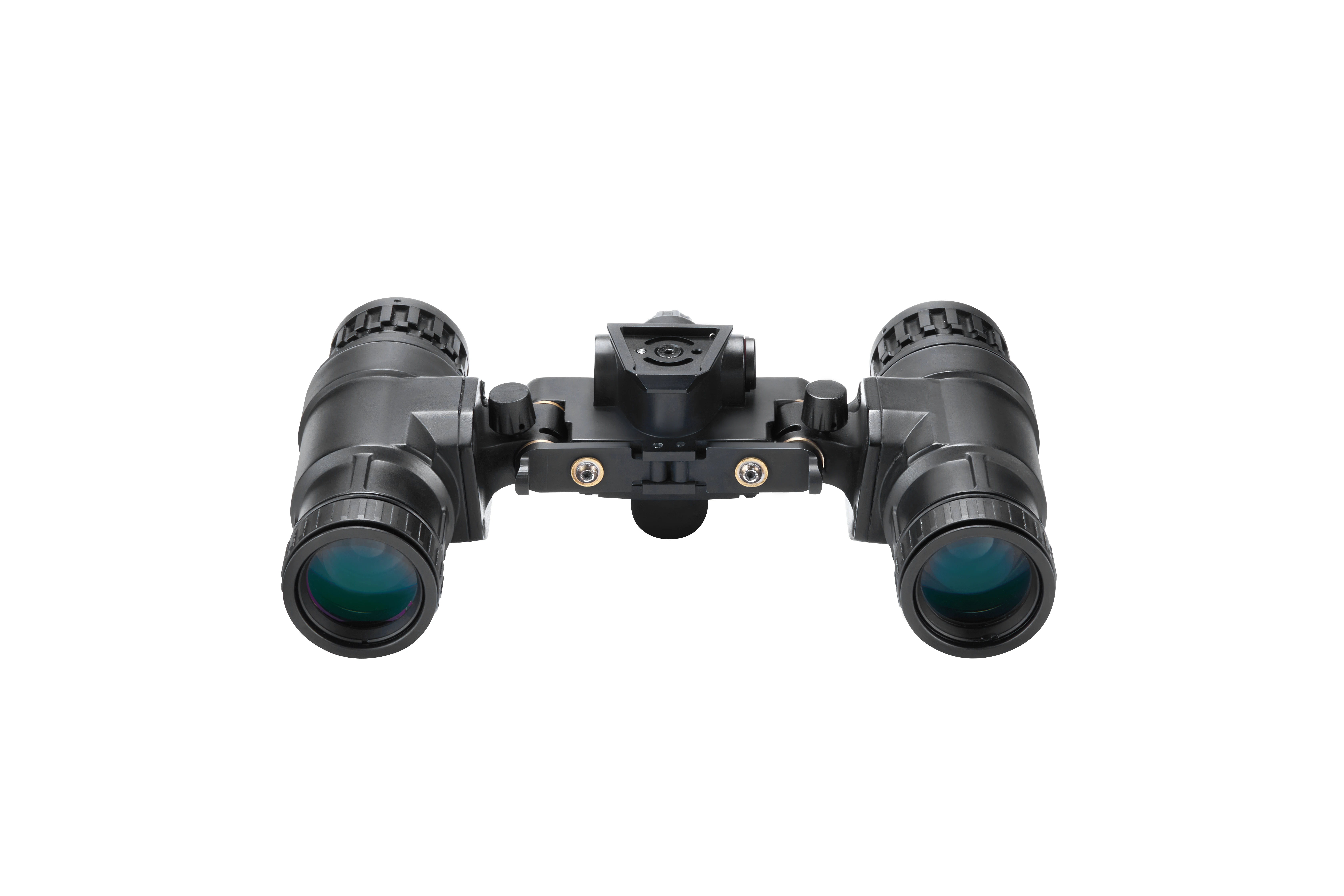

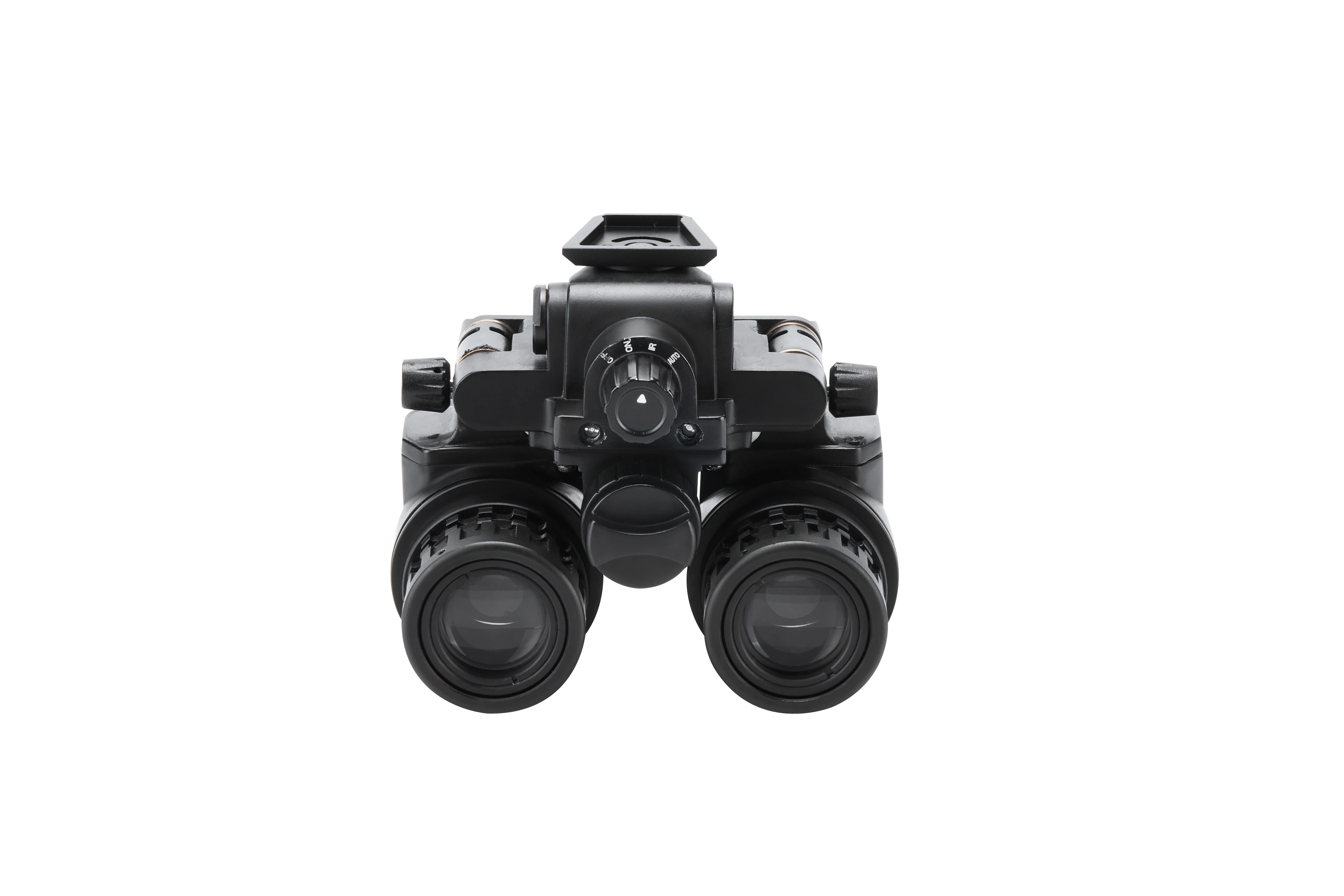

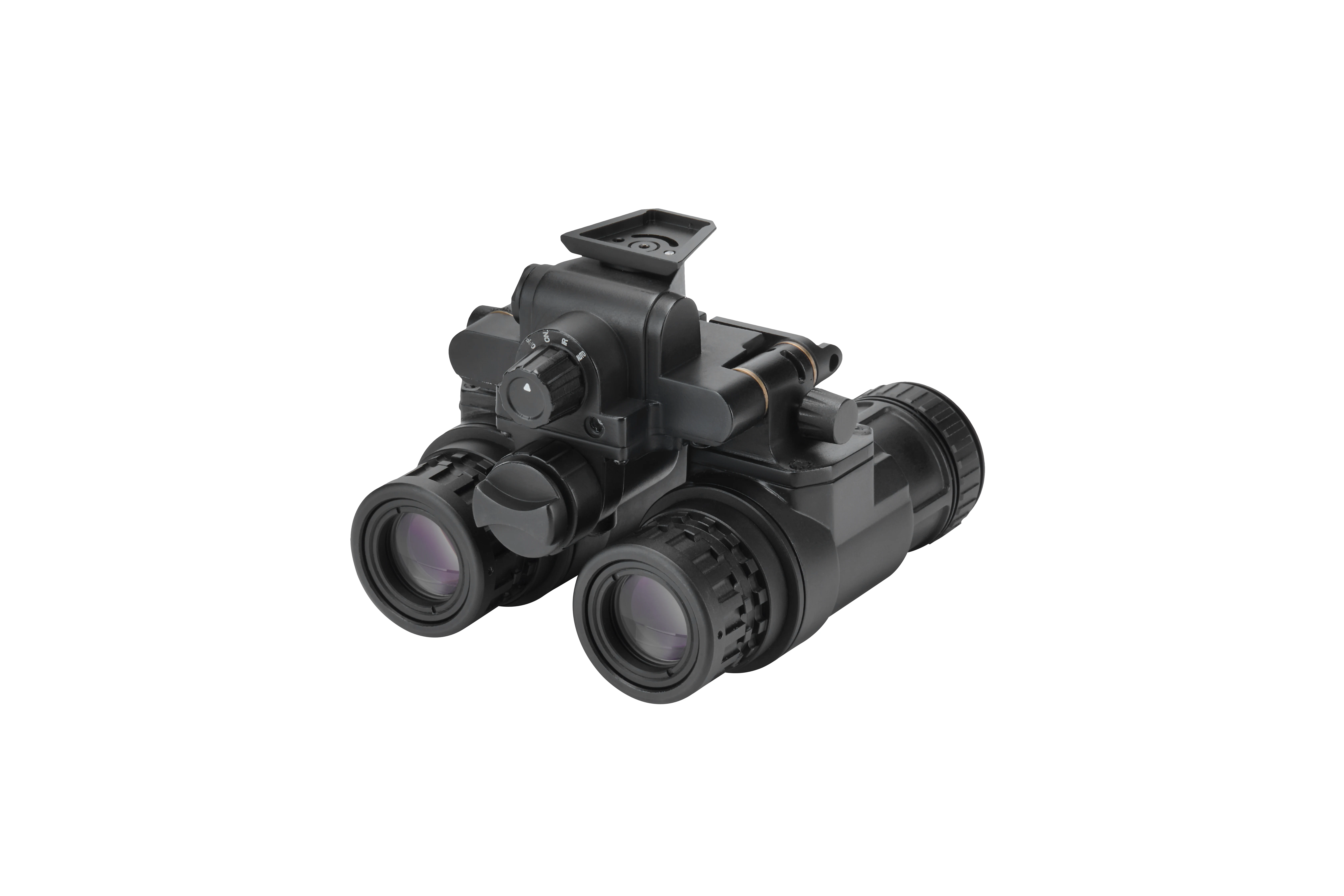

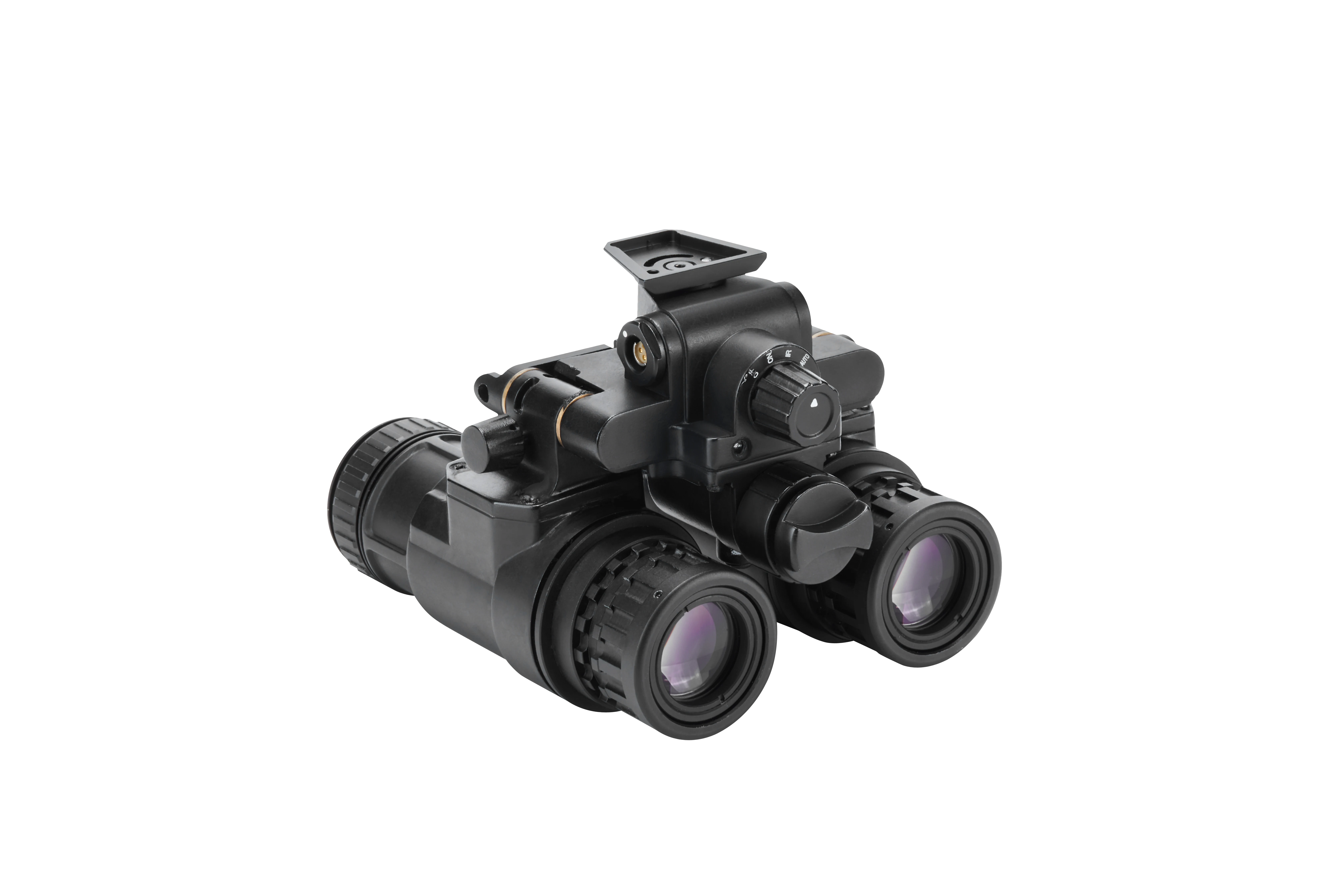

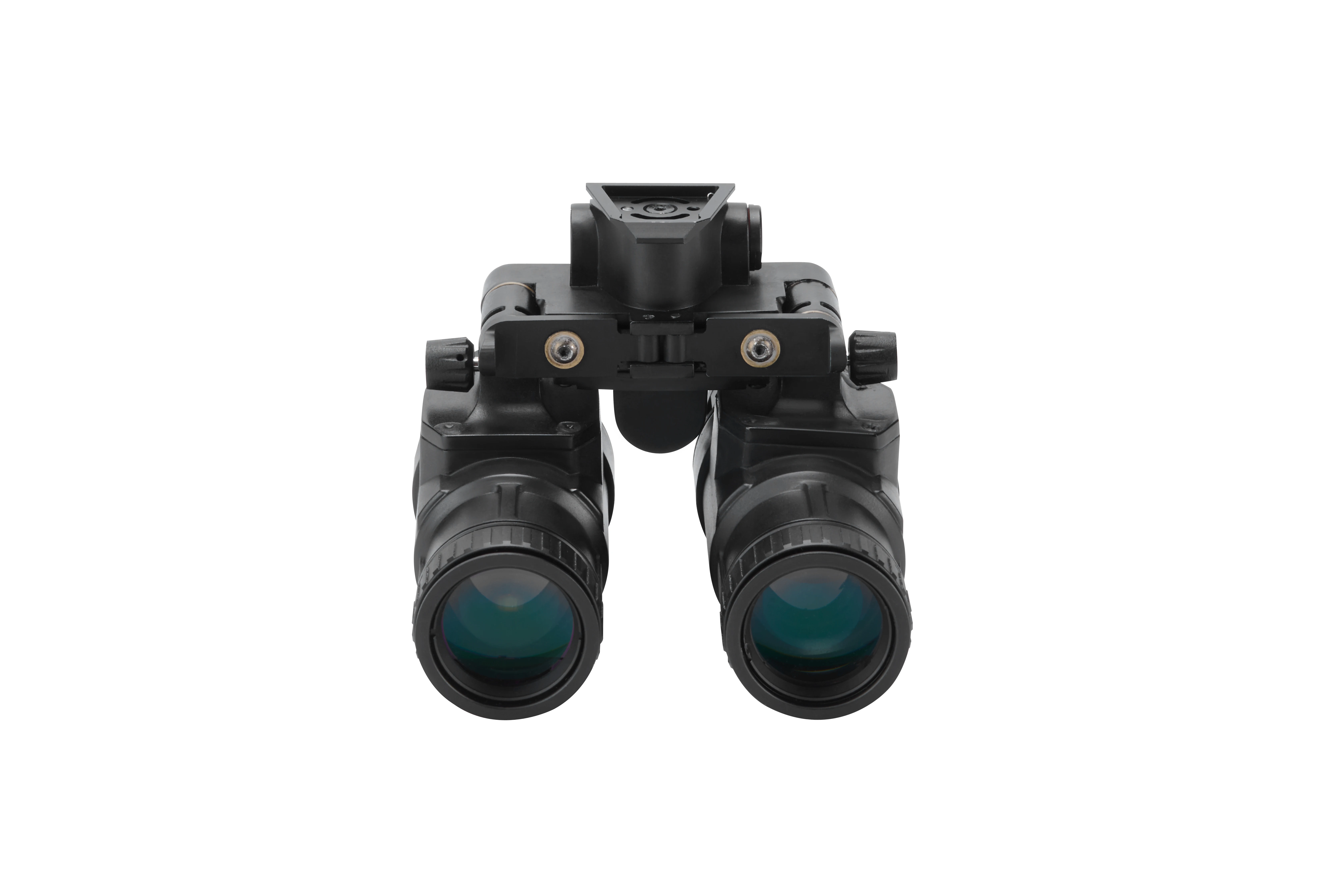

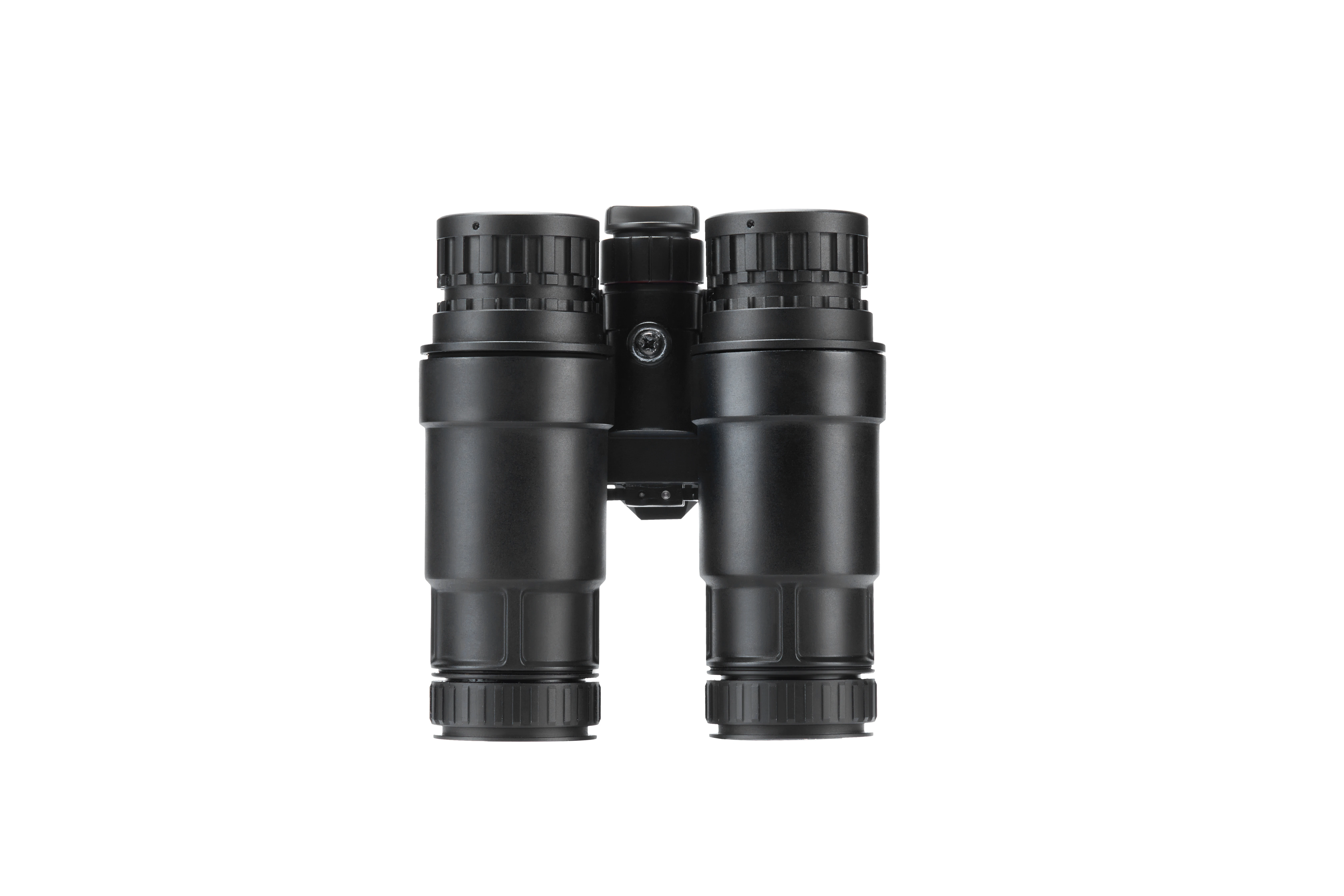

Detailed Images
Specification
Model number | DB-2061 |
Warranty | 1years |
Customized support | OEM, ODM |
Place of Origin | Chongqing, China |
Brand Name | LASERSHOT |
Environmental rating | IP65 (upgradeable to IP68) |
Dimensions | 115x178x58 (unfolded) / 115x105x85 (folded) |
Weight | 612g |
Magnification | 1X |
Lens system | F1.2, 25mm |
IIT | Gen 2+ |
Resolution | 48-65lp/mm |
Field of view (°) | 50 |
Eye distance adjustment range (mm) | 55-80 |
Built in infrared indicator | Yes |
Built in infrared indicator | Yes |
Eye distance range locking function | Yes |
Diopter | +5/-5deg |
Battery Type | 1 CR123A battery / battery box (built-in 4 CR123A batteries, available for purchase) |
Standby time (hours) | Battery power supply: 40H (infrared on) 80h (infrared not on) Battery box power supply: 300h |
Operating temperature(℃) | -40/+60 |
Power supply | 2.6-4.2V |
Official Accessories
Night vision instrument host x1, shockproof box x1, dumper accessories, objective lens cover x1, charging set (rechargea ble battery and charger) x1, manual x1, warranty card x1, mirror cloth x1.
Optional Accessory
Independent battery box, front infrared thermal image enhancement pendant.
