Manufacturer price horizontal ribbon powder mixer machine
- Category: >>>
- Supplier: Jining Factop International Trade Co. Ltd.
Share on (1601012510097):
Product Overview
Description
Product Description

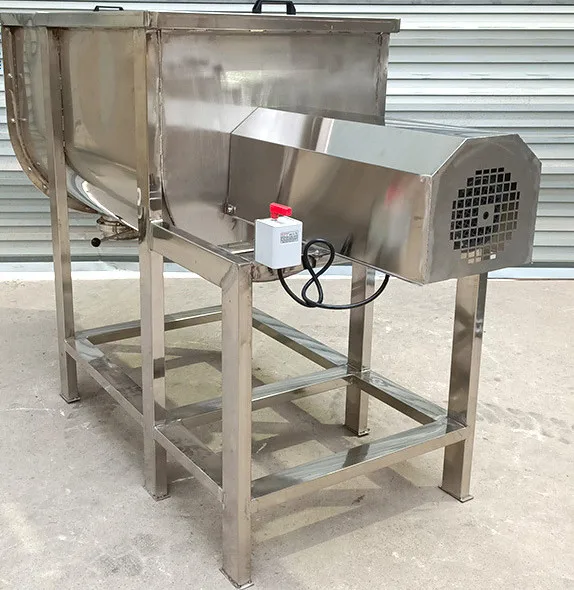

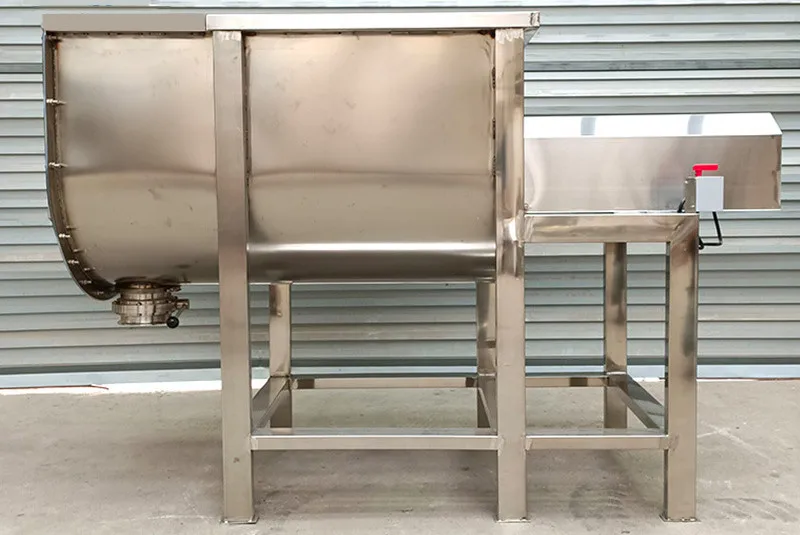

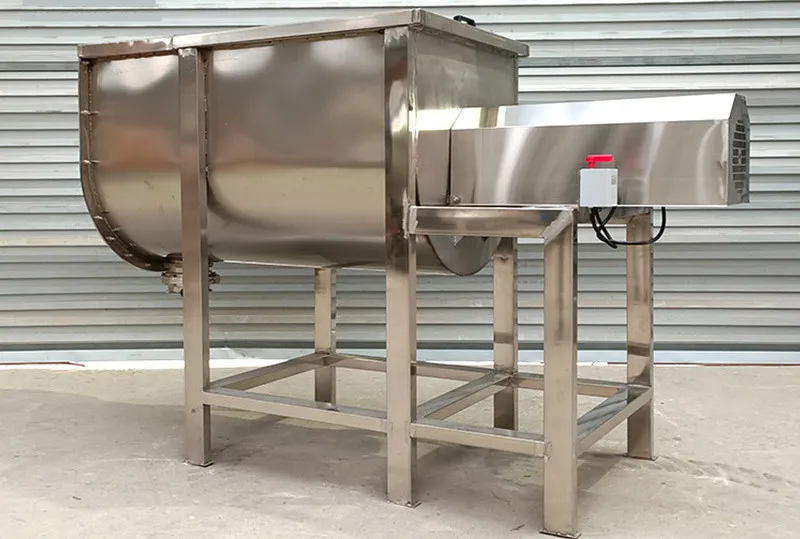

304 stainless steel U-shaped horizontal dry powder mixer machine
Features:
1. Both the material bucket and screw belt are made of stainless steel material, which is clear and easy to avoid rusting;
2. Adopting a gear reducer that is wear-resistant, durable, has a long service life, and has low noise;
3. Bidirectional S-shaped screw belt, quick and uniform mixing of materials;
4. The top can be opened with an observation window, making it easy to observe the mixing situation;
5. Customizable heating and drying mixer, using double-layer thermal oil electric heating method.
2. Adopting a gear reducer that is wear-resistant, durable, has a long service life, and has low noise;
3. Bidirectional S-shaped screw belt, quick and uniform mixing of materials;
4. The top can be opened with an observation window, making it easy to observe the mixing situation;
5. Customizable heating and drying mixer, using double-layer thermal oil electric heating method.
Scope of application: Food, medicine, chemical, mineral powder screening, grain mixing, feed additive processing, and other abrasive mixing products. Usage: powder mixing, particle mixing, etc
Main Technical
Model | Working mixing kg | U drum size mm | Dimension mm | Motor kw | Capacity mixing L | Mixing time min |
100 type | 100 | 876*500*525 | 1500*560*910 | 1.5 | 170 | 3-5 |
200 type | 200 | 1170*660*695 | 2015*740*1230 | 3 | 400 | 3-6 |
300 type | 300 | 1325*760*790 | 2300*850*1450 | 3 | 600 | 4-6 |
500 type | 500 | 1550*860*900 | 2900*958*1650 | 5.5 | 900 | 6-9 |
1000 type | 1000 | 1890*1050*1200 | 3160*1050*2100 | 7.5 | 1600 | 8-12 |
2000 type | 2000 | 2250*1250*1450 | 3800*1450*2250 | 11 | 2750 | 10-15 |
3000 type | 3000 | 2520*1380*1550 | 3440*1550*2380 | 15 | 3760 | 14-19 |
5000 type | 5000 | 2520*1600*1750 | 4300*1750*3000 | 22 | 5000 | 18-23 |
Product Detail

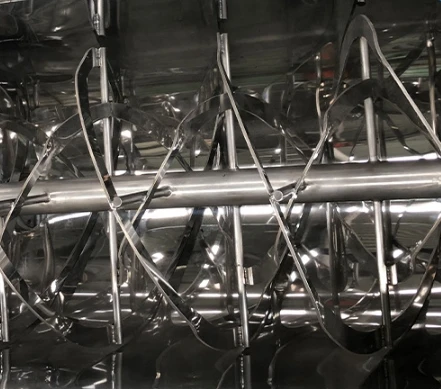

The large axis of the double-layer spiral belt inside and outside the mixer drives the spiral belt to flip, and the double-layer spiral belt allows the material to flow in both directions, making the mixing more uniform.

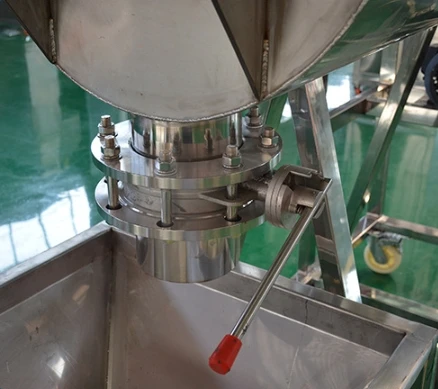

High precision thickened butterfly valve, capable of empty operation, convenient and reliable

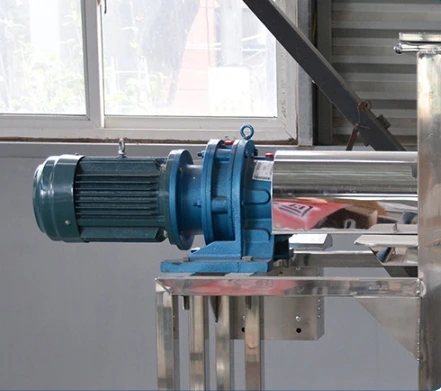

High performance well-known reducer, motor quality assurance, greater assurance of core power.
Real Photos
