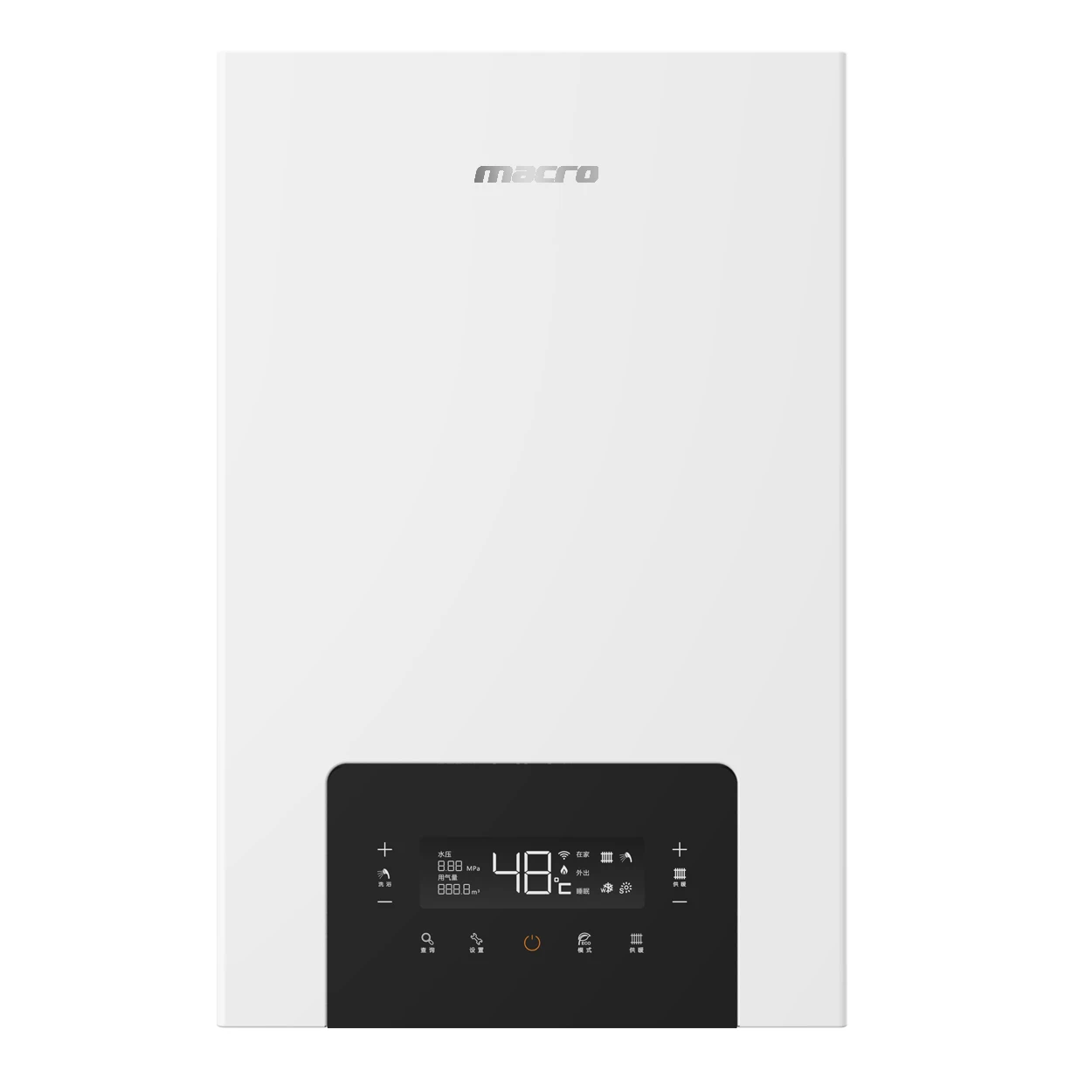

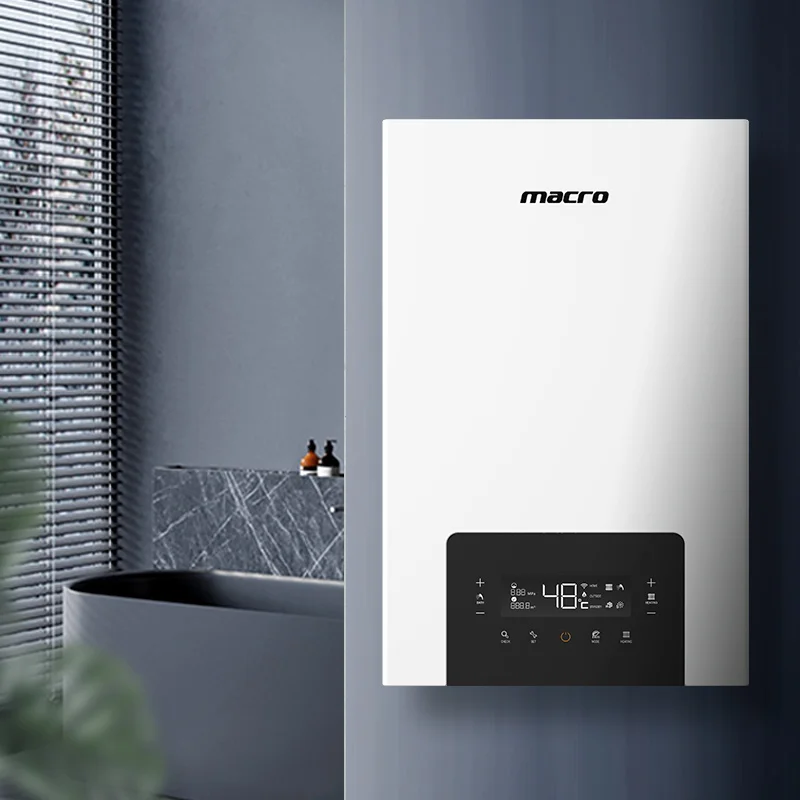

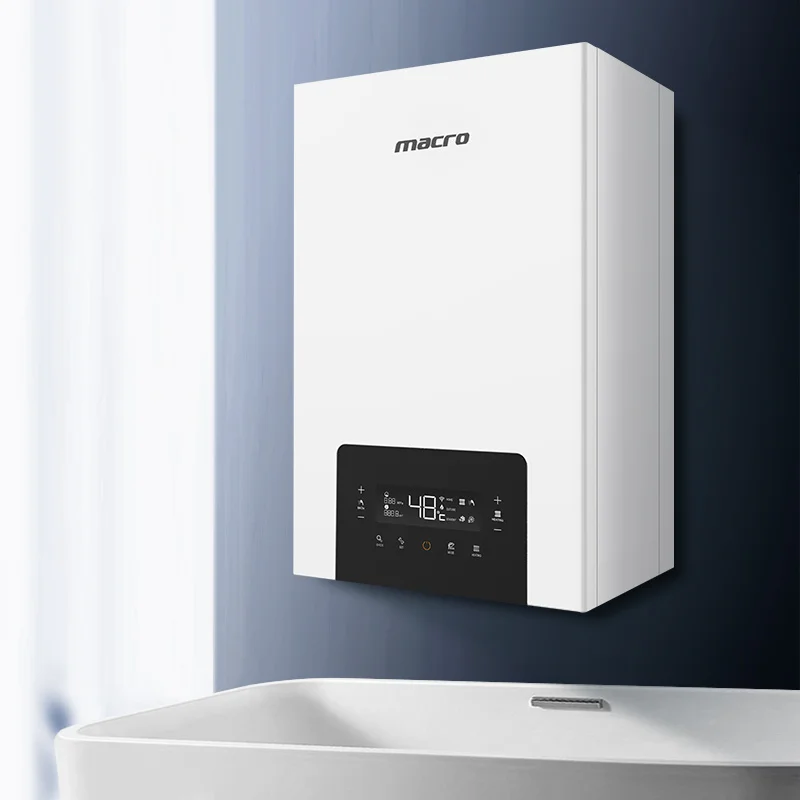

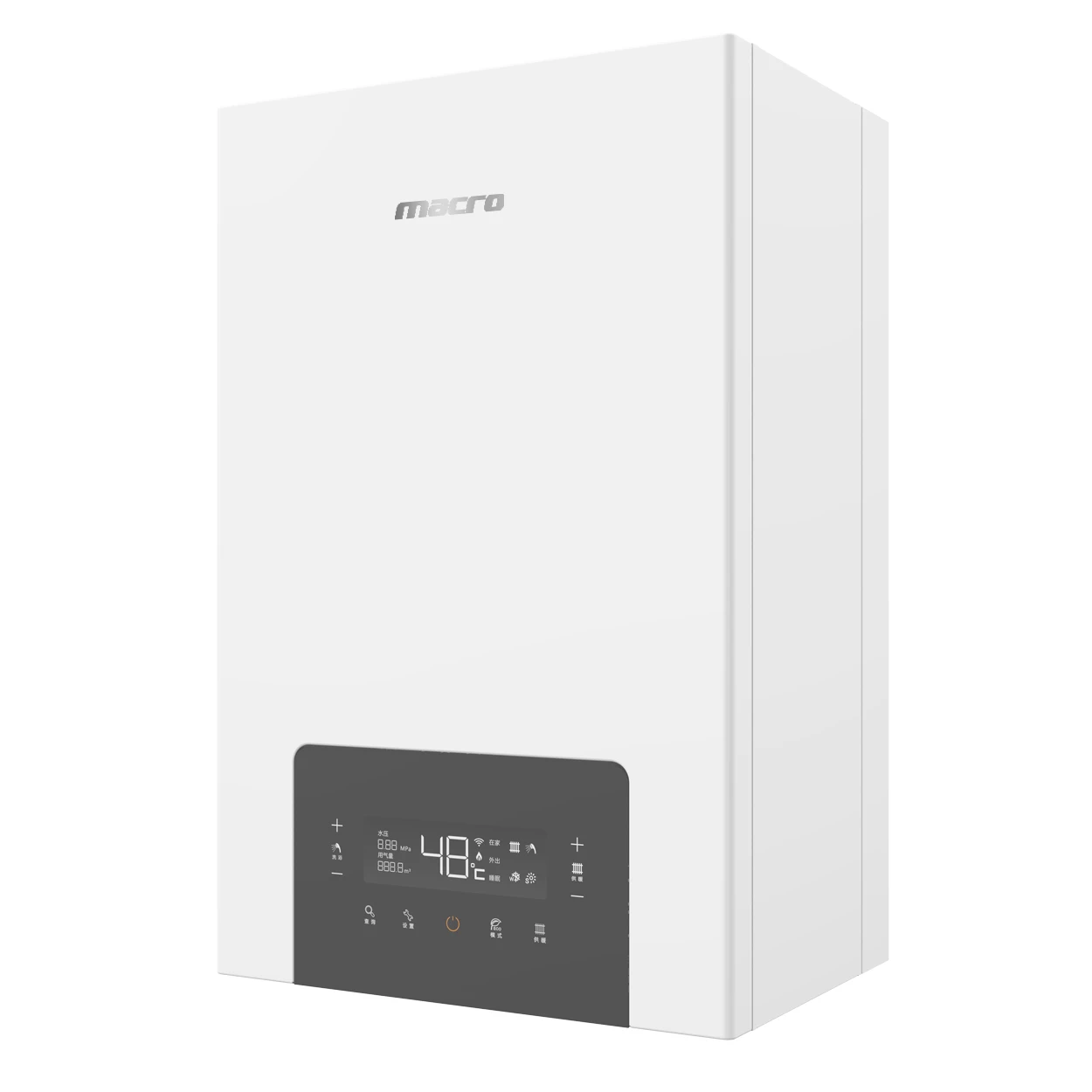

China Macro High Quality Wall Mounted Gas Boiler with 32/36kW Output Power Combi Boiler Double Circuit
China Macro High Quality Wall Mounted Gas Boiler with 32/36kW Output Power Combi Boiler Double Circuit
China Macro High Quality Wall Mounted Gas Boiler with 32/36kW Output Power Combi Boiler Double Circuit
China Macro High Quality Wall Mounted Gas Boiler with 32/36kW Output Power Combi Boiler Double Circuit
China Macro High Quality Wall Mounted Gas Boiler with 32/36kW Output Power Combi Boiler Double Circuit
China Macro High Quality Wall Mounted Gas Boiler with 32/36kW Output Power Combi Boiler Double Circuit
China Macro High Quality Wall Mounted Gas Boiler with 32/36kW Output Power Combi Boiler Double Circuit

China Macro High Quality Wall Mounted Gas Boiler with 32/36kW Output Power Combi Boiler Double Circuit

Share on (1601012510964):


Price:$280.00 - $350.00

Quantity:


Product Overview

Description



Products Description


G2

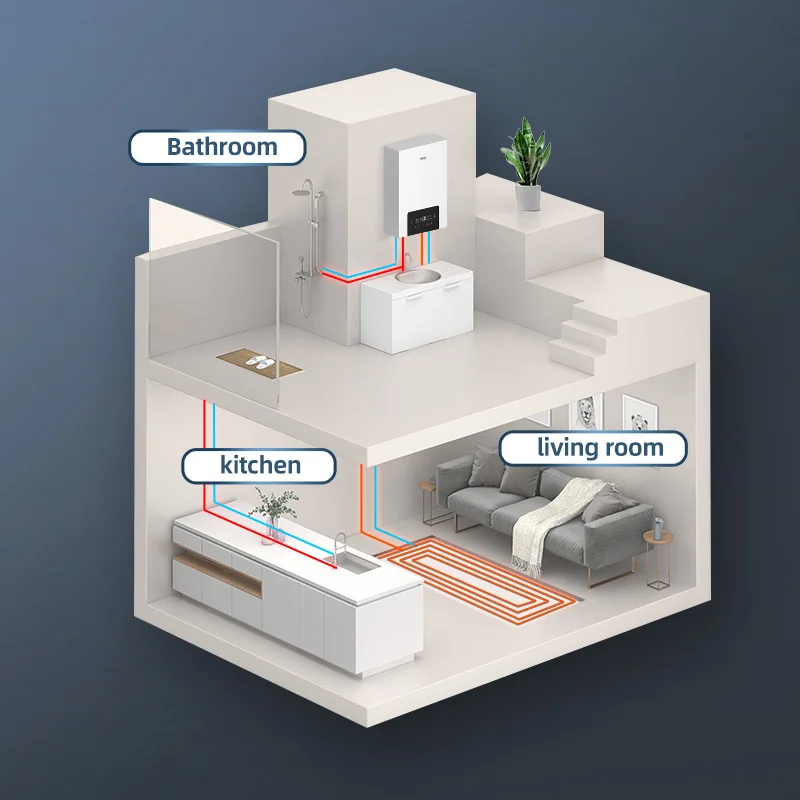

* Double adopt for ground heating & bath
* Double Heat Exchanger
* International brand adoption for main components
* 48 kinds of safety protection
* Extremely low noise as 46dB
* 3 stages for combustion * Independent temp. control between ground heating&bath
Model
L1PB36-32G2
L1PB40-36G2
Max. Heat Input/Output (kW)
36/32
40/36
Min. Heat Input/Output (kW)
10/8.5
10/8.5
Max./Min. Gas Consumption (m³/h)
3.6/1.0
4.0/1.0




Heating
Max. Heating Temp. (℃)
85
Heating Water Temp. Range (℃)
Radiator : 30~80
Ground Heating : 25~60
Max. Water Pressure (MPa)
0.3
Expansion Heat Exchanger Volume (L)
10
Heating Area (㎡)
150~300
150~300




Bath
Rating Hot Water Capacity (L/min)
△t = 30k
14.5
16.5
Rating Hot Water Capacity (L/min)
△t = 25k
18
20
Water Temp. Range (℃)
30~65
Water Pressure Range (MPa)
0.02~0.8
Rating Power (W)
174

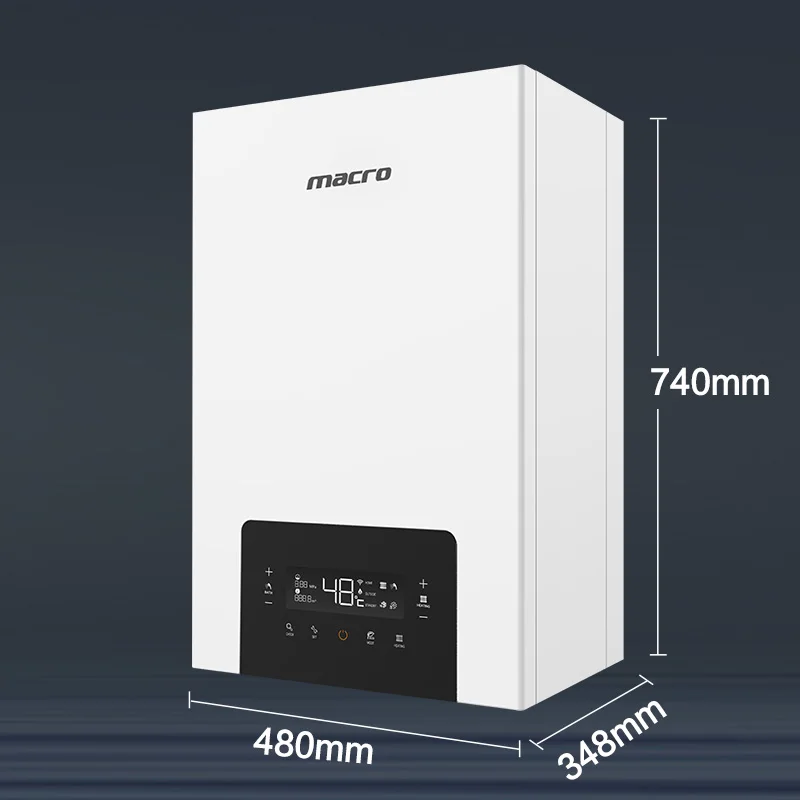

Product Size
(mm)
740x480x348
Packing Size (mm)
880x575x450
G.W./N.W. (kg)
42/46
42/46


Details Images










Related Hot Products




Why Choose Us




About Us


Macro Brief Introduction
MACRO,was founded in 1985 and located in ShunDe, a hometown of home appliances.Covering an area of 80,000㎡, with a smart technology system,Macro keeps pursuing innovation and upgrade, also deeply exploring enterprise transformation.
From the founder of the gas appliance in China, to the innovator in the hot water, kitchen appliance, water purification and heating industry, Macro has always been standing at the forefront, leading the development of kitchen and bath appliance.




High-Tech System
Personalized customization, big data forecasting, and flexible production creates Macro new pattern of intelligent manufacturing.
Nearly 40 specific laboratories , 500 sets of top level science and technology facilities, 1.2 million times of strict test, hundreds of quality standards much far exceeding the industry.

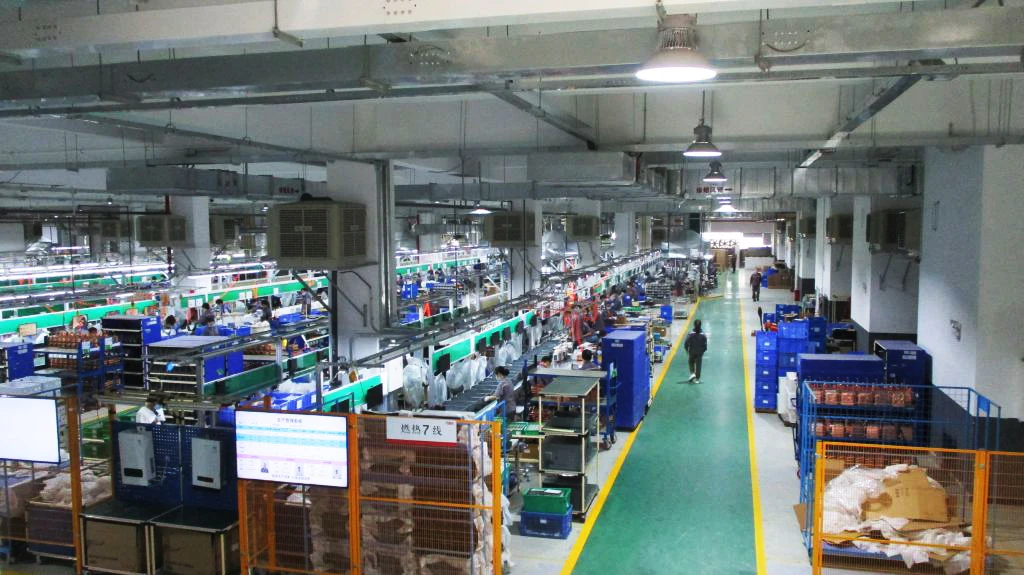

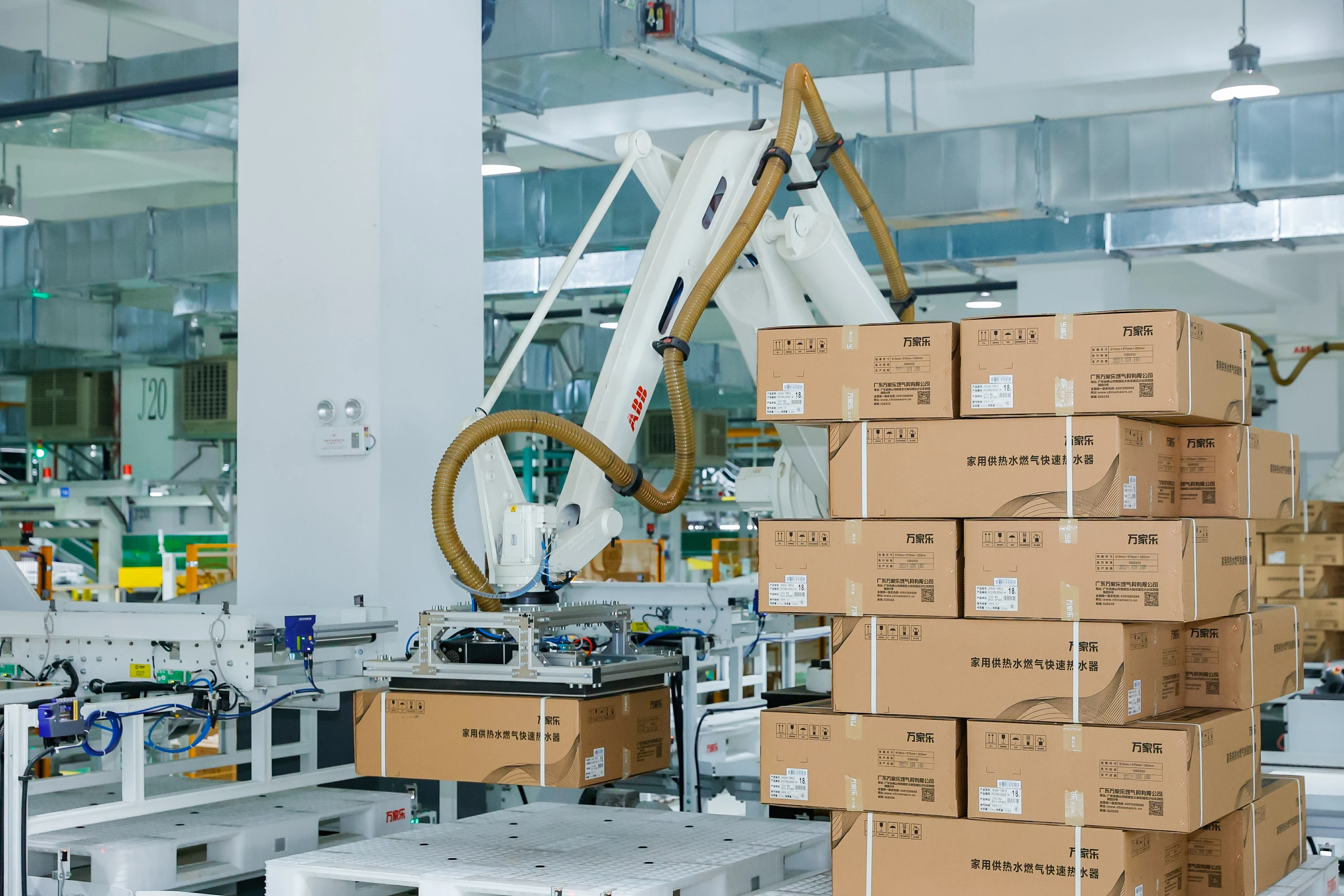

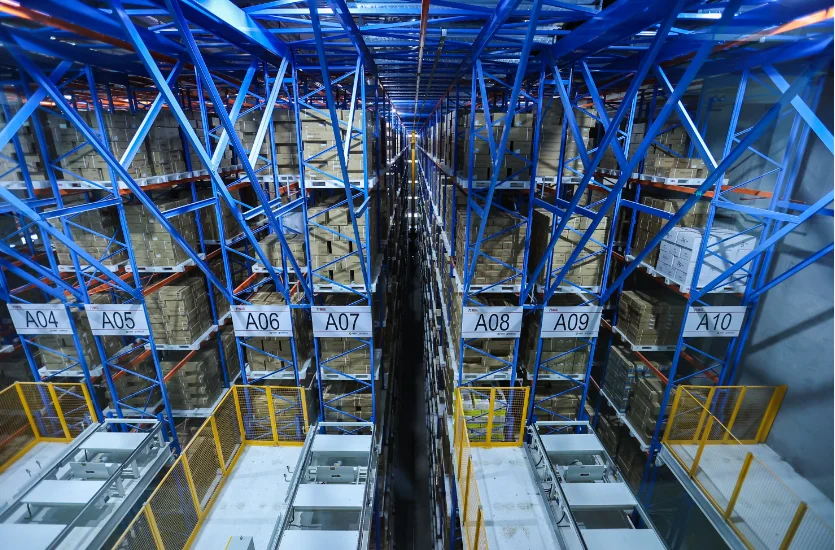

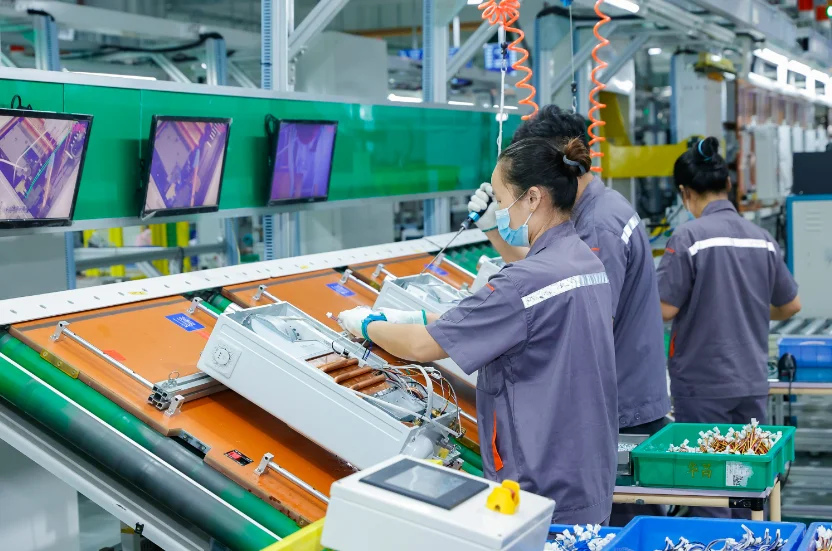

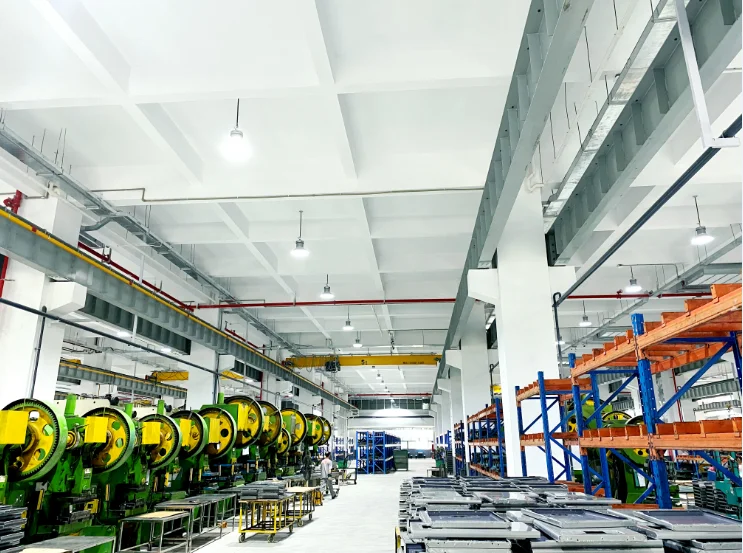

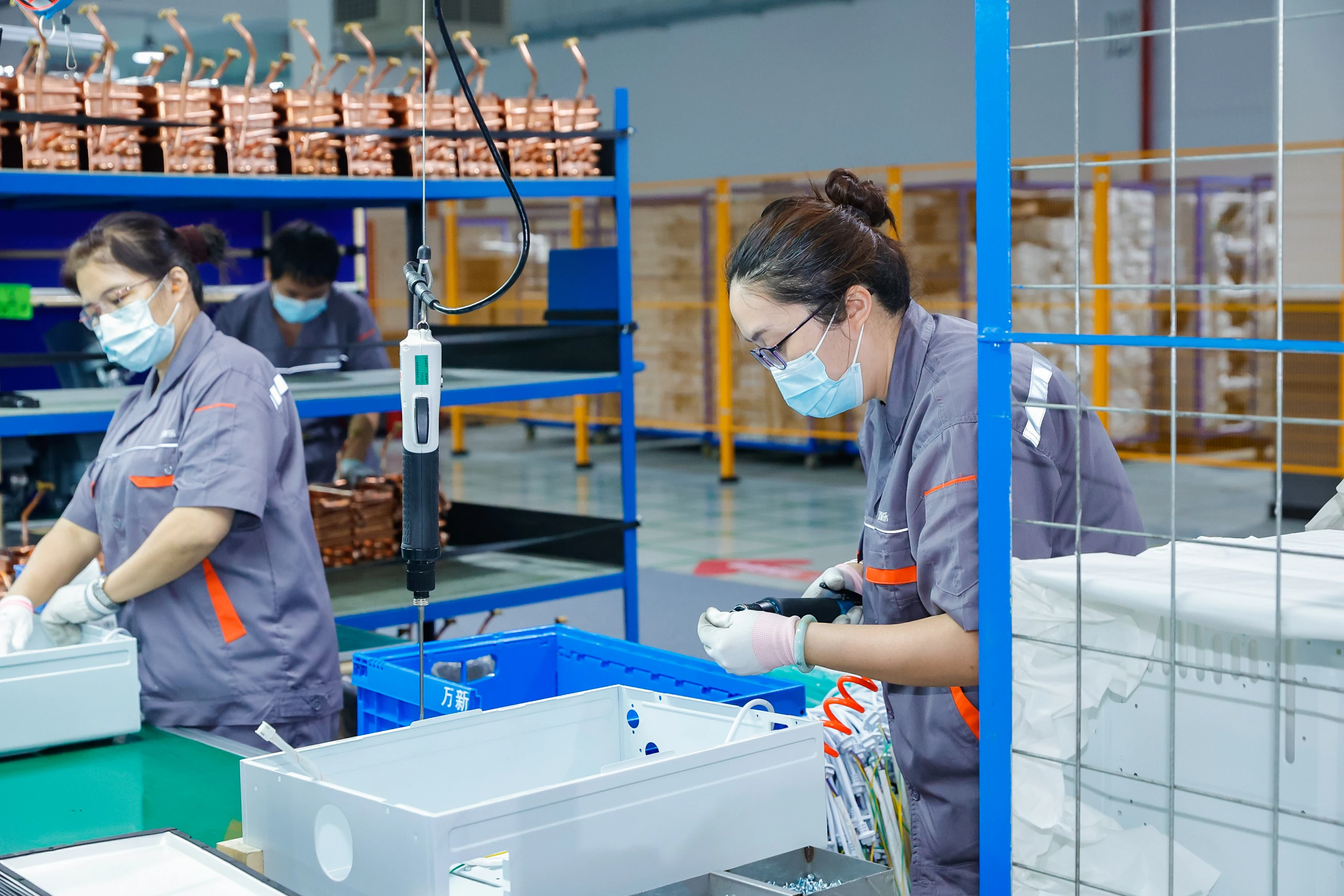

Production Ability

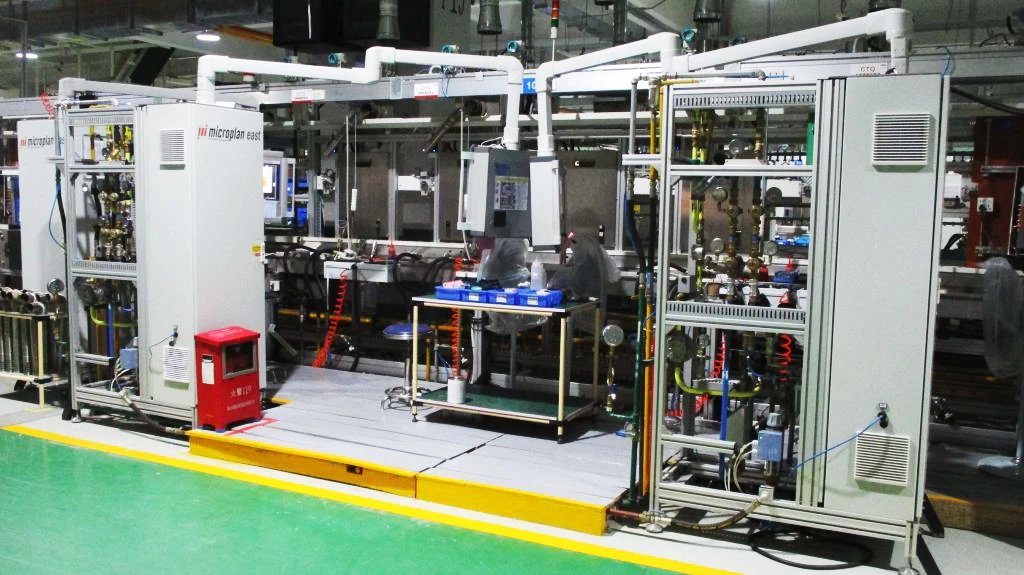

Macro imported a large amount of advanced production and testing equipments from the US, Germany and Switzerland etc. Macro new factory has established 20 automatic production lines.
Macro reaches annual production capacity of 3,000,000 of gas water heaters, 1,000,000 of gas stoves, and same volume of wall hung gas boilers.




Exhibitions
Macro takes part in International exhibitions every year. In the past few years, we have been to Milan MCE, Frankfurt ISH, Mosco Aqua-therm and so on. Macro Overseas team aims at studying marketing, do more local research, in order to provide the professional info. as much as possible.




Canton Fair Twice Per Year Bogota Expo Construction Malaysia-China Trade Expo Algiers Batimatec Expo


Certifications




FAQ


Q1. Are you a manufacture or trading company?
A1: We are both manufacture and trading company. Macro is the TOP 10 supplier in China Gas Appliance Industry.

Q2: What's the term of the delivery?
A2: Mostly, we adopt FOB NANSHA PORT. If you choose EXW, CIF, CFR, etc., it will be no problem for us.

Q3: What's the lead time?
A3: Normally is 30 days after deposit. Same as the sample.

Q4: What is the MOQ?
A4: 1 Piece is available for charged sample. For mass production, the MOQ is 1*20'GP container of each model. Detailed QTY depends on the packing dimension.
